Mitsubishi Eclipse Cross specifications and photos

Mitsubishi Eclipse Cross specifications are shown with trim options, key technical data, and a model photo gallery. Compare 9 configurations by engine size, power, seating, and transmission. The gallery includes 22 photos for visual reference.

Years 2017

Body type suv

Trims 9

Photos 22

Overview

Mitsubishi Eclipse Cross at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Mitsubishi Eclipse Cross page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 150-163 hp and 1499-2268 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

Power: 150-163 hp
Engine displacement: 1499-2268 cc
Transmissions: 6-speed manual, 8-speed automatic
Seating: 5 seats

Research hub

Photos, trims and specifications for Mitsubishi Eclipse Cross

This model page brings gallery images, trim comparison, and detailed technical data together for the 2017 generation.

Open photo gallery 22 images Compare trims 9 configurations View detailed specs 1499-2268 cc Explore related pages Mitsubishi and similar models

Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 150-163 hp

Engine displacement 1499-2268 cc

Seating 5 seats

Transmissions 6-speed manual, 8-speed automatic

Trim / modification	Engine	Power	Seats	Transmission
1.5 AT Intense	1499 cc	150 hp	5	-
1.5 AT Ultimate	1499 cc	150 hp	5	-
1.5 T-MIVEC (150 hp) 6-speed manual	1499 cc	150 hp	5	6-speed manual
1.5 T-MIVEC (150 hp) CVT	1499 cc	150 hp	5	-
1.5 T-MIVEC (150 HP) CVT 4x4	1499 cc	150 hp	5	-
1.5T-MIVEC (163 HP) 6-speed manual	1499 cc	163 hp	5	6-speed manual
1.5T-MIVEC (163 HP) CVT	1499 cc	163 hp	5	-
1.5T-MIVEC (163 HP) CVT 4x4	1499 cc	163 hp	5	-
2.2 DI-D (150 hp) 8-speed automatic 4x4	2268 cc	150 hp	5	8-speed automatic

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Gallery

Mitsubishi Eclipse Cross photo gallery

22 images are collected here with the main specifications and trim data for this model.

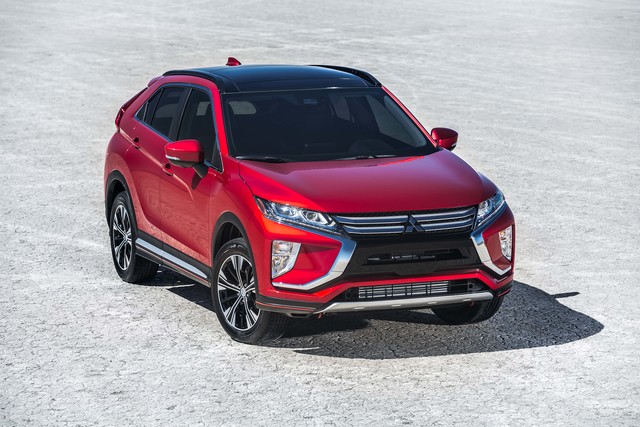

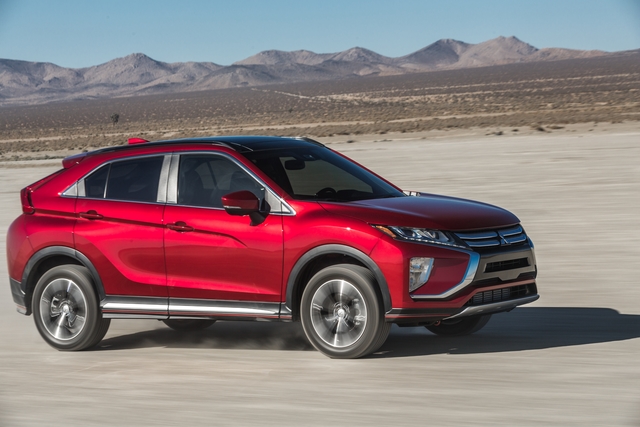

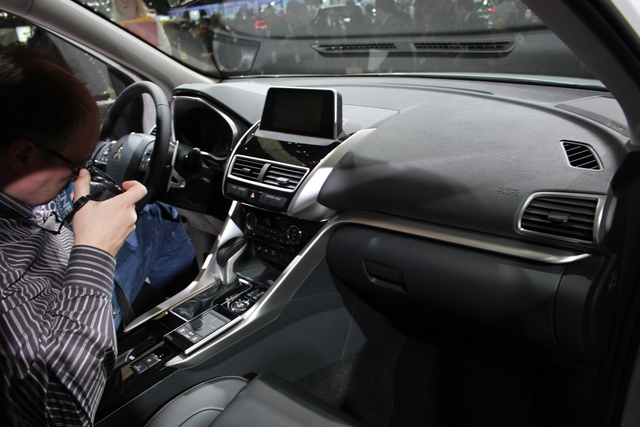

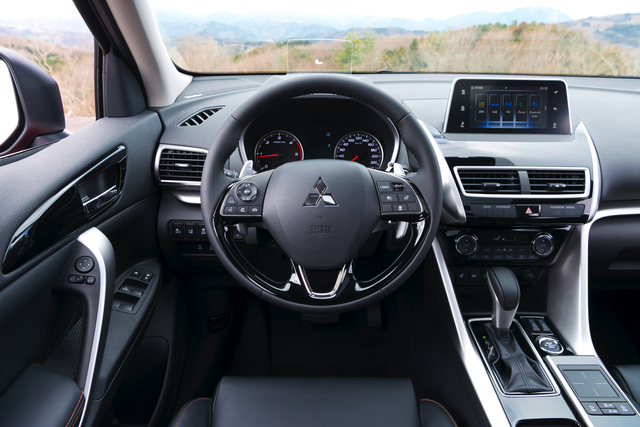

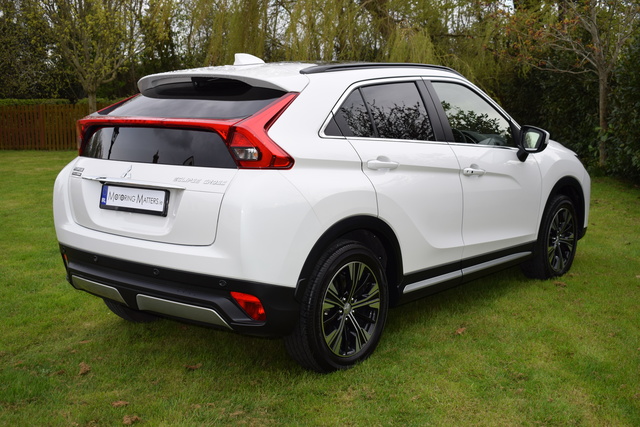

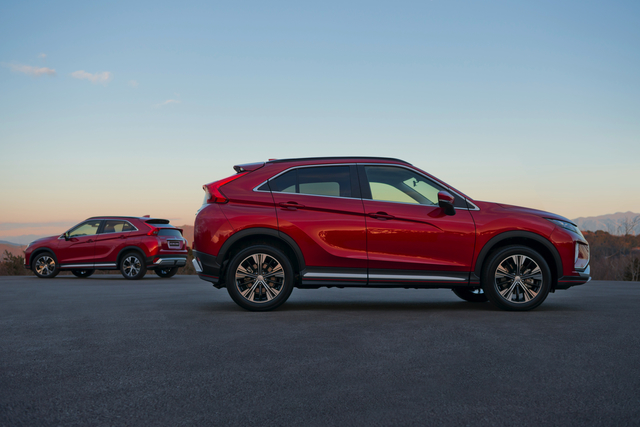

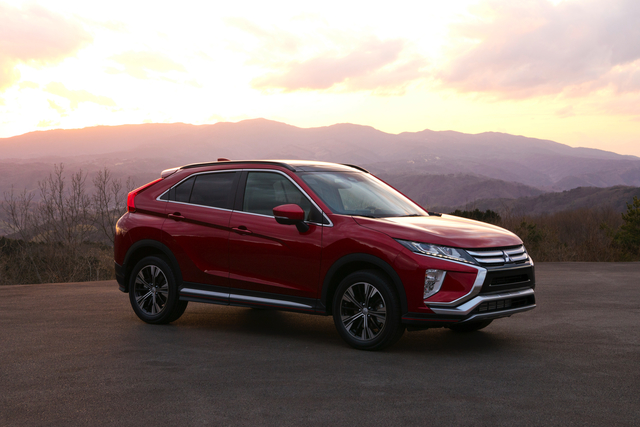

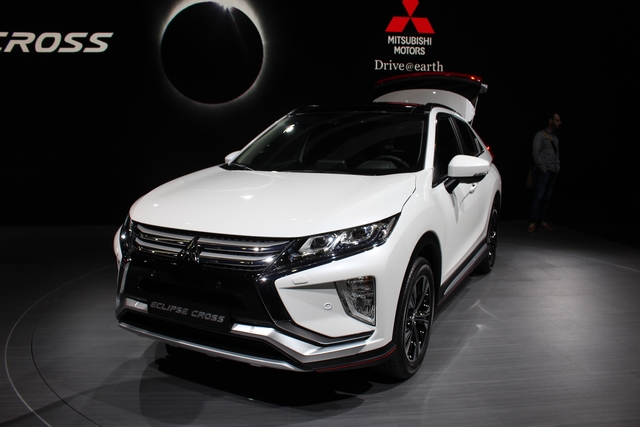

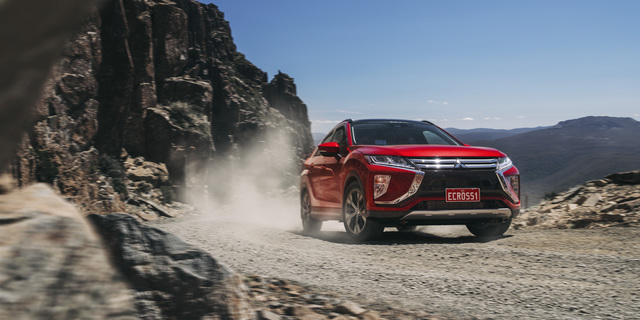

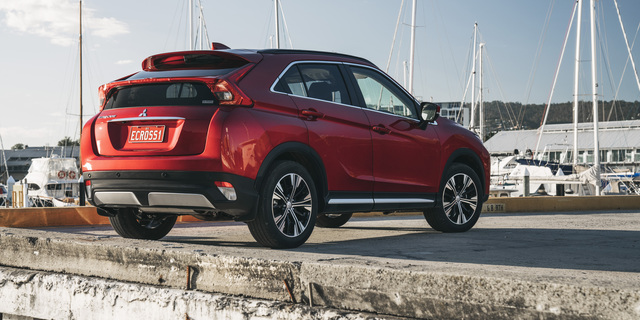

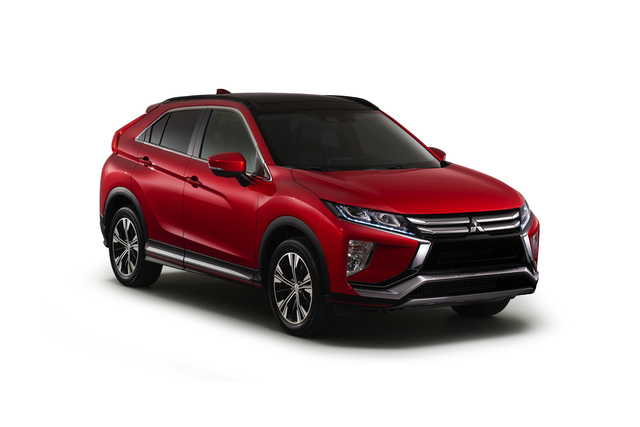

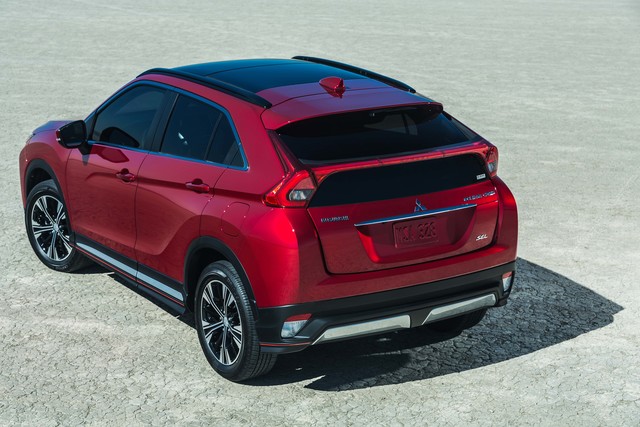

Photo Mitsubishi Eclipse Cross

Mitsubishi Eclipse Cross 2017 SUV · 1/22

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

1.5 AT Intense 1.5 AT Ultimate 1.5 T-MIVEC (150 hp) 6-speed manual 1.5 T-MIVEC (150 hp) CVT 1.5 T-MIVEC (150 HP) CVT 4x4 1.5T-MIVEC (163 HP) 6-speed manual 1.5T-MIVEC (163 HP) CVT 1.5T-MIVEC (163 HP) CVT 4x4 2.2 DI-D (150 hp) 8-speed automatic 4x4

1.5 AT Intense 92 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1499
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	150
Torque, Nm	250
RPM at max torque	2000-3500
Engine	1.5 T-MIVEC
RPM at max power	5500
Turbo	+
Engine code	4B40

Dimensions

Seats	5
Length mm	4405
Height mm	1685
Wheelbase mm	2670
Front track, mm	1545
Rear track, mm	1545
Kerb weight, kg	1490
Fuel tank, l	63
Ground clearance, mm	183
Gross weight, kg	2100
Width (without mirrors) mm	1805

Suspension

Type of front suspension	Independent, such as McPherson
Rear suspension	Independent multi-link with anti-roll bar

Brake system

The front brakes	Ventilated disc
Rear brakes	Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	9.2
Fuel consumption (urban), l. 100 km	6.2
Fuel consumption (combined), l. 100 km	7.3
Acceleration (0-100 km/h), s	11.1
The maximum speed, km / h.	195
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Drive	Front
Transmission	CVT
Gearbox	Variable speed drive
Transmission manufacturer	Jatco
Transmission country of origin	Japan

Equipment

Comfort

Cruise Control	+
Tyre pressure monitoring	+
Paddle shifters	+
System access and keyless start (Smart Entry)	+

Interior

Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.)	+
color central LCD display	+

Wheels

Disc diameter	18
Rim type	Alloy
Tires	225/55R18
Spare wheel	Full size

Cabin climate and noise insulation

2-zone automatic climate control	+
Heated front seats	+
Heated rear seats	+
Heated steering wheel	+

Glass, mirrors and sunroof

Front power windows	+
The rain sensor	+
Heated side mirrors	+
Power mirrors	+
Rear electric windows	+
Electric folding mirrors	+
Rear windshield	+

Multimedia and instruments

Steering wheel controls	+
Touch Screen	+
Bluetooth hands free	+
CD player	+
USB	+
Number of speakers	4
MP3	+

Headlights and lighting

Washers	+
corrector of headlights	+
Front fog lights	+
LED headlights	+
Light sensor	+
Rear LED lights	+

Seats

Armrest front	+

Visibility and parking

Rear View Camera	+

Off-road

aid climbing the hill (HAC; HSA; Hill Holder; HLA)	+

Exterior

Rear spoiler	+
Roof rails	+

Body and exterior paint

Door handles in body color	+
Exterior mirrors in body color	+

Security

Electronic systems

Traction Control System (Traction control, ASR)	+
The emergency braking (Brake Assist)	+
Warning system for emergency braking (ESS)	+
Vehicle Stability Control (ESP, DSC, ESC, VSC)	+

Anti-theft systems

alarm	+
Central locking with remote control	+

Airbags

Driver's airbag	+
Passenger Airbag	+
Side airbags	+
Curtain airbags	+
Cushion for driver's knee	+

1.5 AT Ultimate 98 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1499
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	150
Torque, Nm	250
RPM at max torque	2000-3500
Engine	1.5 T-MIVEC
RPM at max power	5500
Turbo	+
Engine code	4B40

Dimensions

Seats	5
Length mm	4405
Height mm	1685
Wheelbase mm	2670
Front track, mm	1545
Rear track, mm	1545
Kerb weight, kg	1560
Fuel tank, l	63
Ground clearance, mm	183
Gross weight, kg	2100
Width (without mirrors) mm	1805

Suspension

Type of front suspension	Independent, such as McPherson
Rear suspension	Independent multi-link with anti-roll bar

Brake system

The front brakes	Ventilated disc
Rear brakes	Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	9.8
Fuel consumption (urban), l. 100 km	6.5
Fuel consumption (combined), l. 100 km	7.7
Acceleration (0-100 km/h), s	11.4
The maximum speed, km / h.	195
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Drive	Full
Transmission	CVT
Gearbox	Variable speed drive
Transmission manufacturer	Jatco
Transmission country of origin	Japan

Equipment

Comfort

Tyre pressure monitoring	+
Paddle shifters	+
System access and keyless start (Smart Entry)	+
The electronic parking lever	+

Interior

Leather interior	+
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.)	+
color central LCD display	+

Wheels

Disc diameter	18
Rim type	Alloy
Tires	225/55R18
Spare wheel	Full size

Cabin climate and noise insulation

2-zone automatic climate control	+
Heated front seats	+
Heated rear seats	+
Heated steering wheel	+

Glass, mirrors and sunroof

Front power windows	+
The rain sensor	+
Heated side mirrors	+
Power mirrors	+
Rear electric windows	+
Electric folding mirrors	+
Rear windshield	+

Multimedia and instruments

Steering wheel controls	+
Subwoofer	+
Audio	Rockford;
Touch Screen	+
Bluetooth hands free	+
CD player	+
USB	+
Number of speakers	8
MP3	+
Head-up display	+

Headlights and lighting

Washers	+
corrector of headlights	+
Front fog lights	+
LED headlights	+
Light sensor	+
Rear LED lights	+

Seats

Armrest front	+

Visibility and parking

Rear View Camera	+
System of circular review AVM	+

Off-road

aid climbing the hill (HAC; HSA; Hill Holder; HLA)	+

Exterior

Rear spoiler	+
Roof rails	+

Body and exterior paint

Door handles in body color	+
Exterior mirrors in body color	+

Security

Electronic systems

Traction Control System (Traction control, ASR)	+
The emergency braking (Brake Assist)	+
Warning system for emergency braking (ESS)	+
Vehicle Stability Control (ESP, DSC, ESC, VSC)	+
Automatic hold brake ( Auto-Hold)	+

Anti-theft systems

alarm	+
Central locking with remote control	+

Airbags

Driver's airbag	+
Passenger Airbag	+
Side airbags	+
Curtain airbags	+
Cushion for driver's knee	+

1.5 T-MIVEC (150 hp) 6-speed manual 34 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1499
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	150
Torque, Nm	250
RPM at max torque	2000-3500
Engine	1.5 T-MIVEC
RPM at max power	5500
Turbo	+
Engine code	4B40

Dimensions

Seats	5
Length mm	4405
Width	2166
Height mm	1685
Wheelbase mm	2670
Front track, mm	1545
Rear track, mm	1545
Trunk capacity, L	355
Fuel tank, l	60
Ground clearance, mm	183
Width (without mirrors) mm	1805

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	8.8
Fuel consumption (urban), l. 100 km	5.8
Fuel consumption (combined), l. 100 km	6.9
Acceleration (0-100 km/h), s	10.3
The maximum speed, km / h.	200
The rate of toxicity	Euro VI

Transmission and drive

Number of gears	6
Drive	Front
Transmission	6-speed manual
Gearbox	Mechanics

1.5 T-MIVEC (150 hp) CVT 36 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1499
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	150
Torque, Nm	250
RPM at max torque	2000-3500
Engine	1.5 T-MIVEC
RPM at max power	5500
Turbo	+
Engine code	4B40

Dimensions

Seats	5
Length mm	4405
Width	2166
Height mm	1685
Wheelbase mm	2670
Front track, mm	1545
Rear track, mm	1545
Trunk capacity, L	355
Fuel tank, l	60
Ground clearance, mm	183
Width (without mirrors) mm	1805

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	9.2
Fuel consumption (urban), l. 100 km	6.2
Fuel consumption (combined), l. 100 km	7.3
Acceleration (0-100 km/h), s	11.1
The maximum speed, km / h.	195
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Drive	Front
Transmission	CVT
Gearbox	Variable speed drive
Transmission manufacturer	Jatco
Transmission country of origin	Japan

1.5 T-MIVEC (150 HP) CVT 4x4 36 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1499
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	150
Torque, Nm	250
RPM at max torque	2000-3500
Engine	1.5 T-MIVEC
RPM at max power	5500
Turbo	+
Engine code	4B40

Dimensions

Seats	5
Length mm	4405
Width	2166
Height mm	1685
Wheelbase mm	2670
Front track, mm	1545
Rear track, mm	1545
Trunk capacity, L	355
Fuel tank, l	60
Ground clearance, mm	183
Width (without mirrors) mm	1805

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	9.8
Fuel consumption (urban), l. 100 km	6.5
Fuel consumption (combined), l. 100 km	7.7
Acceleration (0-100 km/h), s	11.4
The maximum speed, km / h.	195
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Drive	Full
Transmission	CVT
Gearbox	Variable speed drive
Transmission manufacturer	Jatco
Transmission country of origin	Japan

1.5T-MIVEC (163 HP) 6-speed manual 34 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1499
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	163
Torque, Nm	250
RPM at max torque	1800-4500
Engine	1.5T-MIVEC
RPM at max power	5500
Turbo	+
Engine code	4B40

Dimensions

Seats	5
Length mm	4405
Width	2166
Height mm	1685
Wheelbase mm	2670
Front track, mm	1545
Rear track, mm	1545
Trunk capacity, L	355
Fuel tank, l	60
Ground clearance, mm	183
Width (without mirrors) mm	1805

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	8.2
Fuel consumption (urban), l. 100 km	5.7
Fuel consumption (combined), l. 100 km	6.6
Acceleration (0-100 km/h), s	10.3
The maximum speed, km / h.	205
The rate of toxicity	Euro VI

Transmission and drive

Number of gears	6
Drive	Front
Transmission	6-speed manual
Gearbox	Mechanics

1.5T-MIVEC (163 HP) CVT 36 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1499
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	163
Torque, Nm	250
RPM at max torque	1800-4500
Engine	1.5T-MIVEC
RPM at max power	5500
Turbo	+
Engine code	4B40

Dimensions

Seats	5
Length mm	4405
Width	2166
Height mm	1685
Wheelbase mm	2670
Front track, mm	1545
Rear track, mm	1545
Trunk capacity, L	355
Fuel tank, l	60
Ground clearance, mm	183
Width (without mirrors) mm	1805

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	8.2
Fuel consumption (urban), l. 100 km	6.2
Fuel consumption (combined), l. 100 km	7
Acceleration (0-100 km/h), s	9.3
The maximum speed, km / h.	200
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Drive	Front
Transmission	CVT
Gearbox	Variable speed drive
Transmission manufacturer	Jatco
Transmission country of origin	Japan

1.5T-MIVEC (163 HP) CVT 4x4 36 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1499
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	163
Torque, Nm	250
RPM at max torque	1800-4500
Engine	1.5T-MIVEC
RPM at max power	5500
Turbo	+
Engine code	4B40

Dimensions

Seats	5
Length mm	4405
Width	2166
Height mm	1685
Wheelbase mm	2670
Front track, mm	1545
Rear track, mm	1545
Trunk capacity, L	355
Fuel tank, l	60
Ground clearance, mm	183
Width (without mirrors) mm	1805

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	8
Fuel consumption (urban), l. 100 km	6
Fuel consumption (combined), l. 100 km	6.7
Acceleration (0-100 km/h), s	9.8
The maximum speed, km / h.	200
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Drive	Full
Transmission	CVT
Gearbox	Variable speed drive
Transmission manufacturer	Jatco
Transmission country of origin	Japan

2.2 DI-D (150 hp) 8-speed automatic 4x4 31 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	2268
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	150
Torque, Nm	400
RPM at max torque	2000-2250
Engine	2.2 DI-D
RPM at max power	3750
Turbo	+
Engine code	4N14

Dimensions

Seats	5
Length mm	4405
Width	2166
Height mm	1685
Wheelbase mm	2670
Front track, mm	1545
Rear track, mm	1545
Trunk capacity, L	355
Fuel tank, l	60
Ground clearance, mm	183
Width (without mirrors) mm	1805

Transmission and drive

Automatic transmission	+
Number of gears	8
Drive	Full
Transmission	8-speed automatic
Gearbox	Machine
Transmission manufacturer	Aisin
Transmission country of origin	Japan

FAQ

Mitsubishi Eclipse Cross questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Mitsubishi Eclipse Cross?

This page lists 9 trims for the Mitsubishi Eclipse Cross, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Mitsubishi Eclipse Cross?

The listed configurations show a power range of 150-163 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Mitsubishi Eclipse Cross?

The available specification data shows engine displacement from 1499-2268 cc across the trims listed on this page.

Which transmissions are listed for the Mitsubishi Eclipse Cross?

The transmission options currently shown for this model are: 6-speed manual, 8-speed automatic. Open a trim section to see the full data for a specific configuration.

Are there photos for the Mitsubishi Eclipse Cross?

Yes. The gallery includes 22 photos for the Mitsubishi Eclipse Cross, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
