Rivian R1T specifications and photos
The 2021 Rivian R1T is an all-electric, four-door pickup truck designed for utility and outdoor adventure. Built on an innovative skateboard platform, it combines off-road capability with a powerful quad-motor setup and unique storage solutions.
Rivian R1T at a glance
Quick model context before comparing photos and trim-level specifications.
First showcased as a concept in late 2018, the production 2021 Rivian R1T introduces the brand's first-generation electric truck. Positioned as an 'Electric Adventure Vehicle,' the R1T relies on a low-profile skateboard chassis that packages the electric motors, battery pack, and suspension components below the wheel height. This layout creates room for a spacious five-passenger cabin and highly creative storage areas. The R1T targets active buyers looking for traditional truck capabilities, such as a 5-ton towing limit and an 800 kg cargo payload, paired with an advanced electric powertrain. Standard height-adjustable air suspension and an electrohydraulic roll control system ensure the truck remains stable both on the highway and over rugged terrain.
- Power: 710-764 hp
- Transmissions: single-speed reduction gear
- Seating: 5 seats
Rivian R1T overview
Editorial context for design, cabin, performance, practicality, and buyer notes.
Design

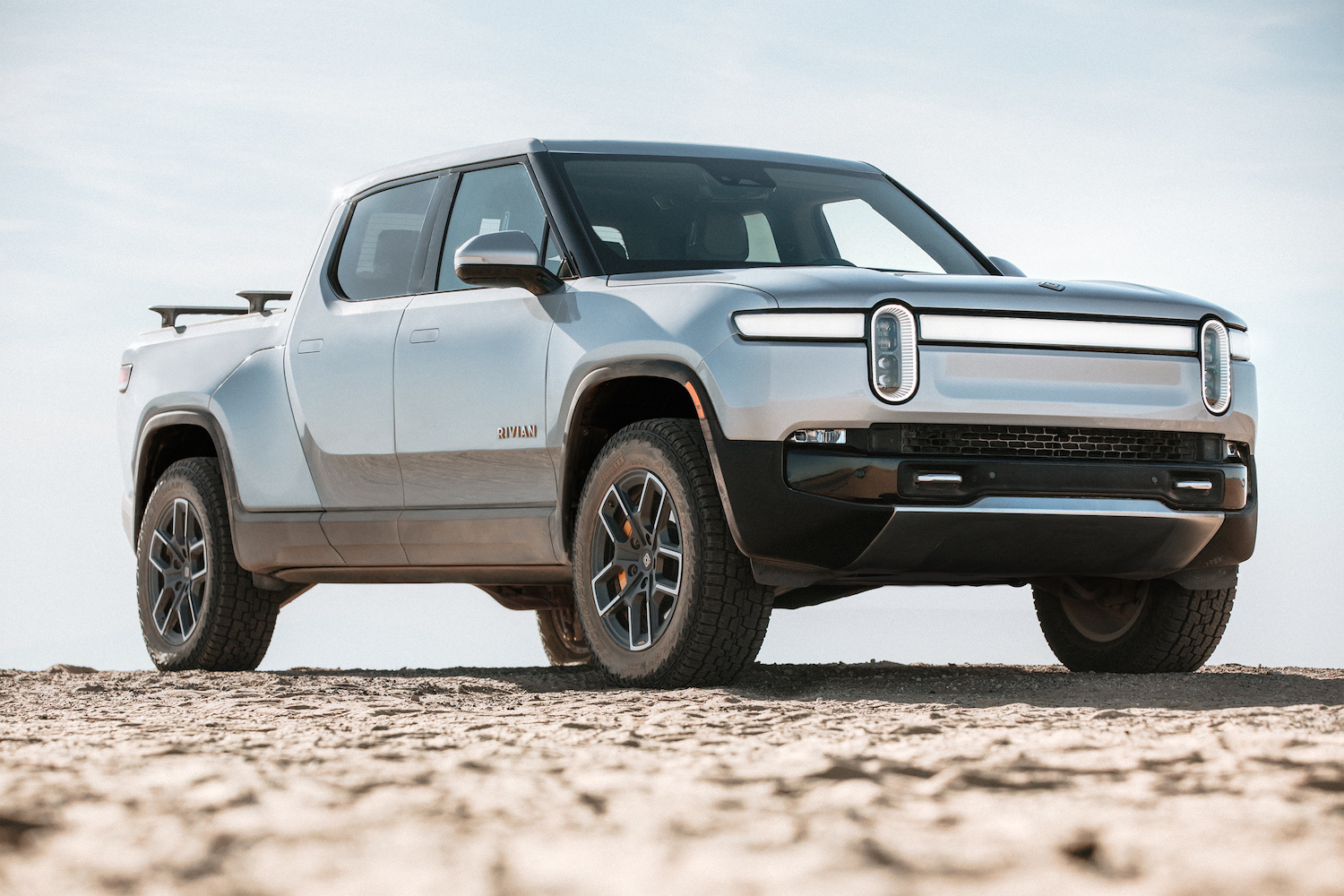

The exterior of the Rivian R1T features clean, slab-sided panels, high ground clearance, and signature full-width horizontal light bars at both ends. Its vertical, stadium-shaped headlights give the truck a distinct front-end identity. Practical cargo solutions include a 1,400 mm bed that extends to 2,100 mm with the tailgate lowered, a 330-liter front trunk under the hood, and a lockable 350-liter Gear Tunnel running transversely through the vehicle's body behind the rear seats.
Interior
Inside the cabin, the R1T features a clean, horizontal dashboard design with wood accents on premium trims and a large central armrest. Infotainment and climate systems are managed via a 15.6-inch central touchscreen, while driver information is displayed on a separate 12.3-inch instrument cluster. Depending on the configuration, premium options include a panoramic glass roof, multi-zone automatic climate control, and heated and ventilated seating for front and rear occupants.
Performance
The R1T is powered by a quad-motor all-wheel-drive system that independently manages torque at each wheel. Two battery capacities are available: a 135-kWh Large Pack offering 764 horsepower and 483 km of range, and a 180-kWh Max Pack generating 710 horsepower with up to 644 km of range. Both variants utilize a single-speed transmission, generate 1,120 Nm of torque, and can accelerate from zero to 60 mph in three seconds. The adaptive air suspension works alongside an electrohydraulic roll-control system to manage body roll without traditional physical anti-roll bars.
Practicality
With its open bed, front trunk, and Gear Tunnel, the R1T offers highly versatile storage options for gear and luggage. The truck is rated for a payload capacity of 800 kg and has a maximum towing capacity of 5 tons, making it suitable for heavy hauling. For off-road journeys, the R1T can wade through water up to one meter deep and offers an adjustable ground clearance that reaches up to 360 mm.
Safety and tech
The R1T is equipped with a comprehensive safety suite designed to support Level 3 autonomous driving assistance. This system utilizes 11 cameras, 12 ultrasonic sensors, and five radars to monitor surrounding traffic and driver attention. Standard driver-assist technologies include lane-keep assist, blind-spot monitoring, forward collision warning, and active headlights. Entertainment is supported by standard smartphone integration and an available 12-speaker Meridian sound system.
Buyer notes
Buyers choosing between R1T configurations should consider their driving range and power preferences. The Large Pack option provides slightly more horsepower, while the Max Pack is optimized for long-distance travel. The Adventure trim includes upscale comforts like ventilated seats and upgraded audio, whereas the Base trim focuses on essential utility features. Equipment availability and packages may vary depending on the local market.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| Large Pack | - | 764 hp | 5 | single-speed reduction gear |
| Max Pack | - | 710 hp | 5 | single-speed reduction gear |
| 180 kWh Adventure AWD | - | 710 hp | 5 | single-speed reduction gear |
| 180 kWh Base AWD | - | 710 hp | 5 | single-speed reduction gear |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

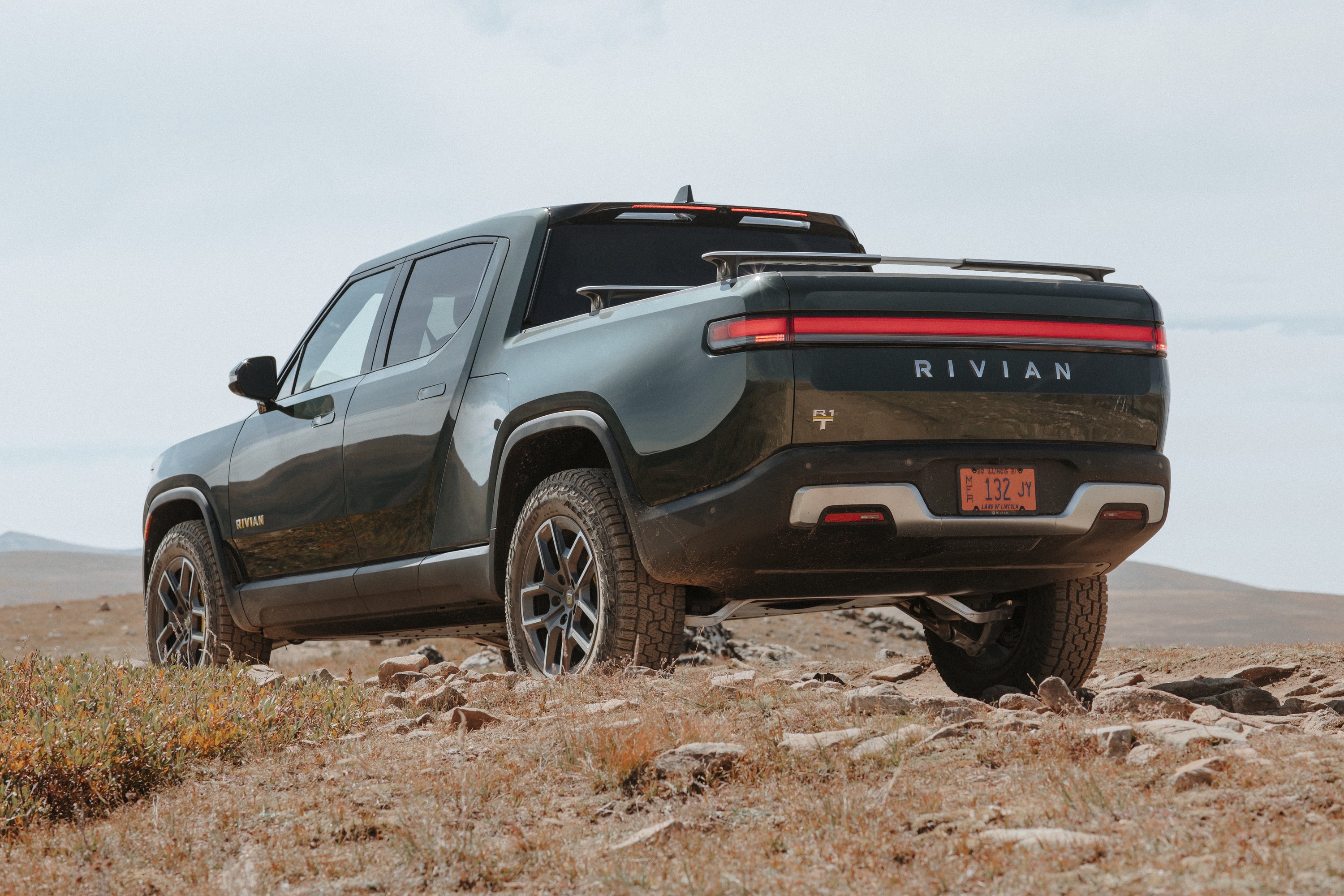

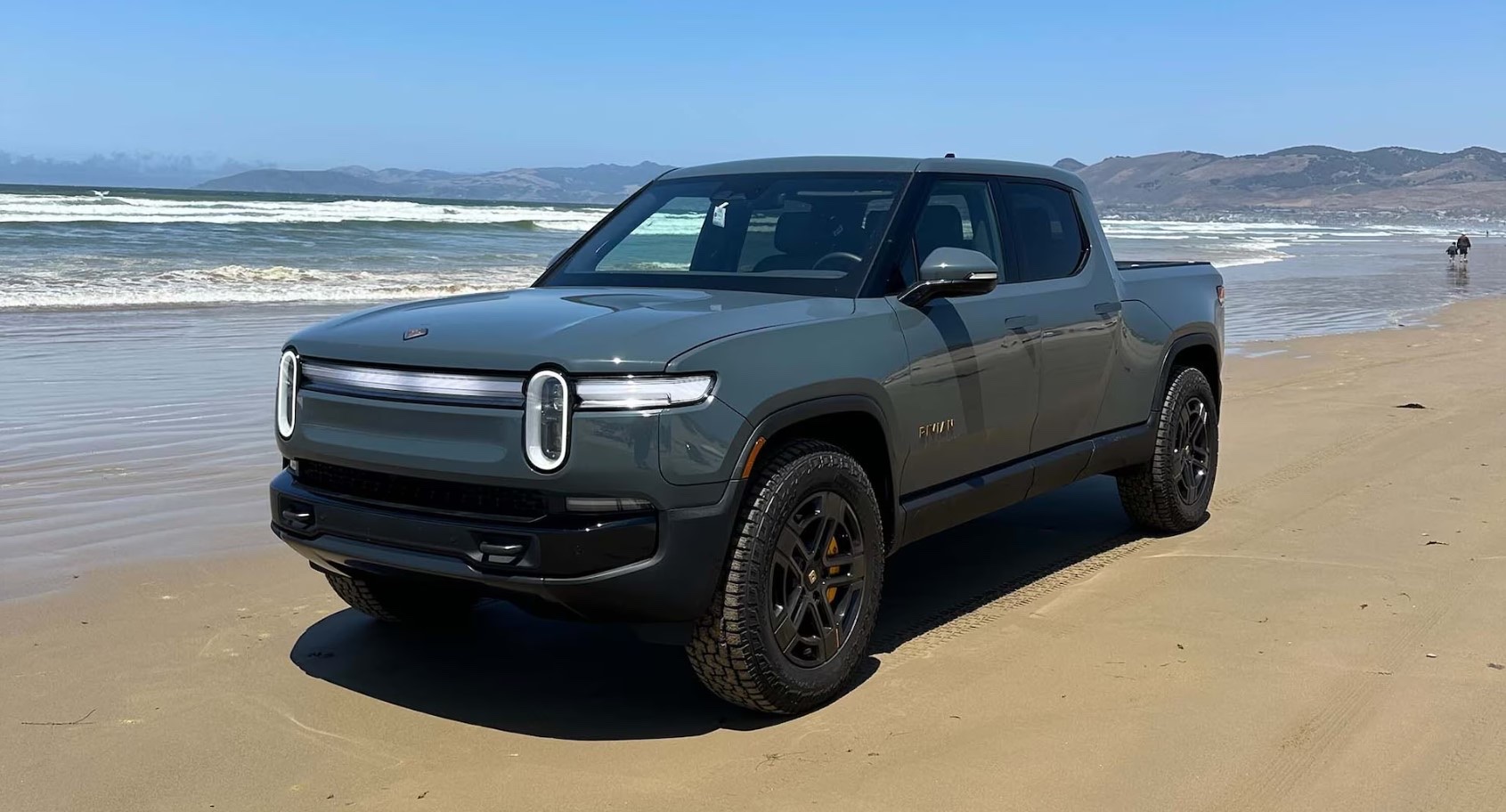

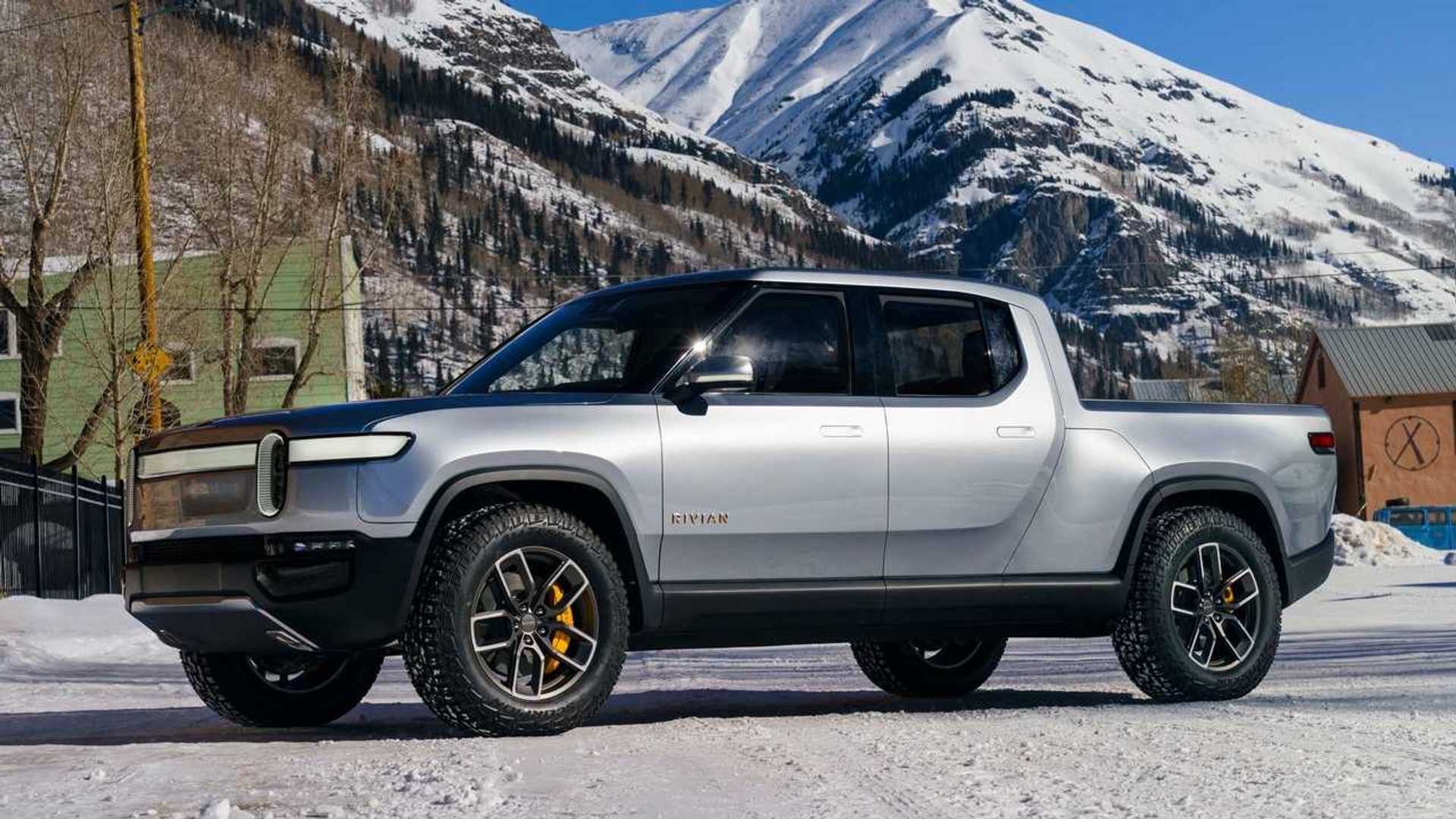

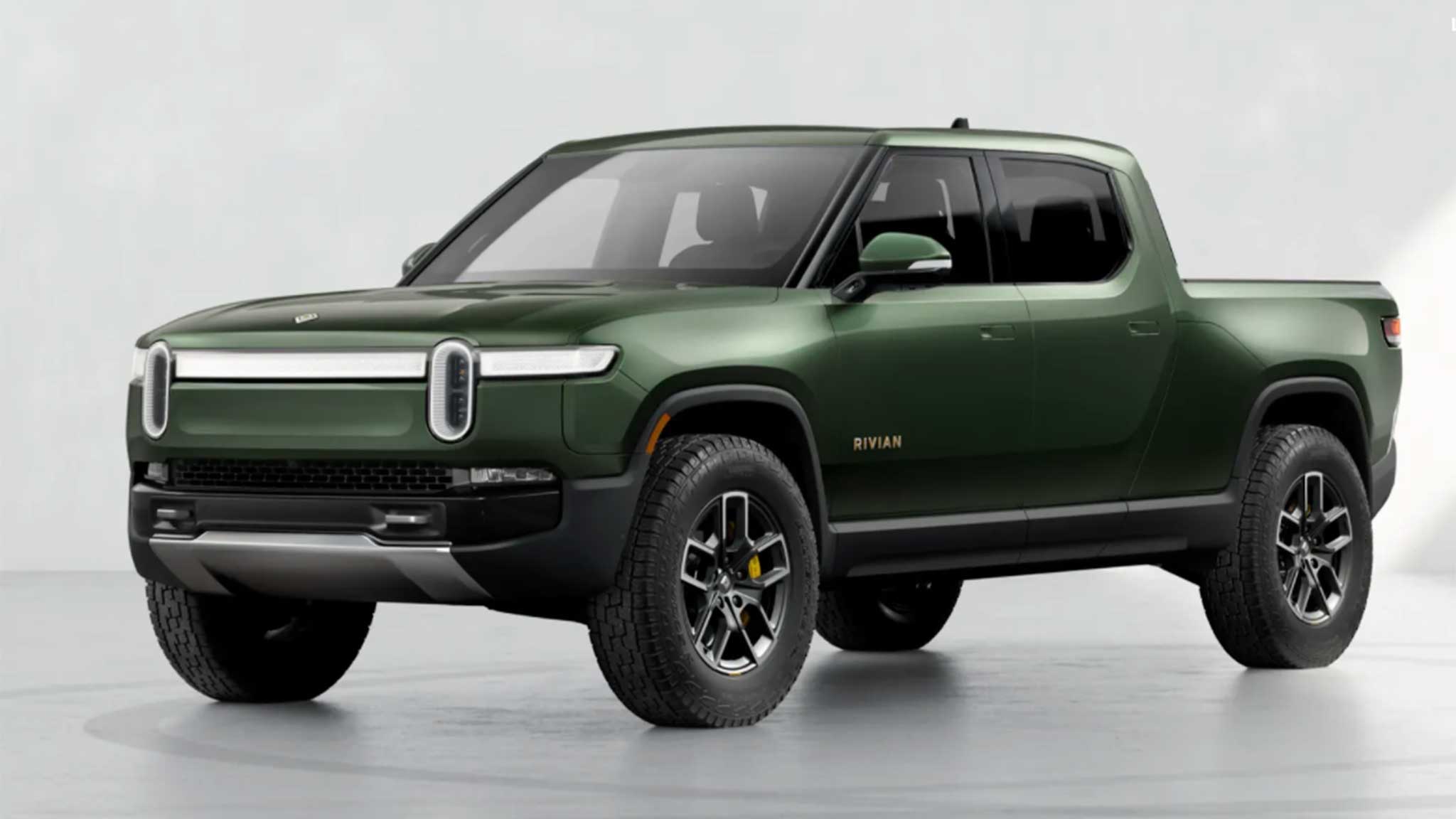

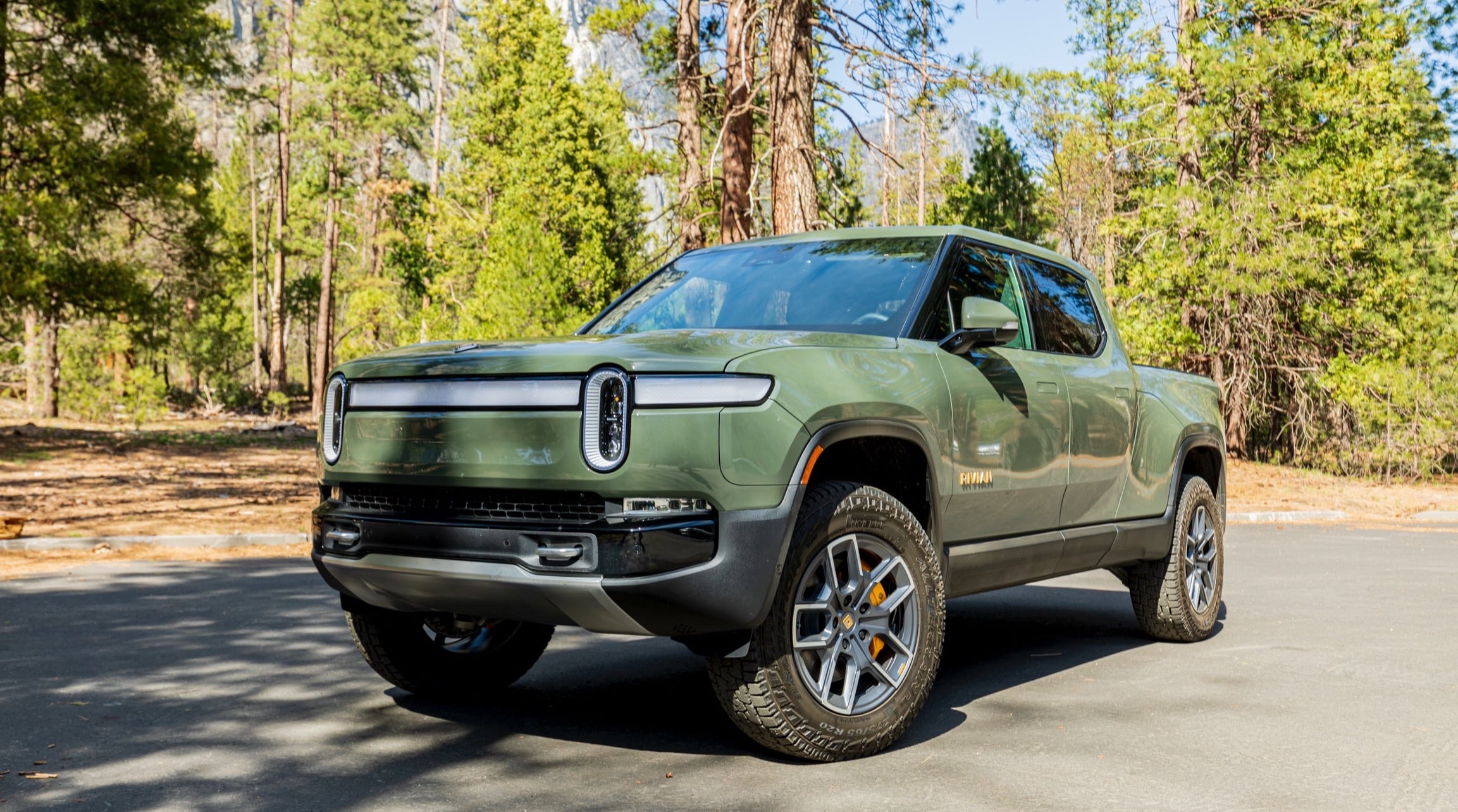

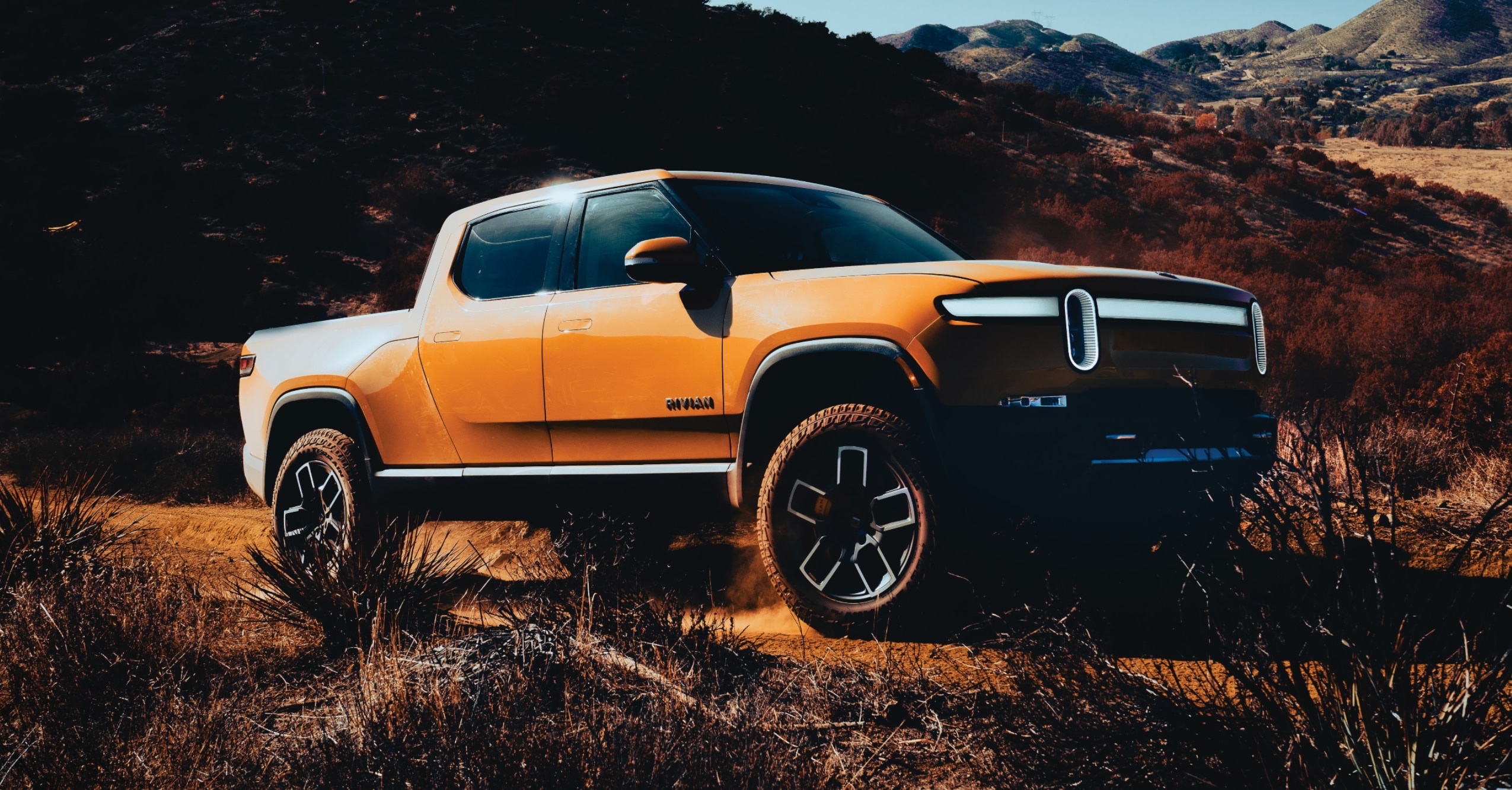

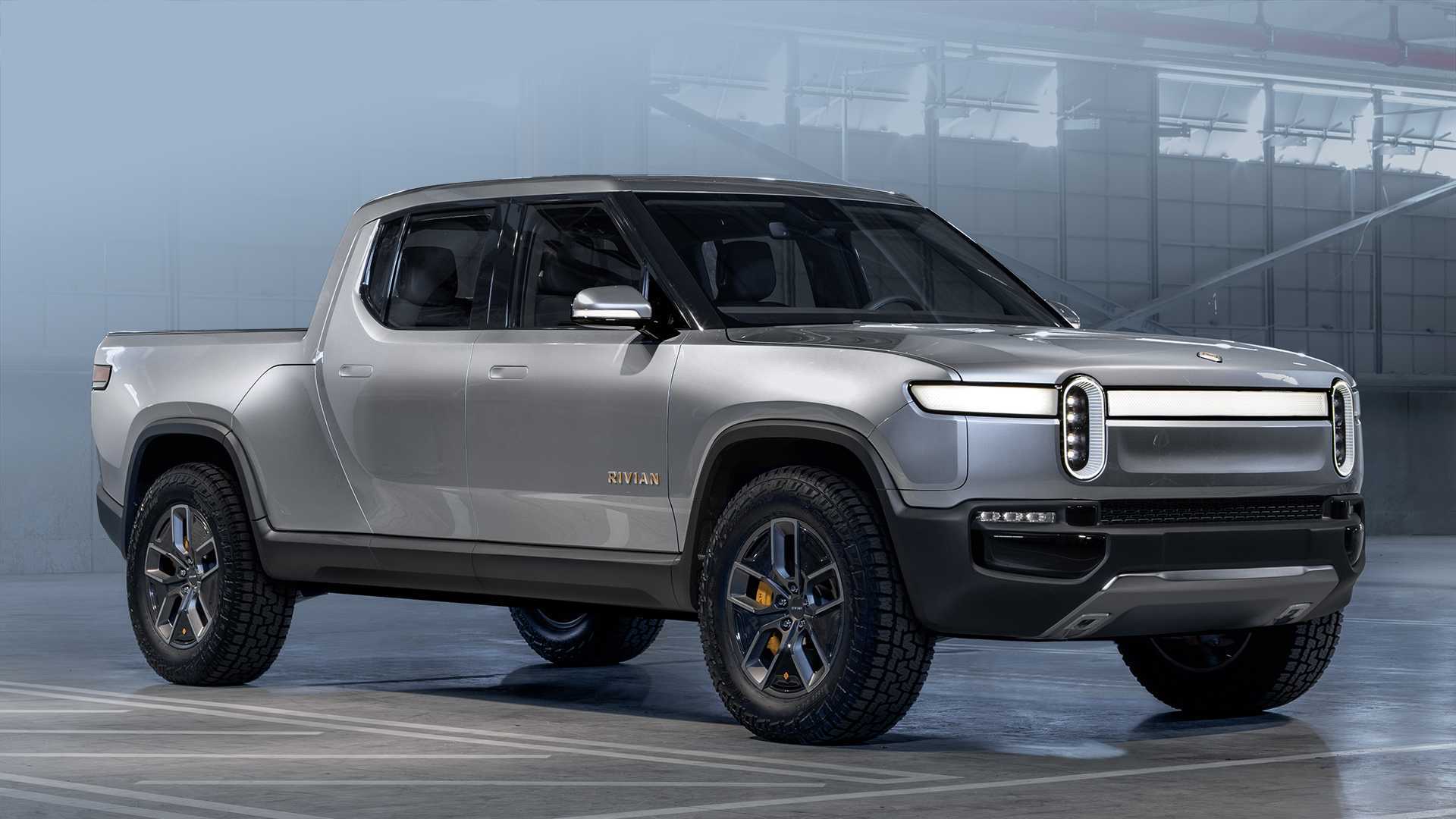

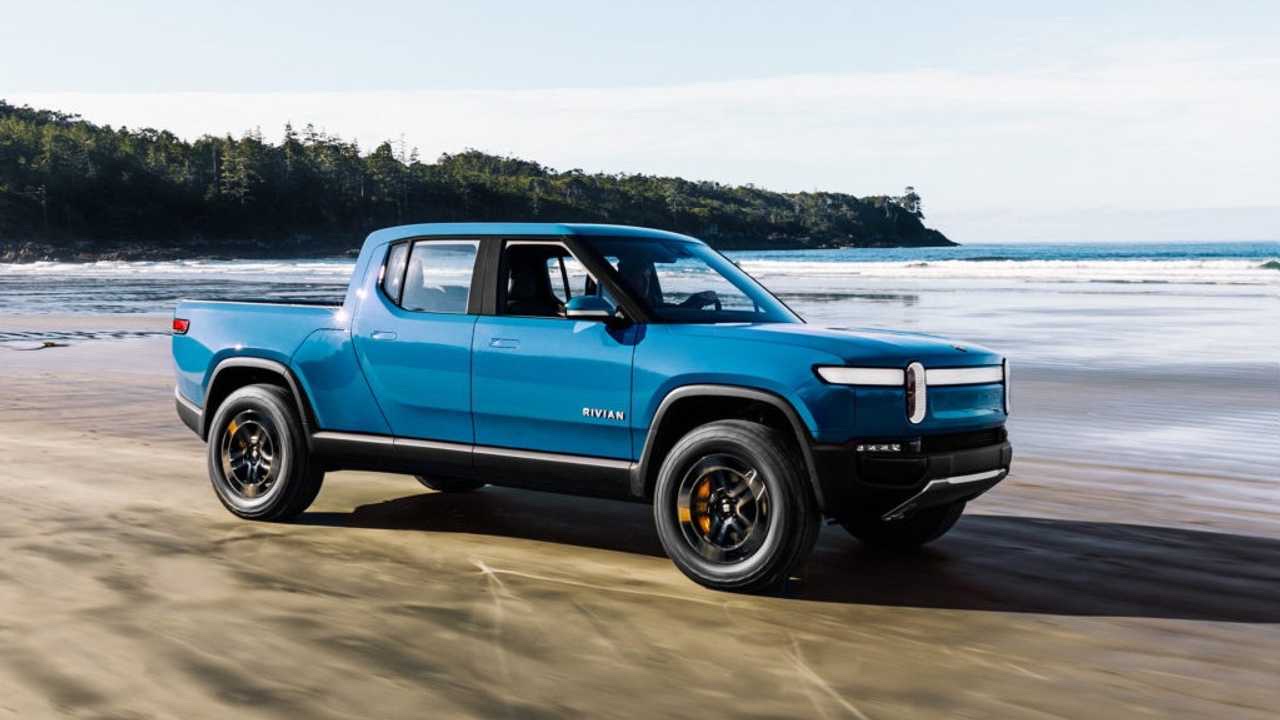

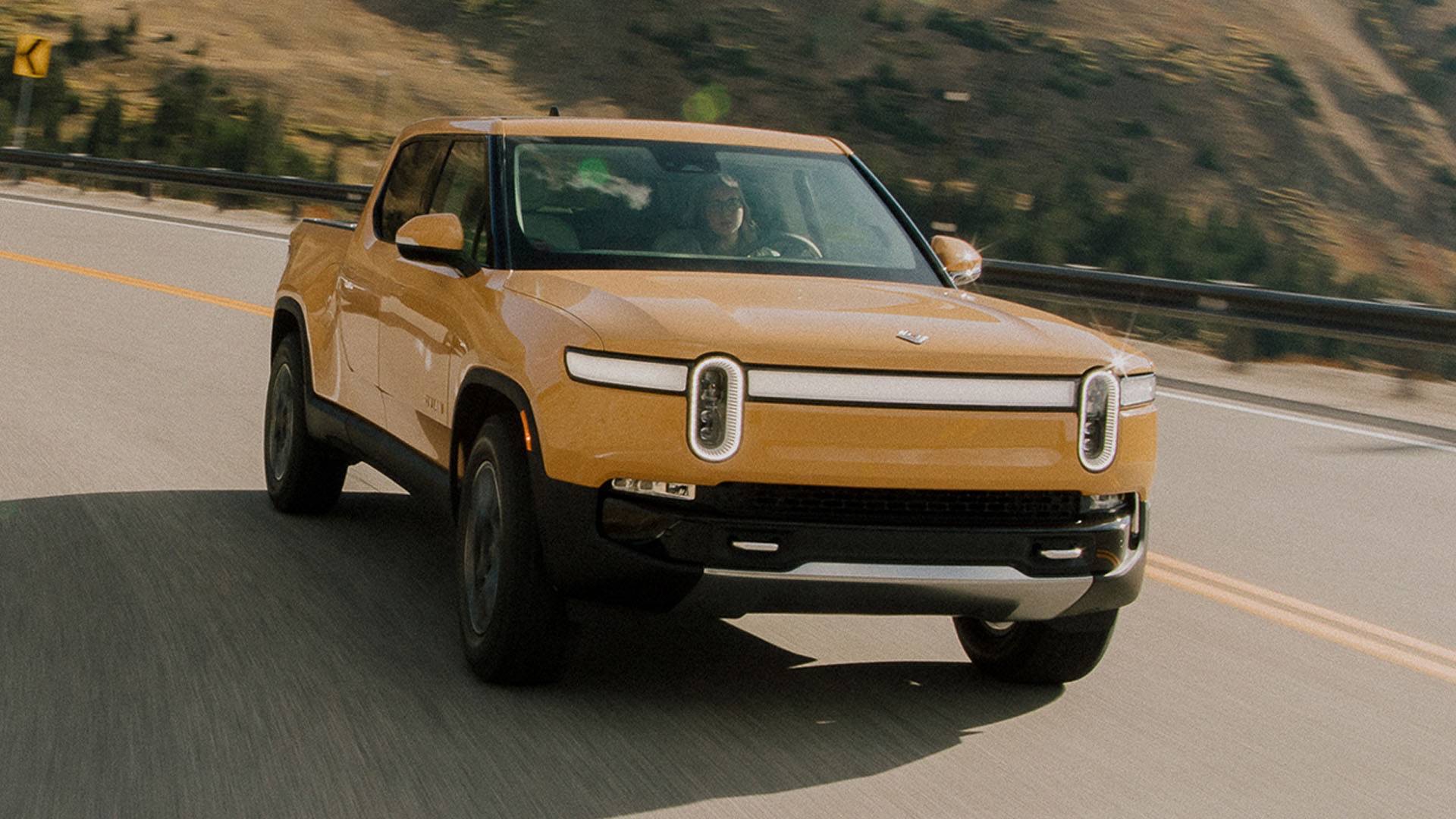

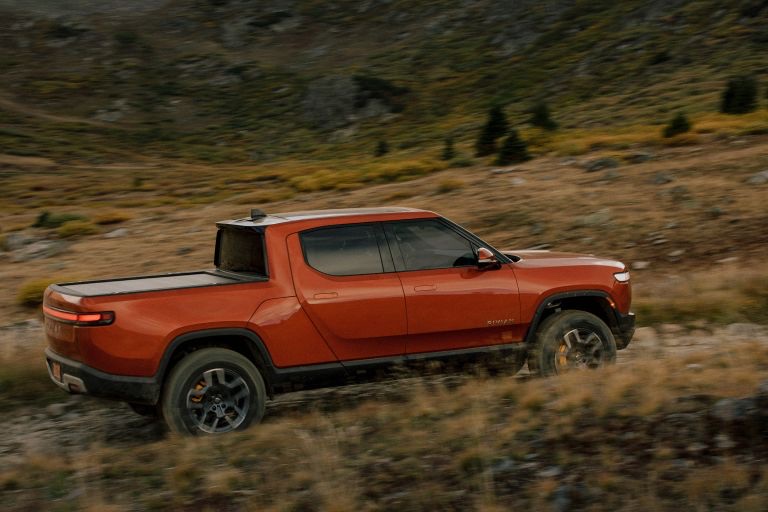

Rivian R1T photo gallery
18 images are collected here with the main specifications and trim data for this model.

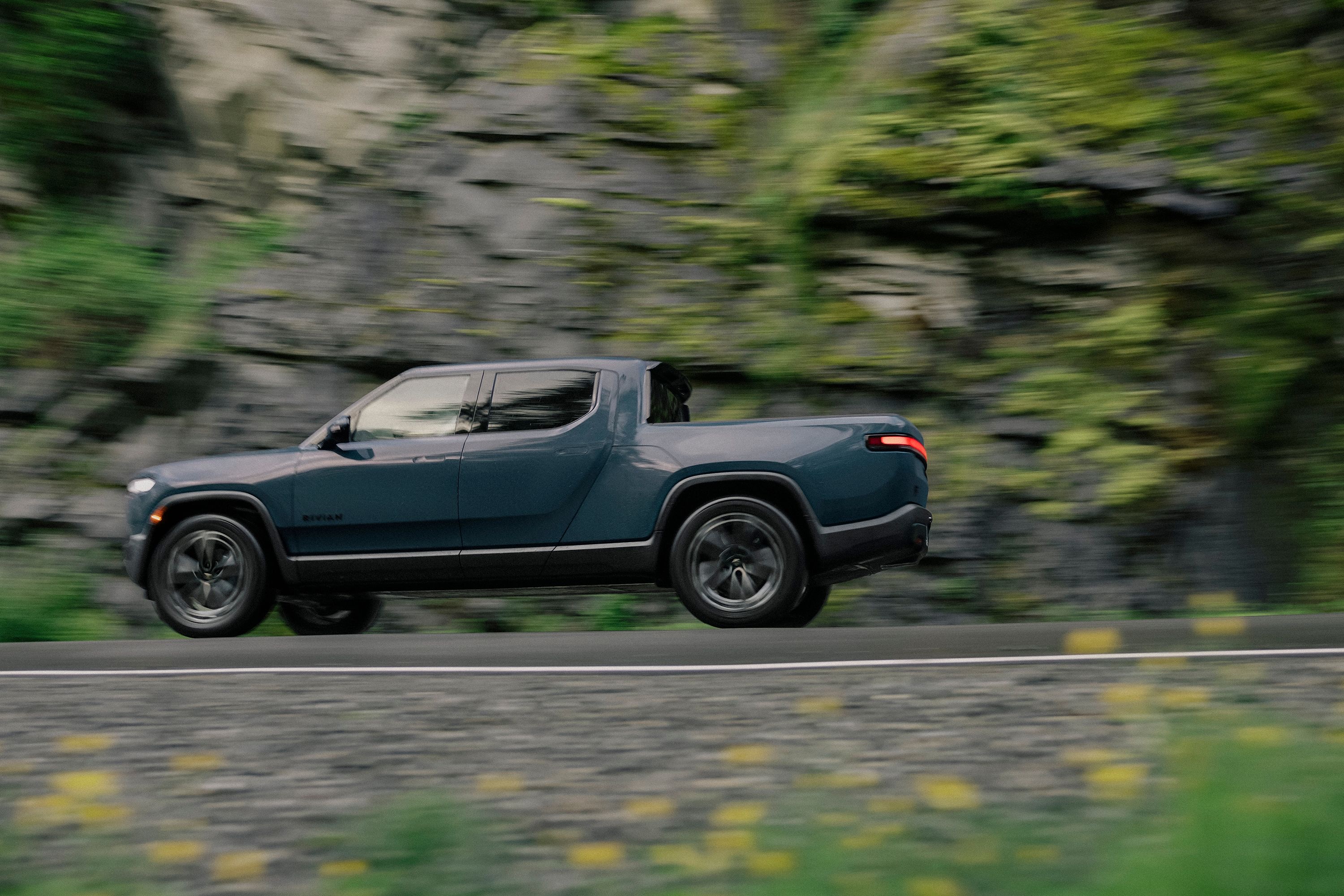

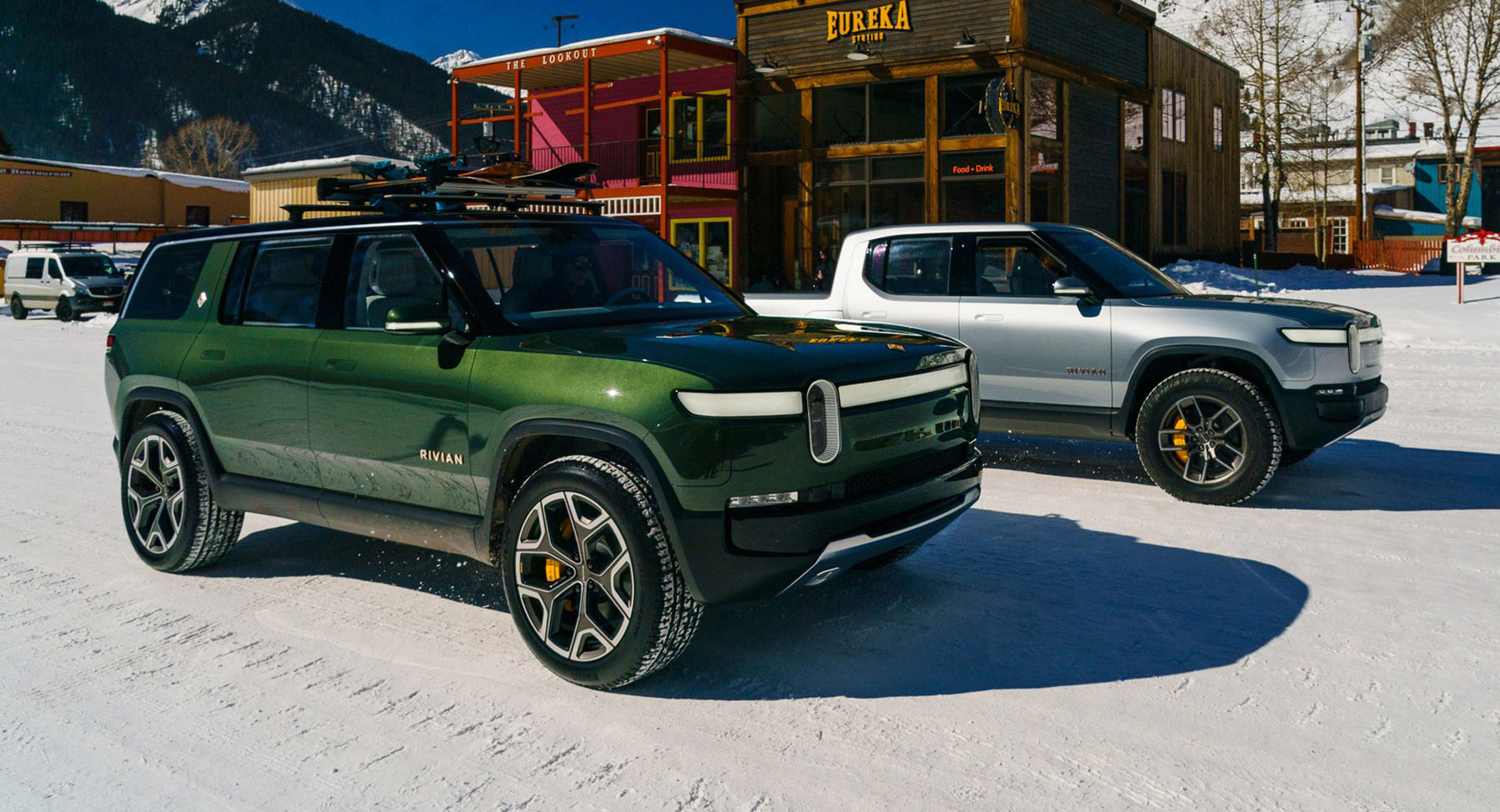

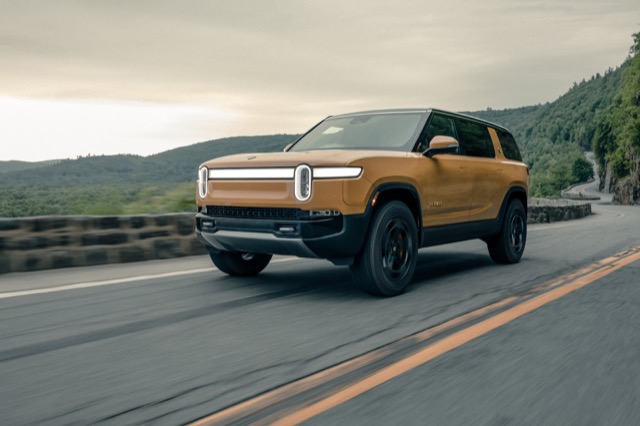

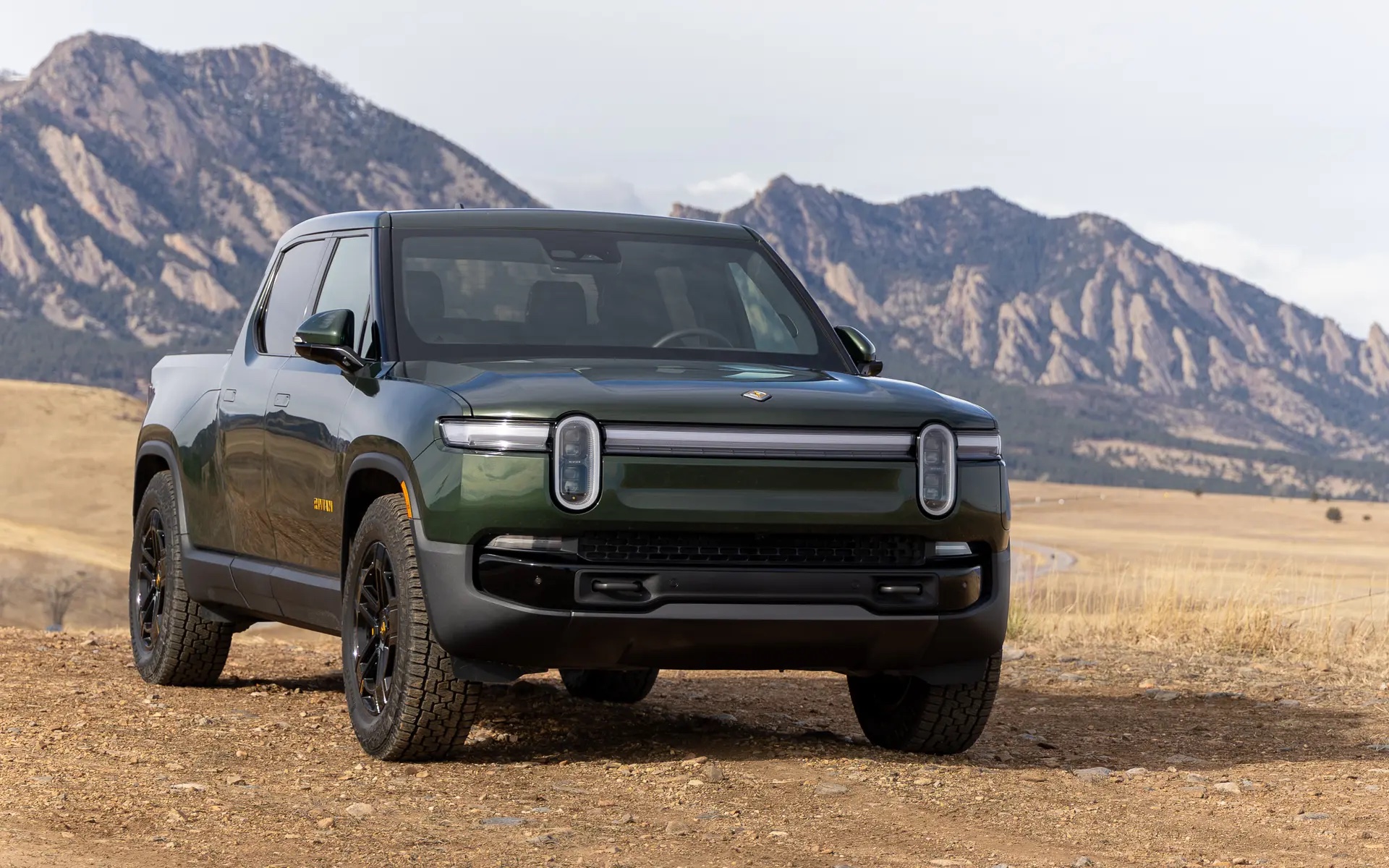

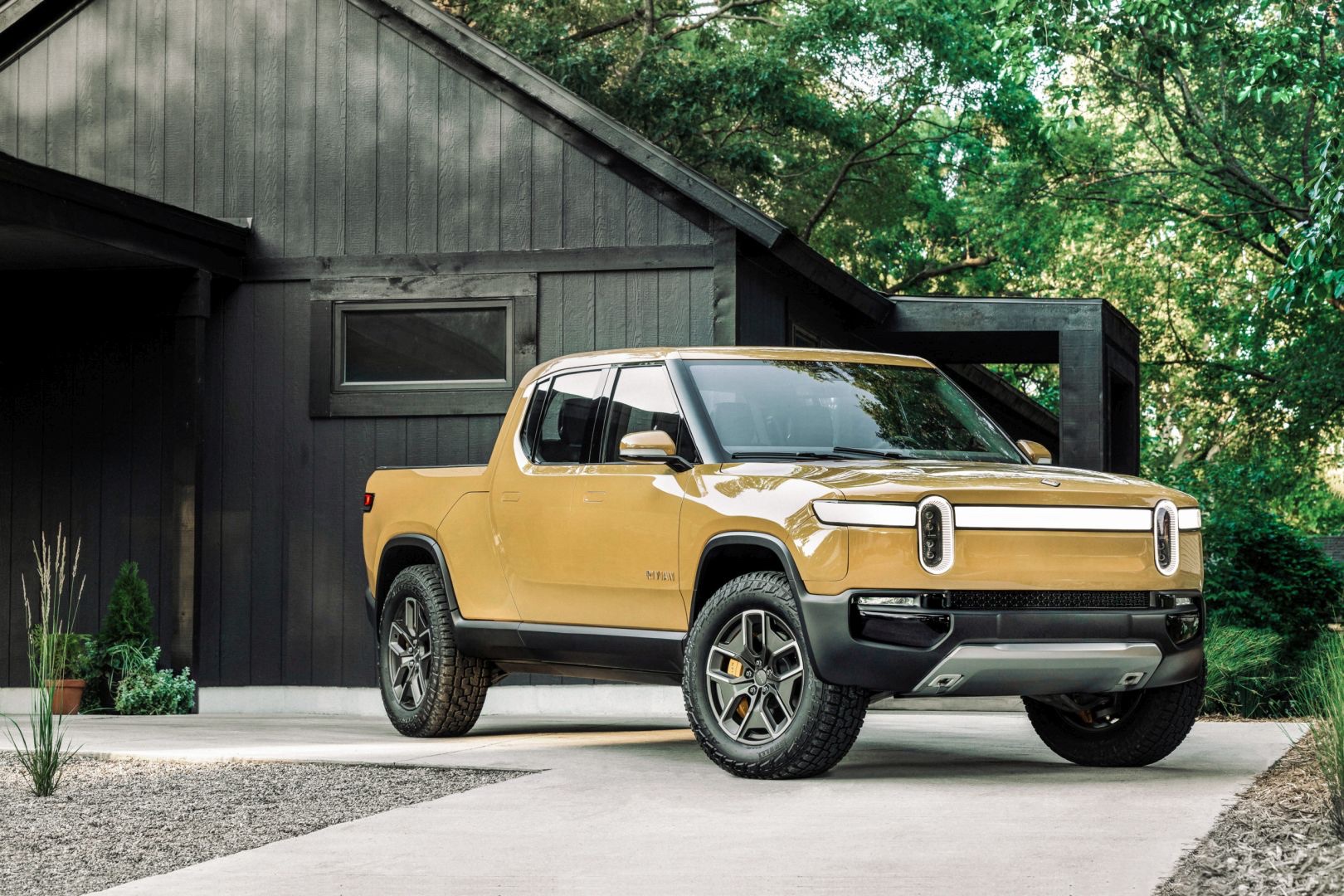

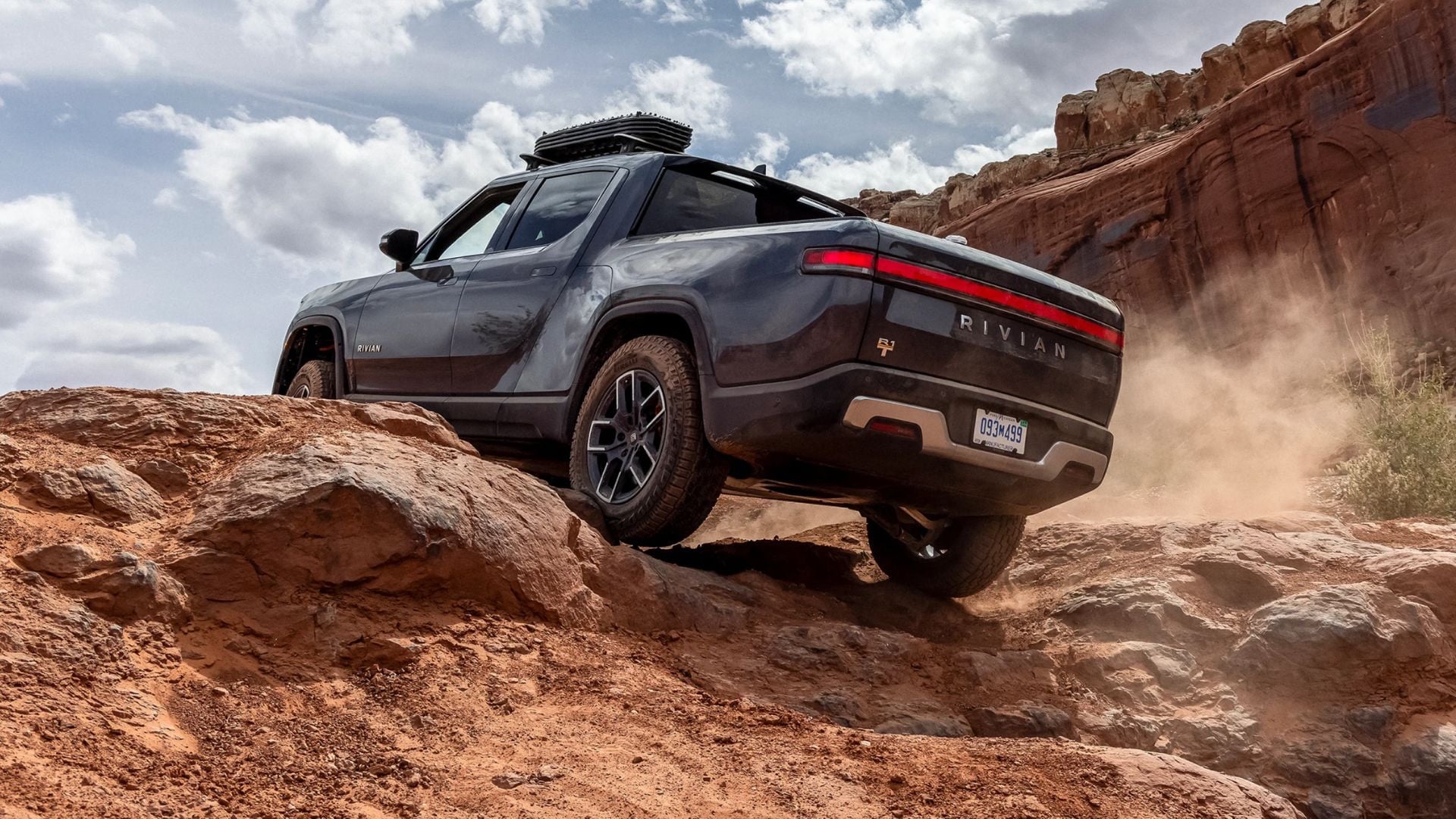

Photo Rivian R1T
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
Large Pack 25 specifications
Specifications
Performance and consumption
| Top speed, km/h | 201 |
|---|
Engine
| Engine | 135 kWh |
|---|---|
| Engine type | Electric |
| Power, hp | 764 |
| Torque, Nm | 1120 |
| Number of electric motors | 4 |
| EV mode | + |
| Plug-in charging support | + |
| Electric range, km | 483 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5475 |
| Width, mm | 2015 |
| Height, mm | 1815 |
| Wheelbase, mm | 3450 |
| Front track, mm | 1710 |
| Rear track, mm | 1710 |
| Kerb weight, kg | 2670 |
| Gross weight, kg | 3470 |
| Ground clearance, mm | 280 |
Transmission and drive
| Transmission | single-speed reduction gear |
|---|---|
| Transmission type | automated manual |
| Drive | All-wheel drive |
| Transmission manufacturer | Rivian |
| Automatic transmission | + |
| Transmission country | USA |
Max Pack 25 specifications
Specifications
Performance and consumption
| Top speed, km/h | 201 |
|---|
Engine
| Engine | 180 kWh |
|---|---|
| Engine type | Electric |
| Power, hp | 710 |
| Torque, Nm | 1120 |
| Number of electric motors | 4 |
| EV mode | + |
| Plug-in charging support | + |
| Electric range, km | 644 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5475 |
| Width, mm | 2015 |
| Height, mm | 1815 |
| Wheelbase, mm | 3450 |
| Front track, mm | 1710 |
| Rear track, mm | 1710 |
| Kerb weight, kg | 2670 |
| Gross weight, kg | 3470 |
| Ground clearance, mm | 280 |
Transmission and drive
| Transmission | single-speed reduction gear |
|---|---|
| Transmission type | automated manual |
| Drive | All-wheel drive |
| Transmission manufacturer | Rivian |
| Automatic transmission | + |
| Transmission country | USA |
180 kWh Adventure AWD 99 specifications
Specifications
Performance and consumption
| Top speed, km/h | 201 |
|---|
Engine
| Engine | 180 kWh |
|---|---|
| Engine type | Electric |
| Power, hp | 710 |
| Torque, Nm | 1120 |
| Number of electric motors | 4 |
| EV mode | + |
| Plug-in charging support | + |
| Electric range, km | 644 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5475 |
| Width, mm | 2015 |
| Height, mm | 1815 |
| Wheelbase, mm | 3450 |
| Front track, mm | 1710 |
| Rear track, mm | 1710 |
| Kerb weight, kg | 2670 |
| Gross weight, kg | 3470 |
| Ground clearance, mm | 280 |
Transmission and drive
| Transmission | single-speed reduction gear |
|---|---|
| Transmission type | automated manual |
| Drive | All-wheel drive |
| Transmission manufacturer | Rivian |
| Automatic transmission | + |
| Transmission country | USA |
Brake system
| Front brakes | Disc |
|---|---|
| Rear brakes | Disc |
Steering
| Power steering | Electric power steering |
|---|
Equipment
Exterior
| Rear spoiler | + |
|---|---|
| Roof rails | + |
| Mud flaps | + |
Comfort
| Cruise control | + |
|---|---|
| Tire pressure monitoring | + |
| Start/Stop engine button | + |
| Multifunction steering wheel | + |
| Keyless entry and start | + |
| Remote engine start | + |
| Steering wheel position memory | + |
| Adjustable steering column | + |
| Engine heater | + |
Interior
| Trip computer | + |
|---|---|
| Leather-trimmed interior elements | + |
| Wood interior trim | + |
| Color TFT display | + |
Technologies
| Adjustable speed limiter | + |
|---|
Climate and sound insulation
| Four-zone climate control | + |
|---|---|
| Heated front seats | + |
| Heated rear seats | + |
| Ventilated front seats | + |
| Heated steering wheel | + |
| Ventilated rear seats | + |
Off-road
| Hill descent control | + |
|---|---|
| Hill-start assist | + |
| Hill descent control | + |
Seats
| Power front seats | + |
|---|---|
| Child seat anchors (LATCH/Isofix) | + |
| Seat memory | + |
Headlights and lighting
| Xenon headlights | + |
|---|---|
| Front fog lights | + |
| Light sensor | + |
| Headlight leveling | + |
Multimedia and instruments
| Bluetooth hands-free | + |
|---|---|
| CD player | + |
| Navigation system | + |
| Audio system | Meridian RE-Q Horizon sound system; |
| Radio | + |
| Rear passenger TFT display | + |
| USB | + |
| Number of speakers | 12 |
| Apple CarPlay / Android Auto | + |
| DVD changer | + |
Trunk
| Power tailgate | + |
|---|
Glass, mirrors and sunroof
| Rain sensor | + |
|---|---|
| Heated side mirrors | + |
| Front power windows | + |
| Rear power windows | + |
| Panoramic roof | + |
| Power sunroof | + |
Visibility and parking
| Rear-view camera | + |
|---|---|
| Front parking sensors | + |
| Rear parking sensors | + |
| Front view camera | + |
Security
Electronic systems
| Anti-lock braking system (ABS) | + |
|---|---|
| Electronic stability control | + |
| Traction control | + |
| Dynamic stability control | + |
| Collision mitigation braking system | + |
| Adaptive front lighting system | + |
| Blind spot monitoring | + |
| Lane keeping assist | + |
| Automatic ride-height control | + |
Anti-theft systems
| Remote central locking | + |
|---|---|
| Immobilizer | + |
| Alarm system | + |
| Smart key | + |
Airbags
| Driver airbag | + |
|---|---|
| Passenger airbag | + |
| Side airbags | + |
| Curtain airbags | + |
180 kWh Base AWD 86 specifications
Specifications
Performance and consumption
| Top speed, km/h | 201 |
|---|
Engine
| Engine | 180 kWh |
|---|---|
| Engine type | Electric |
| Power, hp | 710 |
| Torque, Nm | 1120 |
| Number of electric motors | 4 |
| EV mode | + |
| Plug-in charging support | + |
| Electric range, km | 644 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5475 |
| Width, mm | 2015 |
| Height, mm | 1815 |
| Wheelbase, mm | 3450 |
| Front track, mm | 1710 |
| Rear track, mm | 1710 |
| Kerb weight, kg | 2670 |
| Gross weight, kg | 3470 |
| Ground clearance, mm | 280 |
Transmission and drive
| Transmission | single-speed reduction gear |
|---|---|
| Transmission type | automated manual |
| Drive | All-wheel drive |
| Transmission manufacturer | Rivian |
| Automatic transmission | + |
| Transmission country | USA |
Brake system
| Front brakes | Disc |
|---|---|
| Rear brakes | Disc |
Steering
| Power steering | Electric power steering |
|---|
Equipment
Exterior
| Rear spoiler | + |
|---|
Comfort
| Cruise control | + |
|---|---|
| Tire pressure monitoring | + |
| Start/Stop engine button | + |
| Multifunction steering wheel | + |
| Keyless entry and start | + |
| Remote engine start | + |
| Steering wheel position memory | + |
Interior
| Trip computer | + |
|---|---|
| Leather-trimmed interior elements | + |
| Wood interior trim | + |
Technologies
| Adjustable speed limiter | + |
|---|
Climate and sound insulation
| Heated front seats | + |
|---|---|
| Heated rear seats | + |
| Three-zone climate control | + |
Off-road
| Hill descent control | + |
|---|---|
| Hill-start assist | + |
| Hill descent control | + |
Seats
| Power front seats | + |
|---|---|
| Child seat anchors (LATCH/Isofix) | + |
| Seat memory | + |
Headlights and lighting
| Xenon headlights | + |
|---|---|
| Front fog lights | + |
| Light sensor | + |
| Headlight leveling | + |
Multimedia and instruments
| Bluetooth hands-free | + |
|---|---|
| CD player | + |
| Subwoofer | + |
| Navigation system | + |
| Radio | + |
| USB | + |
| Apple CarPlay / Android Auto | + |
Trunk
| Power tailgate | + |
|---|
Glass, mirrors and sunroof
| Rain sensor | + |
|---|---|
| Heated side mirrors | + |
| Heated rear window | + |
| Front power windows | + |
| Rear power windows | + |
| Panoramic roof | + |
| Power-adjustable side mirrors | + |
Visibility and parking
| Rear-view camera | + |
|---|---|
| Front parking sensors | + |
| Rear parking sensors | + |
| Front camera | + |
Security
Electronic systems
| Anti-lock braking system (ABS) | + |
|---|---|
| Electronic stability control | + |
| Traction control | + |
| Dynamic stability control | + |
| Collision mitigation braking system | + |
| Adaptive front lighting system | + |
| Blind spot monitoring | + |
Anti-theft systems
| Remote central locking | + |
|---|---|
| Immobilizer | + |
| Alarm system | + |
Airbags
| Driver airbag | + |
|---|---|
| Passenger airbag | + |
| Side airbags | + |
| Curtain airbags | + |
Rivian R1T questions
Short answers based on the specifications and photos available in this catalog.
What is the driving range of the 2021 Rivian R1T?
The driving range depends on the battery pack. The 135-kWh Large Pack provides a range of up to 483 km, while the 180-kWh Max Pack offers a range of up to 644 km.
How much can the Rivian R1T tow?
The 2021 Rivian R1T has a maximum towing capacity of 5 tons (5,000 kg) and a maximum payload capacity of 800 kg.
What unique storage features does the R1T offer?
Along with the rear cargo bed, the R1T includes a 330-liter front trunk under the hood and a lockable 350-liter transverse Gear Tunnel located behind the passenger cabin.
What kind of suspension does the R1T have?
The R1T comes standard with an adaptive air suspension system that adjusts height, paired with an electrohydraulic roll control system instead of passive stabilizer bars.
