Seat Ateca specifications and photos

The 2020 SEAT Ateca is a compact crossover offering both front-wheel and all-wheel drive configurations. This model represents a comprehensive mid-cycle refresh of the first generation, bringing updated styling, enhanced technology, and a revised trim lineup to the popular SUV.

Years 2020
Body type suv
Trims 12
Photos 19

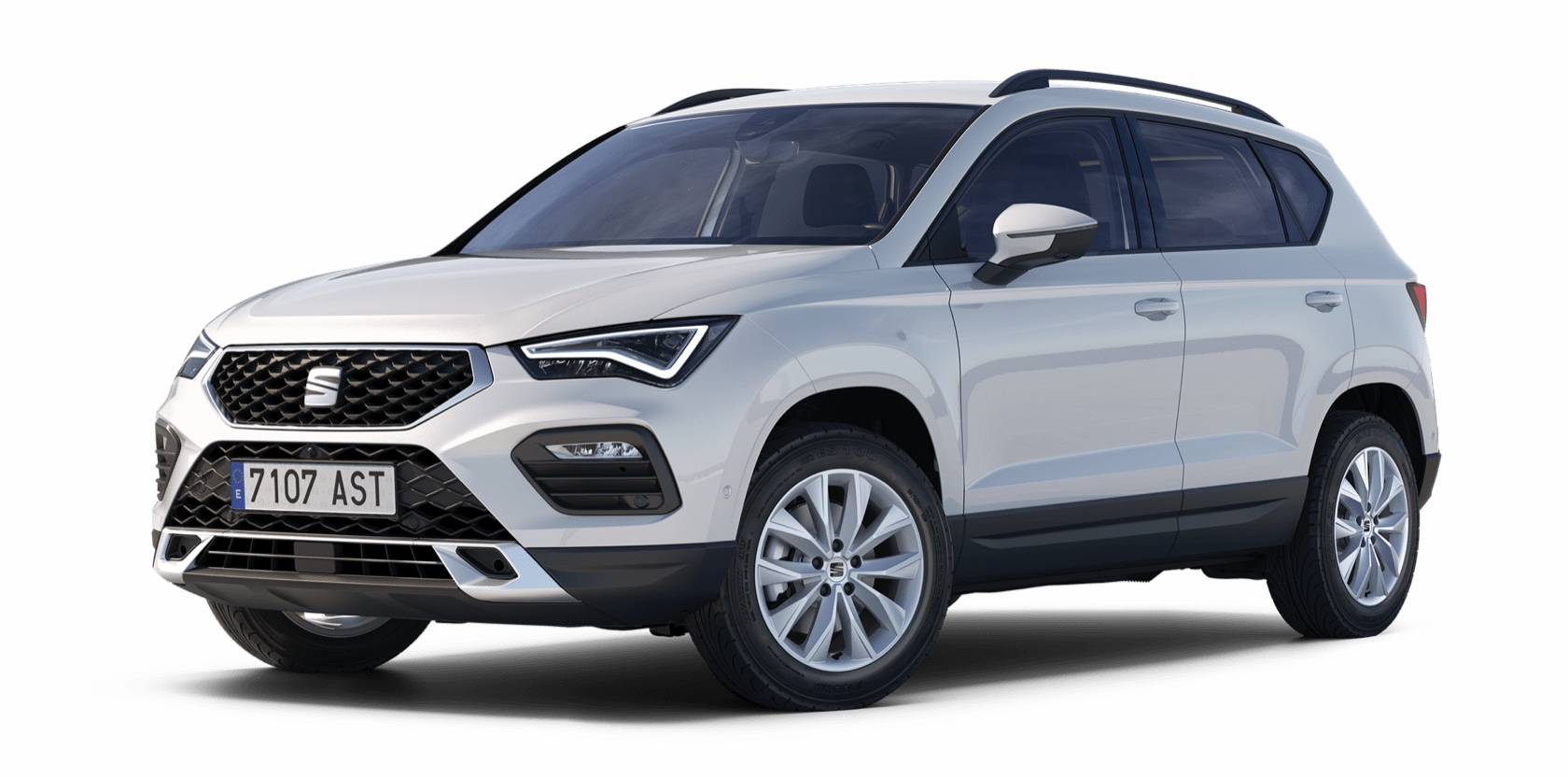

White 2020 Seat Ateca SUV viewed from the front three-quarters against a white studio background.
Overview

Seat Ateca at a glance

Quick model context before comparing photos and trim-level specifications.

Following the success of its initial launch, the 2020 restyling aligns the Ateca with SEAT's latest design language, drawing inspiration from the larger Tarraco. The crossover introduces modernized aesthetics, upgraded interior materials, and improved safety systems. Buyers can choose from distinct trims tailored to different preferences, including the sporty FR line with matte grey accents and the rugged Xperience version, which adds silver bumper trim and protective cladding. With a slight increase in overall length, the Ateca remains a versatile option for both urban commuting and weekend getaways, offering a balanced mix of performance and everyday functionality.

  • Power: 115-190 hp
  • Engine displacement: 999-1984 cc
  • Transmissions: 8-speed automatic, 6-speed manual, 7-speed dual-clutch
  • Seating: 5 seats
Research hub

Photos, trims and specifications for Seat Ateca

This model page brings gallery images, trim comparison, and detailed technical data together for the 2020 generation.

Open photo gallery 19 images Compare trims 12 configurations View detailed specs 999-1984 cc Explore related pages Seat and similar models
Running costs

Estimate fuel cost

Use trim-level fuel consumption data to estimate monthly and yearly fuel spending.

Cost per 100 km -
Monthly cost -
Yearly cost -

Fuel costs are estimates. Real consumption can change with driving style, traffic, tires, weather, load, and market-specific equipment.

Model guide

Seat Ateca overview

Editorial context for design, cabin, performance, practicality, and buyer notes.

Design

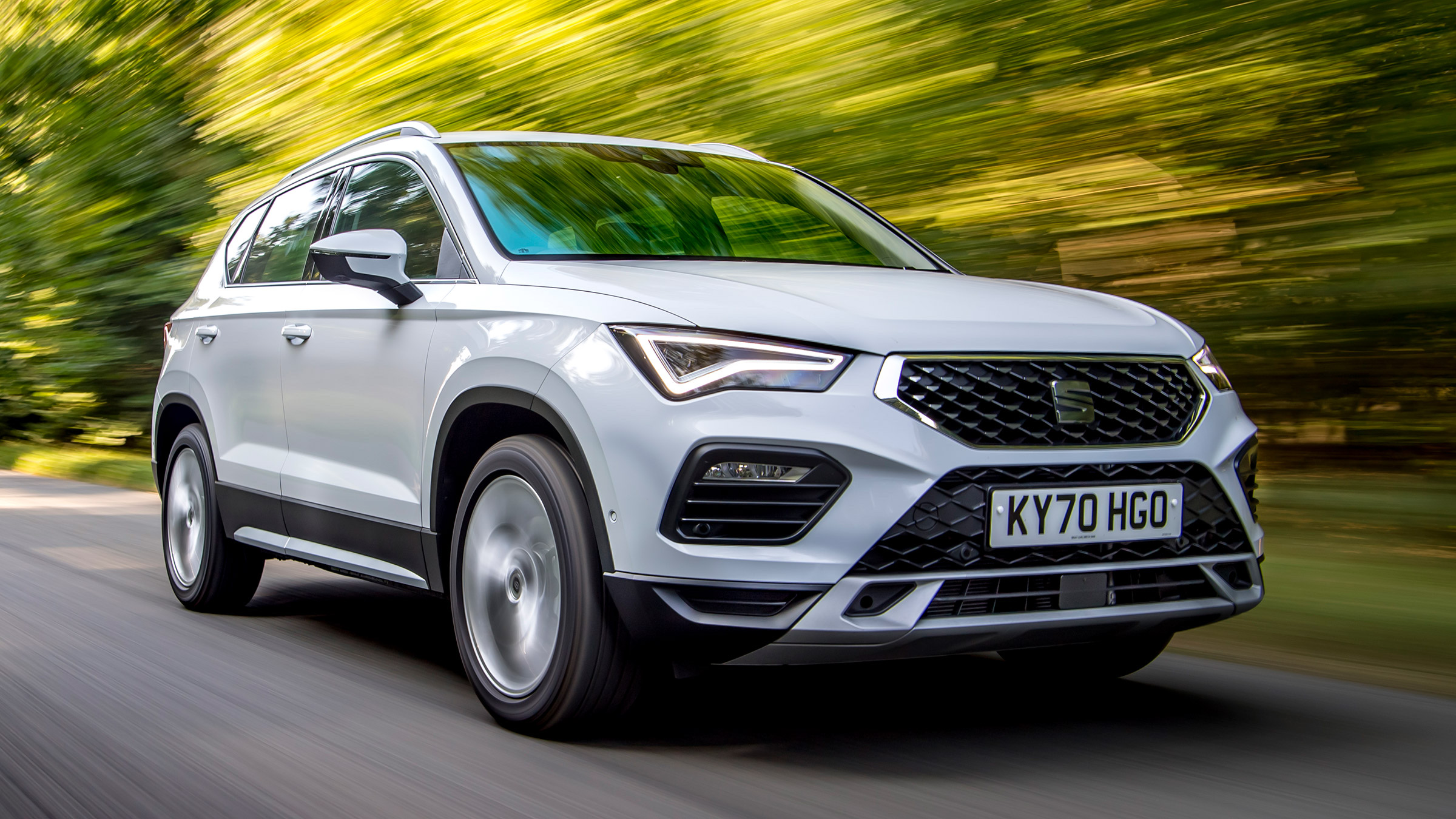

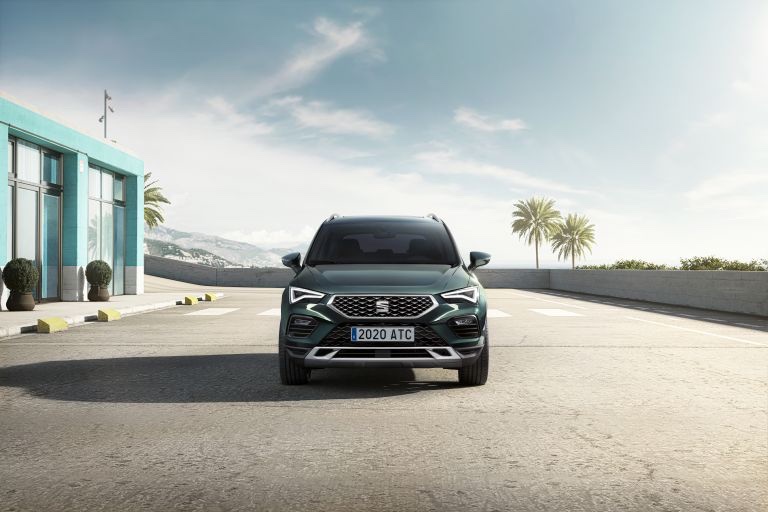

The exterior of the updated Ateca features a larger front grille and narrower, standard full-LED headlights, giving the crossover a sharper presence on the road. The front bumper has been redesigned, and the rear now includes hidden exhaust outlets and a script model badge on the tailgate. Depending on the chosen trim, such as the FR or Xperience, the Ateca can be equipped with wheels ranging from 16 to 19 inches. Additional visual upgrades include available dynamic rear turn signals and robust unpainted wheel arches on off-road-focused trims.

Interior

Inside, the Ateca benefits from a modernized cabin highlighted by a 10.25-inch digital instrument cluster and central touchscreens measuring up to 9.2 inches. The steering wheel design has been updated, and new upholstery options refine the overall feel. Practical additions for colder climates include an available Climacoat heated windshield. Higher trims offer features like a panoramic sunroof, a power-adjustable driver's seat, two-zone climate control, and a 340-watt Beats Audio system, ensuring a comfortable environment for both short trips and longer journeys.

Performance

The powertrain lineup includes a variety of turbocharged petrol and diesel options. The petrol range starts with a 1.0-liter TSI producing 115 horsepower, followed by a 1.5-liter TSI with 150 horsepower, and a top-tier 2.0-liter TSI generating 190 horsepower. Diesel buyers are offered a 2.0-liter TDI, available with either 115 or 150 horsepower. Transmission choices include a six-speed manual and a seven-speed dual-clutch automatic. The most powerful engine configurations can be paired with the 4Drive all-wheel-drive system and adaptive dampers for enhanced driving dynamics.

Practicality

With its five-seat configuration and a 510-liter cargo capacity in standard front-wheel-drive models, the Ateca is well-suited for family use and daily errands. The cabin provides ample headroom and legroom for passengers, while the updated infotainment system with wireless smartphone integration keeps everyone connected. Keyless entry, a heated steering wheel, and heated front seats further enhance the crossover's everyday usability across various weather conditions.

Safety and tech

Safety and driver assistance have been significantly upgraded. The Ateca features adaptive cruise control that utilizes navigation data to adjust speeds for upcoming curves and junctions. When combined with lane-keeping assist, the system offers semi-automated driving capabilities at highway speeds. Additional safety tech includes rear cross-traffic alert and side approach warning. The connected multimedia system features an integrated eSIM, enabling over-the-air updates, real-time navigation data, and advanced voice control capabilities.

Buyer notes

Prospective buyers should compare the distinct visual and equipment differences between the FR and Xperience trims to find the suitable match for their lifestyle. While the base 1.0-liter engine is suitable for city driving, those frequently carrying passengers or driving in adverse conditions may prefer the stronger 1.5-liter or 2.0-liter options, particularly those equipped with the all-wheel-drive system. Keep in mind that specific engine and transmission combinations, as well as certain premium features, may vary depending on the local market.

Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 115-190 hp
Engine displacement 999-1984 cc
Seating 5 seats
Transmissions 8-speed automatic, 6-speed manual, 7-speed dual-clutch
Trim / modification Engine Power Seats Transmission
1.4 TSI AT Style 1395 cc 150 hp 5 8-speed automatic
1.4 TSI AT Xperience 1395 cc 150 hp 5 8-speed automatic
1.0 TSI (115 hp) 6-speed manual 999 cc 115 hp 5 6-speed manual
1.5 TSI (150 hp) 6-speed manual 1498 cc 150 hp 5 6-speed manual
1.5 TSI (150 hp) 7-speed DSG 1498 cc 150 hp 5 7-speed dual-clutch
2.0 TSI (190 hp) 7-speed DSG 4x4 1984 cc 190 hp 5 7-speed dual-clutch
2.0 TDI (150 hp) 6-speed manual 1968 cc 150 hp 5 6-speed manual
2.0 TDI (150 hp) 7-speed DSG 1968 cc 150 hp 5 7-speed dual-clutch
2.0 TDI (150 hp) 7-speed DSG 4x4 1968 cc 150 hp 5 7-speed dual-clutch
1.4 TSI (150 hp) 8-speed automatic 1395 cc 150 hp 5 8-speed automatic
2.0 TDI AT FR 1968 cc 150 hp 5 7-speed dual-clutch
2.0 TDI AT Style 1968 cc 150 hp 5 7-speed dual-clutch

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

1.4 TSI AT Style 1.4 TSI AT Xperience 1.0 TSI (115 hp) 6-speed manual 1.5 TSI (150 hp) 6-speed manual 1.5 TSI (150 hp) 7-speed DSG 2.0 TSI (190 hp) 7-speed DSG 4x4 2.0 TDI (150 hp) 6-speed manual 2.0 TDI (150 hp) 7-speed DSG 2.0 TDI (150 hp) 7-speed DSG 4x4 1.4 TSI (150 hp) 8-speed automatic 2.0 TDI AT FR 2.0 TDI AT Style
1.4 TSI AT Style 97 specifications

Specifications

Performance and consumption

Fuel consumption combined, L/100 km 6.3
Emissions standard Euro VI

Engine

Engine 1.4 TSI
Engine code DJKA
Engine type Internal combustion engine
Fuel type Gasoline
Engine displacement, cc 1395
Cylinder layout Inline
Number of cylinders 4
Valves 16
Turbocharger +
Compression ratio 10.5:1
Power, hp 150
RPM at max power 5000
Torque, Nm 250
RPM at max torque 1500-3500

Dimensions

Seats 5
Length, mm 4381
Width, mm 2078
Height, mm 1601
Wheelbase, mm 2638
Front track, mm 1576
Rear track, mm 1541
Kerb weight, kg 1345
Gross weight, kg 1880
Fuel tank capacity, L 50
Width without mirrors, mm 1841
Trunk capacity, L 510

Transmission and drive

Transmission 8-speed automatic
Transmission type automatic
Drive Front-wheel drive
Number of gears 8
Transmission manufacturer ZF
Automatic transmission +
Transmission country Germany

Brake system

Front brakes Disc
Rear brakes Disc

Equipment

Exterior

Sport front bumper +
Sport rear bumper +

Comfort

Cruise control +
Tire pressure monitoring +
Multifunction steering wheel +
Keyless entry and start +
Electromechanical parking brake +

Interior

Leather-trimmed interior elements +
Multifunction instrument display +
12V power outlet +
Cloth seat upholstery +

Wheels

Rim diameter 17
Rim type Alloy
Spare wheel Space-saver spare wheel
Tires 215/55R17

Technologies

Adjustable speed limiter +

Climate and sound insulation

Heated front seats +
Heated steering wheel +
Dual-zone climate control +

Seats

Child seat anchors (LATCH/Isofix) +
Front armrest +
Height-adjustable driver's seat +
Height-adjustable passenger seat +
Driver lumbar support +

Headlights and lighting

Front fog lights +
Light sensor +
Headlight leveling +
LED headlights +
LED tail lights +
LED daytime running lights +

Multimedia and instruments

Bluetooth hands-free +
Navigation system +
Radio +
USB +
Number of speakers 8
Antenna +

Glass, mirrors and sunroof

Rain sensor +
Heated side mirrors +
Front power windows +
Rear power windows +
Power-adjustable side mirrors +
Power-folding side mirrors +
Rear window wiper +
Heated windshield washers +

Visibility and parking

Rear parking sensors +

Body paint and exterior parts

Body-colored side mirrors +

Security

Electronic systems

Electronic stability control +
Lane keeping assist +
Auto Hold +
Driver fatigue detection +
Electronic differential lock +
Front Assist emergency braking +

Anti-theft systems

Remote central locking +
Immobilizer +

Airbags

Driver airbag +
Passenger airbag +
Side airbags +
Curtain airbags +
Driver knee airbag +
Passenger airbag deactivation +
1.4 TSI AT Xperience 102 specifications

Specifications

Performance and consumption

Fuel consumption combined, L/100 km 6.3
Emissions standard Euro VI

Engine

Engine 1.4 TSI
Engine code DJKA
Engine type Internal combustion engine
Fuel type Gasoline
Engine displacement, cc 1395
Cylinder layout Inline
Number of cylinders 4
Valves 16
Turbocharger +
Compression ratio 10.5:1
Power, hp 150
RPM at max power 5000
Torque, Nm 250
RPM at max torque 1500-3500

Dimensions

Seats 5
Length, mm 4381
Width, mm 2078
Height, mm 1601
Wheelbase, mm 2638
Front track, mm 1576
Rear track, mm 1541
Kerb weight, kg 1345
Gross weight, kg 1880
Fuel tank capacity, L 50
Width without mirrors, mm 1841
Trunk capacity, L 510

Transmission and drive

Transmission 8-speed automatic
Transmission type automatic
Drive Front-wheel drive
Number of gears 8
Transmission manufacturer ZF
Automatic transmission +
Transmission country Germany

Brake system

Front brakes Disc
Rear brakes Disc

Steering

Power steering Electromechanical

Equipment

Exterior

Door sill plates +
Roof rails +

Comfort

Cruise control +
Tire pressure monitoring +
Multifunction steering wheel +
Keyless entry and start +
Electromechanical parking brake +

Interior

Leather-trimmed interior elements +
12V power outlet +
Illuminated vanity mirrors +
Cloth seat upholstery +

Wheels

Rim diameter 18
Rim type Alloy
Spare wheel Space-saver spare wheel
Tires 215/50R18

Technologies

Adjustable speed limiter +

Climate and sound insulation

Heated front seats +
Heated steering wheel +
Dual-zone climate control +

Seats

Child seat anchors (LATCH/Isofix) +
Front armrest +
Height-adjustable driver's seat +
Height-adjustable passenger seat +
Front passenger lumbar support +
Driver lumbar support +

Headlights and lighting

Front fog lights +
Light sensor +
Headlight leveling +
LED headlights +
LED tail lights +
LED daytime running lights +

Multimedia and instruments

Bluetooth hands-free +
Radio +
USB +
Number of speakers 8
Antenna +

Glass, mirrors and sunroof

Rain sensor +
Heated side mirrors +
Front power windows +
Rear power windows +
Power-adjustable side mirrors +
Power-folding side mirrors +
Rear window wiper +
Tinted glass +
Auto-dimming rear-view mirror +
Heated washer nozzles +

Visibility and parking

Rear-view camera +
Front parking sensors +
Rear parking sensors +

Body paint and exterior parts

Body-colored side mirrors +

Security

Electronic systems

Electronic stability control +
Lane keeping assist +
Auto Hold +
Driver fatigue detection +
Electronic differential lock +
Front Assist emergency braking +

Anti-theft systems

Remote central locking +
Immobilizer +

Airbags

Driver airbag +
Passenger airbag +
Side airbags +
Curtain airbags +
Driver knee airbag +
Passenger airbag deactivation +
1.0 TSI (115 hp) 6-speed manual 36 specifications

Specifications

Performance and consumption

Fuel consumption city, L/100 km 6.4
Fuel consumption highway, L/100 km 4.7
Fuel consumption combined, L/100 km 5.4
Top speed, km/h 183
Acceleration 0-100 km/h, s 10.7
Emissions standard Euro VI

Engine

Engine 1.0 TSI
Engine code CHZD/CHZJ/DKJA
Engine type Internal combustion engine
Fuel type Gasoline
Engine displacement, cc 999
Cylinder layout Inline
Number of cylinders 3
Valves 12
Turbocharger +
Compression ratio 10.3:1
Power, hp 115
RPM at max power 5000-5500
Torque, Nm 200
RPM at max torque 2000-3500

Dimensions

Seats 5
Length, mm 4381
Width, mm 2078
Height, mm 1601
Wheelbase, mm 2638
Front track, mm 1576
Rear track, mm 1541
Kerb weight, kg 1345
Gross weight, kg 1880
Fuel tank capacity, L 50
Width without mirrors, mm 1841
Trunk capacity, L 510

Transmission and drive

Transmission 6-speed manual
Transmission type manual
Drive Front-wheel drive
Number of gears 6
1.5 TSI (150 hp) 6-speed manual 36 specifications

Specifications

Performance and consumption

Fuel consumption city, L/100 km 6.5
Fuel consumption highway, L/100 km 5.3
Fuel consumption combined, L/100 km 5.7
Top speed, km/h 200
Acceleration 0-100 km/h, s 8.5
Emissions standard Euro VI

Engine

Engine 1.5 TSI
Engine code DADA (EA211)
Engine type Internal combustion engine
Fuel type Gasoline
Engine displacement, cc 1498
Cylinder layout Inline
Number of cylinders 4
Valves 16
Turbocharger +
Compression ratio 10.5:1
Power, hp 150
RPM at max power 5000-6000
Torque, Nm 250
RPM at max torque 1500-3500

Dimensions

Seats 5
Length, mm 4381
Width, mm 2078
Height, mm 1601
Wheelbase, mm 2638
Front track, mm 1576
Rear track, mm 1541
Kerb weight, kg 1345
Gross weight, kg 1880
Fuel tank capacity, L 50
Width without mirrors, mm 1841
Trunk capacity, L 510

Transmission and drive

Transmission 6-speed manual
Transmission type manual
Drive Front-wheel drive
Number of gears 6
1.5 TSI (150 hp) 7-speed DSG 38 specifications

Specifications

Performance and consumption

Fuel consumption city, L/100 km 6.3
Fuel consumption highway, L/100 km 5.2
Fuel consumption combined, L/100 km 5.6
Top speed, km/h 200
Acceleration 0-100 km/h, s 8.6
Emissions standard Euro VI

Engine

Engine 1.5 TSI
Engine code DADA (EA211)
Engine type Internal combustion engine
Fuel type Gasoline
Engine displacement, cc 1498
Cylinder layout Inline
Number of cylinders 4
Valves 16
Turbocharger +
Compression ratio 10.5:1
Power, hp 150
RPM at max power 5000-6000
Torque, Nm 250
RPM at max torque 1500-3500

Dimensions

Seats 5
Length, mm 4381
Width, mm 2078
Height, mm 1601
Wheelbase, mm 2638
Front track, mm 1576
Rear track, mm 1541
Kerb weight, kg 1345
Gross weight, kg 1880
Fuel tank capacity, L 50
Width without mirrors, mm 1841
Trunk capacity, L 510

Transmission and drive

Transmission 7-speed dual-clutch
Transmission type 2-speed automated manual
Drive Front-wheel drive
Number of gears 7
Transmission manufacturer BorgWarner
Automatic transmission +
2.0 TSI (190 hp) 7-speed DSG 4x4 37 specifications

Specifications

Performance and consumption

Fuel consumption city, L/100 km 8.5
Fuel consumption highway, L/100 km 5.8
Fuel consumption combined, L/100 km 6.8
Top speed, km/h 212
Acceleration 0-100 km/h, s 7.1
Emissions standard Euro VI

Engine

Engine 2.0 TSI
Engine code CZPB (EA888)
Engine type Internal combustion engine
Fuel type Gasoline
Engine displacement, cc 1984
Cylinder layout Inline
Number of cylinders 4
Valves 16
Turbocharger +
Power, hp 190
RPM at max power 4200-6000
Torque, Nm 320
RPM at max torque 1450-4200

Dimensions

Seats 5
Length, mm 4381
Width, mm 2078
Height, mm 1601
Wheelbase, mm 2638
Front track, mm 1576
Rear track, mm 1541
Kerb weight, kg 1345
Gross weight, kg 1880
Fuel tank capacity, L 50
Width without mirrors, mm 1841
Trunk capacity, L 510

Transmission and drive

Transmission 7-speed dual-clutch
Transmission type 2-speed automated manual
Drive All-wheel drive
Number of gears 7
Transmission manufacturer BorgWarner
Automatic transmission +
2.0 TDI (150 hp) 6-speed manual 36 specifications

Specifications

Performance and consumption

Fuel consumption city, L/100 km 5.7
Fuel consumption highway, L/100 km 4.1
Fuel consumption combined, L/100 km 4.7
Top speed, km/h 200
Acceleration 0-100 km/h, s 8.8
Emissions standard Euro VI

Engine

Engine 2.0 TDI
Engine code CKFC/DFGA/DBGC/DFFA
Engine type Internal combustion engine
Fuel type Diesel
Engine displacement, cc 1968
Cylinder layout Inline
Number of cylinders 4
Valves 16
Turbocharger +
Compression ratio 16.2:1
Power, hp 150
RPM at max power 3500-4000
Torque, Nm 340
RPM at max torque 1750-3000

Dimensions

Seats 5
Length, mm 4381
Width, mm 2078
Height, mm 1601
Wheelbase, mm 2638
Front track, mm 1576
Rear track, mm 1541
Kerb weight, kg 1345
Gross weight, kg 1880
Fuel tank capacity, L 50
Width without mirrors, mm 1841
Trunk capacity, L 510

Transmission and drive

Transmission 6-speed manual
Transmission type manual
Drive Front-wheel drive
Number of gears 6
2.0 TDI (150 hp) 7-speed DSG 38 specifications

Specifications

Performance and consumption

Fuel consumption city, L/100 km 5.6
Fuel consumption highway, L/100 km 4.4
Fuel consumption combined, L/100 km 4.8
Top speed, km/h 200
Acceleration 0-100 km/h, s 8.8
Emissions standard Euro VI

Engine

Engine 2.0 TDI
Engine code CKFC/DFGA/DBGC/DFFA
Engine type Internal combustion engine
Fuel type Diesel
Engine displacement, cc 1968
Cylinder layout Inline
Number of cylinders 4
Valves 16
Turbocharger +
Compression ratio 16.2:1
Power, hp 150
RPM at max power 3500-4000
Torque, Nm 340
RPM at max torque 1750-3000

Dimensions

Seats 5
Length, mm 4381
Width, mm 2078
Height, mm 1601
Wheelbase, mm 2638
Front track, mm 1576
Rear track, mm 1541
Kerb weight, kg 1345
Gross weight, kg 1880
Fuel tank capacity, L 50
Width without mirrors, mm 1841
Trunk capacity, L 510

Transmission and drive

Transmission 7-speed dual-clutch
Transmission type 2-speed automated manual
Drive Front-wheel drive
Number of gears 7
Transmission manufacturer BorgWarner
Automatic transmission +
2.0 TDI (150 hp) 7-speed DSG 4x4 38 specifications

Specifications

Performance and consumption

Fuel consumption city, L/100 km 6.1
Fuel consumption highway, L/100 km 4.8
Fuel consumption combined, L/100 km 5.2
Top speed, km/h 196
Acceleration 0-100 km/h, s 8.8
Emissions standard Euro VI

Engine

Engine 2.0 TDI
Engine code CKFC/DFGA/DBGC/DFFA
Engine type Internal combustion engine
Fuel type Diesel
Engine displacement, cc 1968
Cylinder layout Inline
Number of cylinders 4
Valves 16
Turbocharger +
Compression ratio 16.2:1
Power, hp 150
RPM at max power 3500-4000
Torque, Nm 340
RPM at max torque 1750-3000

Dimensions

Seats 5
Length, mm 4381
Width, mm 2078
Height, mm 1601
Wheelbase, mm 2638
Front track, mm 1576
Rear track, mm 1541
Kerb weight, kg 1345
Gross weight, kg 1880
Fuel tank capacity, L 50
Width without mirrors, mm 1841
Trunk capacity, L 510

Transmission and drive

Transmission 7-speed dual-clutch
Transmission type 2-speed automated manual
Drive All-wheel drive
Number of gears 7
Transmission manufacturer BorgWarner
Automatic transmission +
1.4 TSI (150 hp) 8-speed automatic 35 specifications

Specifications

Performance and consumption

Fuel consumption combined, L/100 km 6.3
Emissions standard Euro VI

Engine

Engine 1.4 TSI
Engine code DJKA
Engine type Internal combustion engine
Fuel type Gasoline
Engine displacement, cc 1395
Cylinder layout Inline
Number of cylinders 4
Valves 16
Turbocharger +
Compression ratio 10.5:1
Power, hp 150
RPM at max power 5000
Torque, Nm 250
RPM at max torque 1500-3500

Dimensions

Seats 5
Length, mm 4381
Width, mm 2078
Height, mm 1601
Wheelbase, mm 2638
Front track, mm 1576
Rear track, mm 1541
Kerb weight, kg 1345
Gross weight, kg 1880
Fuel tank capacity, L 50
Width without mirrors, mm 1841
Trunk capacity, L 510

Transmission and drive

Transmission 8-speed automatic
Transmission type automatic
Drive Front-wheel drive
Number of gears 8
Transmission manufacturer ZF
Automatic transmission +
Transmission country Germany
2.0 TDI AT FR 110 specifications

Specifications

Performance and consumption

Fuel consumption city, L/100 km 5.6
Fuel consumption highway, L/100 km 4.4
Fuel consumption combined, L/100 km 4.8
Top speed, km/h 200
Acceleration 0-100 km/h, s 8.8
Emissions standard Euro VI

Engine

Engine 2.0 TDI
Engine code CKFC/DFGA/DBGC/DFFA
Engine type Internal combustion engine
Fuel type Diesel
Engine displacement, cc 1968
Cylinder layout Inline
Number of cylinders 4
Valves 16
Turbocharger +
Compression ratio 16.2:1
Power, hp 150
RPM at max power 3500-4000
Torque, Nm 340
RPM at max torque 1750-3000

Dimensions

Seats 5
Length, mm 4381
Width, mm 2078
Height, mm 1601
Wheelbase, mm 2638
Front track, mm 1576
Rear track, mm 1541
Kerb weight, kg 1345
Gross weight, kg 1880
Fuel tank capacity, L 50
Width without mirrors, mm 1841
Trunk capacity, L 510

Transmission and drive

Transmission 7-speed dual-clutch
Transmission type 2-speed automated manual
Drive Front-wheel drive
Number of gears 7
Transmission manufacturer BorgWarner
Automatic transmission +

Brake system

Front brakes Disc
Rear brakes Disc

Steering

Power steering Electromechanical

Equipment

Exterior

Rear spoiler +
Door sill plates +
Sport front bumper +
Sport rear bumper +

Comfort

Cruise control +
Tire pressure monitoring +
Multifunction steering wheel +
Keyless entry and start +
Electromechanical parking brake +

Interior

Leather-trimmed interior elements +
Multifunction instrument display +
12V power outlet +
Illuminated vanity mirrors +
Cloth seat upholstery +
Sport steering wheel +

Wheels

Rim diameter 18
Rim type Alloy
Spare wheel Space-saver spare wheel
Tires 215/50R18

Technologies

Adjustable speed limiter +

Climate and sound insulation

Heated front seats +
Heated steering wheel +
Dual-zone climate control +

Seats

Child seat anchors (LATCH/Isofix) +
Front armrest +
Height-adjustable driver's seat +
Height-adjustable passenger seat +
Front passenger lumbar support +
Driver lumbar support +

Headlights and lighting

Front fog lights +
Light sensor +
Headlight leveling +
LED headlights +
LED tail lights +
LED daytime running lights +

Multimedia and instruments

Bluetooth hands-free +
Navigation system +
Radio +
USB +
Number of speakers 8
Antenna +

Glass, mirrors and sunroof

Rain sensor +
Heated side mirrors +
Front power windows +
Rear power windows +
Power-adjustable side mirrors +
Power-folding side mirrors +
Rear window wiper +
Tinted glass +
Auto-dimming rear-view mirror +
Heated washer nozzles +

Visibility and parking

Rear-view camera +
Front parking sensors +
Rear parking sensors +

Body paint and exterior parts

Black roof rails +

Security

Electronic systems

Electronic stability control +
Lane keeping assist +
Auto Hold +
Driver fatigue detection +
Electronic differential lock +
Front Assist emergency braking +

Anti-theft systems

Remote central locking +
Immobilizer +

Airbags

Driver airbag +
Passenger airbag +
Side airbags +
Curtain airbags +
Driver knee airbag +
Passenger airbag deactivation +
2.0 TDI AT Style 100 specifications

Specifications

Performance and consumption

Fuel consumption city, L/100 km 5.6
Fuel consumption highway, L/100 km 4.4
Fuel consumption combined, L/100 km 4.8
Top speed, km/h 200
Acceleration 0-100 km/h, s 8.8
Emissions standard Euro VI

Engine

Engine 2.0 TDI
Engine code CKFC/DFGA/DBGC/DFFA
Engine type Internal combustion engine
Fuel type Diesel
Engine displacement, cc 1968
Cylinder layout Inline
Number of cylinders 4
Valves 16
Turbocharger +
Compression ratio 16.2:1
Power, hp 150
RPM at max power 3500-4000
Torque, Nm 340
RPM at max torque 1750-3000

Dimensions

Seats 5
Length, mm 4381
Width, mm 2078
Height, mm 1601
Wheelbase, mm 2638
Front track, mm 1576
Rear track, mm 1541
Kerb weight, kg 1345
Gross weight, kg 1880
Fuel tank capacity, L 50
Width without mirrors, mm 1841
Trunk capacity, L 510

Transmission and drive

Transmission 7-speed dual-clutch
Transmission type 2-speed automated manual
Drive Front-wheel drive
Number of gears 7
Transmission manufacturer BorgWarner
Automatic transmission +

Brake system

Front brakes Disc
Rear brakes Disc

Equipment

Exterior

Sport front bumper +
Sport rear bumper +

Comfort

Cruise control +
Tire pressure monitoring +
Multifunction steering wheel +
Keyless entry and start +
Electromechanical parking brake +

Interior

Leather-trimmed interior elements +
Multifunction instrument display +
12V power outlet +
Cloth seat upholstery +

Wheels

Rim diameter 17
Rim type Alloy
Spare wheel Space-saver spare wheel
Tires 215/55R17

Technologies

Adjustable speed limiter +

Climate and sound insulation

Heated front seats +
Heated steering wheel +
Dual-zone climate control +

Seats

Child seat anchors (LATCH/Isofix) +
Front armrest +
Height-adjustable driver's seat +
Height-adjustable passenger seat +
Driver lumbar support +

Headlights and lighting

Front fog lights +
Light sensor +
Headlight leveling +
LED headlights +
LED tail lights +
LED daytime running lights +

Multimedia and instruments

Bluetooth hands-free +
Navigation system +
Radio +
USB +
Number of speakers 8
Antenna +

Glass, mirrors and sunroof

Rain sensor +
Heated side mirrors +
Front power windows +
Rear power windows +
Power-adjustable side mirrors +
Power-folding side mirrors +
Rear window wiper +
Heated windshield washers +

Visibility and parking

Rear parking sensors +

Body paint and exterior parts

Body-colored side mirrors +

Security

Electronic systems

Electronic stability control +
Lane keeping assist +
Auto Hold +
Driver fatigue detection +
Electronic differential lock +
Front Assist emergency braking +

Anti-theft systems

Remote central locking +
Immobilizer +

Airbags

Driver airbag +
Passenger airbag +
Side airbags +
Curtain airbags +
Driver knee airbag +
Passenger airbag deactivation +
FAQ

Seat Ateca questions

Short answers based on the specifications and photos available in this catalog.

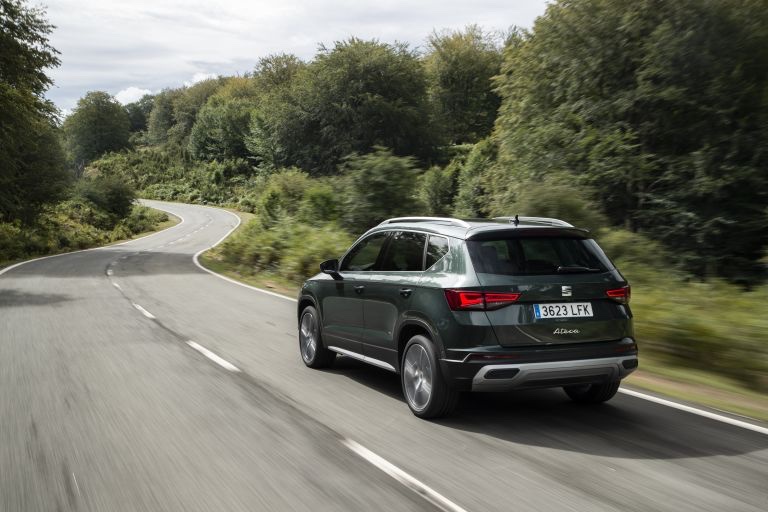

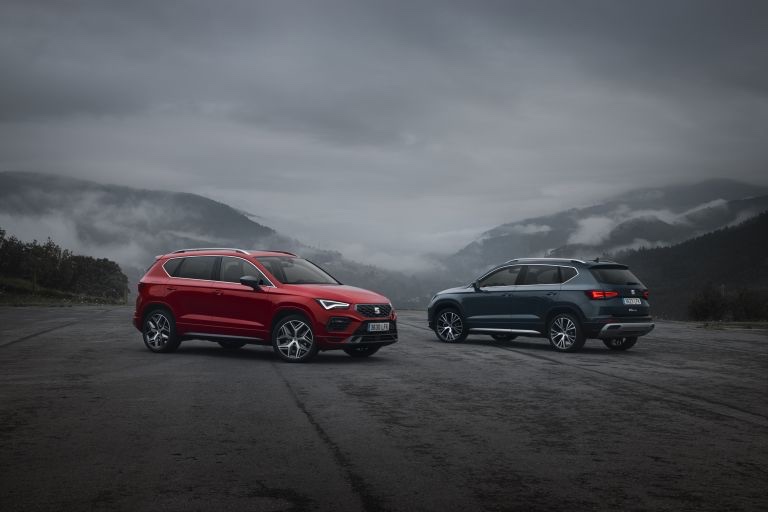

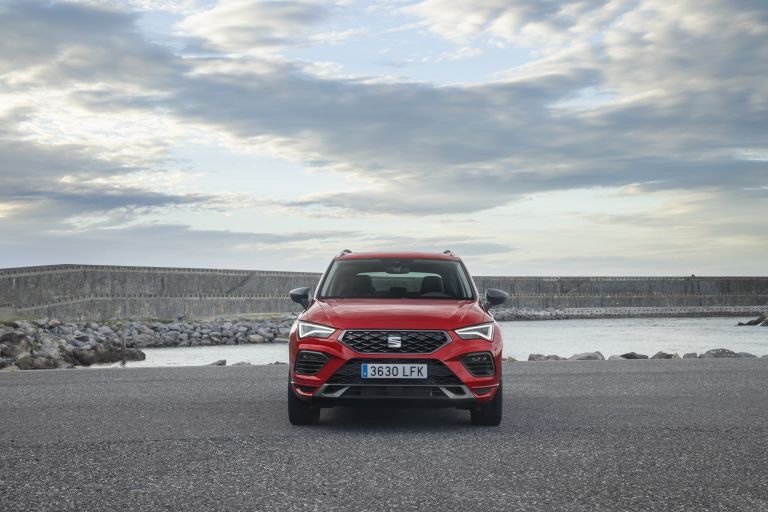

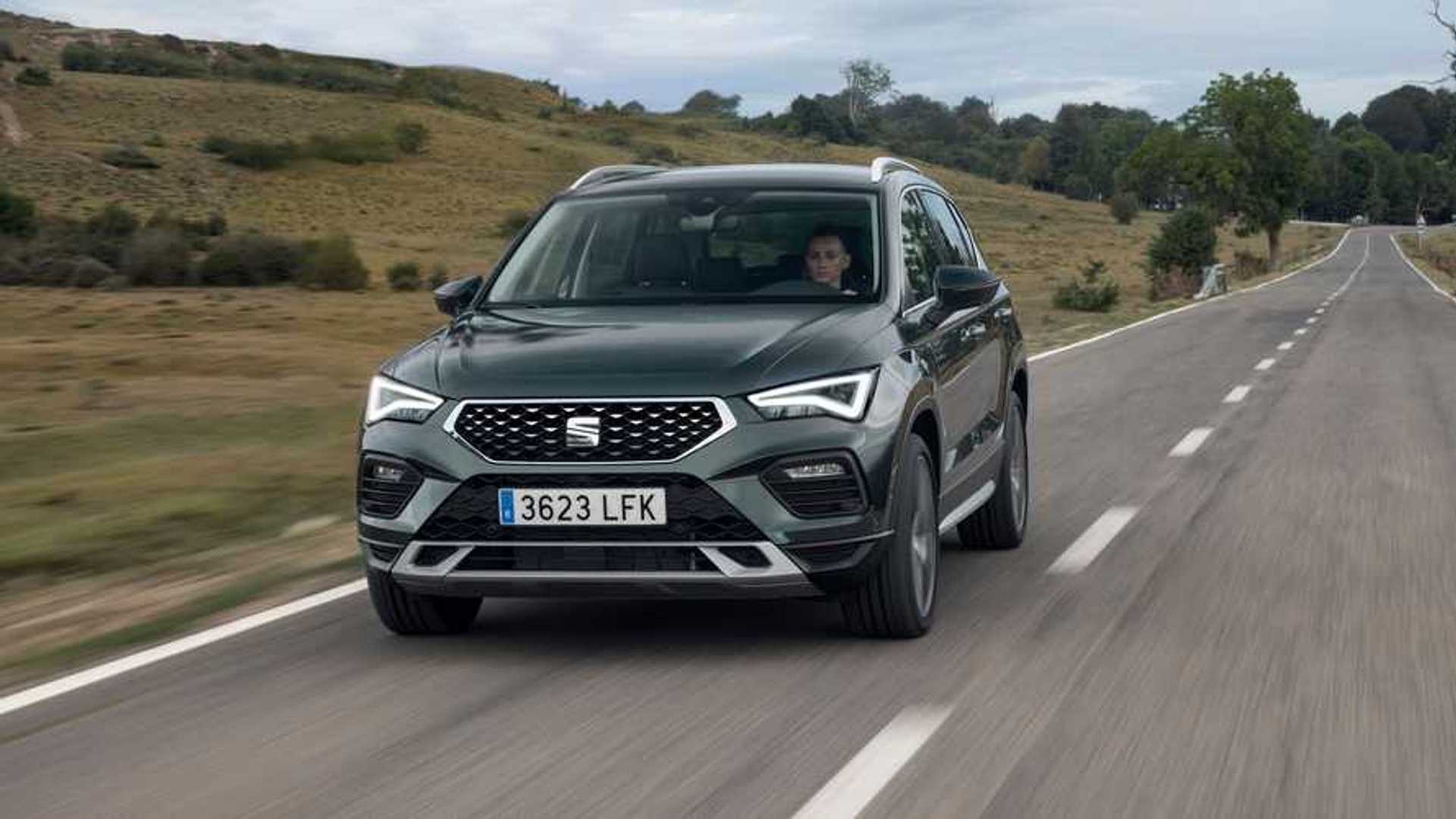

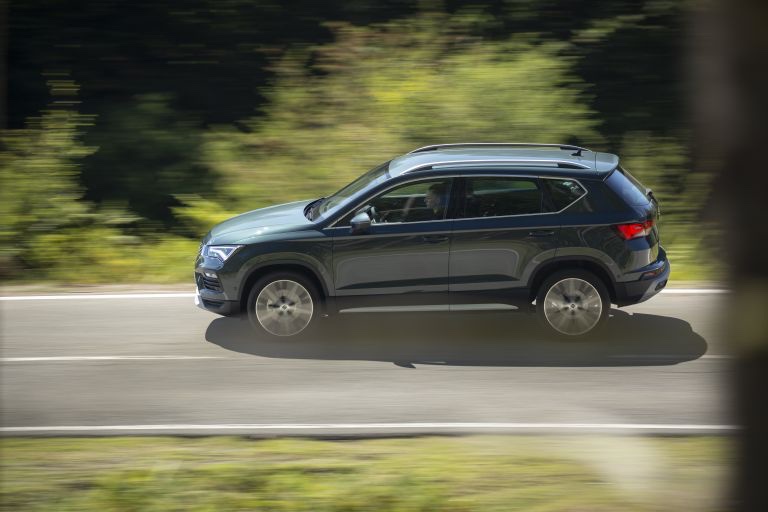

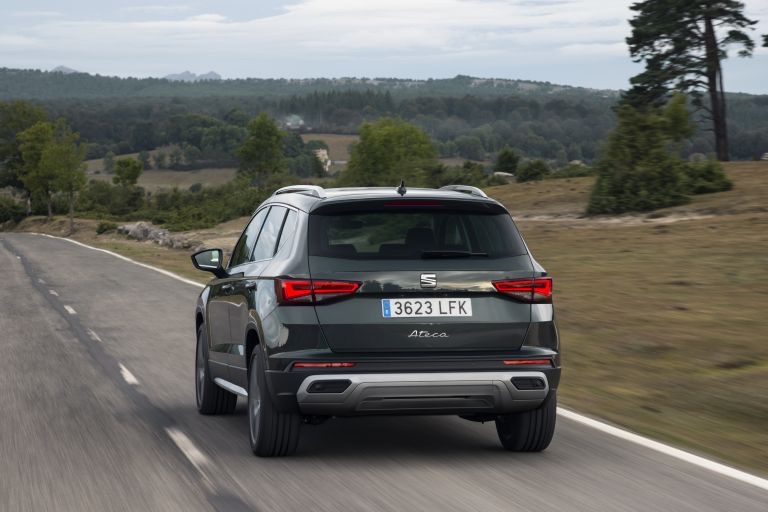

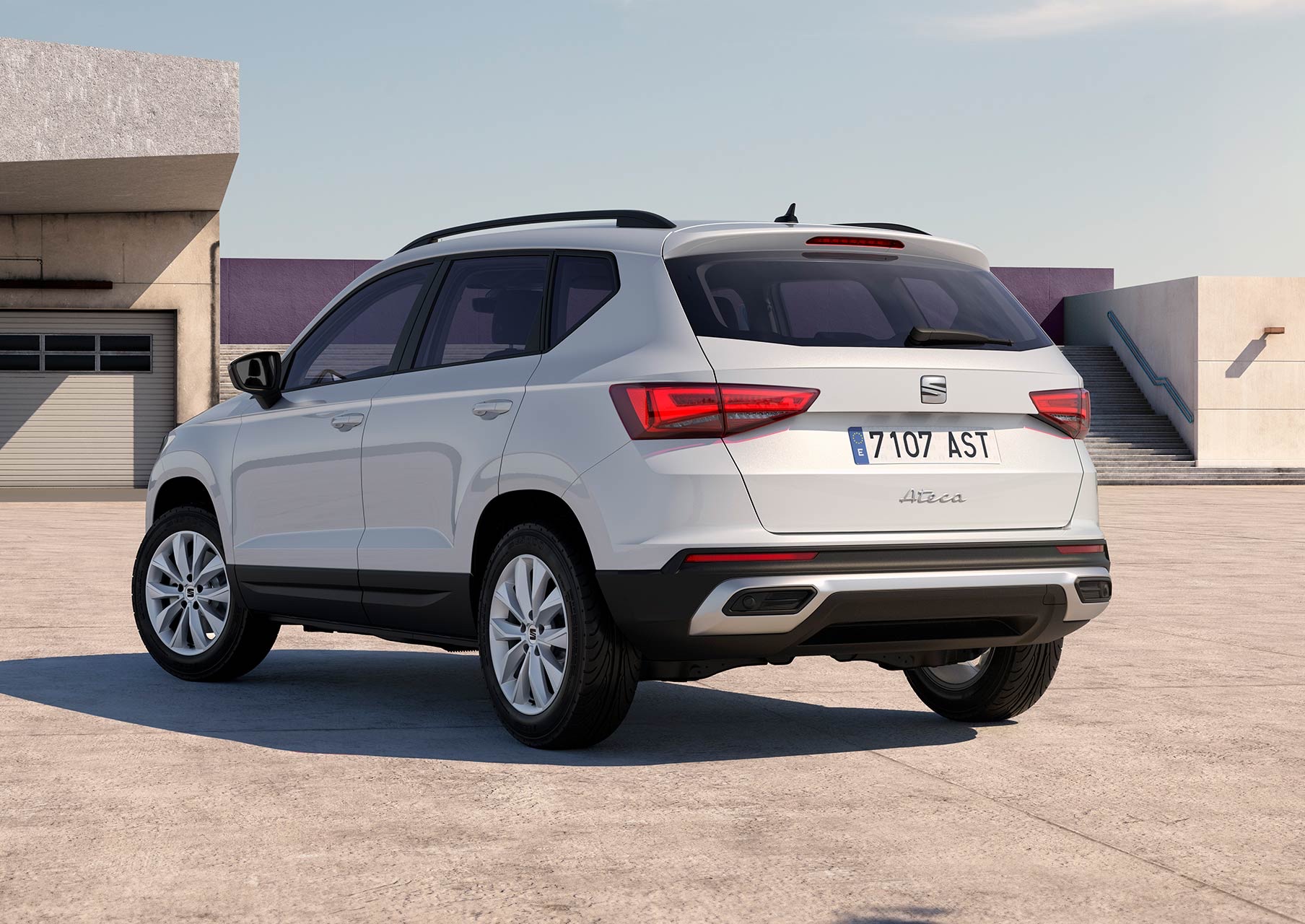

What body style is the 2020 SEAT Ateca?

The 2020 SEAT Ateca is a five-door compact crossover SUV.

What updates were included in the 2020 restyling?

The 2020 update introduced a redesigned front fascia, standard LED headlights, new interior displays, and the rugged Xperience trim level. It also added advanced driver assistance features and an updated infotainment system.

Is all-wheel drive available on the Ateca?

Yes, SEAT's 4Drive all-wheel-drive system is available on models equipped with the more powerful 2.0-liter petrol and diesel engines.

What engines are offered for this model?

The engine lineup includes 1.0-liter, 1.5-liter, and 2.0-liter turbocharged petrol engines, as well as a 2.0-liter turbodiesel with two power outputs.

Is the SEAT Ateca practical for family use?

With seating for five, a spacious 510-liter trunk, and modern safety features, the Ateca is highly practical for everyday family transportation and road trips.
