Subaru XV specifications and photos

Subaru XV specifications are shown with trim options, key technical data, and a model photo gallery. Compare 6 configurations by engine size, power, seating, and transmission. The gallery includes 23 photos for visual reference.

Years 2017

Body type suv

Trims 6

Photos 23

Overview

Subaru XV at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Subaru XV page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 114-152 hp and 1600-1995 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

Power: 114-152 hp
Engine displacement: 1600-1995 cc
Transmissions: 6-speed manual
Seating: 5 seats

Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 114-152 hp

Engine displacement 1600-1995 cc

Seating 5 seats

Transmissions 6-speed manual

Trim / modification	Engine	Power	Seats	Transmission
2.0 AT HF	1995 cc	152 hp	5	-
2.0 AT ZG	1995 cc	152 hp	5	-
2.0 AT YH	1995 cc	152 hp	5	-
1.6i (114 HP) CVT Lineartronic 4x4	1600 cc	114 hp	5	-
2.0i (152 HP) 6-speed manual 4x4	1995 cc	152 hp	5	6-speed manual
2.0i (152 HP) CVT Lineartronic 4x4	1995 cc	152 hp	5	-

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Gallery

Subaru XV photo gallery

23 images are collected here with the main specifications and trim data for this model.

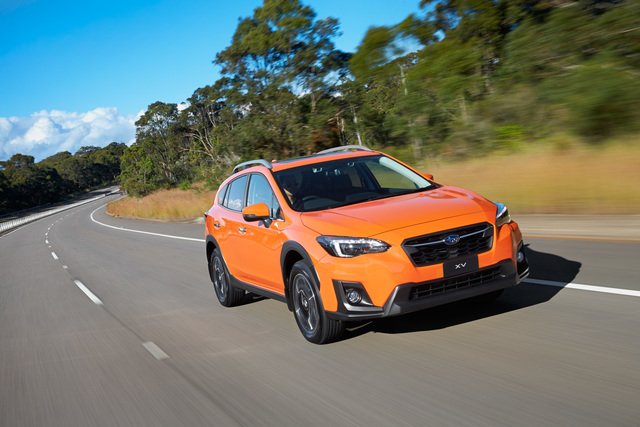

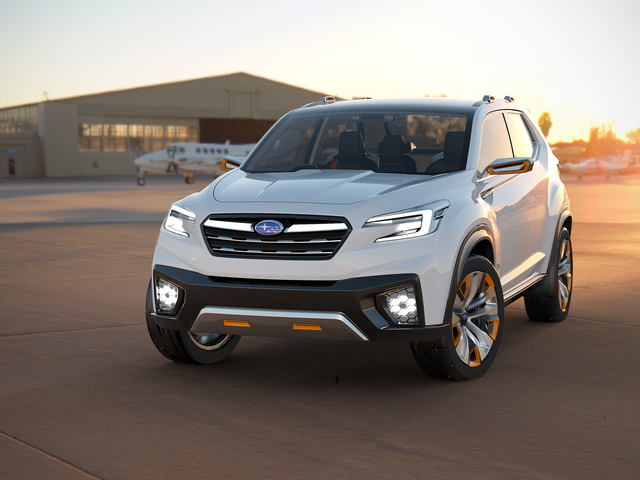

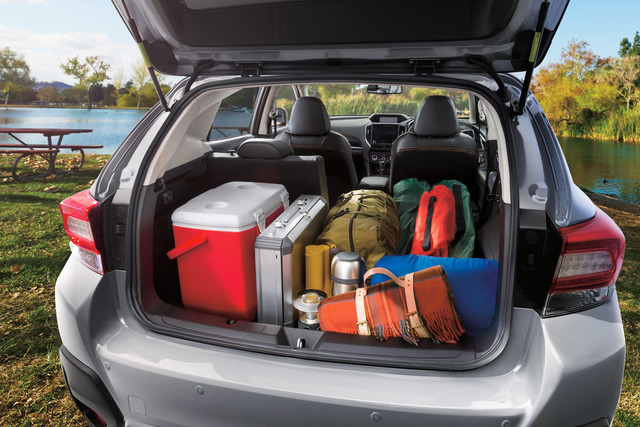

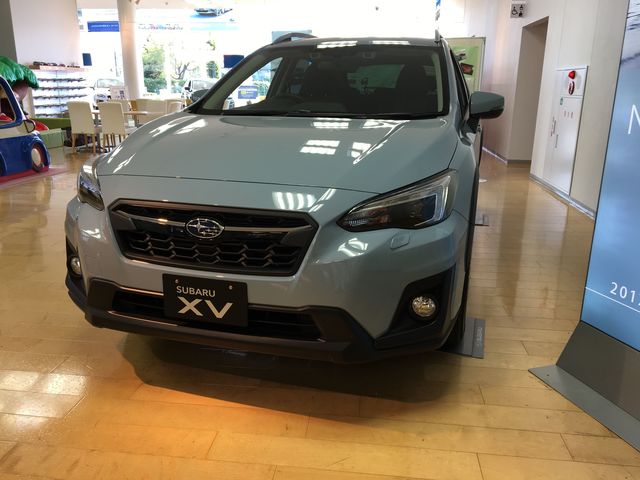

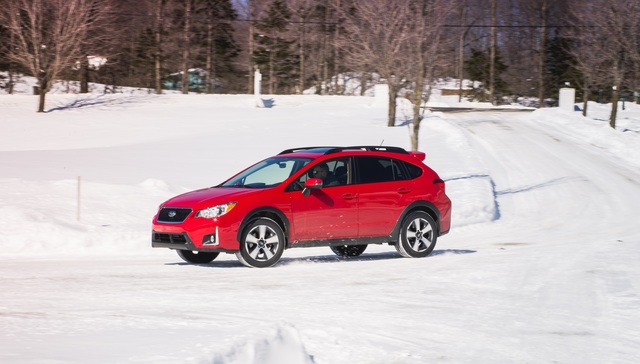

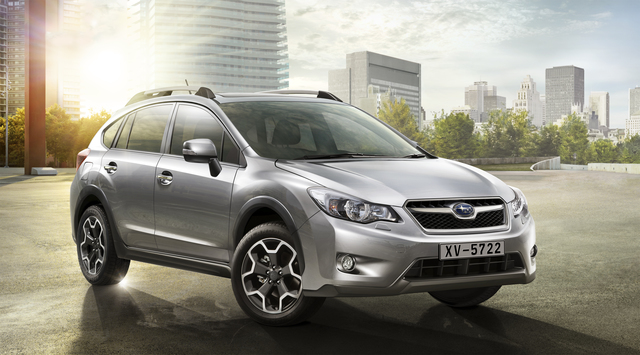

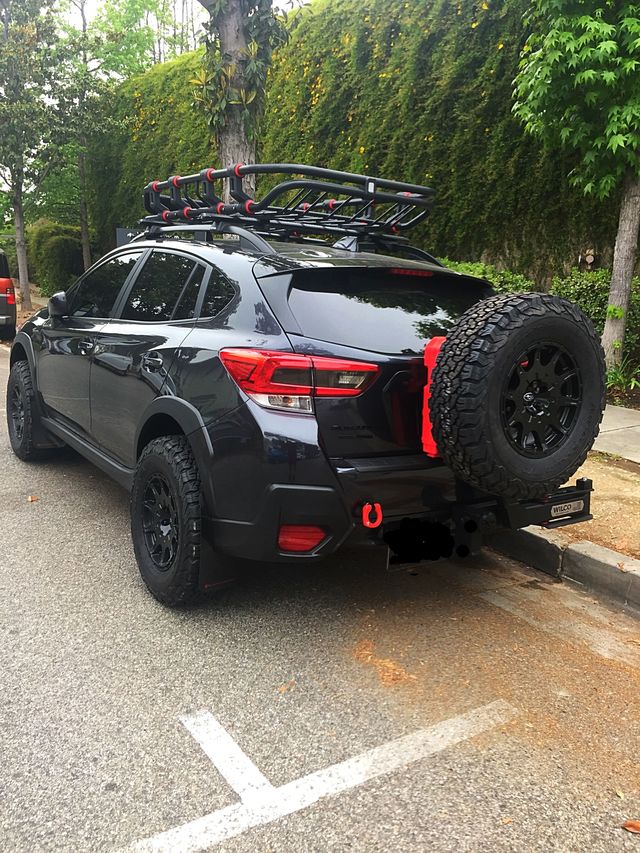

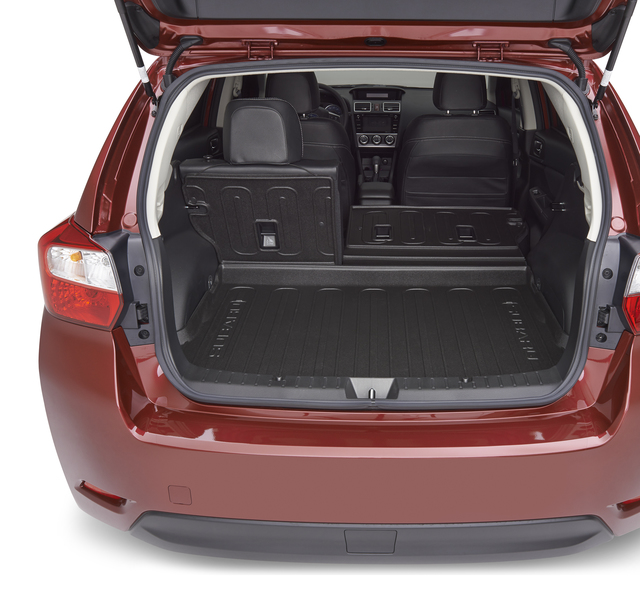

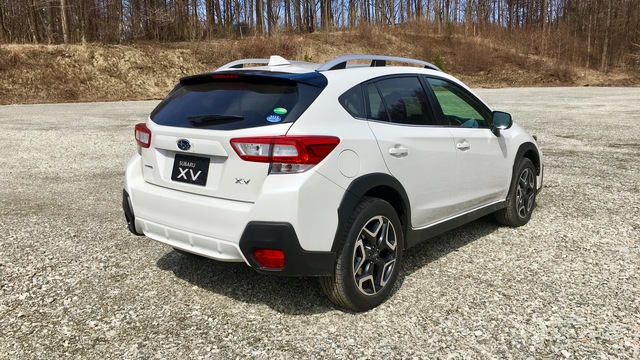

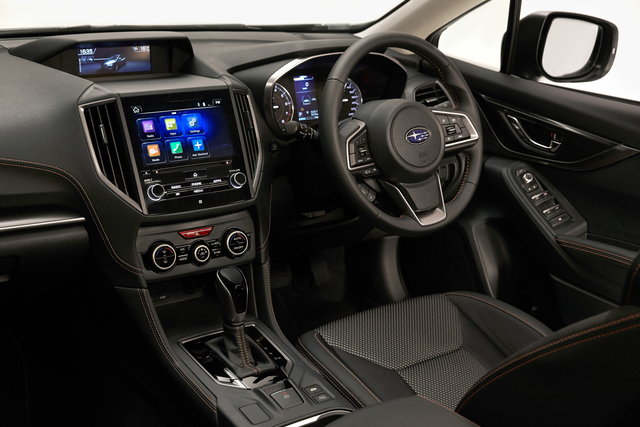

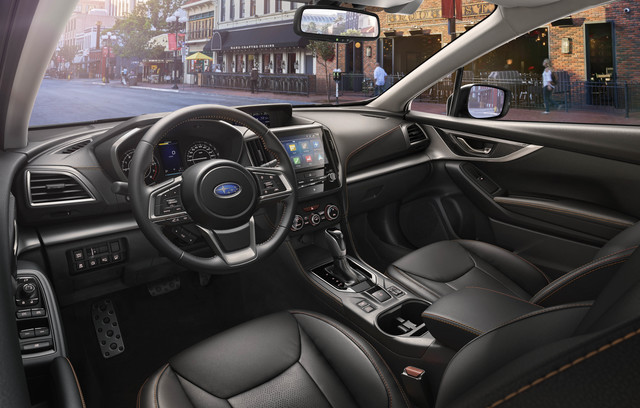

Photo Subaru XV

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

2.0 AT HF 2.0 AT ZG 2.0 AT YH 1.6i (114 HP) CVT Lineartronic 4x4 2.0i (152 HP) 6-speed manual 4x4 2.0i (152 HP) CVT Lineartronic 4x4

2.0 AT HF 73 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1995
Cylinders location	Oppozitnoe
Number of cylinders	4
Valves	16
Power, hp	152
Torque, Nm	198
RPM at max torque	4000
Engine	2.0i
RPM at max power	6000
Engine code	FB20D

Dimensions

Seats	5
Length mm	4465
Width	1800
Height mm	1615
Wheelbase mm	2665
Front track, mm	1549
Rear track, mm	1554
Kerb weight, kg	1432
Trunk capacity, L	590
Fuel tank, l	63
Ground clearance, mm	221

Suspension

Type of front suspension	Independent, such as MacPherson
Rear suspension	Independent, with two A-shaped levers

Brake system

The front brakes	Ventilated disc
Rear brakes	Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	8.7
Fuel consumption (urban), l. 100 km	7.1
Acceleration (0-100 km/h), s	10.4
The maximum speed, km / h.	194

Transmission and drive

Automatic transmission	+
Drive	Full
Transmission	CVT
Gearbox	Variable speed drive
Transmission manufacturer	Subaru
Transmission country of origin	Japan

Equipment

Comfort

Tyre pressure monitoring	+
Active Cruise Control (ACC)	+
Electric parking brake	+
System access and keyless start (Smart Entry)	+

Interior

Multi-information display in the instrument panel	+
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.)	+

Wheels

Disc diameter	17
Rim type	Alloy
Tires	225/60R17

Cabin climate and noise insulation

2-zone automatic climate control	+
Heated front seats	+

Glass, mirrors and sunroof

The rain sensor	+
Heated side mirrors	+
Power mirrors	+
Electric folding mirrors	+
Tinted glass	+

Multimedia and instruments

Steering wheel controls	+
AUX	+
Antenna	+
USB	+
Number of speakers	6

Headlights and lighting

Front fog lights	+
LED headlights	+
Light sensor	+

Seats

Rear Armrest	+
Armrest front	+

Visibility and parking

Rear View Camera	+

Exterior

Roof rails	+

Fuel economy

Start-Stop System	+

Security

Electronic systems

The system of dynamic stabilization (VDC)	+
Adaptive Road Lighting System (AFS, SRH)	+

Airbags

Driver's airbag	+
Passenger Airbag	+
Side airbags	+
Curtain airbags	+
Cushion for driver's knee	+

2.0 AT ZG 78 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1995
Cylinders location	Oppozitnoe
Number of cylinders	4
Valves	16
Power, hp	152
Torque, Nm	198
RPM at max torque	4000
Engine	2.0i
RPM at max power	6000
Engine code	FB20D

Dimensions

Seats	5
Length mm	4465
Width	1800
Height mm	1615
Wheelbase mm	2665
Front track, mm	1549
Rear track, mm	1554
Kerb weight, kg	1432
Trunk capacity, L	590
Fuel tank, l	63
Ground clearance, mm	221

Suspension

Type of front suspension	Independent, such as MacPherson
Rear suspension	Independent, with two A-shaped levers

Brake system

The front brakes	Ventilated disc
Rear brakes	Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	8.7
Fuel consumption (urban), l. 100 km	7.1
Acceleration (0-100 km/h), s	10.4
The maximum speed, km / h.	194

Transmission and drive

Automatic transmission	+
Drive	Full
Transmission	CVT
Gearbox	Variable speed drive
Transmission manufacturer	Subaru
Transmission country of origin	Japan

Equipment

Comfort

Tyre pressure monitoring	+
Active Cruise Control (ACC)	+
Electric parking brake	+
System access and keyless start (Smart Entry)	+

Interior

Multi-information display in the instrument panel	+
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.)	+
Aluminum pedals	+

Wheels

Disc diameter	18
Rim type	Alloy
Tires	225/55R18

Cabin climate and noise insulation

2-zone automatic climate control	+
Heated front seats	+
Heated steering wheel	+

Glass, mirrors and sunroof

The rain sensor	+
Heated side mirrors	+
Power mirrors	+
Electric folding mirrors	+
Tinted glass	+

Multimedia and instruments

Steering wheel controls	+
Navigation system	+
AUX	+
Antenna	+
USB	+
Number of speakers	6

Headlights and lighting

Front fog lights	+
LED headlights	+
Light sensor	+
System of automatic inclusion / switching off of a high beam (HBC, HBA)	+

Seats

Rear Armrest	+
Armrest front	+
Power driver's seat	+

Visibility and parking

Rear View Camera	+

Exterior

Roof rails	+

Fuel economy

Start-Stop System	+

Security

Electronic systems

The system of dynamic stabilization (VDC)	+
Adaptive Road Lighting System (AFS, SRH)	+

Airbags

Driver's airbag	+
Passenger Airbag	+
Side airbags	+
Curtain airbags	+
Cushion for driver's knee	+

2.0 AT YH 80 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1995
Cylinders location	Oppozitnoe
Number of cylinders	4
Valves	16
Power, hp	152
Torque, Nm	198
RPM at max torque	4000
Engine	2.0i
RPM at max power	6000
Engine code	FB20D

Dimensions

Seats	5
Length mm	4465
Width	1800
Height mm	1615
Wheelbase mm	2665
Front track, mm	1549
Rear track, mm	1554
Kerb weight, kg	1432
Trunk capacity, L	590
Fuel tank, l	63
Ground clearance, mm	221

Suspension

Type of front suspension	Independent, such as MacPherson
Rear suspension	Independent, with two A-shaped levers

Brake system

The front brakes	Ventilated disc
Rear brakes	Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	8.7
Fuel consumption (urban), l. 100 km	7.1
Acceleration (0-100 km/h), s	10.4
The maximum speed, km / h.	194

Transmission and drive

Automatic transmission	+
Drive	Full
Transmission	CVT
Gearbox	Variable speed drive
Transmission manufacturer	Subaru
Transmission country of origin	Japan

Equipment

Comfort

Tyre pressure monitoring	+
Active Cruise Control (ACC)	+
Electric parking brake	+
System access and keyless start (Smart Entry)	+

Interior

Leather interior	+
Multi-information display in the instrument panel	+
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.)	+
Aluminum pedals	+

Wheels

Disc diameter	18
Rim type	Alloy
Tires	225/55R18

Cabin climate and noise insulation

2-zone automatic climate control	+
Heated front seats	+
Heated steering wheel	+

Glass, mirrors and sunroof

The rain sensor	+
Heated side mirrors	+
Power mirrors	+
Electric folding mirrors	+
Power Sunroof	+
Tinted glass	+

Multimedia and instruments

Steering wheel controls	+
Navigation system	+
AUX	+
Antenna	+
USB	+
Number of speakers	6

Headlights and lighting

Front fog lights	+
LED headlights	+
Light sensor	+
System of automatic inclusion / switching off of a high beam (HBC, HBA)	+

Seats

Rear Armrest	+
Armrest front	+
Power driver's seat	+

Visibility and parking

Rear View Camera	+

Exterior

Roof rails	+

Fuel economy

Start-Stop System	+

Security

Electronic systems

The system of dynamic stabilization (VDC)	+
Adaptive Road Lighting System (AFS, SRH)	+

Airbags

Driver's airbag	+
Passenger Airbag	+
Side airbags	+
Curtain airbags	+
Cushion for driver's knee	+

1.6i (114 HP) CVT Lineartronic 4x4 35 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1600
Cylinders location	Oppozitnoe
Number of cylinders	4
Valves	16
Power, hp	114
Torque, Nm	150
RPM at max torque	4000
Engine	1.6i
Compression	10.5
RPM at max power	5600
Engine code	FB16

Dimensions

Seats	5
Length mm	4465
Width	1800
Height mm	1615
Wheelbase mm	2665
Front track, mm	1549
Rear track, mm	1554
Trunk capacity, L	590
Fuel tank, l	63
Ground clearance, mm	220

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	7.9
Fuel consumption (urban), l. 100 km	5.6
Fuel consumption (combined), l. 100 km	6.4
Acceleration (0-100 km/h), s	13.9
The maximum speed, km / h.	175
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Drive	Full
Transmission	CVT
Gearbox	Variable speed drive
Transmission manufacturer	Subaru
Transmission country of origin	Japan

2.0i (152 HP) 6-speed manual 4x4 30 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1995
Cylinders location	Oppozitnoe
Number of cylinders	4
Valves	16
Power, hp	152
Torque, Nm	198
RPM at max torque	4000
Engine	2.0i
RPM at max power	6000
Engine code	FB20D

Dimensions

Seats	5
Length mm	4465
Width	1800
Height mm	1615
Wheelbase mm	2665
Front track, mm	1549
Rear track, mm	1554
Trunk capacity, L	590
Fuel tank, l	63
Ground clearance, mm	220

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	10.2
Fuel consumption (urban), l. 100 km	8.1

Transmission and drive

Number of gears	6
Drive	Full
Transmission	6-speed manual
Gearbox	Mechanics
Transmission manufacturer	Subaru
Transmission country of origin	Japan

2.0i (152 HP) CVT Lineartronic 4x4 32 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1995
Cylinders location	Oppozitnoe
Number of cylinders	4
Valves	16
Power, hp	152
Torque, Nm	198
RPM at max torque	4000
Engine	2.0i
RPM at max power	6000
Engine code	FB20D

Dimensions

Seats	5
Length mm	4465
Width	1800
Height mm	1615
Wheelbase mm	2665
Front track, mm	1549
Rear track, mm	1554
Trunk capacity, L	590
Fuel tank, l	63
Ground clearance, mm	220

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	8.7
Fuel consumption (urban), l. 100 km	7.1
Acceleration (0-100 km/h), s	10.4
The maximum speed, km / h.	194

Transmission and drive

Automatic transmission	+
Drive	Full
Transmission	CVT
Gearbox	Variable speed drive
Transmission manufacturer	Subaru
Transmission country of origin	Japan

FAQ

Subaru XV questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Subaru XV?

This page lists 6 trims for the Subaru XV, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Subaru XV?

The listed configurations show a power range of 114-152 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Subaru XV?

The available specification data shows engine displacement from 1600-1995 cc across the trims listed on this page.

Which transmissions are listed for the Subaru XV?

The transmission options currently shown for this model are: 6-speed manual. Open a trim section to see the full data for a specific configuration.

Are there photos for the Subaru XV?

Yes. The gallery includes 23 photos for the Subaru XV, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.

Explore more

Continue exploring Subaru

Return to Subaru models, browse the gallery, or compare the trims listed above.

All Subaru models XV generations View photo gallery Read FAQ Compare trims
