Toyota Proace specifications and photos

Toyota Proace specifications are shown with trim options, key technical data, and a model photo gallery. Compare 6 configurations by engine size, power, seating, and transmission. The gallery includes 22 photos for visual reference.

Years 2016
Body type van
Trims 6
Photos 22

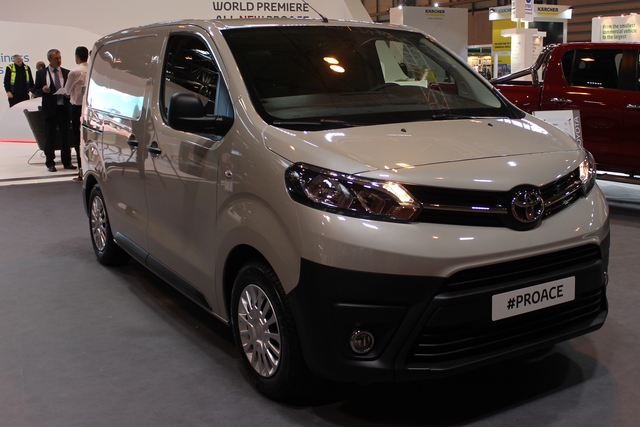

Toyota Proace 2016 van
Overview

Toyota Proace at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Toyota Proace page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 90-177 hp and 1560-1997 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

  • Power: 90-177 hp
  • Engine displacement: 1560-1997 cc
  • Transmissions: 5, 5-speed manual, 6-speed manual
  • Seating: 3 seats
Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 90-177 hp
Engine displacement 1560-1997 cc
Seating 3 seats
Transmissions 5, 5-speed manual, 6-speed manual
Trim / modification Engine Power Seats Transmission
1.6d 5MT 1560 cc 90 hp 3 5
1.6 D-4D (90 HP) 5-speed manual 1560 cc 90 hp 3 5-speed manual
1.6 D-4D (116 HP) 6-speed manual 1560 cc 116 hp 3 6-speed manual
2.0 D-4D (120 HP) 6-speed manual 1997 cc 120 hp 3 6-speed manual
2.0 D-4D (150 HP) 6-speed manual 1997 cc 150 hp 3 6-speed manual
2.0 D-4D (177 hp) 6-speed automatic 1997 cc 177 hp 3 6-speed automatic

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

1.6d 5MT 1.6 D-4D (90 HP) 5-speed manual 1.6 D-4D (116 HP) 6-speed manual 2.0 D-4D (120 HP) 6-speed manual 2.0 D-4D (150 HP) 6-speed manual 2.0 D-4D (177 hp) 6-speed automatic
1.6d 5MT 39 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1560
Cylinders location In-line
Number of cylinders 4
Valves 8
Power, hp 90
Torque, Nm 215
RPM at max torque 1500-3000
Engine 1.6 D-4D
Compression 16
RPM at max power 3750
Engine code 3WZ-TV

Dimensions

Seats 3
Length mm 4609
Width 1920
Height mm 1910
Wheelbase mm 2925
Front track, mm 1630
Rear track, mm 1618
Fuel tank, l 69
Turning circle, m 11.3

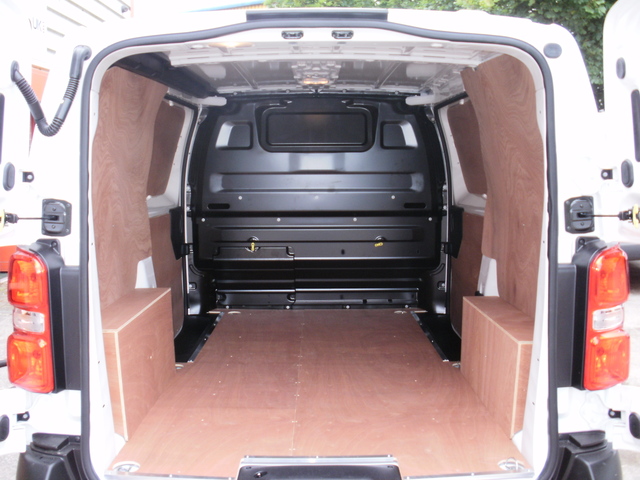

The volume of the cargo compartment, m3 4.6

Suspension

Type of front suspension Pseudo MacPherson
Rear suspension On trailing arms

Brake system

The front brakes Ventilated disc
Rear brakes Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6.4
Fuel consumption (urban), l. 100 km 5.5
Fuel consumption (combined), l. 100 km 5.9
Acceleration (0-100 km/h), s 15.3
The maximum speed, km / h. 145
The rate of toxicity Euro V

Transmission and drive

Number of gears 5
Drive Front
Transmission 5-speed manual
Gearbox Mechanics
Transmission manufacturer Toyota
Transmission country of origin Japan
1.6 D-4D (90 HP) 5-speed manual 37 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1560
Cylinders location In-line
Number of cylinders 4
Valves 8
Power, hp 90
Torque, Nm 215
RPM at max torque 1500-3000
Engine 1.6 D-4D
Compression 16
RPM at max power 3750
Engine code 3WZ-TV

Dimensions

Seats 3
Length mm 4959
Height mm 1940
Wheelbase mm 3275
Front track, mm 1630
Rear track, mm 1618
Kerb weight, kg 1540
Trunk capacity, L 5800
Fuel tank, l 69
Turning circle, m 12.4
Gross weight, kg 2830
Width (without mirrors) mm 1920

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6.4
Fuel consumption (urban), l. 100 km 5.5
Fuel consumption (combined), l. 100 km 5.9
Acceleration (0-100 km/h), s 15.3
The maximum speed, km / h. 145
The rate of toxicity Euro V

Transmission and drive

Number of gears 5
Drive Front
Transmission 5-speed manual
Gearbox Mechanics
Transmission manufacturer Toyota
Transmission country of origin Japan
1.6 D-4D (116 HP) 6-speed manual 37 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1560
Cylinders location In-line
Number of cylinders 4
Valves 8
Power, hp 116
Torque, Nm 300
RPM at max torque 1750-2000
Engine 1.6 D-4D
Compression 17
RPM at max power 3500
Engine code 3WZ-HV

Dimensions

Seats 3
Length mm 4959
Height mm 1940
Wheelbase mm 3275
Front track, mm 1630
Rear track, mm 1618
Kerb weight, kg 1540
Trunk capacity, L 5800
Fuel tank, l 69
Turning circle, m 12.4
Gross weight, kg 2830
Width (without mirrors) mm 1920

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.5
Fuel consumption (urban), l. 100 km 4.9
Fuel consumption (combined), l. 100 km 5.1
Acceleration (0-100 km/h), s 12.9
The maximum speed, km / h. 160
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer Toyota
Transmission country of origin Japan
2.0 D-4D (120 HP) 6-speed manual 38 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1997
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 120
Torque, Nm 340
RPM at max torque 1750-2000
Engine 2.0 D-4D
Compression 16.7
RPM at max power 3500
Turbo +
Engine code 4WZ-FTV (DW10)

Dimensions

Seats 3
Length mm 4959
Height mm 1940
Wheelbase mm 3275
Front track, mm 1630
Rear track, mm 1618
Kerb weight, kg 1540
Trunk capacity, L 5800
Fuel tank, l 69
Turning circle, m 12.4
Gross weight, kg 2830
Width (without mirrors) mm 1920

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.9
Fuel consumption (urban), l. 100 km 4.9
Fuel consumption (combined), l. 100 km 5.3
Acceleration (0-100 km/h), s 13.3
The maximum speed, km / h. 170
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer Toyota
Transmission country of origin Japan
2.0 D-4D (150 HP) 6-speed manual 37 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1997
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 150
Torque, Nm 370
RPM at max torque 2000-2500
Engine 2.0 D-4D
Compression 16.7
RPM at max power 4000
Engine code 4WZ-FTV

Dimensions

Seats 3
Length mm 4959
Height mm 1940
Wheelbase mm 3275
Front track, mm 1630
Rear track, mm 1618
Kerb weight, kg 1540
Trunk capacity, L 5800
Fuel tank, l 69
Turning circle, m 12.4
Gross weight, kg 2830
Width (without mirrors) mm 1920

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7.2
Fuel consumption (urban), l. 100 km 5.1
Fuel consumption (combined), l. 100 km 5.9
Acceleration (0-100 km/h), s 10.6
The maximum speed, km / h. 165
The rate of toxicity Euro V

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer Toyota
Transmission country of origin Japan
2.0 D-4D (177 hp) 6-speed automatic 38 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1997
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 177
Torque, Nm 400
RPM at max torque 2000-2500
Engine 2.0 D-4D
Compression 16.7
RPM at max power 3750
Engine code 4WZ-FHV

Dimensions

Seats 3
Length mm 4959
Height mm 1940
Wheelbase mm 3275
Front track, mm 1630
Rear track, mm 1618
Kerb weight, kg 1540
Trunk capacity, L 5800
Fuel tank, l 69
Turning circle, m 12.4
Gross weight, kg 2830
Width (without mirrors) mm 1920

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6.6
Fuel consumption (urban), l. 100 km 5.8
Fuel consumption (combined), l. 100 km 6.2
Acceleration (0-100 km/h), s 10
The maximum speed, km / h. 170
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-speed automatic
Gearbox Machine
Transmission manufacturer Aisin
Transmission country of origin Japan
FAQ

Toyota Proace questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Toyota Proace?

This page lists 6 trims for the Toyota Proace, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Toyota Proace?

The listed configurations show a power range of 90-177 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Toyota Proace?

The available specification data shows engine displacement from 1560-1997 cc across the trims listed on this page.

Which transmissions are listed for the Toyota Proace?

The transmission options currently shown for this model are: 5, 5-speed manual, 6-speed manual. Open a trim section to see the full data for a specific configuration.

Are there photos for the Toyota Proace?

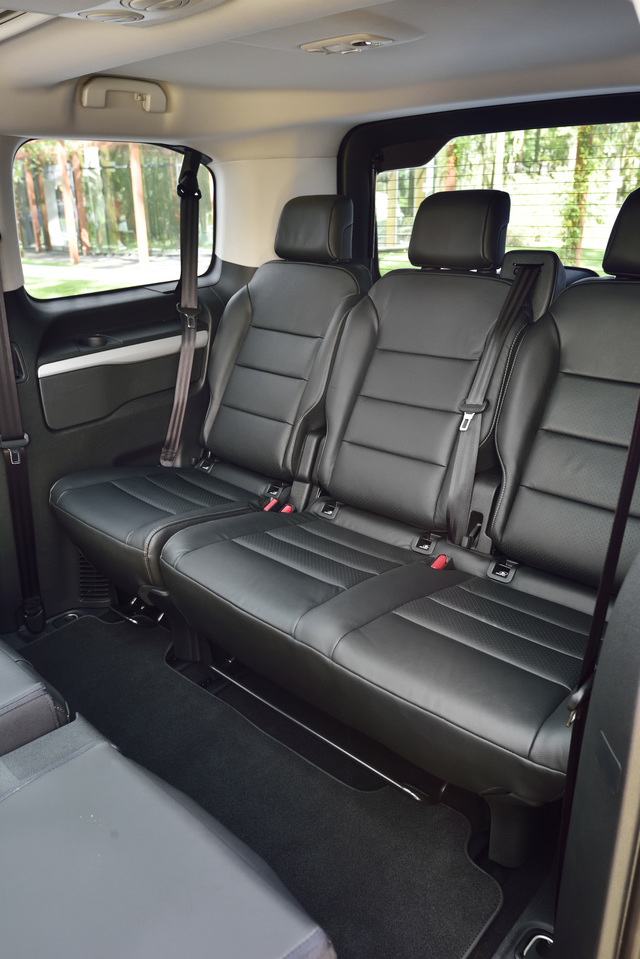

Yes. The gallery includes 22 photos for the Toyota Proace, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
