Toyota Proace Verso specifications and photos

Toyota Proace Verso specifications are shown with trim options, key technical data, and a model photo gallery. Compare 13 configurations by engine size, power, seating, and transmission. The gallery includes 10 photos for visual reference.

Years 2016
Body type minivan
Trims 13
Photos 10

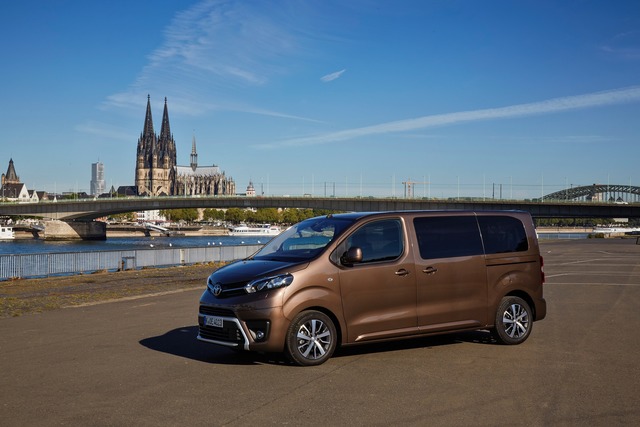

Toyota Proace Verso 2016 minivan
Overview

Toyota Proace Verso at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Toyota Proace Verso page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 90-177 hp and 1560-1997 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

  • Power: 90-177 hp
  • Engine displacement: 1560-1997 cc
  • Transmissions: 6, 5-speed manual, 6-speed manual
  • Seating: 7-9 seats
Research hub

Photos, trims and specifications for Toyota Proace Verso

This model page brings gallery images, trim comparison, and detailed technical data together for the 2016 generation.

Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 90-177 hp
Engine displacement 1560-1997 cc
Seating 7-9 seats
Transmissions 6, 5-speed manual, 6-speed manual
Trim / modification Engine Power Seats Transmission
2.0d 6MT Combi L1 (150) 1997 cc 150 hp 9 6
2.0d 6MT Shuttle L1 (150) 1997 cc 150 hp 8 6
2.0d 6MT Shuttle L2 (150) 1997 cc 150 hp 8 6
2.0d 6AT Premium L1 (150) 1997 cc 150 hp 7 6
2.0d 6AT Premium L2 (150) 1997 cc 150 hp 7 6
2.0d 6AT Shuttle L2 (150) 1997 cc 150 hp 8 6
2.0d 6AT Shuttle L1 (150) 1997 cc 150 hp 8 6
1.6 D-4D (90 HP) 5-speed manual 1560 cc 90 hp 8 5-speed manual
1.6 D-4D (95 hp) 6AT MultiMode 1560 cc 95 hp 8 6
1.6 D-4D (116 HP) 6-speed manual 1560 cc 116 hp 8 6-speed manual
2.0 D-4D (150 HP) 6-speed manual 1997 cc 150 hp 8 6-speed manual
2.0 D-4D (150 hp) 6-speed automatic 1997 cc 150 hp 8 6-speed automatic
2.0 D-4D (177 hp) 8-speed automatic 1997 cc 177 hp 8 8-speed automatic

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

2.0d 6MT Combi L1 (150) 83 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1997
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 150
Torque, Nm 370
RPM at max torque 2000-2500
Engine 2.0 D-4D
Compression 16.7
RPM at max power 4000
Engine code 4WZ-FTV

Dimensions

Seats 9
Length mm 4959
Width 2204
Height mm 1940
Wheelbase mm 3275
Front track, mm 1630
Rear track, mm 1618
Kerb weight, kg 1714
Trunk capacity, L 507
Fuel tank, l 69
Turning circle, m 12.9
Gross weight, kg 3000
Width (without mirrors) mm 1920

Suspension

Type of front suspension Independent, reinforced pseudo-MacPherson with anti-roll bar
Rear suspension Independent, spring, on slanted wishbones with anti-roll bar and AMVAC system - springs and shock absorbers with variable stiffness depending on the level of car loading

Brake system

The front brakes Ventilated disc
Rear brakes Ventilated disc

Steering

Power steering Electro-hydraulic amplifier

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7.3
Fuel consumption (urban), l. 100 km 5.2
Fuel consumption (combined), l. 100 km 6
Acceleration (0-100 km/h), s 10.6
The maximum speed, km / h. 183
The rate of toxicity Euro V

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer Toyota
Transmission country of origin Japan

Equipment

Comfort

Cruise Control +
Tyre pressure monitoring +
Adjustable steering column +

Wheels

Disc diameter 16
Rim type Steel
Tires 215/65R16
Spare wheel Full size

Cabin climate and noise insulation

Air Conditioning +

Glass, mirrors and sunroof

Front power windows +
Heated side mirrors +
Power mirrors +
Rear window cleaner +
Tinted glass +
Rear windshield +

Multimedia and instruments

Steering wheel controls +
Antenna +

Headlights and lighting

corrector of headlights +
Front fog lights +
Rear fog lights +
Halogen headlights +
Daylight (halogen headlights) +

Seats

height-adjustable driver's seat +
Isofix child seat (LATCH, Isofix) +
The rear seat backrest folded in the ratio 1/3 to 2/3 +

Off-road

aid climbing the hill (HAC; HSA; Hill Holder; HLA) +
Motor Protection +

Exterior

Moldings +
Right sliding door window +

Security

Electronic systems

Anti-lock braking system (ABS) +
Electronic Brakeforce Distribution (EBD, EBV, REF, EBFD) +
Traction Control System (Traction control, ASR) +
The emergency braking (Brake Assist) +
Vehicle Stability Control (ESP, DSC, ESC, VSC) +
Children's locks +

Anti-theft systems

alarm +
Central locking with remote control +

Airbags

Driver's airbag +
Passenger Airbag +
Curtain airbags +
Deactivating the front passenger airbags +
2.0d 6MT Shuttle L1 (150) 95 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1997
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 150
Torque, Nm 370
RPM at max torque 2000-2500
Engine 2.0 D-4D
Compression 16.7
RPM at max power 4000
Engine code 4WZ-FTV

Dimensions

Seats 8
Length mm 4959
Width 2204
Height mm 1940
Wheelbase mm 3275
Front track, mm 1630
Rear track, mm 1618
Kerb weight, kg 1714
Trunk capacity, L 507
Fuel tank, l 69
Turning circle, m 12.9
Gross weight, kg 3000
Width (without mirrors) mm 1920

Suspension

Type of front suspension Independent, reinforced pseudo-MacPherson with anti-roll bar
Rear suspension Independent, spring, on slanted wishbones with anti-roll bar and AMVAC system - springs and shock absorbers with variable stiffness depending on the level of car loading

Brake system

The front brakes Ventilated disc
Rear brakes Ventilated disc

Steering

Power steering Electro-hydraulic amplifier

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7.3
Fuel consumption (urban), l. 100 km 5.2
Fuel consumption (combined), l. 100 km 6
Acceleration (0-100 km/h), s 10.6
The maximum speed, km / h. 183
The rate of toxicity Euro V

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer Toyota
Transmission country of origin Japan

Equipment

Comfort

Cruise Control +
Tyre pressure monitoring +
Adjustable steering column +

Interior

Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.) +

Wheels

Disc diameter 16
Rim type Steel
Tires 215/65R16
Spare wheel Full size

Cabin climate and noise insulation

2-zone automatic climate control +
Heated front seats +
Rear air conditioning +

Glass, mirrors and sunroof

Front power windows +
The rain sensor +
Heated side mirrors +
Power mirrors +
Rear window cleaner +
Tinted glass +
Rear windshield +

Multimedia and instruments

Steering wheel controls +
Antenna +

Headlights and lighting

corrector of headlights +
Front fog lights +
Light sensor +
Rear fog lights +
Halogen headlights +
Daylight (halogen headlights) +

Seats

Armrest front +
height-adjustable driver's seat +
Isofix child seat (LATCH, Isofix) +
Lumbar support for the driver's seat +
The rear seat backrest folded in the ratio 1/3 to 2/3 +

Visibility and parking

Rear Parking Sensors +
Rear view camera with display on the mirror +

Off-road

aid climbing the hill (HAC; HSA; Hill Holder; HLA) +
Motor Protection +

Exterior

Moldings +
Right sliding door window +

Body and exterior paint

Door handles in body color +
Exterior mirrors in body color +

Security

Electronic systems

Anti-lock braking system (ABS) +
Electronic Brakeforce Distribution (EBD, EBV, REF, EBFD) +
Traction Control System (Traction control, ASR) +
The emergency braking (Brake Assist) +
Vehicle Stability Control (ESP, DSC, ESC, VSC) +
Children's locks +

Anti-theft systems

alarm +
Central locking with remote control +

Airbags

Driver's airbag +
Passenger Airbag +
Side airbags +
Curtain airbags +
Deactivating the front passenger airbags +
2.0d 6MT Shuttle L2 (150) 95 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1997
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 150
Torque, Nm 370
RPM at max torque 2000-2500
Engine 2.0 D-4D
Compression 16.7
RPM at max power 4000
Engine code 4WZ-FTV

Dimensions

Seats 8
Length mm 5309
Width 2204
Height mm 1948
Wheelbase mm 3275
Front track, mm 1630
Rear track, mm 1618
Kerb weight, kg 1745
Trunk capacity, L 912
Fuel tank, l 69
Turning circle, m 12.9
Gross weight, kg 3000
Width (without mirrors) mm 1920

Suspension

Type of front suspension Independent, reinforced pseudo-MacPherson with anti-roll bar
Rear suspension Independent, spring, on slanted wishbones with anti-roll bar and AMVAC system - springs and shock absorbers with variable stiffness depending on the level of car loading

Brake system

The front brakes Ventilated disc
Rear brakes Ventilated disc

Steering

Power steering Electro-hydraulic amplifier

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7.3
Fuel consumption (urban), l. 100 km 5.2
Fuel consumption (combined), l. 100 km 6
Acceleration (0-100 km/h), s 10.6
The maximum speed, km / h. 183
The rate of toxicity Euro V

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer Toyota
Transmission country of origin Japan

Equipment

Comfort

Cruise Control +
Tyre pressure monitoring +
Adjustable steering column +

Interior

Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.) +

Wheels

Disc diameter 16
Rim type Steel
Tires 215/65R16
Spare wheel Full size

Cabin climate and noise insulation

2-zone automatic climate control +
Heated front seats +
Rear air conditioning +

Glass, mirrors and sunroof

Front power windows +
The rain sensor +
Heated side mirrors +
Power mirrors +
Rear window cleaner +
Tinted glass +
Rear windshield +

Multimedia and instruments

Steering wheel controls +
Antenna +

Headlights and lighting

corrector of headlights +
Front fog lights +
Light sensor +
Rear fog lights +
Halogen headlights +
Daylight (halogen headlights) +

Seats

Armrest front +
height-adjustable driver's seat +
Isofix child seat (LATCH, Isofix) +
Lumbar support for the driver's seat +
The rear seat backrest folded in the ratio 1/3 to 2/3 +

Visibility and parking

Rear Parking Sensors +
Rear view camera with display on the mirror +

Off-road

aid climbing the hill (HAC; HSA; Hill Holder; HLA) +
Motor Protection +

Exterior

Moldings +
Right sliding door window +

Body and exterior paint

Door handles in body color +
Exterior mirrors in body color +

Security

Electronic systems

Anti-lock braking system (ABS) +
Electronic Brakeforce Distribution (EBD, EBV, REF, EBFD) +
Traction Control System (Traction control, ASR) +
The emergency braking (Brake Assist) +
Vehicle Stability Control (ESP, DSC, ESC, VSC) +
Children's locks +

Anti-theft systems

alarm +
Central locking with remote control +

Airbags

Driver's airbag +
Passenger Airbag +
Side airbags +
Curtain airbags +
Deactivating the front passenger airbags +
2.0d 6AT Premium L1 (150) 114 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1997
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 150
Torque, Nm 370
RPM at max torque 2000-2500
Engine 2.0 D-4D
Compression 16.7
RPM at max power 4000
Engine code 4WZ-FTV

Dimensions

Seats 7
Length mm 5309
Width 2204
Height mm 1940
Wheelbase mm 3275
Front track, mm 1630
Rear track, mm 1618
Kerb weight, kg 1714
Trunk capacity, L 507
Fuel tank, l 69
Turning circle, m 12.9
Ground clearance, mm 175
Gross weight, kg 3000
Width (without mirrors) mm 1920

Suspension

Type of front suspension Independent, reinforced pseudo-MacPherson with anti-roll bar
Rear suspension Independent, spring, on slanted wishbones with anti-roll bar and AMVAC system - springs and shock absorbers with variable stiffness depending on the level of car loading

Brake system

The front brakes Ventilated disc
Rear brakes Ventilated disc

Steering

Power steering Electro-hydraulic amplifier

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7
Fuel consumption (urban), l. 100 km 5.6
Fuel consumption (combined), l. 100 km 6.2
Acceleration (0-100 km/h), s 10.4
The maximum speed, km / h. 170
The rate of toxicity Euro V

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-speed automatic
Gearbox Machine
Transmission manufacturer Aisin
Transmission country of origin Japan

Equipment

Comfort

Cruise Control +
Tyre pressure monitoring +
Start / Stop button for starting and stopping the engine +
Paddle shifters +
Adjustable steering column +
System access and keyless start (Smart Entry) +
Contactless side door opening +

Interior

Perforated leather interior +
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.) +

Wheels

Disc diameter 17
Rim type Alloy
Tires 225/55R17
Spare wheel Full size

Cabin climate and noise insulation

2-zone automatic climate control +
Heated front seats +
Rear air conditioning +

Glass, mirrors and sunroof

Front power windows +
The rain sensor +
Heated side mirrors +
Power mirrors +
Electric folding mirrors +
Rear window cleaner +
Tinted glass +
Rear windshield +

Multimedia and instruments

Steering wheel controls +
Antenna +

Headlights and lighting

Xenon headlights +
Washers +
corrector of headlights +
Front fog lights +
LED headlights +
Light sensor +
Rear fog lights +
Daylight (halogen headlights) +

Seats

Power front seats +
Power lumbar support for the driver's seat +
Armrest front +
height-adjustable driver's seat +
Isofix child seat (LATCH, Isofix) +
Lumbar support for the front passenger seat +
Lumbar support for the driver's seat +
The rear seat backrest folded in the ratio 1/3 to 2/3 +
The front seats with massage function +

Visibility and parking

Rear View Camera +
Rear Parking Sensors +
Parking aid front +
Rear view camera with display on the mirror +

Off-road

aid climbing the hill (HAC; HSA; Hill Holder; HLA) +
Motor Protection +

Exterior

Bumpers in body color +
Moldings +
Right sliding door window +
The left sliding door with a window +

Body and exterior paint

Door handles in body color +
Exterior mirrors in body color +

Security

Electronic systems

Anti-lock braking system (ABS) +
Electronic Brakeforce Distribution (EBD, EBV, REF, EBFD) +
Traction Control System (Traction control, ASR) +
The emergency braking (Brake Assist) +
Vehicle Stability Control (ESP, DSC, ESC, VSC) +
Children's locks +
control system "blind zones" (RVM, BSM) +

Anti-theft systems

alarm +
Central locking with remote control +

Airbags

Driver's airbag +
Passenger Airbag +
Side airbags +
Curtain airbags +
Deactivating the front passenger airbags +
2.0d 6AT Premium L2 (150) 113 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1997
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 150
Torque, Nm 370
RPM at max torque 2000-2500
Engine 2.0 D-4D
Compression 16.7
RPM at max power 4000
Engine code 4WZ-FTV

Dimensions

Seats 7
Length mm 5309
Width 2204
Height mm 1948
Wheelbase mm 3275
Front track, mm 1630
Rear track, mm 1618
Kerb weight, kg 1745
Trunk capacity, L 912
Fuel tank, l 69
Turning circle, m 12.9
Gross weight, kg 3000
Width (without mirrors) mm 1920

Suspension

Type of front suspension Independent, reinforced pseudo-MacPherson with anti-roll bar
Rear suspension Independent, spring, on slanted wishbones with anti-roll bar and AMVAC system - springs and shock absorbers with variable stiffness depending on the level of car loading

Brake system

The front brakes Ventilated disc
Rear brakes Ventilated disc

Steering

Power steering Electro-hydraulic amplifier

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7
Fuel consumption (urban), l. 100 km 5.6
Fuel consumption (combined), l. 100 km 6.2
Acceleration (0-100 km/h), s 10.4
The maximum speed, km / h. 170
The rate of toxicity Euro V

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-speed automatic
Gearbox Machine
Transmission manufacturer Aisin
Transmission country of origin Japan

Equipment

Comfort

Cruise Control +
Tyre pressure monitoring +
Start / Stop button for starting and stopping the engine +
Paddle shifters +
Adjustable steering column +
System access and keyless start (Smart Entry) +
Contactless side door opening +

Interior

Perforated leather interior +
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.) +

Wheels

Disc diameter 17
Rim type Alloy
Tires 225/55R17
Spare wheel Full size

Cabin climate and noise insulation

2-zone automatic climate control +
Heated front seats +
Rear air conditioning +

Glass, mirrors and sunroof

Front power windows +
The rain sensor +
Heated side mirrors +
Power mirrors +
Electric folding mirrors +
Rear window cleaner +
Tinted glass +
Rear windshield +

Multimedia and instruments

Steering wheel controls +
Antenna +

Headlights and lighting

Xenon headlights +
Washers +
corrector of headlights +
Front fog lights +
LED headlights +
Light sensor +
Rear fog lights +
Daylight (halogen headlights) +

Seats

Power front seats +
Power lumbar support for the driver's seat +
Armrest front +
height-adjustable driver's seat +
Isofix child seat (LATCH, Isofix) +
Lumbar support for the front passenger seat +
Lumbar support for the driver's seat +
The rear seat backrest folded in the ratio 1/3 to 2/3 +
The front seats with massage function +

Visibility and parking

Rear View Camera +
Rear Parking Sensors +
Parking aid front +
Rear view camera with display on the mirror +

Off-road

aid climbing the hill (HAC; HSA; Hill Holder; HLA) +
Motor Protection +

Exterior

Bumpers in body color +
Moldings +
Right sliding door window +
The left sliding door with a window +

Body and exterior paint

Door handles in body color +
Exterior mirrors in body color +

Security

Electronic systems

Anti-lock braking system (ABS) +
Electronic Brakeforce Distribution (EBD, EBV, REF, EBFD) +
Traction Control System (Traction control, ASR) +
The emergency braking (Brake Assist) +
Vehicle Stability Control (ESP, DSC, ESC, VSC) +
Children's locks +
control system "blind zones" (RVM, BSM) +

Anti-theft systems

alarm +
Central locking with remote control +

Airbags

Driver's airbag +
Passenger Airbag +
Side airbags +
Curtain airbags +
Deactivating the front passenger airbags +
2.0d 6AT Shuttle L2 (150) 96 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1997
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 150
Torque, Nm 370
RPM at max torque 2000-2500
Engine 2.0 D-4D
Compression 16.7
RPM at max power 4000
Engine code 4WZ-FTV

Dimensions

Seats 8
Length mm 5309
Width 2204
Height mm 1948
Wheelbase mm 3275
Front track, mm 1630
Rear track, mm 1618
Kerb weight, kg 1745
Trunk capacity, L 912
Fuel tank, l 69
Turning circle, m 12.9
Gross weight, kg 3000
Width (without mirrors) mm 1920

Suspension

Type of front suspension Independent, reinforced pseudo-MacPherson with anti-roll bar
Rear suspension Independent, spring, on slanted wishbones with anti-roll bar and AMVAC system - springs and shock absorbers with variable stiffness depending on the level of car loading

Brake system

The front brakes Ventilated disc
Rear brakes Ventilated disc

Steering

Power steering Electro-hydraulic amplifier

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7
Fuel consumption (urban), l. 100 km 5.6
Fuel consumption (combined), l. 100 km 6.2
Acceleration (0-100 km/h), s 10.4
The maximum speed, km / h. 170
The rate of toxicity Euro V

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-speed automatic
Gearbox Machine
Transmission manufacturer Aisin
Transmission country of origin Japan

Equipment

Comfort

Cruise Control +
Tyre pressure monitoring +
Adjustable steering column +

Interior

Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.) +

Wheels

Disc diameter 16
Rim type Steel
Tires 215/65R16
Spare wheel Full size

Cabin climate and noise insulation

2-zone automatic climate control +
Heated front seats +
Rear air conditioning +

Glass, mirrors and sunroof

Front power windows +
The rain sensor +
Heated side mirrors +
Power mirrors +
Rear window cleaner +
Tinted glass +
Rear windshield +

Multimedia and instruments

Steering wheel controls +
Antenna +

Headlights and lighting

corrector of headlights +
Front fog lights +
Light sensor +
Rear fog lights +
Halogen headlights +
Daylight (halogen headlights) +

Seats

Armrest front +
height-adjustable driver's seat +
Isofix child seat (LATCH, Isofix) +
Lumbar support for the driver's seat +
The rear seat backrest folded in the ratio 1/3 to 2/3 +

Visibility and parking

Rear Parking Sensors +
Rear view camera with display on the mirror +

Off-road

aid climbing the hill (HAC; HSA; Hill Holder; HLA) +
Motor Protection +

Exterior

Moldings +
Right sliding door window +

Body and exterior paint

Door handles in body color +
Exterior mirrors in body color +

Security

Electronic systems

Anti-lock braking system (ABS) +
Electronic Brakeforce Distribution (EBD, EBV, REF, EBFD) +
Traction Control System (Traction control, ASR) +
The emergency braking (Brake Assist) +
Vehicle Stability Control (ESP, DSC, ESC, VSC) +
Children's locks +

Anti-theft systems

alarm +
Central locking with remote control +

Airbags

Driver's airbag +
Passenger Airbag +
Side airbags +
Curtain airbags +
Deactivating the front passenger airbags +
2.0d 6AT Shuttle L1 (150) 96 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1997
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 150
Torque, Nm 370
RPM at max torque 2000-2500
Engine 2.0 D-4D
Compression 16.7
RPM at max power 4000
Engine code 4WZ-FTV

Dimensions

Seats 8
Length mm 4959
Width 2204
Height mm 1940
Wheelbase mm 3275
Front track, mm 1630
Rear track, mm 1618
Kerb weight, kg 1714
Trunk capacity, L 507
Fuel tank, l 69
Turning circle, m 12.9
Gross weight, kg 3000
Width (without mirrors) mm 1920

Suspension

Type of front suspension Independent, reinforced pseudo-MacPherson with anti-roll bar
Rear suspension Independent, spring, on slanted wishbones with anti-roll bar and AMVAC system - springs and shock absorbers with variable stiffness depending on the level of car loading

Brake system

The front brakes Ventilated disc
Rear brakes Ventilated disc

Steering

Power steering Electro-hydraulic amplifier

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7
Fuel consumption (urban), l. 100 km 5.6
Fuel consumption (combined), l. 100 km 6.2
Acceleration (0-100 km/h), s 10.4
The maximum speed, km / h. 170
The rate of toxicity Euro V

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-speed automatic
Gearbox Machine
Transmission manufacturer Aisin
Transmission country of origin Japan

Equipment

Comfort

Cruise Control +
Tyre pressure monitoring +
Adjustable steering column +

Interior

Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.) +

Wheels

Disc diameter 16
Rim type Steel
Tires 215/65R16
Spare wheel Full size

Cabin climate and noise insulation

2-zone automatic climate control +
Heated front seats +
Rear air conditioning +

Glass, mirrors and sunroof

Front power windows +
The rain sensor +
Heated side mirrors +
Power mirrors +
Rear window cleaner +
Tinted glass +
Rear windshield +

Multimedia and instruments

Steering wheel controls +
Antenna +

Headlights and lighting

corrector of headlights +
Front fog lights +
Light sensor +
Rear fog lights +
Halogen headlights +
Daylight (halogen headlights) +

Seats

Armrest front +
height-adjustable driver's seat +
Isofix child seat (LATCH, Isofix) +
Lumbar support for the driver's seat +
The rear seat backrest folded in the ratio 1/3 to 2/3 +

Visibility and parking

Rear Parking Sensors +
Rear view camera with display on the mirror +

Off-road

aid climbing the hill (HAC; HSA; Hill Holder; HLA) +
Motor Protection +

Exterior

Moldings +
Right sliding door window +

Body and exterior paint

Door handles in body color +
Exterior mirrors in body color +

Security

Electronic systems

Anti-lock braking system (ABS) +
Electronic Brakeforce Distribution (EBD, EBV, REF, EBFD) +
Traction Control System (Traction control, ASR) +
The emergency braking (Brake Assist) +
Vehicle Stability Control (ESP, DSC, ESC, VSC) +
Children's locks +

Anti-theft systems

alarm +
Central locking with remote control +

Airbags

Driver's airbag +
Passenger Airbag +
Side airbags +
Curtain airbags +
Deactivating the front passenger airbags +
1.6 D-4D (90 HP) 5-speed manual 38 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1560
Cylinders location In-line
Number of cylinders 4
Valves 8
Power, hp 90
Torque, Nm 215
RPM at max torque 1500-3000
Engine 1.6 D-4D
Compression 16
RPM at max power 3750
Engine code 3WZ-TV

Dimensions

Seats 8
Length mm 4959
Height mm 1940
Wheelbase mm 3275
Front track, mm 1630
Rear track, mm 1618
Kerb weight, kg 1727
Trunk capacity, L 550
Fuel tank, l 69
Turning circle, m 11.3
Ground clearance, mm 175
Gross weight, kg 3100
Width (without mirrors) mm 1920

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6
Fuel consumption (urban), l. 100 km 5.2
Fuel consumption (combined), l. 100 km 5.5
Acceleration (0-100 km/h), s 19
The maximum speed, km / h. 145
The rate of toxicity Euro VI

Transmission and drive

Number of gears 5
Drive Front
Transmission 5-speed manual
Gearbox Mechanics
Transmission manufacturer Toyota
Transmission country of origin Japan
1.6 D-4D (95 hp) 6AT MultiMode 39 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1560
Cylinders location In-line
Number of cylinders 4
Valves 8
Power, hp 95
Torque, Nm 240
RPM at max torque 1750-2000
Engine 1.6 D-4D
Compression 17
RPM at max power 3750
Engine code 3WZ-TV

Dimensions

Seats 8
Length mm 4959
Height mm 1940
Wheelbase mm 3275
Front track, mm 1630
Rear track, mm 1618
Kerb weight, kg 1727
Trunk capacity, L 550
Fuel tank, l 69
Turning circle, m 11.3
Ground clearance, mm 175
Gross weight, kg 3100
Width (without mirrors) mm 1920

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.5
Fuel consumption (urban), l. 100 km 5.3
Fuel consumption (combined), l. 100 km 5.4
Acceleration (0-100 km/h), s 18.5
The maximum speed, km / h. 145
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-speed automatic
Gearbox Machine
Transmission manufacturer Aisin
Transmission country of origin Japan
1.6 D-4D (116 HP) 6-speed manual 38 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1560
Cylinders location In-line
Number of cylinders 4
Valves 8
Power, hp 116
Torque, Nm 300
RPM at max torque 1750-2000
Engine 1.6 D-4D
Compression 17
RPM at max power 3500
Engine code 3WZ-HV

Dimensions

Seats 8
Length mm 4959
Height mm 1940
Wheelbase mm 3275
Front track, mm 1630
Rear track, mm 1618
Kerb weight, kg 1727
Trunk capacity, L 550
Fuel tank, l 69
Turning circle, m 11.3
Ground clearance, mm 175
Gross weight, kg 3100
Width (without mirrors) mm 1920

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.6
Fuel consumption (urban), l. 100 km 5
Fuel consumption (combined), l. 100 km 5.1
Acceleration (0-100 km/h), s 16.1
The maximum speed, km / h. 160
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer Toyota
Transmission country of origin Japan
2.0 D-4D (150 HP) 6-speed manual 38 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1997
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 150
Torque, Nm 370
RPM at max torque 2000-2500
Engine 2.0 D-4D
Compression 16.7
RPM at max power 4000
Engine code 4WZ-FTV

Dimensions

Seats 8
Length mm 4959
Height mm 1940
Wheelbase mm 3275
Front track, mm 1630
Rear track, mm 1618
Kerb weight, kg 1727
Trunk capacity, L 550
Fuel tank, l 69
Turning circle, m 11.3
Ground clearance, mm 175
Gross weight, kg 3100
Width (without mirrors) mm 1920

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7.3
Fuel consumption (urban), l. 100 km 5.2
Fuel consumption (combined), l. 100 km 6
Acceleration (0-100 km/h), s 10.6
The maximum speed, km / h. 183
The rate of toxicity Euro V

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer Toyota
Transmission country of origin Japan
2.0 D-4D (150 hp) 6-speed automatic 39 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1997
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 150
Torque, Nm 370
RPM at max torque 2000-2500
Engine 2.0 D-4D
Compression 16.7
RPM at max power 4000
Engine code 4WZ-FTV

Dimensions

Seats 8
Length mm 4959
Height mm 1940
Wheelbase mm 3275
Front track, mm 1630
Rear track, mm 1618
Kerb weight, kg 1727
Trunk capacity, L 550
Fuel tank, l 69
Turning circle, m 11.3
Ground clearance, mm 175
Gross weight, kg 3100
Width (without mirrors) mm 1920

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7
Fuel consumption (urban), l. 100 km 5.6
Fuel consumption (combined), l. 100 km 6.2
Acceleration (0-100 km/h), s 10.4
The maximum speed, km / h. 170
The rate of toxicity Euro V

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-speed automatic
Gearbox Machine
Transmission manufacturer Aisin
Transmission country of origin Japan
2.0 D-4D (177 hp) 8-speed automatic 39 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1997
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 177
Torque, Nm 400
RPM at max torque 2000-2500
Engine 2.0 D-4D
Compression 16.7
RPM at max power 3750
Engine code 4WZ-FHV

Dimensions

Seats 8
Length mm 4959
Height mm 1940
Wheelbase mm 3275
Front track, mm 1630
Rear track, mm 1618
Kerb weight, kg 1727
Trunk capacity, L 550
Fuel tank, l 69
Turning circle, m 11.3
Ground clearance, mm 175
Gross weight, kg 3100
Width (without mirrors) mm 1920

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6.3
Fuel consumption (urban), l. 100 km 5.5
Fuel consumption (combined), l. 100 km 5.9
Acceleration (0-100 km/h), s 10.1
The maximum speed, km / h. 170
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Front
Transmission 8-speed automatic
Gearbox Machine
Transmission manufacturer Aisin
Transmission country of origin Japan
FAQ

Toyota Proace Verso questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Toyota Proace Verso?

This page lists 13 trims for the Toyota Proace Verso, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Toyota Proace Verso?

The listed configurations show a power range of 90-177 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Toyota Proace Verso?

The available specification data shows engine displacement from 1560-1997 cc across the trims listed on this page.

Which transmissions are listed for the Toyota Proace Verso?

The transmission options currently shown for this model are: 6, 5-speed manual, 6-speed manual. Open a trim section to see the full data for a specific configuration.

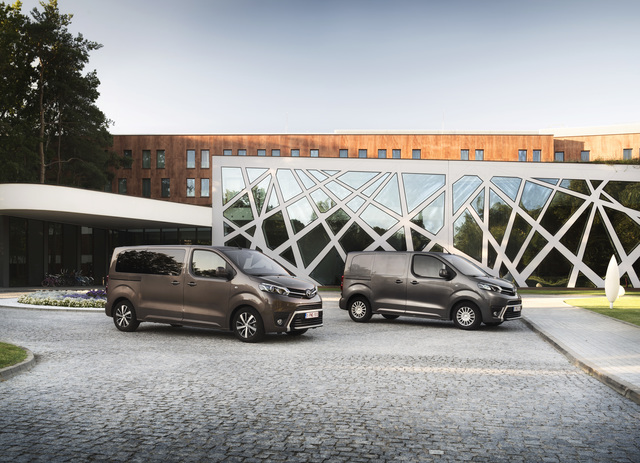

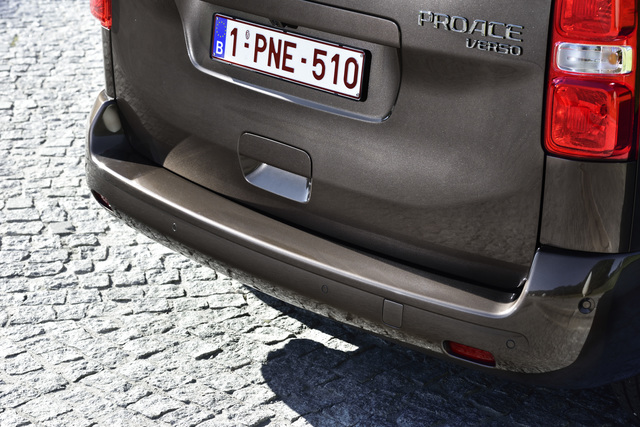

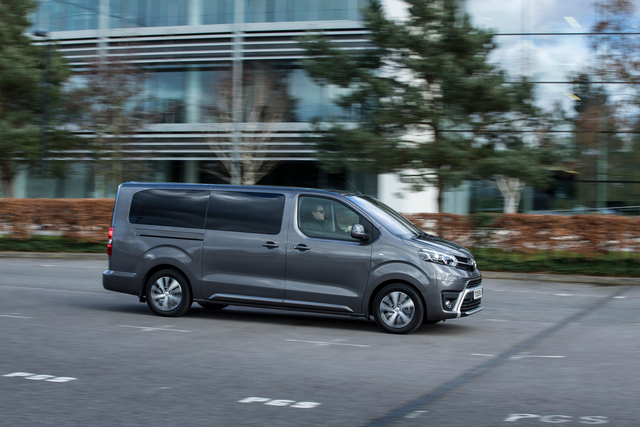

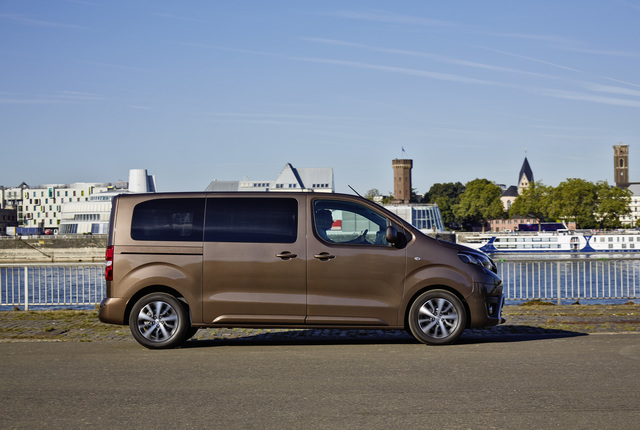

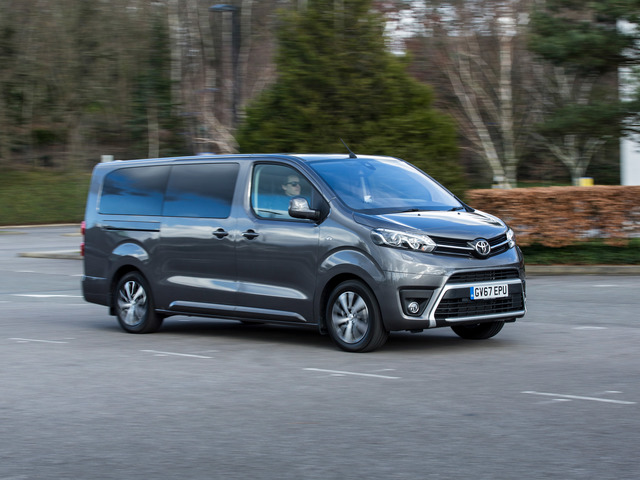

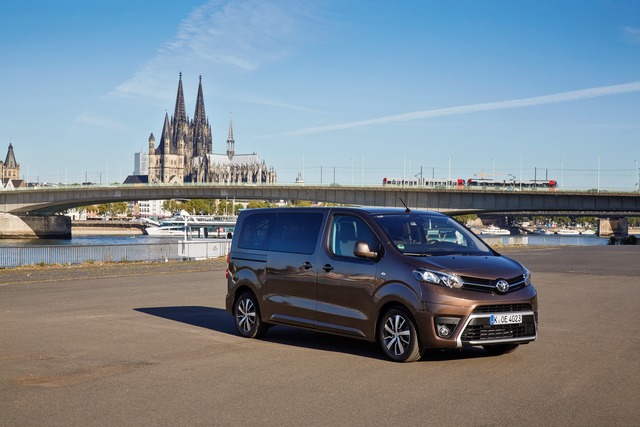

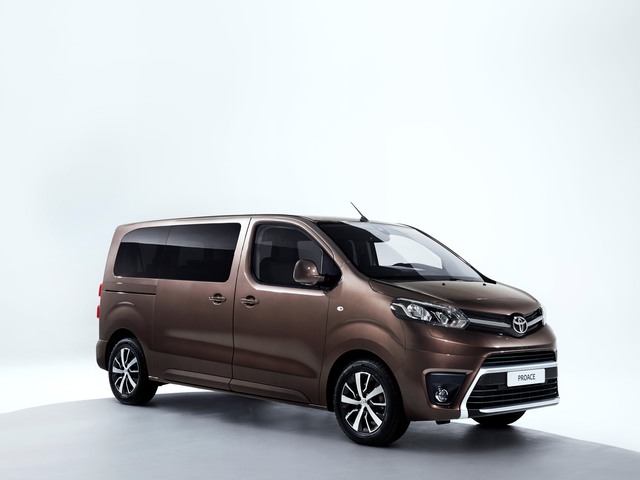

Are there photos for the Toyota Proace Verso?

Yes. The gallery includes 10 photos for the Toyota Proace Verso, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
