Toyota Yaris specifications and photos

The 2020 Toyota Yaris is a B-segment hatchback representing the fourth generation of the model. Built on a new modular platform, this iteration focuses on compactness, improved driving dynamics, and updated safety features. It is available with conventional petrol engines as well as a hybrid powertrain.

Years 2020
Body type hatchback
Trims 13
Photos 20

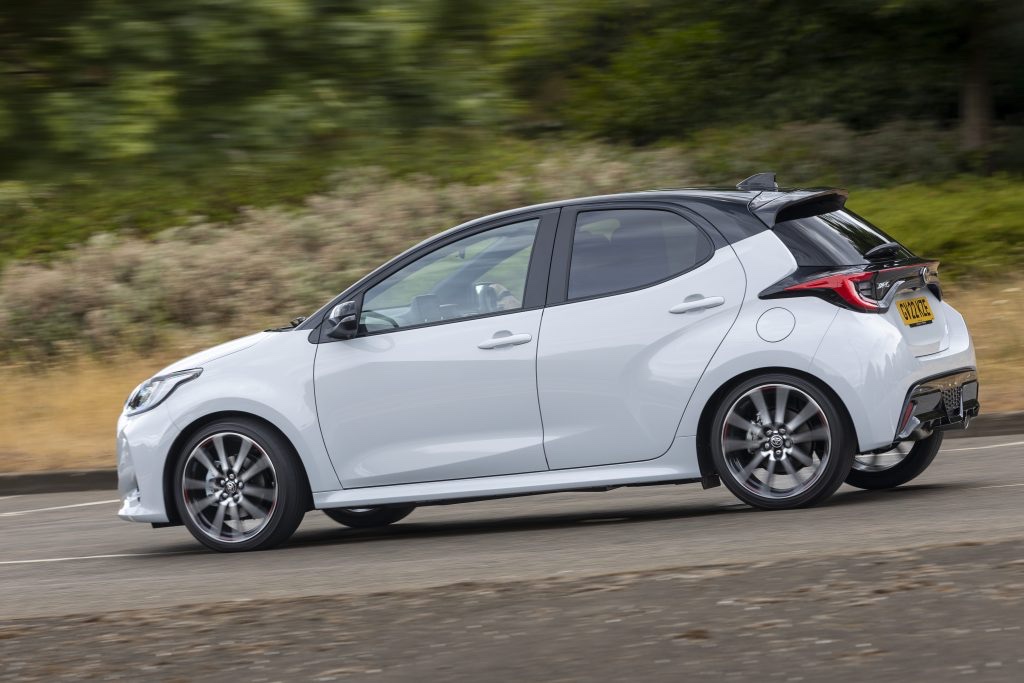

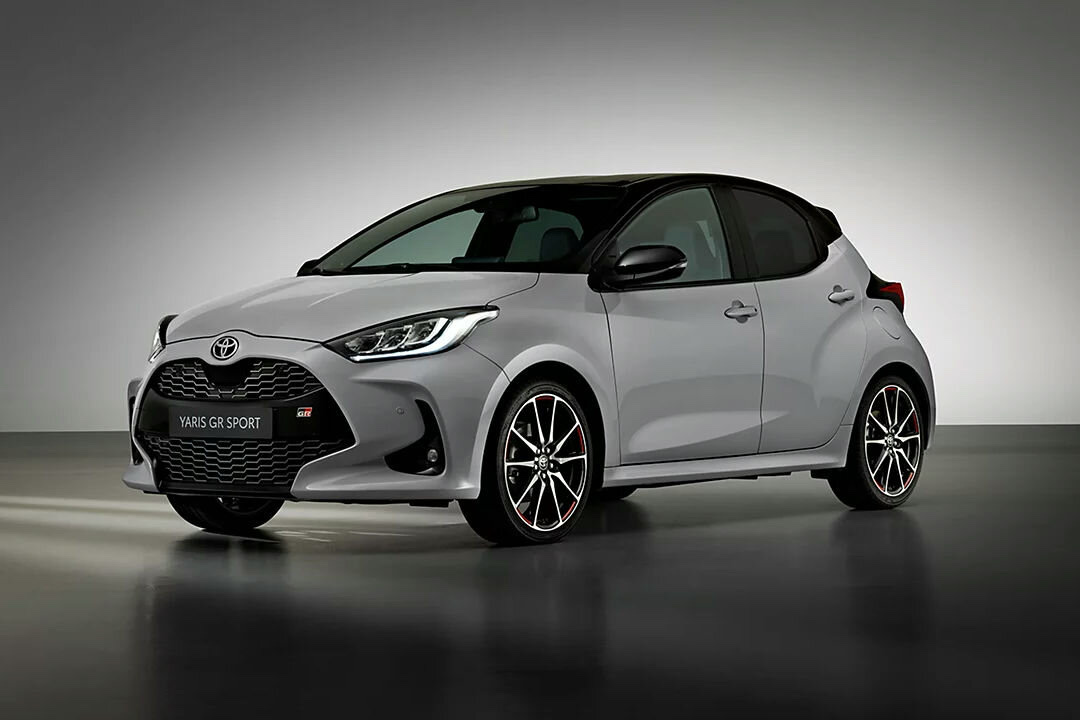

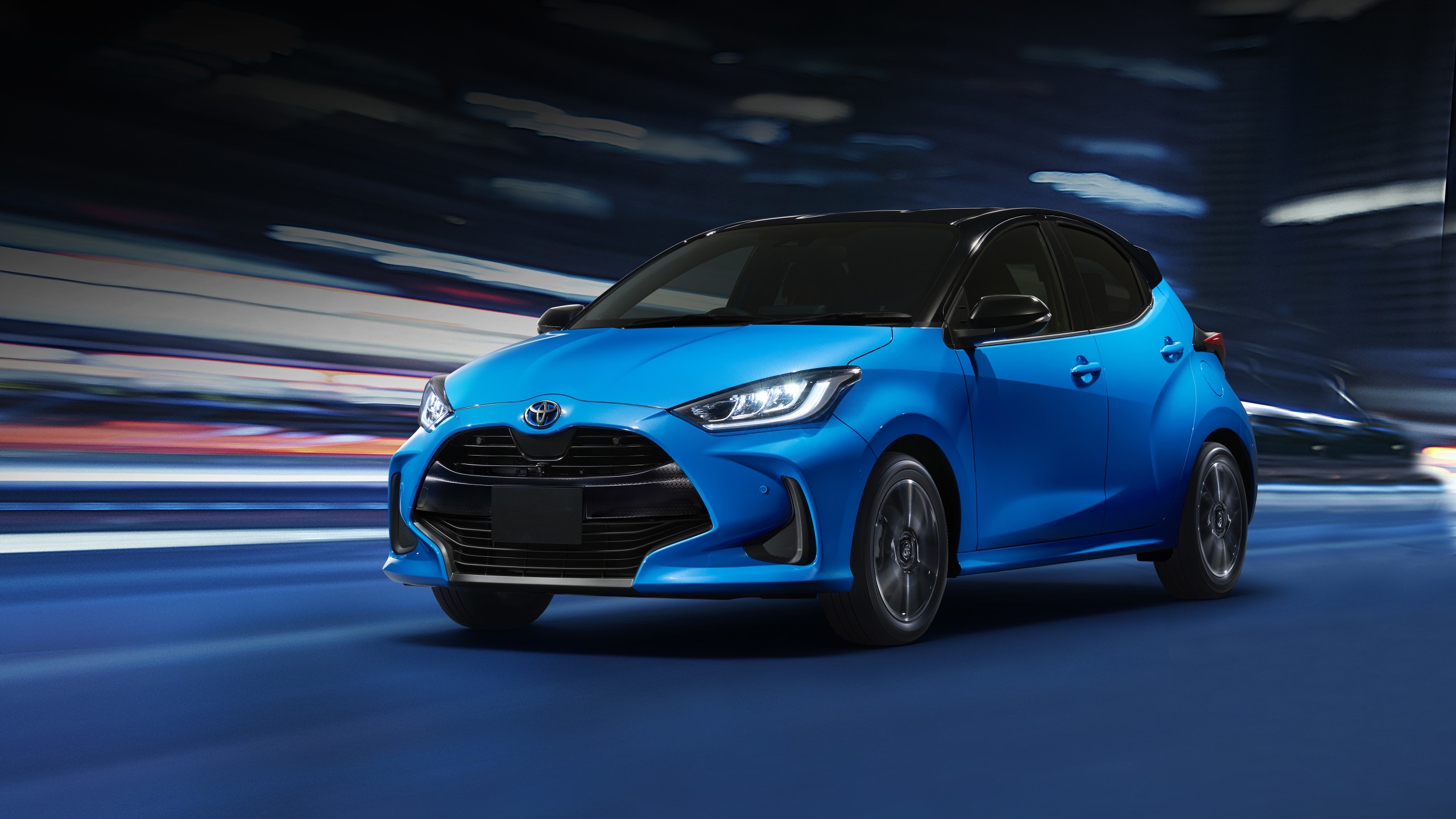

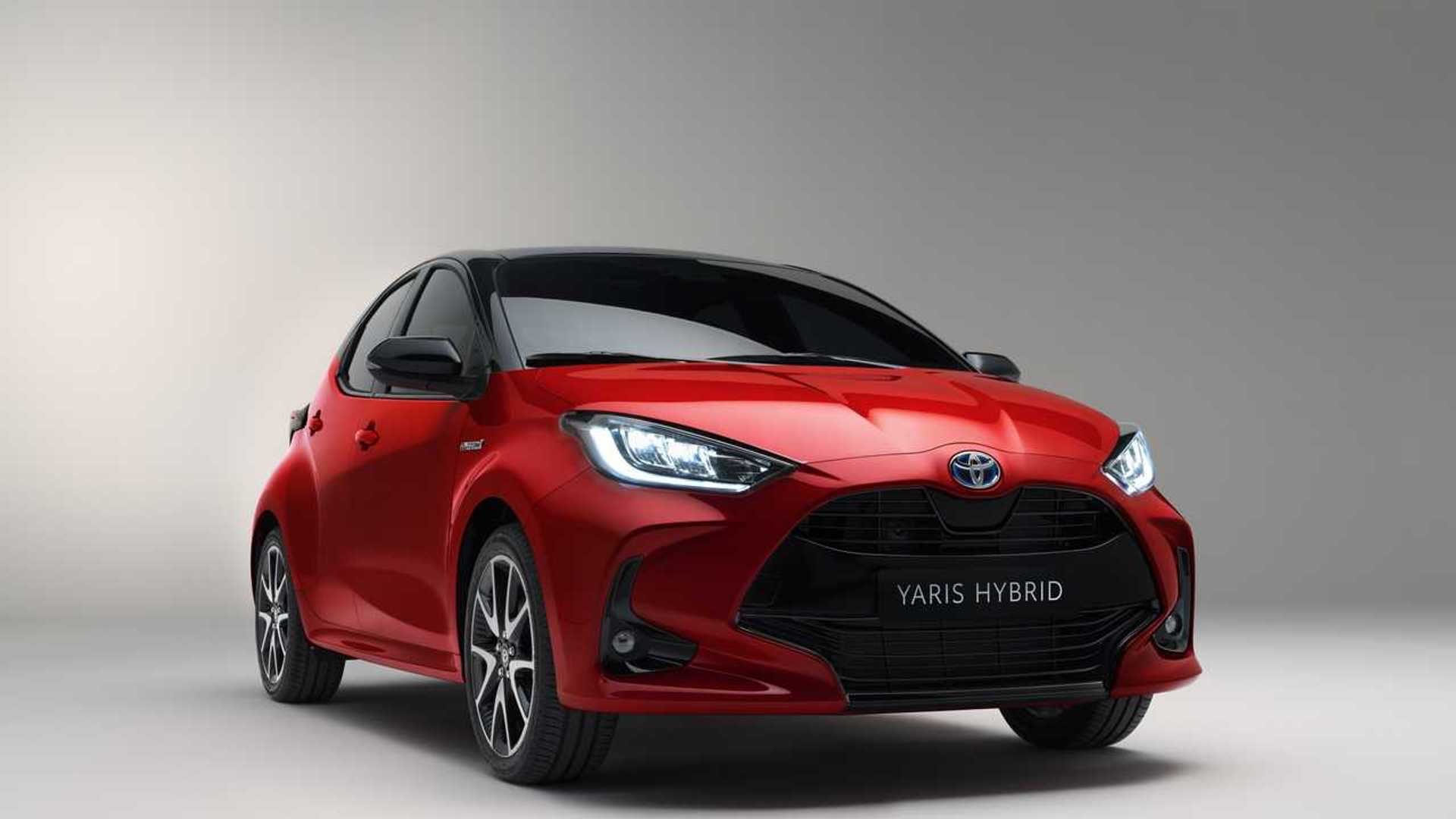

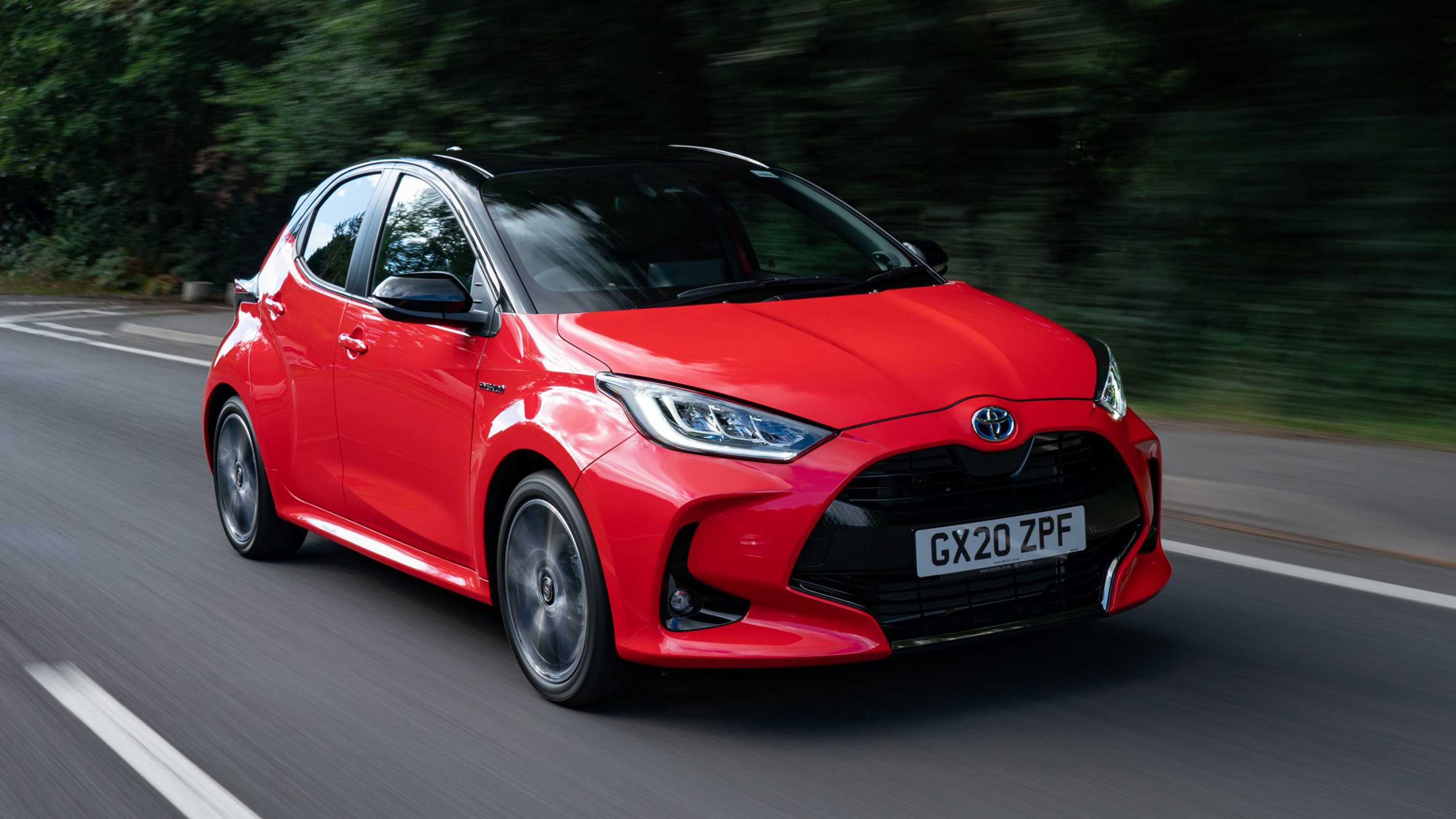

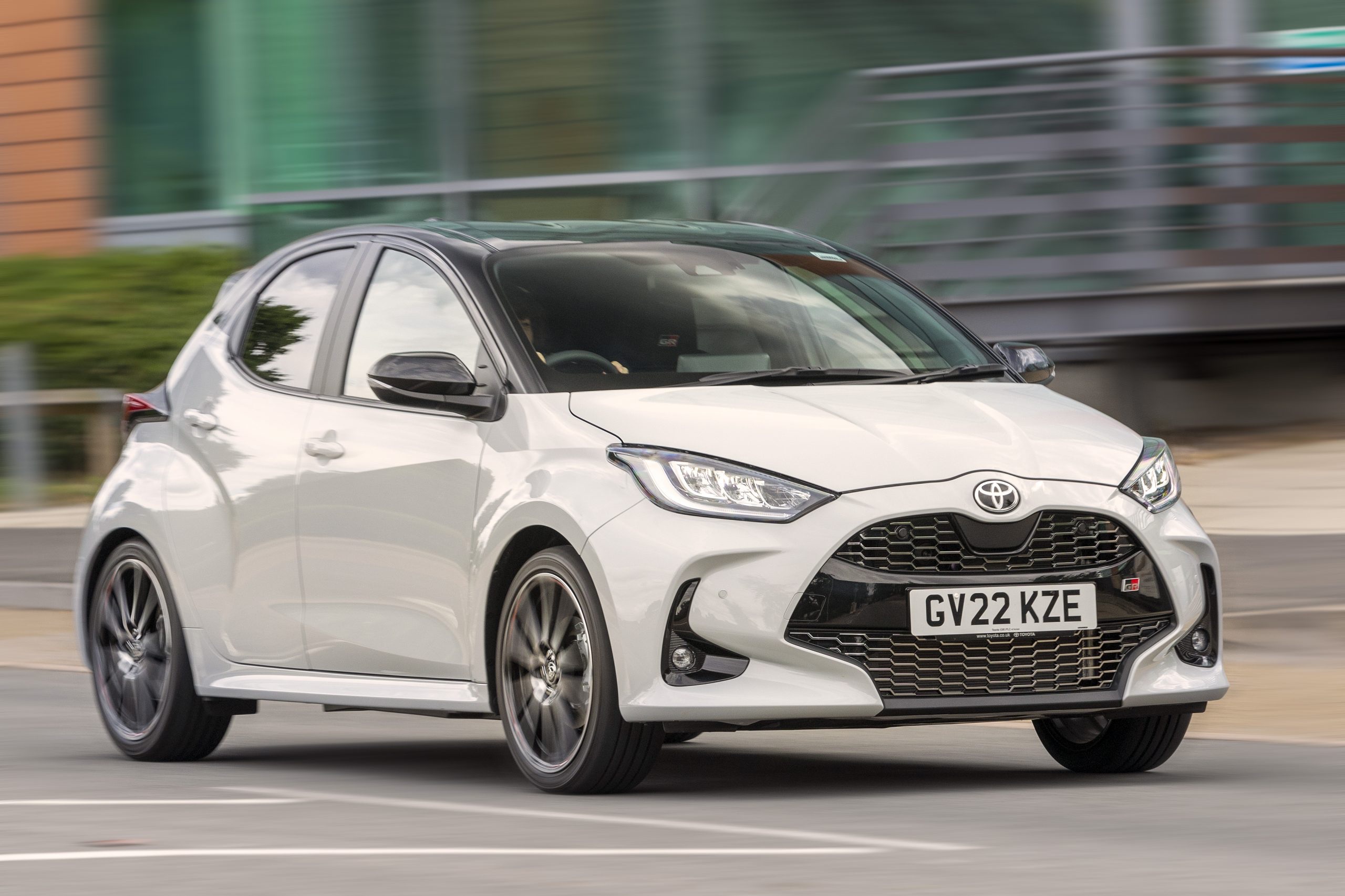

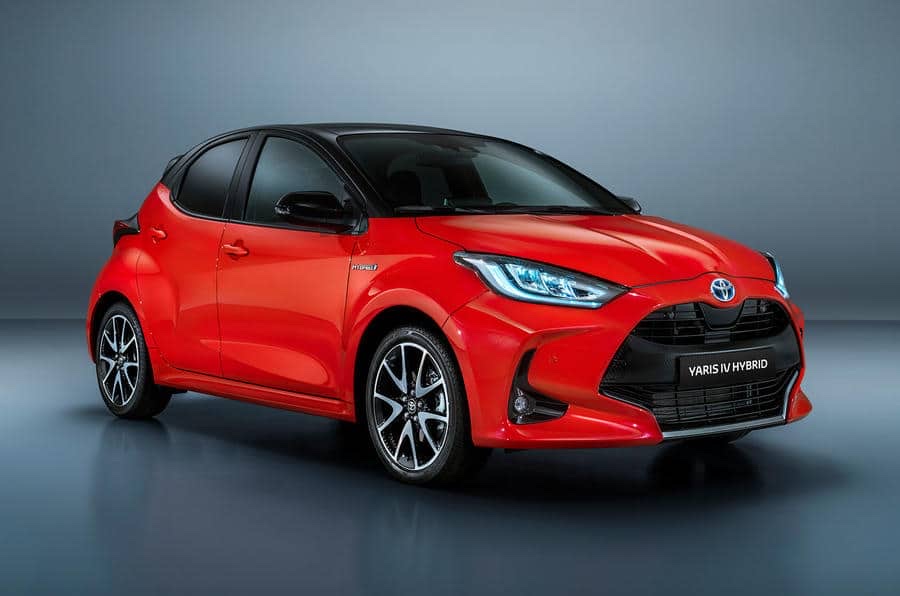

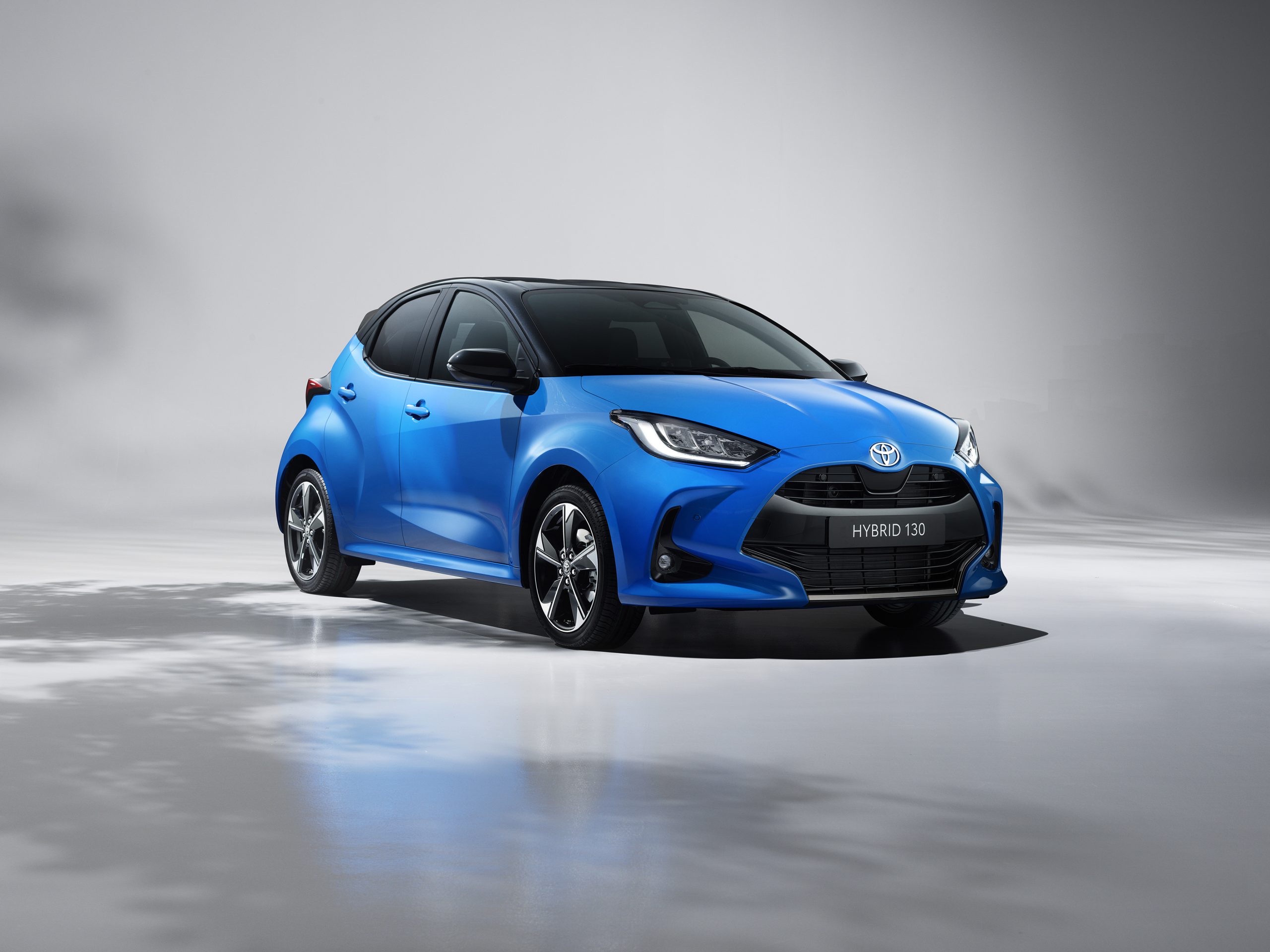

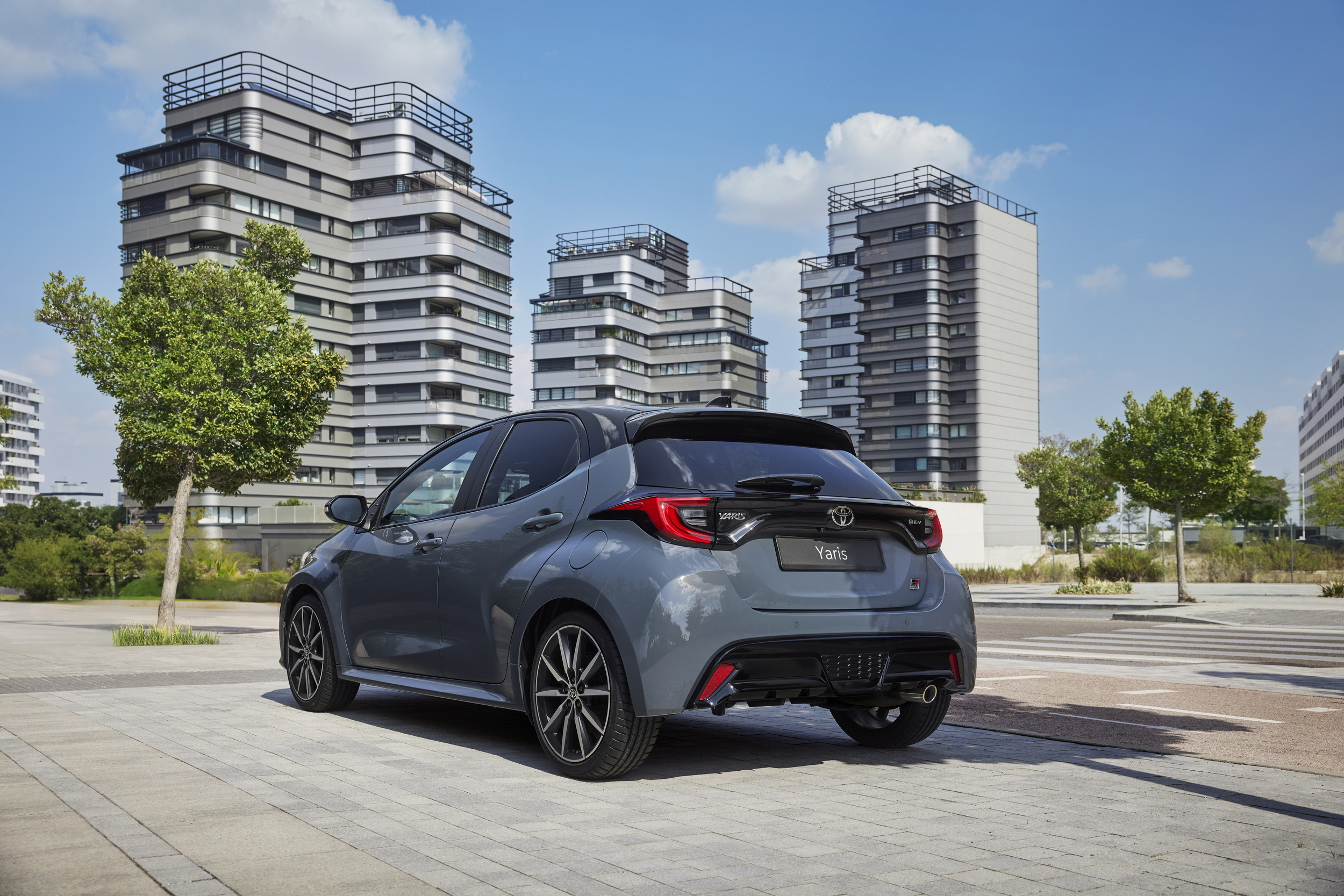

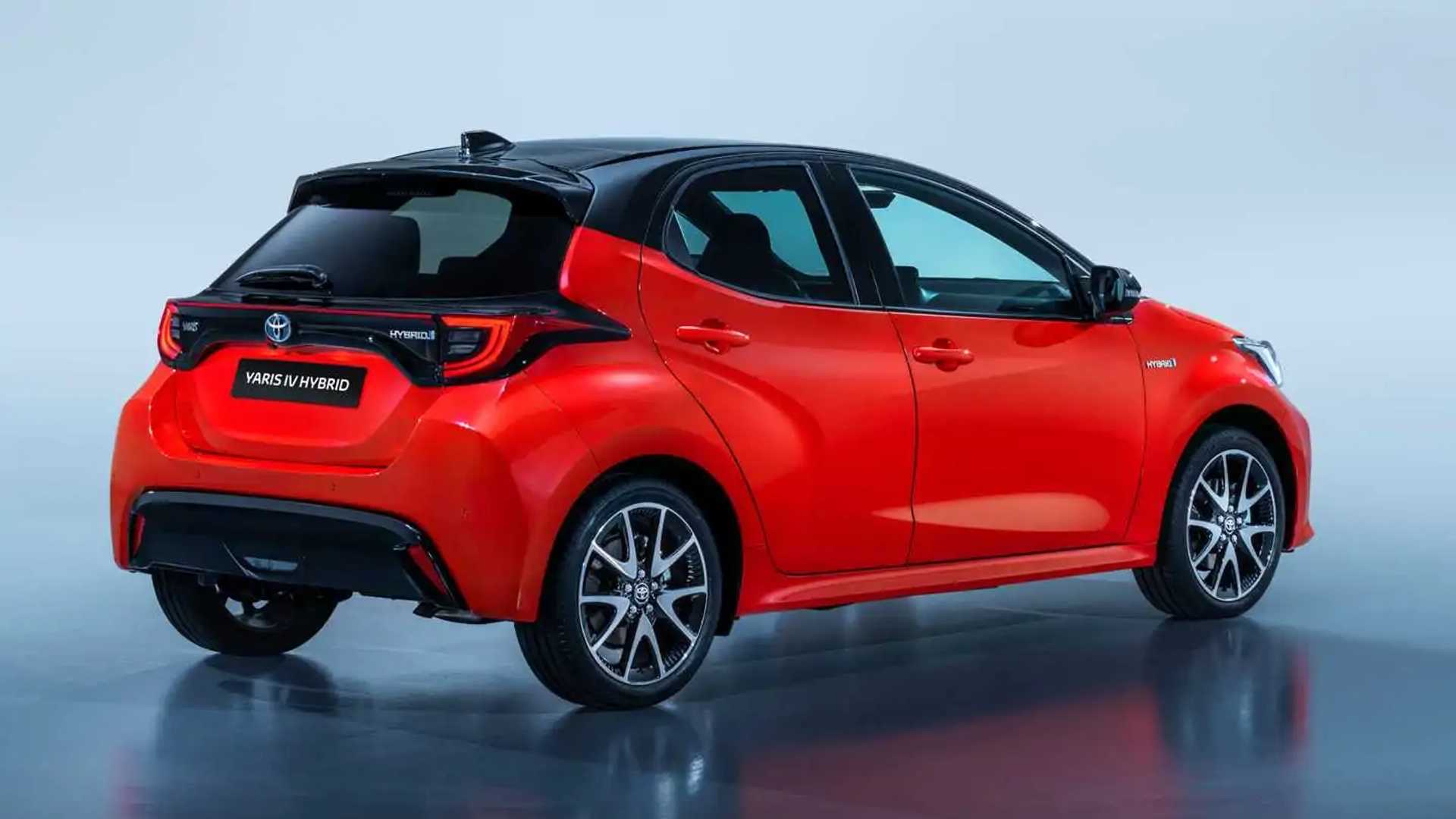

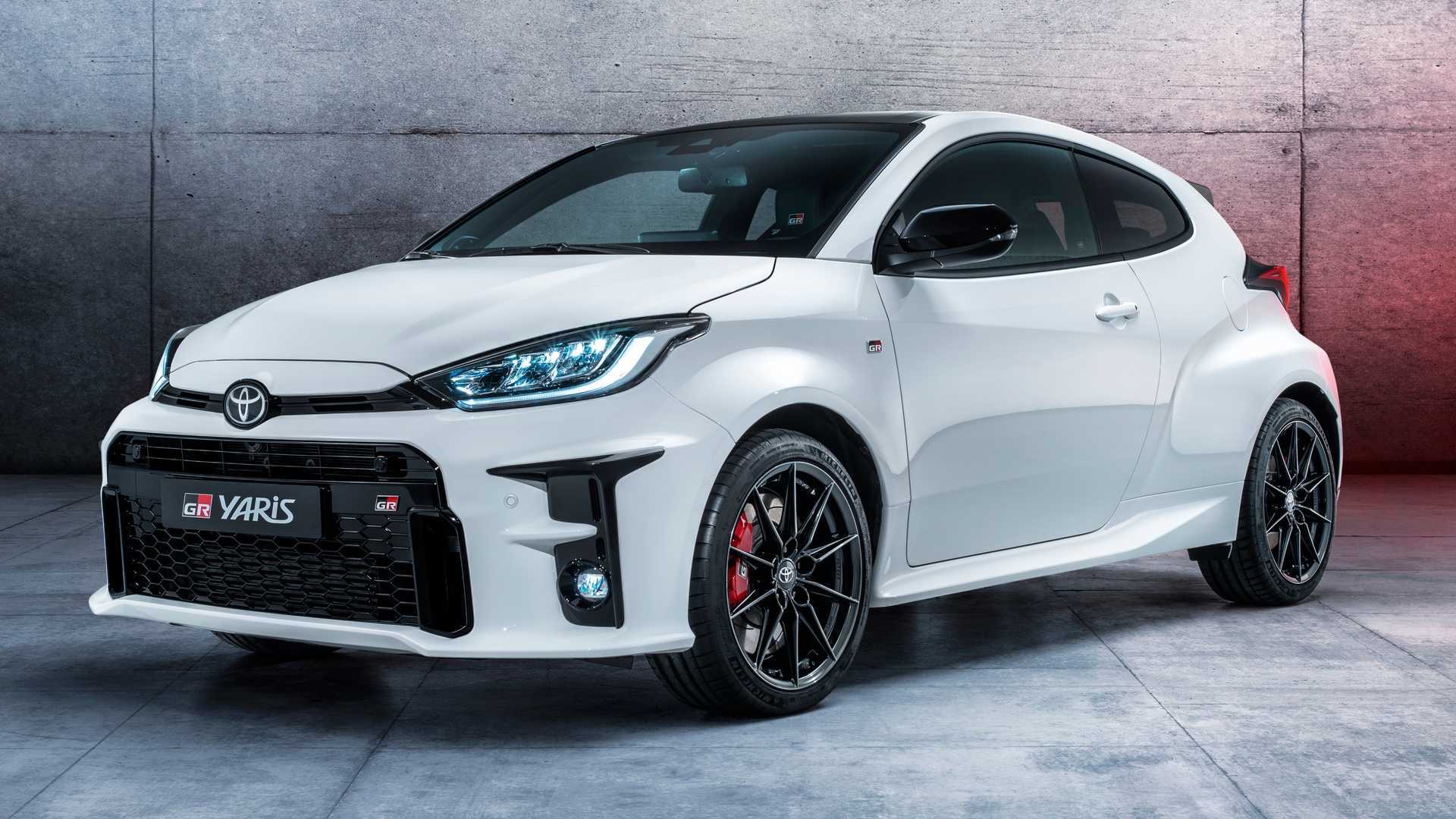

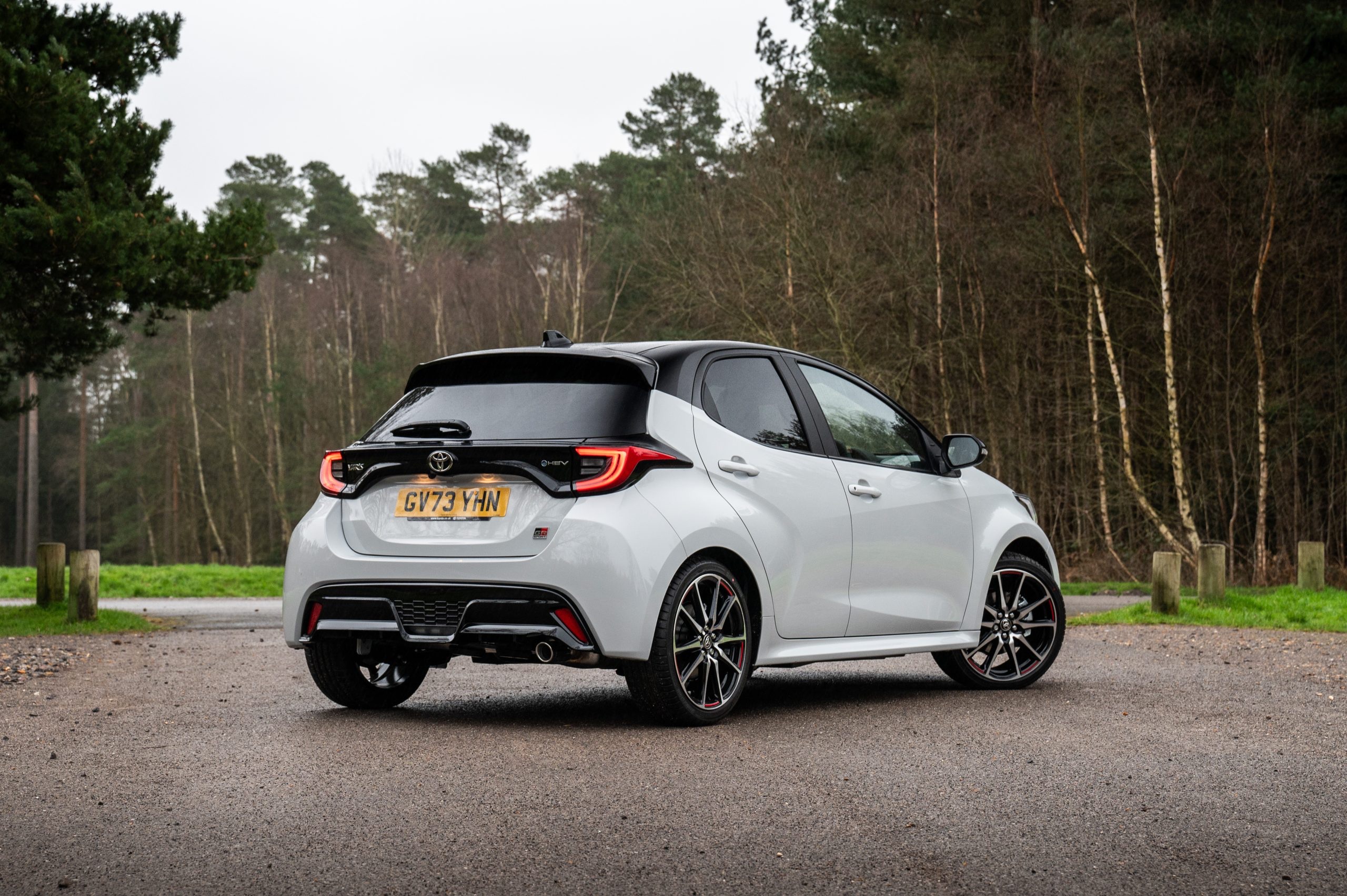

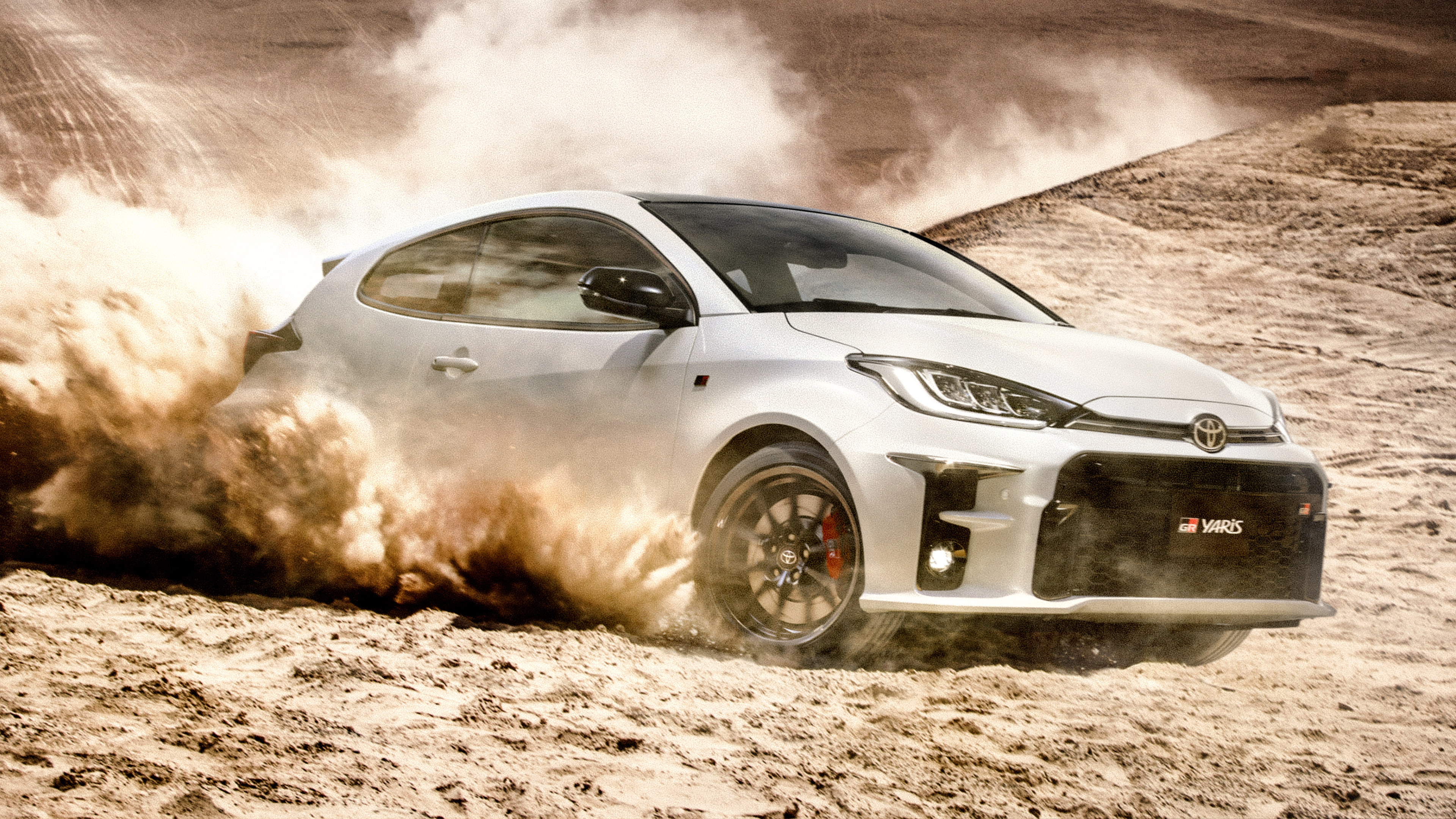

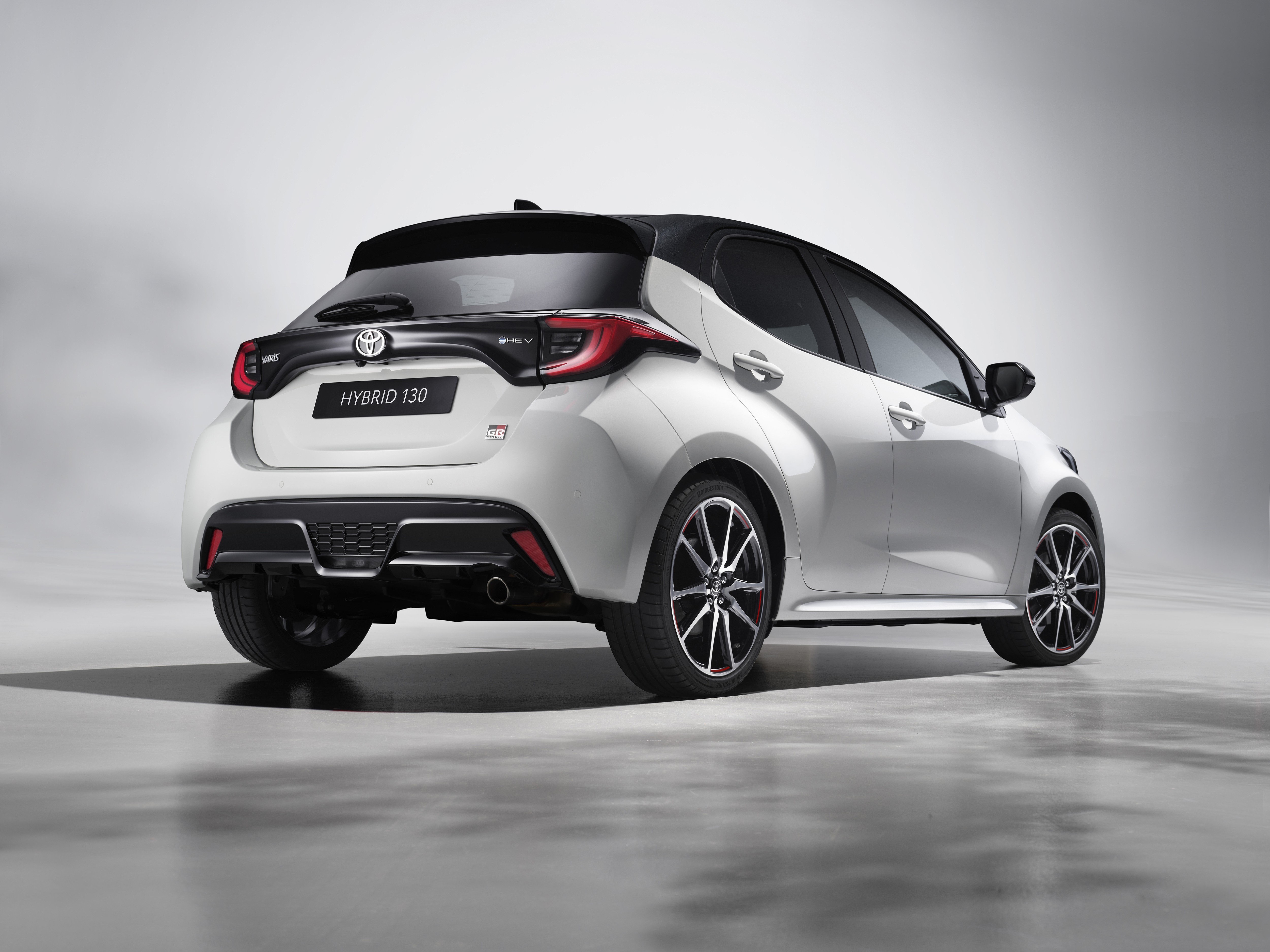

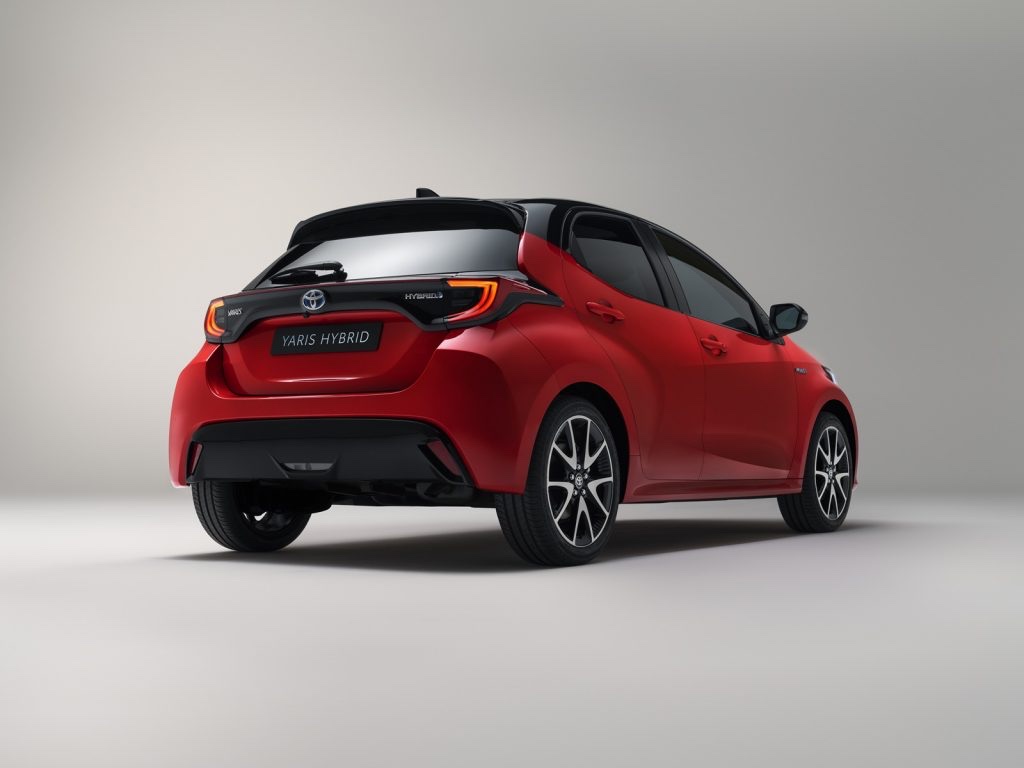

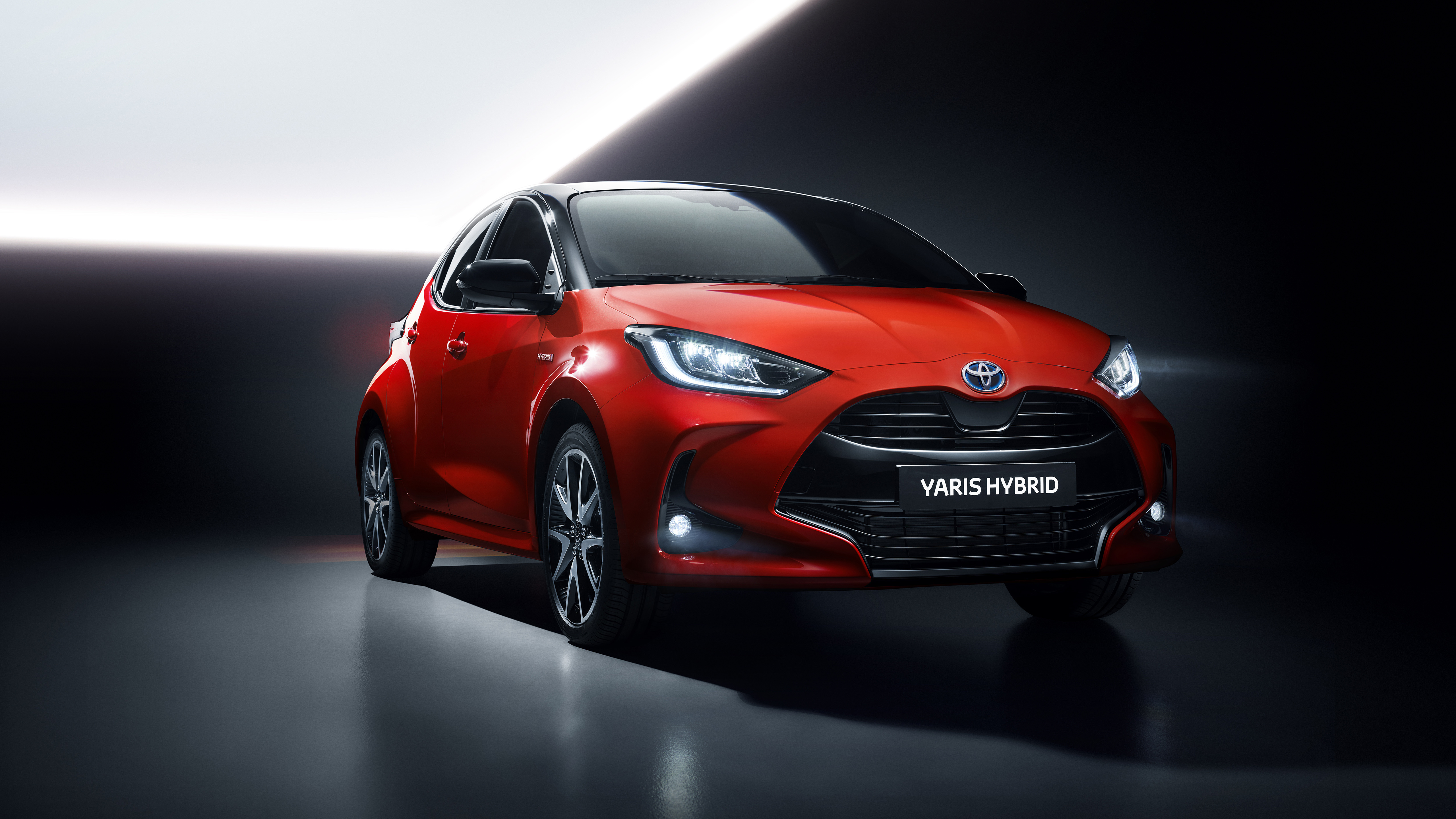

Toyota Yaris 2020 hatchback
Overview

Toyota Yaris at a glance

Quick model context before comparing photos and trim-level specifications.

The fourth-generation Toyota Yaris marks a transition to the GA-B platform, which is part of the Toyota New Global Architecture (TNGA) framework. According to technical specifications, this platform design increases torsional stiffness by 37 percent and lowers the vehicle's center of gravity by 12 millimeters compared to the previous model. The structural changes are intended to reduce cabin noise and vibrations while sharpening handling. Although the overall length has decreased slightly by 5 millimeters, the wheelbase is extended by 50 millimeters, pushing the wheels closer to the corners. This generation is designed primarily for urban environments, prioritizing maneuverability, safety, and efficiency. It serves as a key model in Toyota's B-segment lineup, aimed at buyers seeking a compact footprint without sacrificing modern cabin amenities and driver assistance options.

  • Power: 72-130 hp
  • Engine displacement: 998-1490 cc
  • Transmissions: CVT, 5-speed manual, 6-speed manual
  • Seating: 5 seats
Research hub

Photos, trims and specifications for Toyota Yaris

This model page brings gallery images, trim comparison, and detailed technical data together for the 2020 generation.

Running costs

Estimate fuel cost

Use trim-level fuel consumption data to estimate monthly and yearly fuel spending.

Cost per 100 km -
Monthly cost -
Yearly cost -

Fuel costs are estimates. Real consumption can change with driving style, traffic, tires, weather, load, and market-specific equipment.

Model guide

Toyota Yaris overview

Editorial context for design, cabin, performance, practicality, and buyer notes.

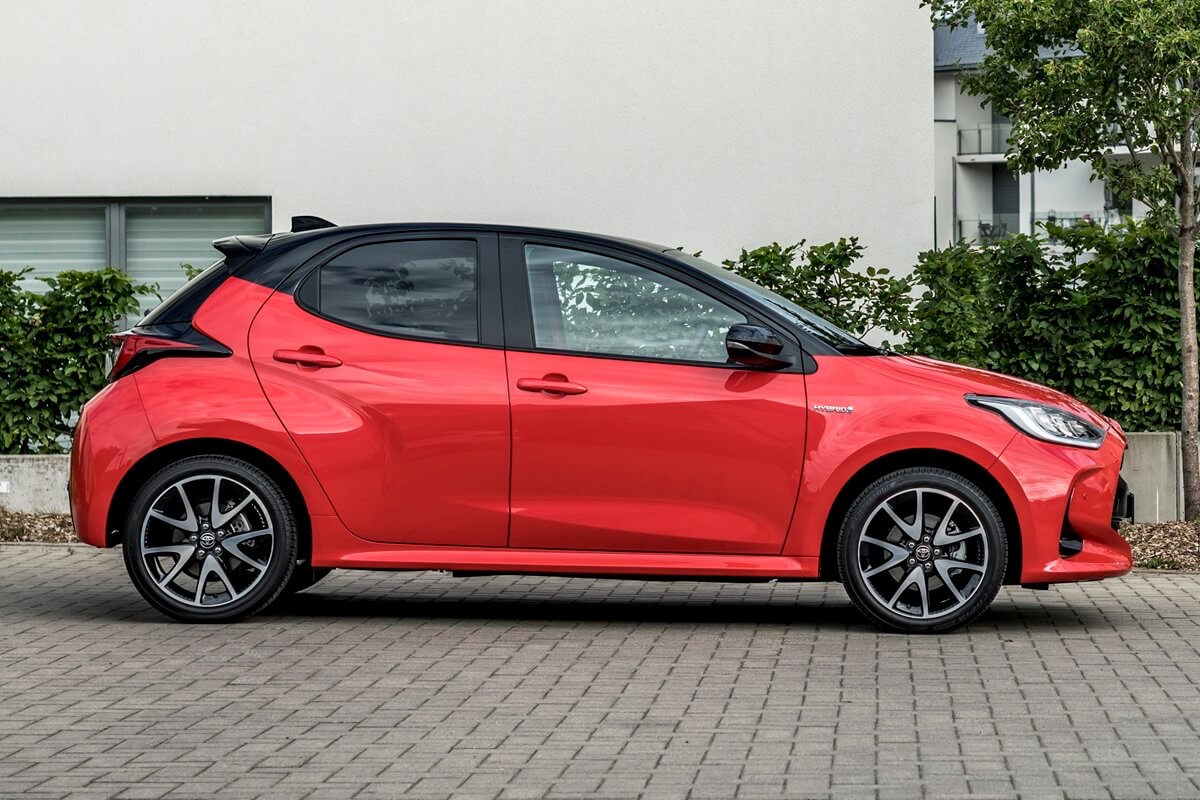

Design

The exterior design features short overhangs, a longer hood line, and more pronounced wheel arches that give the hatchback a planted stance. The overall height has been reduced by 40 millimeters, while the width is increased by 50 millimeters to 1745 millimeters. These proportion changes result in a more athletic silhouette than its predecessor. Depending on the chosen trim level, the Yaris is equipped with either halogen or LED headlights, LED daytime running lights, a rear spoiler, a black radiator grille, and steel or alloy wheels in 15-inch sizes.

Interior

Inside the cabin, the driver's seating position is placed 21 millimeters lower and 60 millimeters further back to improve the center of gravity and driving posture. The steering wheel is smaller in diameter and offers an expanded reach adjustment range. The dashboard has a two-tier layout and houses an 8-inch central touchscreen that supports wireless Apple CarPlay and Android Auto. A dual-gauge instrument cluster with digital displays is standard, while higher trim levels offer a 10-inch color head-up display. Trunk space remains at 286 liters of capacity, which can be expanded by folding the 60/40 split rear seats.

Performance

The vehicle is offered with three engine choices. The entry-level option is a 1.0-liter three-cylinder engine producing 72 horsepower, paired with a five-speed manual gearbox. A 1.5-liter three-cylinder Dynamic Force petrol engine produces 125 horsepower and can be matched with a six-speed manual or a Direct Shift CVT. The fourth-generation hybrid system pairs a 1.5-liter Atkinson-cycle petrol engine with an electric motor to deliver either 116 or 130 horsepower, depending on the variant. Power is sent to the front wheels via an e-CVT. A lithium-ion battery replaces the older nickel-metal hydride unit, supporting electric-only driving at speeds up to 130 km/h.

Practicality

As a subcompact hatchback, the Yaris is optimized for city driving and parking in tight spaces, offering a 9.8-meter turning diameter on select base configurations. Inside, it accommodates five occupants and provides a 286-liter boot. Storage solutions include a front armrest, door pockets, and a rear cargo cover. Fold-down rear seats allow for loading longer items, making it practical for daily errands or small family trips, though rear legroom remains typical for a B-segment car.

Safety and tech

Safety features are anchored by a stiffer structural body shell and a new center airbag located between the driver and front passenger. Standard and available driver assistance systems include adaptive cruise control, lane keep assist, traffic sign recognition, and an automatic emergency braking system capable of detecting both pedestrians and cyclists. Technical amenities include automatic high beams, a rearview camera, parking sensors, wireless smartphone charging, and optional dual-zone automatic climate control.

Buyer notes

When comparing trims, buyers should note the significant differences between the standard petrol configurations and the hybrid versions. While the base Active and Live trims focus on essential equipment, higher trims like Elegant, Style, and Premiere Edition add comfort features such as LED lighting, dual-zone climate control, larger digital screens, and a head-up display. Powertrain choice dictates the rear suspension setup; standard front-wheel-drive models utilize a torsion beam rear suspension, while select all-wheel-drive variants in specific markets utilize a double-wishbone configuration. Standard equipment and specific trim names can vary depending on the target market.

Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 72-130 hp
Engine displacement 998-1490 cc
Seating 5 seats
Transmissions CVT, 5-speed manual, 6-speed manual
Trim / modification Engine Power Seats Transmission
1.5h AT Active 1490 cc 116 hp 5 CVT
1.5h AT Elegant+ 1490 cc 116 hp 5 CVT
1.5h AT Elegant 1490 cc 116 hp 5 CVT
1.5h AT Live 1490 cc 116 hp 5 CVT
1.5h AT Lounge 1490 cc 116 hp 5 CVT
1.5h AT Premiere Edition 1490 cc 116 hp 5 CVT
1.5h AT Style+ 1490 cc 116 hp 5 CVT
1.5h AT Style 1490 cc 130 hp 5 CVT
1.0 VVT-i (72 hp) 5-speed manual 998 cc 72 hp 5 5-speed manual
1.5i Dynamic Force (125 hp) 6-speed manual 1490 cc 125 hp 5 6-speed manual
1.5i Dynamic Force (125 hp) Direct Shift CVT 1490 cc 125 hp 5 CVT
1.5i Hybrid (116 hp) e-CVT 1490 cc 116 hp 5 CVT
1.5 Hybrid (130 hp) e-CVT 1490 cc 130 hp 5 CVT

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

1.5h AT Active 97 specifications

Specifications

Performance and consumption

Fuel consumption city, L/100 km 2.7
Fuel consumption highway, L/100 km 3.5
Fuel consumption combined, L/100 km 3.1
Top speed, km/h 175
Acceleration 0-100 km/h, s 9.7
Emissions standard Euro VI

Engine

Engine 1.5i Hybrid
Engine code M15A-FXE
Engine type Hybrid
Fuel type Gasoline
Engine displacement, cc 1490
Cylinder layout Inline
Number of cylinders 3
Valves 12
Compression ratio 14:1
Power, hp 116
EV mode +
Plug-in charging support +
Electric motor power, hp 80
Combustion engine power, hp 92
Combustion engine torque, Nm 120
Combustion engine RPM at max torque 3600–4800
Electric motor torque, Nm 141

Dimensions

Seats 5
Length, mm 3940
Height, mm 1500
Wheelbase, mm 2560
Front track, mm 1530
Rear track, mm 1530
Kerb weight, kg 960
Gross weight, kg 1470
Fuel tank capacity, L 36
Turning circle, m 10.4
Ground clearance, mm 135
Width without mirrors, mm 1745

Transmission and drive

Transmission CVT
Transmission type CVT
Drive Front-wheel drive
Transmission manufacturer Aisin
Automatic transmission +
Transmission country Japan

Suspension

Front suspension type Independent MacPherson strut with anti-roll bar
Rear suspension type Independent torsion beam

Brake system

Front brakes Ventilated disc
Rear brakes Disc

Steering

Power steering Electric power steering

Equipment

Exterior

Rear spoiler +

Comfort

Tire pressure monitoring +
Multifunction steering wheel +
Adjustable steering column +
Adaptive cruise control +
Electromechanical parking brake +
Adjustable headrests +

Interior

Leather-trimmed interior elements +
Multifunction instrument display +
12V power outlet +

Wheels

Rim diameter 15
Rim type Steel
Tires 185/65R15

Climate and sound insulation

Heated front seats +
Climate control +

Off-road

Hill-start assist +

Seats

Child seat anchors (LATCH/Isofix) +
Front armrest +
60/40 split-folding rear seat +

Headlights and lighting

Front fog lights +
Light sensor +
Halogen headlights +
Automatic high-beam assist +

Multimedia and instruments

Bluetooth hands-free +
AUX input +
USB +
Number of speakers 4
Apple CarPlay / Android Auto +
Touchscreen +
Antenna +

Trunk

Cargo cover +
Trunk lighting +

Glass, mirrors and sunroof

Heated side mirrors +
Heated rear window +
Front power windows +
Rear power windows +
Power-adjustable side mirrors +

Visibility and parking

Rear-view camera +
Rear parking sensors +

Security

Electronic systems

Anti-lock braking system (ABS) +
Electronic stability control +
Lane keeping assist +
Electronic brakeforce distribution +
Child locks +
Lane departure warning +

Anti-theft systems

Remote central locking +
Immobilizer +

Airbags

Driver airbag +
Passenger airbag +
Curtain airbags +
Passenger airbag deactivation +
1.5h AT Elegant+ 102 specifications

Specifications

Performance and consumption

Fuel consumption city, L/100 km 2.7
Fuel consumption highway, L/100 km 3.5
Fuel consumption combined, L/100 km 3.1
Top speed, km/h 175
Acceleration 0-100 km/h, s 9.7
Emissions standard Euro VI

Engine

Engine 1.5i Hybrid
Engine code M15A-FXE
Engine type Hybrid
Fuel type Gasoline
Engine displacement, cc 1490
Cylinder layout Inline
Number of cylinders 3
Valves 12
Compression ratio 14:1
Power, hp 116
EV mode +
Plug-in charging support +
Electric motor power, hp 80
Combustion engine power, hp 92
Combustion engine torque, Nm 120
Combustion engine RPM at max torque 3600–4800
Electric motor torque, Nm 141

Dimensions

Seats 5
Length, mm 3940
Height, mm 1500
Wheelbase, mm 2560
Front track, mm 1530
Rear track, mm 1530
Kerb weight, kg 960
Gross weight, kg 1470
Fuel tank capacity, L 36
Turning circle, m 10.4
Ground clearance, mm 135
Width without mirrors, mm 1745

Transmission and drive

Transmission CVT
Transmission type CVT
Drive Front-wheel drive
Transmission manufacturer Aisin
Automatic transmission +
Transmission country Japan

Suspension

Front suspension type Independent MacPherson strut with anti-roll bar
Rear suspension type Independent torsion beam

Brake system

Front brakes Ventilated disc
Rear brakes Disc

Steering

Power steering Electric power steering

Equipment

Exterior

Rear spoiler +

Comfort

Tire pressure monitoring +
Multifunction steering wheel +
Adjustable steering column +
Electromechanical parking brake +
Adjustable headrests +

Interior

Leather-trimmed interior elements +
Multifunction instrument display +
12V power outlet +

Wheels

Rim diameter 15
Rim type Alloy
Tires 185/65R15

Climate and sound insulation

Heated front seats +
Dual-zone climate control +

Off-road

Hill-start assist +

Seats

Child seat anchors (LATCH/Isofix) +
Front armrest +
60/40 split-folding rear seat +
Sport seats +

Headlights and lighting

Front fog lights +
Light sensor +
LED headlights +
LED tail lights +
LED daytime running lights +

Multimedia and instruments

Bluetooth hands-free +
AUX input +
USB +
Number of speakers 6
Apple CarPlay / Android Auto +
Touchscreen +
Antenna +
Head-up display +

Trunk

Cargo cover +
Trunk lighting +

Glass, mirrors and sunroof

Rain sensor +
Heated side mirrors +
Heated rear window +
Front power windows +
Rear power windows +
Power-adjustable side mirrors +
Power-folding side mirrors +

Visibility and parking

Rear-view camera +
Front parking sensors +
Rear parking sensors +

Security

Electronic systems

Anti-lock braking system (ABS) +
Electronic stability control +
Blind spot monitoring +
Electronic brakeforce distribution +
Child locks +
Rear cross-traffic alert +

Anti-theft systems

Remote central locking +
Immobilizer +

Airbags

Driver airbag +
Passenger airbag +
Curtain airbags +
Passenger airbag deactivation +
1.5h AT Elegant 98 specifications

Specifications

Performance and consumption

Fuel consumption city, L/100 km 2.7
Fuel consumption highway, L/100 km 3.5
Fuel consumption combined, L/100 km 3.1
Top speed, km/h 175
Acceleration 0-100 km/h, s 9.7
Emissions standard Euro VI

Engine

Engine 1.5i Hybrid
Engine code M15A-FXE
Engine type Hybrid
Fuel type Gasoline
Engine displacement, cc 1490
Cylinder layout Inline
Number of cylinders 3
Valves 12
Compression ratio 14:1
Power, hp 116
EV mode +
Plug-in charging support +
Electric motor power, hp 80
Combustion engine power, hp 92
Combustion engine torque, Nm 120
Combustion engine RPM at max torque 3600–4800
Electric motor torque, Nm 141

Dimensions

Seats 5
Length, mm 3940
Height, mm 1500
Wheelbase, mm 2560
Front track, mm 1530
Rear track, mm 1530
Kerb weight, kg 960
Gross weight, kg 1470
Fuel tank capacity, L 36
Turning circle, m 10.4
Ground clearance, mm 135
Width without mirrors, mm 1745

Transmission and drive

Transmission CVT
Transmission type CVT
Drive Front-wheel drive
Transmission manufacturer Aisin
Automatic transmission +
Transmission country Japan

Suspension

Front suspension type Independent MacPherson strut with anti-roll bar
Rear suspension type Independent torsion beam

Brake system

Front brakes Ventilated disc
Rear brakes Disc

Steering

Power steering Electric power steering

Equipment

Exterior

Rear spoiler +

Comfort

Tire pressure monitoring +
Multifunction steering wheel +
Adjustable steering column +
Electromechanical parking brake +
Adjustable headrests +

Interior

Leather-trimmed interior elements +
Multifunction instrument display +
12V power outlet +

Wheels

Rim diameter 15
Rim type Alloy
Tires 185/65R15

Climate and sound insulation

Heated front seats +
Dual-zone climate control +

Off-road

Hill-start assist +

Seats

Child seat anchors (LATCH/Isofix) +
Front armrest +
60/40 split-folding rear seat +
Sport seats +

Headlights and lighting

Front fog lights +
Light sensor +
LED headlights +
LED tail lights +
LED daytime running lights +

Multimedia and instruments

Bluetooth hands-free +
AUX input +
USB +
Number of speakers 6
Apple CarPlay / Android Auto +
Touchscreen +
Antenna +

Trunk

Cargo cover +
Trunk lighting +

Glass, mirrors and sunroof

Rain sensor +
Heated side mirrors +
Heated rear window +
Front power windows +
Rear power windows +
Power-adjustable side mirrors +
Power-folding side mirrors +

Visibility and parking

Rear-view camera +
Rear parking sensors +

Security

Electronic systems

Anti-lock braking system (ABS) +
Electronic stability control +
Electronic brakeforce distribution +
Child locks +

Anti-theft systems

Remote central locking +
Immobilizer +

Airbags

Driver airbag +
Passenger airbag +
Curtain airbags +
Passenger airbag deactivation +
1.5h AT Live 89 specifications

Specifications

Performance and consumption

Fuel consumption city, L/100 km 2.7
Fuel consumption highway, L/100 km 3.5
Fuel consumption combined, L/100 km 3.1
Top speed, km/h 175
Acceleration 0-100 km/h, s 9.7
Emissions standard Euro VI

Engine

Engine 1.5i Hybrid
Engine code M15A-FXE
Engine type Hybrid
Fuel type Gasoline
Engine displacement, cc 1490
Cylinder layout Inline
Number of cylinders 3
Valves 12
Compression ratio 14:1
Power, hp 116
EV mode +
Plug-in charging support +
Electric motor power, hp 80
Combustion engine power, hp 92
Combustion engine torque, Nm 120
Combustion engine RPM at max torque 3600–4800
Electric motor torque, Nm 141

Dimensions

Seats 5
Length, mm 3940
Height, mm 1500
Wheelbase, mm 2560
Front track, mm 1530
Rear track, mm 1530
Kerb weight, kg 960
Gross weight, kg 1470
Fuel tank capacity, L 36
Turning circle, m 10.4
Ground clearance, mm 135
Width without mirrors, mm 1745

Transmission and drive

Transmission CVT
Transmission type CVT
Drive Front-wheel drive
Transmission manufacturer Aisin
Automatic transmission +
Transmission country Japan

Suspension

Front suspension type Independent MacPherson strut with anti-roll bar
Rear suspension type Independent torsion beam

Brake system

Front brakes Ventilated disc
Rear brakes Disc

Steering

Power steering Electric power steering

Equipment

Exterior

Rear spoiler +

Comfort

Tire pressure monitoring +
Multifunction steering wheel +
Adjustable steering column +
Electromechanical parking brake +
Adjustable headrests +

Interior

Multifunction instrument display +
12V power outlet +

Wheels

Rim diameter 15
Rim type Steel
Tires 185/65R15

Climate and sound insulation

Climate control +

Off-road

Hill-start assist +

Seats

Child seat anchors (LATCH/Isofix) +
Front armrest +
60/40 split-folding rear seat +

Headlights and lighting

Light sensor +
Halogen headlights +

Multimedia and instruments

Bluetooth hands-free +
AUX input +
USB +
Number of speakers 4
Apple CarPlay / Android Auto +
Touchscreen +
Antenna +

Trunk

Cargo cover +
Trunk lighting +

Glass, mirrors and sunroof

Heated side mirrors +
Heated rear window +
Front power windows +
Power-adjustable side mirrors +

Visibility and parking

Rear-view camera +
Rear parking sensors +

Security

Electronic systems

Anti-lock braking system (ABS) +
Electronic stability control +
Electronic brakeforce distribution +
Child locks +

Anti-theft systems

Remote central locking +
Immobilizer +

Airbags

Driver airbag +
Passenger airbag +
Curtain airbags +
Passenger airbag deactivation +
1.5h AT Lounge 103 specifications

Specifications

Performance and consumption

Fuel consumption city, L/100 km 2.7
Fuel consumption highway, L/100 km 3.5
Fuel consumption combined, L/100 km 3.1
Top speed, km/h 175
Acceleration 0-100 km/h, s 9.7
Emissions standard Euro VI

Engine

Engine 1.5i Hybrid
Engine code M15A-FXE
Engine type Hybrid
Fuel type Gasoline
Engine displacement, cc 1490
Cylinder layout Inline
Number of cylinders 3
Valves 12
Compression ratio 14:1
Power, hp 116
EV mode +
Plug-in charging support +
Electric motor power, hp 80
Combustion engine power, hp 92
Combustion engine torque, Nm 120
Combustion engine RPM at max torque 3600–4800
Electric motor torque, Nm 141

Dimensions

Seats 5
Length, mm 3940
Height, mm 1500
Wheelbase, mm 2560
Front track, mm 1530
Rear track, mm 1530
Kerb weight, kg 960
Gross weight, kg 1470
Fuel tank capacity, L 36
Turning circle, m 10.4
Ground clearance, mm 135
Width without mirrors, mm 1745

Transmission and drive

Transmission CVT
Transmission type CVT
Drive Front-wheel drive
Transmission manufacturer Aisin
Automatic transmission +
Transmission country Japan

Suspension

Front suspension type Independent MacPherson strut with anti-roll bar
Rear suspension type Independent torsion beam

Brake system

Front brakes Ventilated disc
Rear brakes Disc

Steering

Power steering Electric power steering

Equipment

Exterior

Rear spoiler +

Comfort

Tire pressure monitoring +
Multifunction steering wheel +
Adjustable steering column +
Adaptive cruise control +
Electromechanical parking brake +
Smart keyless entry and start +
Adjustable headrests +

Interior

Leather-trimmed interior elements +
Multifunction instrument display +
12V power outlet +

Wheels

Rim diameter 15
Rim type Steel
Tires 185/65R15

Climate and sound insulation

Heated front seats +
Climate control +

Off-road

Hill-start assist +

Seats

Child seat anchors (LATCH/Isofix) +
Front armrest +
60/40 split-folding rear seat +

Headlights and lighting

Front fog lights +
Light sensor +
LED headlights +
LED tail lights +
Automatic high-beam assist +

Multimedia and instruments

Bluetooth hands-free +
AUX input +
USB +
Number of speakers 6
Apple CarPlay / Android Auto +
Touchscreen +
Wireless phone charging +
Antenna +

Trunk

Cargo cover +
Trunk lighting +

Glass, mirrors and sunroof

Heated side mirrors +
Heated rear window +
Front power windows +
Rear power windows +
Power-adjustable side mirrors +
Tinted glass +

Visibility and parking

Rear-view camera +
Front parking sensors +
Rear parking sensors +

Body paint and exterior parts

Black grille +

Security

Electronic systems

Anti-lock braking system (ABS) +
Electronic stability control +
Lane keeping assist +
Electronic brakeforce distribution +
Child locks +
Lane departure warning +

Anti-theft systems

Remote central locking +
Immobilizer +

Airbags

Driver airbag +
Passenger airbag +
Curtain airbags +
Passenger airbag deactivation +
1.5h AT Premiere Edition 100 specifications

Specifications

Performance and consumption

Fuel consumption city, L/100 km 2.7
Fuel consumption highway, L/100 km 3.5
Fuel consumption combined, L/100 km 3.1
Top speed, km/h 175
Acceleration 0-100 km/h, s 9.7
Emissions standard Euro VI

Engine

Engine 1.5i Hybrid
Engine code M15A-FXE
Engine type Hybrid
Fuel type Gasoline
Engine displacement, cc 1490
Cylinder layout Inline
Number of cylinders 3
Valves 12
Compression ratio 14:1
Power, hp 116
EV mode +
Plug-in charging support +
Electric motor power, hp 80
Combustion engine power, hp 92
Combustion engine torque, Nm 120
Combustion engine RPM at max torque 3600–4800
Electric motor torque, Nm 141

Dimensions

Seats 5
Length, mm 3940
Height, mm 1500
Wheelbase, mm 2560
Front track, mm 1530
Rear track, mm 1530
Kerb weight, kg 960
Gross weight, kg 1470
Fuel tank capacity, L 36
Turning circle, m 10.4
Ground clearance, mm 135
Width without mirrors, mm 1745

Transmission and drive

Transmission CVT
Transmission type CVT
Drive Front-wheel drive
Transmission manufacturer Aisin
Automatic transmission +
Transmission country Japan

Suspension

Front suspension type Independent MacPherson strut with anti-roll bar
Rear suspension type Independent torsion beam

Brake system

Front brakes Ventilated disc
Rear brakes Disc

Steering

Power steering Electric power steering

Equipment

Exterior

Rear spoiler +

Comfort

Tire pressure monitoring +
Multifunction steering wheel +
Adjustable steering column +
Electromechanical parking brake +
Adjustable headrests +

Interior

Leather-trimmed interior elements +
Multifunction instrument display +
12V power outlet +

Wheels

Rim diameter 15
Rim type Alloy
Tires 185/65R15

Climate and sound insulation

Heated front seats +
Climate control +

Off-road

Hill-start assist +

Seats

Child seat anchors (LATCH/Isofix) +
Front armrest +
60/40 split-folding rear seat +
Sport seats +

Headlights and lighting

Front fog lights +
Light sensor +
LED headlights +
LED tail lights +
LED daytime running lights +

Multimedia and instruments

Bluetooth hands-free +
AUX input +
USB +
Number of speakers 6
Apple CarPlay / Android Auto +
Touchscreen +
Antenna +
Head-up display +

Trunk

Cargo cover +
Trunk lighting +

Glass, mirrors and sunroof

Rain sensor +
Heated side mirrors +
Heated rear window +
Front power windows +
Rear power windows +
Power-adjustable side mirrors +
Power-folding side mirrors +
Tinted glass +

Visibility and parking

Rear-view camera +
Rear parking sensors +

Security

Electronic systems

Anti-lock braking system (ABS) +
Electronic stability control +
Electronic brakeforce distribution +
Child locks +

Anti-theft systems

Remote central locking +
Immobilizer +

Airbags

Driver airbag +
Passenger airbag +
Curtain airbags +
Passenger airbag deactivation +
1.5h AT Style+ 103 specifications

Specifications

Performance and consumption

Fuel consumption city, L/100 km 2.7
Fuel consumption highway, L/100 km 3.5
Fuel consumption combined, L/100 km 3.1
Top speed, km/h 175
Acceleration 0-100 km/h, s 9.7
Emissions standard Euro VI

Engine

Engine 1.5i Hybrid
Engine code M15A-FXE
Engine type Hybrid
Fuel type Gasoline
Engine displacement, cc 1490
Cylinder layout Inline
Number of cylinders 3
Valves 12
Compression ratio 14:1
Power, hp 116
EV mode +
Plug-in charging support +
Electric motor power, hp 80
Combustion engine power, hp 92
Combustion engine torque, Nm 120
Combustion engine RPM at max torque 3600–4800
Electric motor torque, Nm 141

Dimensions

Seats 5
Length, mm 3940
Height, mm 1500
Wheelbase, mm 2560
Front track, mm 1530
Rear track, mm 1530
Kerb weight, kg 960
Gross weight, kg 1470
Fuel tank capacity, L 36
Turning circle, m 10.4
Ground clearance, mm 135
Width without mirrors, mm 1745

Transmission and drive

Transmission CVT
Transmission type CVT
Drive Front-wheel drive
Transmission manufacturer Aisin
Automatic transmission +
Transmission country Japan

Suspension

Front suspension type Independent MacPherson strut with anti-roll bar
Rear suspension type Independent torsion beam

Brake system

Front brakes Ventilated disc
Rear brakes Disc

Steering

Power steering Electric power steering

Equipment

Exterior

Rear spoiler +

Comfort

Tire pressure monitoring +
Multifunction steering wheel +
Adjustable steering column +
Electromechanical parking brake +
Adjustable headrests +

Interior

Leather-trimmed interior elements +
Multifunction instrument display +
12V power outlet +

Wheels

Rim diameter 15
Rim type Alloy
Tires 185/65R15

Climate and sound insulation

Heated front seats +
Climate control +

Off-road

Hill-start assist +

Seats

Child seat anchors (LATCH/Isofix) +
Front armrest +
60/40 split-folding rear seat +
Sport seats +

Headlights and lighting

Front fog lights +
Light sensor +
LED headlights +
LED tail lights +
LED daytime running lights +

Multimedia and instruments

Bluetooth hands-free +
Head-up display +
AUX input +
USB +
Number of speakers 6
Apple CarPlay / Android Auto +
Touchscreen +
Antenna +

Trunk

Cargo cover +
Trunk lighting +

Glass, mirrors and sunroof

Rain sensor +
Heated side mirrors +
Heated rear window +
Front power windows +
Rear power windows +
Power-adjustable side mirrors +
Power-folding side mirrors +
Tinted glass +

Visibility and parking

Rear-view camera +
Front parking sensors +
Rear parking sensors +

Security

Electronic systems

Anti-lock braking system (ABS) +
Electronic stability control +
Blind spot monitoring +
Electronic brakeforce distribution +
Child locks +
Rear cross-traffic alert +

Anti-theft systems

Remote central locking +
Immobilizer +

Airbags

Driver airbag +
Passenger airbag +
Curtain airbags +
Passenger airbag deactivation +
1.5h AT Style 96 specifications

Specifications

Performance and consumption

Fuel consumption city, L/100 km 2.9
Fuel consumption highway, L/100 km 3.6
Fuel consumption combined, L/100 km 3.2
Top speed, km/h 175
Acceleration 0-100 km/h, s 9.2
Emissions standard Euro VI

Engine

Engine 1.5 Hybrid
Engine code M15A-FXE
Engine type Hybrid
Fuel type Gasoline
Engine displacement, cc 1490
Cylinder layout Inline
Number of cylinders 3
Valves 12
Power, hp 130
Torque, Nm 185
Combustion engine power, hp 92
Combustion engine RPM at max power 5500
Combustion engine torque, Nm 120
Combustion engine RPM at max torque 3600-4800

Dimensions

Seats 5
Length, mm 3940
Height, mm 1500
Wheelbase, mm 2560
Front track, mm 1530
Rear track, mm 1530
Kerb weight, kg 960
Gross weight, kg 1470
Fuel tank capacity, L 36
Turning circle, m 10.4
Ground clearance, mm 135
Width without mirrors, mm 1745

Transmission and drive

Transmission CVT
Transmission type CVT
Drive Front-wheel drive
Transmission manufacturer Aisin
Automatic transmission +
Transmission country Japan

Suspension

Front suspension type Independent MacPherson strut with anti-roll bar
Rear suspension type Independent torsion beam

Brake system

Front brakes Ventilated disc
Rear brakes Disc

Steering

Power steering Electric power steering

Equipment

Exterior

Rear spoiler +

Comfort

Tire pressure monitoring +
Multifunction steering wheel +
Adjustable steering column +
Electromechanical parking brake +
Adjustable headrests +

Interior

Leather-trimmed interior elements +
Multifunction instrument display +
12V power outlet +

Wheels

Rim diameter 15
Rim type Alloy
Tires 185/65R15

Climate and sound insulation

Heated front seats +
Climate control +

Off-road

Hill-start assist +

Seats

Child seat anchors (LATCH/Isofix) +
Front armrest +
60/40 split-folding rear seat +
Sport seats +

Headlights and lighting

Front fog lights +
Light sensor +
LED headlights +
LED tail lights +
LED daytime running lights +

Multimedia and instruments

Bluetooth hands-free +
AUX input +
USB +
Number of speakers 6
Apple CarPlay / Android Auto +
Touchscreen +
Antenna +

Trunk

Cargo cover +
Trunk lighting +

Glass, mirrors and sunroof

Rain sensor +
Heated side mirrors +
Heated rear window +
Front power windows +
Rear power windows +
Power-adjustable side mirrors +
Power-folding side mirrors +
Tinted glass +

Visibility and parking

Rear-view camera +
Rear parking sensors +

Security

Electronic systems

Anti-lock braking system (ABS) +
Electronic stability control +
Electronic brakeforce distribution +
Child locks +

Anti-theft systems

Remote central locking +
Immobilizer +

Airbags

Driver airbag +
Passenger airbag +
Curtain airbags +
Passenger airbag deactivation +
1.0 VVT-i (72 hp) 5-speed manual 37 specifications

Specifications

Performance and consumption

Fuel consumption city, L/100 km 5.3
Fuel consumption highway, L/100 km 4
Fuel consumption combined, L/100 km 4.5
Top speed, km/h 160
Acceleration 0-100 km/h, s 14.6
Emissions standard Euro VI

Engine

Engine 1.0 VVT-i
Engine code 1KR-FE
Engine type Internal combustion engine
Fuel type Gasoline
Engine displacement, cc 998
Cylinder layout Inline
Number of cylinders 3
Valves 12
Compression ratio 11.5:1
Power, hp 72
RPM at max power 6000
Torque, Nm 93
RPM at max torque 4300

Dimensions

Seats 5
Length, mm 3940
Height, mm 1500
Wheelbase, mm 2560
Front track, mm 1531
Rear track, mm 1524
Kerb weight, kg 960
Gross weight, kg 1470
Fuel tank capacity, L 42
Turning circle, m 9.8
Width without mirrors, mm 1745
Trunk capacity, L 286

Transmission and drive

Transmission 5-speed manual
Transmission type manual
Drive Front-wheel drive
Number of gears 5
Transmission manufacturer Toyota
Transmission country Japan
1.5i Dynamic Force (125 hp) 6-speed manual 37 specifications

Specifications

Performance and consumption

Fuel consumption city, L/100 km 6.6
Fuel consumption highway, L/100 km 4.3
Fuel consumption combined, L/100 km 5.1
Top speed, km/h 180
Acceleration 0-100 km/h, s 9
Emissions standard Euro VI

Engine

Engine 1.5i Dynamic Force
Engine code M15A-FKS
Engine type Internal combustion engine
Fuel type Gasoline
Engine displacement, cc 1490
Cylinder layout Inline
Number of cylinders 3
Valves 12
Compression ratio 14:1
Power, hp 125
RPM at max power 6600
Torque, Nm 153
RPM at max torque 4800–5000

Dimensions

Seats 5
Length, mm 3940
Height, mm 1500
Wheelbase, mm 2560
Front track, mm 1531
Rear track, mm 1524
Kerb weight, kg 960
Gross weight, kg 1470
Fuel tank capacity, L 42
Turning circle, m 9.8
Width without mirrors, mm 1745
Trunk capacity, L 286

Transmission and drive

Transmission 6-speed manual
Transmission type manual
Drive Front-wheel drive
Number of gears 6
Transmission manufacturer Toyota
Transmission country Japan
1.5i Dynamic Force (125 hp) Direct Shift CVT 36 specifications

Specifications

Performance and consumption

Fuel consumption city, L/100 km 6
Fuel consumption highway, L/100 km 4.2
Fuel consumption combined, L/100 km 4.9
Top speed, km/h 180
Acceleration 0-100 km/h, s 10.2
Emissions standard Euro VI

Engine

Engine 1.5i Dynamic Force
Engine code M15A-FKS
Engine type Internal combustion engine
Fuel type Gasoline
Engine displacement, cc 1490
Cylinder layout Inline
Number of cylinders 3
Valves 12
Compression ratio 14:1
Power, hp 125
RPM at max power 6600
Torque, Nm 153
RPM at max torque 4800–5000

Dimensions

Seats 5
Length, mm 3940
Height, mm 1500
Wheelbase, mm 2560
Front track, mm 1531
Rear track, mm 1524
Kerb weight, kg 960
Gross weight, kg 1470
Fuel tank capacity, L 42
Turning circle, m 9.8
Width without mirrors, mm 1745
Trunk capacity, L 286

Transmission and drive

Transmission CVT
Transmission type CVT
Drive Front-wheel drive
Automatic transmission +
Transmission country Japan
1.5i Hybrid (116 hp) e-CVT 41 specifications

Specifications

Performance and consumption

Fuel consumption city, L/100 km 2.7
Fuel consumption highway, L/100 km 3.5
Fuel consumption combined, L/100 km 3.1
Top speed, km/h 175
Acceleration 0-100 km/h, s 9.7
Emissions standard Euro VI

Engine

Engine 1.5i Hybrid
Engine code M15A-FXE
Engine type Hybrid
Fuel type Gasoline
Engine displacement, cc 1490
Cylinder layout Inline
Number of cylinders 3
Valves 12
Compression ratio 14:1
Power, hp 116
EV mode +
Plug-in charging support +
Electric motor power, hp 80
Combustion engine power, hp 92
Combustion engine torque, Nm 120
Combustion engine RPM at max torque 3600–4800
Electric motor torque, Nm 141

Dimensions

Seats 5
Length, mm 3940
Height, mm 1500
Wheelbase, mm 2560
Front track, mm 1531
Rear track, mm 1524
Kerb weight, kg 960
Gross weight, kg 1470
Fuel tank capacity, L 42
Turning circle, m 9.8
Width without mirrors, mm 1745
Trunk capacity, L 286

Transmission and drive

Transmission CVT
Transmission type CVT
Drive Front-wheel drive
Transmission manufacturer Aisin
Automatic transmission +
Transmission country Japan
1.5 Hybrid (130 hp) e-CVT 38 specifications

Specifications

Performance and consumption

Fuel consumption city, L/100 km 2.9
Fuel consumption highway, L/100 km 3.6
Fuel consumption combined, L/100 km 3.2
Top speed, km/h 175
Acceleration 0-100 km/h, s 9.2
Emissions standard Euro VI

Engine

Engine 1.5 Hybrid
Engine code M15A-FXE
Engine type Hybrid
Fuel type Gasoline
Engine displacement, cc 1490
Cylinder layout Inline
Number of cylinders 3
Valves 12
Power, hp 130
Torque, Nm 185
Combustion engine power, hp 92
Combustion engine RPM at max power 5500
Combustion engine torque, Nm 120
Combustion engine RPM at max torque 3600-4800

Dimensions

Seats 5
Length, mm 3940
Height, mm 1500
Wheelbase, mm 2560
Front track, mm 1531
Rear track, mm 1524
Kerb weight, kg 960
Gross weight, kg 1470
Fuel tank capacity, L 42
Turning circle, m 9.8
Width without mirrors, mm 1745
Trunk capacity, L 286

Transmission and drive

Transmission CVT
Transmission type CVT
Drive Front-wheel drive
Transmission manufacturer Aisin
Automatic transmission +
Transmission country Japan
FAQ

Toyota Yaris questions

Short answers based on the specifications and photos available in this catalog.

What generation is the 2020 Toyota Yaris?

The 2020 model year represents the fourth generation of the Toyota Yaris hatchback. It was built on the new GA-B platform, a variant of the Toyota New Global Architecture (TNGA).

What engine options are available for the 2020 Toyota Yaris?

Buyers can choose from a 1.0-liter three-cylinder engine with 72 horsepower, a 1.5-liter three-cylinder engine with 125 horsepower, or a 1.5-liter hybrid system offering either 116 or 130 horsepower.

Does the 2020 Toyota Yaris hybrid support electric-only driving?

Yes, the fourth-generation hybrid powertrain includes an EV mode. Thanks to its lighter lithium-ion battery, the Yaris hybrid can travel on electric power at speeds up to 130 km/h.

What is the trunk capacity of the 2020 Toyota Yaris?

The Yaris offers a boot volume of 286 liters. For additional cargo space, the rear seats feature a 60/40 split-folding design.

Is all-wheel drive available on the 2020 Toyota Yaris?

While most configurations are front-wheel drive, the model is available with an E-Four all-wheel-drive system in select markets. These all-wheel-drive versions feature a double-wishbone rear suspension instead of the standard torsion beam.
