UAZ specifications

UAZ Patriot specifications and photos

UAZ Patriot specifications are shown with trim options, key technical data, and a model photo gallery. Compare 9 configurations by engine size, power, seating, and transmission. The gallery includes 29 photos for visual reference.

Years 2017

Body type suv

Trims 9

Photos 29

Overview

UAZ Patriot at a glance

Quick model context before comparing photos and trim-level specifications.

Use this UAZ Patriot page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 135 hp and 2693 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

Power: 135 hp
Engine displacement: 2693 cc
Transmissions: 5, 5-speed manual
Seating: 5 seats

Research hub

Photos, trims and specifications for UAZ Patriot

This model page brings gallery images, trim comparison, and detailed technical data together for the 2017 generation.

Open photo gallery 29 images Compare trims 9 configurations View detailed specs 2693 cc Explore related pages UAZ and similar models

Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 135 hp

Engine displacement 2693 cc

Seating 5 seats

Transmissions 5, 5-speed manual

Trim / modification	Engine	Power	Seats	Transmission
2.7 MT 3163-185-03 CLASSIC	2693 cc	135 hp	5	5
2.7 MT 3163-275 COMFORT	2693 cc	135 hp	5	5
2.7 MT 3163-485-03 MAXIMUM	2693 cc	135 hp	5	5
2.7 MT 3163-285-03 OPTIMUM	2693 cc	135 hp	5	5
2.7 MT 3163-385-03 PRESTIGE	2693 cc	135 hp	5	5
2.7 MT 3163-375 PRIVILEGE	2693 cc	135 hp	5	5
2.7 MT 3163-175 STANDARD	2693 cc	135 hp	5	5
2.7 MT 3163-475 STYLE	2693 cc	135 hp	5	5
2.7i (135 h.p.) 5-speed manual 4x4	2693 cc	135 hp	5	5-speed manual

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Gallery

UAZ Patriot photo gallery

29 images are collected here with the main specifications and trim data for this model.

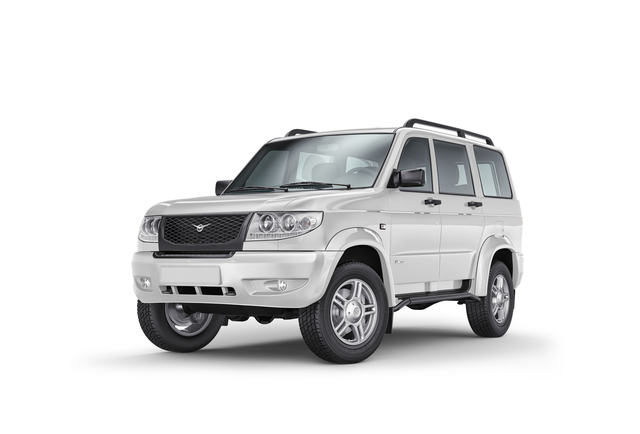

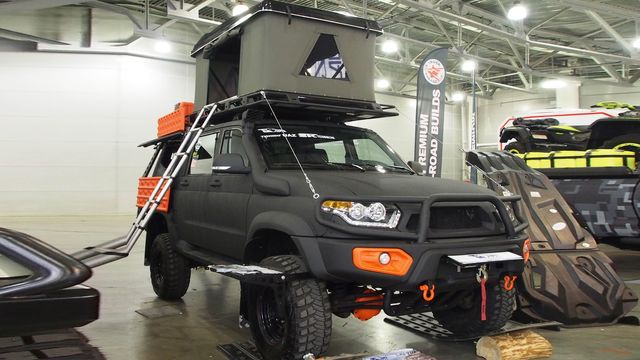

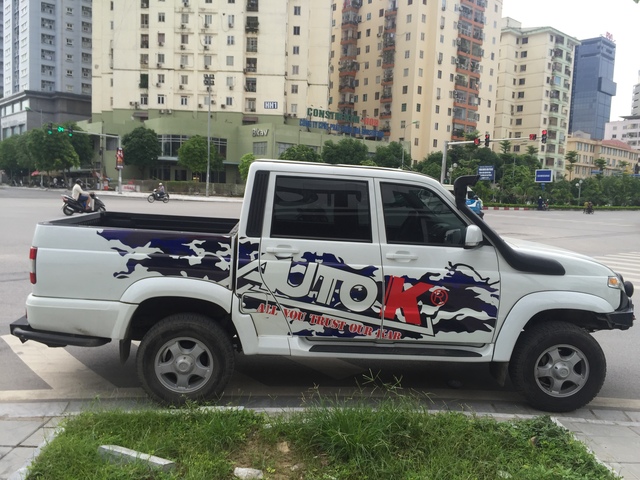

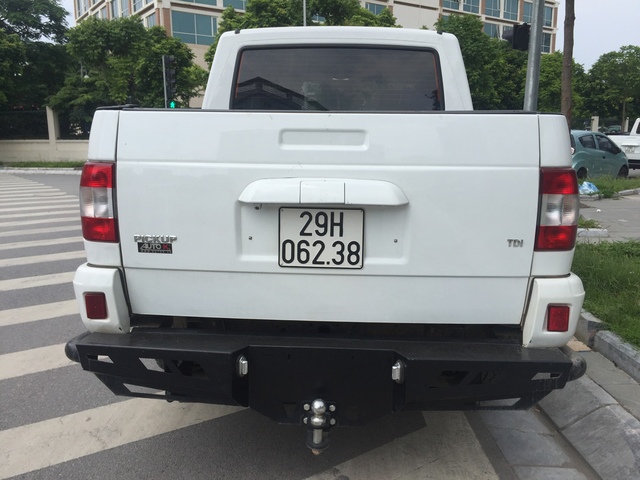

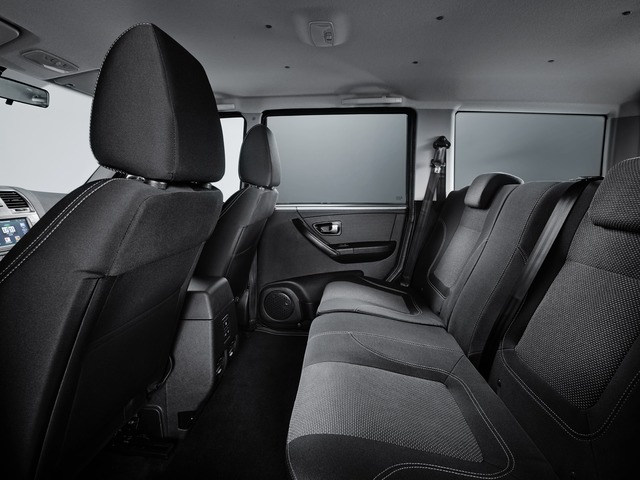

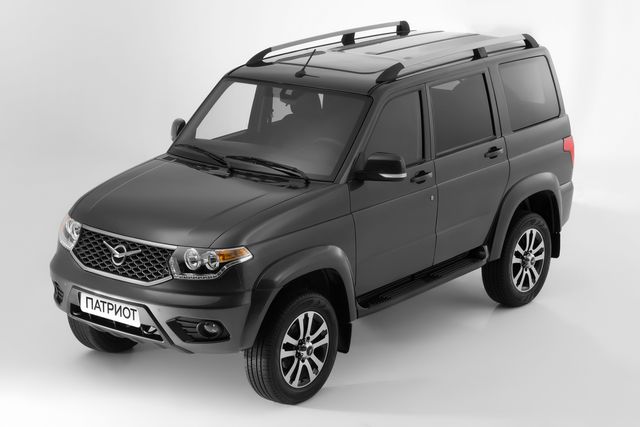

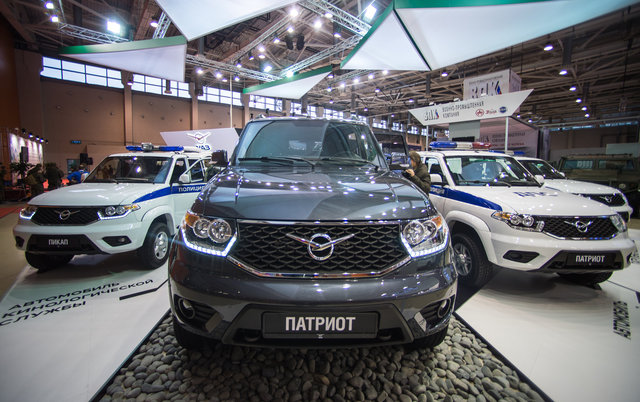

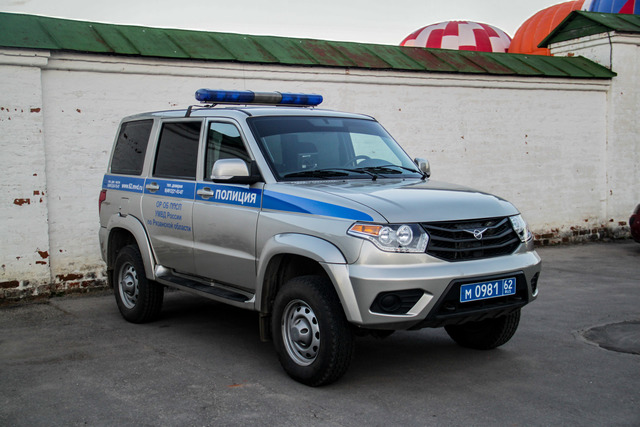

Photo UAZ Patriot

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

2.7 MT 3163-185-03 CLASSIC 2.7 MT 3163-275 COMFORT 2.7 MT 3163-485-03 MAXIMUM 2.7 MT 3163-285-03 OPTIMUM 2.7 MT 3163-385-03 PRESTIGE 2.7 MT 3163-375 PRIVILEGE 2.7 MT 3163-175 STANDARD 2.7 MT 3163-475 STYLE 2.7i (135 h.p.) 5-speed manual 4x4

2.7 MT 3163-185-03 CLASSIC 57 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	2693
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	135
Torque, Nm	217
RPM at max torque	3900
Engine	2.7i
Compression	9.0
RPM at max power	4600
Engine code	ZMZ-40906

Dimensions

Seats	5
Length mm	4750
Width	2110
Height mm	1910
Wheelbase mm	2760
Front track, mm	1600
Rear track, mm	1610
Kerb weight, kg	2125
Trunk capacity, L	650
Fuel tank, l	68
Ground clearance, mm	210
Gross weight, kg	2650
Width (without mirrors) mm	1900

Suspension

Type of front suspension	Dependent, spring with anti-roll bar
Rear suspension	Dependent, on two longitudinal semi-elliptic leaf springs, with anti-roll bar

Brake system

The front brakes	Disk
Rear brakes	Drum

Steering

Power steering	Power steering

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	14
Fuel consumption (urban), l. 100 km	11.5
The maximum speed, km / h.	150
The rate of toxicity	Euro IV

Transmission and drive

Number of gears	5
Drive	Full
Transmission	5-speed manual
Gearbox	Mechanics
Transmission manufacturer	UAZ
Transmission country of origin	Russia

Equipment

Comfort

Adjustable steering column	+

Interior

On-board computer	+

Wheels

Disc diameter	16
Rim type	Steel
Tires	225/75R16

Glass, mirrors and sunroof

Front power windows	+
Heated side mirrors	+
Power mirrors	+
Rear electric windows	+

Multimedia and instruments

Audio preparation	+

Headlights and lighting

LED lights daylight	+

Seats

Isofix child seat (LATCH, Isofix)	+

Security

Electronic systems

Anti-lock braking system (ABS)	+
Electronic Brakeforce Distribution (EBD, EBV, REF, EBFD)	+

Anti-theft systems

alarm	+

Airbags

Driver's airbag	+

2.7 MT 3163-275 COMFORT 60 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	2693
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	135
Torque, Nm	217
RPM at max torque	3900
Engine	2.7i
Compression	9.0
RPM at max power	4600
Engine code	ZMZ-40906

Dimensions

Seats	5
Length mm	4785
Width	2110
Height mm	2005
Wheelbase mm	2760
Front track, mm	1600
Rear track, mm	1610
Kerb weight, kg	2125
Trunk capacity, L	650
Fuel tank, l	68
Ground clearance, mm	210
Gross weight, kg	2650
Width (without mirrors) mm	1900

Suspension

Type of front suspension	Dependent, spring with anti-roll bar
Rear suspension	Dependent, on two longitudinal semi-elliptic leaf springs, with anti-roll bar

Brake system

The front brakes	Disk
Rear brakes	Drum

Steering

Power steering	Power steering

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	14
Fuel consumption (urban), l. 100 km	11.5
The maximum speed, km / h.	150
The rate of toxicity	Euro IV

Transmission and drive

Number of gears	5
Drive	Full
Transmission	5-speed manual
Gearbox	Mechanics
Transmission manufacturer	UAZ
Transmission country of origin	Russia

Equipment

Comfort

Adjustable steering column	+
Outside temperature sensor	+
The cooling system in the glove compartment	+

Wheels

Disc diameter	16
Rim type	Alloy
Tires	225/75R16

Cabin climate and noise insulation

Heated front seats	+
Air Conditioning	+

Multimedia and instruments

Audio preparation	+
Antenna	+
USB	+
Number of speakers	4
MP3	+

Seats

height-adjustable driver's seat	+

Visibility and parking

Rear Parking Sensors	+

Security

Anti-theft systems

Alarm	+
Central locking with remote control	+

Airbags

Driver's airbag	+
Passenger Airbag	+

2.7 MT 3163-485-03 MAXIMUM 86 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	2693
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	135
Torque, Nm	217
RPM at max torque	3900
Engine	2.7i
Compression	9.0
RPM at max power	4600
Engine code	ZMZ-40906

Dimensions

Seats	5
Length mm	4750
Width	2110
Height mm	1910
Wheelbase mm	2760
Front track, mm	1600
Rear track, mm	1610
Kerb weight, kg	2125
Trunk capacity, L	650
Fuel tank, l	68
Ground clearance, mm	210
Gross weight, kg	2650
Width (without mirrors) mm	1900

Suspension

Type of front suspension	Dependent, spring with anti-roll bar
Rear suspension	Dependent, on two longitudinal semi-elliptic leaf springs, with anti-roll bar

Brake system

The front brakes	Disk
Rear brakes	Drum

Steering

Power steering	Power steering

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	14
Fuel consumption (urban), l. 100 km	11.5
The maximum speed, km / h.	150
The rate of toxicity	Euro IV

Transmission and drive

Number of gears	5
Drive	Full
Transmission	5-speed manual
Gearbox	Mechanics
Transmission manufacturer	UAZ
Transmission country of origin	Russia

Equipment

Comfort

Cruise Control	+
Adjustable steering column	+
Outside temperature sensor	+
The cooling system in the glove compartment	+

Interior

On-board computer	+
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.)	+

Wheels

Disc diameter	18
Rim type	Alloy
Tires	245/60R18
Spare wheel	Dokatka

Cabin climate and noise insulation

Heated front seats	+
Heated steering wheel	+
Climate control	+
The supply of warm air to the feet of the rear passengers	+

Glass, mirrors and sunroof

Front power windows	+
Heated side mirrors	+
Power mirrors	+
Rear electric windows	+

Multimedia and instruments

Steering wheel controls	+
Audio preparation	+
Navigation system	+
Touch Screen	+
Antenna	+
Number of speakers	6

Headlights and lighting

Front fog lights	+
LED lights daylight	+

Seats

height-adjustable driver's seat	+
Isofix child seat (LATCH, Isofix)	+

Visibility and parking

Rear View Camera	+
Rear Parking Sensors	+
Parking aid front	+

Off-road

System Hill Hold Control	+

Trunk

Highlighting the trunk	+

Exterior

Roof rails	+

Body and exterior paint

Door handles in body color	+
Exterior mirrors in body color	+

Security

Electronic systems

Anti-lock braking system (ABS)	+
Electronic Brakeforce Distribution (EBD, EBV, REF, EBFD)	+
Traction Control System (Traction control, ASR)	+
Vehicle Stability Control (ESP, DSC, ESC, VSC)	+

Anti-theft systems

Alarm	+
alarm	+
Central locking with remote control	+

Airbags

Driver's airbag	+
Passenger Airbag	+

2.7 MT 3163-285-03 OPTIMUM 63 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	2693
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	135
Torque, Nm	217
RPM at max torque	3900
Engine	2.7i
Compression	9.0
RPM at max power	4600
Engine code	ZMZ-40906

Dimensions

Seats	5
Length mm	4750
Width	2110
Height mm	1910
Wheelbase mm	2760
Front track, mm	1600
Rear track, mm	1610
Kerb weight, kg	2125
Trunk capacity, L	650
Fuel tank, l	68
Ground clearance, mm	210
Gross weight, kg	2650
Width (without mirrors) mm	1900

Suspension

Type of front suspension	Dependent, spring with anti-roll bar
Rear suspension	Dependent, on two longitudinal semi-elliptic leaf springs, with anti-roll bar

Brake system

The front brakes	Disk
Rear brakes	Drum

Steering

Power steering	Power steering

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	14
Fuel consumption (urban), l. 100 km	11.5
The maximum speed, km / h.	150
The rate of toxicity	Euro IV

Transmission and drive

Number of gears	5
Drive	Full
Transmission	5-speed manual
Gearbox	Mechanics
Transmission manufacturer	UAZ
Transmission country of origin	Russia

Equipment

Comfort

Adjustable steering column	+
The cooling system in the glove compartment	+

Interior

On-board computer	+

Wheels

Disc diameter	16
Rim type	Steel
Tires	225/75R16

Cabin climate and noise insulation

Air Conditioning	+
The supply of warm air to the feet of the rear passengers	+

Glass, mirrors and sunroof

Front power windows	+
Heated side mirrors	+
Power mirrors	+
Rear electric windows	+

Multimedia and instruments

Audio preparation	+

Headlights and lighting

LED lights daylight	+

Seats

Isofix child seat (LATCH, Isofix)	+

Body and exterior paint

Door handles in body color	+
Exterior mirrors in body color	+

Security

Electronic systems

Anti-lock braking system (ABS)	+
Electronic Brakeforce Distribution (EBD, EBV, REF, EBFD)	+

Anti-theft systems

alarm	+

Airbags

Driver's airbag	+
Passenger Airbag	+

2.7 MT 3163-385-03 PRESTIGE 81 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	2693
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	135
Torque, Nm	217
RPM at max torque	3900
Engine	2.7i
Compression	9.0
RPM at max power	4600
Engine code	ZMZ-40906

Dimensions

Seats	5
Length mm	4750
Width	2110
Height mm	1910
Wheelbase mm	2760
Front track, mm	1600
Rear track, mm	1610
Kerb weight, kg	2125
Trunk capacity, L	650
Fuel tank, l	68
Ground clearance, mm	210
Gross weight, kg	2650
Width (without mirrors) mm	1900

Suspension

Type of front suspension	Dependent, spring with anti-roll bar
Rear suspension	Dependent, on two longitudinal semi-elliptic leaf springs, with anti-roll bar

Brake system

The front brakes	Disk
Rear brakes	Drum

Steering

Power steering	Power steering

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	14
Fuel consumption (urban), l. 100 km	11.5
The maximum speed, km / h.	150
The rate of toxicity	Euro IV

Transmission and drive

Number of gears	5
Drive	Full
Transmission	5-speed manual
Gearbox	Mechanics
Transmission manufacturer	UAZ
Transmission country of origin	Russia

Equipment

Comfort

Cruise Control	+
Adjustable steering column	+
Outside temperature sensor	+
The cooling system in the glove compartment	+

Interior

On-board computer	+
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.)	+

Wheels

Disc diameter	16
Rim type	Alloy
Tires	235/70R16

Cabin climate and noise insulation

Heated front seats	+
Heated steering wheel	+
Air Conditioning	+
The supply of warm air to the feet of the rear passengers	+

Glass, mirrors and sunroof

Front power windows	+
Heated side mirrors	+
Power mirrors	+
Rear electric windows	+

Multimedia and instruments

Steering wheel controls	+
Audio preparation	+
Navigation system	+
Touch Screen	+
Antenna	+
Number of speakers	6

Headlights and lighting

Front fog lights	+
LED lights daylight	+

Seats

height-adjustable driver's seat	+
Isofix child seat (LATCH, Isofix)	+

Off-road

System Hill Hold Control	+

Trunk

Highlighting the trunk	+

Body and exterior paint

Door handles in body color	+
Exterior mirrors in body color	+

Security

Electronic systems

Anti-lock braking system (ABS)	+
Electronic Brakeforce Distribution (EBD, EBV, REF, EBFD)	+
Traction Control System (Traction control, ASR)	+
Vehicle Stability Control (ESP, DSC, ESC, VSC)	+

Anti-theft systems

Alarm	+
alarm	+
Central locking with remote control	+

Airbags

Driver's airbag	+
Passenger Airbag	+

2.7 MT 3163-375 PRIVILEGE 76 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	2693
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	135
Torque, Nm	217
RPM at max torque	3900
Engine	2.7i
Compression	9.0
RPM at max power	4600
Engine code	ZMZ-40906

Dimensions

Seats	5
Length mm	4785
Width	2110
Height mm	2005
Wheelbase mm	2760
Front track, mm	1600
Rear track, mm	1610
Kerb weight, kg	2125
Trunk capacity, L	650
Fuel tank, l	68
Ground clearance, mm	210
Gross weight, kg	2650
Width (without mirrors) mm	1900

Suspension

Type of front suspension	Dependent, spring with anti-roll bar
Rear suspension	Dependent, on two longitudinal semi-elliptic leaf springs, with anti-roll bar

Brake system

The front brakes	Disk
Rear brakes	Drum

Steering

Power steering	Power steering

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	14
Fuel consumption (urban), l. 100 km	11.5
The maximum speed, km / h.	150
The rate of toxicity	Euro IV

Transmission and drive

Number of gears	5
Drive	Full
Transmission	5-speed manual
Gearbox	Mechanics
Transmission manufacturer	UAZ
Transmission country of origin	Russia

Equipment

Comfort

Cruise Control	+
Multi-function steering wheel	+
Adjustable steering column	+
Outside temperature sensor	+
The cooling system in the glove compartment	+

Interior

Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.)	+

Wheels

Disc diameter	18
Rim type	Alloy
Tires	245/60R18

Cabin climate and noise insulation

Heated front seats	+
Heated steering wheel	+
Climate control	+
Air Conditioning	+

Multimedia and instruments

Steering wheel controls	+
Audio preparation	+
Navigation system	+
Touch Screen	+
Antenna	+
USB	+
Number of speakers	6
MP3	+

Headlights and lighting

Front fog lights	+

Seats

height-adjustable driver's seat	+

Visibility and parking

Rear View Camera	+
Rear Parking Sensors	+
Parking aid front	+

Off-road

The help system at start on the slope (Hill Start Assist; GRC)	+

Trunk

Lighting luggage	+

Security

Electronic systems

Control System traction (TCS)	+
Vehicle Stability Control (ESP, DSC, ESC, VSC)	+
The control system braking at turn (CBC)	+

Anti-theft systems

Alarm	+
Central locking with remote control	+

Airbags

Driver's airbag	+
Passenger Airbag	+

2.7 MT 3163-175 STANDARD 48 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	2693
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	135
Torque, Nm	217
RPM at max torque	3900
Engine	2.7i
Compression	9.0
RPM at max power	4600
Engine code	ZMZ-40906

Dimensions

Seats	5
Length mm	4750
Width	2110
Height mm	1910
Wheelbase mm	2760
Front track, mm	1600
Rear track, mm	1610
Kerb weight, kg	2125
Trunk capacity, L	650
Fuel tank, l	68
Ground clearance, mm	210
Gross weight, kg	2650
Width (without mirrors) mm	1900

Suspension

Type of front suspension	Dependent, spring with anti-roll bar
Rear suspension	Dependent, on two longitudinal semi-elliptic leaf springs, with anti-roll bar

Brake system

The front brakes	Disk
Rear brakes	Drum

Steering

Power steering	Power steering

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	14
Fuel consumption (urban), l. 100 km	11.5
The maximum speed, km / h.	150
The rate of toxicity	Euro IV

Transmission and drive

Number of gears	5
Drive	Full
Transmission	5-speed manual
Gearbox	Mechanics
Transmission manufacturer	UAZ
Transmission country of origin	Russia

Equipment

Comfort

Adjustable steering column	+

Wheels

Disc diameter	16
Rim type	Steel
Tires	225/75R16

Multimedia and instruments

Audio preparation	+

Security

Airbags

Driver's airbag	+
Passenger Airbag	+

2.7 MT 3163-475 STYLE 78 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	2693
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	135
Torque, Nm	217
RPM at max torque	3900
Engine	2.7i
Compression	9.0
RPM at max power	4600
Engine code	ZMZ-40906

Dimensions

Seats	5
Length mm	4785
Width	2110
Height mm	2005
Wheelbase mm	2760
Front track, mm	1600
Rear track, mm	1610
Kerb weight, kg	2125
Trunk capacity, L	650
Fuel tank, l	68
Ground clearance, mm	210
Gross weight, kg	2650
Width (without mirrors) mm	1900

Suspension

Type of front suspension	Dependent, spring with anti-roll bar
Rear suspension	Dependent, on two longitudinal semi-elliptic leaf springs, with anti-roll bar

Brake system

The front brakes	Disk
Rear brakes	Drum

Steering

Power steering	Power steering

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	14
Fuel consumption (urban), l. 100 km	11.5
The maximum speed, km / h.	150
The rate of toxicity	Euro IV

Transmission and drive

Number of gears	5
Drive	Full
Transmission	5-speed manual
Gearbox	Mechanics
Transmission manufacturer	UAZ
Transmission country of origin	Russia

Equipment

Comfort

Cruise Control	+
Multi-function steering wheel	+
Adjustable steering column	+
Outside temperature sensor	+
The cooling system in the glove compartment	+

Interior

Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.)	+

Wheels

Disc diameter	18
Rim type	Alloy
Tires	245/60R18

Cabin climate and noise insulation

Heated front seats	+
Heated rear seats	+
Heated steering wheel	+
Climate control	+
Air Conditioning	+

Glass, mirrors and sunroof

Rear windshield	+

Multimedia and instruments

Steering wheel controls	+
Audio preparation	+
Navigation system	+
Touch Screen	+
Antenna	+
USB	+
Number of speakers	6
MP3	+

Headlights and lighting

Front fog lights	+

Seats

height-adjustable driver's seat	+

Visibility and parking

Rear View Camera	+
Rear Parking Sensors	+
Parking aid front	+

Off-road

The help system at start on the slope (Hill Start Assist; GRC)	+

Trunk

Lighting luggage	+

Security

Electronic systems

Control System traction (TCS)	+
Vehicle Stability Control (ESP, DSC, ESC, VSC)	+
The control system braking at turn (CBC)	+

Anti-theft systems

Alarm	+
Central locking with remote control	+

Airbags

Driver's airbag	+
Passenger Airbag	+

2.7i (135 h.p.) 5-speed manual 4x4 36 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	2693
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	135
Torque, Nm	217
RPM at max torque	3900
Engine	2.7i
Compression	9.0
RPM at max power	4600
Engine code	ZMZ-40906

Dimensions

Seats	5
Length mm	4750
Width	2110
Height mm	1910
Wheelbase mm	2760
Front track, mm	1600
Rear track, mm	1610
Kerb weight, kg	2125
Trunk capacity, L	650
Fuel tank, l	68
Ground clearance, mm	210
Gross weight, kg	2650
Width (without mirrors) mm	1900

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	14
Fuel consumption (urban), l. 100 km	11.5
The maximum speed, km / h.	150
The rate of toxicity	Euro IV

Transmission and drive

Number of gears	5
Drive	Full
Transmission	5-speed manual
Gearbox	Mechanics
Transmission manufacturer	UAZ
Transmission country of origin	Russia

FAQ

UAZ Patriot questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the UAZ Patriot?

This page lists 9 trims for the UAZ Patriot, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the UAZ Patriot?

The listed configurations show a power range of 135 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the UAZ Patriot?

The available specification data shows engine displacement from 2693 cc across the trims listed on this page.

Which transmissions are listed for the UAZ Patriot?

The transmission options currently shown for this model are: 5, 5-speed manual. Open a trim section to see the full data for a specific configuration.

Are there photos for the UAZ Patriot?

Yes. The gallery includes 29 photos for the UAZ Patriot, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
