Volkswagen Golf 3-door specifications and photos

Volkswagen Golf 3-door specifications are shown with trim options, key technical data, and a model photo gallery. Compare 22 configurations by engine size, power, seating, and transmission. The gallery includes 26 photos for visual reference.

Years 2016 - 2019
Body type hatchback
Trims 22
Photos 26
Rear view of Volkswagen Golf 3-door 2016
Overview

Volkswagen Golf 3-door at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Volkswagen Golf 3-door page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 85-150 hp and 999-1968 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

  • Power: 85-150 hp
  • Engine displacement: 999-1968 cc
  • Transmissions: 6, 6-speed manual, 5
  • Seating: 5 seats
Research hub

Photos, trims and specifications for Volkswagen Golf 3-door

This model page brings gallery images, trim comparison, and detailed technical data together for the 2016 generation.

Open photo gallery 26 images Compare trims 22 configurations View detailed specs 999-1968 cc Explore related pages Volkswagen and similar models
Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 85-150 hp
Engine displacement 999-1968 cc
Seating 5 seats
Transmissions 6, 6-speed manual, 5
Trim / modification Engine Power Seats Transmission
1.4 TSI MT Trendline 1395 cc 125 hp 5 6
1.5 TSI (130 hp) 6-speed manual 1498 cc 130 hp 5 6-speed manual
1.0 TSI (85 hp) 5-MP 999 cc 85 hp 5 5
1.2 TSI (85 hp) 5-speed manual 1197 cc 85 hp 5 5-speed manual
1.0 TSI (110 hp) 6-speed manual 999 cc 110 hp 5 6-speed manual
1.0 TSI (110 hp) 7-DSG 999 cc 110 hp 5 7
1.2 TSI (110 hp) 6-speed manual 1197 cc 110 hp 5 6-speed manual
1.2 TSI (110 hp) 7-DSG 1197 cc 110 hp 5 7
1.4 TSI (125 hp) 6-speed manual 1395 cc 125 hp 5 6-speed manual
1.4 TSI (125 hp) 7-DSG 1395 cc 125 hp 5 7
1.4 TSI (150 hp) 6-speed manual 1395 cc 150 hp 5 6-speed manual
1.4 TSI (150 hp) 7-DSG 1395 cc 150 hp 5 7
1.5 TSI (150 hp) 6-speed manual 1498 cc 150 hp 5 6-speed manual
1.5 TSI (150 hp) 7-DSG 1498 cc 150 hp 5 7
1.6 TDI (115 hp) 5-speed 1598 cc 115 hp 5 5
1.6 TDI (115 hp) 7-DSG 1598 cc 115 hp 5 7
2.0 TDI (150 h.p.) 6-speed manual 1968 cc 150 hp 5 6-speed manual
2.0 TDI (150 h.p.) 6-speed manual 4x4 4Motion 1968 cc 150 hp 5 6-speed manual
2.0 TDI (150 hp) 7-DSG 1968 cc 150 hp 5 7
2.0 TDI (150 hp) 7-DSG 4x4 1968 cc 150 hp 5 7
1.4 TGI (110 HP) 6-speed manual 1395 cc 110 hp 5 6-speed manual
1.4 TGI (110 hp) 7-DSG 1395 cc 110 hp 5 7

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

1.4 TSI MT Trendline 1.5 TSI (130 hp) 6-speed manual 1.0 TSI (85 hp) 5-MP 1.2 TSI (85 hp) 5-speed manual 1.0 TSI (110 hp) 6-speed manual 1.0 TSI (110 hp) 7-DSG 1.2 TSI (110 hp) 6-speed manual 1.2 TSI (110 hp) 7-DSG 1.4 TSI (125 hp) 6-speed manual 1.4 TSI (125 hp) 7-DSG 1.4 TSI (150 hp) 6-speed manual 1.4 TSI (150 hp) 7-DSG 1.5 TSI (150 hp) 6-speed manual 1.5 TSI (150 hp) 7-DSG 1.6 TDI (115 hp) 5-speed 1.6 TDI (115 hp) 7-DSG 2.0 TDI (150 h.p.) 6-speed manual 2.0 TDI (150 h.p.) 6-speed manual 4x4 4Motion 2.0 TDI (150 hp) 7-DSG 2.0 TDI (150 hp) 7-DSG 4x4 1.4 TGI (110 HP) 6-speed manual 1.4 TGI (110 hp) 7-DSG
1.4 TSI MT Trendline 82 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1395
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 125
Torque, Nm 200
RPM at max torque 1400-4000
Engine 1.4 TSI
Compression 10.5
RPM at max power 5000-6000
Turbo +
Engine code CZCA (EA211)

Dimensions

Seats 5
Length mm 4255
Width 2027
Height mm 1491
Wheelbase mm 2620
Front track, mm 1550
Rear track, mm 1522
Kerb weight, kg 1225
Trunk capacity, L 380
Fuel tank, l 50
Turning circle, m 10.9
Ground clearance, mm 142
Gross weight, kg 1730
Width (without mirrors) mm 1799

Brake system

The front brakes Ventilated disc
Rear brakes Disk

Steering

Power steering Electromechanical

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6.2
Fuel consumption (urban), l. 100 km 4.4
Fuel consumption (combined), l. 100 km 5.1
Acceleration (0-100 km/h), s 9.1
The maximum speed, km / h. 204
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics

Equipment

Comfort

Tyre pressure monitoring +
The electronic parking lever +

Interior

color TFT-monitor +

Wheels

Disc diameter 15
Rim type Steel
Tires 195/65R15
Spare wheel Full size

Cabin climate and noise insulation

Air Conditioning +

Glass, mirrors and sunroof

Front power windows +
Heated side mirrors +
Power mirrors +
washers +

Multimedia and instruments

Audio Composition Colour;
Touch Screen +
Antenna +
CD player +
Number of speakers 4
MP3 +
Connector for SD- Card +

Headlights and lighting

corrector of headlights +
Rear LED lights +
Halogen headlights +
LED lights daylight +

Seats

height-adjustable driver's seat +
Isofix child seat (LATCH, Isofix) +

Exterior

Bumpers in body color +

Fuel economy

Start-Stop System +
Brake Energy Regeneration +

Security

Electronic systems

Anti-lock braking system (ABS) +
Traction Control System (Traction control, ASR) +
Vehicle Stability Control (ESP, DSC, ESC, VSC) +
Control system for engine braking (MSR) +
The recognition of driver fatigue +
Electronic differential lock (EDS, XDS) +

Anti-theft systems

alarm +
Central locking with remote control +

Airbags

Driver's airbag +
Passenger Airbag +
Side airbags +
Curtain airbags +
Cushion for driver's knee +
1.5 TSI (130 hp) 6-speed manual 35 specifications

Specifications

Engine

Type of fuel Gasoline
Displacement, cc 1498
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 130
Torque, Nm 200
RPM at max torque 1400-4000
Engine 1.5 TSI
RPM at max power 5000-6000
Turbo +
Engine code EA211

Dimensions

Seats 5
Length mm 4255
Width 2027
Height mm 1491
Wheelbase mm 2620
Front track, mm 1550
Rear track, mm 1522
Trunk capacity, L 380
Fuel tank, l 50
Turning circle, m 10.9
Ground clearance, mm 142
Width (without mirrors) mm 1799

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6.3
Fuel consumption (urban), l. 100 km 4.1
Fuel consumption (combined), l. 100 km 4.9
Acceleration (0-100 km/h), s 9.1
The maximum speed, km / h. 210
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer VAG
1.0 TSI (85 hp) 5-MP 35 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 999
Cylinders location In-line
Number of cylinders 3
Valves 12
Power, hp 85
Torque, Nm 175
RPM at max torque 2000-3000
Engine 1.0 TSI
RPM at max power 5000-5500
Turbo +
Engine code CHZK (EA211)

Dimensions

Seats 5
Length mm 4255
Width 2027
Height mm 1491
Wheelbase mm 2620
Front track, mm 1550
Rear track, mm 1522
Trunk capacity, L 380
Fuel tank, l 50
Turning circle, m 10.9
Ground clearance, mm 142
Width (without mirrors) mm 1799

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.9
Fuel consumption (urban), l. 100 km 4.1
Fuel consumption (combined), l. 100 km 4.8
Acceleration (0-100 km/h), s 11.9
The maximum speed, km / h. 180
The rate of toxicity Euro VI

Transmission and drive

Number of gears 5
Drive Front
Transmission 5-speed manual
Gearbox Mechanics
1.2 TSI (85 hp) 5-speed manual 35 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1197
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 85
Torque, Nm 160
RPM at max torque 1400-3500
Engine 1.2 TSI
RPM at max power 4300-5300
Turbo +
Engine code CJZB (EA211)

Dimensions

Seats 5
Length mm 4255
Width 2027
Height mm 1491
Wheelbase mm 2620
Front track, mm 1550
Rear track, mm 1522
Trunk capacity, L 380
Fuel tank, l 50
Turning circle, m 10.9
Ground clearance, mm 142
Width (without mirrors) mm 1799

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6.2
Fuel consumption (urban), l. 100 km 4.3
Fuel consumption (combined), l. 100 km 5
Acceleration (0-100 km/h), s 11.9
The maximum speed, km / h. 179
The rate of toxicity Euro VI

Transmission and drive

Number of gears 5
Drive Front
Transmission 5-speed manual
Gearbox Mechanics
1.0 TSI (110 hp) 6-speed manual 37 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 999
Cylinders location In-line
Number of cylinders 3
Valves 12
Power, hp 110
Torque, Nm 200
RPM at max torque 2000-3500
Engine 1.0 TSI
Compression 10.5
RPM at max power 5000-5500
Turbo +
Engine code CHZC (EA211)

Dimensions

Seats 5
Length mm 4255
Width 2027
Height mm 1491
Wheelbase mm 2620
Front track, mm 1550
Rear track, mm 1522
Trunk capacity, L 380
Fuel tank, l 50
Turning circle, m 10.9
Ground clearance, mm 142
Width (without mirrors) mm 1799

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.5
Fuel consumption (urban), l. 100 km 3.9
Fuel consumption (combined), l. 100 km 4.5
Acceleration (0-100 km/h), s 9.7
The maximum speed, km / h. 204
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer VAG
1.0 TSI (110 hp) 7-DSG 38 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 999
Cylinders location In-line
Number of cylinders 3
Valves 12
Power, hp 110
Torque, Nm 200
RPM at max torque 2000-3500
Engine 1.0 TSI
Compression 10.5
RPM at max power 5000-5500
Turbo +
Engine code CHZC (EA211)

Dimensions

Seats 5
Length mm 4255
Width 2027
Height mm 1491
Wheelbase mm 2620
Front track, mm 1550
Rear track, mm 1522
Trunk capacity, L 380
Fuel tank, l 50
Turning circle, m 10.9
Ground clearance, mm 142
Width (without mirrors) mm 1799

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.4
Fuel consumption (urban), l. 100 km 3.9
Fuel consumption (combined), l. 100 km 4.4
Acceleration (0-100 km/h), s 9.7
The maximum speed, km / h. 204
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 7
Drive Front
Transmission 7-speed dual-clutch
Gearbox 2 clutch robot
Transmission manufacturer BorgWarner
1.2 TSI (110 hp) 6-speed manual 37 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1197
Cylinders location In-line
Number of cylinders 4
Valves 8
Power, hp 110
Torque, Nm 175
RPM at max torque 1400-4000
Engine 1.2 TSI
Compression 10.0
RPM at max power 4600-5600
Turbo +
Engine code CJZD/CYVB (EA211)

Dimensions

Seats 5
Length mm 4255
Width 2027
Height mm 1491
Wheelbase mm 2620
Front track, mm 1550
Rear track, mm 1522
Trunk capacity, L 380
Fuel tank, l 50
Turning circle, m 10.9
Ground clearance, mm 142
Width (without mirrors) mm 1799

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6.2
Fuel consumption (urban), l. 100 km 4.3
Fuel consumption (combined), l. 100 km 5
Acceleration (0-100 km/h), s 9.9
The maximum speed, km / h. 195
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer VAG
1.2 TSI (110 hp) 7-DSG 38 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1197
Cylinders location In-line
Number of cylinders 4
Valves 8
Power, hp 110
Torque, Nm 175
RPM at max torque 1400-4000
Engine 1.2 TSI
Compression 10.0
RPM at max power 4600-5600
Turbo +
Engine code CJZD/CYVB (EA211)

Dimensions

Seats 5
Length mm 4255
Width 2027
Height mm 1491
Wheelbase mm 2620
Front track, mm 1550
Rear track, mm 1522
Trunk capacity, L 380
Fuel tank, l 50
Turning circle, m 10.9
Ground clearance, mm 142
Width (without mirrors) mm 1799

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6
Fuel consumption (urban), l. 100 km 4.4
Fuel consumption (combined), l. 100 km 5
Acceleration (0-100 km/h), s 9.9
The maximum speed, km / h. 195
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 7
Drive Front
Transmission 7-speed dual-clutch
Gearbox 2 clutch robot
Transmission manufacturer BorgWarner
1.4 TSI (125 hp) 6-speed manual 36 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1395
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 125
Torque, Nm 200
RPM at max torque 1400-4000
Engine 1.4 TSI
Compression 10.5
RPM at max power 5000-6000
Turbo +
Engine code CZCA (EA211)

Dimensions

Seats 5
Length mm 4255
Width 2027
Height mm 1491
Wheelbase mm 2620
Front track, mm 1550
Rear track, mm 1522
Trunk capacity, L 380
Fuel tank, l 50
Turning circle, m 10.9
Ground clearance, mm 142
Width (without mirrors) mm 1799

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6.2
Fuel consumption (urban), l. 100 km 4.4
Fuel consumption (combined), l. 100 km 5.1
Acceleration (0-100 km/h), s 9.1
The maximum speed, km / h. 204
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
1.4 TSI (125 hp) 7-DSG 38 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1395
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 125
Torque, Nm 200
RPM at max torque 1400-4000
Engine 1.4 TSI
Compression 10.5
RPM at max power 5000-6000
Turbo +
Engine code CZCA (EA211)

Dimensions

Seats 5
Length mm 4255
Width 2027
Height mm 1491
Wheelbase mm 2620
Front track, mm 1550
Rear track, mm 1522
Trunk capacity, L 380
Fuel tank, l 50
Turning circle, m 10.9
Ground clearance, mm 142
Width (without mirrors) mm 1799

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6.2
Fuel consumption (urban), l. 100 km 4.4
Fuel consumption (combined), l. 100 km 5.1
Acceleration (0-100 km/h), s 9.1
The maximum speed, km / h. 204
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 7
Drive Front
Transmission 7-speed dual-clutch
Gearbox 2 clutch robot
Transmission manufacturer BorgWarner
1.4 TSI (150 hp) 6-speed manual 36 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1395
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 150
Torque, Nm 250
RPM at max torque 1500-3500
Engine 1.4 TSI
Compression 10.5
RPM at max power 5000-6000
Turbo +
Engine code CZDA/CDGA (EA211)

Dimensions

Seats 5
Length mm 4255
Width 2027
Height mm 1491
Wheelbase mm 2620
Front track, mm 1550
Rear track, mm 1522
Trunk capacity, L 380
Fuel tank, l 50
Turning circle, m 10.9
Ground clearance, mm 142
Width (without mirrors) mm 1799

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6.8
Fuel consumption (urban), l. 100 km 4.5
Fuel consumption (combined), l. 100 km 5.3
Acceleration (0-100 km/h), s 8.2
The maximum speed, km / h. 216
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
1.4 TSI (150 hp) 7-DSG 38 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1395
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 150
Torque, Nm 250
RPM at max torque 1500-3500
Engine 1.4 TSI
Compression 10.5
RPM at max power 5000-6000
Turbo +
Engine code CZDA/CDGA (EA211)

Dimensions

Seats 5
Length mm 4255
Width 2027
Height mm 1491
Wheelbase mm 2620
Front track, mm 1550
Rear track, mm 1522
Trunk capacity, L 380
Fuel tank, l 50
Turning circle, m 10.9
Ground clearance, mm 142
Width (without mirrors) mm 1799

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6.3
Fuel consumption (urban), l. 100 km 4.5
Fuel consumption (combined), l. 100 km 5.1
Acceleration (0-100 km/h), s 8.2
The maximum speed, km / h. 216
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 7
Drive Front
Transmission 7-speed dual-clutch
Gearbox 2 clutch robot
Transmission manufacturer BorgWarner
1.5 TSI (150 hp) 6-speed manual 36 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1498
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 150
Torque, Nm 250
RPM at max torque 1500-3500
Engine 1.5 TSI
Compression 10.5
RPM at max power 5000-6000
Turbo +
Engine code DADA (EA211)

Dimensions

Seats 5
Length mm 4255
Width 2027
Height mm 1491
Wheelbase mm 2620
Front track, mm 1550
Rear track, mm 1522
Trunk capacity, L 380
Fuel tank, l 50
Turning circle, m 10.9
Ground clearance, mm 142
Width (without mirrors) mm 1799

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6.2
Fuel consumption (urban), l. 100 km 4.4
Fuel consumption (combined), l. 100 km 5.1
Acceleration (0-100 km/h), s 8.3
The maximum speed, km / h. 216
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
1.5 TSI (150 hp) 7-DSG 38 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1498
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 150
Torque, Nm 250
RPM at max torque 1500-3500
Engine 1.5 TSI
Compression 10.5
RPM at max power 5000-6000
Turbo +
Engine code DADA (EA211)

Dimensions

Seats 5
Length mm 4255
Width 2027
Height mm 1491
Wheelbase mm 2620
Front track, mm 1550
Rear track, mm 1522
Trunk capacity, L 380
Fuel tank, l 50
Turning circle, m 10.9
Ground clearance, mm 142
Width (without mirrors) mm 1799

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6.2
Fuel consumption (urban), l. 100 km 4.3
Fuel consumption (combined), l. 100 km 5
Acceleration (0-100 km/h), s 8.3
The maximum speed, km / h. 216
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 7
Drive Front
Transmission 7-speed dual-clutch
Gearbox 2 clutch robot
Transmission manufacturer BorgWarner
1.6 TDI (115 hp) 5-speed 35 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1598
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 115
Torque, Nm 250
RPM at max torque 1500-3000
Engine 1.6 TDI
RPM at max power 3500-4000
Turbo +
Engine code CRKB/DDYA (EA288)

Dimensions

Seats 5
Length mm 4255
Width 2027
Height mm 1491
Wheelbase mm 2620
Front track, mm 1550
Rear track, mm 1522
Trunk capacity, L 380
Fuel tank, l 50
Turning circle, m 10.9
Ground clearance, mm 142
Width (without mirrors) mm 1799

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 4.7
Fuel consumption (urban), l. 100 km 3.9
Fuel consumption (combined), l. 100 km 4.2
Acceleration (0-100 km/h), s 10.5
The maximum speed, km / h. 198
The rate of toxicity Euro VI

Transmission and drive

Number of gears 5
Drive Front
Transmission 5-speed manual
Gearbox Mechanics
1.6 TDI (115 hp) 7-DSG 37 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1598
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 115
Torque, Nm 250
RPM at max torque 1500-3000
Engine 1.6 TDI
RPM at max power 3500-4000
Turbo +
Engine code CRKB/DDYA (EA288)

Dimensions

Seats 5
Length mm 4255
Width 2027
Height mm 1491
Wheelbase mm 2620
Front track, mm 1550
Rear track, mm 1522
Trunk capacity, L 380
Fuel tank, l 50
Turning circle, m 10.9
Ground clearance, mm 142
Width (without mirrors) mm 1799

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 4.5
Fuel consumption (urban), l. 100 km 3.7
Fuel consumption (combined), l. 100 km 4
Acceleration (0-100 km/h), s 10.5
The maximum speed, km / h. 195
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 7
Drive Front
Transmission 7-speed dual-clutch
Gearbox 2 clutch robot
Transmission manufacturer BorgWarner
2.0 TDI (150 h.p.) 6-speed manual 36 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1968
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 150
Torque, Nm 340
RPM at max torque 1750-3000
Engine 2.0 TDI
Compression 16.2
RPM at max power 3500-4000
Turbo +
Engine code CKFC/DBGA/DEJA/DFFA

Dimensions

Seats 5
Length mm 4255
Width 2027
Height mm 1491
Wheelbase mm 2620
Front track, mm 1550
Rear track, mm 1522
Trunk capacity, L 380
Fuel tank, l 50
Turning circle, m 10.9
Ground clearance, mm 142
Width (without mirrors) mm 1799

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5
Fuel consumption (urban), l. 100 km 3.7
Fuel consumption (combined), l. 100 km 4.2
Acceleration (0-100 km/h), s 8.6
The maximum speed, km / h. 216
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
2.0 TDI (150 h.p.) 6-speed manual 4x4 4Motion 37 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1968
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 150
Torque, Nm 340
RPM at max torque 1750-3000
Engine 2.0 TDI
Compression 16.2
RPM at max power 3500-4000
Turbo +
Engine code CKFC/DBGA/DEJA/DFFA

Dimensions

Seats 5
Length mm 4255
Width 2027
Height mm 1491
Wheelbase mm 2620
Front track, mm 1550
Rear track, mm 1522
Trunk capacity, L 380
Fuel tank, l 50
Turning circle, m 10.9
Ground clearance, mm 142
Width (without mirrors) mm 1799

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.8
Fuel consumption (urban), l. 100 km 4.2
Fuel consumption (combined), l. 100 km 4.8
Acceleration (0-100 km/h), s 8.6
The maximum speed, km / h. 211
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Full
Transmission 6-speed manual
Gearbox Mechanics
Type Drive 4Motion
2.0 TDI (150 hp) 7-DSG 38 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1968
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 150
Torque, Nm 340
RPM at max torque 1750-3000
Engine 2.0 TDI
Compression 16.2
RPM at max power 3500-4000
Turbo +
Engine code CKFC/DBGA/DEJA/DFFA

Dimensions

Seats 5
Length mm 4255
Width 2027
Height mm 1491
Wheelbase mm 2620
Front track, mm 1550
Rear track, mm 1522
Trunk capacity, L 380
Fuel tank, l 50
Turning circle, m 10.9
Ground clearance, mm 142
Width (without mirrors) mm 1799

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5
Fuel consumption (urban), l. 100 km 3.8
Fuel consumption (combined), l. 100 km 4.3
Acceleration (0-100 km/h), s 8.6
The maximum speed, km / h. 214
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 7
Drive Front
Transmission 7-speed dual-clutch
Gearbox 2 clutch robot
Transmission manufacturer BorgWarner
2.0 TDI (150 hp) 7-DSG 4x4 38 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1968
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 150
Torque, Nm 340
RPM at max torque 1750-3000
Engine 2.0 TDI
Compression 16.2
RPM at max power 3500-4000
Turbo +
Engine code CKFC/DBGA/DEJA/DFFA

Dimensions

Seats 5
Length mm 4255
Width 2027
Height mm 1491
Wheelbase mm 2620
Front track, mm 1550
Rear track, mm 1522
Trunk capacity, L 380
Fuel tank, l 50
Turning circle, m 10.9
Ground clearance, mm 142
Width (without mirrors) mm 1799

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.9
Fuel consumption (urban), l. 100 km 4.2
Fuel consumption (combined), l. 100 km 4.8
Acceleration (0-100 km/h), s 8.6
The maximum speed, km / h. 211
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 7
Drive Full
Transmission 7-speed dual-clutch
Gearbox 2 clutch robot
Transmission manufacturer BorgWarner
1.4 TGI (110 HP) 6-speed manual 36 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gas
Displacement, cc 1395
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 110
Torque, Nm 200
RPM at max torque 1500-3500
Engine 1.4 TGI
RPM at max power 4800-6000
Turbo +
Engine code CPWA (EA211)

Dimensions

Seats 5
Length mm 4255
Width 2027
Height mm 1491
Wheelbase mm 2620
Front track, mm 1550
Rear track, mm 1522
Trunk capacity, L 380
Fuel tank, l 50
Turning circle, m 10.9
Ground clearance, mm 142
Width (without mirrors) mm 1799

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7
Fuel consumption (urban), l. 100 km 4.5
Fuel consumption (combined), l. 100 km 5.4
Acceleration (0-100 km/h), s 10.6
The maximum speed, km / h. 194
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer VAG
1.4 TGI (110 hp) 7-DSG 34 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gas
Displacement, cc 1395
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 110
Torque, Nm 200
RPM at max torque 1500-3500
Engine 1.4 TGI
RPM at max power 4800-6000
Turbo +
Engine code CPWA (EA211)

Dimensions

Seats 5
Length mm 4255
Width 2027
Height mm 1491
Wheelbase mm 2620
Front track, mm 1550
Rear track, mm 1522
Trunk capacity, L 380
Fuel tank, l 50
Turning circle, m 10.9
Ground clearance, mm 142
Width (without mirrors) mm 1799

Performance and fuel consumption

Acceleration (0-100 km/h), s 10.6
The maximum speed, km / h. 195
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 7
Drive Front
Transmission 7-speed dual-clutch
Gearbox 2 clutch robot
Transmission manufacturer BorgWarner
FAQ

Volkswagen Golf 3-door questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Volkswagen Golf 3-door?

This page lists 22 trims for the Volkswagen Golf 3-door, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Volkswagen Golf 3-door?

The listed configurations show a power range of 85-150 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Volkswagen Golf 3-door?

The available specification data shows engine displacement from 999-1968 cc across the trims listed on this page.

Which transmissions are listed for the Volkswagen Golf 3-door?

The transmission options currently shown for this model are: 6, 6-speed manual, 5. Open a trim section to see the full data for a specific configuration.

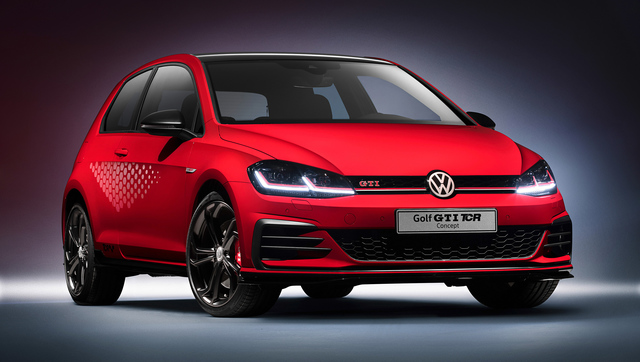

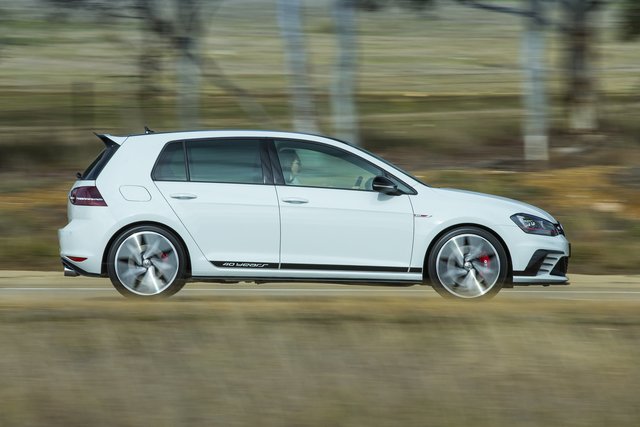

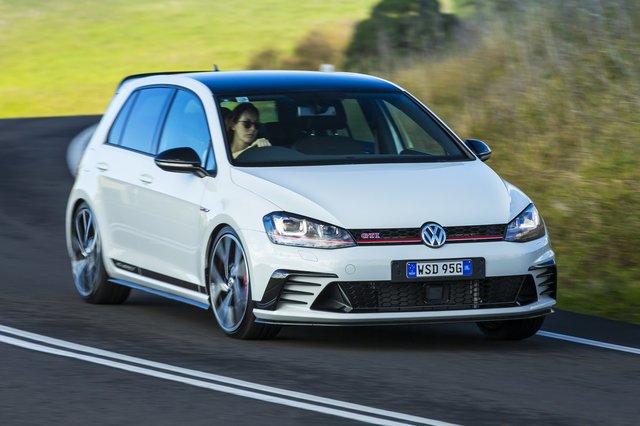

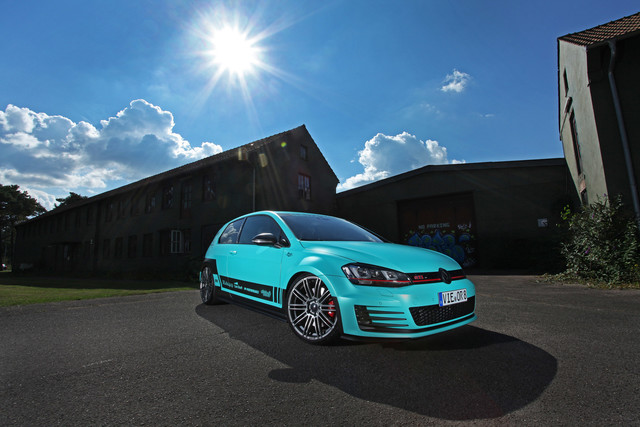

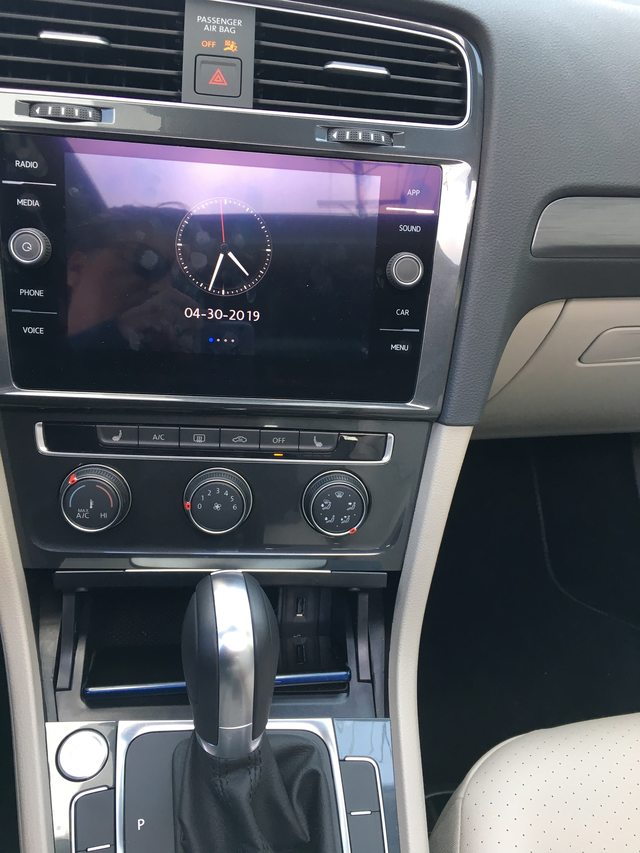

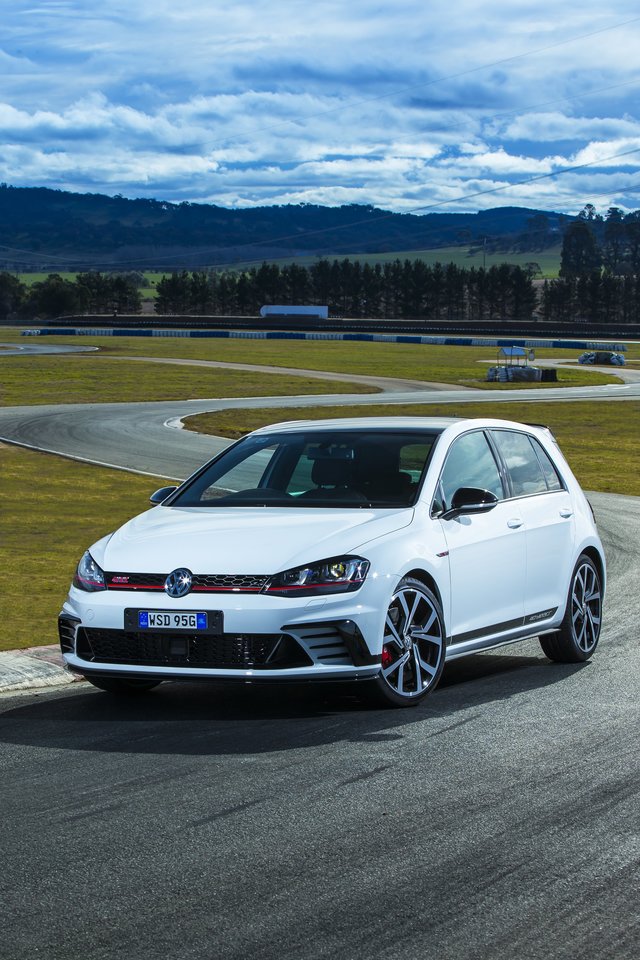

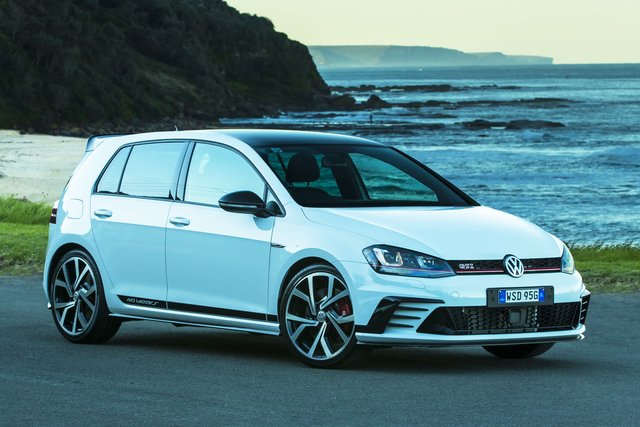

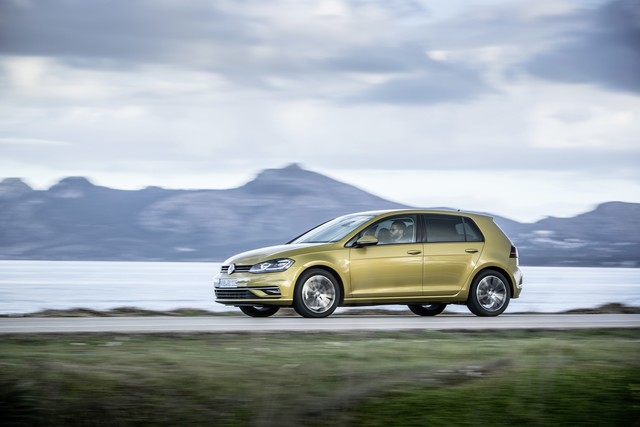

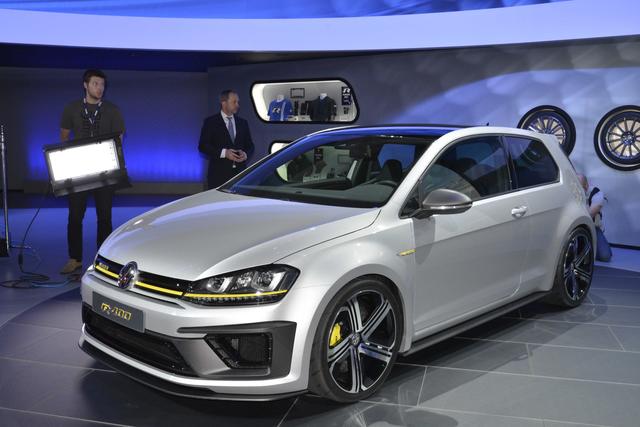

Are there photos for the Volkswagen Golf 3-door?

Yes. The gallery includes 26 photos for the Volkswagen Golf 3-door, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
