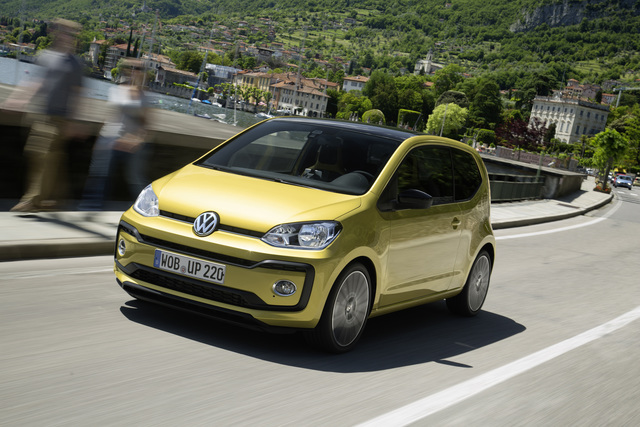

Volkswagen up! 3 door specifications and photos

Volkswagen up! 3 door specifications are shown with trim options, key technical data, and a model photo gallery. Compare 9 configurations by engine size, power, seating, and transmission. The gallery includes 14 photos for visual reference.

Years 2016
Body type hatchback
Trims 9
Photos 14

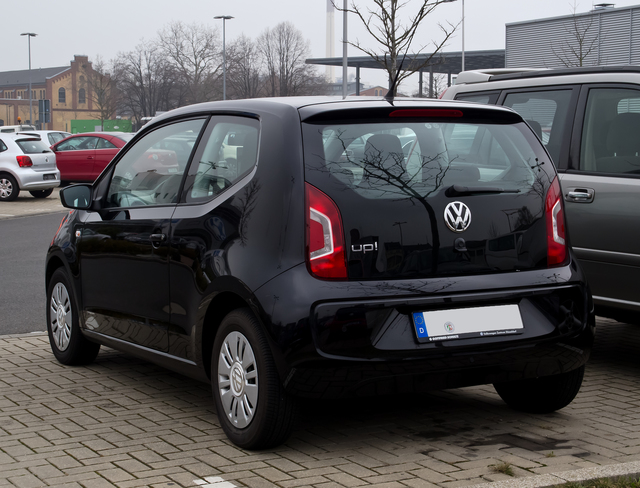

Rear view of Volkswagen up! 3 door 2016
Overview

Volkswagen up! 3 door at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Volkswagen up! 3 door page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 60-90 hp and 999 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

  • Power: 60-90 hp
  • Engine displacement: 999 cc
  • Transmissions: 5, 5-speed manual
  • Seating: 5 seats
Research hub

Photos, trims and specifications for Volkswagen up! 3 door

This model page brings gallery images, trim comparison, and detailed technical data together for the 2016 generation.

Open photo gallery 14 images Compare trims 9 configurations View detailed specs 999 cc Explore related pages Volkswagen and similar models
Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 60-90 hp
Engine displacement 999 cc
Seating 5 seats
Transmissions 5, 5-speed manual
Trim / modification Engine Power Seats Transmission
1.0 5MT (60) 999 cc 60 hp 5 5
1.0 5ASG (60) 999 cc 60 hp 5 5
1.0 5ASG (75) 999 cc 75 hp 5 5
1.0 5MT (90) 999 cc 90 hp 5 5
1.0 MPI (60 hp) 5-MPP 999 cc 60 hp 5 5
1.0 MPI (60 hp) 5-ASG 999 cc 60 hp 5 5
1.0 MPI (75 hp) 5-MPP 999 cc 75 hp 5 5
1.0 MPI (75 hp) 5-ASG 999 cc 75 hp 5 5
1.0 TSI (90 hp) 5-speed manual 999 cc 90 hp 5 5-speed manual

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

1.0 5MT (60) 1.0 5ASG (60) 1.0 5ASG (75) 1.0 5MT (90) 1.0 MPI (60 hp) 5-MPP 1.0 MPI (60 hp) 5-ASG 1.0 MPI (75 hp) 5-MPP 1.0 MPI (75 hp) 5-ASG 1.0 TSI (90 hp) 5-speed manual
1.0 5MT (60) 37 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 999
Cylinders location In-line
Number of cylinders 3
Valves 12
Power, hp 60
Torque, Nm 95
RPM at max torque 3000-4300
Engine 1.0 MPI
Compression 10.5
RPM at max power 5000-6000
Engine code CHYA (EA211)

Dimensions

Seats 5
Length mm 3600
Width 1910
Height mm 1504
Wheelbase mm 2407
Front track, mm 1428
Rear track, mm 1424
Kerb weight, kg 934
Trunk capacity, L 251
Fuel tank, l 35
Turning circle, m 9.8
Ground clearance, mm 144
Gross weight, kg 1330
Width (without mirrors) mm 1645

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 4.9
Fuel consumption (urban), l. 100 km 3.7
Fuel consumption (combined), l. 100 km 4.1
Acceleration (0-100 km/h), s 14.4
The maximum speed, km / h. 162
The rate of toxicity Euro VI

Transmission and drive

Number of gears 5
Drive Front
Transmission 5-speed manual
Gearbox Mechanics
1.0 5ASG (60) 38 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 999
Cylinders location In-line
Number of cylinders 3
Valves 12
Power, hp 60
Torque, Nm 95
RPM at max torque 3000-4300
Engine 1.0 MPI
Compression 10.5
RPM at max power 5000-6000
Engine code CHYA (EA211)

Dimensions

Seats 5
Length mm 3600
Width 1910
Height mm 1504
Wheelbase mm 2407
Front track, mm 1428
Rear track, mm 1424
Kerb weight, kg 940
Trunk capacity, L 251
Fuel tank, l 35
Turning circle, m 9.8
Ground clearance, mm 144
Gross weight, kg 1330
Width (without mirrors) mm 1645

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 4.7
Fuel consumption (urban), l. 100 km 3.7
Fuel consumption (combined), l. 100 km 4.1
Acceleration (0-100 km/h), s 15.3
The maximum speed, km / h. 162
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 5
Drive Front
Transmission 5-speed automated manual
Gearbox 1 clutch robot
1.0 5ASG (75) 38 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 999
Cylinders location In-line
Number of cylinders 3
Valves 12
Power, hp 75
Torque, Nm 95
RPM at max torque 3000-4300
Engine 1.0 MPI
Compression 10.5
RPM at max power 6200
Engine code CHYB (EA211)

Dimensions

Seats 5
Length mm 3600
Width 1910
Height mm 1504
Wheelbase mm 2407
Front track, mm 1428
Rear track, mm 1424
Kerb weight, kg 940
Trunk capacity, L 251
Fuel tank, l 35
Turning circle, m 9.8
Ground clearance, mm 144
Gross weight, kg 1330
Width (without mirrors) mm 1645

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 4.9
Fuel consumption (urban), l. 100 km 3.8
Fuel consumption (combined), l. 100 km 4.2
Acceleration (0-100 km/h), s 14.9
The maximum speed, km / h. 172
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 5
Drive Front
Transmission 5-speed automated manual
Gearbox 1 clutch robot
1.0 5MT (90) 36 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 999
Cylinders location In-line
Number of cylinders 3
Valves 12
Power, hp 90
Torque, Nm 160
RPM at max torque 1500-3500
Engine 1.0 TSI
Turbo +
Engine code EA211

Dimensions

Seats 5
Length mm 3600
Width 1910
Height mm 1504
Wheelbase mm 2407
Front track, mm 1428
Rear track, mm 1424
Kerb weight, kg 1002
Trunk capacity, L 251
Fuel tank, l 35
Turning circle, m 9.8
Ground clearance, mm 144
Gross weight, kg 1360
Width (without mirrors) mm 1645

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.5
Fuel consumption (urban), l. 100 km 3.8
Fuel consumption (combined), l. 100 km 4.4
Acceleration (0-100 km/h), s 9.9
The maximum speed, km / h. 185
The rate of toxicity Euro VI

Transmission and drive

Number of gears 5
Drive Front
Transmission 5-speed manual
Gearbox Mechanics
1.0 MPI (60 hp) 5-MPP 37 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 999
Cylinders location In-line
Number of cylinders 3
Valves 12
Power, hp 60
Torque, Nm 95
RPM at max torque 3000-4300
Engine 1.0 MPI
Compression 10.5
RPM at max power 5000-6000
Engine code CHYA (EA211)

Dimensions

Seats 5
Length mm 3600
Width 1910
Height mm 1504
Wheelbase mm 2407
Front track, mm 1433
Rear track, mm 1428
Kerb weight, kg 980
Trunk capacity, L 251
Fuel tank, l 35
Turning circle, m 9.8
Ground clearance, mm 144
Gross weight, kg 1320
Width (without mirrors) mm 1645

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 4.9
Fuel consumption (urban), l. 100 km 3.7
Fuel consumption (combined), l. 100 km 4.1
Acceleration (0-100 km/h), s 14.4
The maximum speed, km / h. 162
The rate of toxicity Euro VI

Transmission and drive

Number of gears 5
Drive Front
Transmission 5-speed manual
Gearbox Mechanics
1.0 MPI (60 hp) 5-ASG 38 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 999
Cylinders location In-line
Number of cylinders 3
Valves 12
Power, hp 60
Torque, Nm 95
RPM at max torque 3000-4300
Engine 1.0 MPI
Compression 10.5
RPM at max power 5000-6000
Engine code CHYA (EA211)

Dimensions

Seats 5
Length mm 3600
Width 1910
Height mm 1504
Wheelbase mm 2407
Front track, mm 1433
Rear track, mm 1428
Kerb weight, kg 980
Trunk capacity, L 251
Fuel tank, l 35
Turning circle, m 9.8
Ground clearance, mm 144
Gross weight, kg 1320
Width (without mirrors) mm 1645

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 4.7
Fuel consumption (urban), l. 100 km 3.7
Fuel consumption (combined), l. 100 km 4.1
Acceleration (0-100 km/h), s 15.3
The maximum speed, km / h. 162
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 5
Drive Front
Transmission 5-speed automated manual
Gearbox 1 clutch robot
1.0 MPI (75 hp) 5-MPP 37 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 999
Cylinders location In-line
Number of cylinders 3
Valves 12
Power, hp 75
Torque, Nm 95
RPM at max torque 3000-4300
Engine 1.0 MPI
Compression 10.5
RPM at max power 6200
Engine code CHYB (EA211)

Dimensions

Seats 5
Length mm 3600
Width 1910
Height mm 1504
Wheelbase mm 2407
Front track, mm 1433
Rear track, mm 1428
Kerb weight, kg 980
Trunk capacity, L 251
Fuel tank, l 35
Turning circle, m 9.8
Ground clearance, mm 144
Gross weight, kg 1320
Width (without mirrors) mm 1645

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 4.9
Fuel consumption (urban), l. 100 km 3.7
Fuel consumption (combined), l. 100 km 4.1
Acceleration (0-100 km/h), s 13.5
The maximum speed, km / h. 173
The rate of toxicity Euro VI

Transmission and drive

Number of gears 5
Drive Front
Transmission 5-speed manual
Gearbox Mechanics
1.0 MPI (75 hp) 5-ASG 38 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 999
Cylinders location In-line
Number of cylinders 3
Valves 12
Power, hp 75
Torque, Nm 95
RPM at max torque 3000-4300
Engine 1.0 MPI
Compression 10.5
RPM at max power 6200
Engine code CHYB (EA211)

Dimensions

Seats 5
Length mm 3600
Width 1910
Height mm 1504
Wheelbase mm 2407
Front track, mm 1433
Rear track, mm 1428
Kerb weight, kg 980
Trunk capacity, L 251
Fuel tank, l 35
Turning circle, m 9.8
Ground clearance, mm 144
Gross weight, kg 1320
Width (without mirrors) mm 1645

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 4.9
Fuel consumption (urban), l. 100 km 3.8
Fuel consumption (combined), l. 100 km 4.2
Acceleration (0-100 km/h), s 14.9
The maximum speed, km / h. 172
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 5
Drive Front
Transmission 5-speed automated manual
Gearbox 1 clutch robot
1.0 TSI (90 hp) 5-speed manual 36 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 999
Cylinders location In-line
Number of cylinders 3
Valves 12
Power, hp 90
Torque, Nm 160
RPM at max torque 1500-3500
Engine 1.0 TSI
Turbo +
Engine code EA211

Dimensions

Seats 5
Length mm 3600
Width 1910
Height mm 1504
Wheelbase mm 2407
Front track, mm 1433
Rear track, mm 1428
Kerb weight, kg 980
Trunk capacity, L 251
Fuel tank, l 35
Turning circle, m 9.8
Ground clearance, mm 144
Gross weight, kg 1320
Width (without mirrors) mm 1645

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.5
Fuel consumption (urban), l. 100 km 3.8
Fuel consumption (combined), l. 100 km 4.4
Acceleration (0-100 km/h), s 9.9
The maximum speed, km / h. 185
The rate of toxicity Euro VI

Transmission and drive

Number of gears 5
Drive Front
Transmission 5-speed manual
Gearbox Mechanics
FAQ

Volkswagen up! 3 door questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Volkswagen up! 3 door?

This page lists 9 trims for the Volkswagen up! 3 door, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Volkswagen up! 3 door?

The listed configurations show a power range of 60-90 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Volkswagen up! 3 door?

The available specification data shows engine displacement from 999 cc across the trims listed on this page.

Which transmissions are listed for the Volkswagen up! 3 door?

The transmission options currently shown for this model are: 5, 5-speed manual. Open a trim section to see the full data for a specific configuration.

Are there photos for the Volkswagen up! 3 door?

Yes. The gallery includes 14 photos for the Volkswagen up! 3 door, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
