Volkswagen Golf R specifications and photos

Volkswagen Golf R specifications are shown with trim options, key technical data, and a model photo gallery. Compare 4 configurations by engine size, power, seating, and transmission. The gallery includes 21 photos for visual reference.

Years 2017
Body type hatchback
Trims 4
Photos 21

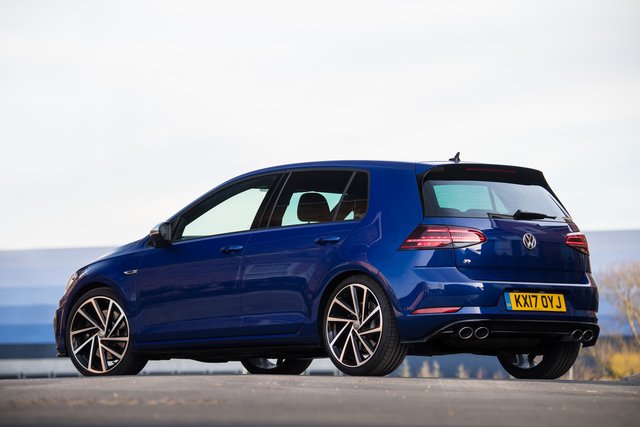

Rear view of Volkswagen Golf R 2017
Overview

Volkswagen Golf R at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Volkswagen Golf R page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 300-310 hp and 1984 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

  • Power: 300-310 hp
  • Engine displacement: 1984 cc
  • Transmissions: 7, 6
  • Seating: 5 seats
Research hub

Photos, trims and specifications for Volkswagen Golf R

This model page brings gallery images, trim comparison, and detailed technical data together for the 2017 generation.

Open photo gallery 21 images Compare trims 4 configurations View detailed specs 1984 cc Explore related pages Volkswagen and similar models
Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 300-310 hp
Engine displacement 1984 cc
Seating 5 seats
Transmissions 7, 6
Trim / modification Engine Power Seats Transmission
2.0 AT AWD 1984 cc 310 hp 5 7
R 1984 cc 310 hp 5 6
R 1984 cc 300 hp 5 7
R 1984 cc 310 hp 5 7

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

2.0 AT AWD R R R
2.0 AT AWD 93 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1984
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 310
Torque, Nm 400
RPM at max torque 2000-5400
Engine 2.0 TSI
RPM at max power 5500
Turbo +
Engine code CJXG/DJHA (EA888)

Dimensions

Seats 5
Length mm 4263
Width 1790
Height mm 1465
Wheelbase mm 2626
Front track, mm 1533
Rear track, mm 1503
Kerb weight, kg 1505
Fuel tank, l 55
Gross weight, kg 1990

Brake system

The front brakes Ventilated disc
Rear brakes Ventilated disc

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 8.7
Fuel consumption (urban), l. 100 km 6
Fuel consumption (combined), l. 100 km 7
Acceleration (0-100 km/h), s 4.6
The maximum speed, km / h. 250
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 7
Drive Full
Transmission 7-speed dual-clutch
Gearbox 2 clutch robot
Transmission manufacturer BorgWarner

Equipment

Comfort

Tyre pressure monitoring +
Active Cruise Control (ACC) +
Multi-function steering wheel +
Electric parking brake +
Adjustable head restraints +

Interior

Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.) +
color TFT-monitor +
Seat - Alcantara / fabric +

Wheels

Disc diameter 18
Rim type Alloy
Tires 225/40R18
Spare wheel Full size

Cabin climate and noise insulation

2-zone automatic climate control +
Heated front seats +

Glass, mirrors and sunroof

Front power windows +
Heated side mirrors +
Power mirrors +
Rear electric windows +
Heated washer nozzles +

Multimedia and instruments

Navigation system +
Audio Composition Media;
Touch Screen +
AUX +
Bluetooth hands free +
CD player +
USB +
Number of speakers 8
Connector for SD- Card +

Headlights and lighting

Washers +
LED headlights +
LED lights daylight +

Seats

Rear Armrest +
Armrest front +
Sports seats +
height-adjustable driver's seat +
Isofix child seat (LATCH, Isofix) +
Passenger seat height adjustable +
Lumbar support for the front passenger seat +
Lumbar support for the driver's seat +
The rear seat backrest folded in the ratio 1/3 to 2/3 +

Exterior

Rear spoiler +

Fuel economy

Start-Stop System +
Brake Energy Regeneration +

Security

Electronic systems

Anti-lock braking system (ABS) +
Traction Control System (Traction control, ASR) +
Vehicle Stability Control (ESP, DSC, ESC, VSC) +
Control system for engine braking (MSR) +
The recognition of driver fatigue +
Electronic differential lock (EDS, XDS) +

Anti-theft systems

Alarm +
Central locking with remote control +

Airbags

Driver's airbag +
Passenger Airbag +
Side airbags +
Curtain airbags +
Cushion for driver's knee +
R 32 specifications

Specifications

Engine

Type of fuel Gasoline
Displacement, cc 1984
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 310
Torque, Nm 380
RPM at max torque 1800-5700
Engine 2.0 TSI
RPM at max power 5800-6500
Turbo +
Engine code CJXG (EA888)

Dimensions

Seats 5
Length mm 4263
Width 1790
Height mm 1465
Wheelbase mm 2626
Front track, mm 1533
Rear track, mm 1503
Kerb weight, kg 1505
Fuel tank, l 55
Gross weight, kg 1990

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 10.1
Fuel consumption (urban), l. 100 km 6.6
Fuel consumption (combined), l. 100 km 7.9
Acceleration (0-100 km/h), s 5.1
The maximum speed, km / h. 250
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Full
Transmission 6-speed manual
Gearbox Mechanics
R 35 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1984
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 300
Torque, Nm 400
RPM at max torque 2000-5200
Engine 2.0 TSI
RPM at max power 5500-6200
Turbo +
Engine code DNUE (EA888)

Dimensions

Seats 5
Length mm 4263
Width 1790
Height mm 1465
Wheelbase mm 2626
Front track, mm 1533
Rear track, mm 1503
Kerb weight, kg 1505
Fuel tank, l 55
Gross weight, kg 1990

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 8.2
Fuel consumption (urban), l. 100 km 6.6
Fuel consumption (combined), l. 100 km 7.2
Acceleration (0-100 km/h), s 4.7
The maximum speed, km / h. 250
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 7
Drive Full
Transmission 7-speed dual-clutch
Gearbox 2 clutch robot
Transmission manufacturer BorgWarner
R 35 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1984
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 310
Torque, Nm 400
RPM at max torque 2000-5400
Engine 2.0 TSI
RPM at max power 5500
Turbo +
Engine code CJXG/DJHA (EA888)

Dimensions

Seats 5
Length mm 4263
Width 1790
Height mm 1465
Wheelbase mm 2626
Front track, mm 1533
Rear track, mm 1503
Kerb weight, kg 1505
Fuel tank, l 55
Gross weight, kg 1990

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 8.7
Fuel consumption (urban), l. 100 km 6
Fuel consumption (combined), l. 100 km 7
Acceleration (0-100 km/h), s 4.6
The maximum speed, km / h. 250
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 7
Drive Full
Transmission 7-speed dual-clutch
Gearbox 2 clutch robot
Transmission manufacturer BorgWarner
FAQ

Volkswagen Golf R questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Volkswagen Golf R?

This page lists 4 trims for the Volkswagen Golf R, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Volkswagen Golf R?

The listed configurations show a power range of 300-310 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Volkswagen Golf R?

The available specification data shows engine displacement from 1984 cc across the trims listed on this page.

Which transmissions are listed for the Volkswagen Golf R?

The transmission options currently shown for this model are: 7, 6. Open a trim section to see the full data for a specific configuration.

Are there photos for the Volkswagen Golf R?

Yes. The gallery includes 21 photos for the Volkswagen Golf R, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
