Volkswagen Atlas specifications and photos
Volkswagen Atlas specifications are shown with trim options, key technical data, and a model photo gallery. Compare 3 configurations by engine size, power, seating, and transmission. The gallery includes 22 photos for visual reference.
Volkswagen Atlas at a glance
Quick model context before comparing photos and trim-level specifications.
Use this Volkswagen Atlas page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 238-280 hp and 1984-3597 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.
- Power: 238-280 hp
- Engine displacement: 1984-3597 cc
- Transmissions: 8-speed automatic, 8
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 2.0 TSI (238 hp) 8-speed automatic | 1984 cc | 238 hp | 6/7 | 8-speed automatic |
| 3.6 VR6 FSI (280 hp) 8-speed automatic | 3597 cc | 280 hp | 6/7 | 8-speed automatic |
| 3.6 VR6 FSI (280 hp) 8-speed 4x4 | 3597 cc | 280 hp | 6/7 | 8 |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

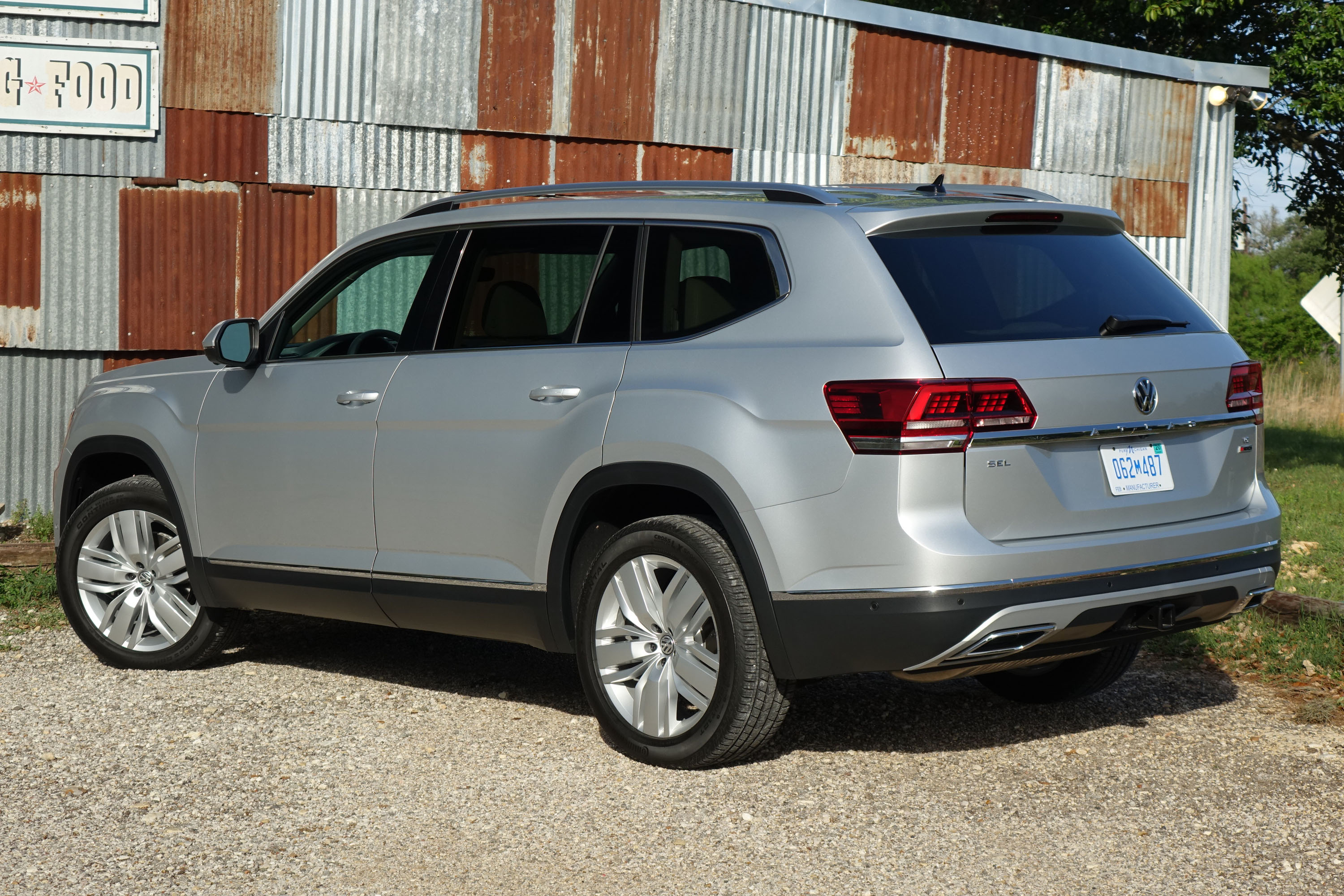

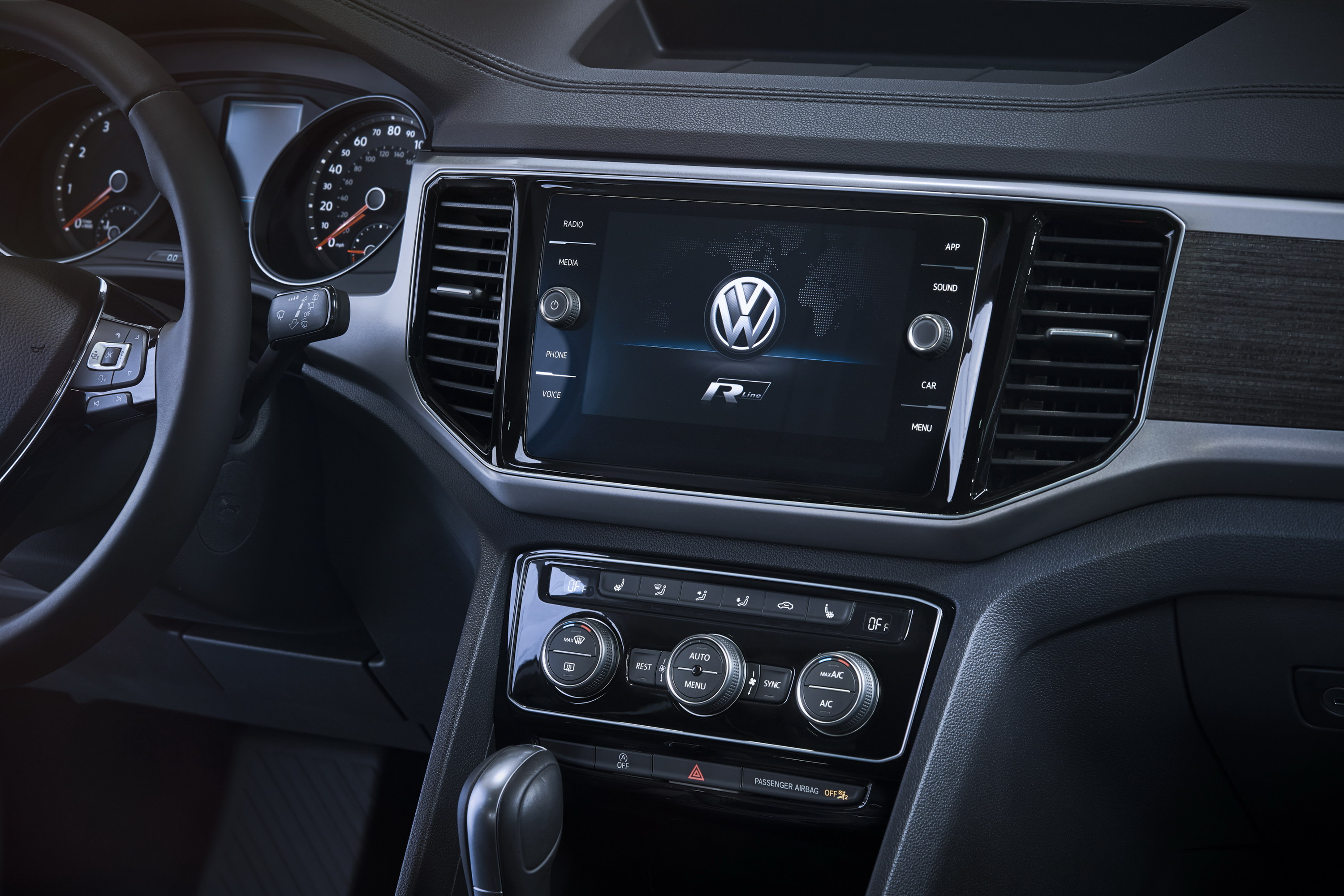

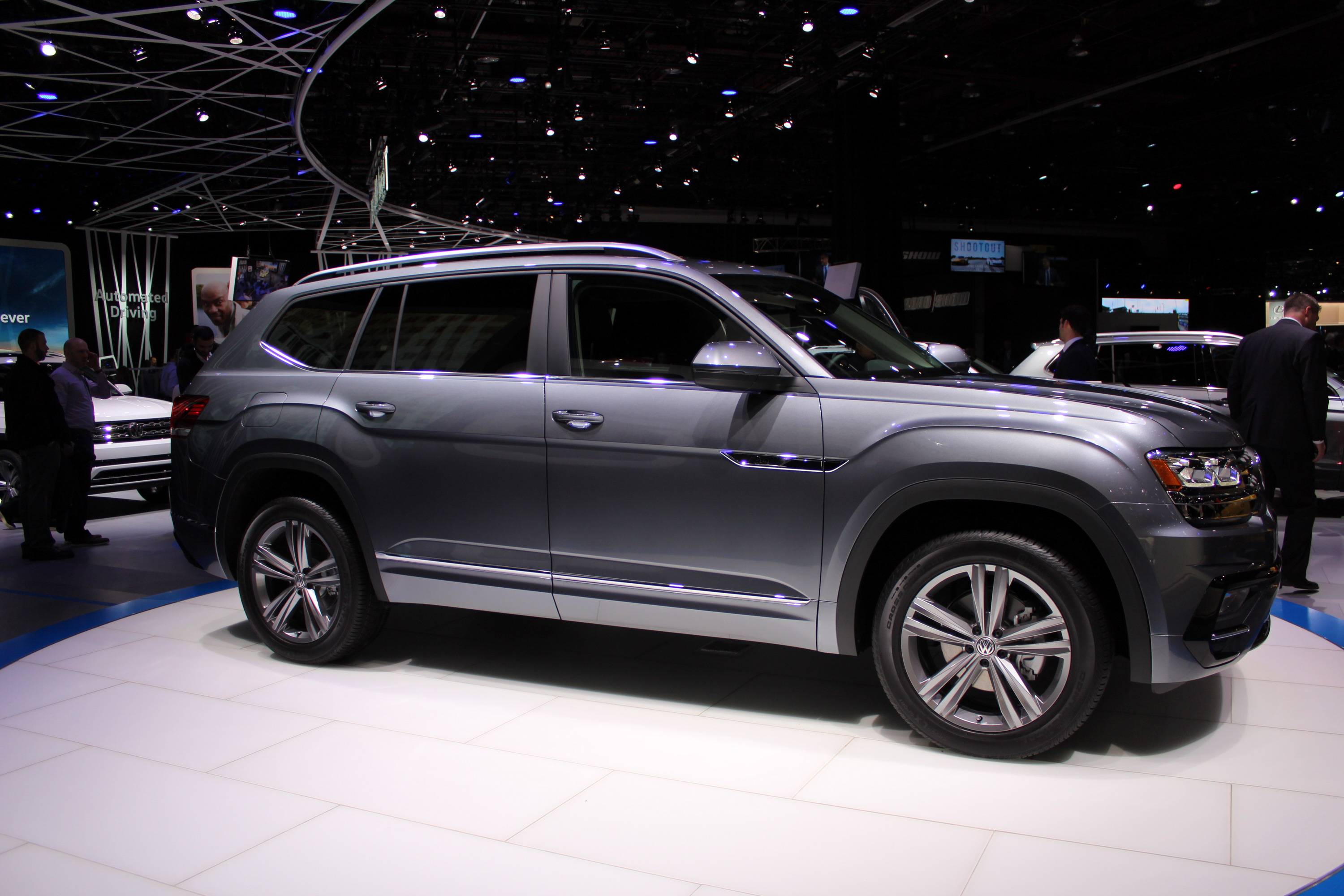

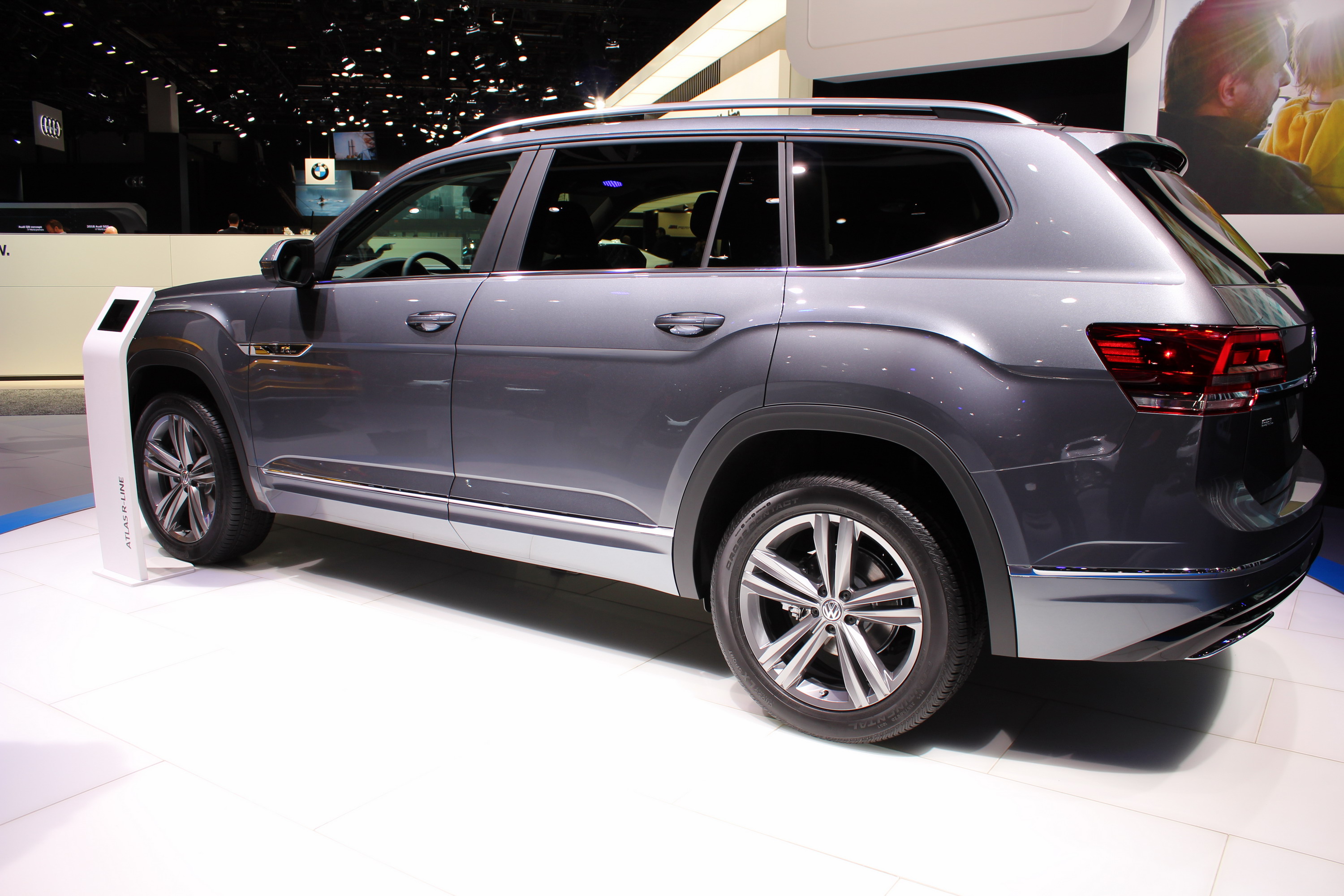

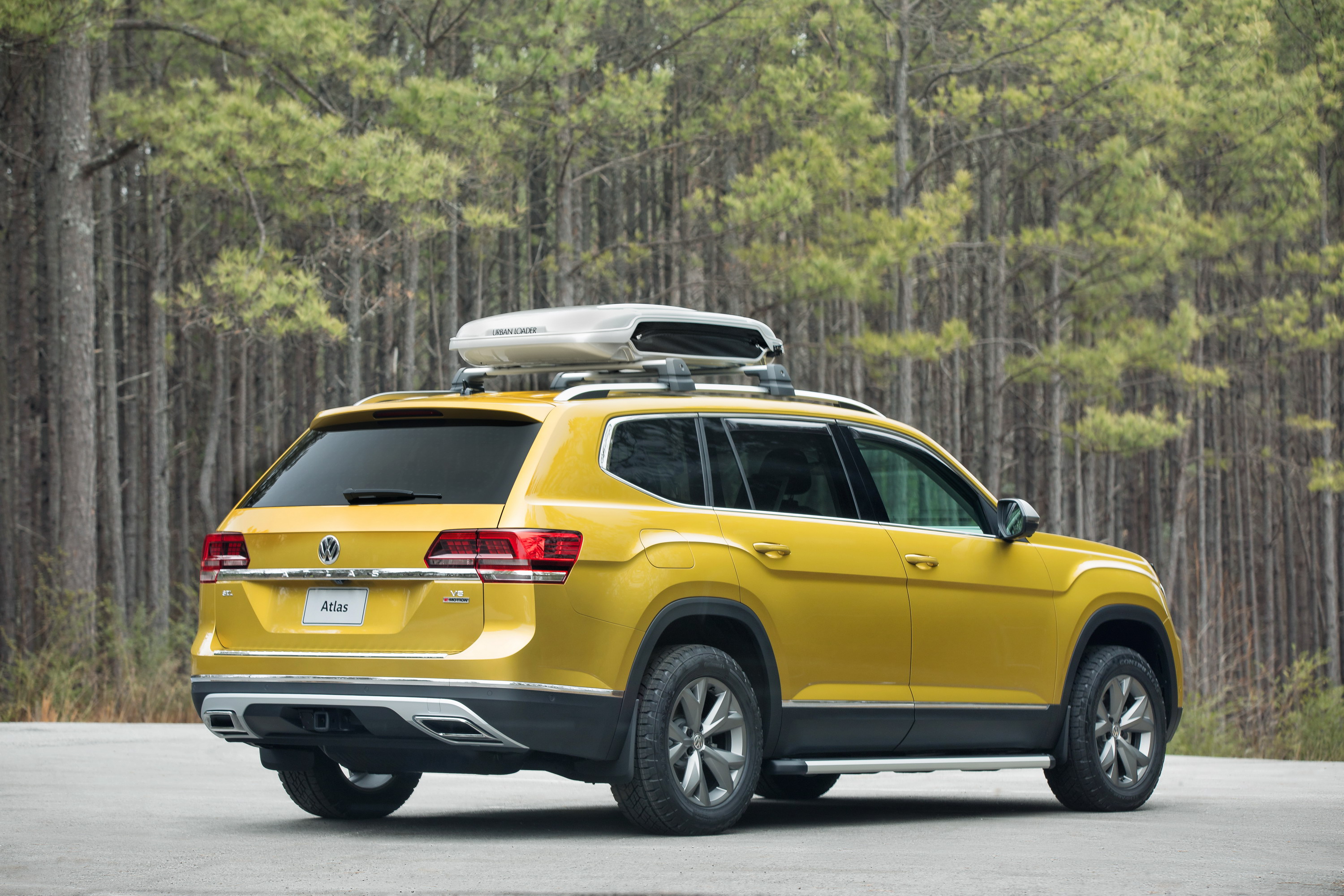

Volkswagen Atlas photo gallery
22 images are collected here with the main specifications and trim data for this model.
Photo Volkswagen Atlas
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
2.0 TSI (238 hp) 8-speed automatic 40 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Gasoline |
| Displacement, cc | 1984 |
| Cylinders location | In-line |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 238 |
| Torque, Nm | 350 |
| RPM at max torque | 1600 |
| Engine | 2.0 TSI |
| Compression | 9.6 |
| RPM at max power | 4500 |
| Turbo | + |
| Engine code | EA888 |
Dimensions
| Seats | 6/7 |
|---|---|
| Length mm | 5037 |
| Height mm | 1768 |
| Wheelbase mm | 2980 |
| Front track, mm | 1707 |
| Rear track, mm | 1722 |
| Kerb weight, kg | 2042 |
| Trunk capacity, L | 583 |
| Fuel tank, l | 70 |
| Turning circle, m | 11.6 |
| Ground clearance, mm | 203 |
| Gross weight, kg | 2720 |
| Width (without mirrors) mm | 1989 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 10.7 |
|---|---|
| Fuel consumption (urban), l. 100 km | 9 |
| Fuel consumption (combined), l. 100 km | 9.8 |
| Acceleration (0-100 km/h), s | 8.6 |
| The maximum speed, km / h. | 190 |
| The rate of toxicity | Euro VI |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Number of gears | 8 |
| Drive | Front |
| Transmission | 8-speed automatic |
| Gearbox | Machine |
| Transmission manufacturer | Aisin |
| Transmission country of origin | Japan |
3.6 VR6 FSI (280 hp) 8-speed automatic 38 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Gasoline |
| Displacement, cc | 3597 |
| Cylinders location | V-shaped |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 280 |
| Torque, Nm | 360 |
| RPM at max torque | 2500-5000 |
| Engine | 3.6 VR6 FSI |
| Compression | 12.0 |
| Engine code | BHK/CDVC (EA390) |
Dimensions
| Seats | 6/7 |
|---|---|
| Length mm | 5037 |
| Height mm | 1768 |
| Wheelbase mm | 2980 |
| Front track, mm | 1707 |
| Rear track, mm | 1722 |
| Kerb weight, kg | 2042 |
| Trunk capacity, L | 583 |
| Fuel tank, l | 70 |
| Turning circle, m | 11.6 |
| Ground clearance, mm | 203 |
| Gross weight, kg | 2720 |
| Width (without mirrors) mm | 1989 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 13 |
|---|---|
| Fuel consumption (urban), l. 100 km | 9.4 |
| Fuel consumption (combined), l. 100 km | 11.8 |
| Acceleration (0-100 km/h), s | 8.9 |
| The maximum speed, km / h. | 190 |
| The rate of toxicity | Euro VI |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Number of gears | 8 |
| Drive | Front |
| Transmission | 8-speed automatic |
| Gearbox | Machine |
| Transmission manufacturer | Aisin |
| Transmission country of origin | Japan |
3.6 VR6 FSI (280 hp) 8-speed 4x4 38 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Gasoline |
| Displacement, cc | 3597 |
| Cylinders location | V-shaped |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 280 |
| Torque, Nm | 360 |
| RPM at max torque | 2500-5000 |
| Engine | 3.6 VR6 FSI |
| Compression | 12.0 |
| Engine code | BHK/CDVC (EA390) |
Dimensions
| Seats | 6/7 |
|---|---|
| Length mm | 5037 |
| Height mm | 1768 |
| Wheelbase mm | 2980 |
| Front track, mm | 1707 |
| Rear track, mm | 1722 |
| Kerb weight, kg | 2042 |
| Trunk capacity, L | 583 |
| Fuel tank, l | 70 |
| Turning circle, m | 11.6 |
| Ground clearance, mm | 203 |
| Gross weight, kg | 2720 |
| Width (without mirrors) mm | 1989 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 13.8 |
|---|---|
| Fuel consumption (urban), l. 100 km | 10.2 |
| Fuel consumption (combined), l. 100 km | 12.4 |
| Acceleration (0-100 km/h), s | 8.9 |
| The maximum speed, km / h. | 190 |
| The rate of toxicity | Euro VI |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Number of gears | 8 |
| Drive | Full |
| Transmission | 8-speed automatic |
| Gearbox | Machine |
| Transmission manufacturer | Aisin |
| Transmission country of origin | Japan |
Volkswagen Atlas questions
Short answers based on the specifications and photos available in this catalog.
How many trims are listed for the Volkswagen Atlas?
This page lists 3 trims for the Volkswagen Atlas, with key data shown in the comparison table and full specifications grouped below.
What is the power range for the Volkswagen Atlas?
The listed configurations show a power range of 238-280 hp. Exact output can vary by engine, transmission, market, and model year.
What engine displacement is shown for the Volkswagen Atlas?
The available specification data shows engine displacement from 1984-3597 cc across the trims listed on this page.
Which transmissions are listed for the Volkswagen Atlas?
The transmission options currently shown for this model are: 8-speed automatic, 8. Open a trim section to see the full data for a specific configuration.
Are there photos for the Volkswagen Atlas?
Yes. The gallery includes 22 photos for the Volkswagen Atlas, including exterior and interior views where available.
Why can specifications differ for the same model?
Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
