Volkswagen Passat specifications and photos
Volkswagen Passat specifications are shown with trim options, key technical data, and a model photo gallery. Compare 1 configurations by engine size, power, seating, and transmission. The gallery includes 29 photos for visual reference.
Volkswagen Passat at a glance
Quick model context before comparing photos and trim-level specifications.
Use this Volkswagen Passat page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 174 hp and 1984 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.
- Power: 174 hp
- Engine displacement: 1984 cc
- Transmissions: 6-speed automatic
- Seating: 5 seats
Photos, trims and specifications for Volkswagen Passat
This model page brings gallery images, trim comparison, and detailed technical data together for the 2020 generation.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 2.0 TSI (174 hp) 6-speed automatic | 1984 cc | 174 hp | 5 | 6-speed automatic |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

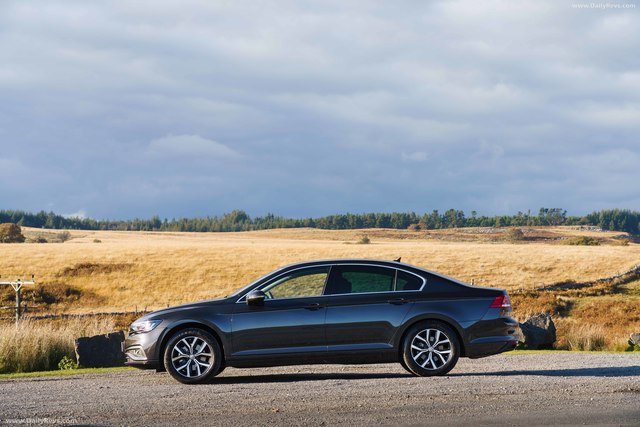

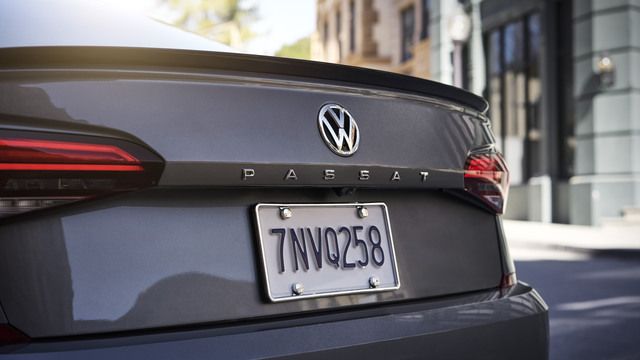

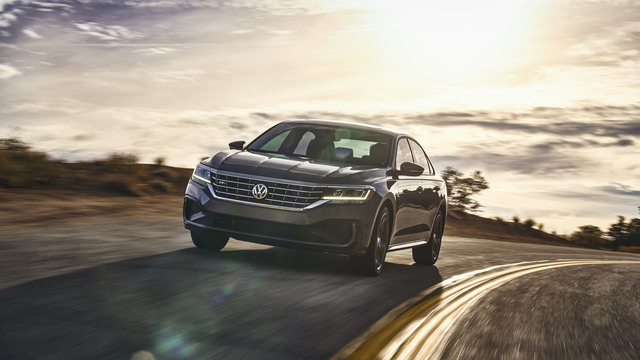

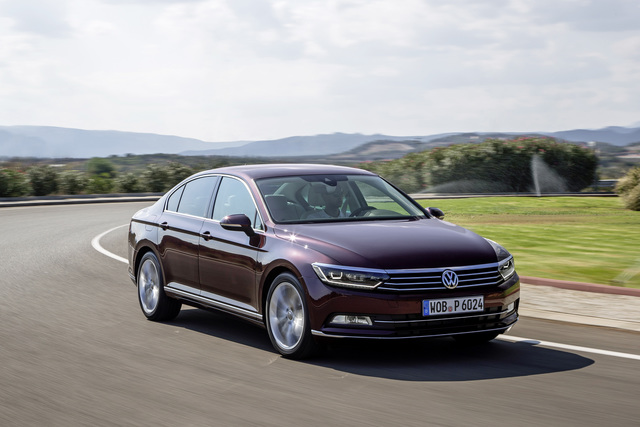

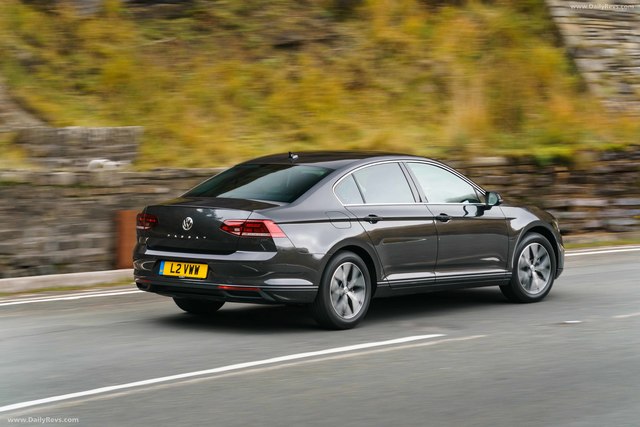

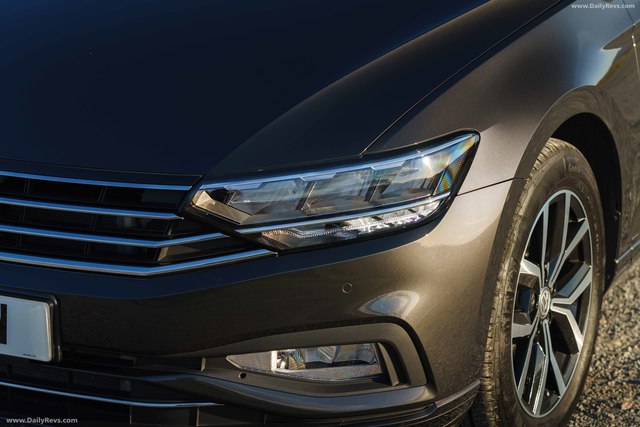

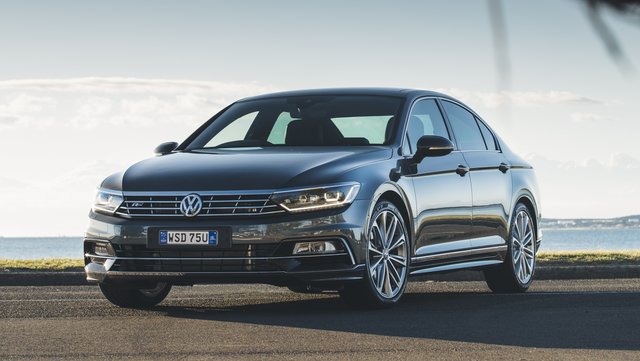

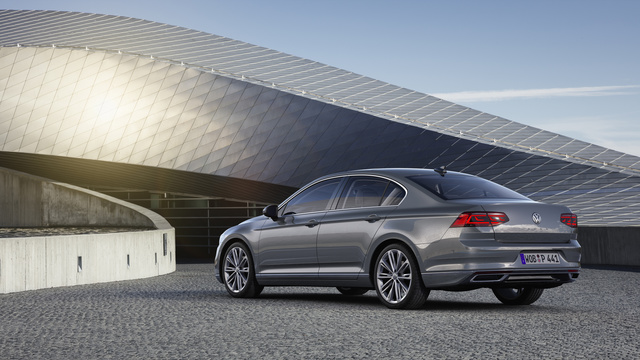

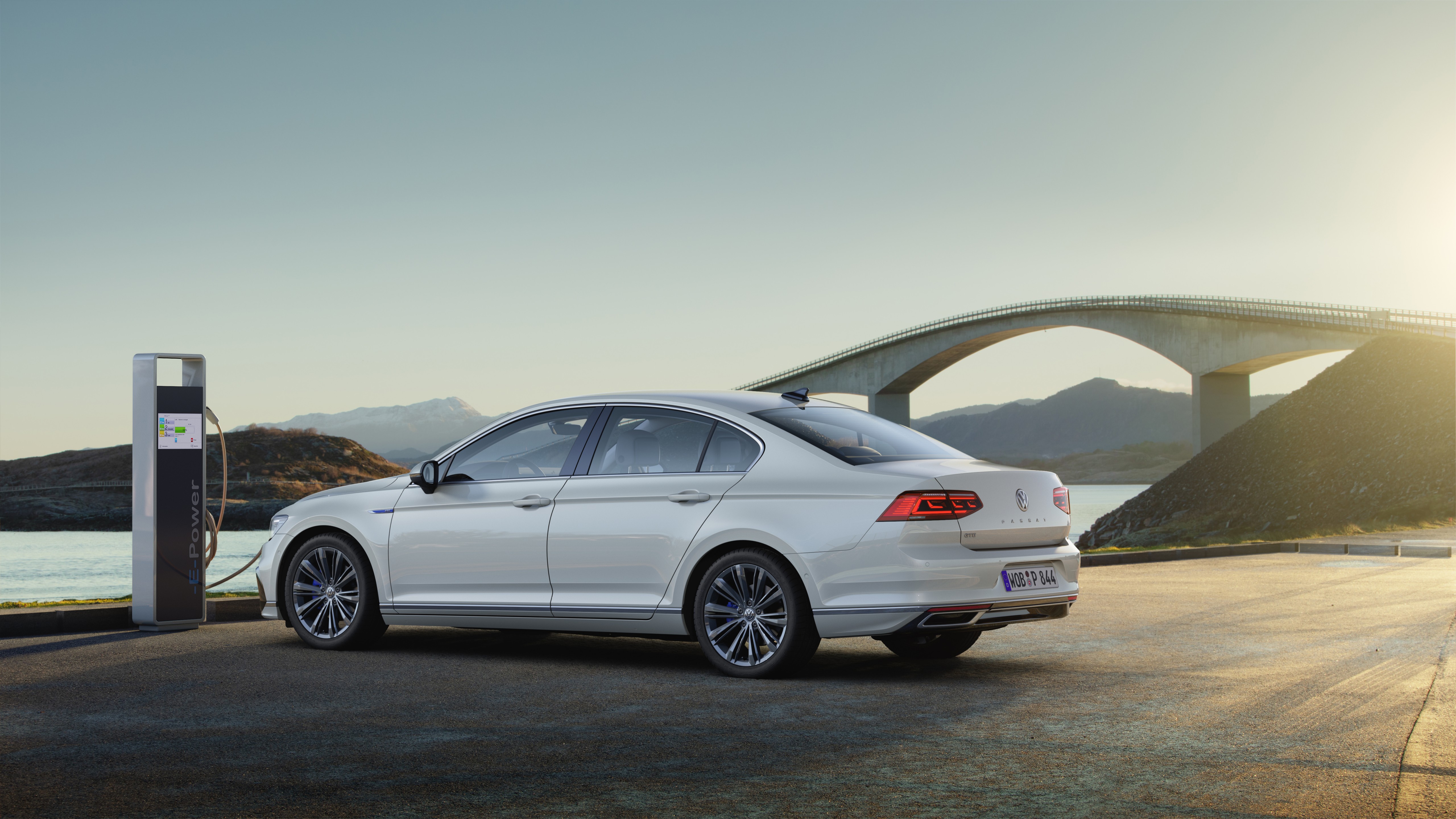

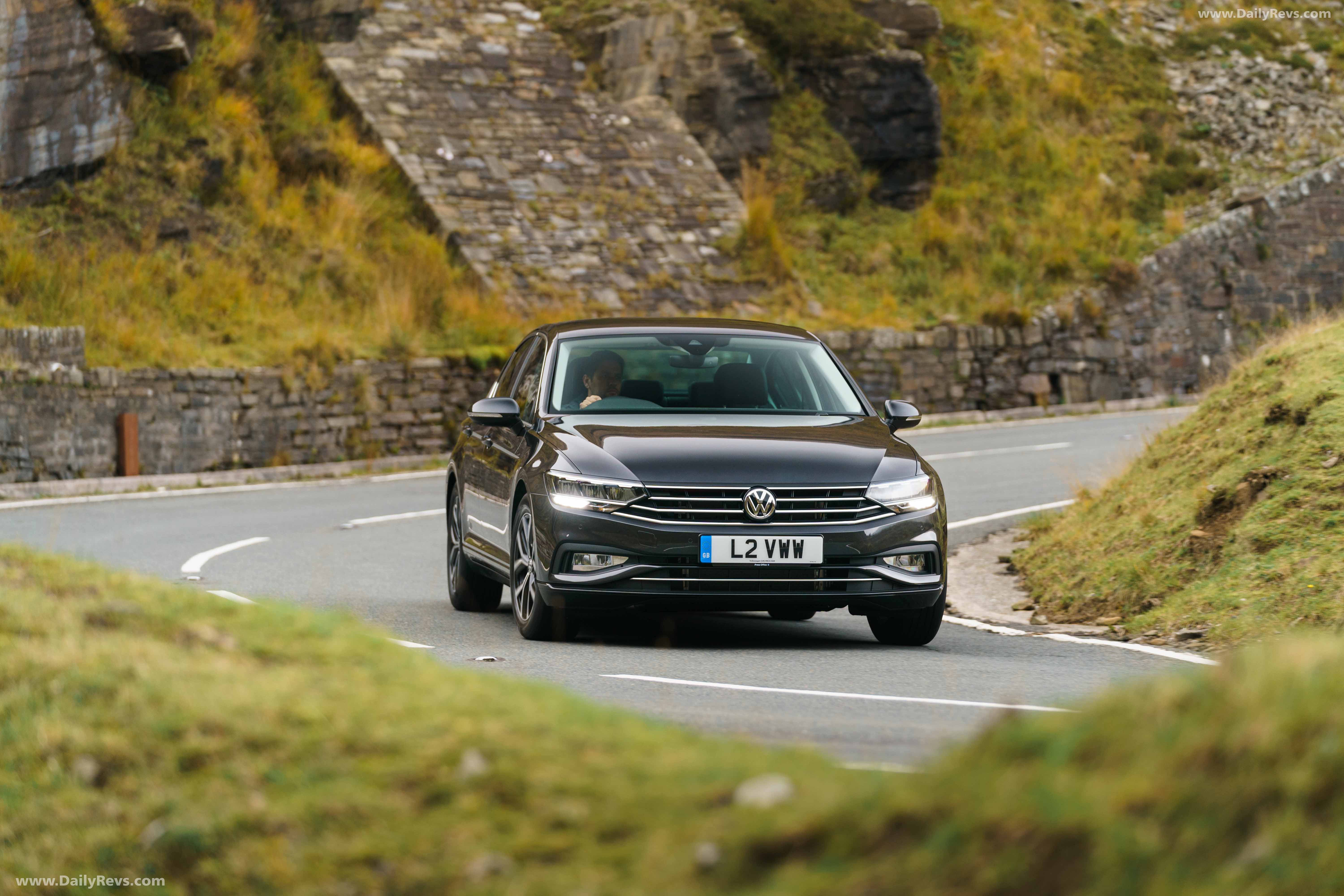

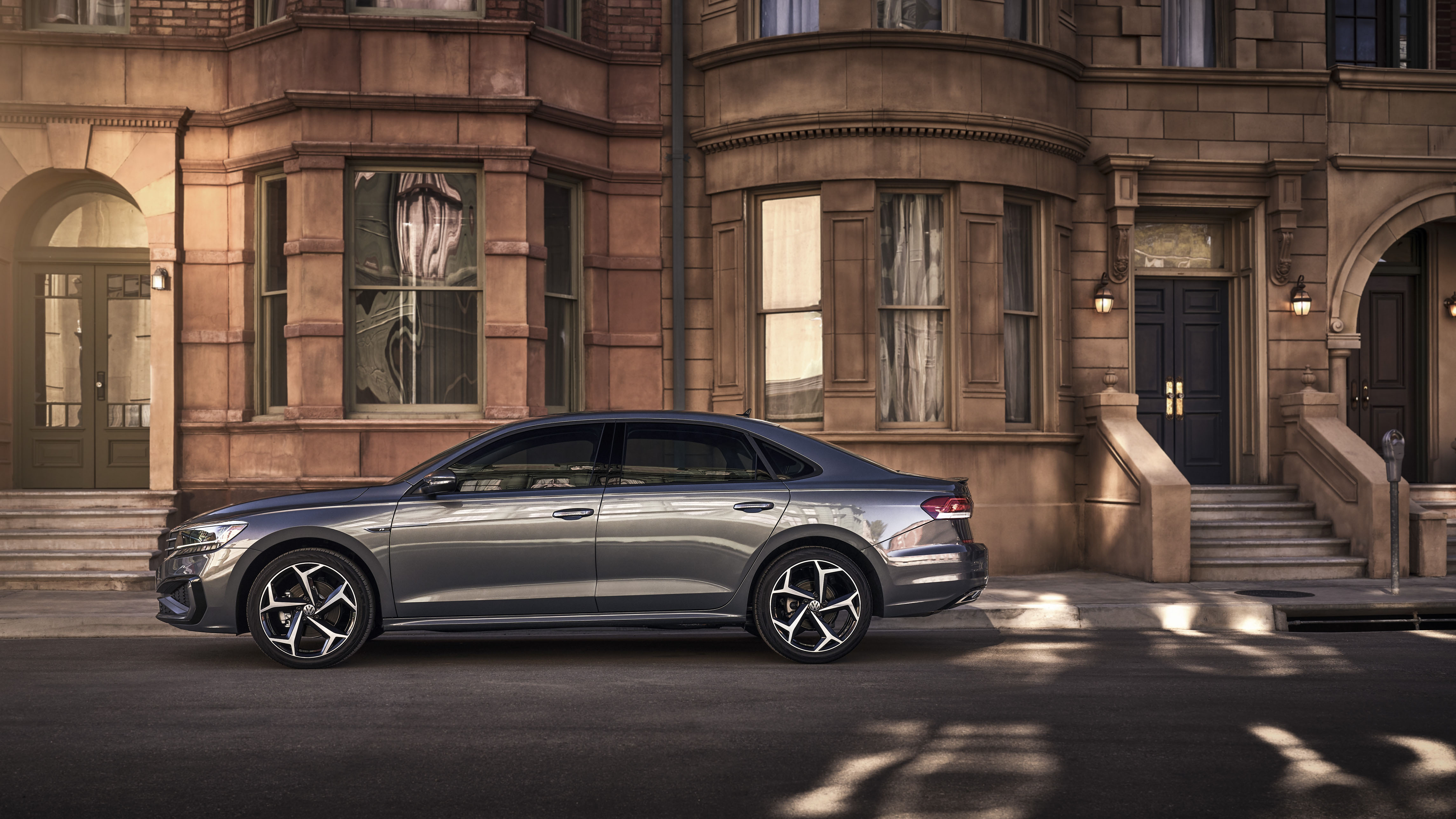

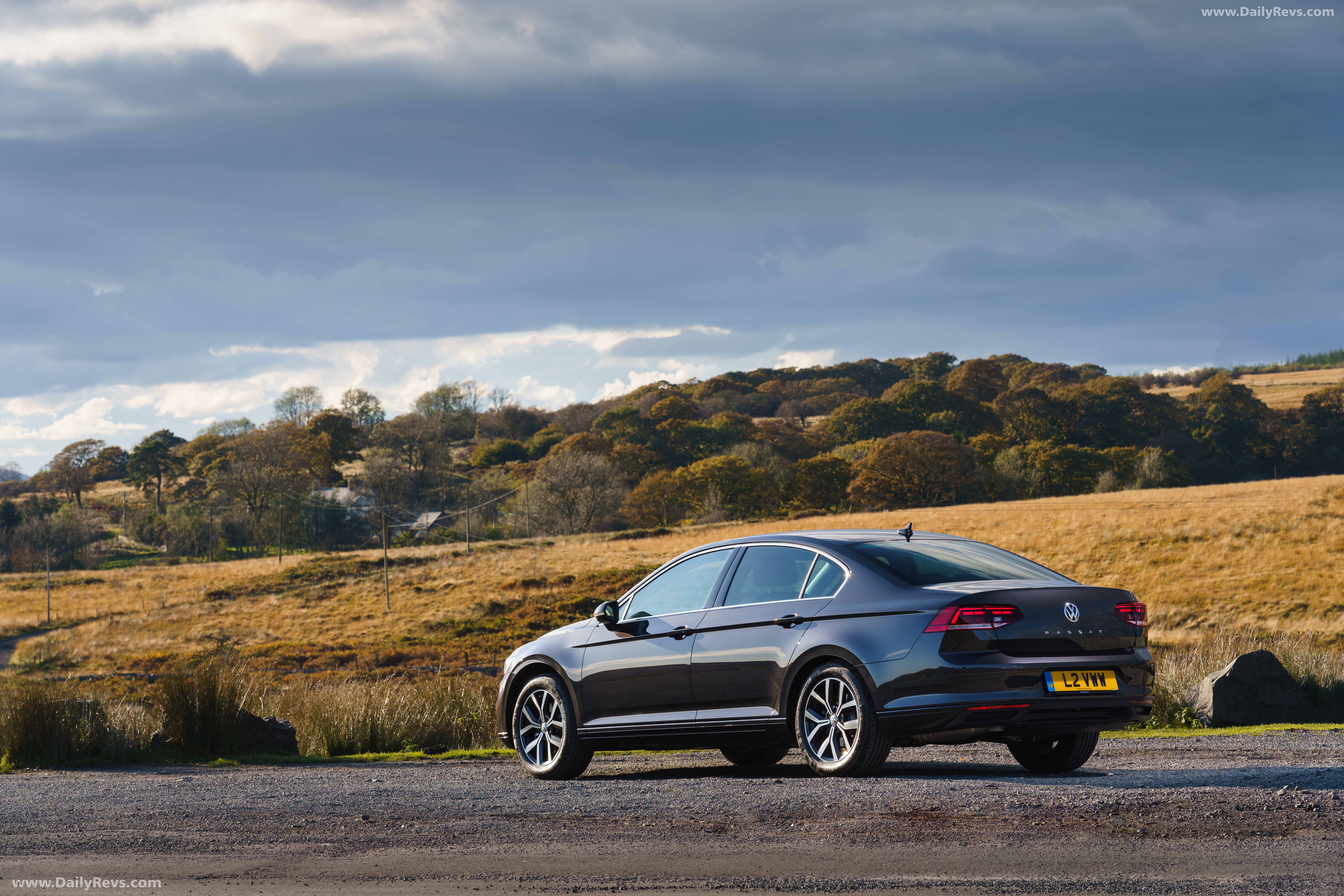

Volkswagen Passat photo gallery
29 images are collected here with the main specifications and trim data for this model.
Photo Volkswagen Passat
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
2.0 TSI (174 hp) 6-speed automatic 37 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Gasoline |
| Displacement, cc | 1984 |
| Cylinders location | In-line |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 174 |
| Torque, Nm | 280 |
| RPM at max torque | 4250 |
| Engine | 2.0 TSI |
| Compression | 11.65 |
| RPM at max power | 5000 |
| Turbo | + |
| Engine code | EA888 |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 4902 |
| Width | 1829 |
| Height mm | 1473 |
| Wheelbase mm | 2804 |
| Front track, mm | 1575 |
| Rear track, mm | 1549 |
| Kerb weight, kg | 1510 |
| Trunk capacity, L | 450 |
| Fuel tank, l | 70 |
| Turning circle, m | 11.1 |
| Ground clearance, mm | 127 |
| Gross weight, kg | 2030 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 10.2 |
|---|---|
| Fuel consumption (urban), l. 100 km | 6.9 |
| Fuel consumption (combined), l. 100 km | 8.7 |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Number of gears | 6 |
| Drive | Front |
| Transmission | 6-speed automatic |
| Gearbox | Machine |
| Transmission manufacturer | Aisin |
| Transmission country of origin | Japan |
Volkswagen Passat questions
Short answers based on the specifications and photos available in this catalog.
How many trims are listed for the Volkswagen Passat?
This page lists 1 trim for the Volkswagen Passat, with key data shown in the comparison table and full specifications grouped below.
What is the power range for the Volkswagen Passat?
The listed configurations show a power range of 174 hp. Exact output can vary by engine, transmission, market, and model year.
What engine displacement is shown for the Volkswagen Passat?
The available specification data shows engine displacement from 1984 cc across the trims listed on this page.
Which transmissions are listed for the Volkswagen Passat?
The transmission options currently shown for this model are: 6-speed automatic. Open a trim section to see the full data for a specific configuration.
Are there photos for the Volkswagen Passat?

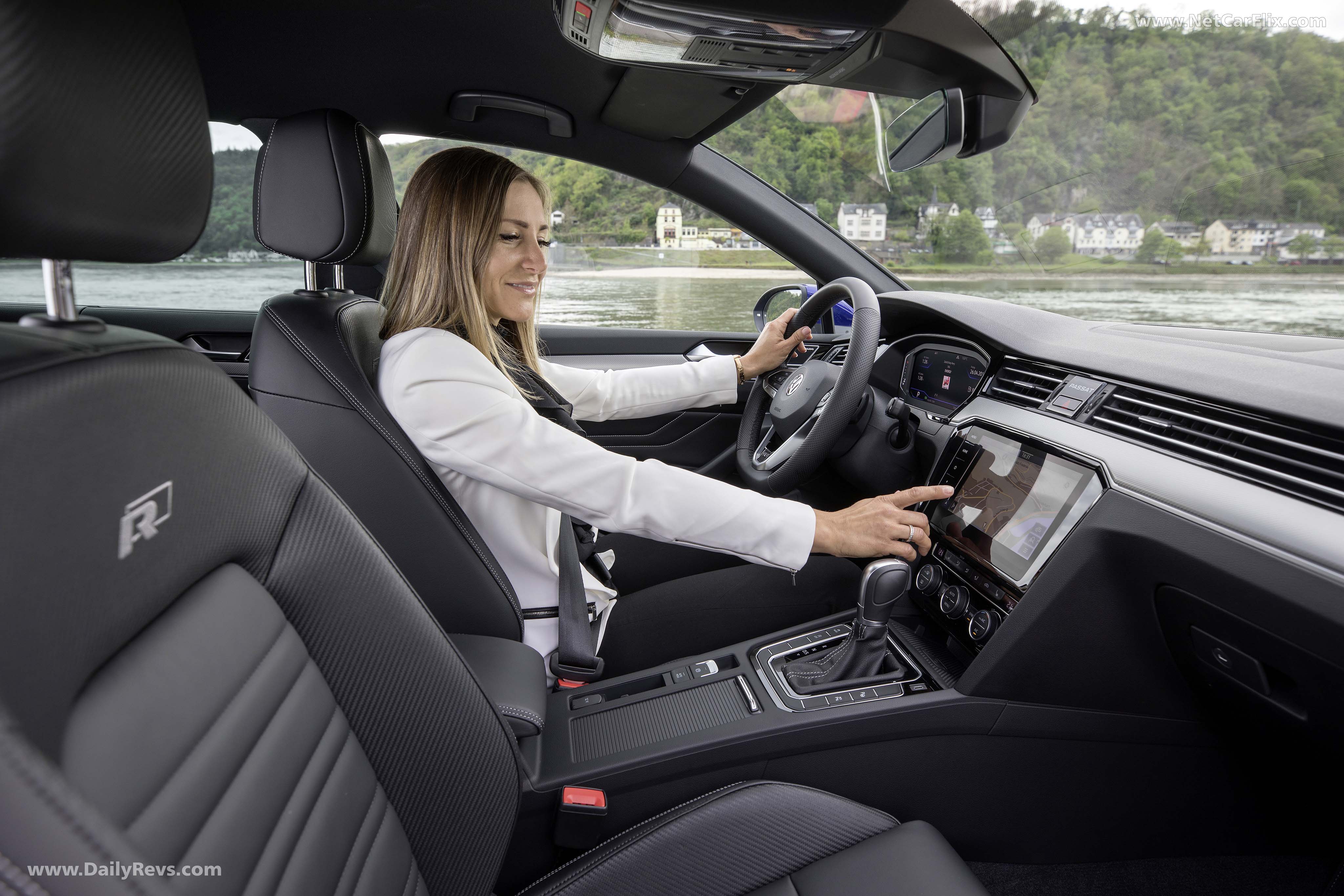

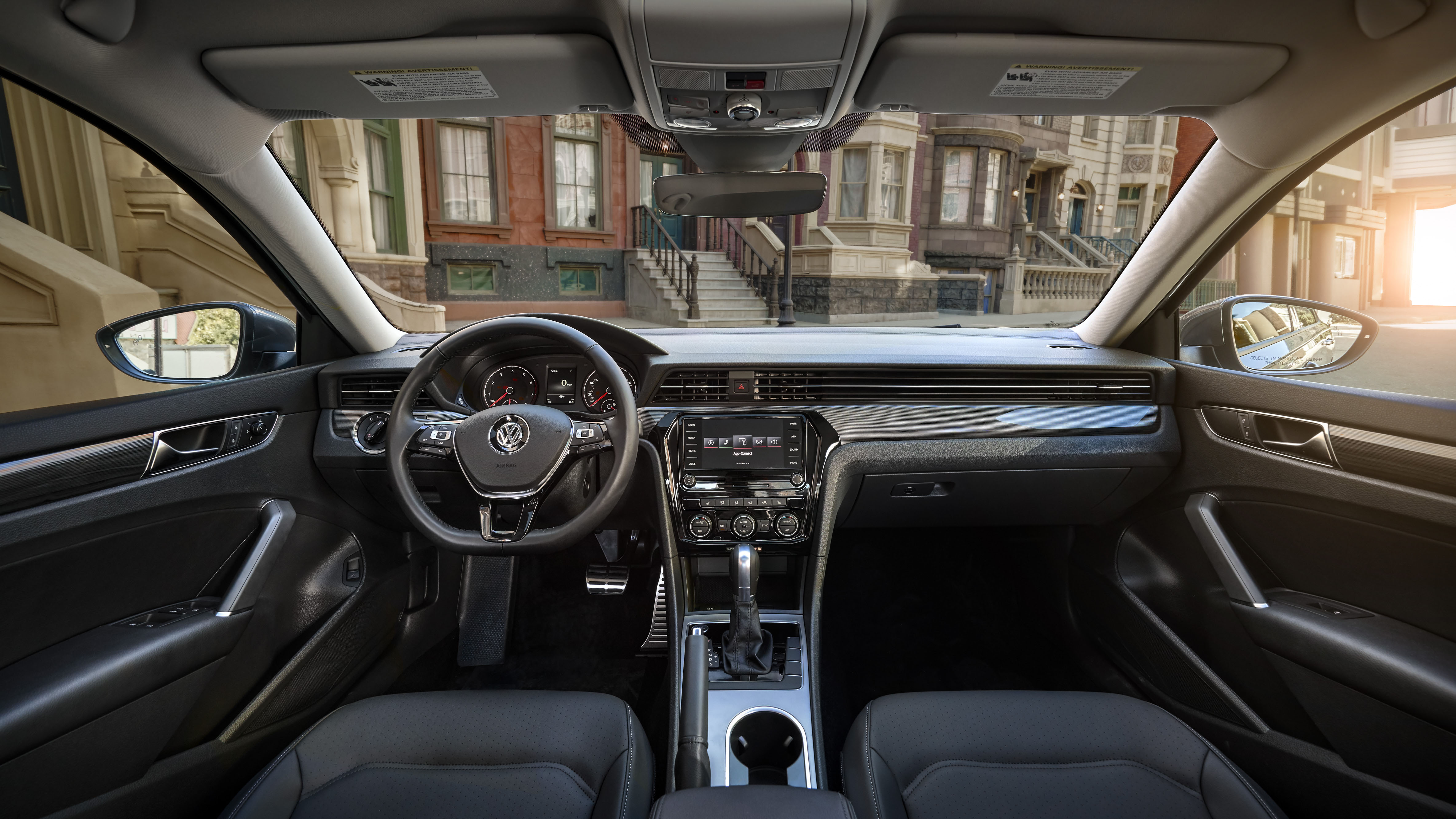

Yes. The gallery includes 29 photos for the Volkswagen Passat, including exterior and interior views where available.
Why can specifications differ for the same model?
Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
