Volkswagen Touareg R specifications and photos
The 2020 Volkswagen Touareg R represents the third generation of the mid-size luxury SUV, serving as the high-performance flagship of the lineup. As the first plug-in hybrid model to wear the sport-focused R badge, it combines a turbocharged V6 engine with an electric motor. This performance SUV offers standard all-wheel drive and a comprehensive list of standard tech features.
Volkswagen Touareg R at a glance
Quick model context before comparing photos and trim-level specifications.
Introduced for the 2020 model year, the Volkswagen Touareg R shifts the brand's performance division toward electrification. This third-generation model serves as the range-topping version, replacing traditional large-displacement engines with a plug-in hybrid system. The powertrain pairs a 3.0-liter turbocharged V6 engine with an electric motor, delivering a combined output of 462 horsepower to all four wheels. Power is routed through an eight-speed automatic transmission and a permanent Torsen central differential, which manages power distribution dynamically between the front and rear axles. A 14.1-kWh battery, positioned beneath the luggage compartment, enables driving on pure electricity. Drivers can select from multiple driving modes, including specific profiles for snow and off-road conditions. The vehicle targets buyers seeking a blend of high-performance driving dynamics, low fuel consumption in daily commuting, and the towing capacity of a traditional mid-size luxury utility vehicle.
- Power: 462 hp
- Engine displacement: 2995 cc
- Transmissions: 8-Tiptronic
- Seating: 5 seats
Photos, trims and specifications for Volkswagen Touareg R
This model page brings gallery images, trim comparison, and detailed technical data together for the 2020 generation.
Estimate fuel cost
Use trim-level fuel consumption data to estimate monthly and yearly fuel spending.
Fuel costs are estimates. Real consumption can change with driving style, traffic, tires, weather, load, and market-specific equipment.
Volkswagen Touareg R overview
Editorial context for design, cabin, performance, practicality, and buyer notes.
Design

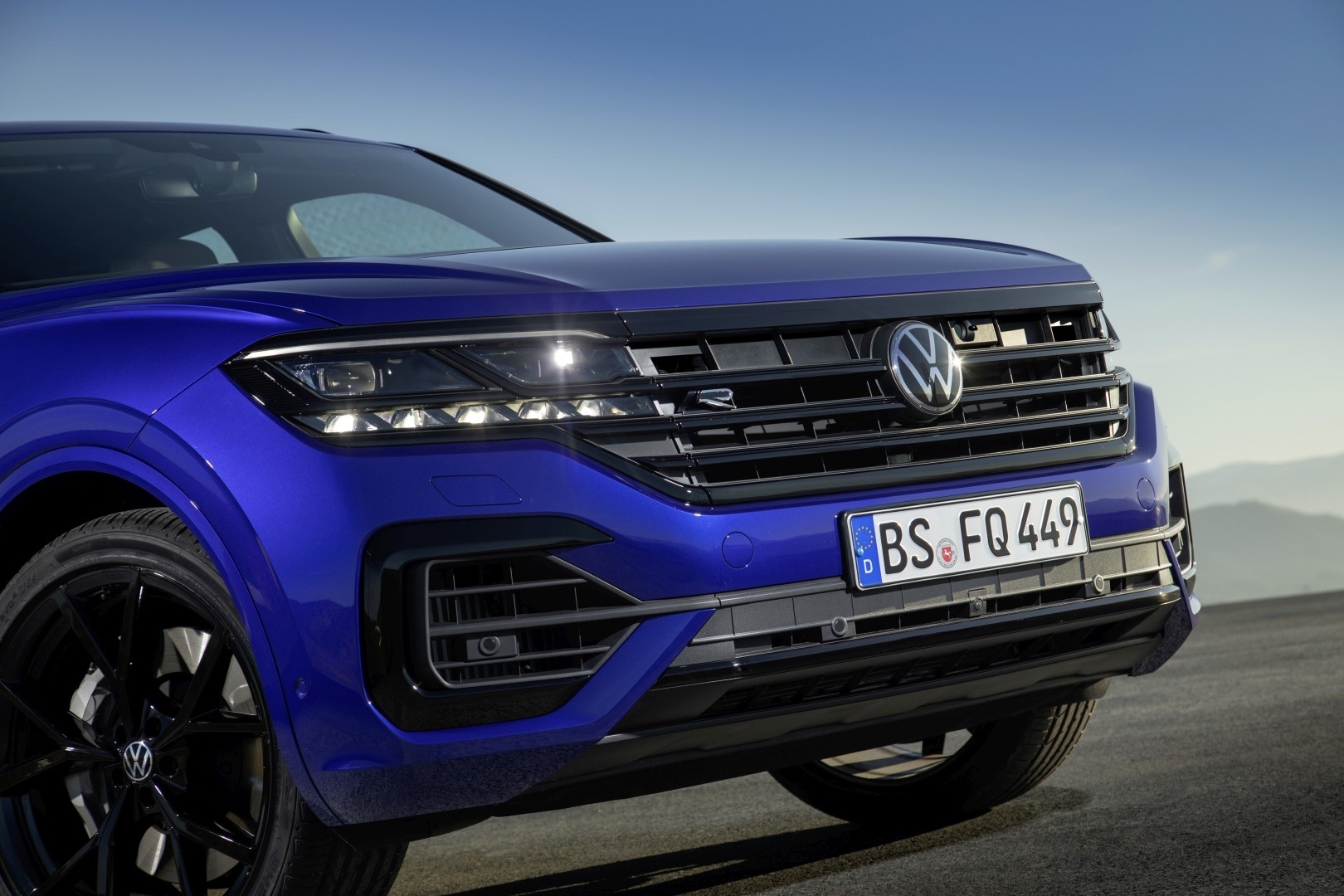

The Touareg R distinguishes itself from standard trims through several sport-oriented exterior details. Up front, it features a gloss black grille and a more aggressive bumper design with black trim inserts. The body lacks the unpainted plastic protective cladding found on lesser models, opting instead for fully color-matched panels. At the rear, the SUV features darkened tail lights and distinct trapezoidal exhaust finishers integrated into the bumper. It rides on standard 20-inch alloy wheels wrapped in wide 285/45 tires, with optional 21-inch and 22-inch designs available. High-performance IQ.Light LED matrix headlights are included as standard equipment to improve visibility.
Interior
Inside the cabin, the Touareg R offers a premium environment with specialized sport touches. Passengers are accommodated on standard Vienna leather seats featuring contrast stitching and embossed R logos on the headrests. The dashboard and door panels are decorated with aluminum and black gloss accents, complemented by stainless steel covers on the pedals. The tech setup centers on VW's Innovision Cockpit, combining a 12-inch digital instrument cluster with a 15-inch Discover Premium central touchscreen. A panoramic glass roof is standard, as is a four-zone climate control system. Available premium options include front seat ventilation and a 780-watt Dynaudio audio system with 13 speakers.
Performance
The plug-in hybrid system is built around a 3.0-liter V6 EA839 engine generating 340 horsepower and 450 Nm of torque, assisted by a 136-horsepower electric motor producing 400 Nm of torque. Combined, the system produces 462 horsepower and 700 Nm of torque. This enables the heavy SUV to accelerate from zero to 100 km/h in 5.1 seconds, up to a limited top speed of 250 km/h. It can travel on electric power alone at speeds up to 140 km/h. Power is delivered to all four wheels via a Torsen differential, which can route up to 70 percent of torque to the front wheels or up to 80 percent to the rear. The transmission is an eight-speed ZF Tiptronic automatic.
Practicality
With a five-seat configuration, the Touareg R serves as a highly functional daily vehicle. The plug-in hybrid battery is located under the cargo floor to minimize the impact on interior space. It features a power tailgate with hands-free opening and closing for easier loading. For cold weather utility, the SUV is equipped with heated front and rear seats, a heated steering wheel, and a heated windshield. Practical safety attachments include ISOFIX and LATCH mounts for child safety seats in the rear row.
Safety and tech
A suite of driver assistance features is standard or optional on the Touareg R. It features standard active cruise control, Lane Assist, and Front Assist emergency braking. Standard Park Assist uses front and rear parking sensors alongside a backup camera to simplify tight maneuvers. Drivers can also opt for a Night Vision system utilizing an infrared camera, a head-up display, and the Travel Assist system, which supports automated driving tasks at speeds up to 250 km/h. Trailer Assist is also available to help navigate when towing.
Buyer notes
When shopping for a Touareg R, buyers should check the specific optional equipment installed. Standard models come highly equipped with matrix LED headlights, 20-inch wheels, leather upholstery, and the dual-screen infotainment cluster. However, high-value features such as air suspension, ventilated seats, the Dynaudio premium sound system, and the Night Vision camera were sold as options. Equipment availability and exact feature packages can vary depending on the market. In addition, the plug-in hybrid setup reduces under-floor cargo space slightly compared to non-hybrid Touareg models.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 3.0 V6 E-Hybrid (462 hp) 8-Tiptronic 4x4 | 2995 cc | 462 hp | 5 | 8-Tiptronic |
| 3.0 PHEV AT R | 2995 cc | 462 hp | 5 | 8-Tiptronic |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

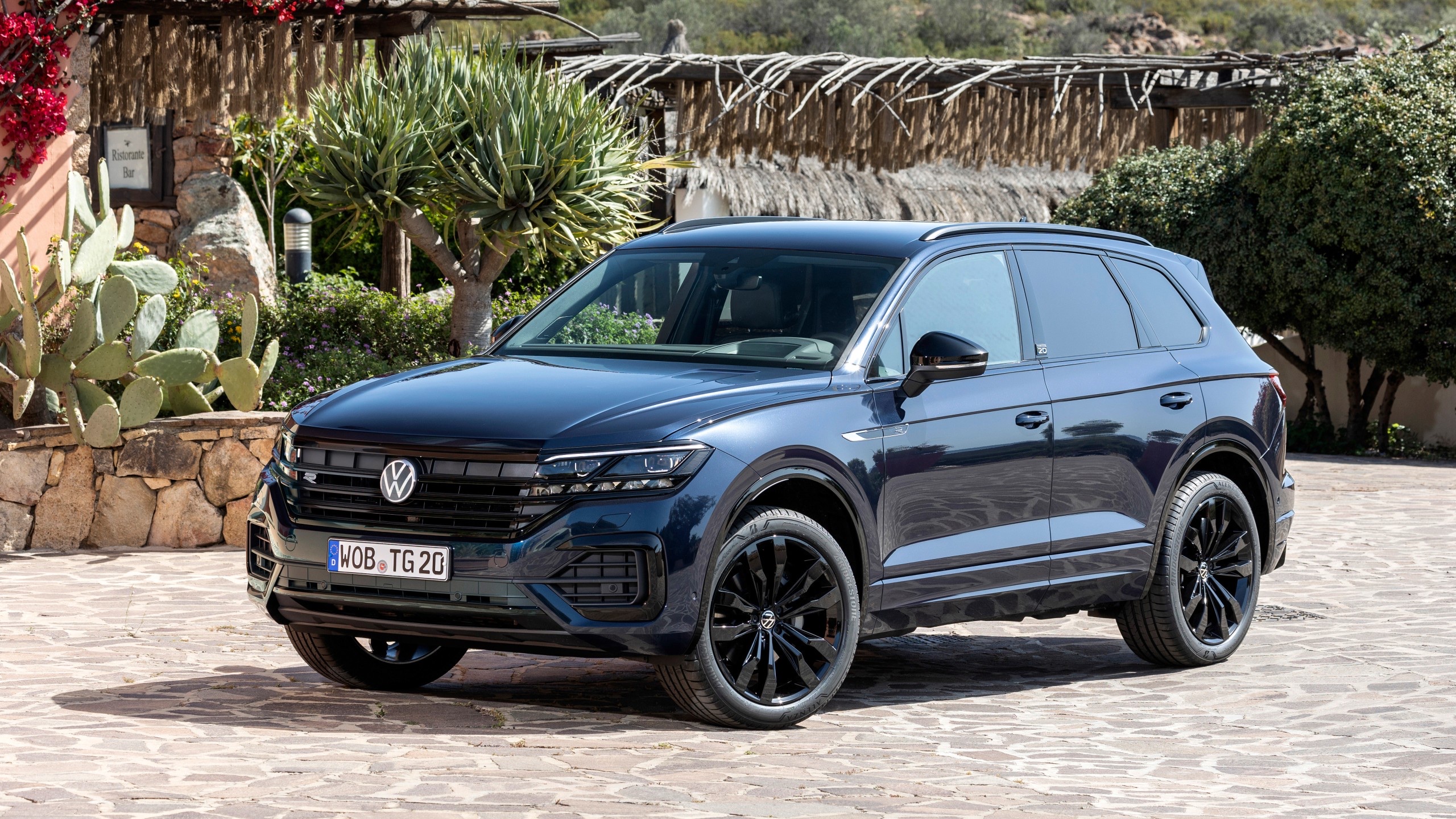

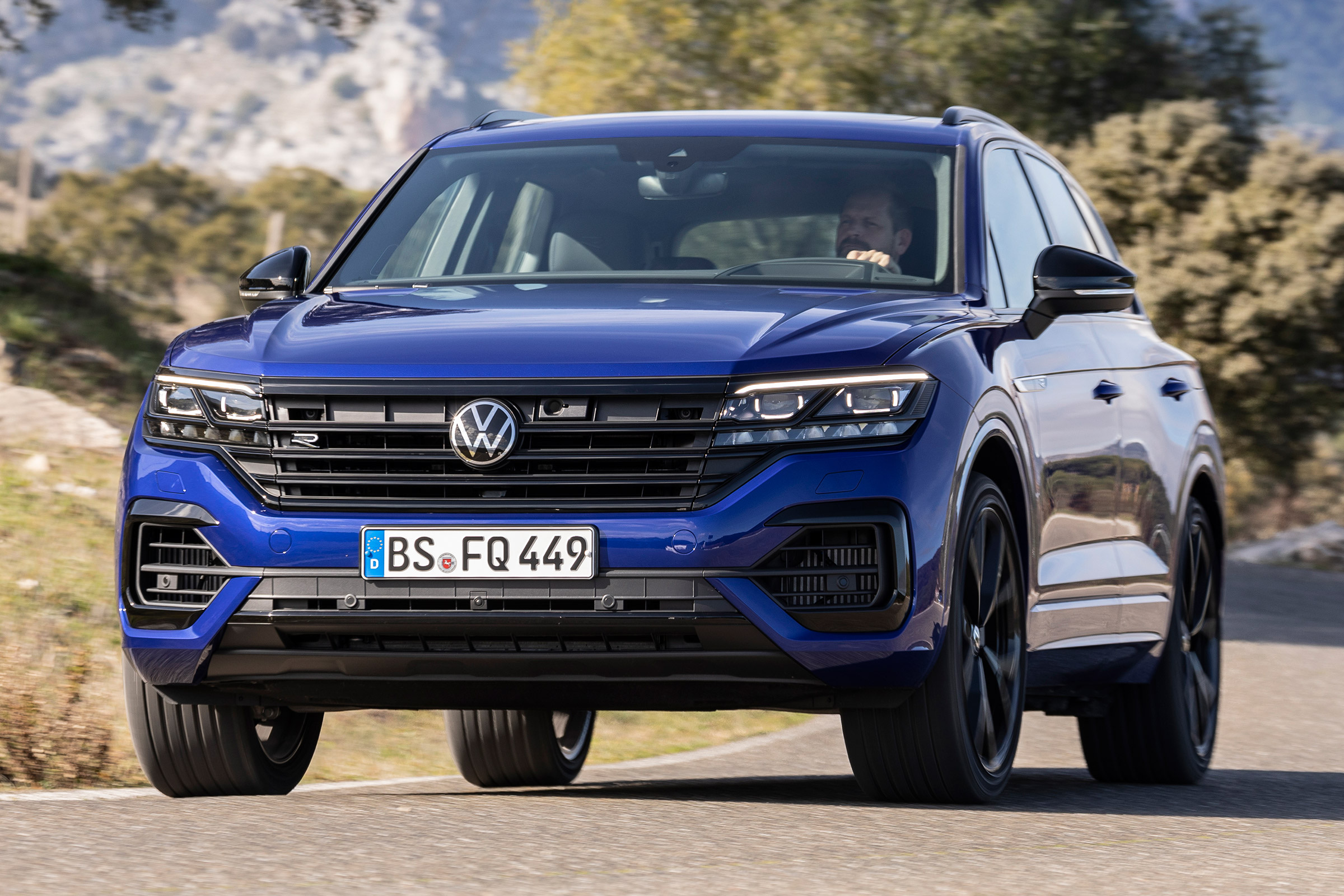

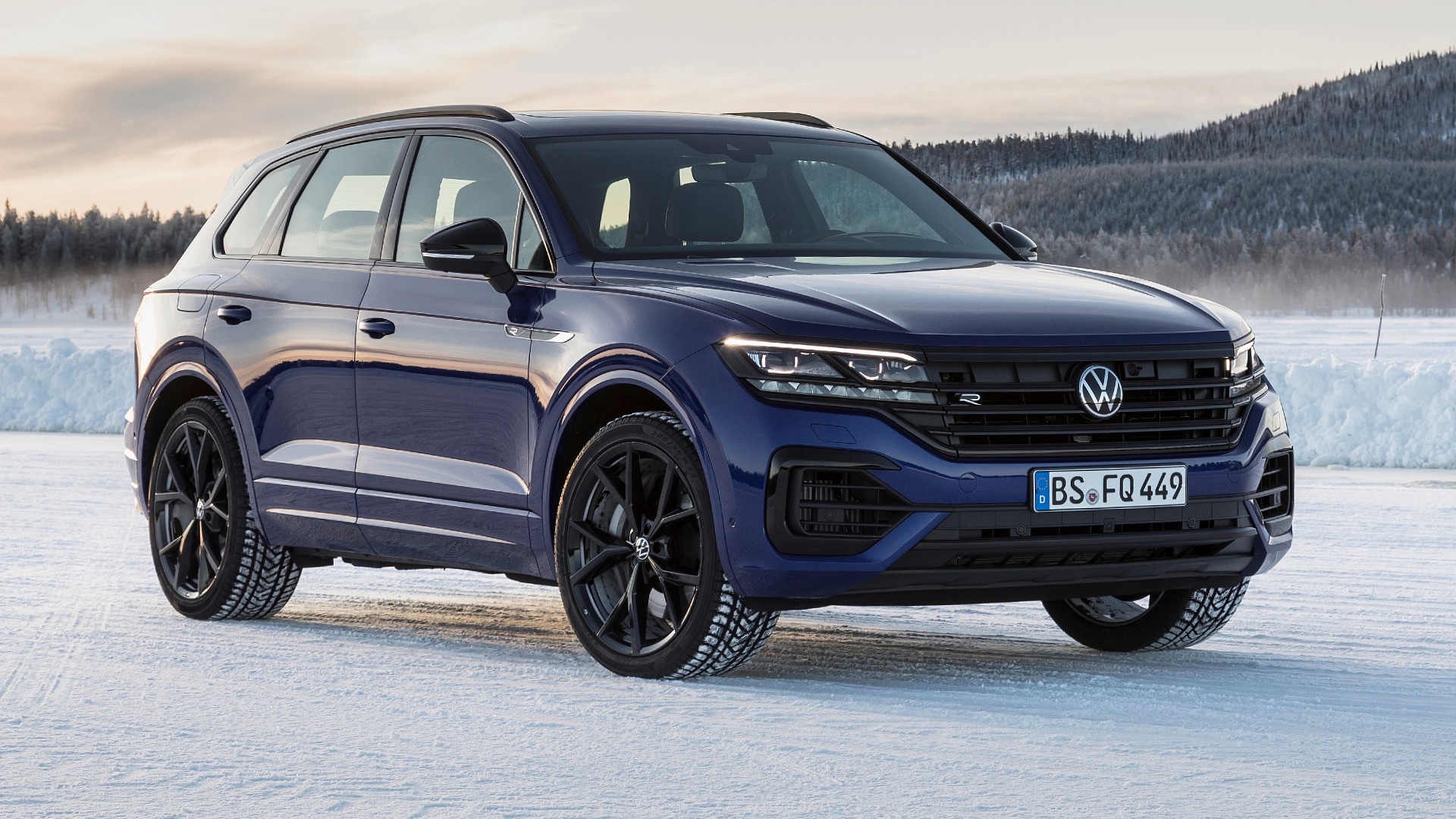

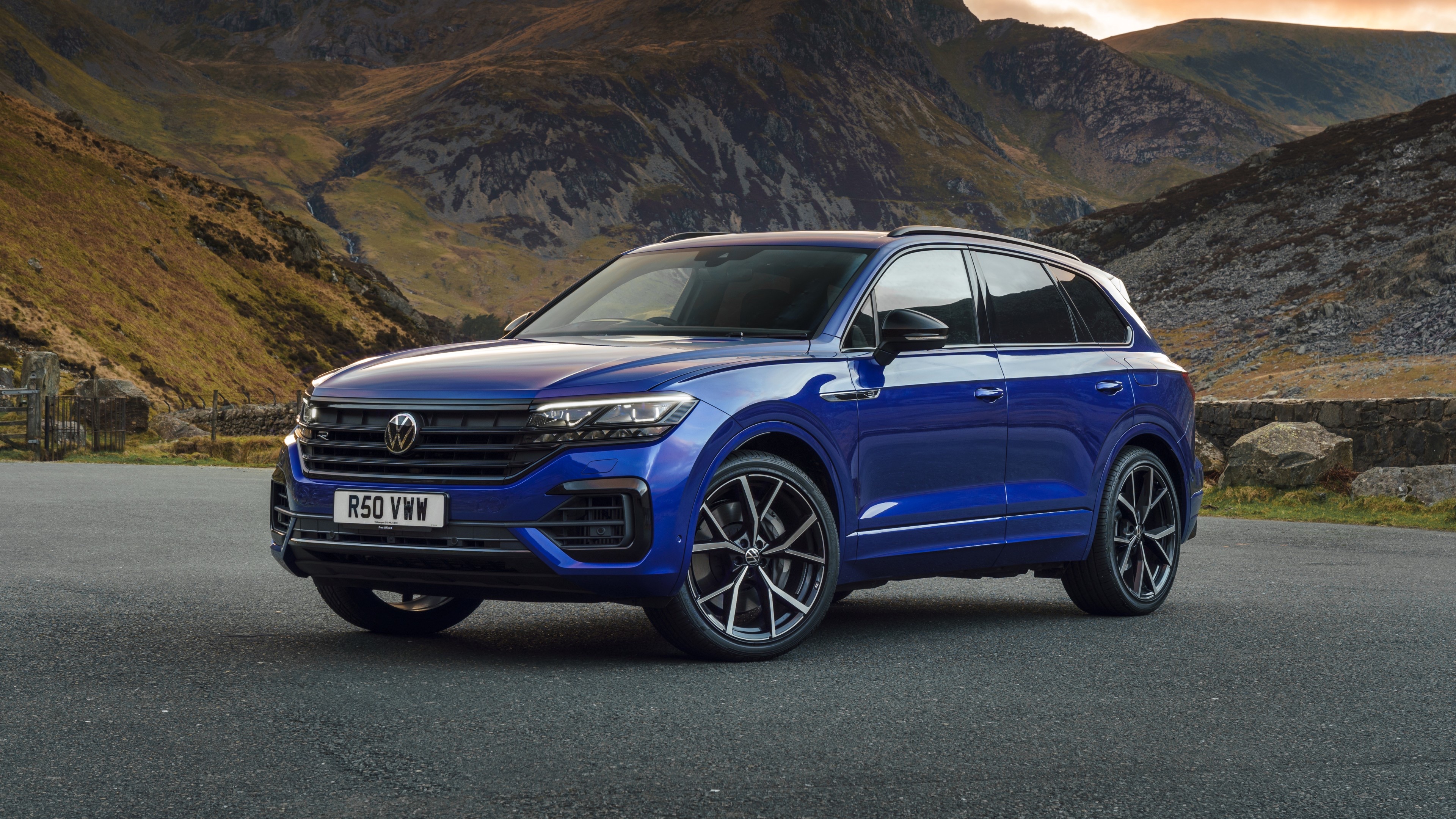

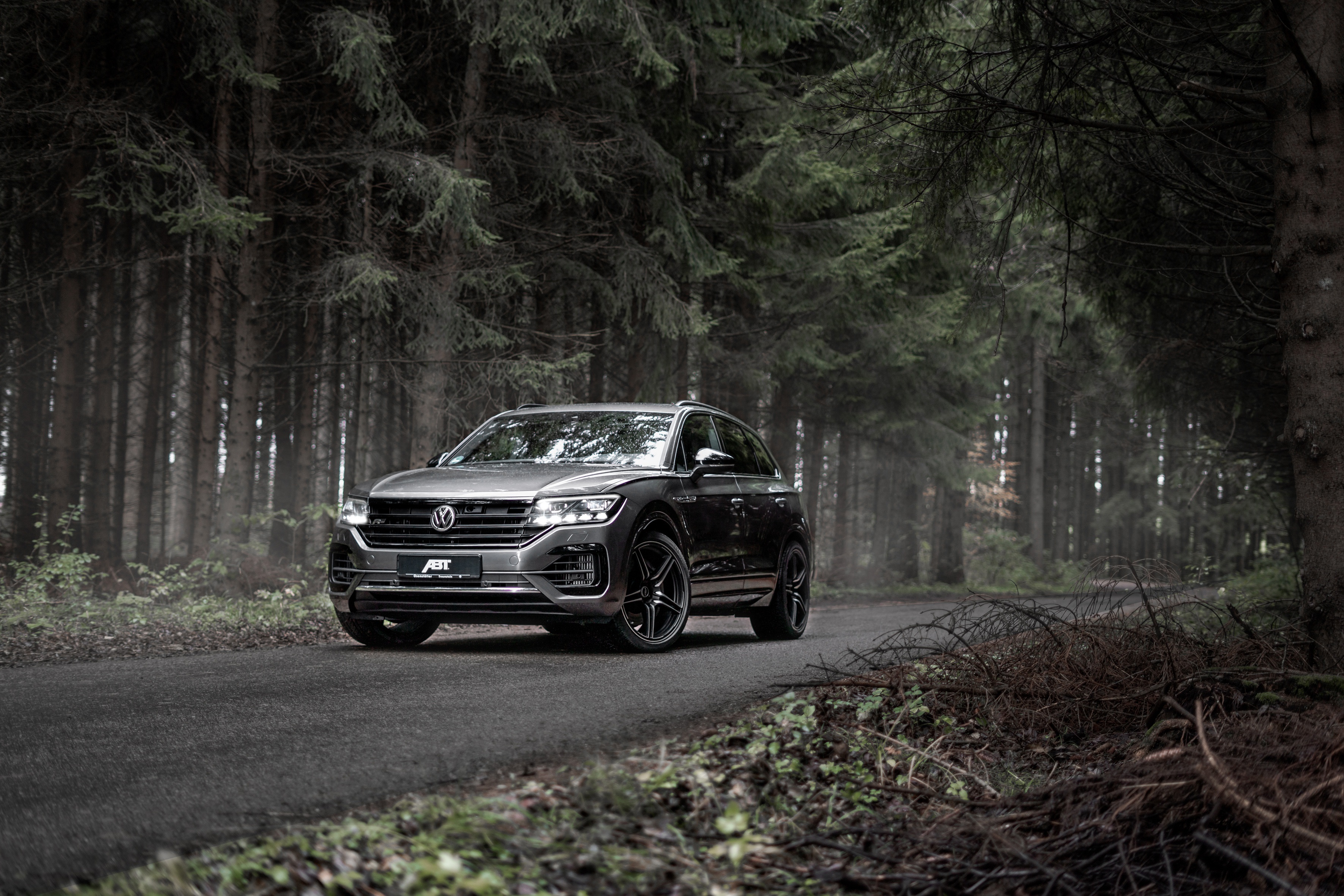

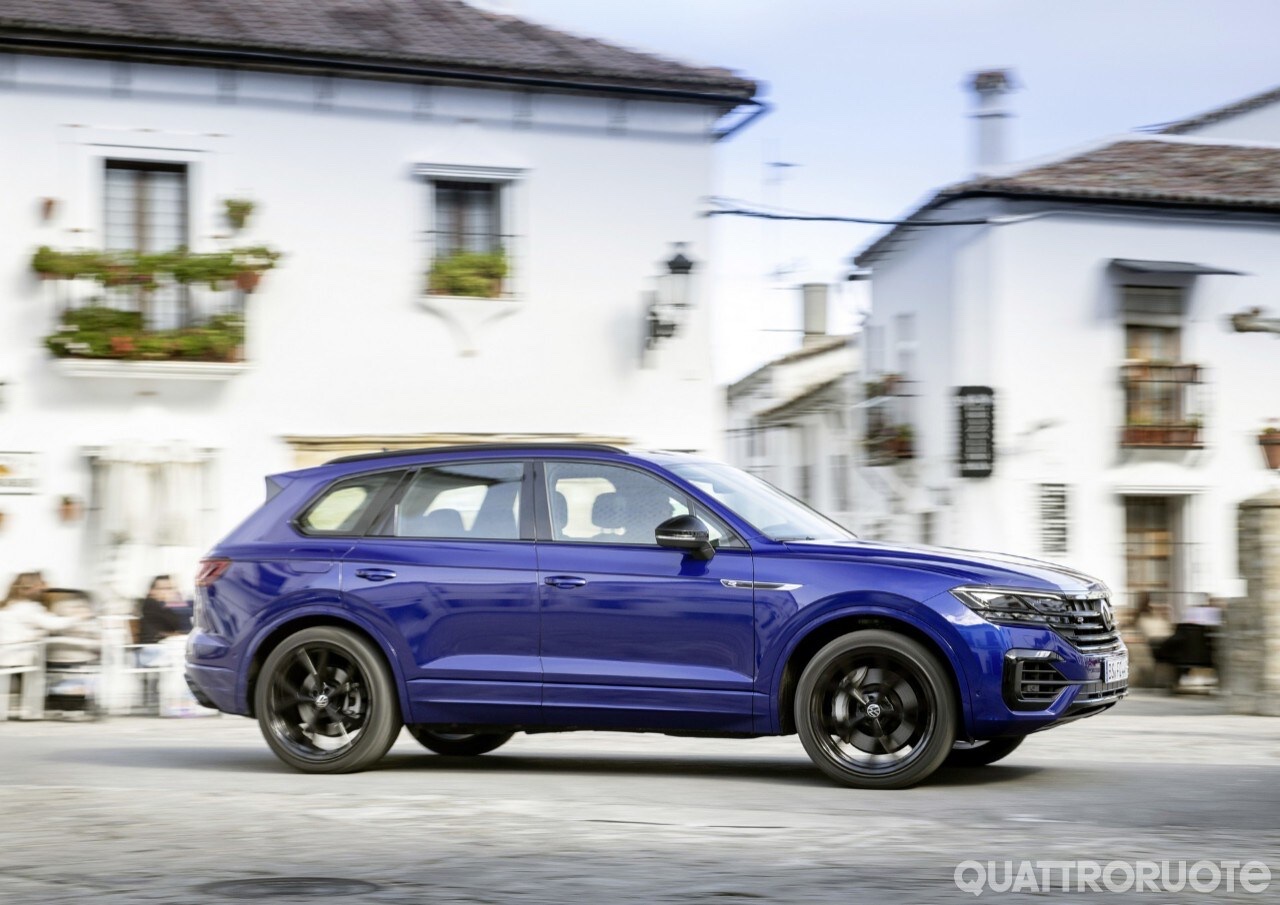

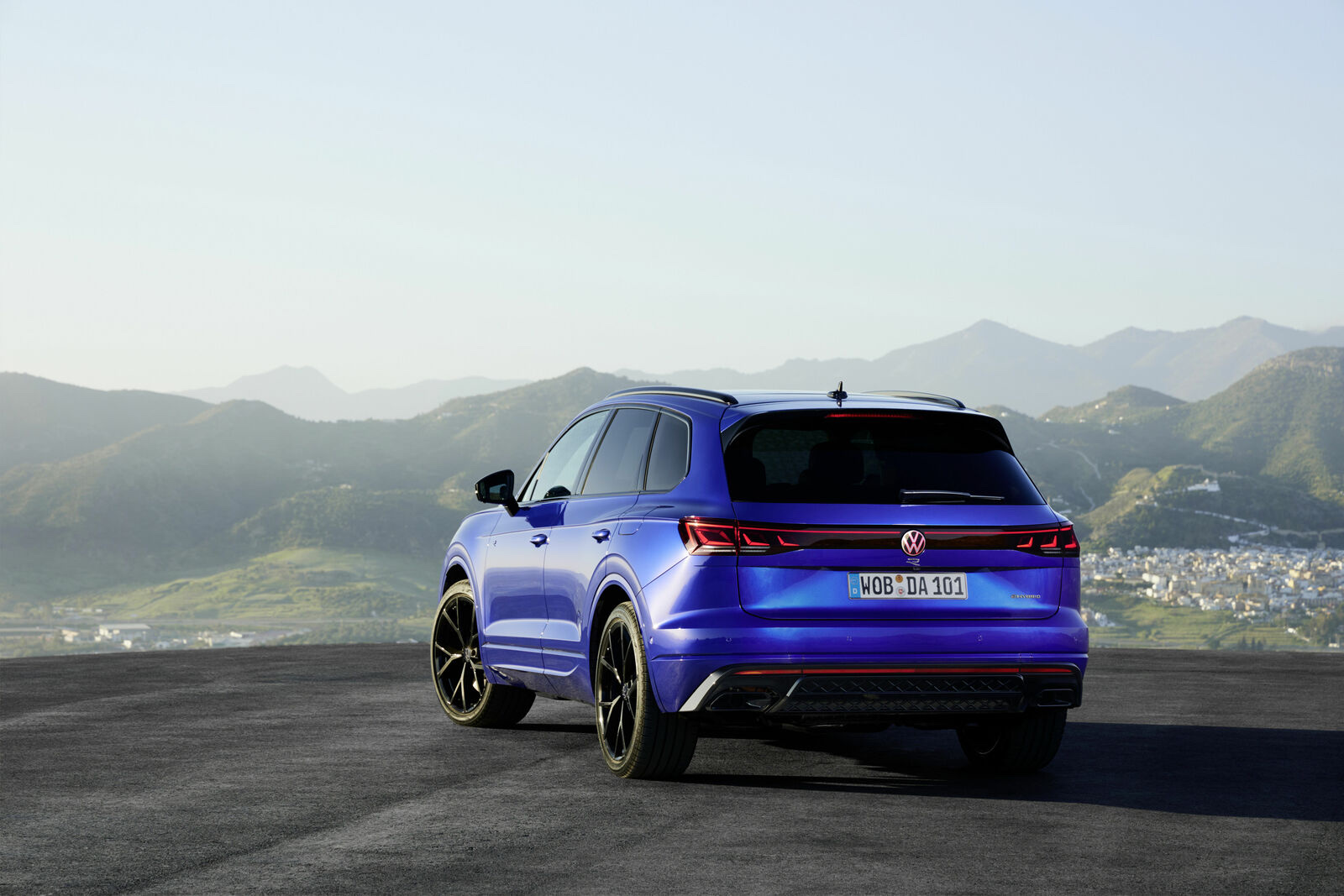

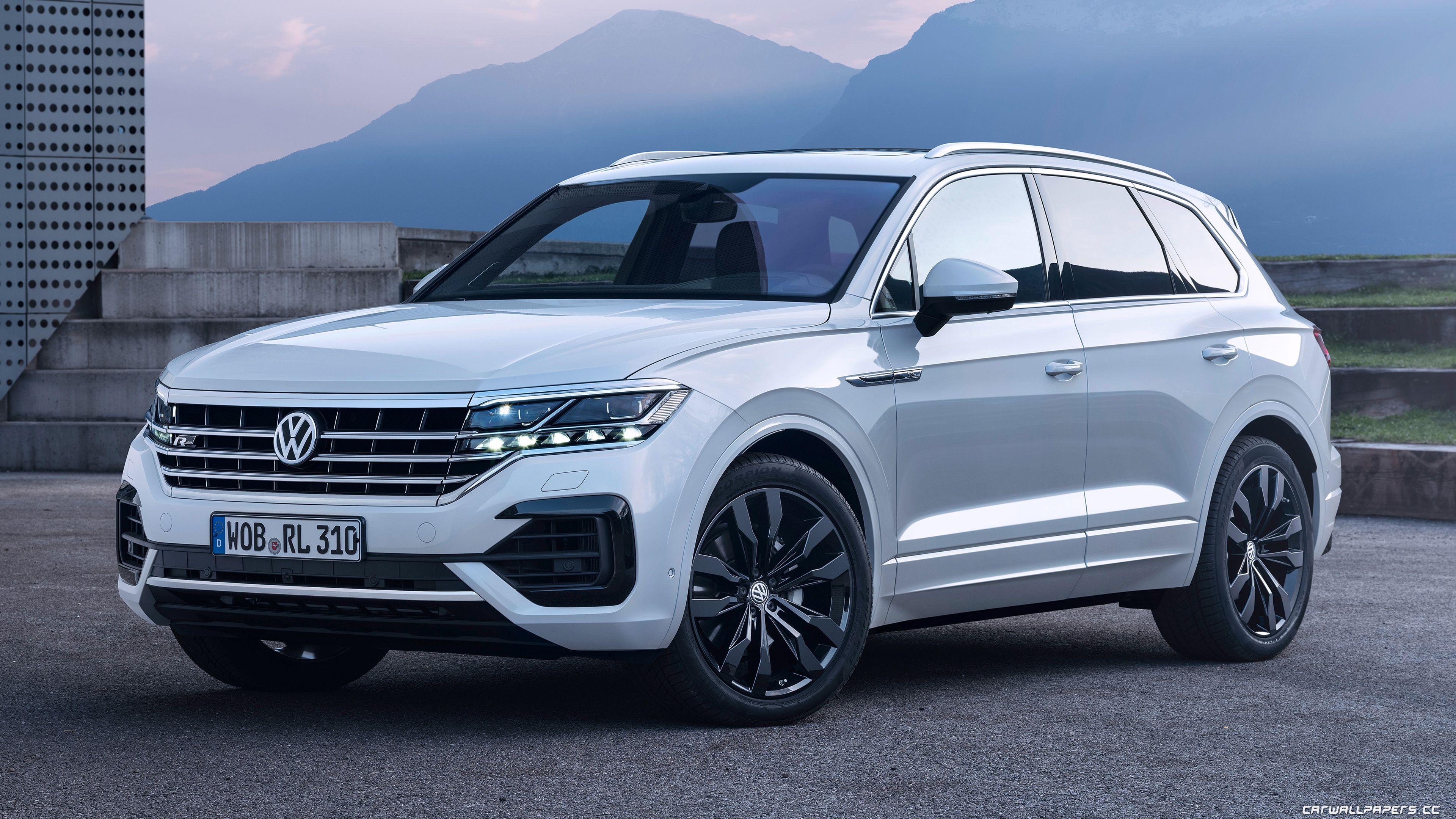

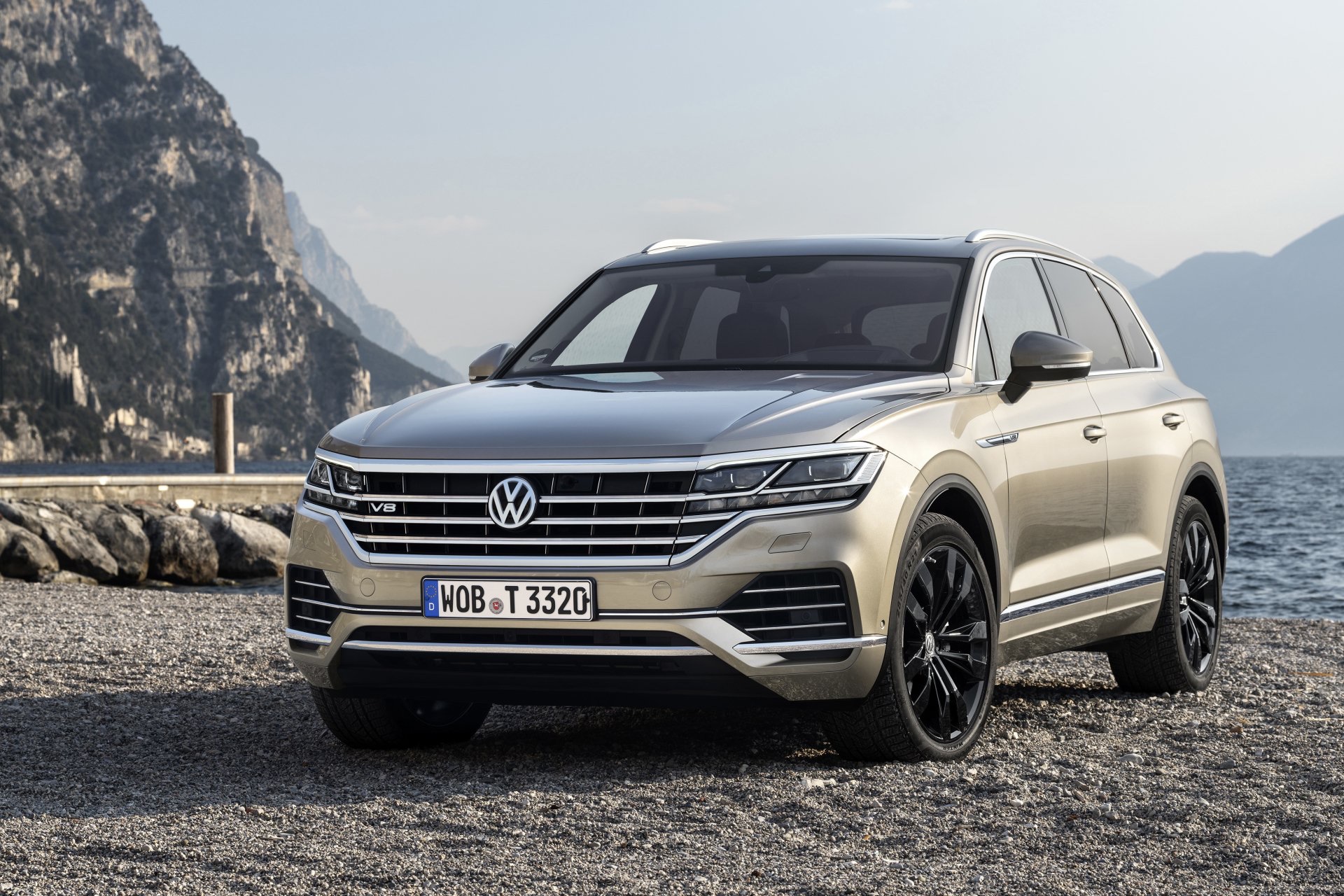

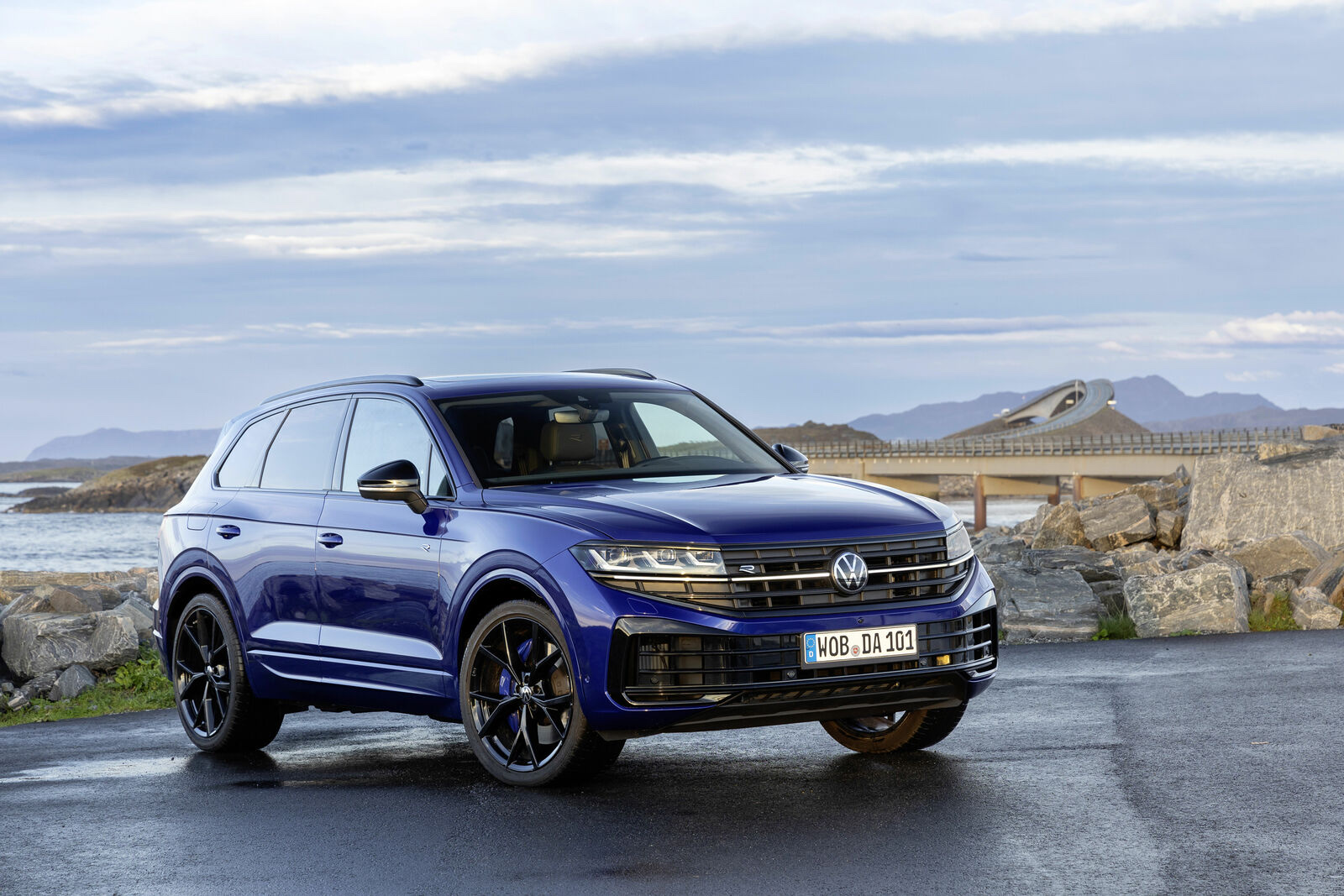

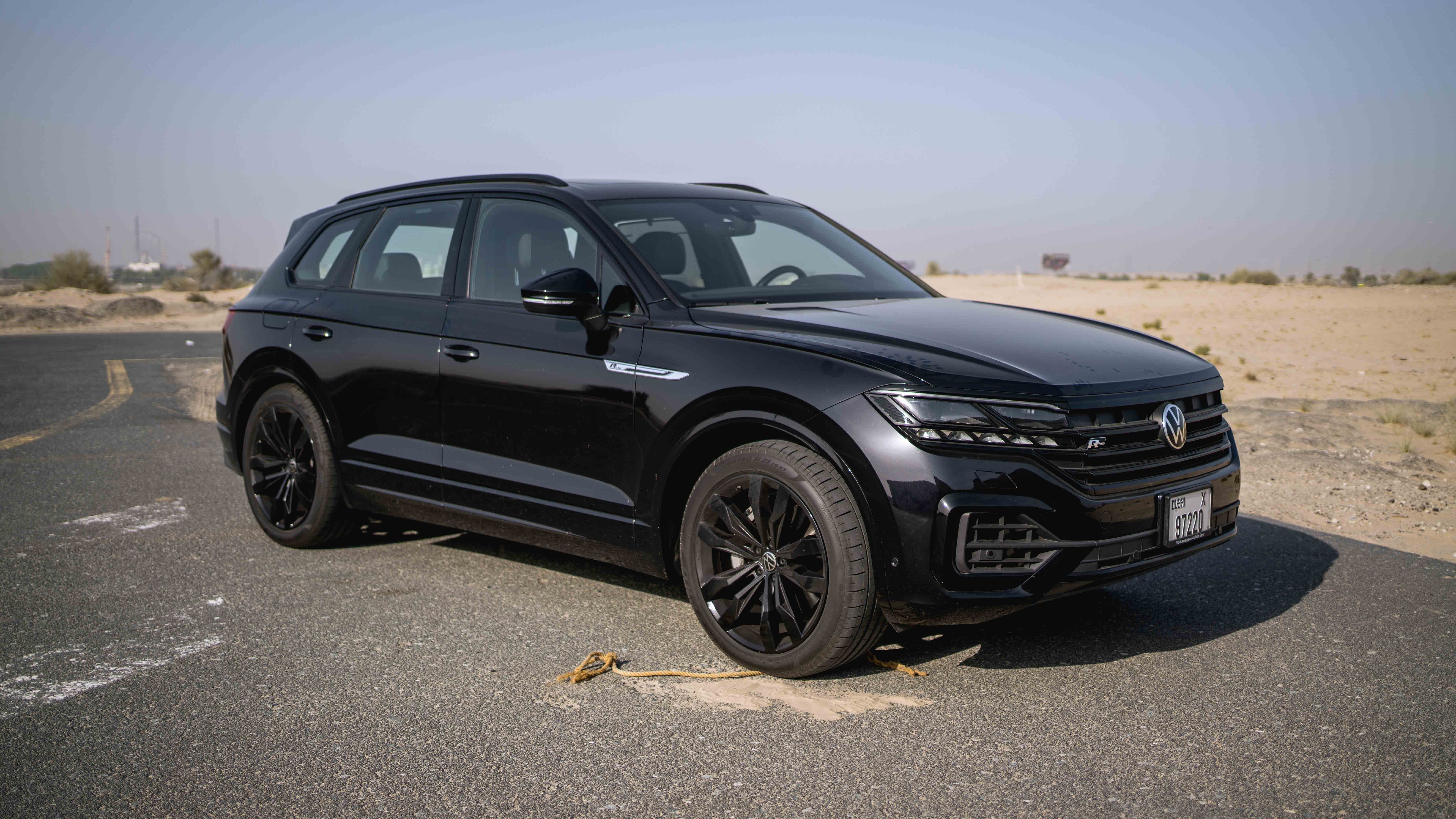

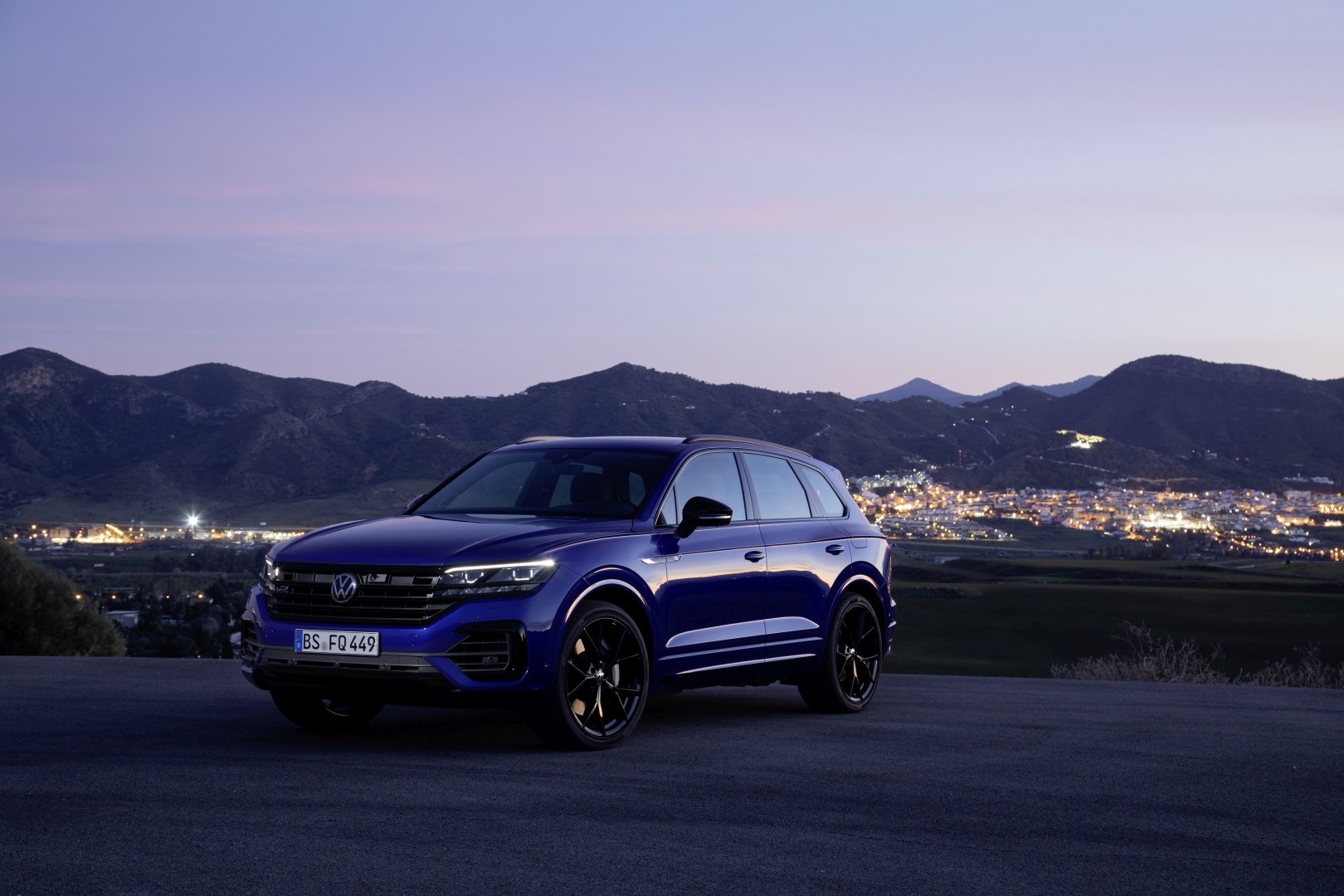

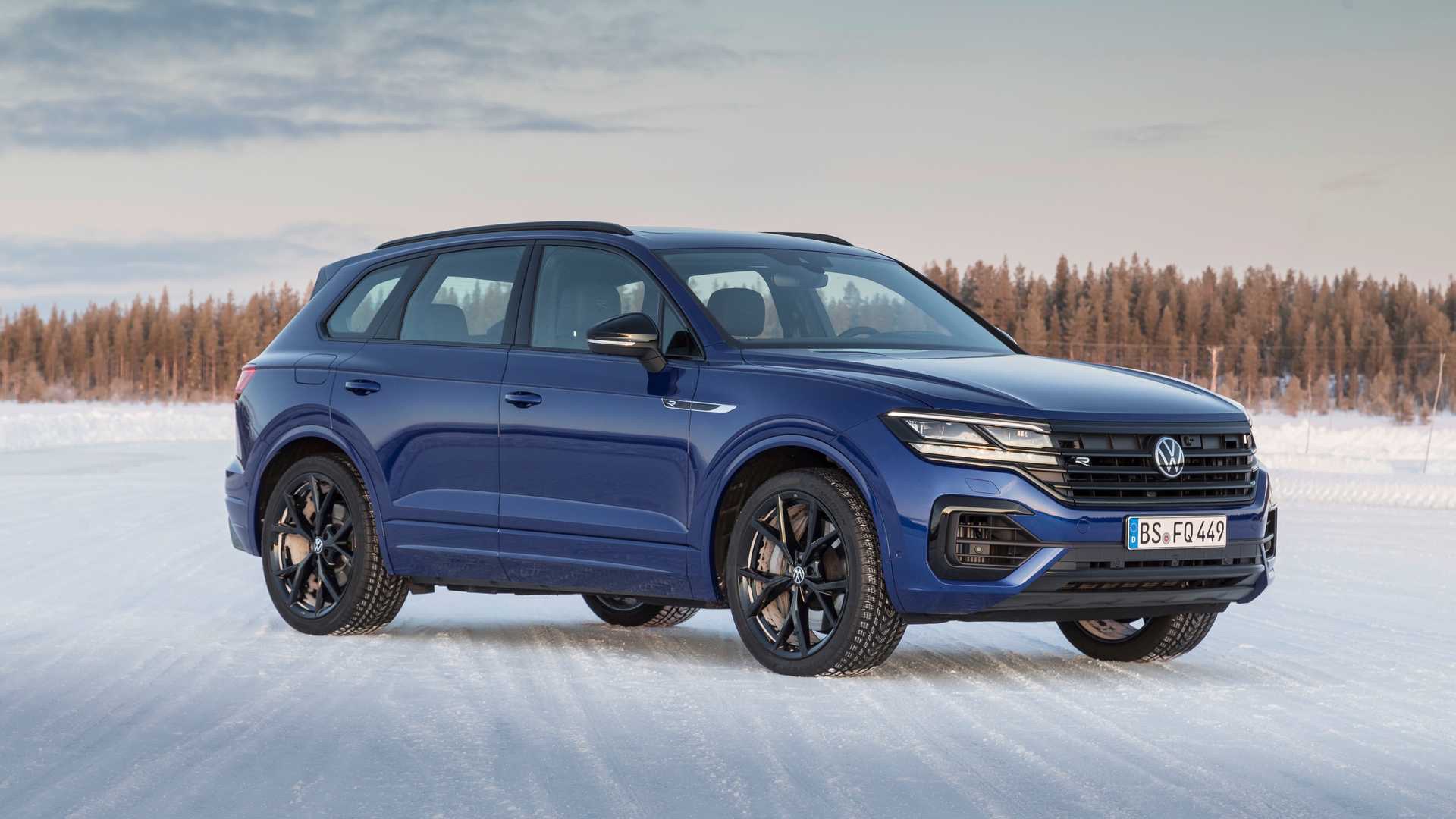

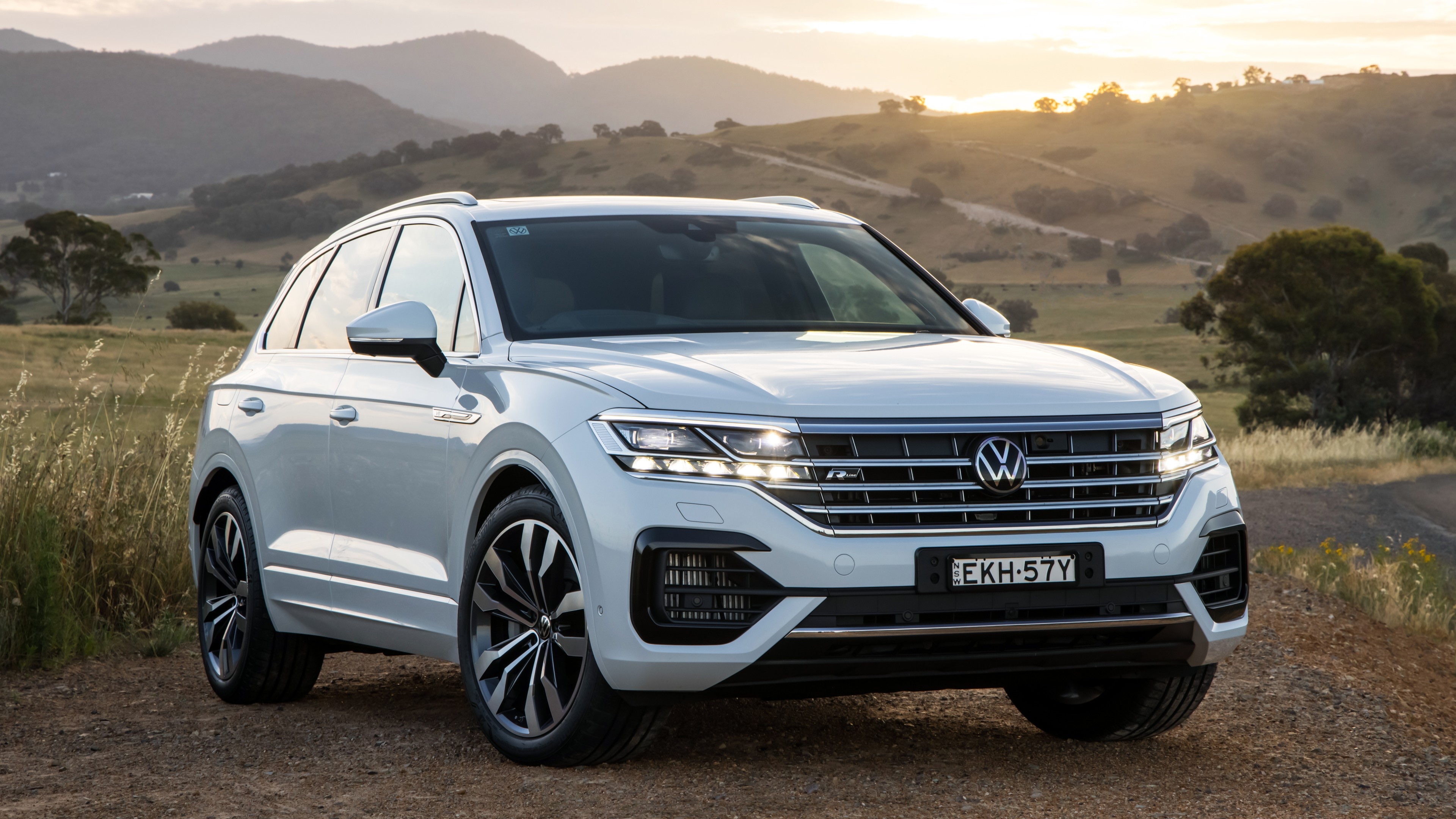

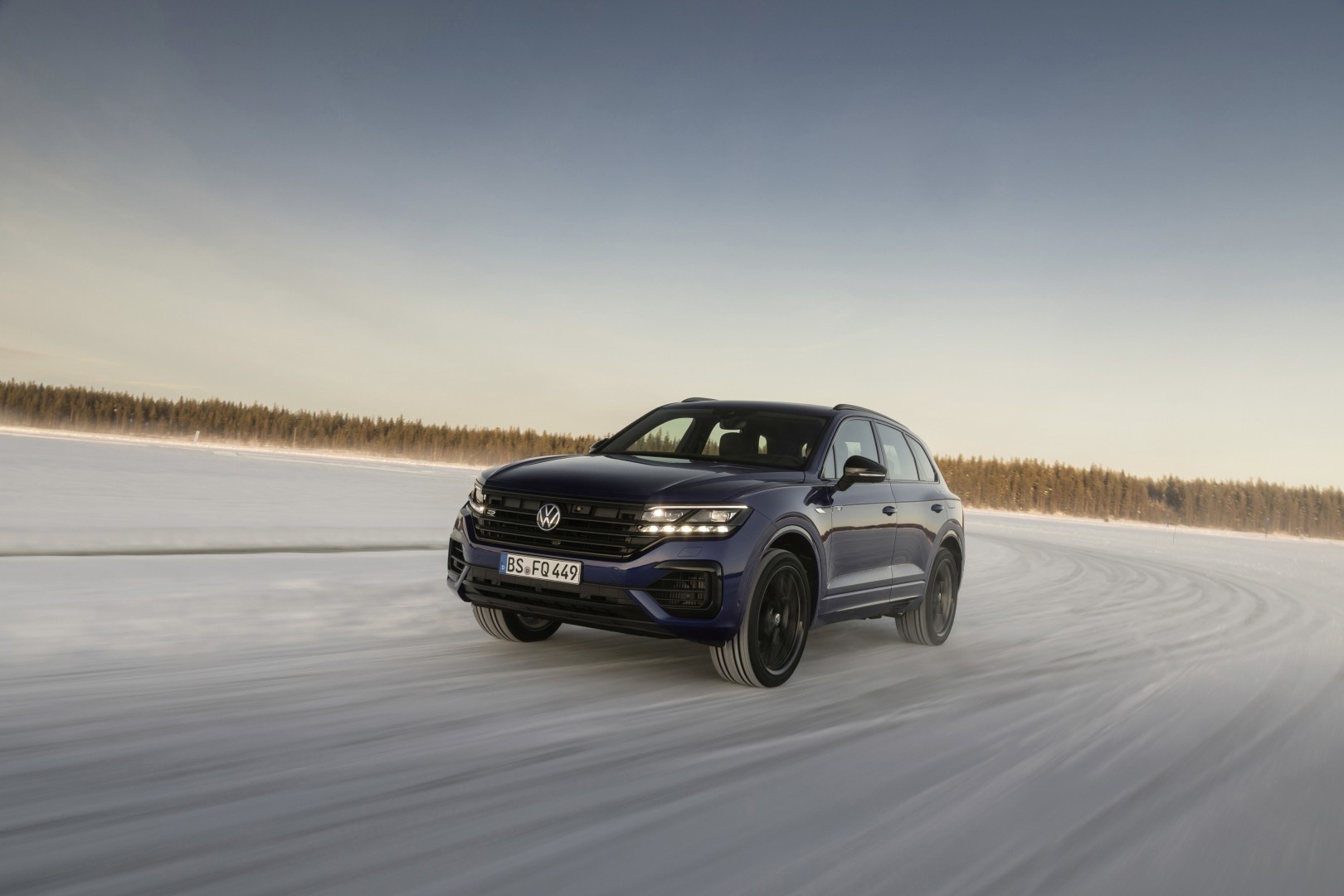

Volkswagen Touareg R photo gallery
20 images are collected here with the main specifications and trim data for this model.

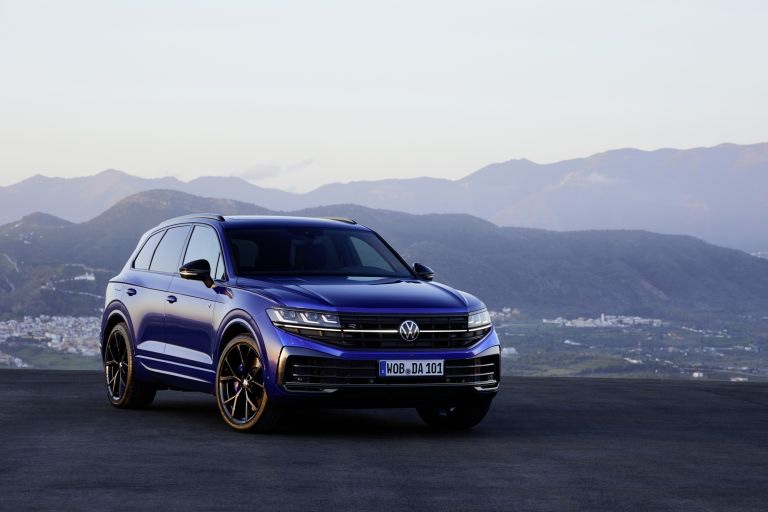

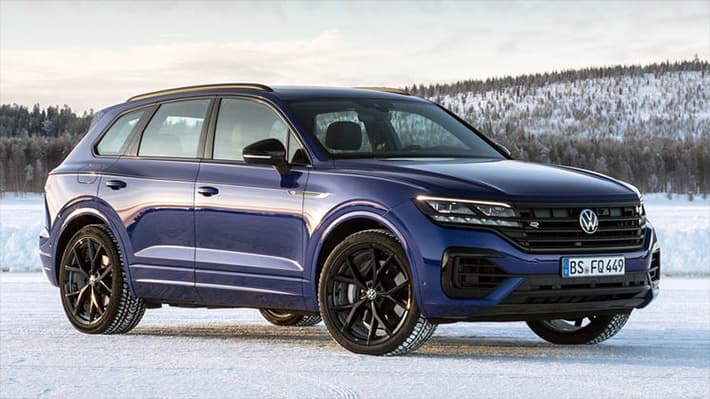

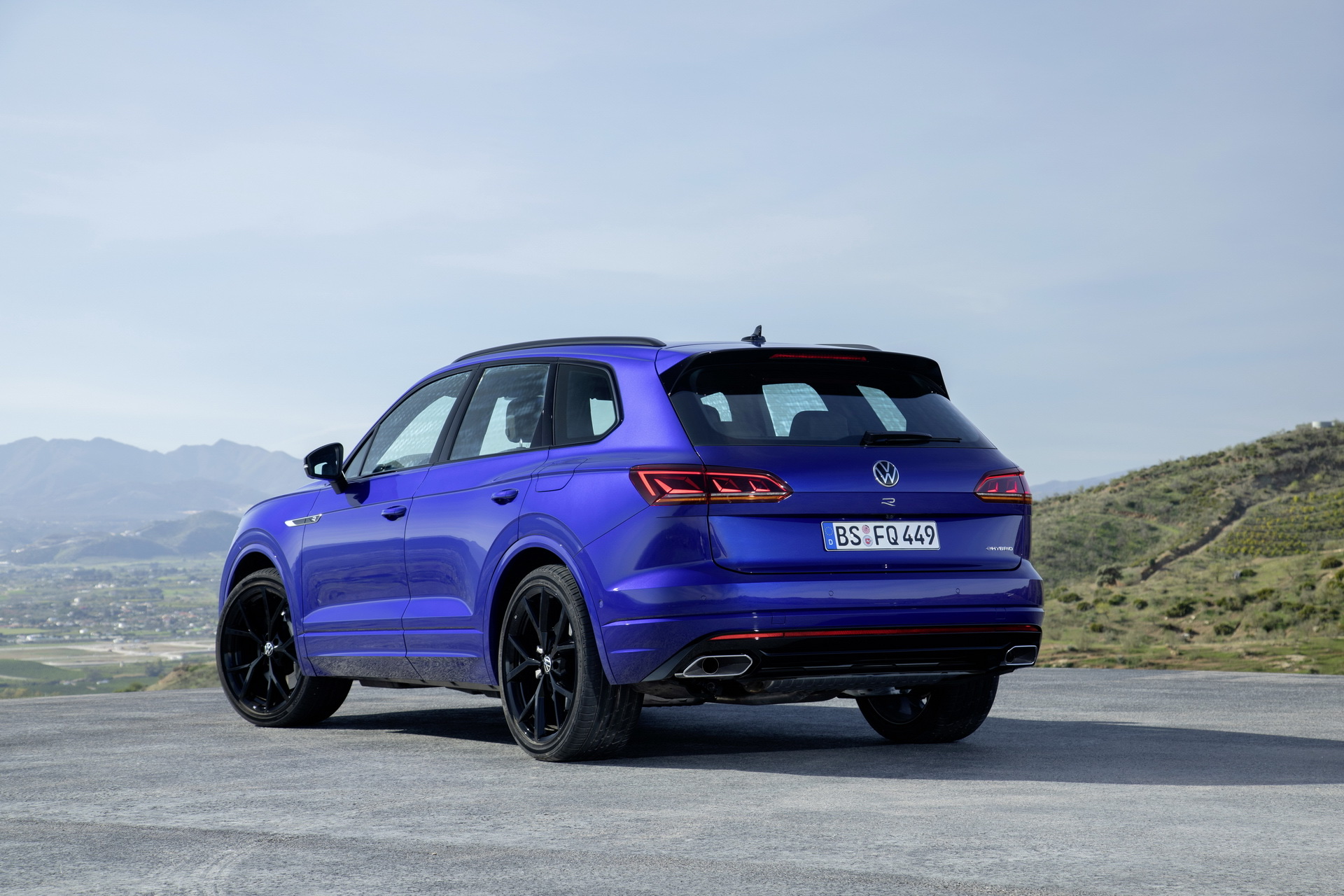

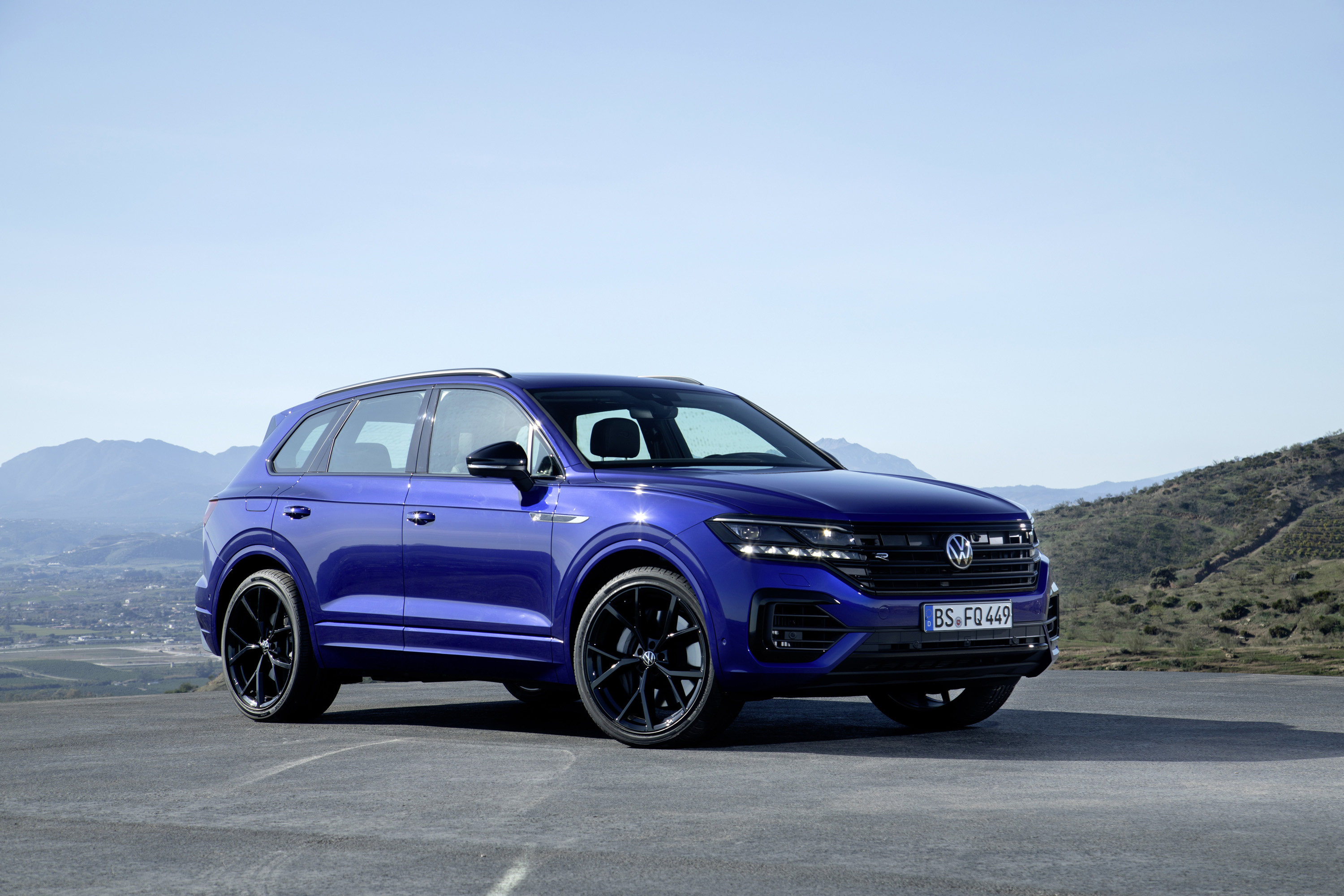

Photo Volkswagen Touareg R
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
3.0 V6 E-Hybrid (462 hp) 8-Tiptronic 4x4 42 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 2.7 |
|---|---|
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 5.1 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.0 V6 E-Hybrid |
|---|---|
| Engine code | EA839 |
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 2995 |
| Cylinder layout | V-type |
| Number of cylinders | 6 |
| Valves | 24 |
| Turbocharger | + |
| Power, hp | 462 |
| Torque, Nm | 700 |
| Number of electric motors | 1 |
| EV mode | + |
| Plug-in charging support | + |
| Electric motor power, hp | 136 |
| Combustion engine power, hp | 340 |
| Combustion engine RPM at max power | 5300-6400 |
| Combustion engine torque, Nm | 450 |
| Combustion engine RPM at max torque | 1340-5300 |
| Electric motor torque, Nm | 400 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4878 |
| Width, mm | 2193 |
| Height, mm | 1717 |
| Wheelbase, mm | 2904 |
| Front track, mm | 1653 |
| Rear track, mm | 1669 |
| Kerb weight, kg | 2465 |
| Gross weight, kg | 3010 |
| Fuel tank capacity, L | 76 |
| Width without mirrors, mm | 1984 |
Transmission and drive
| Transmission | 8-Tiptronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 8 |
| Transmission manufacturer | ZF |
| Automatic transmission | + |
| Transmission country | Germany |
3.0 PHEV AT R 115 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 2.7 |
|---|---|
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 5.1 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.0 V6 E-Hybrid |
|---|---|
| Engine code | EA839 |
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 2995 |
| Cylinder layout | V-type |
| Number of cylinders | 6 |
| Valves | 24 |
| Turbocharger | + |
| Power, hp | 462 |
| Torque, Nm | 700 |
| Number of electric motors | 1 |
| EV mode | + |
| Plug-in charging support | + |
| Electric motor power, hp | 136 |
| Combustion engine power, hp | 340 |
| Combustion engine RPM at max power | 5300-6400 |
| Combustion engine torque, Nm | 450 |
| Combustion engine RPM at max torque | 1340-5300 |
| Electric motor torque, Nm | 400 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4878 |
| Width, mm | 2193 |
| Height, mm | 1717 |
| Wheelbase, mm | 2904 |
| Front track, mm | 1653 |
| Rear track, mm | 1669 |
| Kerb weight, kg | 2465 |
| Gross weight, kg | 3010 |
| Fuel tank capacity, L | 76 |
| Width without mirrors, mm | 1984 |
Transmission and drive
| Transmission | 8-Tiptronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 8 |
| Transmission manufacturer | ZF |
| Automatic transmission | + |
| Transmission country | Germany |
Brake system
| Front brakes | Disc |
|---|---|
| Rear brakes | Disc |
Steering
| Power steering | Electromechanical |
|---|
Equipment
Exterior
| Roof rails | + |
|---|
Comfort
| Tire pressure monitoring | + |
|---|---|
| Multifunction steering wheel | + |
| Keyless entry and start | + |
| Adjustable steering column | + |
| Electronic parking brake lever | + |
| Side mirror position memory | + |
| Adaptive cruise control | + |
Interior
| Leather interior | + |
|---|---|
| Illuminated vanity mirrors | + |
Wheels
| Rim diameter | 20 |
|---|---|
| Rim type | Alloy |
| Tires | 285/45R20 |
Technologies
| Adjustable speed limiter | + |
|---|
Climate and sound insulation
| Four-zone climate control | + |
|---|---|
| Heated front seats | + |
| Heated rear seats | + |
| Heated steering wheel | + |
Off-road
| Hill Hold Assist | + |
|---|
Seats
| Power front seats | + |
|---|---|
| Child seat anchors (LATCH/Isofix) | + |
| Seat memory | + |
| Front armrest | + |
| Rear armrest | + |
| Power driver lumbar adjustment | + |
Headlights and lighting
| Front fog lights | + |
|---|---|
| Automatic high/low beam switching | + |
| Headlight leveling | + |
| LED headlights | + |
| Rear fog lights | + |
| LED daytime running lights | + |
| Headlight washers | + |
Multimedia and instruments
| Bluetooth hands-free | + |
|---|---|
| Navigation system | + |
| Radio | + |
| Head-up display | + |
| USB | + |
| Number of speakers | 8 |
| Apple CarPlay / Android Auto | + |
| Touchscreen | + |
Trunk
| Power tailgate | + |
|---|---|
| Hands-free trunk opening | + |
Glass, mirrors and sunroof
| Heated side mirrors | + |
|---|---|
| Front power windows | + |
| Rear power windows | + |
| Panoramic roof | + |
| Power-adjustable side mirrors | + |
| Power-folding side mirrors | + |
| Heated windshield | + |
| Heated windshield washer fluid and headlight washers | + |
Visibility and parking
| Rear-view camera | + |
|---|---|
| Front parking sensors | + |
| Rear parking sensors | + |
| Park Assist | + |
Security
Electronic systems
| Anti-lock braking system (ABS) | + |
|---|---|
| Electronic stability control | + |
| Traction control | + |
| Lane keeping assist | + |
| Driver fatigue detection | + |
| Secondary collision warning | + |
| Engine drag torque control | + |
| Electronic differential lock | + |
| Front Assist emergency braking | + |
Anti-theft systems
| Immobilizer | + |
|---|---|
| Alarm system | + |
Airbags
| Driver airbag | + |
|---|---|
| Passenger airbag | + |
| Side airbags | + |
| Curtain airbags | + |
| Passenger airbag deactivation | + |
Volkswagen Touareg R questions
Short answers based on the specifications and photos available in this catalog.
What kind of engine does the 2020 Volkswagen Touareg R have?
The 2020 Touareg R uses a plug-in hybrid system consisting of a 3.0-liter turbocharged V6 gasoline engine and an electric motor. Together, they produce 462 horsepower and 700 Nm of torque. Power is sent to all four wheels via an eight-speed automatic transmission.
How fast is the Touareg R on electric power alone?
The SUV can drive on electricity at speeds of up to 140 km/h. Above this speed, or when heavy acceleration is required, the gasoline V6 engine will activate. The battery capacity is 14.1 kWh.
What safety and driver assistance features are available?
Standard driver assistance includes Front Assist, Lane Assist, active cruise control, and Park Assist with a backup camera. Optional upgrades include an infrared Night Vision system, a head-up display, and Travel Assist, which offers semi-automated driving functionality.
How do you distinguish the Touareg R from standard models?
The Touareg R features a black front grille, more aggressive bumpers with black inserts, and no unpainted plastic cladding on the lower body. It also features darkened rear lights, trapezoidal exhaust tips, and standard 20-inch wheels. Inside, the cabin has Vienna leather seats with 'R' logo embossing and contrast stitching.
Is the Touareg R equipped with all-wheel drive?
Yes, the Touareg R features a permanent four-wheel-drive system utilizing a central Torsen differential. This system can distribute up to 70 percent of torque to the front axle and up to 80 percent to the rear axle depending on traction conditions. It also features multiple selectable driving modes.
