Audi A1 Sportback specifications and photos

Audi A1 Sportback specifications are shown with trim options, key technical data, and a model photo gallery. Compare 22 configurations by engine size, power, seating, and transmission. The gallery includes 9 photos for visual reference.

Years 2015 - 2018
Body type hatchback
Trims 22
Photos 9

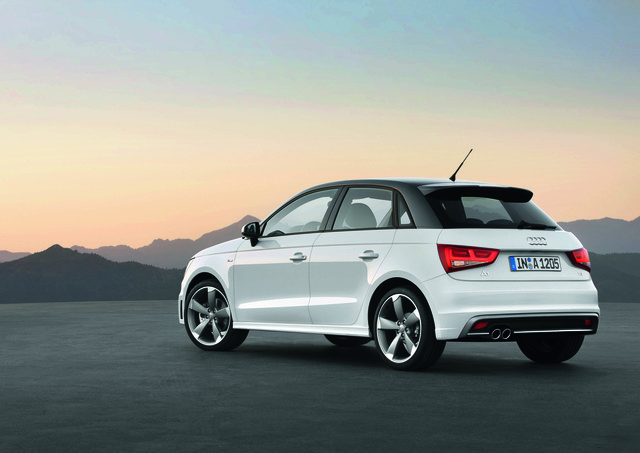

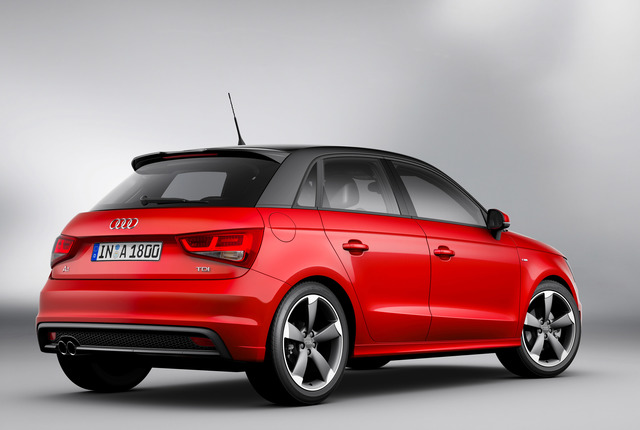

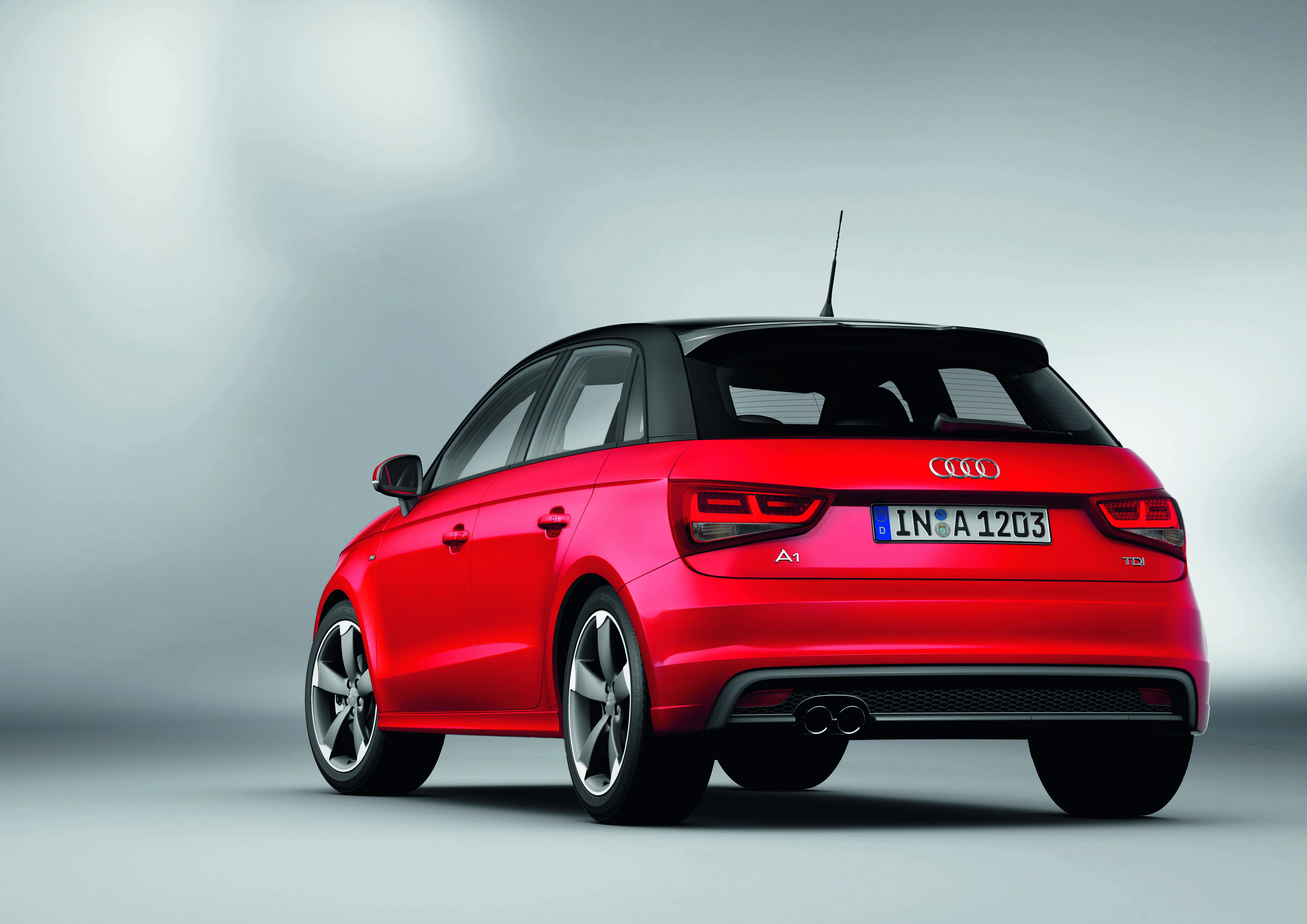

Rear view of Audi A1 Sportback 2015
Overview

Audi A1 Sportback at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Audi A1 Sportback page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 82-192 hp and 999-1798 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

  • Power: 82-192 hp
  • Engine displacement: 999-1798 cc
  • Transmissions: 5, 7, 6
  • Seating: 4 seats
Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 82-192 hp
Engine displacement 999-1798 cc
Seating 4 seats
Transmissions 5, 7, 6
Trim / modification Engine Power Seats Transmission
1.0 MT (82) 999 cc 82 hp 4 5
1.0 MT (95) 999 cc 95 hp 4 5
1.0 AT (95) 999 cc 116 hp 4 7
1.4 MT (125) 1395 cc 125 hp 4 6
1.4 AT (125) 1395 cc 125 hp 4 7
1.4 AT (150) 1395 cc 150 hp 4 7
1.8 AT (192) 1798 cc 192 hp 4 7
1.4 TDI MT (90) 1422 cc 90 hp 4 5
1.4 TDI AT (90) 1422 cc 90 hp 4 7
1.6 TDI MT (116) 1598 cc 116 hp 4 5
1.6 TDI AT (116) 1598 cc 116 hp 4 7
1.0 TFSI (82 h.p.) 5-speed manual 999 cc 82 hp 4 5-speed manual
1.0 TFSI (95 h.p.) 5-speed manual 999 cc 95 hp 4 5-speed manual
1.0 TFSI (116 HP) 7 S-tronic 999 cc 116 hp 4 7
1.4 TFSI (125 h.p.) 6-speed manual 1395 cc 125 hp 4 6-speed manual
1.4 TFSI (125 HP) 7 S-tronic 1395 cc 125 hp 4 7
1.4 TFSI (150 HP) 7 S-tronic 1395 cc 150 hp 4 7
1.8 TFSI (192 HP) 7 S-tronic 1798 cc 192 hp 4 7
1.4 TDI (90 hp) 5-speed 1422 cc 90 hp 4 5
1.4 TDI (90 HP) 7 S-tronic 1422 cc 90 hp 4 7
1.6 TDI (116 hp) 5-speed 1598 cc 116 hp 4 5
1.6 TDI (116 HP) 7 S-tronic 1598 cc 116 hp 4 7

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

1.0 MT (82) 1.0 MT (95) 1.0 AT (95) 1.4 MT (125) 1.4 AT (125) 1.4 AT (150) 1.8 AT (192) 1.4 TDI MT (90) 1.4 TDI AT (90) 1.6 TDI MT (116) 1.6 TDI AT (116) 1.0 TFSI (82 h.p.) 5-speed manual 1.0 TFSI (95 h.p.) 5-speed manual 1.0 TFSI (116 HP) 7 S-tronic 1.4 TFSI (125 h.p.) 6-speed manual 1.4 TFSI (125 HP) 7 S-tronic 1.4 TFSI (150 HP) 7 S-tronic 1.8 TFSI (192 HP) 7 S-tronic 1.4 TDI (90 hp) 5-speed 1.4 TDI (90 HP) 7 S-tronic 1.6 TDI (116 hp) 5-speed 1.6 TDI (116 HP) 7 S-tronic
1.0 MT (82) 40 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 999
Cylinders location In-line
Number of cylinders 3
Valves 12
Power, hp 82
Torque, Nm 160
RPM at max torque 1500-3500
Engine 1.0 TFSI
Compression 10.0
RPM at max power 3500-5500
Turbo +
Engine code CHZE (EA211)

Dimensions

Seats 4
Length mm 3973
Width 1906
Height mm 1422
Wheelbase mm 2469
Front track, mm 1477
Rear track, mm 1471
Kerb weight, kg 1135
Trunk capacity, L 270
Fuel tank, l 45
Turning circle, m 10.6
Width (without mirrors) mm 1746

Suspension

Type of front suspension Independent McPherson type with anti-roll bar
Rear suspension Torsion beam

Brake system

The front brakes Ventilated disc
Rear brakes Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.2
Fuel consumption (urban), l. 100 km 3.9
Fuel consumption (combined), l. 100 km 4.4
Acceleration (0-100 km/h), s 12.6
The maximum speed, km / h. 177
The rate of toxicity Euro VI

Transmission and drive

Number of gears 5
Drive Front
Transmission 5-speed manual
Gearbox Mechanics
1.0 MT (95) 39 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 999
Cylinders location In-line
Number of cylinders 3
Valves 12
Power, hp 95
Torque, Nm 160
RPM at max torque 1500-3500
Engine 1.0 TFSI
RPM at max power 5000-5500
Turbo +
Engine code CHZB (EA211)

Dimensions

Seats 4
Length mm 3973
Width 1906
Height mm 1422
Wheelbase mm 2469
Front track, mm 1477
Rear track, mm 1471
Kerb weight, kg 1135
Trunk capacity, L 270
Fuel tank, l 45
Turning circle, m 10.6
Width (without mirrors) mm 1746

Suspension

Type of front suspension Independent McPherson type with anti-roll bar
Rear suspension Torsion beam

Brake system

The front brakes Ventilated disc
Rear brakes Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.2
Fuel consumption (urban), l. 100 km 3.9
Fuel consumption (combined), l. 100 km 4.4
Acceleration (0-100 km/h), s 11.1
The maximum speed, km / h. 186
The rate of toxicity Euro VI

Transmission and drive

Number of gears 5
Drive Front
Transmission 5-speed manual
Gearbox Mechanics
1.0 AT (95) 41 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 999
Cylinders location In-line
Number of cylinders 3
Valves 12
Power, hp 116
Torque, Nm 200
RPM at max torque 2000-3500
Engine 1.0 TFSI
RPM at max power 5000-5500
Turbo +
Engine code CHZD/CHZJ (EA211)

Dimensions

Seats 4
Length mm 3973
Width 1906
Height mm 1422
Wheelbase mm 2469
Front track, mm 1477
Rear track, mm 1471
Kerb weight, kg 1165
Trunk capacity, L 270
Fuel tank, l 45
Turning circle, m 10.6
Width (without mirrors) mm 1746

Suspension

Type of front suspension Independent McPherson type with anti-roll bar
Rear suspension Torsion beam

Brake system

The front brakes Ventilated disc
Rear brakes Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.4
Fuel consumption (urban), l. 100 km 4
Fuel consumption (combined), l. 100 km 4.5
Acceleration (0-100 km/h), s 9.9
The maximum speed, km / h. 206
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 7
Drive Front
Transmission 7 S-tronic
Gearbox 2 clutch robot
Transmission manufacturer BorgWarner
1.4 MT (125) 39 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1395
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 125
Torque, Nm 200
RPM at max torque 1400-4000
Engine 1.4 TFSI
RPM at max power 5000
Turbo +
Engine code CZCA (EA211)

Dimensions

Seats 4
Length mm 3973
Width 1906
Height mm 1422
Wheelbase mm 2469
Front track, mm 1477
Rear track, mm 1471
Kerb weight, kg 1180
Trunk capacity, L 270
Fuel tank, l 45
Turning circle, m 10.6
Width (without mirrors) mm 1746

Suspension

Type of front suspension Independent McPherson type with anti-roll bar
Rear suspension Torsion beam

Brake system

The front brakes Ventilated disc
Rear brakes Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6.7
Fuel consumption (urban), l. 100 km 4.4
Fuel consumption (combined), l. 100 km 5.2
Acceleration (0-100 km/h), s 8.9
The maximum speed, km / h. 204
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
1.4 AT (125) 41 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1395
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 125
Torque, Nm 200
RPM at max torque 1400-4000
Engine 1.4 TFSI
RPM at max power 5000
Turbo +
Engine code CZCA (EA211)

Dimensions

Seats 4
Length mm 3973
Width 1906
Height mm 1422
Wheelbase mm 2469
Front track, mm 1477
Rear track, mm 1471
Kerb weight, kg 1215
Trunk capacity, L 270
Fuel tank, l 45
Turning circle, m 10.6
Width (without mirrors) mm 1746

Suspension

Type of front suspension Independent McPherson type with anti-roll bar
Rear suspension Torsion beam

Brake system

The front brakes Ventilated disc
Rear brakes Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6.3
Fuel consumption (urban), l. 100 km 4.4
Fuel consumption (combined), l. 100 km 5.1
Acceleration (0-100 km/h), s 8.9
The maximum speed, km / h. 204
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 7
Drive Front
Transmission 7 S-tronic
Gearbox 2 clutch robot
Transmission manufacturer BorgWarner
1.4 AT (150) 42 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1395
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 150
Torque, Nm 250
RPM at max torque 1500-3500
Engine 1.4 TFSI
Compression 10.0
RPM at max power 5000-6000
Turbo +
Engine code CZEA/CVNA (EA211)

Dimensions

Seats 4
Length mm 3973
Width 1906
Height mm 1422
Wheelbase mm 2469
Front track, mm 1477
Rear track, mm 1471
Kerb weight, kg 1230
Trunk capacity, L 270
Fuel tank, l 45
Turning circle, m 10.6
Width (without mirrors) mm 1746

Suspension

Type of front suspension Independent McPherson type with anti-roll bar
Rear suspension Torsion beam

Brake system

The front brakes Ventilated disc
Rear brakes Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6.1
Fuel consumption (urban), l. 100 km 4.4
Fuel consumption (combined), l. 100 km 5
Acceleration (0-100 km/h), s 7.9
The maximum speed, km / h. 215
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 7
Drive Front
Transmission 7 S-tronic
Gearbox 2 clutch robot
Transmission manufacturer BorgWarner
1.8 AT (192) 41 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1798
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 192
Torque, Nm 250
RPM at max torque 1250-5300
Engine 1.8 TFSI
RPM at max power 5400
Turbo +
Engine code DAJB (EA888)

Dimensions

Seats 4
Length mm 3973
Width 1906
Height mm 1422
Wheelbase mm 2469
Front track, mm 1477
Rear track, mm 1471
Kerb weight, kg 1280
Trunk capacity, L 270
Fuel tank, l 45
Turning circle, m 10.6
Width (without mirrors) mm 1746

Suspension

Type of front suspension Independent McPherson type with anti-roll bar
Rear suspension Torsion beam

Brake system

The front brakes Ventilated disc
Rear brakes Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7.4
Fuel consumption (urban), l. 100 km 4.9
Fuel consumption (combined), l. 100 km 5.8
Acceleration (0-100 km/h), s 6.9
The maximum speed, km / h. 234
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 7
Drive Front
Transmission 7 S-tronic
Gearbox 2 clutch robot
Transmission manufacturer BorgWarner
1.4 TDI MT (90) 39 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1422
Cylinders location In-line
Number of cylinders 3
Valves 12
Power, hp 90
Torque, Nm 230
RPM at max torque 1750-2500
Engine 1.4 TDI
RPM at max power 3000-3250
Turbo +
Engine code CUSB (EA288)

Dimensions

Seats 4
Length mm 3973
Width 1906
Height mm 1422
Wheelbase mm 2469
Front track, mm 1477
Rear track, mm 1471
Kerb weight, kg 1205
Trunk capacity, L 270
Fuel tank, l 45
Turning circle, m 10.6
Width (without mirrors) mm 1746

Suspension

Type of front suspension Independent McPherson type with anti-roll bar
Rear suspension Torsion beam

Brake system

The front brakes Ventilated disc
Rear brakes Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 4.3
Fuel consumption (urban), l. 100 km 3.6
Fuel consumption (combined), l. 100 km 3.9
Acceleration (0-100 km/h), s 11.6
The maximum speed, km / h. 182
The rate of toxicity Euro VI

Transmission and drive

Number of gears 5
Drive Front
Transmission 5-speed manual
Gearbox Mechanics
1.4 TDI AT (90) 41 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1422
Cylinders location In-line
Number of cylinders 3
Valves 12
Power, hp 90
Torque, Nm 230
RPM at max torque 1750-2500
Engine 1.4 TDI
RPM at max power 3000-3250
Turbo +
Engine code CUSB (EA288)

Dimensions

Seats 4
Length mm 3973
Width 1906
Height mm 1422
Wheelbase mm 2469
Front track, mm 1477
Rear track, mm 1471
Kerb weight, kg 1220
Trunk capacity, L 270
Fuel tank, l 45
Turning circle, m 10.6
Width (without mirrors) mm 1746

Suspension

Type of front suspension Independent McPherson type with anti-roll bar
Rear suspension Torsion beam

Brake system

The front brakes Ventilated disc
Rear brakes Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 4.4
Fuel consumption (urban), l. 100 km 3.7
Fuel consumption (combined), l. 100 km 4
Acceleration (0-100 km/h), s 11.6
The maximum speed, km / h. 182
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 7
Drive Front
Transmission 7 S-tronic
Gearbox 2 clutch robot
Transmission manufacturer BorgWarner
1.6 TDI MT (116) 39 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1598
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 116
Torque, Nm 250
RPM at max torque 1500-3000
Engine 1.6 TDI
RPM at max power 3500-4000
Turbo +
Engine code CXMA/DDYA (EA288)

Dimensions

Seats 4
Length mm 3973
Width 1906
Height mm 1422
Wheelbase mm 2469
Front track, mm 1477
Rear track, mm 1471
Kerb weight, kg 1250
Trunk capacity, L 270
Fuel tank, l 45
Turning circle, m 10.6
Width (without mirrors) mm 1746

Suspension

Type of front suspension Independent McPherson type with anti-roll bar
Rear suspension Torsion beam

Brake system

The front brakes Ventilated disc
Rear brakes Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 4.7
Fuel consumption (urban), l. 100 km 3.4
Fuel consumption (combined), l. 100 km 3.9
Acceleration (0-100 km/h), s 9.5
The maximum speed, km / h. 200
The rate of toxicity Euro VI

Transmission and drive

Number of gears 5
Drive Front
Transmission 5-speed manual
Gearbox Mechanics
1.6 TDI AT (116) 41 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1598
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 116
Torque, Nm 250
RPM at max torque 1500-3000
Engine 1.6 TDI
RPM at max power 3500-4000
Turbo +
Engine code CXMA/DDYA (EA288)

Dimensions

Seats 4
Length mm 3973
Width 1906
Height mm 1422
Wheelbase mm 2469
Front track, mm 1477
Rear track, mm 1471
Kerb weight, kg 1275
Trunk capacity, L 270
Fuel tank, l 45
Turning circle, m 10.6
Width (without mirrors) mm 1746

Suspension

Type of front suspension Independent McPherson type with anti-roll bar
Rear suspension Torsion beam

Brake system

The front brakes Ventilated disc
Rear brakes Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 4.6
Fuel consumption (urban), l. 100 km 3.6
Fuel consumption (combined), l. 100 km 4
Acceleration (0-100 km/h), s 9.5
The maximum speed, km / h. 200
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 7
Drive Front
Transmission 7 S-tronic
Gearbox 2 clutch robot
Transmission manufacturer BorgWarner
1.0 TFSI (82 h.p.) 5-speed manual 35 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 999
Cylinders location In-line
Number of cylinders 3
Valves 12
Power, hp 82
Torque, Nm 160
RPM at max torque 1500-3500
Engine 1.0 TFSI
Compression 10.0
RPM at max power 3500-5500
Turbo +
Engine code CHZE (EA211)

Dimensions

Seats 4
Length mm 3973
Width 1906
Height mm 1422
Wheelbase mm 2469
Front track, mm 1477
Rear track, mm 1471
Trunk capacity, L 270
Fuel tank, l 45
Turning circle, m 10.6
Width (without mirrors) mm 1746

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.2
Fuel consumption (urban), l. 100 km 3.9
Fuel consumption (combined), l. 100 km 4.4
Acceleration (0-100 km/h), s 12.6
The maximum speed, km / h. 177
The rate of toxicity Euro VI

Transmission and drive

Number of gears 5
Drive Front
Transmission 5-speed manual
Gearbox Mechanics
1.0 TFSI (95 h.p.) 5-speed manual 34 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 999
Cylinders location In-line
Number of cylinders 3
Valves 12
Power, hp 95
Torque, Nm 160
RPM at max torque 1500-3500
Engine 1.0 TFSI
RPM at max power 5000-5500
Turbo +
Engine code CHZB (EA211)

Dimensions

Seats 4
Length mm 3973
Width 1906
Height mm 1422
Wheelbase mm 2469
Front track, mm 1477
Rear track, mm 1471
Trunk capacity, L 270
Fuel tank, l 45
Turning circle, m 10.6
Width (without mirrors) mm 1746

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.2
Fuel consumption (urban), l. 100 km 3.9
Fuel consumption (combined), l. 100 km 4.4
Acceleration (0-100 km/h), s 11.1
The maximum speed, km / h. 186
The rate of toxicity Euro VI

Transmission and drive

Number of gears 5
Drive Front
Transmission 5-speed manual
Gearbox Mechanics
1.0 TFSI (116 HP) 7 S-tronic 36 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 999
Cylinders location In-line
Number of cylinders 3
Valves 12
Power, hp 116
Torque, Nm 200
RPM at max torque 2000-3500
Engine 1.0 TFSI
RPM at max power 5000-5500
Turbo +
Engine code CHZD/CHZJ (EA211)

Dimensions

Seats 4
Length mm 3973
Width 1906
Height mm 1422
Wheelbase mm 2469
Front track, mm 1477
Rear track, mm 1471
Trunk capacity, L 270
Fuel tank, l 45
Turning circle, m 10.6
Width (without mirrors) mm 1746

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.4
Fuel consumption (urban), l. 100 km 4
Fuel consumption (combined), l. 100 km 4.5
Acceleration (0-100 km/h), s 9.9
The maximum speed, km / h. 206
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 7
Drive Front
Transmission 7 S-tronic
Gearbox 2 clutch robot
Transmission manufacturer BorgWarner
1.4 TFSI (125 h.p.) 6-speed manual 34 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1395
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 125
Torque, Nm 200
RPM at max torque 1400-4000
Engine 1.4 TFSI
RPM at max power 5000
Turbo +
Engine code CZCA (EA211)

Dimensions

Seats 4
Length mm 3973
Width 1906
Height mm 1422
Wheelbase mm 2469
Front track, mm 1477
Rear track, mm 1471
Trunk capacity, L 270
Fuel tank, l 45
Turning circle, m 10.6
Width (without mirrors) mm 1746

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6.7
Fuel consumption (urban), l. 100 km 4.4
Fuel consumption (combined), l. 100 km 5.2
Acceleration (0-100 km/h), s 8.9
The maximum speed, km / h. 204
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
1.4 TFSI (125 HP) 7 S-tronic 36 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1395
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 125
Torque, Nm 200
RPM at max torque 1400-4000
Engine 1.4 TFSI
RPM at max power 5000
Turbo +
Engine code CZCA (EA211)

Dimensions

Seats 4
Length mm 3973
Width 1906
Height mm 1422
Wheelbase mm 2469
Front track, mm 1477
Rear track, mm 1471
Trunk capacity, L 270
Fuel tank, l 45
Turning circle, m 10.6
Width (without mirrors) mm 1746

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6.3
Fuel consumption (urban), l. 100 km 4.4
Fuel consumption (combined), l. 100 km 5.1
Acceleration (0-100 km/h), s 8.9
The maximum speed, km / h. 204
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 7
Drive Front
Transmission 7 S-tronic
Gearbox 2 clutch robot
Transmission manufacturer BorgWarner
1.4 TFSI (150 HP) 7 S-tronic 37 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1395
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 150
Torque, Nm 250
RPM at max torque 1500-3500
Engine 1.4 TFSI
Compression 10.0
RPM at max power 5000-6000
Turbo +
Engine code CZEA/CVNA (EA211)

Dimensions

Seats 4
Length mm 3973
Width 1906
Height mm 1422
Wheelbase mm 2469
Front track, mm 1477
Rear track, mm 1471
Trunk capacity, L 270
Fuel tank, l 45
Turning circle, m 10.6
Width (without mirrors) mm 1746

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6.1
Fuel consumption (urban), l. 100 km 4.4
Fuel consumption (combined), l. 100 km 5
Acceleration (0-100 km/h), s 7.9
The maximum speed, km / h. 215
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 7
Drive Front
Transmission 7 S-tronic
Gearbox 2 clutch robot
Transmission manufacturer BorgWarner
1.8 TFSI (192 HP) 7 S-tronic 36 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1798
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 192
Torque, Nm 250
RPM at max torque 1250-5300
Engine 1.8 TFSI
RPM at max power 5400
Turbo +
Engine code DAJB (EA888)

Dimensions

Seats 4
Length mm 3973
Width 1906
Height mm 1422
Wheelbase mm 2469
Front track, mm 1477
Rear track, mm 1471
Trunk capacity, L 270
Fuel tank, l 45
Turning circle, m 10.6
Width (without mirrors) mm 1746

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7.4
Fuel consumption (urban), l. 100 km 4.9
Fuel consumption (combined), l. 100 km 5.8
Acceleration (0-100 km/h), s 6.9
The maximum speed, km / h. 234
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 7
Drive Front
Transmission 7 S-tronic
Gearbox 2 clutch robot
Transmission manufacturer BorgWarner
1.4 TDI (90 hp) 5-speed 34 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1422
Cylinders location In-line
Number of cylinders 3
Valves 12
Power, hp 90
Torque, Nm 230
RPM at max torque 1750-2500
Engine 1.4 TDI
RPM at max power 3000-3250
Turbo +
Engine code CUSB (EA288)

Dimensions

Seats 4
Length mm 3973
Width 1906
Height mm 1422
Wheelbase mm 2469
Front track, mm 1477
Rear track, mm 1471
Trunk capacity, L 270
Fuel tank, l 45
Turning circle, m 10.6
Width (without mirrors) mm 1746

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 4.3
Fuel consumption (urban), l. 100 km 3.6
Fuel consumption (combined), l. 100 km 3.9
Acceleration (0-100 km/h), s 11.6
The maximum speed, km / h. 182
The rate of toxicity Euro VI

Transmission and drive

Number of gears 5
Drive Front
Transmission 5-speed manual
Gearbox Mechanics
1.4 TDI (90 HP) 7 S-tronic 36 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1422
Cylinders location In-line
Number of cylinders 3
Valves 12
Power, hp 90
Torque, Nm 230
RPM at max torque 1750-2500
Engine 1.4 TDI
RPM at max power 3000-3250
Turbo +
Engine code CUSB (EA288)

Dimensions

Seats 4
Length mm 3973
Width 1906
Height mm 1422
Wheelbase mm 2469
Front track, mm 1477
Rear track, mm 1471
Trunk capacity, L 270
Fuel tank, l 45
Turning circle, m 10.6
Width (without mirrors) mm 1746

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 4.4
Fuel consumption (urban), l. 100 km 3.7
Fuel consumption (combined), l. 100 km 4
Acceleration (0-100 km/h), s 11.6
The maximum speed, km / h. 182
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 7
Drive Front
Transmission 7 S-tronic
Gearbox 2 clutch robot
Transmission manufacturer BorgWarner
1.6 TDI (116 hp) 5-speed 34 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1598
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 116
Torque, Nm 250
RPM at max torque 1500-3000
Engine 1.6 TDI
RPM at max power 3500-4000
Turbo +
Engine code CXMA/DDYA (EA288)

Dimensions

Seats 4
Length mm 3973
Width 1906
Height mm 1422
Wheelbase mm 2469
Front track, mm 1477
Rear track, mm 1471
Trunk capacity, L 270
Fuel tank, l 45
Turning circle, m 10.6
Width (without mirrors) mm 1746

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 4.7
Fuel consumption (urban), l. 100 km 3.4
Fuel consumption (combined), l. 100 km 3.9
Acceleration (0-100 km/h), s 9.5
The maximum speed, km / h. 200
The rate of toxicity Euro VI

Transmission and drive

Number of gears 5
Drive Front
Transmission 5-speed manual
Gearbox Mechanics
1.6 TDI (116 HP) 7 S-tronic 36 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1598
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 116
Torque, Nm 250
RPM at max torque 1500-3000
Engine 1.6 TDI
RPM at max power 3500-4000
Turbo +
Engine code CXMA/DDYA (EA288)

Dimensions

Seats 4
Length mm 3973
Width 1906
Height mm 1422
Wheelbase mm 2469
Front track, mm 1477
Rear track, mm 1471
Trunk capacity, L 270
Fuel tank, l 45
Turning circle, m 10.6
Width (without mirrors) mm 1746

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 4.6
Fuel consumption (urban), l. 100 km 3.6
Fuel consumption (combined), l. 100 km 4
Acceleration (0-100 km/h), s 9.5
The maximum speed, km / h. 200
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 7
Drive Front
Transmission 7 S-tronic
Gearbox 2 clutch robot
Transmission manufacturer BorgWarner
FAQ

Audi A1 Sportback questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Audi A1 Sportback?

This page lists 22 trims for the Audi A1 Sportback, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Audi A1 Sportback?

The listed configurations show a power range of 82-192 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Audi A1 Sportback?

The available specification data shows engine displacement from 999-1798 cc across the trims listed on this page.

Which transmissions are listed for the Audi A1 Sportback?

The transmission options currently shown for this model are: 5, 7, 6. Open a trim section to see the full data for a specific configuration.

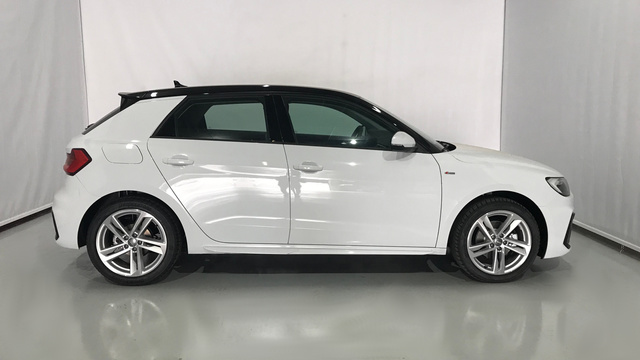

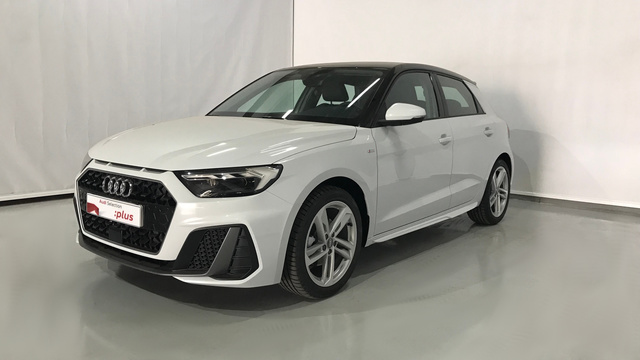

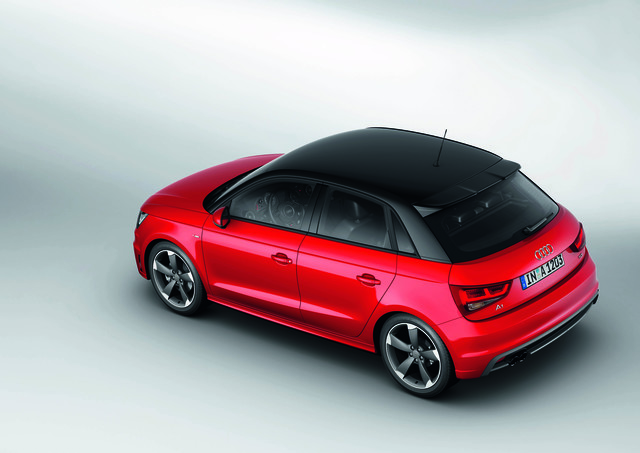

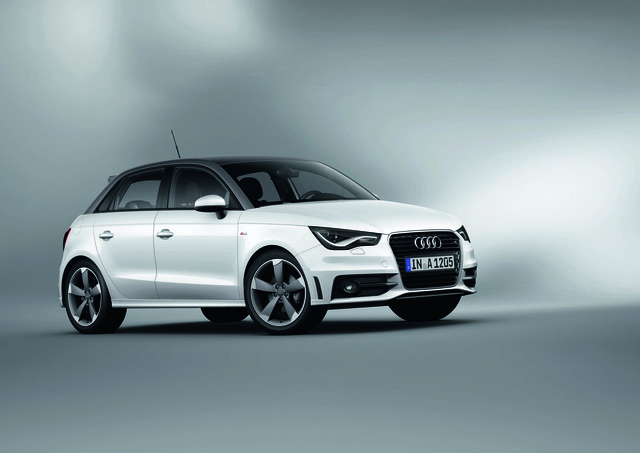

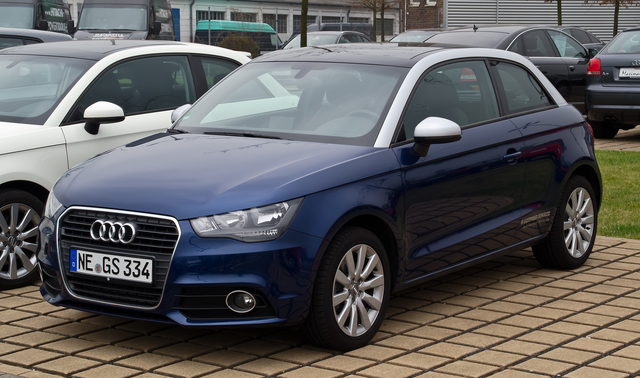

Are there photos for the Audi A1 Sportback?

Yes. The gallery includes 9 photos for the Audi A1 Sportback, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.

Explore more

Continue exploring Audi

Return to Audi models, browse the gallery, or compare the trims listed above.

All Audi models A1 Sportback generations View photo gallery Read FAQ Compare trims
