Audi A3 Cabriolet specifications and photos

Audi A3 Cabriolet specifications are shown with trim options, key technical data, and a model photo gallery. Compare 14 configurations by engine size, power, seating, and transmission. The gallery includes 23 photos for visual reference.

Years 2016

Body type cabriolet

Trims 14

Photos 23

Overview

Audi A3 Cabriolet at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Audi A3 Cabriolet page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 116-190 hp and 1395-1984 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

Power: 116-190 hp
Engine displacement: 1395-1984 cc
Transmissions: 6, 7, 6-speed manual
Seating: 4 seats

Research hub

Photos, trims and specifications for Audi A3 Cabriolet

This model page brings gallery images, trim comparison, and detailed technical data together for the 2016 generation.

Open photo gallery 23 images Compare trims 14 configurations View detailed specs 1395-1984 cc Explore related pages Audi and similar models

Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 116-190 hp

Engine displacement 1395-1984 cc

Seating 4 seats

Transmissions 6, 7, 6-speed manual

Trim / modification	Engine	Power	Seats	Transmission
1.4 MT	1498 cc	150 hp	4	6
1.4 AT	1498 cc	150 hp	4	7
2.0 TDI MT	1968 cc	150 hp	4	6
2.0 TDI MT AWD	1968 cc	150 hp	4	6
2.0 TDI AT	1968 cc	150 hp	4	7
1.4 TFSI (116 h.p.) 6-speed manual	1395 cc	116 hp	4	6-speed manual
1.4 TFSI (116 h.p.) 7 S-tronic	1395 cc	116 hp	4	7
35 TFSI	1498 cc	150 hp	4	6
35 TFSI	1498 cc	150 hp	4	7
40 TFSI quattro	1984 cc	190 hp	4	7
2.0 TDI (150 hp) 6-speed	1968 cc	150 hp	4	6
2.0 TDI (150 hp) 6-speed 4x4	1968 cc	150 hp	4	6
2.0 TDI (150 HP) 7 S-tronic	1968 cc	150 hp	4	7
2.0 TDi (184 HP) 7 S-tronic 4x4	1968 cc	184 hp	4	7

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Gallery

Audi A3 Cabriolet photo gallery

23 images are collected here with the main specifications and trim data for this model.

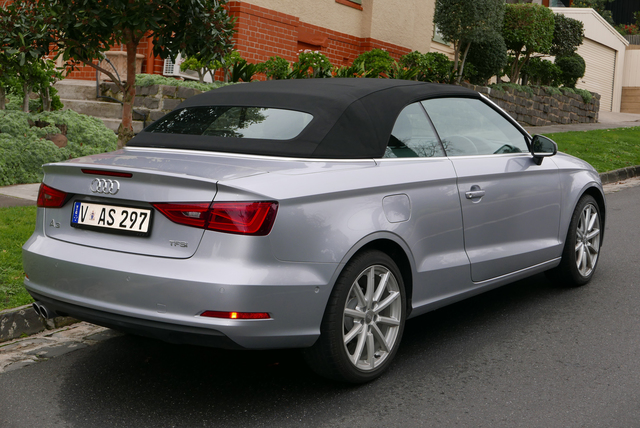

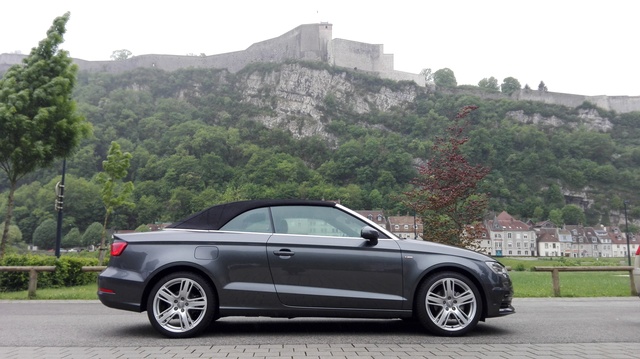

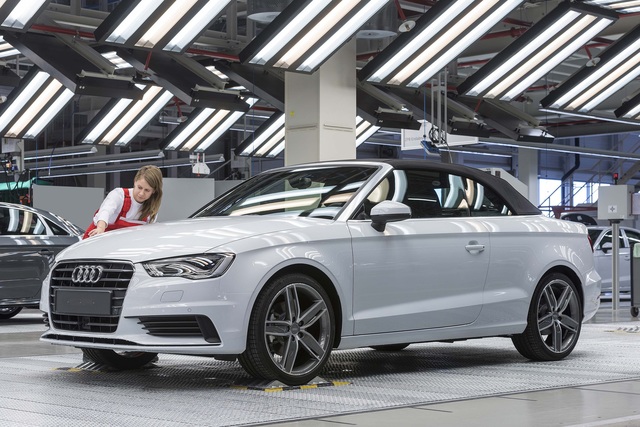

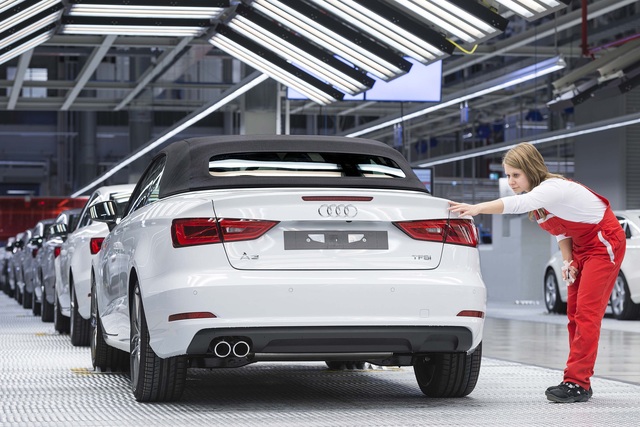

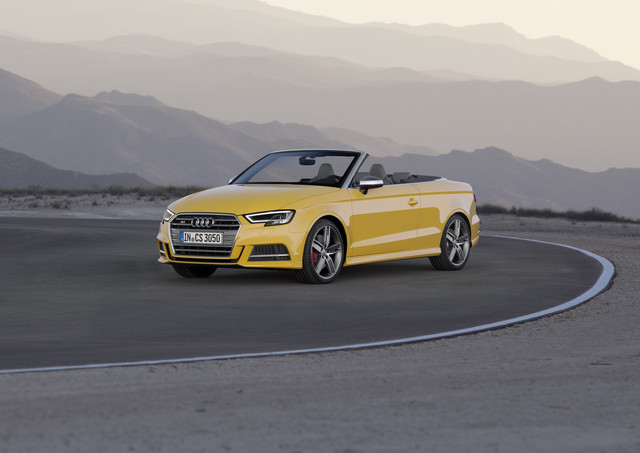

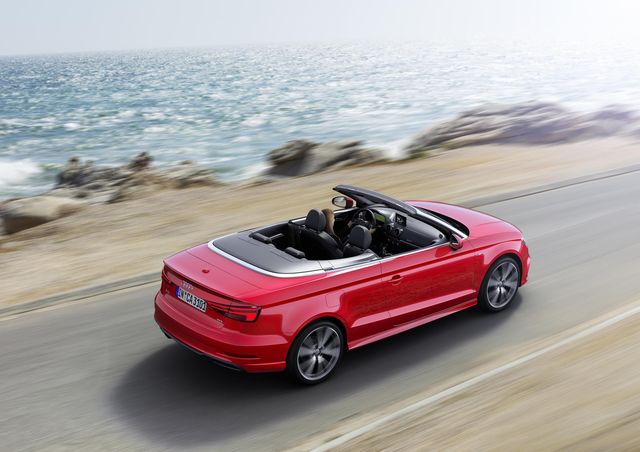

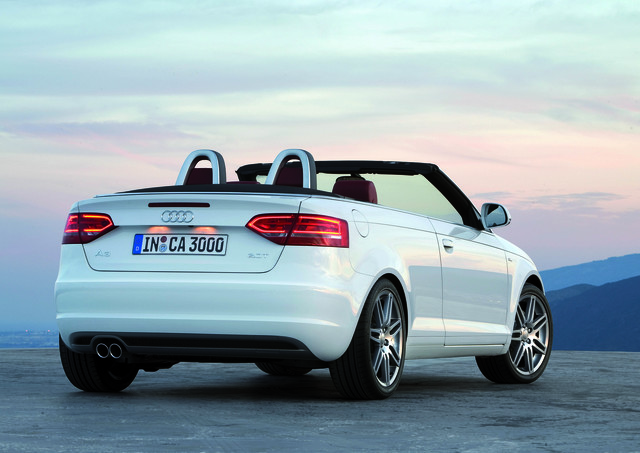

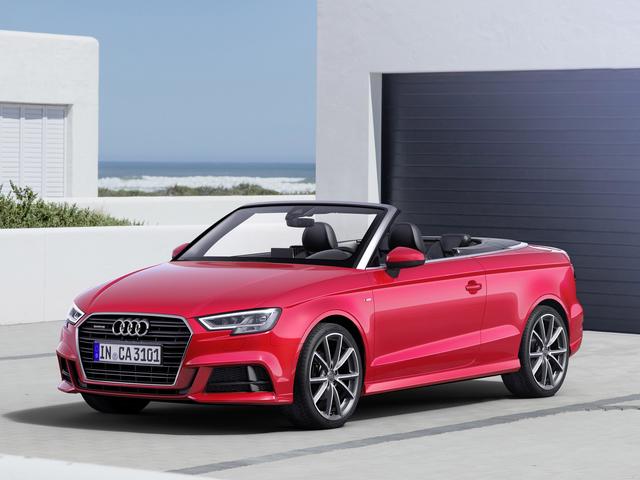

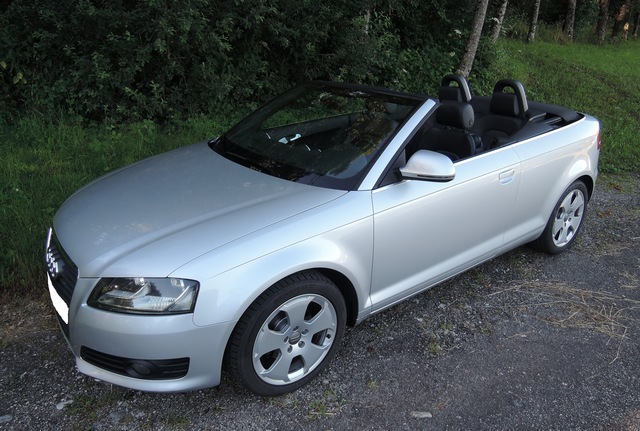

Photo Audi A3 Cabriolet

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

1.4 MT 1.4 AT 2.0 TDI MT 2.0 TDI MT AWD 2.0 TDI AT 1.4 TFSI (116 h.p.) 6-speed manual 1.4 TFSI (116 h.p.) 7 S-tronic 35 TFSI 35 TFSI 40 TFSI quattro 2.0 TDI (150 hp) 6-speed 2.0 TDI (150 hp) 6-speed 4x4 2.0 TDI (150 HP) 7 S-tronic 2.0 TDi (184 HP) 7 S-tronic 4x4

1.4 MT 43 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1498
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	150
Torque, Nm	250
RPM at max torque	1500-3500
Engine	1.5 TFSI
RPM at max power	5000-6000
Turbo	+
Engine code	DADA (EA211)

Dimensions

Seats	4
Length mm	4423
Width	1960
Height mm	1409
Wheelbase mm	2595
Front track, mm	1555
Rear track, mm	1526
Kerb weight, kg	1450
Trunk capacity, L	320
Fuel tank, l	50
Turning circle, m	10.9
Gross weight, kg	1875
Width (without mirrors) mm	1793

Suspension

Type of front suspension	Independent McPherson type with anti-roll bar
Rear suspension	Independent, subframe, tube stabilizer

Brake system

The front brakes	Ventilated disc
Rear brakes	Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	6.3
Fuel consumption (urban), l. 100 km	4.5
Fuel consumption (combined), l. 100 km	5.2
Acceleration (0-100 km/h), s	8.9
The maximum speed, km / h.	222
The rate of toxicity	Euro VI

Transmission and drive

Number of gears	6
Drive	Front
Transmission	6-speed manual
Gearbox	Mechanics

Equipment

Wheels

Disc diameter	16
Rim type	Alloy
Tires	205/55R16

1.4 AT 45 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1498
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	150
Torque, Nm	250
RPM at max torque	1500-3500
Engine	1.5 TFSI
RPM at max power	5000-6000
Turbo	+
Engine code	DADA (EA211)

Dimensions

Seats	4
Length mm	4423
Width	1960
Height mm	1409
Wheelbase mm	2595
Front track, mm	1555
Rear track, mm	1526
Kerb weight, kg	1470
Trunk capacity, L	320
Fuel tank, l	50
Turning circle, m	10.9
Gross weight, kg	1890
Width (without mirrors) mm	1793

Suspension

Type of front suspension	Independent McPherson type with anti-roll bar
Rear suspension	Independent, subframe, tube stabilizer

Brake system

The front brakes	Ventilated disc
Rear brakes	Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	6.4
Fuel consumption (urban), l. 100 km	4.6
Fuel consumption (combined), l. 100 km	5.2
Acceleration (0-100 km/h), s	8.9
The maximum speed, km / h.	222
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	7
Drive	Front
Transmission	7 S-tronic
Gearbox	2 clutch robot
Transmission manufacturer	BorgWarner

Equipment

Wheels

Disc diameter	16
Rim type	Alloy
Tires	205/55R16

2.0 TDI MT 44 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1968
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	150
Torque, Nm	340
RPM at max torque	1750-3000
Engine	2.0 TDI
Compression	16.2
RPM at max power	3500-4000
Turbo	+
Engine code	CKFC/DBGA/DEJA/DFFA

Dimensions

Seats	4
Length mm	4423
Width	1960
Height mm	1409
Wheelbase mm	2595
Front track, mm	1555
Rear track, mm	1526
Kerb weight, kg	1535
Trunk capacity, L	320
Fuel tank, l	50
Turning circle, m	10.9
Gross weight, kg	1960
Width (without mirrors) mm	1793

Suspension

Type of front suspension	Independent McPherson type with anti-roll bar
Rear suspension	Independent, subframe, tube stabilizer

Brake system

The front brakes	Ventilated disc
Rear brakes	Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	5.4
Fuel consumption (urban), l. 100 km	4.1
Fuel consumption (combined), l. 100 km	4.6
Acceleration (0-100 km/h), s	8.9
The maximum speed, km / h.	244
The rate of toxicity	Euro VI

Transmission and drive

Number of gears	6
Drive	Front
Transmission	6-speed manual
Gearbox	Mechanics

Equipment

Wheels

Disc diameter	16
Rim type	Alloy
Tires	205/55R16

2.0 TDI MT AWD 44 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1968
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	150
Torque, Nm	340
RPM at max torque	1750-3000
Engine	2.0 TDI
Compression	16.2
RPM at max power	3500-4000
Turbo	+
Engine code	CKFC/DBGA/DEJA/DFFA

Dimensions

Seats	4
Length mm	4423
Width	1960
Height mm	1409
Wheelbase mm	2595
Front track, mm	1555
Rear track, mm	1526
Kerb weight, kg	1615
Trunk capacity, L	320
Fuel tank, l	50
Turning circle, m	10.9
Gross weight, kg	2040
Width (without mirrors) mm	1793

Suspension

Type of front suspension	Independent McPherson type with anti-roll bar
Rear suspension	Independent, subframe, tube stabilizer

Brake system

The front brakes	Ventilated disc
Rear brakes	Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	6.1
Fuel consumption (urban), l. 100 km	4.5
Fuel consumption (combined), l. 100 km	5.1
Acceleration (0-100 km/h), s	8.8
The maximum speed, km / h.	220
The rate of toxicity	Euro VI

Transmission and drive

Number of gears	6
Drive	Full
Transmission	6-speed manual
Gearbox	Mechanics

Equipment

Wheels

Disc diameter	16
Rim type	Alloy
Tires	205/55R16

2.0 TDI AT 46 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1968
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	150
Torque, Nm	340
RPM at max torque	1750-3000
Engine	2.0 TDI
Compression	16.2
RPM at max power	3500-4000
Turbo	+
Engine code	CKFC/DBGA/DEJA/DFFA

Dimensions

Seats	4
Length mm	4423
Width	1960
Height mm	1409
Wheelbase mm	2595
Front track, mm	1555
Rear track, mm	1526
Kerb weight, kg	1555
Trunk capacity, L	320
Fuel tank, l	50
Turning circle, m	10.9
Gross weight, kg	1980
Width (without mirrors) mm	1793

Suspension

Type of front suspension	Independent McPherson type with anti-roll bar
Rear suspension	Independent, subframe, tube stabilizer

Brake system

The front brakes	Ventilated disc
Rear brakes	Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	5.7
Fuel consumption (urban), l. 100 km	4.5
Fuel consumption (combined), l. 100 km	4.9
Acceleration (0-100 km/h), s	8.8
The maximum speed, km / h.	224
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	7
Drive	Front
Transmission	7 S-tronic
Gearbox	2 clutch robot
Transmission manufacturer	BorgWarner

Equipment

Wheels

Disc diameter	16
Rim type	Alloy
Tires	205/55R16

1.4 TFSI (116 h.p.) 6-speed manual 36 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1395
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	116
Torque, Nm	200
RPM at max torque	1400-3500
Engine	1.4 TFSI
RPM at max power	5000-55000
Turbo	+
Engine code	CZCC (EA211)

Dimensions

Seats	4
Length mm	4423
Width	1960
Height mm	1409
Wheelbase mm	2595
Front track, mm	1555
Rear track, mm	1526
Kerb weight, kg	1480
Trunk capacity, L	320
Fuel tank, l	50
Turning circle, m	10.9
Gross weight, kg	1880
Width (without mirrors) mm	1793

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	7.1
Fuel consumption (urban), l. 100 km	4.7
Fuel consumption (combined), l. 100 km	5.6
Acceleration (0-100 km/h), s	10.6
The maximum speed, km / h.	203
The rate of toxicity	Euro VI

Transmission and drive

Number of gears	6
Drive	Front
Transmission	6-speed manual
Gearbox	Mechanics

1.4 TFSI (116 h.p.) 7 S-tronic 38 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1395
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	116
Torque, Nm	200
RPM at max torque	1400-3500
Engine	1.4 TFSI
RPM at max power	5000-55000
Turbo	+
Engine code	CZCC (EA211)

Dimensions

Seats	4
Length mm	4423
Width	1960
Height mm	1409
Wheelbase mm	2595
Front track, mm	1555
Rear track, mm	1526
Kerb weight, kg	1480
Trunk capacity, L	320
Fuel tank, l	50
Turning circle, m	10.9
Gross weight, kg	1880
Width (without mirrors) mm	1793

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	6.9
Fuel consumption (urban), l. 100 km	4.4
Fuel consumption (combined), l. 100 km	5.3
Acceleration (0-100 km/h), s	10.6
The maximum speed, km / h.	203
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	7
Drive	Front
Transmission	7 S-tronic
Gearbox	2 clutch robot
Transmission manufacturer	BorgWarner

35 TFSI 36 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1498
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	150
Torque, Nm	250
RPM at max torque	1500-3500
Engine	1.5 TFSI
RPM at max power	5000-6000
Turbo	+
Engine code	DADA (EA211)

Dimensions

Seats	4
Length mm	4423
Width	1960
Height mm	1409
Wheelbase mm	2595
Front track, mm	1555
Rear track, mm	1526
Kerb weight, kg	1480
Trunk capacity, L	320
Fuel tank, l	50
Turning circle, m	10.9
Gross weight, kg	1880
Width (without mirrors) mm	1793

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	6.3
Fuel consumption (urban), l. 100 km	4.5
Fuel consumption (combined), l. 100 km	5.2
Acceleration (0-100 km/h), s	8.9
The maximum speed, km / h.	222
The rate of toxicity	Euro VI

Transmission and drive

Number of gears	6
Drive	Front
Transmission	6-speed manual
Gearbox	Mechanics

35 TFSI 38 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1498
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	150
Torque, Nm	250
RPM at max torque	1500-3500
Engine	1.5 TFSI
RPM at max power	5000-6000
Turbo	+
Engine code	DADA (EA211)

Dimensions

Seats	4
Length mm	4423
Width	1960
Height mm	1409
Wheelbase mm	2595
Front track, mm	1555
Rear track, mm	1526
Kerb weight, kg	1480
Trunk capacity, L	320
Fuel tank, l	50
Turning circle, m	10.9
Gross weight, kg	1880
Width (without mirrors) mm	1793

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	6.4
Fuel consumption (urban), l. 100 km	4.6
Fuel consumption (combined), l. 100 km	5.2
Acceleration (0-100 km/h), s	8.9
The maximum speed, km / h.	222
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	7
Drive	Front
Transmission	7 S-tronic
Gearbox	2 clutch robot
Transmission manufacturer	BorgWarner

40 TFSI quattro 38 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1984
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	190
Torque, Nm	320
RPM at max torque	1500-4180
Engine	2.0 TFSI
RPM at max power	4200-6000
Turbo	+
Engine code	CZPB/CVKB (EA888)

Dimensions

Seats	4
Length mm	4423
Width	1960
Height mm	1409
Wheelbase mm	2595
Front track, mm	1555
Rear track, mm	1526
Kerb weight, kg	1480
Trunk capacity, L	320
Fuel tank, l	50
Turning circle, m	10.9
Gross weight, kg	1880
Width (without mirrors) mm	1793

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	7.8
Fuel consumption (urban), l. 100 km	5.4
Fuel consumption (combined), l. 100 km	6.3
Acceleration (0-100 km/h), s	6.9
The maximum speed, km / h.	242
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	7
Drive	Full
Transmission	7 S-tronic
Gearbox	2 clutch robot
Transmission manufacturer	BorgWarner

2.0 TDI (150 hp) 6-speed 37 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1968
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	150
Torque, Nm	340
RPM at max torque	1750-3000
Engine	2.0 TDI
Compression	16.2
RPM at max power	3500-4000
Turbo	+
Engine code	CKFC/DBGA/DEJA/DFFA

Dimensions

Seats	4
Length mm	4423
Width	1960
Height mm	1409
Wheelbase mm	2595
Front track, mm	1555
Rear track, mm	1526
Kerb weight, kg	1480
Trunk capacity, L	320
Fuel tank, l	50
Turning circle, m	10.9
Gross weight, kg	1880
Width (without mirrors) mm	1793

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	5.4
Fuel consumption (urban), l. 100 km	4.1
Fuel consumption (combined), l. 100 km	4.6
Acceleration (0-100 km/h), s	8.9
The maximum speed, km / h.	244
The rate of toxicity	Euro VI

Transmission and drive

Number of gears	6
Drive	Front
Transmission	6-speed manual
Gearbox	Mechanics

2.0 TDI (150 hp) 6-speed 4x4 37 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1968
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	150
Torque, Nm	340
RPM at max torque	1750-3000
Engine	2.0 TDI
Compression	16.2
RPM at max power	3500-4000
Turbo	+
Engine code	CKFC/DBGA/DEJA/DFFA

Dimensions

Seats	4
Length mm	4423
Width	1960
Height mm	1409
Wheelbase mm	2595
Front track, mm	1555
Rear track, mm	1526
Kerb weight, kg	1480
Trunk capacity, L	320
Fuel tank, l	50
Turning circle, m	10.9
Gross weight, kg	1880
Width (without mirrors) mm	1793

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	6.1
Fuel consumption (urban), l. 100 km	4.5
Fuel consumption (combined), l. 100 km	5.1
Acceleration (0-100 km/h), s	8.8
The maximum speed, km / h.	220
The rate of toxicity	Euro VI

Transmission and drive

Number of gears	6
Drive	Full
Transmission	6-speed manual
Gearbox	Mechanics

2.0 TDI (150 HP) 7 S-tronic 39 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1968
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	150
Torque, Nm	340
RPM at max torque	1750-3000
Engine	2.0 TDI
Compression	16.2
RPM at max power	3500-4000
Turbo	+
Engine code	CKFC/DBGA/DEJA/DFFA

Dimensions

Seats	4
Length mm	4423
Width	1960
Height mm	1409
Wheelbase mm	2595
Front track, mm	1555
Rear track, mm	1526
Kerb weight, kg	1480
Trunk capacity, L	320
Fuel tank, l	50
Turning circle, m	10.9
Gross weight, kg	1880
Width (without mirrors) mm	1793

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	5.7
Fuel consumption (urban), l. 100 km	4.5
Fuel consumption (combined), l. 100 km	4.9
Acceleration (0-100 km/h), s	8.8
The maximum speed, km / h.	224
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	7
Drive	Front
Transmission	7 S-tronic
Gearbox	2 clutch robot
Transmission manufacturer	BorgWarner

2.0 TDi (184 HP) 7 S-tronic 4x4 38 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1968
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	184
Torque, Nm	380
RPM at max torque	1750-3250
Engine	2.0 TDi
RPM at max power	3500-4000
Turbo	+
Engine code	CUPA/CUNA (EA288)

Dimensions

Seats	4
Length mm	4423
Width	1960
Height mm	1409
Wheelbase mm	2595
Front track, mm	1555
Rear track, mm	1526
Kerb weight, kg	1480
Trunk capacity, L	320
Fuel tank, l	50
Turning circle, m	10.9
Gross weight, kg	1880
Width (without mirrors) mm	1793

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	6
Fuel consumption (urban), l. 100 km	4.9
Fuel consumption (combined), l. 100 km	5.3
Acceleration (0-100 km/h), s	7.4
The maximum speed, km / h.	237
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	7
Drive	Full
Transmission	7 S-tronic
Gearbox	2 clutch robot
Transmission manufacturer	BorgWarner

FAQ

Audi A3 Cabriolet questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Audi A3 Cabriolet?

This page lists 14 trims for the Audi A3 Cabriolet, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Audi A3 Cabriolet?

The listed configurations show a power range of 116-190 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Audi A3 Cabriolet?

The available specification data shows engine displacement from 1395-1984 cc across the trims listed on this page.

Which transmissions are listed for the Audi A3 Cabriolet?

The transmission options currently shown for this model are: 6, 7, 6-speed manual. Open a trim section to see the full data for a specific configuration.

Are there photos for the Audi A3 Cabriolet?

Yes. The gallery includes 23 photos for the Audi A3 Cabriolet, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
