Audi A4 allroad quattro specifications and photos

Audi A4 allroad quattro specifications are shown with trim options, key technical data, and a model photo gallery. Compare 9 configurations by engine size, power, seating, and transmission. The gallery includes 13 photos for visual reference.

Years 2016 - 2019

Body type suv

Trims 9

Photos 13

Overview

Audi A4 allroad quattro at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Audi A4 allroad quattro page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 150-272 hp and 1968-2967 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

Power: 150-272 hp
Engine displacement: 1968-2967 cc
Transmissions: 7, 6-speed manual, 8
Seating: 5 seats

Research hub

Photos, trims and specifications for Audi A4 allroad quattro

This model page brings gallery images, trim comparison, and detailed technical data together for the 2016 generation.

Open photo gallery 13 images Compare trims 9 configurations View detailed specs 1968-2967 cc Explore related pages Audi and similar models

Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 150-272 hp

Engine displacement 1968-2967 cc

Seating 5 seats

Transmissions 7, 6-speed manual, 8

Trim / modification	Engine	Power	Seats	Transmission
2.0 TFSI AT Basis quattro (252)	1984 cc	252 hp	5	7
2.0 TDI AT Basis quattro (190)	1968 cc	190 hp	5	7
2.0 TFSI (252 HP) 7 S-tronic 4x4	1984 cc	252 hp	5	7
2.0 TDI (150 HP) 6-speed manual 4x4	1968 cc	150 hp	5	6-speed manual
2.0 TDI (163 HP) 7 S-tronic 4x4	1968 cc	163 hp	5	7
2.0 TDI (190 HP) 6-speed manual 4x4	1968 cc	190 hp	5	6-speed manual
2.0 TDI (190 HP) 7 S-tronic 4x4	1968 cc	190 hp	5	7
3.0 TDI (218 HP) 7 S-tronic 4x4	2967 cc	218 hp	5	7
3.0 TDI (272 hp) 8-Tiptronic 4x4	2967 cc	272 hp	5	8

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Gallery

Audi A4 allroad quattro photo gallery

13 images are collected here with the main specifications and trim data for this model.

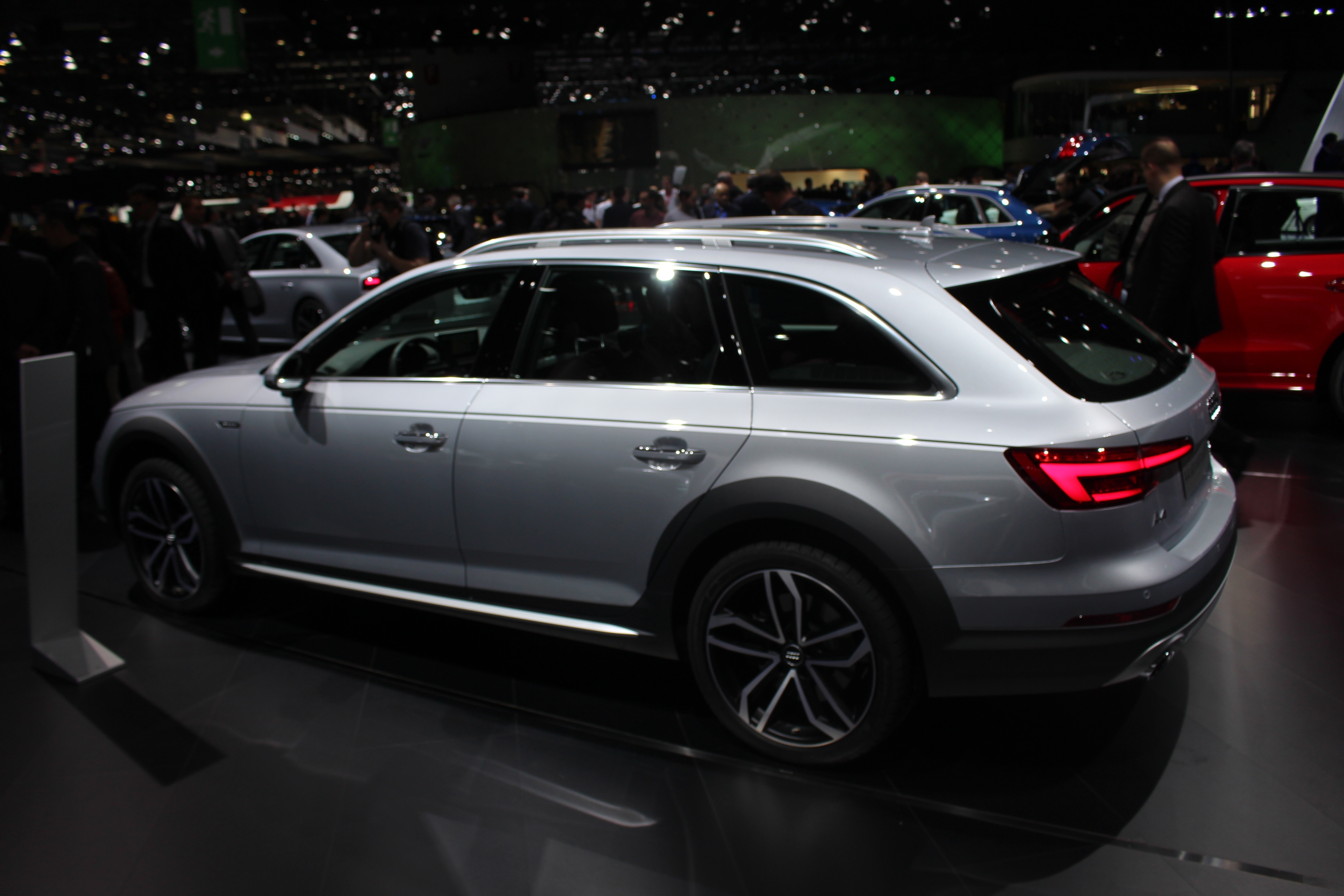

Photo Audi A4 allroad quattro

Interior of Audi A4 allroad quattro 2016

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

2.0 TFSI AT Basis quattro (252) 2.0 TDI AT Basis quattro (190) 2.0 TFSI (252 HP) 7 S-tronic 4x4 2.0 TDI (150 HP) 6-speed manual 4x4 2.0 TDI (163 HP) 7 S-tronic 4x4 2.0 TDI (190 HP) 6-speed manual 4x4 2.0 TDI (190 HP) 7 S-tronic 4x4 3.0 TDI (218 HP) 7 S-tronic 4x4 3.0 TDI (272 hp) 8-Tiptronic 4x4

2.0 TFSI AT Basis quattro (252) 79 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1984
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	252
Torque, Nm	370
RPM at max torque	1600-4500
Engine	2.0 TFSI
RPM at max power	5000-6000
Turbo	+
Engine code	CYRB/DAXB (EA888)

Dimensions

Seats	5
Length mm	4750
Width	2022
Height mm	1493
Wheelbase mm	2818
Front track, mm	1578
Rear track, mm	1566
Kerb weight, kg	1655
Trunk capacity, L	505
Fuel tank, l	58
Turning circle, m	11.6
Gross weight, kg	2170
Width (without mirrors) mm	1842

Suspension

Type of front suspension	Independent multi-link with anti-roll bar and subframe
Rear suspension	Independent multi-link with anti-roll bar and subframe

Brake system

The front brakes	Ventilated disc
Rear brakes	Ventilated disc

Steering

Power steering	Electromechanical

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	8.2
Fuel consumption (urban), l. 100 km	5.9
Fuel consumption (combined), l. 100 km	6.7
Acceleration (0-100 km/h), s	6.1
The maximum speed, km / h.	246
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	7
Drive	Full
Transmission	7 S-tronic
Gearbox	2 clutch robot
Transmission manufacturer	BorgWarner

Equipment

Comfort

Tyre pressure monitoring	+
Multi-function steering wheel	+

Interior

The information display	+
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.)	+

Wheels

Disc diameter	17
Rim type	Alloy
Tires	225/55R17
Spare wheel	Dokatka

Cabin climate and noise insulation

Climate control	+

Glass, mirrors and sunroof

The rain sensor	+
Heated side mirrors	+
Power mirrors	+

Multimedia and instruments

Radio	+
AUX	+
Bluetooth hands free	+
CD player	+
USB	+
Number of speakers	8
Connector for SD- Card	+

Headlights and lighting

Xenon headlights	+
corrector of headlights	+
Light sensor	+
LED lights daylight	+

Seats

Rear Armrest	+
Armrest front	+
height-adjustable driver's seat	+
Isofix child seat (LATCH, Isofix)	+
Passenger seat height adjustable	+
Folding the seatbacks 2nd row 40/20/40	+

Off-road

Motor Protection	+

Trunk

Power trunk	+

Exterior

Roof rails	+

Body and exterior paint

Exterior mirrors in body color	+

Fuel economy

Start-Stop System	+

Security

Electronic systems

Children's locks	+

Anti-theft systems

alarm	+

2.0 TDI AT Basis quattro (190) 80 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1968
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	190
Torque, Nm	400
RPM at max torque	1900-3300
Engine	2.0 TDI
Compression	15.8
RPM at max power	3500-4000
Turbo	+
Engine code	DETA/DFHA (EA288)

Dimensions

Seats	5
Length mm	4750
Width	2022
Height mm	1493
Wheelbase mm	2818
Front track, mm	1578
Rear track, mm	1566
Kerb weight, kg	1715
Trunk capacity, L	505
Fuel tank, l	58
Turning circle, m	11.6
Gross weight, kg	2245
Width (without mirrors) mm	1842

Suspension

Type of front suspension	Independent multi-link with anti-roll bar and subframe
Rear suspension	Independent multi-link with anti-roll bar and subframe

Brake system

The front brakes	Ventilated disc
Rear brakes	Ventilated disc

Steering

Power steering	Electromechanical

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	5.7
Fuel consumption (urban), l. 100 km	4.8
Fuel consumption (combined), l. 100 km	5.1
Acceleration (0-100 km/h), s	7.8
The maximum speed, km / h.	220
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	7
Drive	Full
Transmission	7 S-tronic
Gearbox	2 clutch robot
Transmission manufacturer	BorgWarner

Equipment

Comfort

Tyre pressure monitoring	+
Multi-function steering wheel	+

Interior

The information display	+
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.)	+

Wheels

Disc diameter	17
Rim type	Alloy
Tires	225/55R17
Spare wheel	Dokatka

Cabin climate and noise insulation

Climate control	+

Glass, mirrors and sunroof

The rain sensor	+
Heated side mirrors	+
Power mirrors	+

Multimedia and instruments

Radio	+
AUX	+
Bluetooth hands free	+
CD player	+
USB	+
Number of speakers	8
Connector for SD- Card	+

Headlights and lighting

Xenon headlights	+
corrector of headlights	+
Light sensor	+
LED lights daylight	+

Seats

Rear Armrest	+
Armrest front	+
height-adjustable driver's seat	+
Isofix child seat (LATCH, Isofix)	+
Passenger seat height adjustable	+
Folding the seatbacks 2nd row 40/20/40	+

Off-road

Motor Protection	+

Trunk

Power trunk	+

Exterior

Roof rails	+

Body and exterior paint

Exterior mirrors in body color	+

Fuel economy

Start-Stop System	+

Security

Electronic systems

Children's locks	+

Anti-theft systems

alarm	+

2.0 TFSI (252 HP) 7 S-tronic 4x4 38 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1984
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	252
Torque, Nm	370
RPM at max torque	1600-4500
Engine	2.0 TFSI
RPM at max power	5000-6000
Turbo	+
Engine code	CYRB/DAXB (EA888)

Dimensions

Seats	5
Length mm	4750
Width	2022
Height mm	1493
Wheelbase mm	2818
Front track, mm	1578
Rear track, mm	1566
Kerb weight, kg	1765
Trunk capacity, L	505
Fuel tank, l	58
Turning circle, m	11.6
Gross weight, kg	2280
Width (without mirrors) mm	1842

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	8.2
Fuel consumption (urban), l. 100 km	5.9
Fuel consumption (combined), l. 100 km	6.7
Acceleration (0-100 km/h), s	6.1
The maximum speed, km / h.	246
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	7
Drive	Full
Transmission	7 S-tronic
Gearbox	2 clutch robot
Transmission manufacturer	BorgWarner

2.0 TDI (150 HP) 6-speed manual 4x4 37 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1968
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	150
Torque, Nm	320
RPM at max torque	1750-3000
Engine	2.0 TDI
Compression	16.2
RPM at max power	3500-4000
Turbo	+
Engine code	CRBC/CRLB/DEUA

Dimensions

Seats	5
Length mm	4750
Width	2022
Height mm	1493
Wheelbase mm	2818
Front track, mm	1578
Rear track, mm	1566
Kerb weight, kg	1765
Trunk capacity, L	505
Fuel tank, l	58
Turning circle, m	11.6
Gross weight, kg	2280
Width (without mirrors) mm	1842

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	5.9
Fuel consumption (urban), l. 100 km	4.6
Fuel consumption (combined), l. 100 km	5.1
Acceleration (0-100 km/h), s	9.1
The maximum speed, km / h.	205
The rate of toxicity	Euro VI

Transmission and drive

Number of gears	6
Drive	Full
Transmission	6-speed manual
Gearbox	Mechanics

2.0 TDI (163 HP) 7 S-tronic 4x4 38 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1968
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	163
Torque, Nm	400
RPM at max torque	1750-2750
Engine	2.0 TDI
RPM at max power	3000-4200
Turbo	+
Engine code	DETB (EA288)

Dimensions

Seats	5
Length mm	4750
Width	2022
Height mm	1493
Wheelbase mm	2818
Front track, mm	1578
Rear track, mm	1566
Kerb weight, kg	1765
Trunk capacity, L	505
Fuel tank, l	58
Turning circle, m	11.6
Gross weight, kg	2280
Width (without mirrors) mm	1842

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	5.7
Fuel consumption (urban), l. 100 km	4.8
Fuel consumption (combined), l. 100 km	5.1
Acceleration (0-100 km/h), s	8.3
The maximum speed, km / h.	210
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	7
Drive	Full
Transmission	7 S-tronic
Gearbox	2 clutch robot
Transmission manufacturer	BorgWarner

2.0 TDI (190 HP) 6-speed manual 4x4 37 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1968
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	190
Torque, Nm	400
RPM at max torque	1900-3300
Engine	2.0 TDI
Compression	15.8
RPM at max power	3500-4000
Turbo	+
Engine code	DETA/DFHA (EA288)

Dimensions

Seats	5
Length mm	4750
Width	2022
Height mm	1493
Wheelbase mm	2818
Front track, mm	1578
Rear track, mm	1566
Kerb weight, kg	1765
Trunk capacity, L	505
Fuel tank, l	58
Turning circle, m	11.6
Gross weight, kg	2280
Width (without mirrors) mm	1842

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	6
Fuel consumption (urban), l. 100 km	4.8
Fuel consumption (combined), l. 100 km	5.2
Acceleration (0-100 km/h), s	7.6
The maximum speed, km / h.	224
The rate of toxicity	Euro VI

Transmission and drive

Number of gears	6
Drive	Full
Transmission	6-speed manual
Gearbox	Mechanics

2.0 TDI (190 HP) 7 S-tronic 4x4 39 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1968
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	190
Torque, Nm	400
RPM at max torque	1900-3300
Engine	2.0 TDI
Compression	15.8
RPM at max power	3500-4000
Turbo	+
Engine code	DETA/DFHA (EA288)

Dimensions

Seats	5
Length mm	4750
Width	2022
Height mm	1493
Wheelbase mm	2818
Front track, mm	1578
Rear track, mm	1566
Kerb weight, kg	1765
Trunk capacity, L	505
Fuel tank, l	58
Turning circle, m	11.6
Gross weight, kg	2280
Width (without mirrors) mm	1842

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	5.7
Fuel consumption (urban), l. 100 km	4.8
Fuel consumption (combined), l. 100 km	5.1
Acceleration (0-100 km/h), s	7.8
The maximum speed, km / h.	220
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	7
Drive	Full
Transmission	7 S-tronic
Gearbox	2 clutch robot
Transmission manufacturer	BorgWarner

3.0 TDI (218 HP) 7 S-tronic 4x4 38 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	2967
Cylinders location	V-shaped
Number of cylinders	6
Valves	24
Power, hp	218
Torque, Nm	400
RPM at max torque	1250-3750
Engine	3.0 TDI
RPM at max power	4000-4750
Turbo	+
Engine code	CSWB (EA897)

Dimensions

Seats	5
Length mm	4750
Width	2022
Height mm	1493
Wheelbase mm	2818
Front track, mm	1578
Rear track, mm	1566
Kerb weight, kg	1765
Trunk capacity, L	505
Fuel tank, l	58
Turning circle, m	11.6
Gross weight, kg	2280
Width (without mirrors) mm	1842

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	5.5
Fuel consumption (urban), l. 100 km	5.1
Fuel consumption (combined), l. 100 km	5.2
Acceleration (0-100 km/h), s	6.6
The maximum speed, km / h.	231
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	7
Drive	Full
Transmission	7 S-tronic
Gearbox	2 clutch robot
Transmission manufacturer	BorgWarner

3.0 TDI (272 hp) 8-Tiptronic 4x4 39 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	2967
Cylinders location	V-shaped
Number of cylinders	6
Valves	24
Power, hp	272
Torque, Nm	600
RPM at max torque	1500-3250
Engine	3.0 TDI
RPM at max power	3500-4250
Turbo	+
Engine code	CRTC (EA897)

Dimensions

Seats	5
Length mm	4750
Width	2022
Height mm	1493
Wheelbase mm	2818
Front track, mm	1578
Rear track, mm	1566
Kerb weight, kg	1765
Trunk capacity, L	505
Fuel tank, l	58
Turning circle, m	11.6
Gross weight, kg	2280
Width (without mirrors) mm	1842

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	5.8
Fuel consumption (urban), l. 100 km	5.2
Fuel consumption (combined), l. 100 km	5.4
Acceleration (0-100 km/h), s	5.5
The maximum speed, km / h.	250
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	8
Drive	Full
Transmission	8-Tiptronic
Gearbox	Machine
Transmission manufacturer	ZF
Transmission country of origin	Germany

FAQ

Audi A4 allroad quattro questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Audi A4 allroad quattro?

This page lists 9 trims for the Audi A4 allroad quattro, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Audi A4 allroad quattro?

The listed configurations show a power range of 150-272 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Audi A4 allroad quattro?

The available specification data shows engine displacement from 1968-2967 cc across the trims listed on this page.

Which transmissions are listed for the Audi A4 allroad quattro?

The transmission options currently shown for this model are: 7, 6-speed manual, 8. Open a trim section to see the full data for a specific configuration.

Are there photos for the Audi A4 allroad quattro?

Yes. The gallery includes 13 photos for the Audi A4 allroad quattro, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
