Audi A3 Sportback e-tron specifications and photos

Audi A3 Sportback e-tron specifications are shown with trim options, key technical data, and a model photo gallery. Compare 2 configurations by engine size, power, seating, and transmission. The gallery includes 20 photos for visual reference.

Years 2016
Body type hatchback
Trims 2
Photos 20

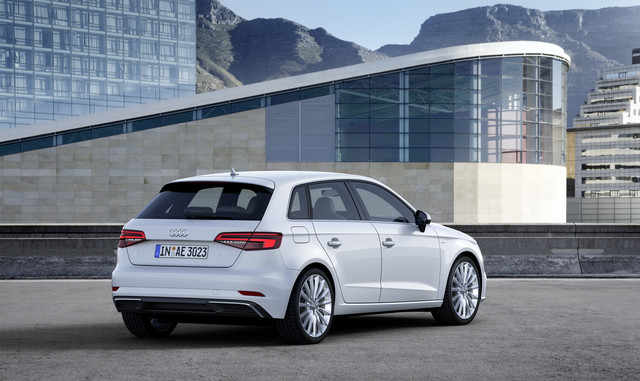

Rear view of Audi A3 Sportback e-tron 2016
Overview

Audi A3 Sportback e-tron at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Audi A3 Sportback e-tron page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 204 hp and 1395 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

  • Power: 204 hp
  • Engine displacement: 1395 cc
  • Transmissions: 6
  • Seating: 5 seats
Research hub

Photos, trims and specifications for Audi A3 Sportback e-tron

This model page brings gallery images, trim comparison, and detailed technical data together for the 2016 generation.

Open photo gallery 20 images Compare trims 2 configurations View detailed specs 1395 cc Explore related pages Audi and similar models
Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 204 hp
Engine displacement 1395 cc
Seating 5 seats
Transmissions 6
Trim / modification Engine Power Seats Transmission
1.4h 6AT 1395 cc 204 hp 5 6
40 e-tron 1395 cc 204 hp 5 6

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

1.4h 6AT 40 e-tron
1.4h 6AT 53 specifications

Specifications

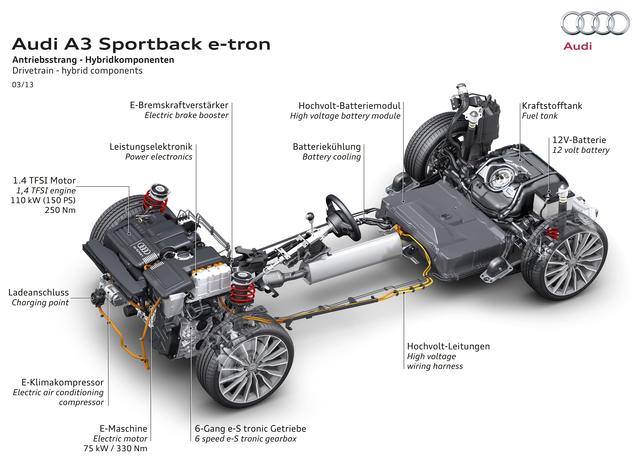

Engine

Type of engine Hybrid
Type of fuel Gasoline
Displacement, cc 1395
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 204
Torque, Nm 350
Engine 1.4 TFSI hybrid
Compression 10.0
Turbo +
Number of motors 1
Power electric motor HP 102
the motor torque Nm 330
Revolutions max. motor torque, rev / min 0-2000
Engine power, hp 150
Revolutions max. Engine power, vol. / min. 5000-6000
the engine torque, Nm 250
Revolutions max. engine torque, vol. / min. 1600-3500
Engine code CUKB/CXUA (EA211)
EV-mode +
The possibility of charging from the network +

Dimensions

Seats 5
Length mm 4312
Width 1966
Height mm 1424
Wheelbase mm 2630
Front track, mm 1542
Rear track, mm 1516
Kerb weight, kg 1615
Trunk capacity, L 280
Fuel tank, l 40
Turning circle, m 10.9
Gross weight, kg 2050
Width (without mirrors) mm 1785

Suspension

Type of front suspension Independent McPherson type with anti-roll bar
Rear suspension Independent, subframe, tube stabilizer

Brake system

The front brakes Ventilated disc
Rear brakes Disk

Steering

Power steering Electromechanical

Performance and fuel consumption

Fuel consumption (combined), l. 100 km 2.2
Acceleration (0-100 km/h), s 7.6
The maximum speed, km / h. 222
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6 S-tronic
Gearbox 2 clutch robot
Transmission manufacturer BorgWarner

Equipment

Wheels

Disc diameter 16
Rim type Alloy
Tires 205/55R16
40 e-tron 45 specifications

Specifications

Engine

Type of engine Hybrid
Type of fuel Gasoline
Displacement, cc 1395
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 204
Torque, Nm 350
Engine 1.4 TFSI hybrid
Compression 10.0
Turbo +
Number of motors 1
Power electric motor HP 102
the motor torque Nm 330
Revolutions max. motor torque, rev / min 0-2000
Engine power, hp 150
Revolutions max. Engine power, vol. / min. 5000-6000
the engine torque, Nm 250
Revolutions max. engine torque, vol. / min. 1600-3500
Engine code CUKB/CXUA (EA211)
EV-mode +
The possibility of charging from the network +

Dimensions

Seats 5
Length mm 4311
Width 1966
Height mm 1424
Wheelbase mm 2630
Front track, mm 1543
Rear track, mm 1514
Kerb weight, kg 1630
Trunk capacity, L 280
Fuel tank, l 40
Turning circle, m 10.9
Gross weight, kg 2055
Width (without mirrors) mm 1785

Performance and fuel consumption

Fuel consumption (combined), l. 100 km 2.2
Acceleration (0-100 km/h), s 7.6
The maximum speed, km / h. 222
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6 S-tronic
Gearbox 2 clutch robot
Transmission manufacturer BorgWarner
FAQ

Audi A3 Sportback e-tron questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Audi A3 Sportback e-tron?

This page lists 2 trims for the Audi A3 Sportback e-tron, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Audi A3 Sportback e-tron?

The listed configurations show a power range of 204 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Audi A3 Sportback e-tron?

The available specification data shows engine displacement from 1395 cc across the trims listed on this page.

Which transmissions are listed for the Audi A3 Sportback e-tron?

The transmission options currently shown for this model are: 6. Open a trim section to see the full data for a specific configuration.

Are there photos for the Audi A3 Sportback e-tron?

Yes. The gallery includes 20 photos for the Audi A3 Sportback e-tron, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
