Cadillac specifications

Cadillac XT5 specifications and photos

Cadillac XT5 specifications are shown with trim options, key technical data, and a model photo gallery. Compare 4 configurations by engine size, power, seating, and transmission. The gallery includes 17 photos for visual reference.

Years 2016 - 2019
Body type suv
Trims 4
Photos 17

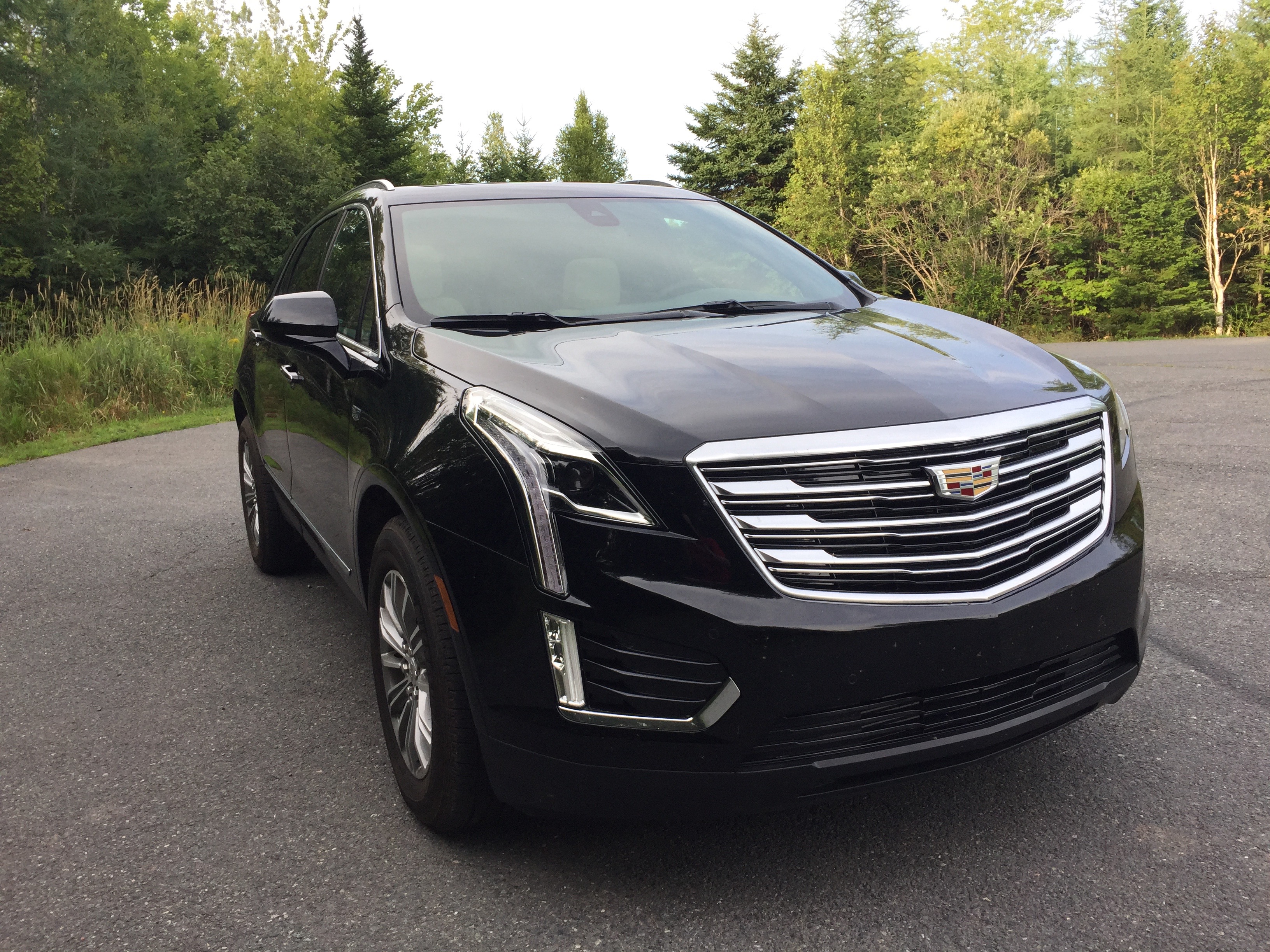

Cadillac XT5 2016 photo
Overview

Cadillac XT5 at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Cadillac XT5 page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 314 hp and 3564 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

  • Power: 314 hp
  • Engine displacement: 3564 cc
  • Transmissions: 8, 8-speed automatic
  • Seating: 5 seats
Research hub

Photos, trims and specifications for Cadillac XT5

This model page brings gallery images, trim comparison, and detailed technical data together for the 2016 generation.

Open photo gallery 17 images Compare trims 4 configurations View detailed specs 3564 cc Explore related pages Cadillac and similar models
Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 314 hp
Engine displacement 3564 cc
Seating 5 seats
Transmissions 8, 8-speed automatic
Trim / modification Engine Power Seats Transmission
3.6 AT 3564 cc 314 hp 5 8
3.6 AT AWD 3564 cc 314 hp 5 8
3.6i (314 HP) 8-speed automatic 3564 cc 314 hp 5 8-speed automatic
3.6i (314 hp) 8-speed 4x4 automatic transmission 3564 cc 314 hp 5 8

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

3.6 AT 3.6 AT AWD 3.6i (314 HP) 8-speed automatic 3.6i (314 hp) 8-speed 4x4 automatic transmission
3.6 AT 39 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 3564
Cylinders location V-shaped
Number of cylinders 6
Valves 24
Power, hp 314
Torque, Nm 368
RPM at max torque 5000
Engine 3.6i
Compression 11.5
RPM at max power 6700
Engine code LGX

Dimensions

Seats 5
Length mm 4813
Width 1905
Height mm 1676
Wheelbase mm 2857
Front track, mm 1636
Rear track, mm 1636
Kerb weight, kg 1808
Trunk capacity, L 850
Fuel tank, l 72

Suspension

Type of front suspension Independent
Rear suspension Independent

Brake system

The front brakes Ventilated disc
Rear brakes Ventilated disc

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 12.4
Fuel consumption (urban), l. 100 km 8.7
Acceleration (0-100 km/h), s 7.5
The maximum speed, km / h. 210
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Front
Transmission 8-speed automatic
Gearbox Machine
Transmission manufacturer Aisin
Transmission country of origin Japan
3.6 AT AWD 40 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 3564
Cylinders location V-shaped
Number of cylinders 6
Valves 24
Power, hp 314
Torque, Nm 368
RPM at max torque 5000
Engine 3.6i
Compression 11.5
RPM at max power 6700
Engine code LGX

Dimensions

Seats 5
Length mm 4813
Width 1905
Height mm 1676
Wheelbase mm 2857
Front track, mm 1636
Rear track, mm 1636
Kerb weight, kg 1842
Trunk capacity, L 850
Fuel tank, l 72

Suspension

Type of front suspension Independent
Rear suspension Independent

Brake system

The front brakes Ventilated disc
Rear brakes Ventilated disc

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 14.1
Fuel consumption (urban), l. 100 km 7.8
Fuel consumption (combined), l. 100 km 10
Acceleration (0-100 km/h), s 7.5
The maximum speed, km / h. 210
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Full
Transmission 8-speed automatic
Gearbox Machine
Transmission manufacturer Aisin
Transmission country of origin Japan
3.6i (314 HP) 8-speed automatic 36 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 3564
Cylinders location V-shaped
Number of cylinders 6
Valves 24
Power, hp 314
Torque, Nm 368
RPM at max torque 5000
Engine 3.6i
Compression 11.5
RPM at max power 6700
Engine code LGX

Dimensions

Seats 5
Length mm 4815
Height mm 1675
Wheelbase mm 2857
Front track, mm 1638
Rear track, mm 1638
Trunk capacity, L 849
Fuel tank, l 83
Turning circle, m 11.9
Ground clearance, mm 200
Width (without mirrors) mm 1903

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 12.4
Fuel consumption (urban), l. 100 km 8.7
Acceleration (0-100 km/h), s 7.5
The maximum speed, km / h. 210
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Front
Transmission 8-speed automatic
Gearbox Machine
Transmission manufacturer Aisin
Transmission country of origin Japan
3.6i (314 hp) 8-speed 4x4 automatic transmission 37 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 3564
Cylinders location V-shaped
Number of cylinders 6
Valves 24
Power, hp 314
Torque, Nm 368
RPM at max torque 5000
Engine 3.6i
Compression 11.5
RPM at max power 6700
Engine code LGX

Dimensions

Seats 5
Length mm 4815
Height mm 1675
Wheelbase mm 2857
Front track, mm 1638
Rear track, mm 1638
Trunk capacity, L 849
Fuel tank, l 83
Turning circle, m 11.9
Ground clearance, mm 200
Width (without mirrors) mm 1903

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 14.1
Fuel consumption (urban), l. 100 km 7.8
Fuel consumption (combined), l. 100 km 10
Acceleration (0-100 km/h), s 7.5
The maximum speed, km / h. 210
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Full
Transmission 8-speed automatic
Gearbox Machine
Transmission manufacturer Aisin
Transmission country of origin Japan
FAQ

Cadillac XT5 questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Cadillac XT5?

This page lists 4 trims for the Cadillac XT5, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Cadillac XT5?

The listed configurations show a power range of 314 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Cadillac XT5?

The available specification data shows engine displacement from 3564 cc across the trims listed on this page.

Which transmissions are listed for the Cadillac XT5?

The transmission options currently shown for this model are: 8, 8-speed automatic. Open a trim section to see the full data for a specific configuration.

Are there photos for the Cadillac XT5?

Yes. The gallery includes 17 photos for the Cadillac XT5, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
