CUPRA Formentor specifications and photos
The 2024 CUPRA Formentor is a sharp, driver-focused compact crossover that combines sporty styling with daily utility. This model represents a facelifted version of the brand's first standalone vehicle, introducing updated styling cues and revised technology. It offers buyers a choice of front-wheel or all-wheel drive across multiple powertrain configurations.
CUPRA Formentor at a glance
Quick model context before comparing photos and trim-level specifications.
Originally launched as CUPRA's first bespoke model, the Formentor receives a significant mid-cycle refresh for the 2024 model year to maintain its competitive edge. Positioned as a sportier, performance-oriented alternative to traditional compact SUVs, it targets enthusiasts who prioritize engaging driving dynamics and expressive design without sacrificing everyday versatility. The update introduces a completely redesigned front end, an upgraded cabin environment featuring a larger digital infotainment layout, and a restructured range of powertrains. The lineup offers options for almost any preference, including standard turbocharged gasoline, efficient diesel, 48-volt mild-hybrid, and plug-in hybrid configurations. This diverse powertrain strategy allows the Formentor to compete effectively against both mainstream compact crossovers and premium European rivals, offering configurations that range from highly economical daily commuting to high-performance driving in the range-topping VZ variant.
- Power: 150-333 hp
- Engine displacement: 1498-1984 cc
- Transmissions: 6-speed manual, 7-speed dual-clutch, 6-speed dual-clutch
- Seating: 5 seats
CUPRA Formentor overview
Editorial context for design, cabin, performance, practicality, and buyer notes.
Design

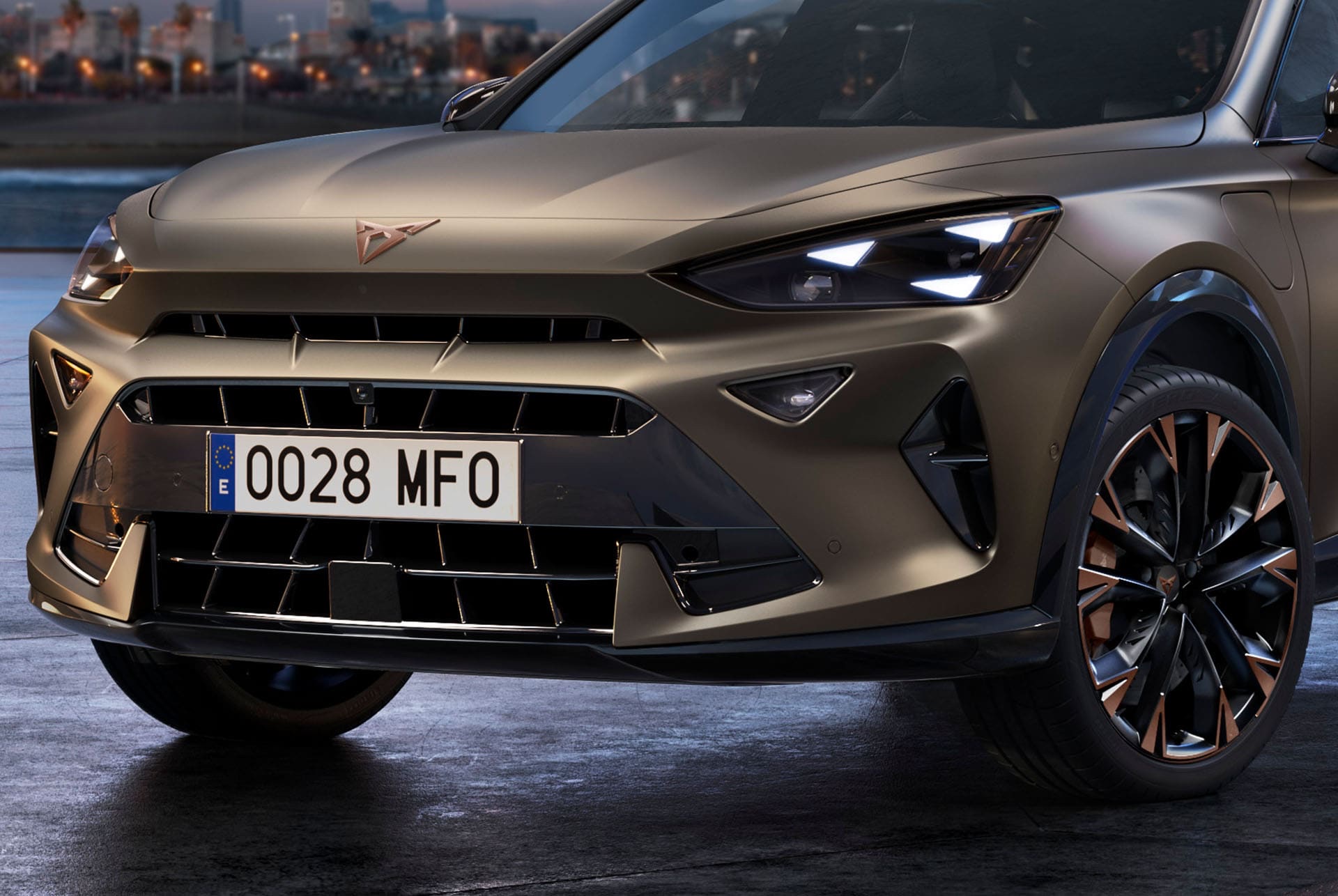

The updated exterior highlights CUPRA’s new styling direction, featuring a shark-nose front end, larger air intakes, and a new grille design. Triangular matrix LED headlights give the crossover a distinct light signature. At the rear, the Formentor features full-width taillights that wrap around the tailgate, with an illuminated CUPRA logo integrated into the center of the light bar. Depending on the chosen trim, the vehicle sits on 18-inch or 19-inch alloy wheels, with the performance-oriented VZ model receiving larger wheels and sportier front and rear bumpers.
Interior
Inside, the cabin features a revised dashboard design with 3D textures, copper-colored accents, and updated materials. Front occupants are accommodated in sport seats or bucket seats upholstered in eco-friendly textiles, microfibers made from recycled materials, or synthetic leather. A 12.9-inch touchscreen houses the central infotainment system, which includes climate control integrations and customizable widgets. A 12-speaker audio system developed with Sennheiser is available, utilizing audio software for enhanced sound clarity. Passenger comfort is supported by dual-zone or three-zone climate control, and rear passengers benefit from a fold-down center armrest.
Performance
The Formentor offers a diverse range of powertrains. The entry-level option is a 1.5-liter TSI gasoline engine making 150 horsepower, paired with a six-speed manual gearbox. A 1.5-liter eTSI mild-hybrid variant uses a 48-volt system and a seven-speed dual-clutch transmission (DSG) for improved fuel economy. For long-distance driving, a 2.0-liter TDI diesel engine delivers 150 horsepower through a seven-speed DSG. The plug-in hybrid e-HYBRID models pair a 1.5-liter gasoline engine with an electric motor to produce either 204 or 272 horsepower, offering up to 125 kilometers of electric-only range. At the top of the range, the performance-focused VZ features a 2.0-liter TFSI engine producing 333 horsepower, sent to all four wheels via a seven-speed DSG and VAG's 4Drive all-wheel-drive system.
Practicality
As a compact SUV, the Formentor balances a sporty profile with practical packaging. It seats five passengers and features a 450-liter trunk space, accommodating luggage or daily groceries. The cabin includes multiple storage options, including a 12V power outlet and a front center armrest with internal storage. Standard Isofix and LATCH anchor points are provided for child seats in the rear outer positions. A turning circle of 11.4 meters ensures reasonable maneuverability in tight city spaces.
Safety and tech
The crossover is equipped with a suite of driver assistance features, including adaptive cruise control that adjusts speed based on GPS coordinates and camera detection. Additional systems include lane-keeping assist, travel assist, forward collision warning, and a system to warn occupants of approaching traffic when exiting the vehicle. Tech amenities include a wireless smartphone charging pad, USB ports, front and rear parking sensors, and a rearview camera. In the event of an accident, the integrated eCall system automatically contacts emergency services with key vehicle data.
Buyer notes
When shopping for a 2024 CUPRA Formentor, buyers should carefully evaluate their daily driving needs against the extensive powertrain lineup. The plug-in hybrid options are well-suited for buyers who can charge at home and cover short commutes on electricity. Those seeking maximum performance will want to look at the 333-horsepower VZ model, which comes standard with 19-inch wheels, all-wheel drive, and a sportier chassis tuning. Standard equipment and specific trim availability can vary significantly by regional market, so buyers should verify local specifications.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 1.5 TSI (150 hp) 6-MT | 1498 cc | 150 hp | 5 | 6-speed manual |
| 1.5 eTSI MHEV (150 hp) 7-speed DSG | 1498 cc | 150 hp | 5 | 7-speed dual-clutch |
| 1.5 TSI e-HYBRID (204 hp) 6-speed DSG | 1498 cc | 204 hp | 5 | 6-speed dual-clutch |
| 1.5 TSI e-HYBRID (272 hp) 6-speed DSG | 1498 cc | 272 hp | 5 | 6-speed dual-clutch |
| 2.0 TFSI (333 hp) 7-speed DSG 4x4 | 1984 cc | 333 hp | 5 | 7-speed dual-clutch |
| 2.0 TDI (150 hp) 7-speed DSG | 1968 cc | 150 hp | 5 | 7-speed dual-clutch |
| 2.0 TDI AT Cupra | 1968 cc | 150 hp | 5 | 7-speed dual-clutch |
| 2.0 TFSI AT VZ | 1984 cc | 333 hp | 5 | 7-speed dual-clutch |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

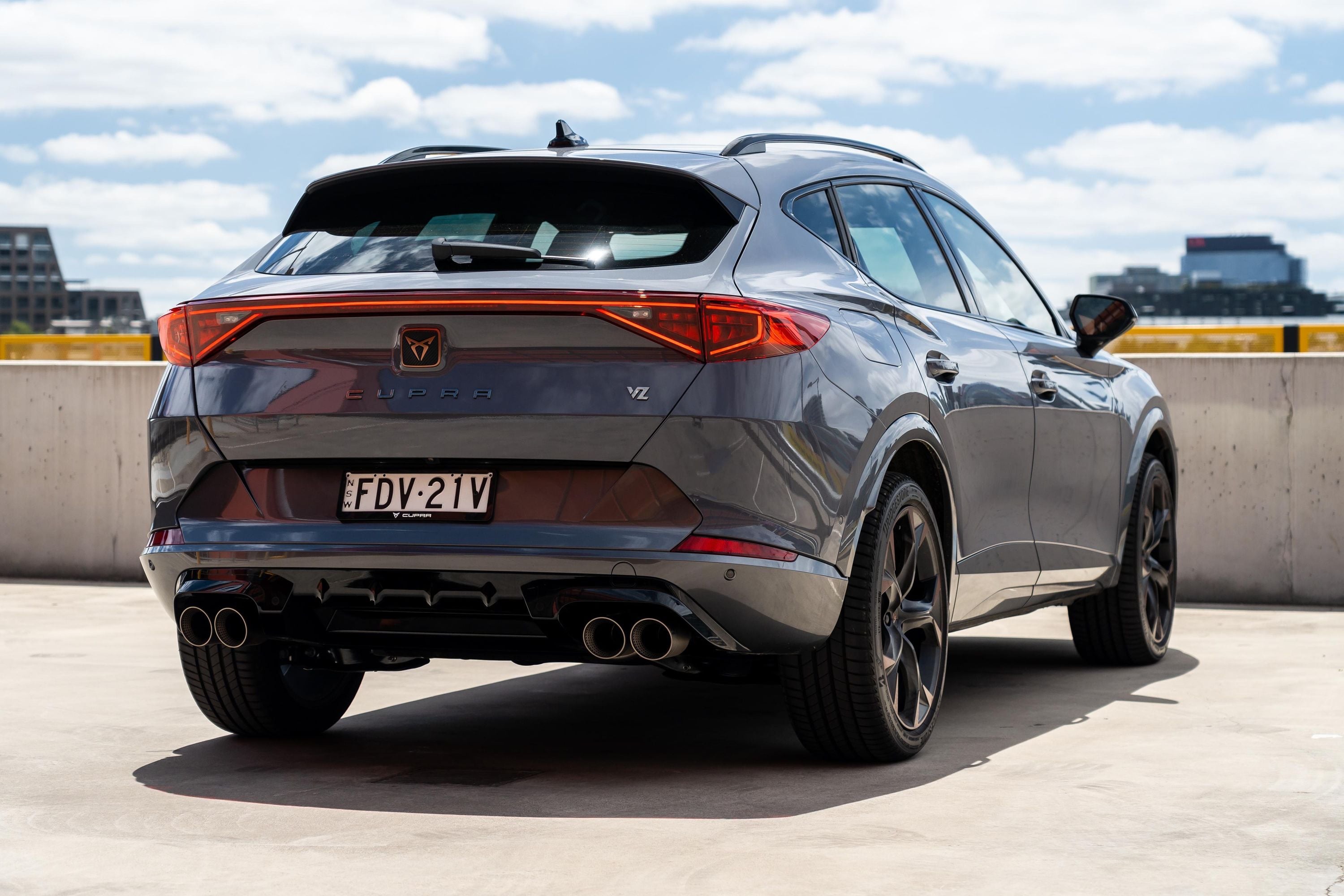

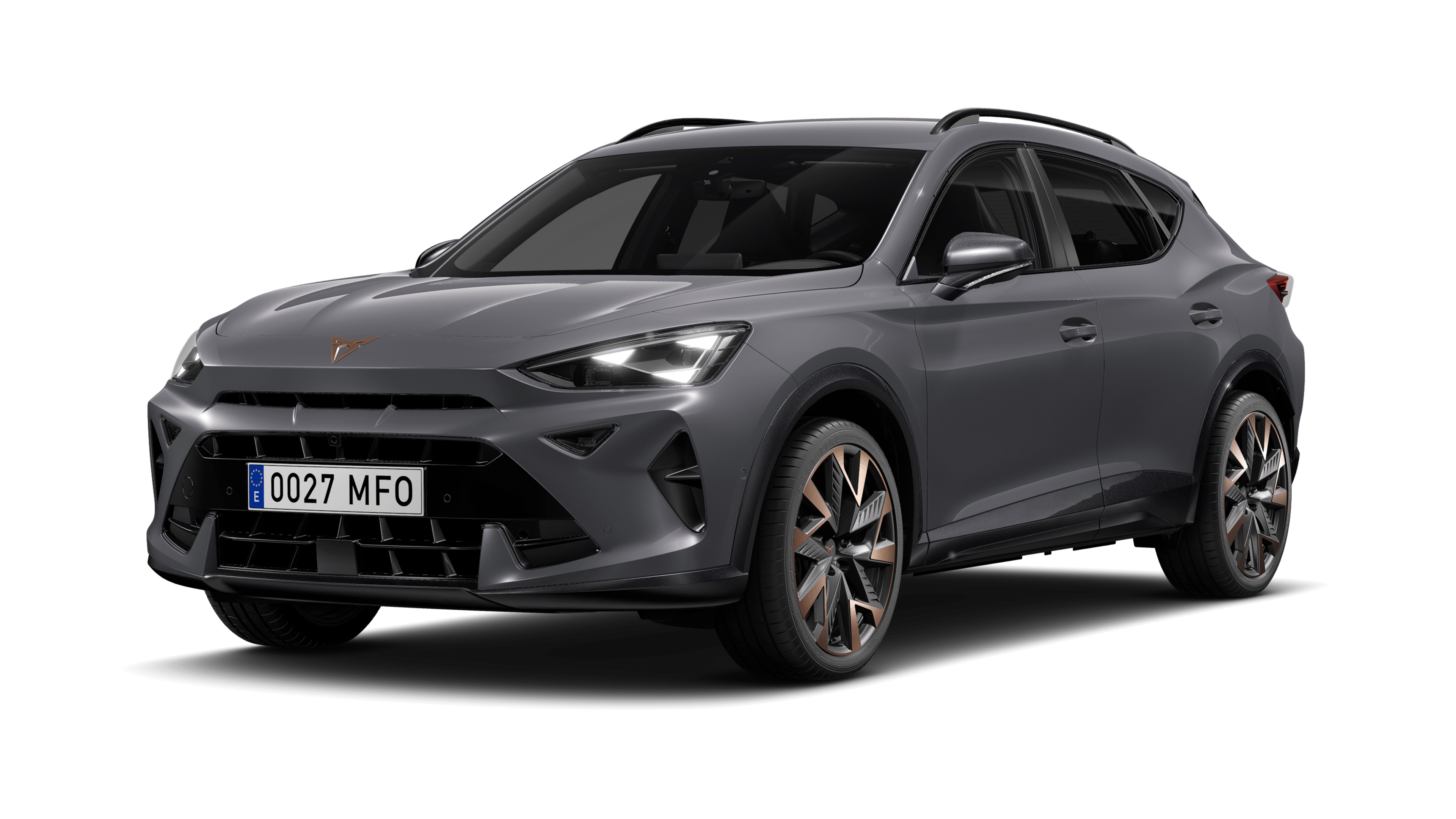

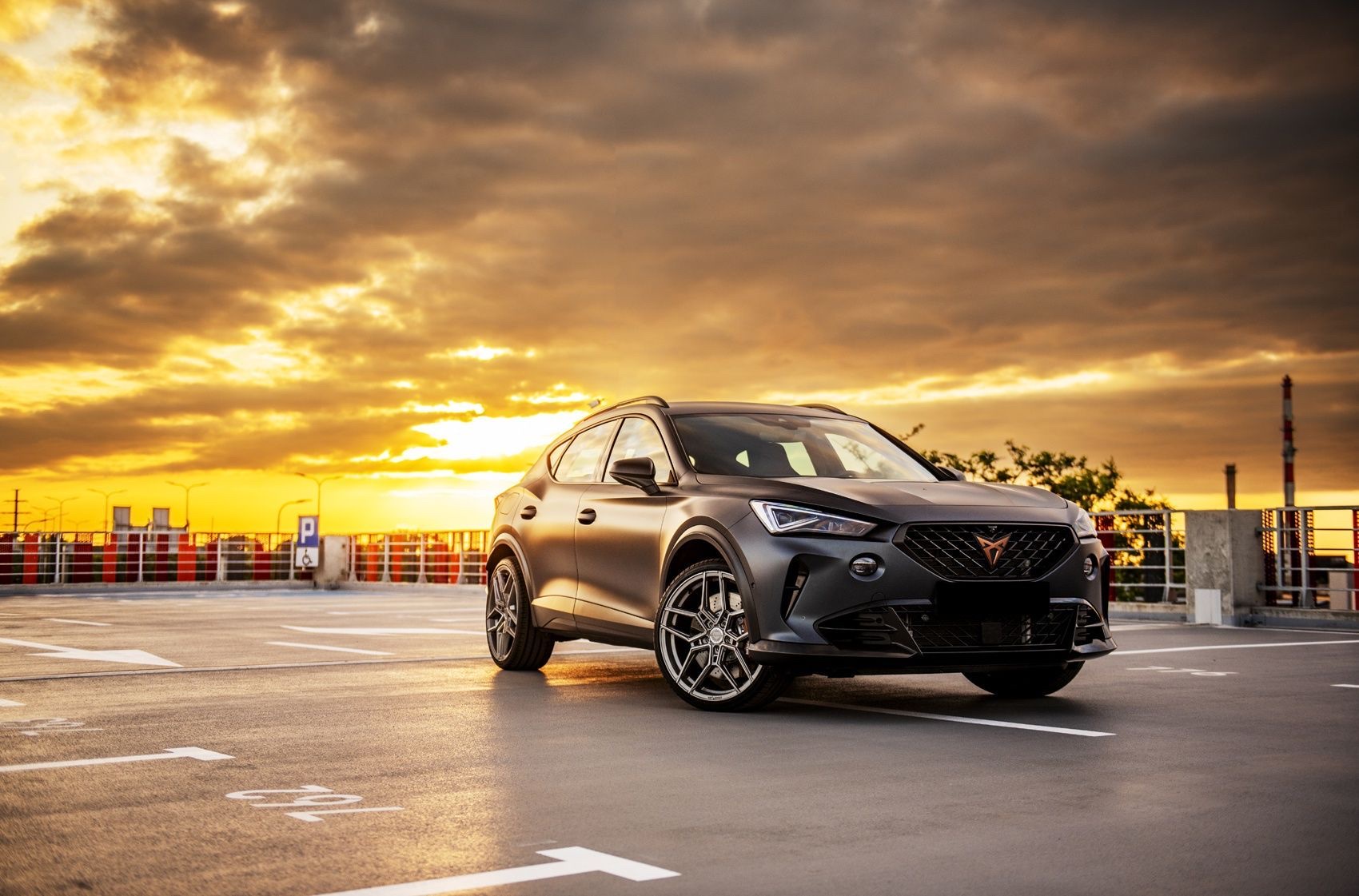

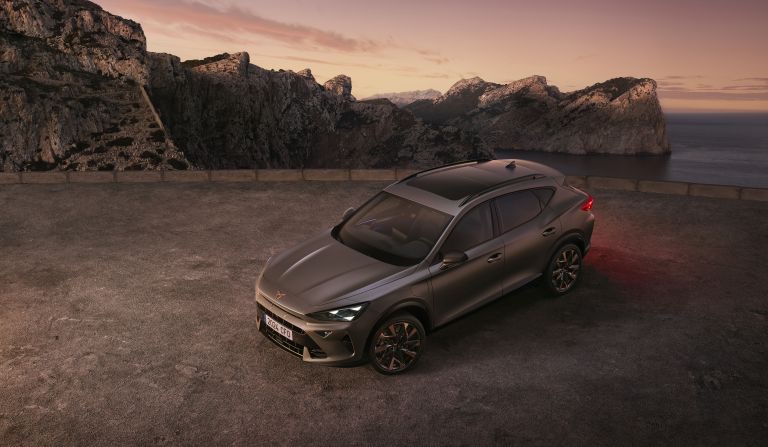

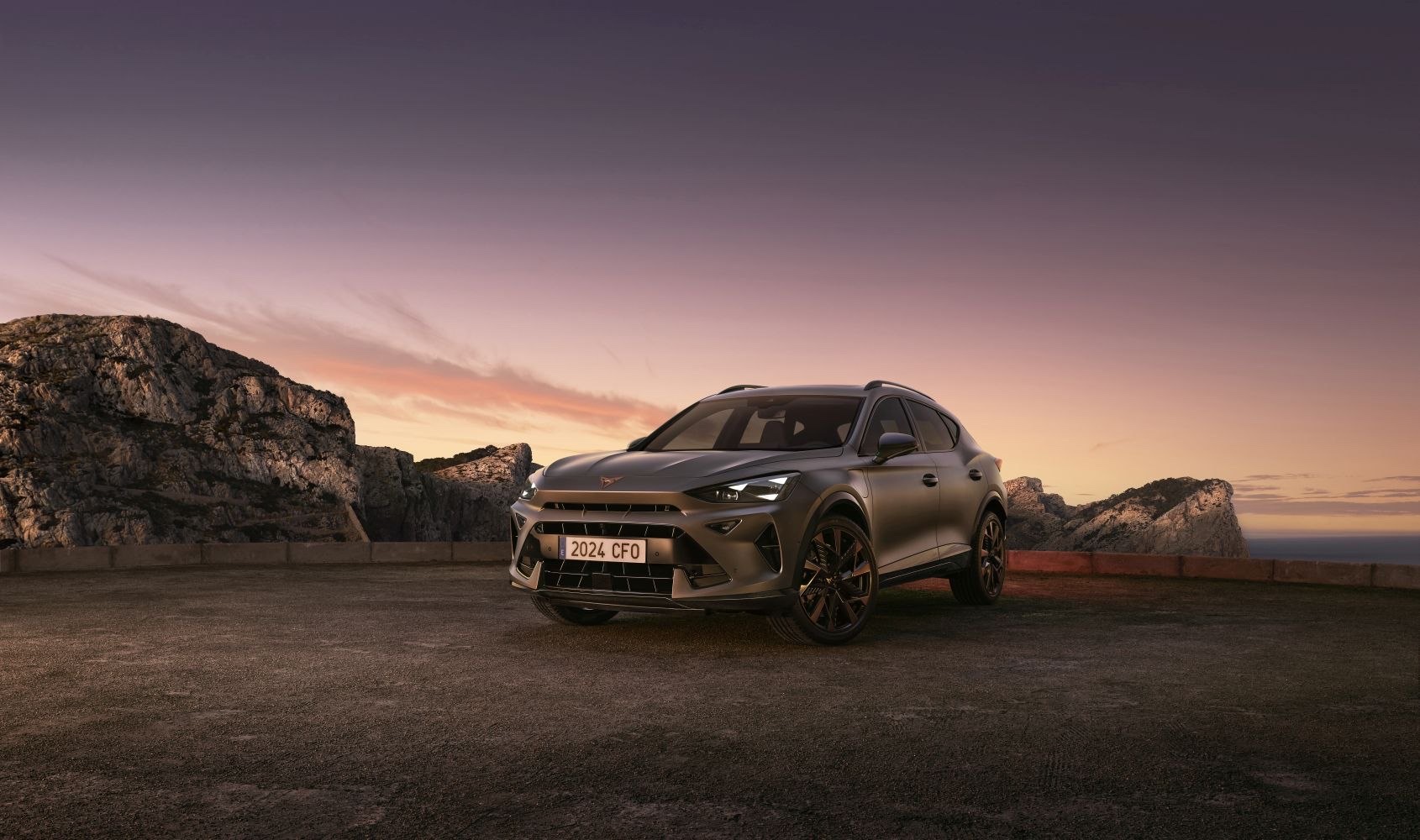

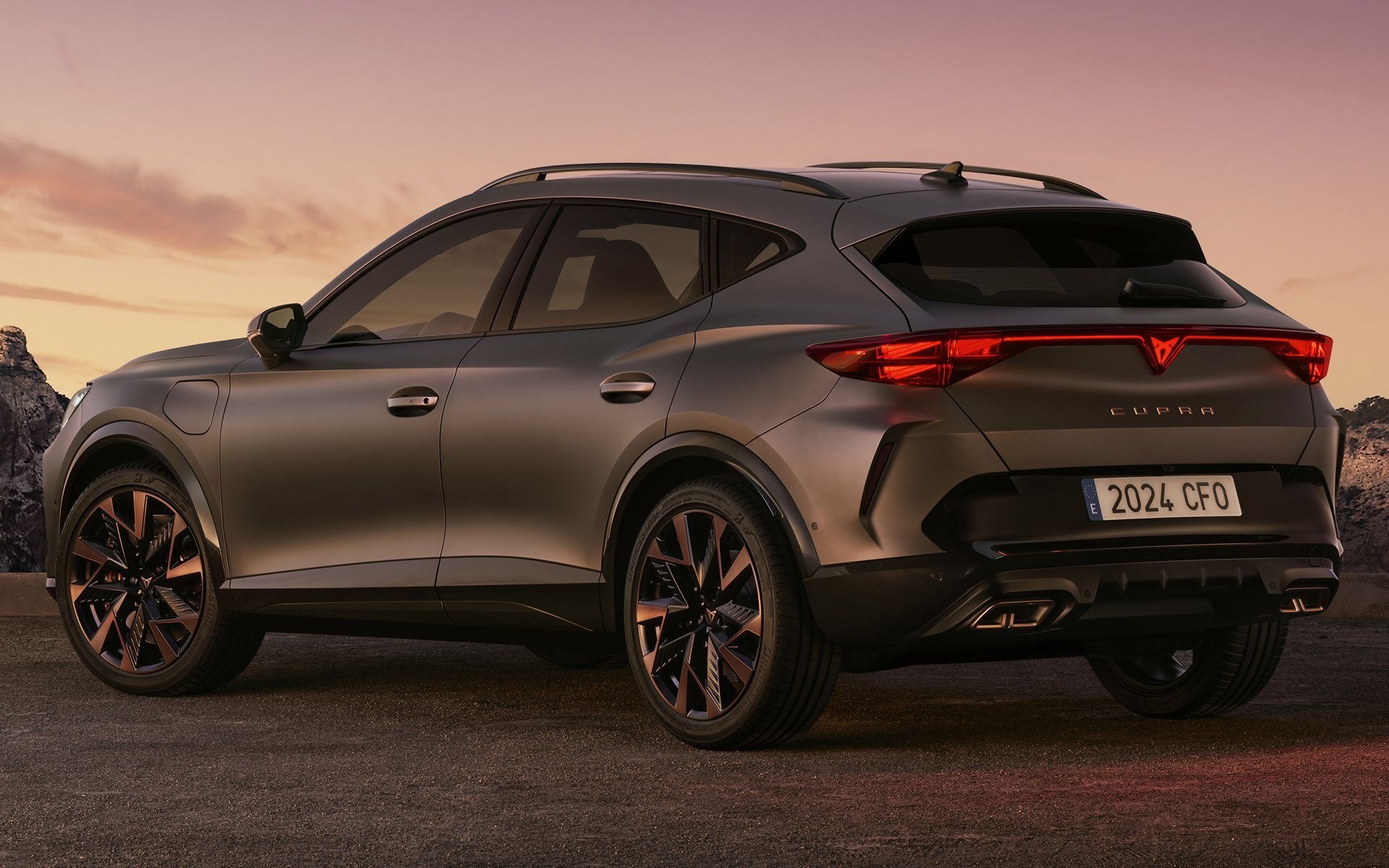

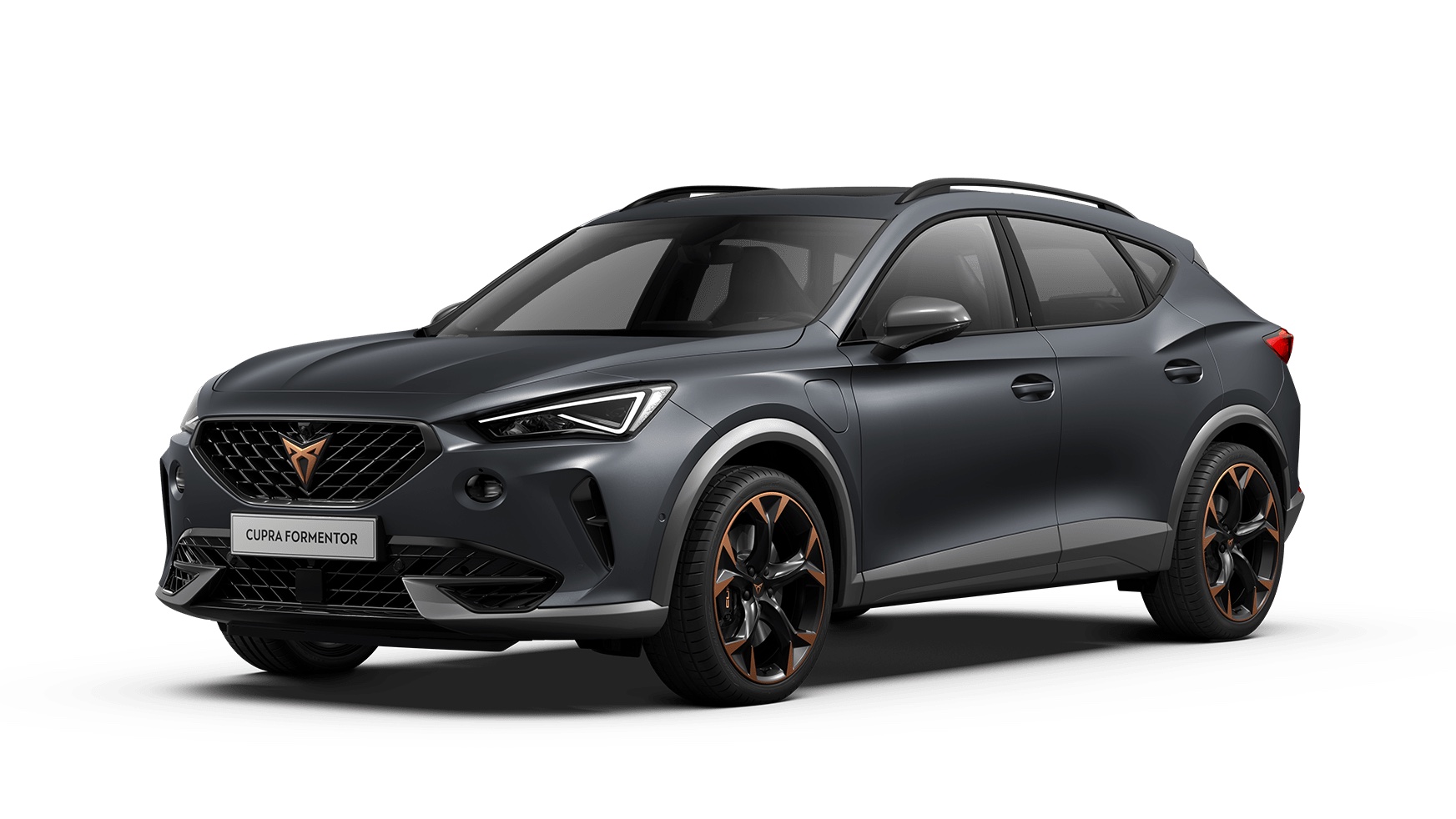

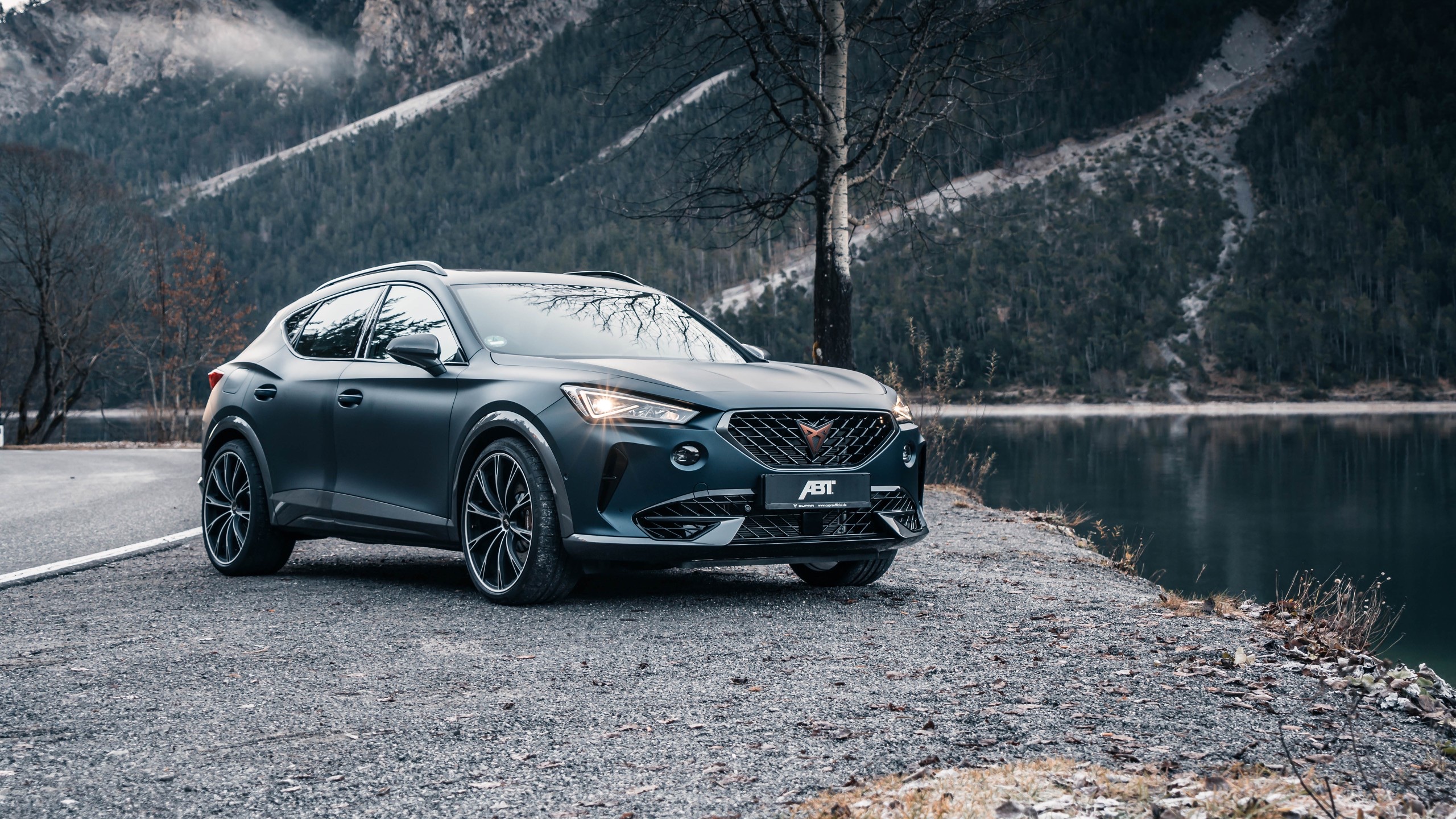

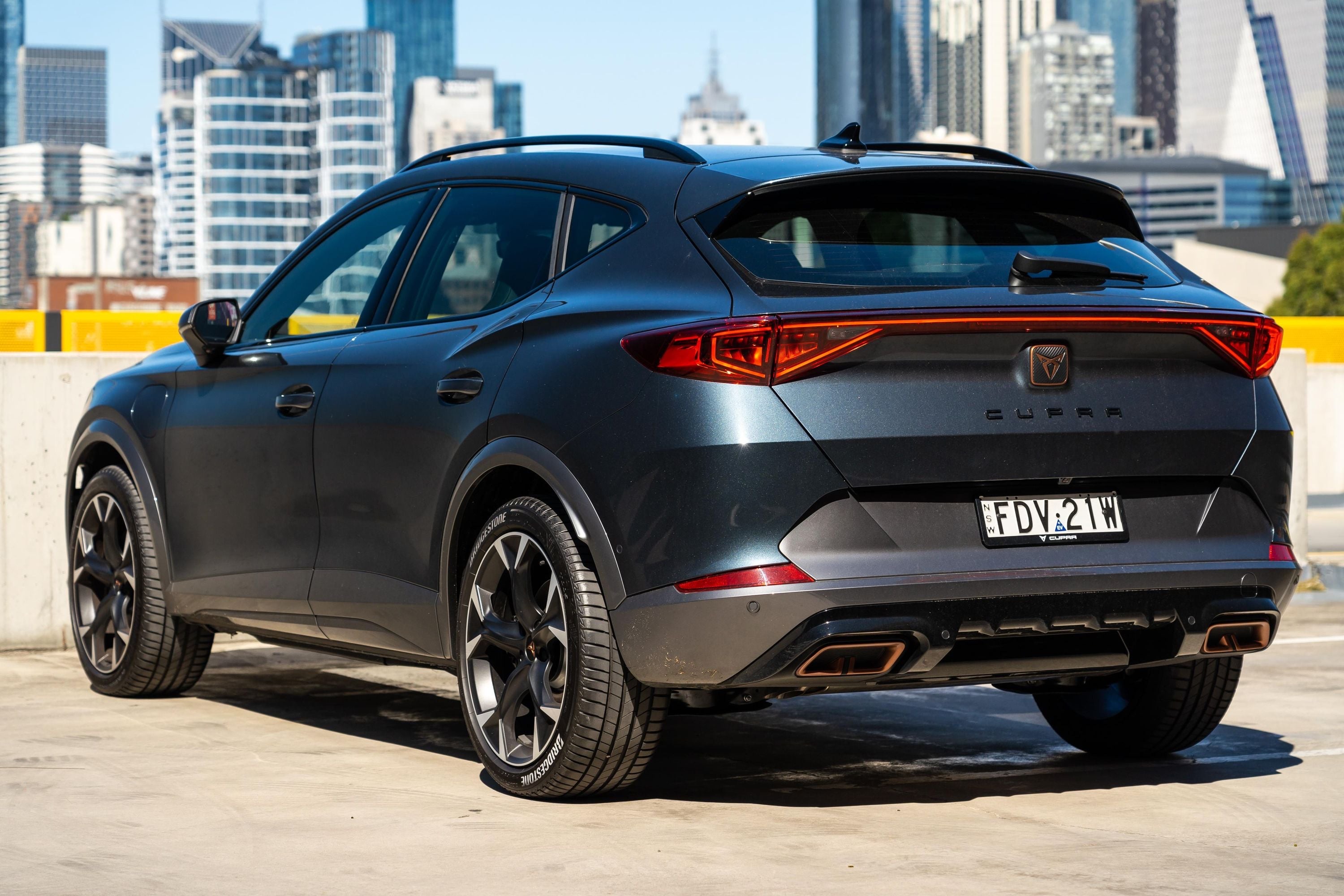

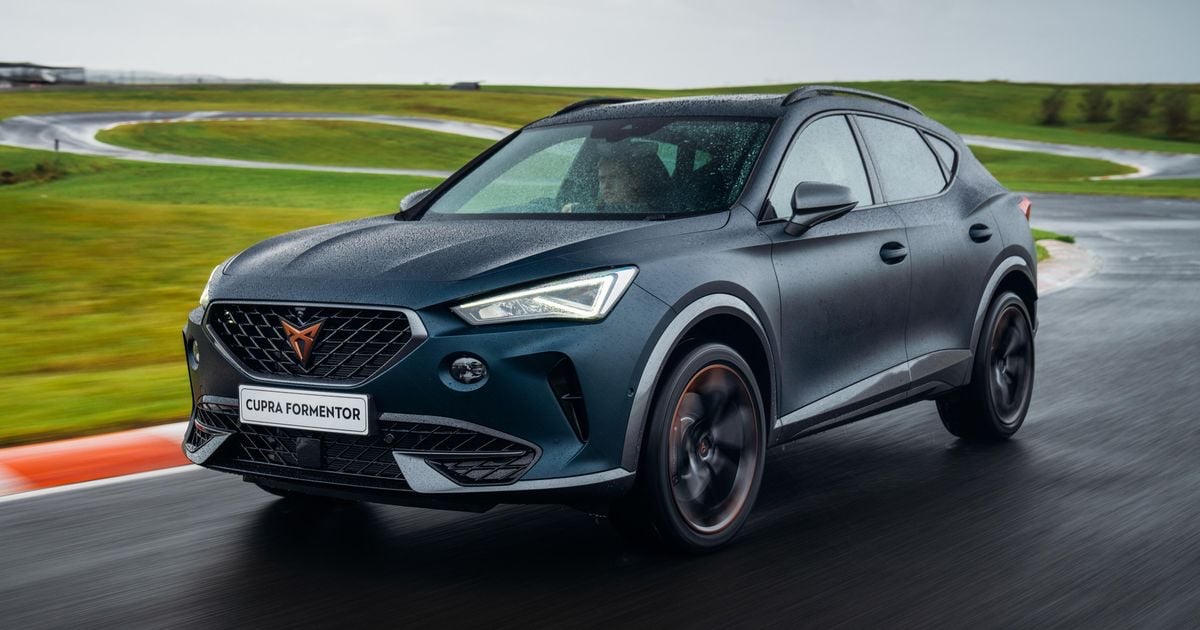

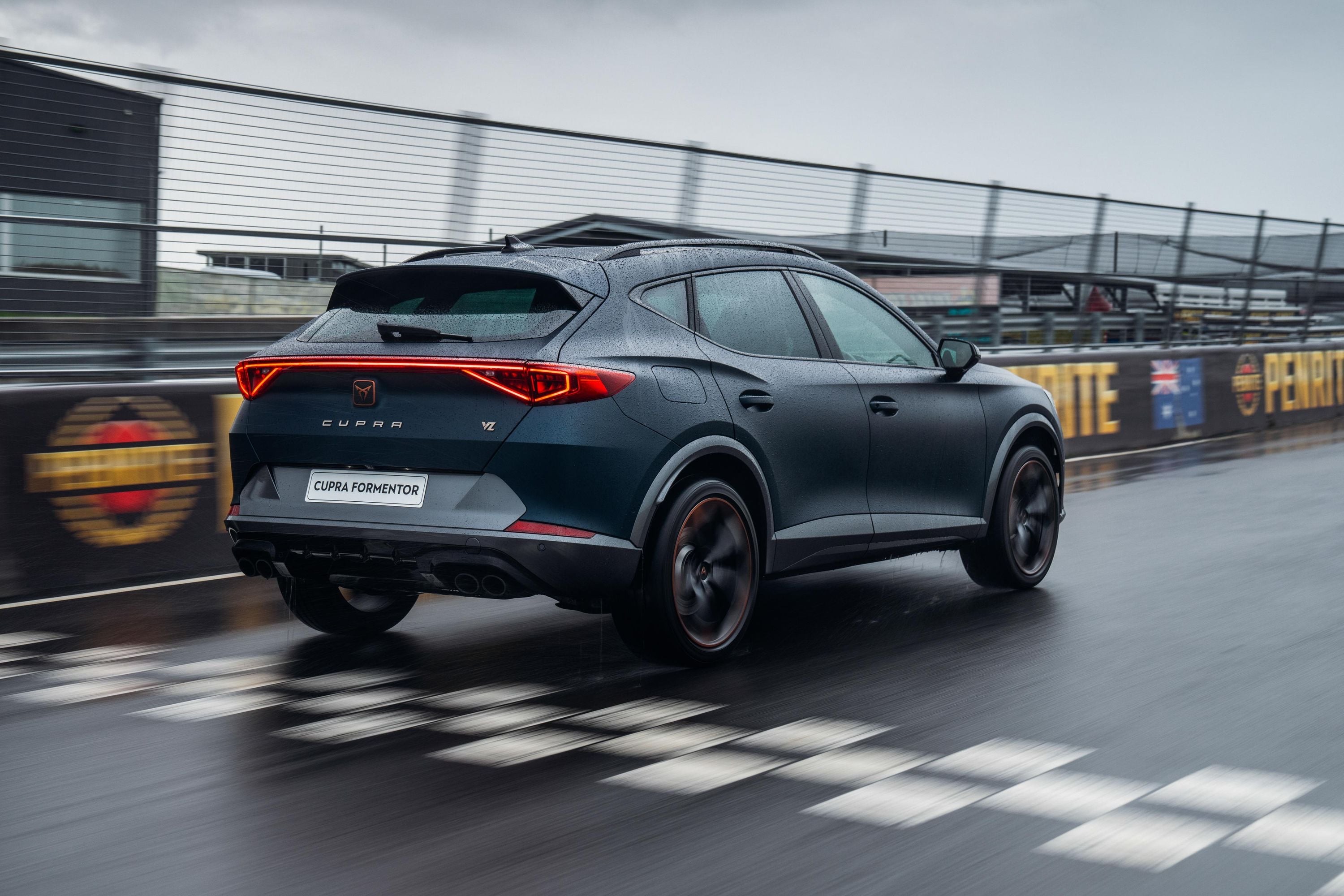

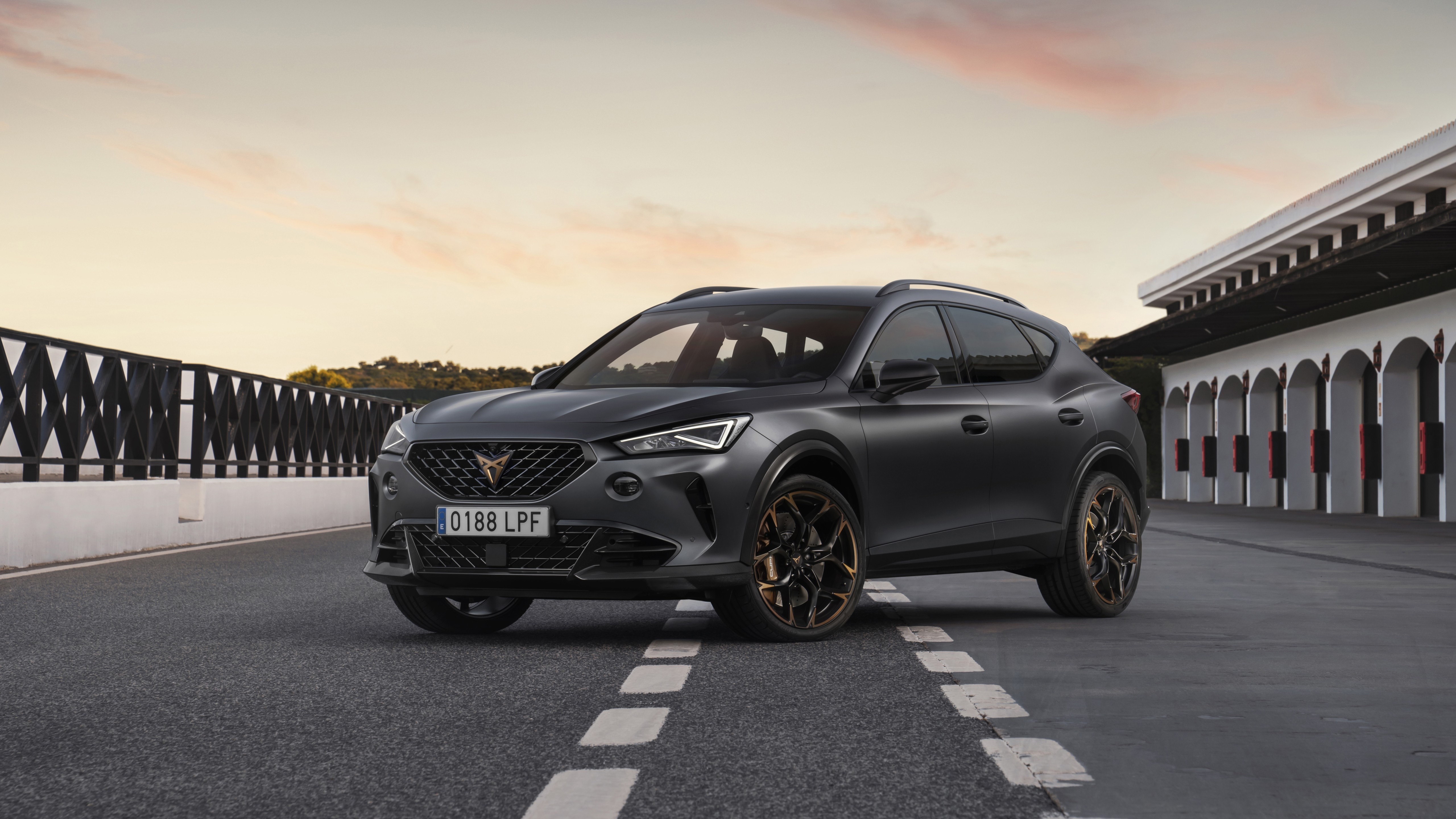

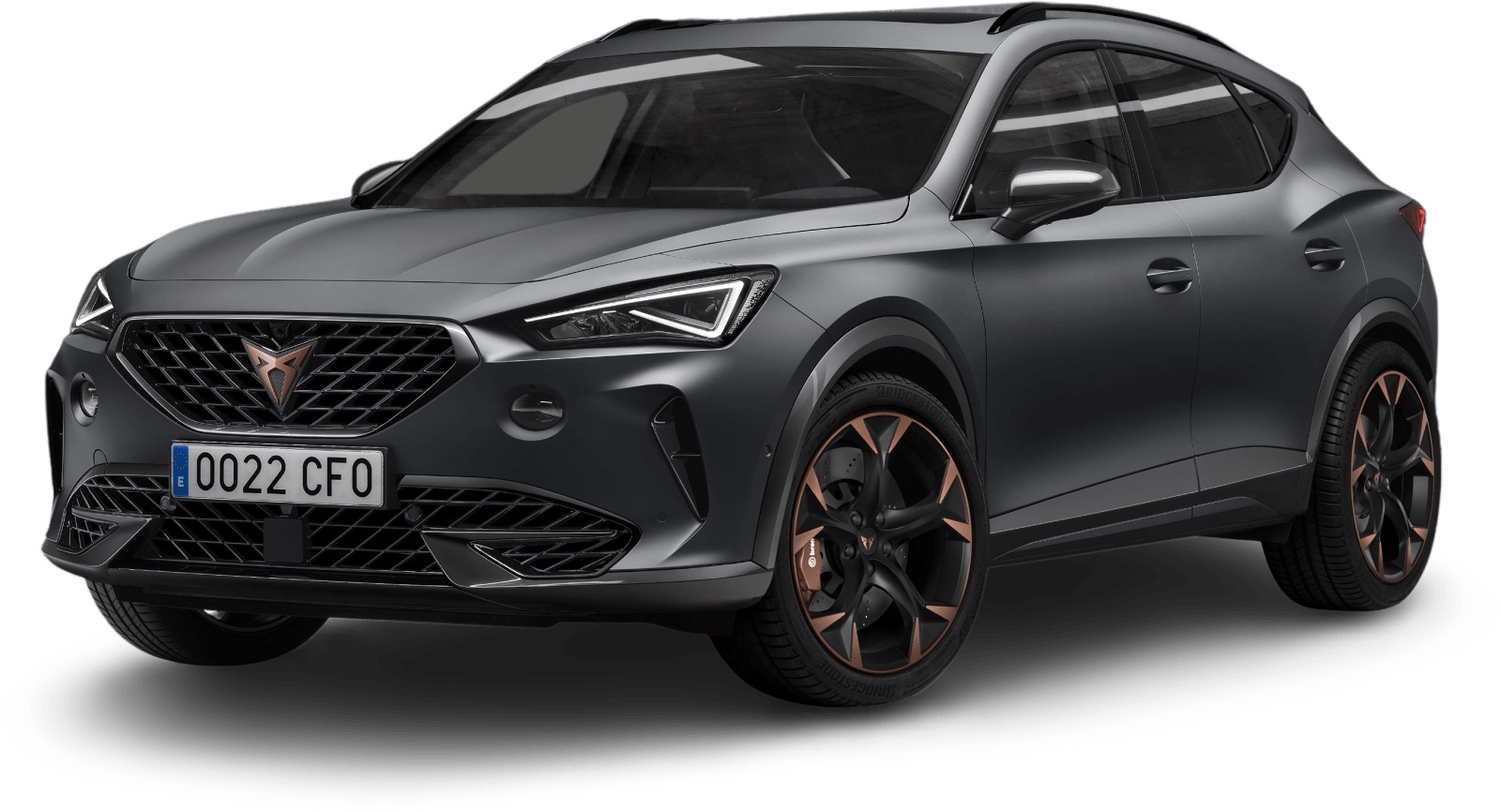

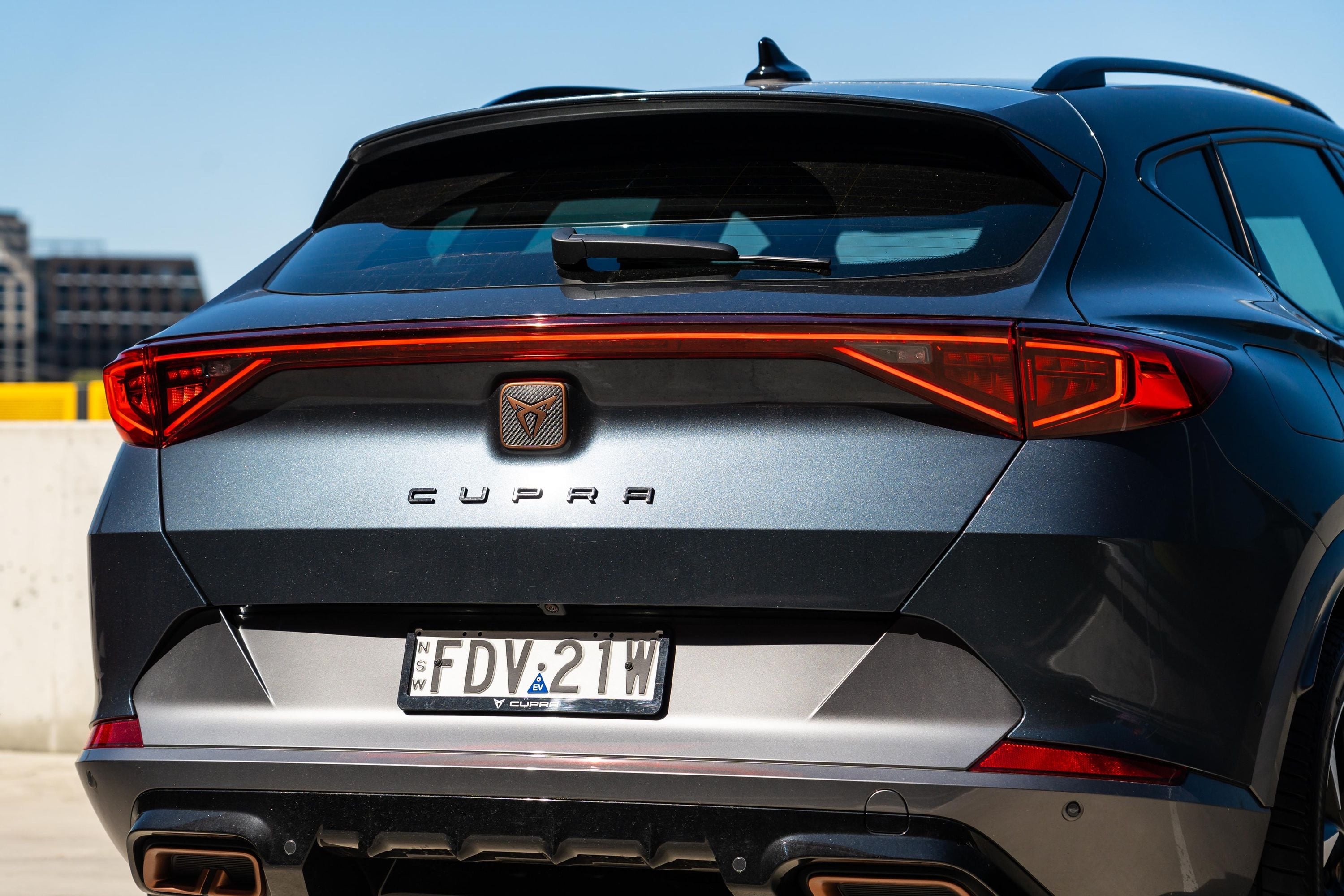

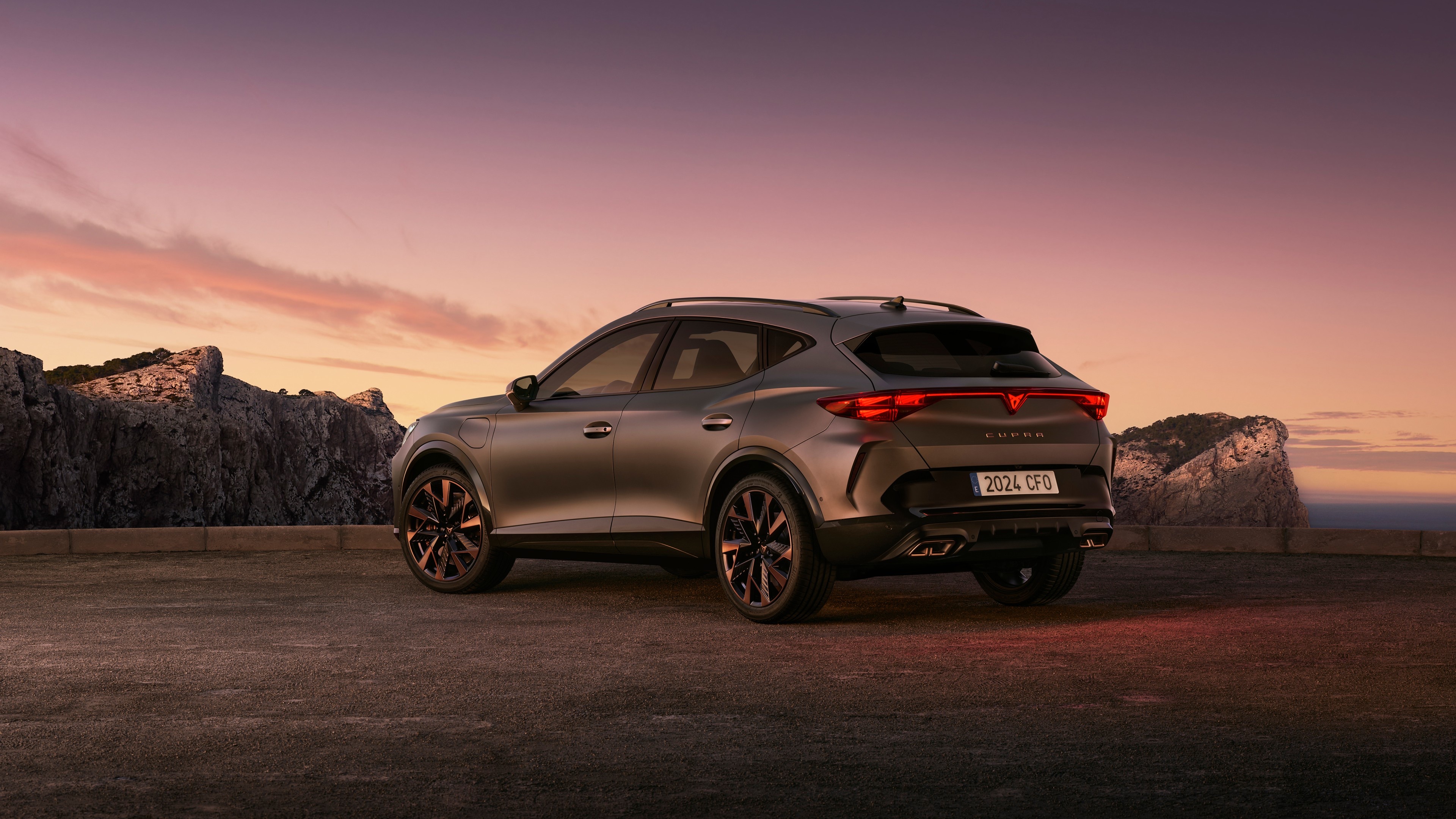

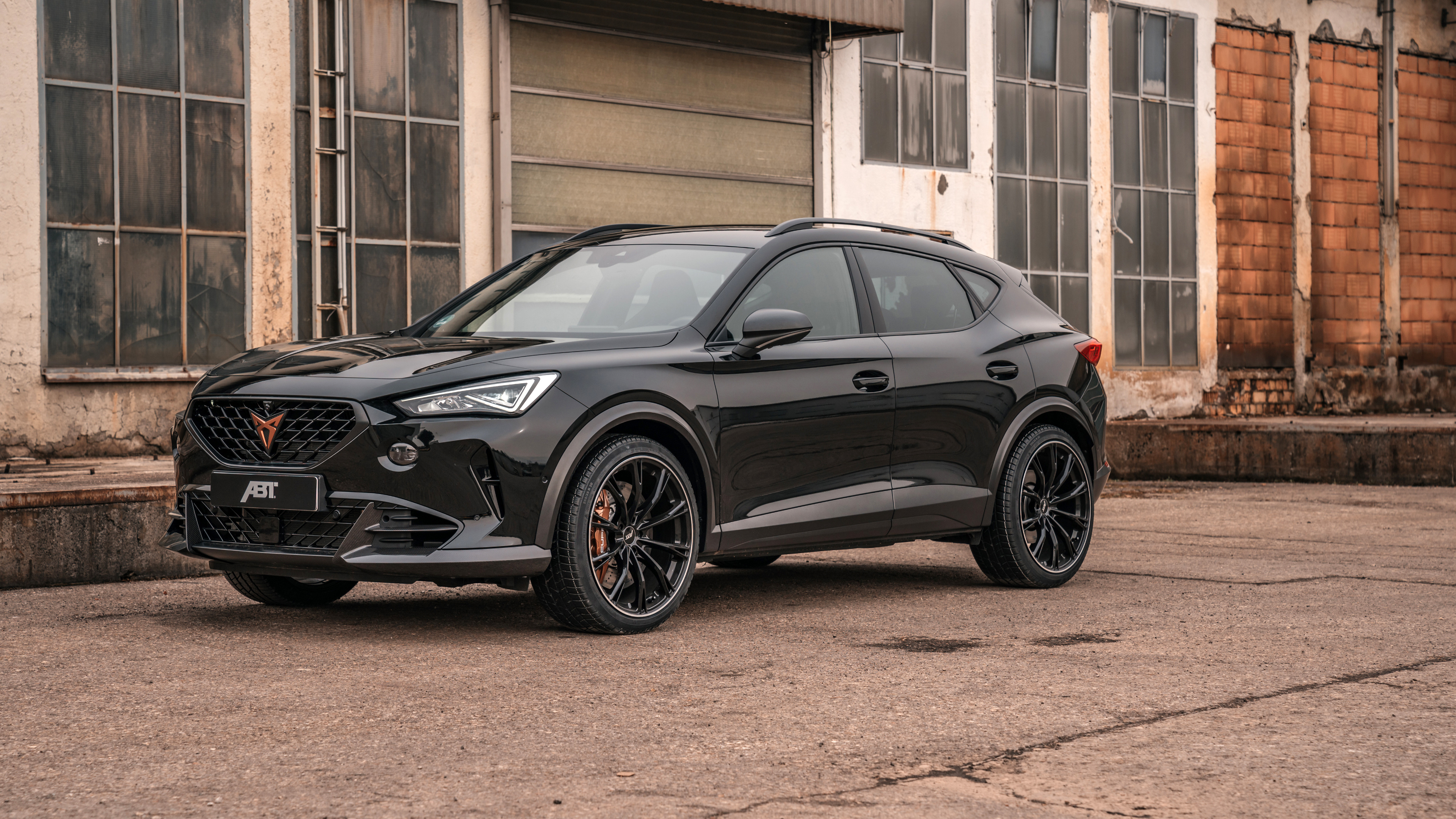

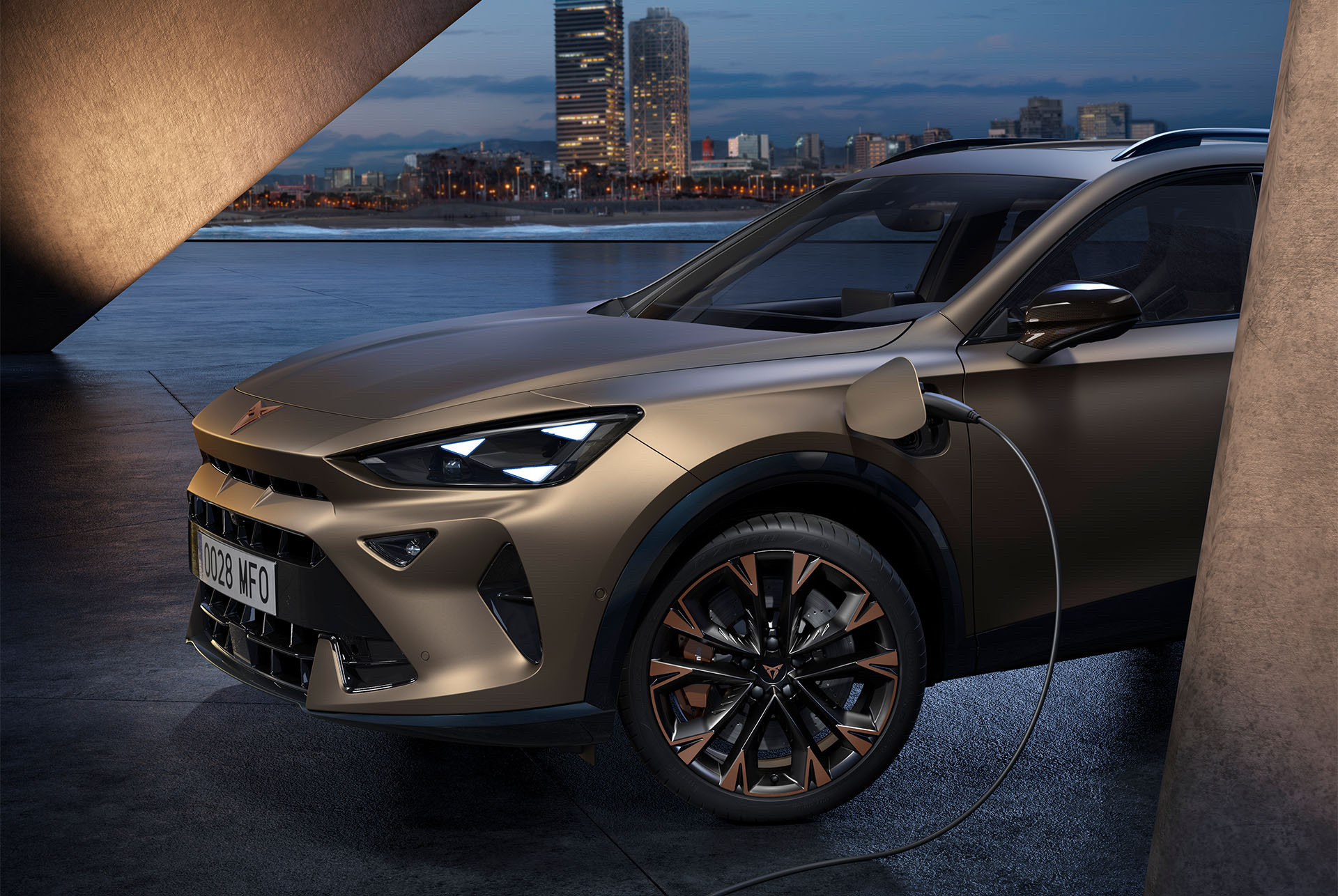

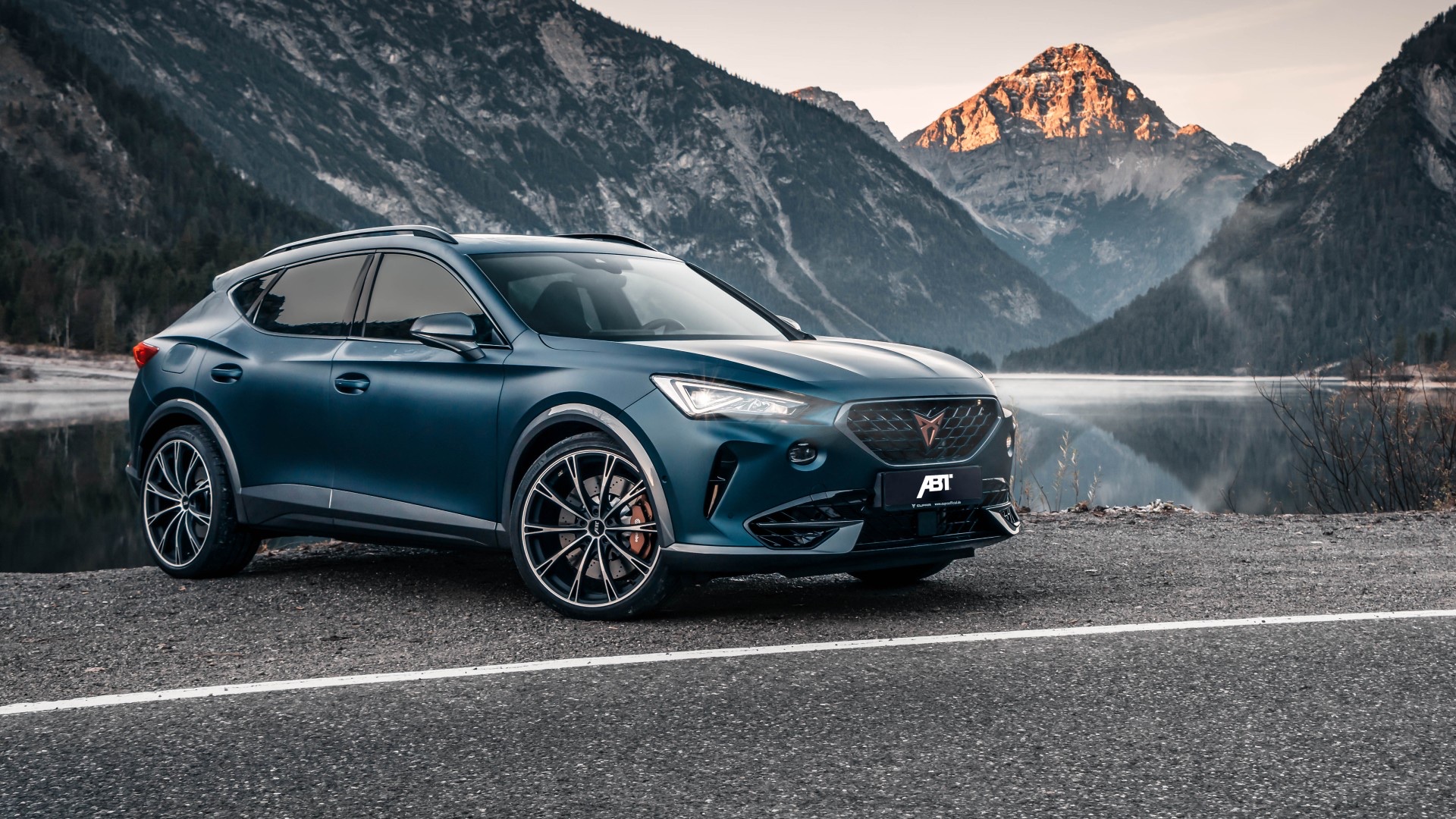

CUPRA Formentor photo gallery
20 images are collected here with the main specifications and trim data for this model.
Photo CUPRA Formentor
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
1.5 TSI (150 hp) 6-MT 35 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 6.1 |
|---|---|
| Top speed, km/h | 205 |
| Acceleration 0-100 km/h, s | 9 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.5 TSI |
|---|---|
| Engine code | DADA (EA211) |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1498 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Compression ratio | 10.5:1 |
| Power, hp | 150 |
| RPM at max power | 5000-6000 |
| Torque, Nm | 250 |
| RPM at max torque | 1500-3500 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4451 |
| Width, mm | 1992 |
| Height, mm | 1520 |
| Wheelbase, mm | 2679 |
| Front track, mm | 1583 |
| Rear track, mm | 1555 |
| Kerb weight, kg | 1434 |
| Gross weight, kg | 1960 |
| Turning circle, m | 11.4 |
| Width without mirrors, mm | 1839 |
| Trunk capacity, L | 450 |
Transmission and drive
| Transmission | 6-speed manual |
|---|---|
| Transmission type | manual |
| Drive | Front-wheel drive |
| Number of gears | 6 |
| Transmission manufacturer | VAG |
1.5 eTSI MHEV (150 hp) 7-speed DSG 34 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 5.8 |
|---|---|
| Top speed, km/h | 205 |
| Acceleration 0-100 km/h, s | 9 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.5 eTSI MHEV |
|---|---|
| Engine code | EA211 evo2/DPCA |
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 1498 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 150 |
| RPM at max power | 5000-6000 |
| Torque, Nm | 250 |
| RPM at max torque | 1500-3500 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4451 |
| Width, mm | 1992 |
| Height, mm | 1520 |
| Wheelbase, mm | 2679 |
| Front track, mm | 1583 |
| Rear track, mm | 1555 |
| Kerb weight, kg | 1434 |
| Gross weight, kg | 1960 |
| Turning circle, m | 11.4 |
| Width without mirrors, mm | 1839 |
| Trunk capacity, L | 450 |
Transmission and drive
| Transmission | 7-speed dual-clutch |
|---|---|
| Transmission type | 2-speed automated manual |
| Drive | Front-wheel drive |
| Number of gears | 7 |
| Automatic transmission | + |
1.5 TSI e-HYBRID (204 hp) 6-speed DSG 32 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 0.4 |
|---|---|
| Top speed, km/h | 210 |
| Acceleration 0-100 km/h, s | 7.9 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.5 TSI e-HYBRID |
|---|---|
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 1498 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 204 |
| Torque, Nm | 350 |
| Combustion engine power, hp | 150 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4451 |
| Width, mm | 1992 |
| Height, mm | 1520 |
| Wheelbase, mm | 2679 |
| Front track, mm | 1583 |
| Rear track, mm | 1555 |
| Kerb weight, kg | 1434 |
| Gross weight, kg | 1960 |
| Turning circle, m | 11.4 |
| Width without mirrors, mm | 1839 |
| Trunk capacity, L | 450 |
Transmission and drive
| Transmission | 6-speed dual-clutch |
|---|---|
| Transmission type | 2-speed automated manual |
| Drive | Front-wheel drive |
| Number of gears | 6 |
| Automatic transmission | + |
1.5 TSI e-HYBRID (272 hp) 6-speed DSG 36 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 0.4 |
|---|---|
| Top speed, km/h | 220 |
| Acceleration 0-100 km/h, s | 7.2 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.5 TSI e-HYBRID |
|---|---|
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 1498 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 272 |
| Torque, Nm | 400 |
| Electric motor power, hp | 116 |
| Combustion engine power, hp | 177 |
| Combustion engine RPM at max power | 5500 |
| Combustion engine torque, Nm | 250 |
| Combustion engine RPM at max torque | 1500 |
| Electric motor torque, Nm | 330 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4451 |
| Width, mm | 1992 |
| Height, mm | 1520 |
| Wheelbase, mm | 2679 |
| Front track, mm | 1583 |
| Rear track, mm | 1555 |
| Kerb weight, kg | 1434 |
| Gross weight, kg | 1960 |
| Turning circle, m | 11.4 |
| Width without mirrors, mm | 1839 |
| Trunk capacity, L | 450 |
Transmission and drive
| Transmission | 6-speed dual-clutch |
|---|---|
| Transmission type | 2-speed automated manual |
| Drive | Front-wheel drive |
| Number of gears | 6 |
| Automatic transmission | + |
2.0 TFSI (333 hp) 7-speed DSG 4x4 33 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 8.7 |
|---|---|
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 4.8 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 TFSI |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1984 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 333 |
| RPM at max power | 5600-6500 |
| Torque, Nm | 420 |
| RPM at max torque | 2100-5500 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4451 |
| Width, mm | 1992 |
| Height, mm | 1520 |
| Wheelbase, mm | 2679 |
| Front track, mm | 1583 |
| Rear track, mm | 1555 |
| Kerb weight, kg | 1434 |
| Gross weight, kg | 1960 |
| Turning circle, m | 11.4 |
| Width without mirrors, mm | 1839 |
| Trunk capacity, L | 450 |
Transmission and drive
| Transmission | 7-speed dual-clutch |
|---|---|
| Transmission type | 2-speed automated manual |
| Drive | All-wheel drive |
| Number of gears | 7 |
| Automatic transmission | + |
2.0 TDI (150 hp) 7-speed DSG 34 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 5.1 |
|---|---|
| Top speed, km/h | 205 |
| Acceleration 0-100 km/h, s | 9 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 TDI |
|---|---|
| Engine code | DFGA |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1968 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 150 |
| RPM at max power | 3000-4200 |
| Torque, Nm | 360 |
| RPM at max torque | 1600-2750 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4451 |
| Width, mm | 1992 |
| Height, mm | 1520 |
| Wheelbase, mm | 2679 |
| Front track, mm | 1583 |
| Rear track, mm | 1555 |
| Kerb weight, kg | 1434 |
| Gross weight, kg | 1960 |
| Turning circle, m | 11.4 |
| Width without mirrors, mm | 1839 |
| Trunk capacity, L | 450 |
Transmission and drive
| Transmission | 7-speed dual-clutch |
|---|---|
| Transmission type | 2-speed automated manual |
| Drive | Front-wheel drive |
| Number of gears | 7 |
| Automatic transmission | + |
2.0 TDI AT Cupra 99 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 5.1 |
|---|---|
| Top speed, km/h | 205 |
| Acceleration 0-100 km/h, s | 9 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 TDI |
|---|---|
| Engine code | DFGA |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1968 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 150 |
| RPM at max power | 3000-4200 |
| Torque, Nm | 360 |
| RPM at max torque | 1600-2750 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4451 |
| Width, mm | 1992 |
| Height, mm | 1520 |
| Wheelbase, mm | 2679 |
| Front track, mm | 1583 |
| Rear track, mm | 1555 |
| Kerb weight, kg | 1434 |
| Gross weight, kg | 1960 |
| Turning circle, m | 11.4 |
| Width without mirrors, mm | 1839 |
| Trunk capacity, L | 450 |
Transmission and drive
| Transmission | 7-speed dual-clutch |
|---|---|
| Transmission type | 2-speed automated manual |
| Drive | Front-wheel drive |
| Number of gears | 7 |
| Automatic transmission | + |
Brake system
| Front brakes | Disc |
|---|---|
| Rear brakes | Disc |
Equipment
Exterior
| Door sill plates | + |
|---|---|
| Sport front bumper | + |
| Sport rear bumper | + |
| Body side moldings | + |
Comfort
| Tire pressure monitoring | + |
|---|---|
| Keyless entry and start | + |
| Adaptive cruise control | + |
| Electromechanical parking brake | + |
Interior
| Multifunction instrument display | + |
|---|---|
| 12V power outlet | + |
Wheels
| Rim diameter | 18 |
|---|---|
| Rim type | Alloy |
| Spare wheel | Space-saver spare wheel |
| Tires | 245/45R18 |
Technologies
| Adjustable speed limiter | + |
|---|---|
| Electronic differential lock | + |
Climate and sound insulation
| Heated front seats | + |
|---|---|
| Climate control | + |
Seats
| Child seat anchors (LATCH/Isofix) | + |
|---|---|
| Front armrest | + |
| Rear armrest | + |
| Height-adjustable driver's seat | + |
| Height-adjustable passenger seat | + |
| Front passenger lumbar support | + |
| Driver lumbar support | + |
Headlights and lighting
| Front fog lights | + |
|---|---|
| Light sensor | + |
| Headlight leveling | + |
| LED headlights | + |
| LED tail lights | + |
| Rear fog lights | + |
| LED daytime running lights | + |
| Automatic high-beam assist | + |
Multimedia and instruments
| Radio | + |
|---|---|
| USB | + |
| Number of speakers | 7 |
Glass, mirrors and sunroof
| Rain sensor | + |
|---|---|
| Heated side mirrors | + |
| Front power windows | + |
| Rear power windows | + |
| Power-adjustable side mirrors | + |
| Power-folding side mirrors | + |
| Rear window wiper | + |
| Tinted glass | + |
| Auto-dimming rear-view mirror | + |
Visibility and parking
| Front parking sensors | + |
|---|---|
| Multifunction camera | + |
Fuel economy
| Start-stop system | + |
|---|---|
| Brake energy recuperation | + |
Body paint and exterior parts
| Body-colored side mirrors | + |
|---|---|
| Black roof rails | + |
Security
Electronic systems
| Electronic stability control | + |
|---|---|
| Lane keeping assist | + |
| Auto Hold | + |
| Electronic brakeforce distribution | + |
| Driver fatigue detection | + |
| Electronic differential lock | + |
| Forward collision warning | + |
Anti-theft systems
| Alarm system | + |
|---|---|
| Central locking | + |
Airbags
| Driver airbag | + |
|---|---|
| Passenger airbag | + |
| Passenger airbag deactivation | + |
2.0 TFSI AT VZ 99 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 8.7 |
|---|---|
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 4.8 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 TFSI |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1984 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 333 |
| RPM at max power | 5600-6500 |
| Torque, Nm | 420 |
| RPM at max torque | 2100-5500 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4451 |
| Width, mm | 1992 |
| Height, mm | 1520 |
| Wheelbase, mm | 2679 |
| Front track, mm | 1583 |
| Rear track, mm | 1555 |
| Kerb weight, kg | 1434 |
| Gross weight, kg | 1960 |
| Turning circle, m | 11.4 |
| Width without mirrors, mm | 1839 |
| Trunk capacity, L | 450 |
Transmission and drive
| Transmission | 7-speed dual-clutch |
|---|---|
| Transmission type | 2-speed automated manual |
| Drive | All-wheel drive |
| Number of gears | 7 |
| Automatic transmission | + |
Brake system
| Front brakes | Disc |
|---|---|
| Rear brakes | Disc |
Equipment
Exterior
| Door sill plates | + |
|---|---|
| Sport front bumper | + |
| Sport rear bumper | + |
| Body side moldings | + |
Comfort
| Side mirror position memory | + |
|---|---|
| Adaptive cruise control | + |
| Electromechanical parking brake | + |
| Keyless door unlocking | + |
Interior
| Multifunction instrument display | + |
|---|---|
| 12V power outlet | + |
Wheels
| Rim diameter | 19 |
|---|---|
| Rim type | Alloy |
| Spare wheel | Space-saver spare wheel |
| Tires | 245/40R19 |
Technologies
| Adjustable speed limiter | + |
|---|---|
| Electronic differential lock | + |
Climate and sound insulation
| Heated front seats | + |
|---|---|
| Three-zone climate control | + |
Seats
| Child seat anchors (LATCH/Isofix) | + |
|---|---|
| Front armrest | + |
| Rear armrest | + |
| Sport seats | + |
| Power driver lumbar adjustment | + |
Headlights and lighting
| Front fog lights | + |
|---|---|
| Light sensor | + |
| Headlight leveling | + |
| LED headlights | + |
| LED tail lights | + |
| Rear fog lights | + |
| LED daytime running lights | + |
| Automatic high-beam assist | + |
Multimedia and instruments
| Radio | + |
|---|---|
| USB | + |
| Number of speakers | 7 |
| Antenna | + |
Glass, mirrors and sunroof
| Rain sensor | + |
|---|---|
| Heated side mirrors | + |
| Front power windows | + |
| Rear power windows | + |
| Power-adjustable side mirrors | + |
| Power-folding side mirrors | + |
| Rear window wiper | + |
| Tinted glass | + |
| Auto-dimming rear-view mirror | + |
Visibility and parking
| Rear-view camera | + |
|---|---|
| Front parking sensors | + |
| Rear parking sensors | + |
| Multifunction camera | + |
Fuel economy
| Start-stop system | + |
|---|---|
| Brake energy recuperation | + |
Body paint and exterior parts
| Body-colored side mirrors | + |
|---|---|
| Black roof rails | + |
Security
Electronic systems
| Electronic stability control | + |
|---|---|
| Lane keeping assist | + |
| Auto Hold | + |
| Electronic brakeforce distribution | + |
| Driver fatigue detection | + |
| Electronic differential lock | + |
| Forward collision warning | + |
Anti-theft systems
| Alarm system | + |
|---|---|
| Interior motion sensor | + |
Airbags
| Driver airbag | + |
|---|---|
| Passenger airbag | + |
| Passenger airbag deactivation | + |
CUPRA Formentor questions
Short answers based on the specifications and photos available in this catalog.
What body style is the CUPRA Formentor?
The CUPRA Formentor is a compact crossover SUV (classified as a K1-class vehicle) that features a sporty, coupe-like roofline. It is designed to bridge the gap between traditional hatchbacks and taller utility vehicles.
Is the CUPRA Formentor available as a hybrid?
Yes, the Formentor is available with multiple electrified options. These include a 1.5-liter eTSI mild-hybrid variant and two e-HYBRID plug-in hybrid versions offering either 204 or 272 total horsepower.
What is the electric range of the CUPRA Formentor e-HYBRID?
The plug-in hybrid versions of the CUPRA Formentor can travel up to 125 kilometers on electric power alone. This allows for zero-emission driving during typical daily commutes.
What is the most powerful engine available in the Formentor?
The highest-performing model is the VZ trim, which features a 2.0-liter TFSI turbocharged engine producing 333 horsepower. It comes paired with a seven-speed DSG automatic transmission and 4Drive all-wheel drive.
What safety features are included on the CUPRA Formentor?
The vehicle features adaptive cruise control, travel assist, lane-keeping assist, collision warning systems, and a driver drowsiness detector. It also includes an automatic emergency eCall system that contacts rescue services during an accident.
Continue exploring CUPRA
Return to CUPRA models, browse the gallery, or compare the trims listed above.
