CUPRA Terramar specifications and photos
The 2024 CUPRA Terramar is a compact sport utility vehicle that marks a new design direction for the Spanish performance brand. Available in both front-wheel and all-wheel drive configurations, this crossover prioritizes driver engagement and modern styling. It made its official debut in Barcelona in September 2024.
CUPRA Terramar at a glance
Quick model context before comparing photos and trim-level specifications.
The 2024 CUPRA Terramar is positioned as a sporty K1-class crossover, serving as a key milestone in the brand's lineup expansion. Measuring 4,519 mm in length, 1,863 mm in width, and 1,586 mm in height, the Terramar offers a compact footprint with athletic proportions. The design language features a prominent shark-nose front end and dynamic lines that emphasize speed. Buyers can choose from a range of powertrains, including traditional petrol engines, mild hybrids, and a plug-in hybrid option. With a wheelbase of 2,681 mm, it balances a sporty stance with daily usability. This model is designed for drivers seeking a crossover that offers distinct styling and a more driver-focused experience than typical family SUVs. It aims to compete in the highly contested compact crossover segment by blending everyday practicality with performance-oriented characteristics.
- Power: 150-272 hp
- Engine displacement: 1498-1984 cc
- Transmissions: 7-speed dual-clutch, 6-speed dual-clutch
- Seating: 5 seats
CUPRA Terramar overview
Editorial context for design, cabin, performance, practicality, and buyer notes.

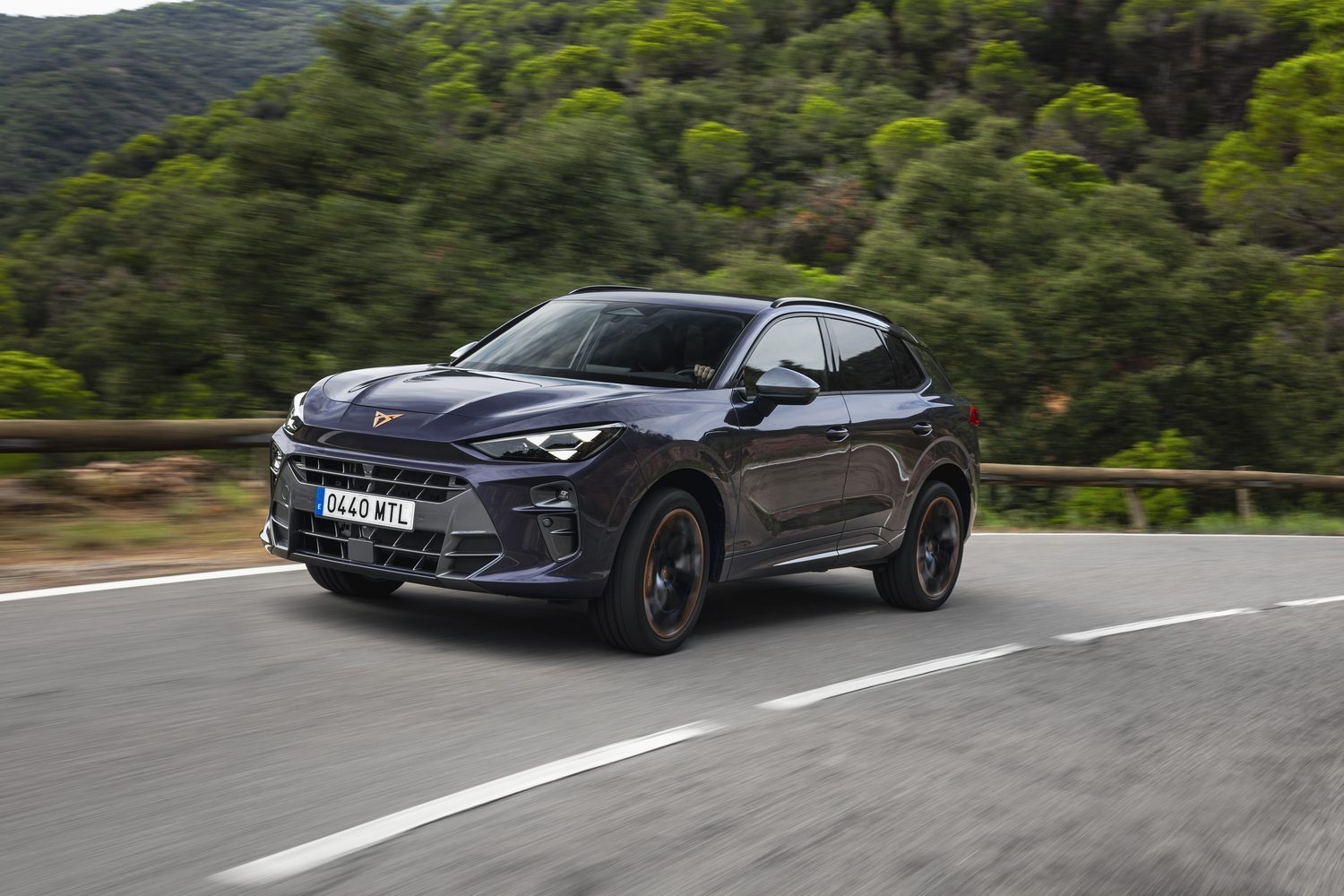

Design
The exterior design of the CUPRA Terramar emphasizes athletic proportions and aggressive styling cues. Its front fascia is defined by a bold shark-nose styling element, complemented by a large lower air intake reminiscent of sports cars. The vehicle features advanced matrix LED headlights and an integrated light-up CUPRA logo at the rear, alongside Terramar lettering. Depending on the selected trim, the crossover rides on 18-inch, 19-inch, or 20-inch alloy wheels. A selection of nine paint finishes is available, including matte options such as Century Bronze and Enceladus Grey, which highlight the body's sculpted side lines.

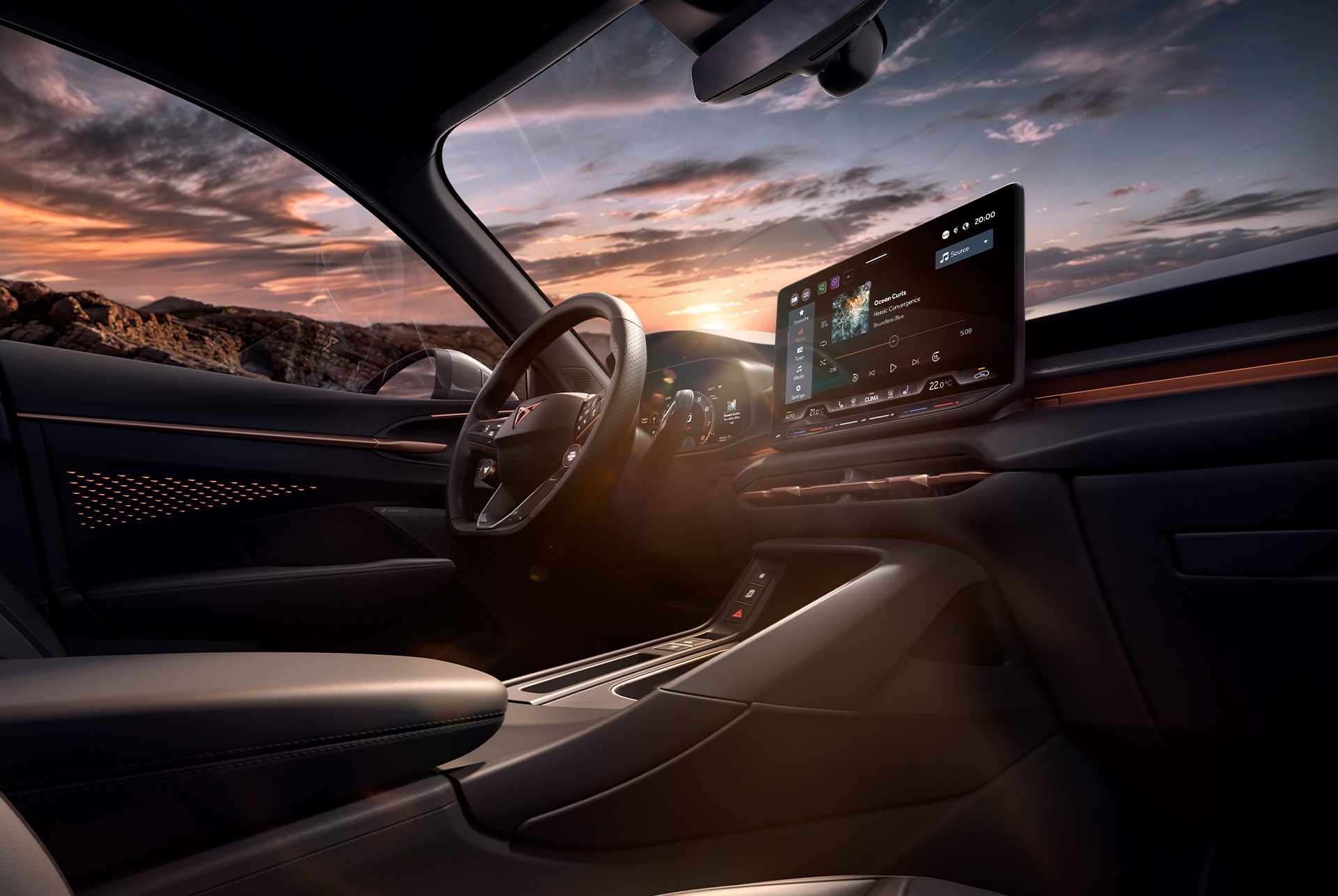

Interior
Inside, the Terramar features a driver-centric cockpit layout with a sculptural center console that wraps around the driver. The dashboard incorporates a unique three-dimensional parametric pattern. Standard seating includes sporty bucket seats upholstered in various eco-friendly materials, such as Seaqual Yarn made from recycled marine plastic, and Dinamica microfiber. Sustainable leather options processed with environmentally conscious methods are also offered in color schemes like Deep Ocean, Moon Light, and High Canyon. Copper stitching and matching interior accents on the air vents add to the premium look. A 10.25-inch digital instrument cluster and a 12.9-inch central infotainment touchscreen provide quick access to vehicle settings and climate controls.
Performance
The CUPRA Terramar offers a diverse engine lineup starting with a 1.5-litre mild-hybrid petrol engine producing 150 horsepower, paired with a seven-speed dual-clutch transmission. For higher performance, a 2.0-litre turbocharged petrol engine is available, producing either 204 horsepower or 265 horsepower, both equipped with all-wheel drive. The plug-in hybrid version, the e-HYBRID, combines a 1.5-litre petrol engine with an electric motor to generate a combined output of 272 horsepower. This hybrid setup allows for an all-electric driving range of over 100 kilometres on a single charge and supports DC fast charging at up to 50 kW.
Practicality
With five seats and a wheelbase of 2,681 mm, the Terramar is well-suited for everyday family duties. The cargo area offers a capacity of 540 litres, accommodating luggage, groceries, or sports equipment. Inside the cabin, practicality is enhanced by a folding rear seatback split in a one-third to two-thirds ratio, a front center armrest, and multiple storage compartments. Front and rear parking sensors, along with a rear-view camera, make maneuvering the vehicle in tight urban spaces straightforward. Roof rails are also available to support external cargo solutions like roof boxes or bike racks.
Safety and tech
Technology in the Terramar is centered around a digital-first interface, highlighting a 12.9-inch center screen and a customizable digital cockpit. Driver assistance features include electronic stability control, lane-keeping assist, forward collision warning, and a driver fatigue monitoring system. A camera system, featuring a front camera and a rear-view camera, assists with parking and low-speed navigation. LED lighting technology provides excellent visibility, and the automatic high-beam assist helps prevent dazzling oncoming traffic. The vehicle also features keyless entry and start, an electromechanical parking brake with auto-hold, and adaptive cruise control on select trims.
Buyer notes
When shopping for the CUPRA Terramar, buyers should pay close attention to the differences in engine types and standard equipment. The entry-level mild-hybrid models offer a front-wheel-drive setup, which is ideal for fuel-conscious commuters. Those seeking sportier performance or winter capability should look at the 2.0-litre turbocharged petrol options, which come standard with all-wheel drive. The e-HYBRID is excellent for buyers with access to charging infrastructure who want electric-only local driving. Because exact equipment packages and trim names can vary depending on the local market, verifying spec sheets with the dealership is highly recommended.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 1.5 eTSI MHEV (150 hp) 7-speed DSG | 1498 cc | 150 hp | 5 | 7-speed dual-clutch |
| 1.5 TSI e-HYBRID (272 hp) 6-speed DSG | 1498 cc | 272 hp | 5 | 6-speed dual-clutch |
| 2.0 TSI (265 hp) 7-speed DSG 4x4 | 1984 cc | 265 hp | 5 | 7-speed dual-clutch |
| 2.0 TFSI (204 hp) 7-speed DSG 4x4 | 1984 cc | 204 hp | 5 | 7-speed dual-clutch |
| 2.0 TFSI AT Mid | 1984 cc | 204 hp | 5 | 7-speed dual-clutch |
| 2.0 TSI VZ AWD | 1984 cc | 265 hp | 5 | 7-speed dual-clutch |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

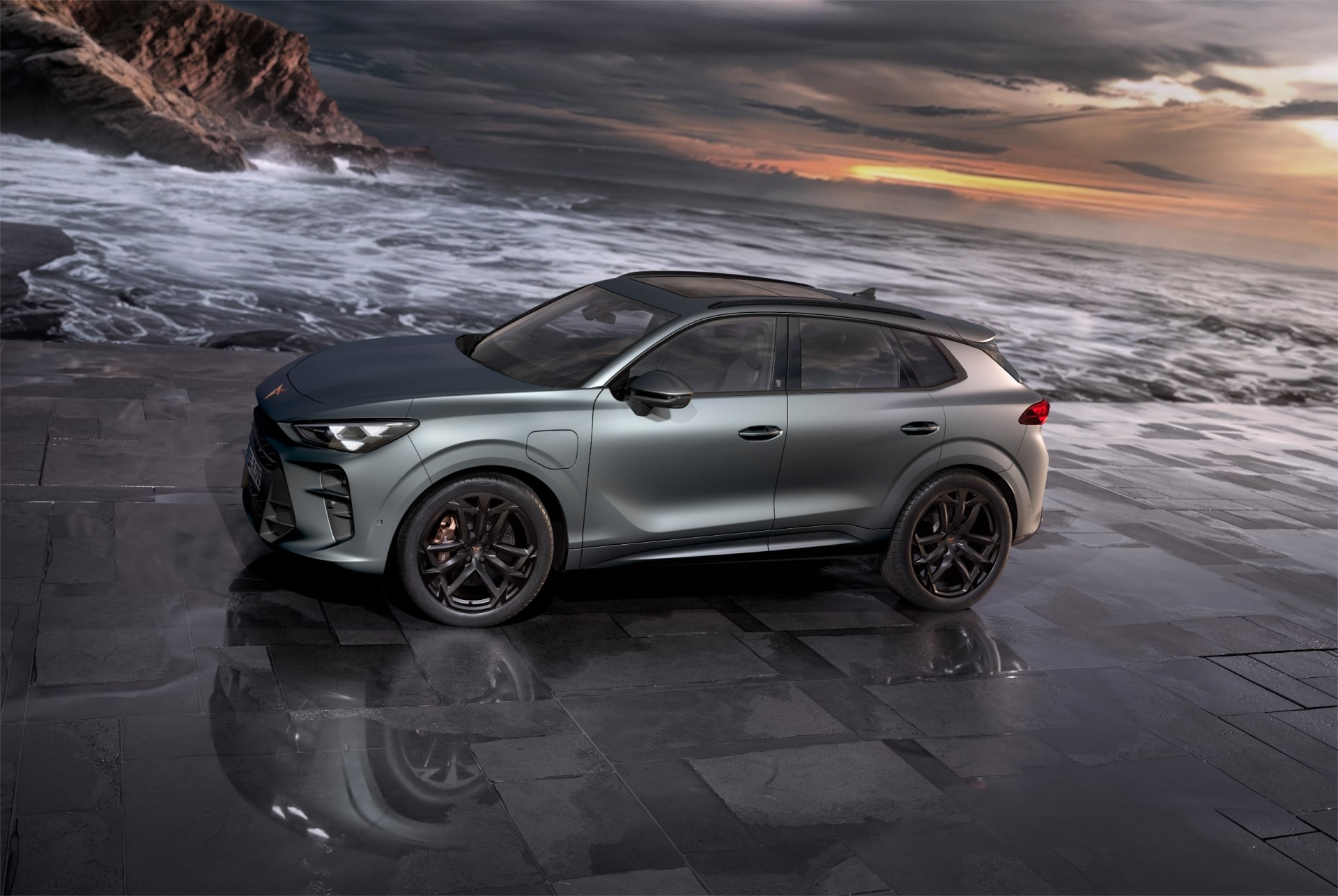

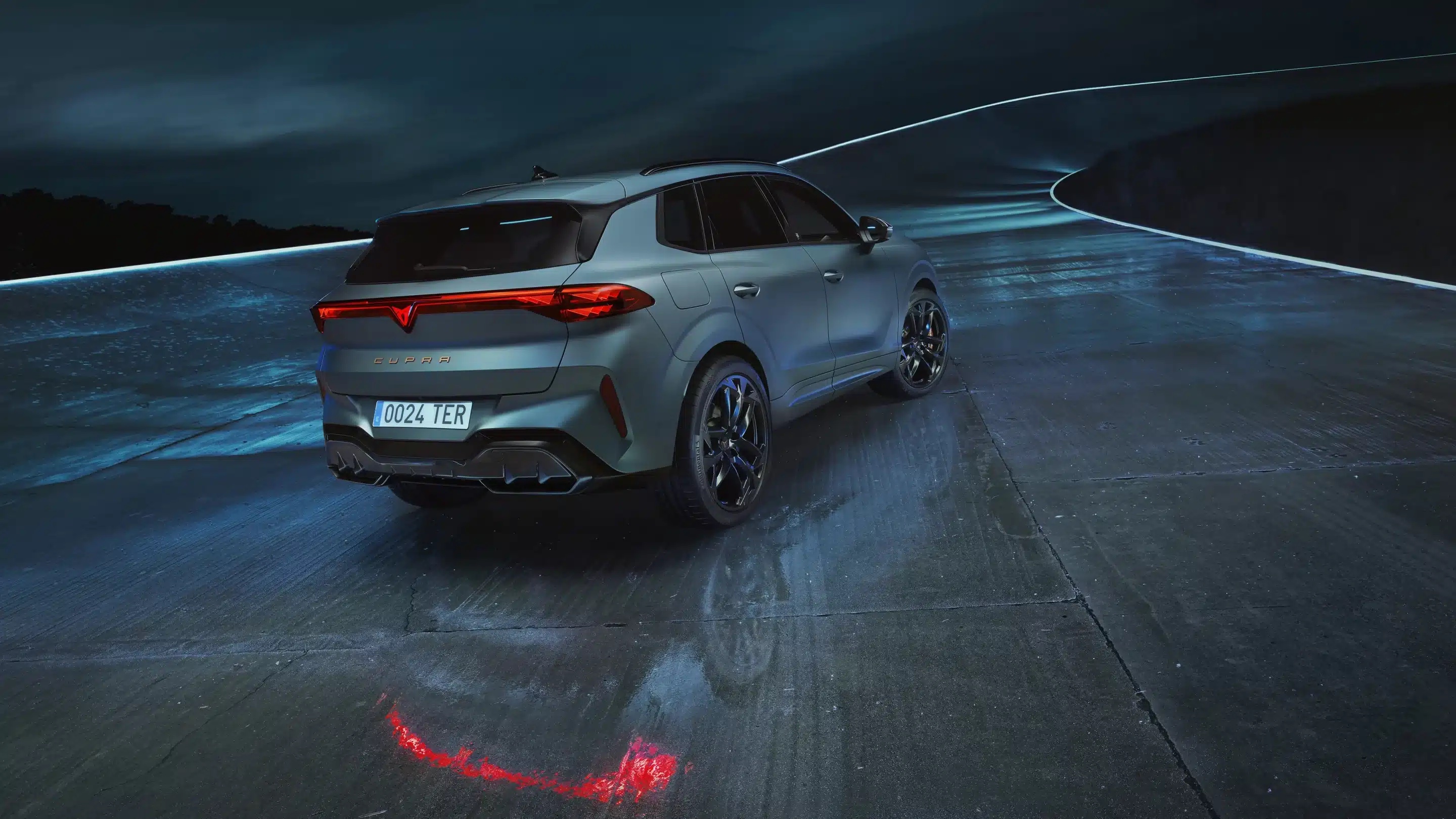

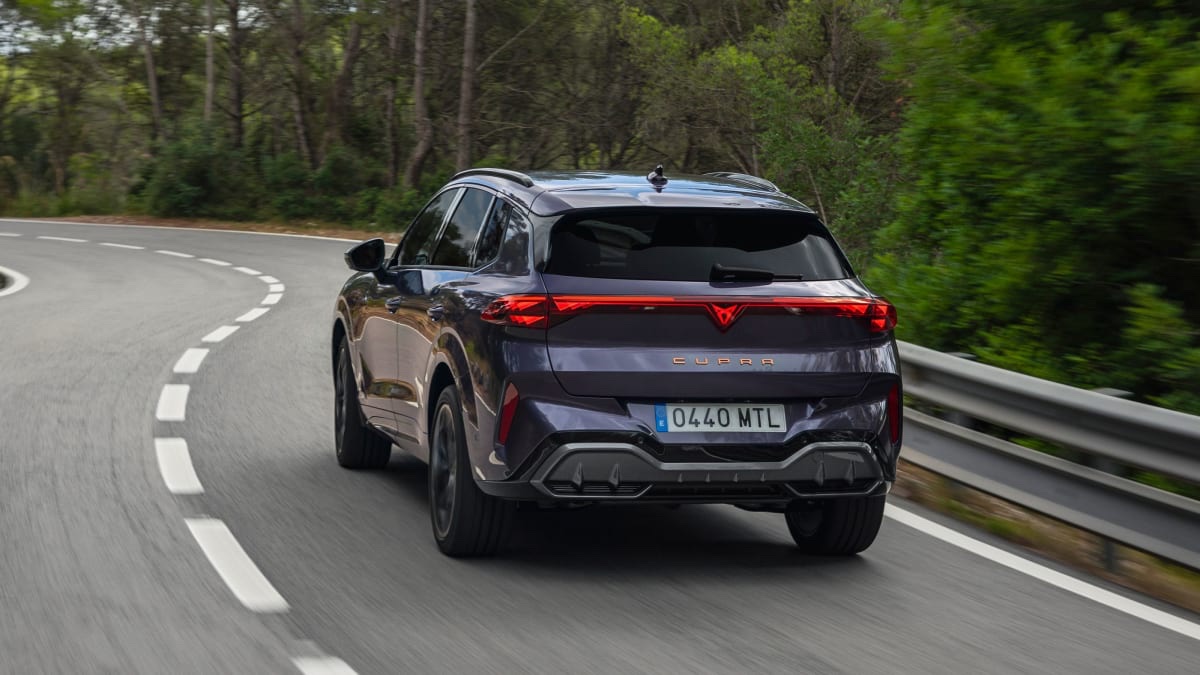

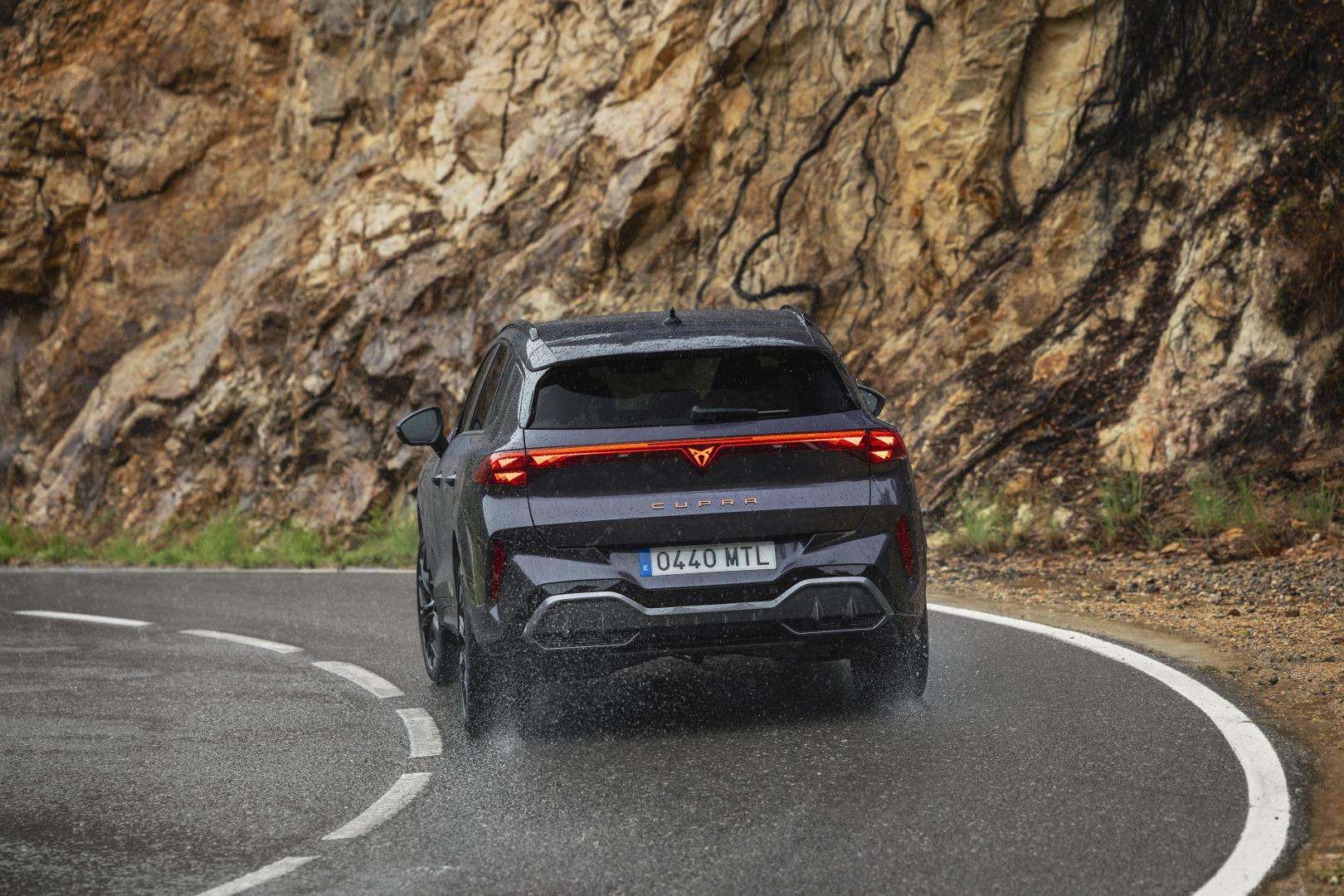

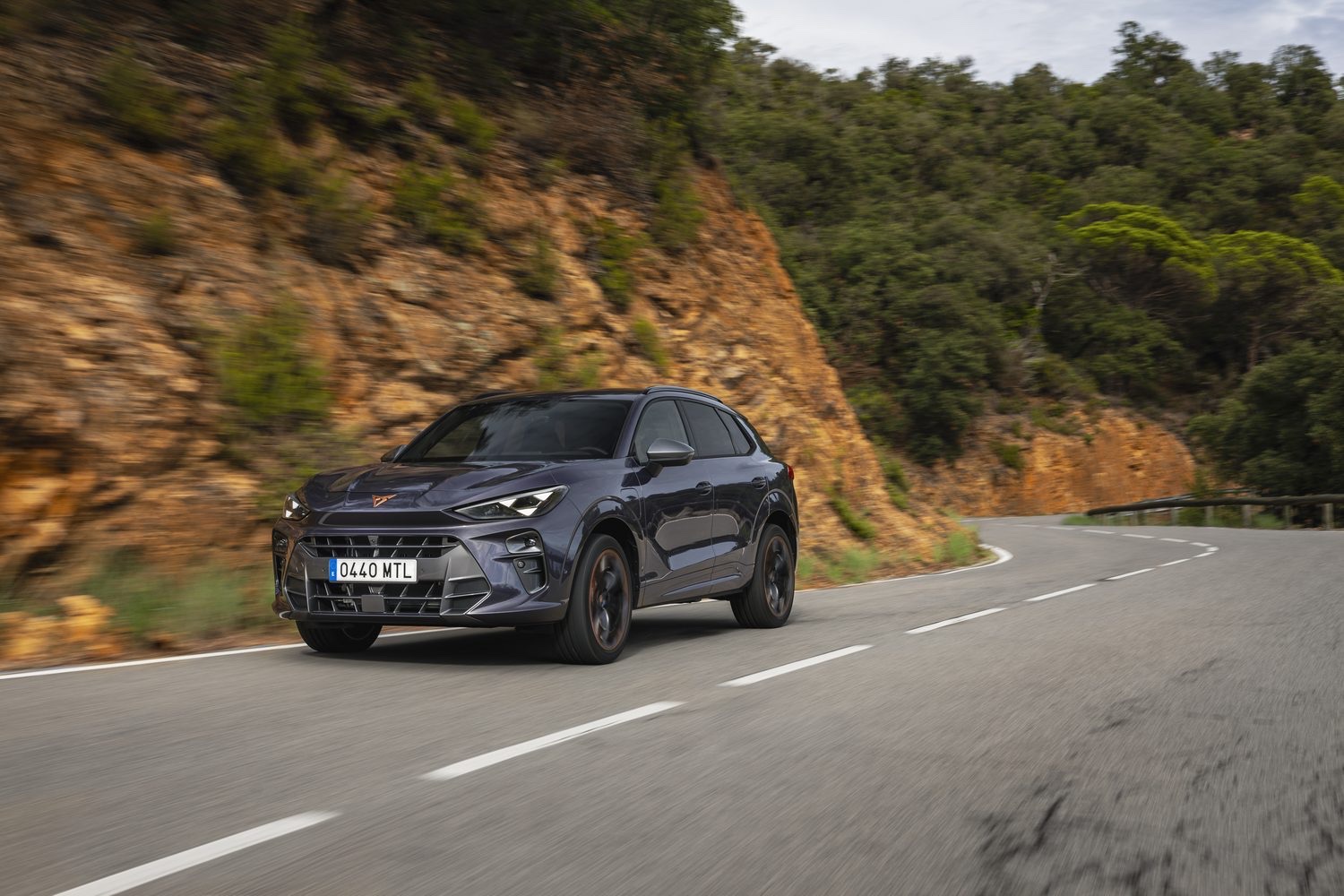

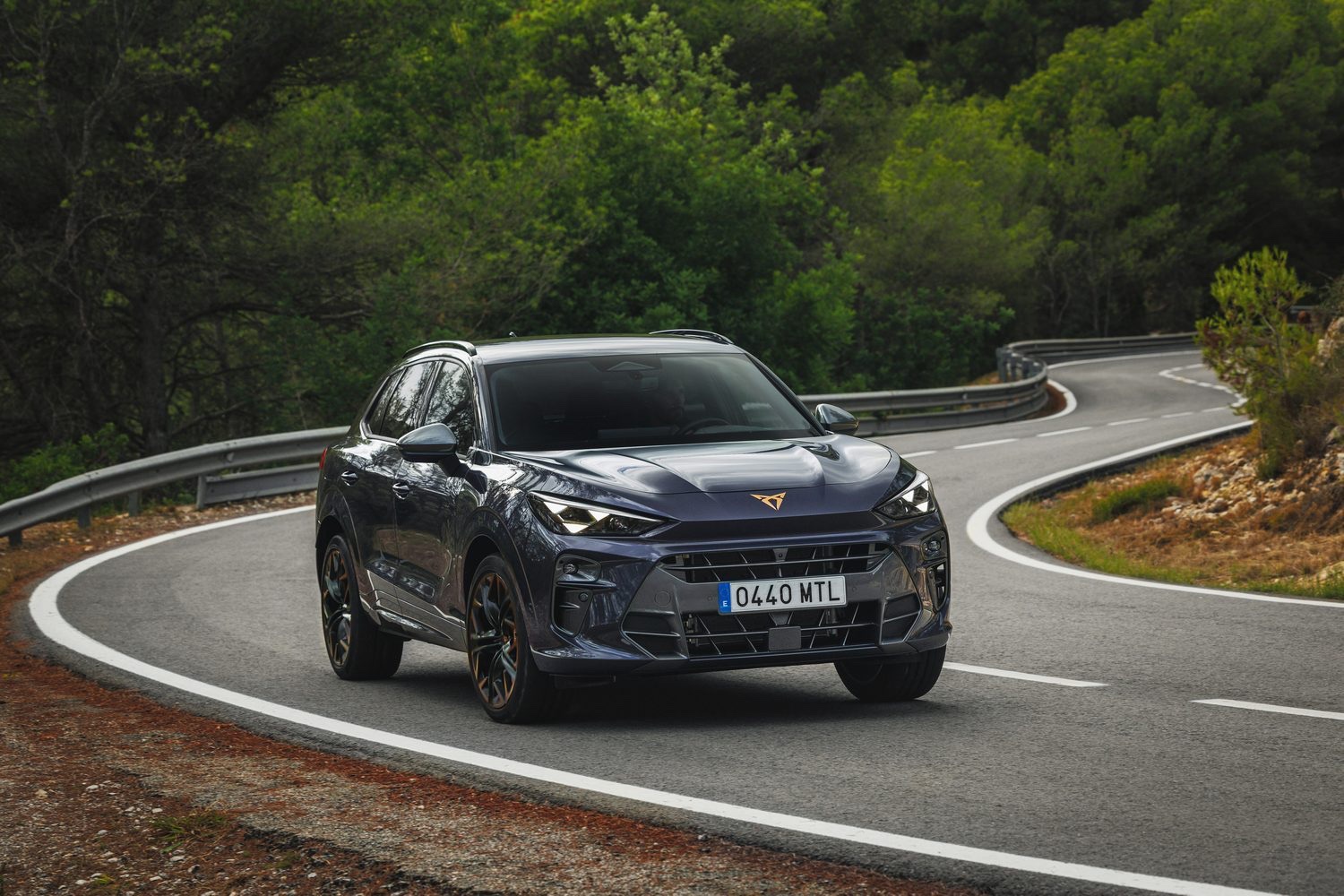

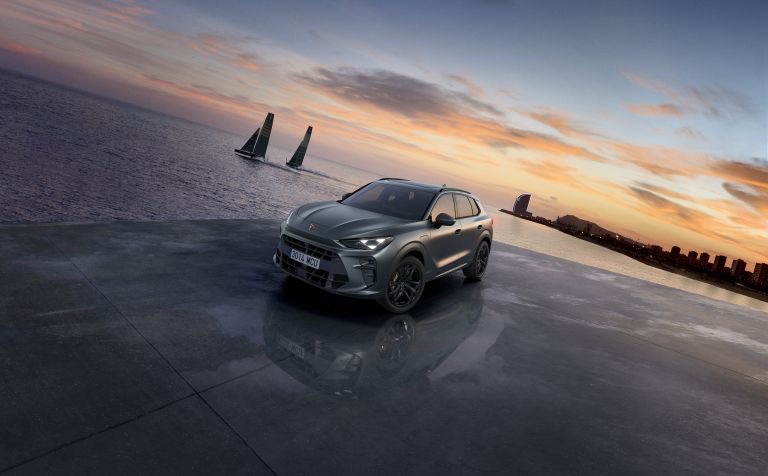

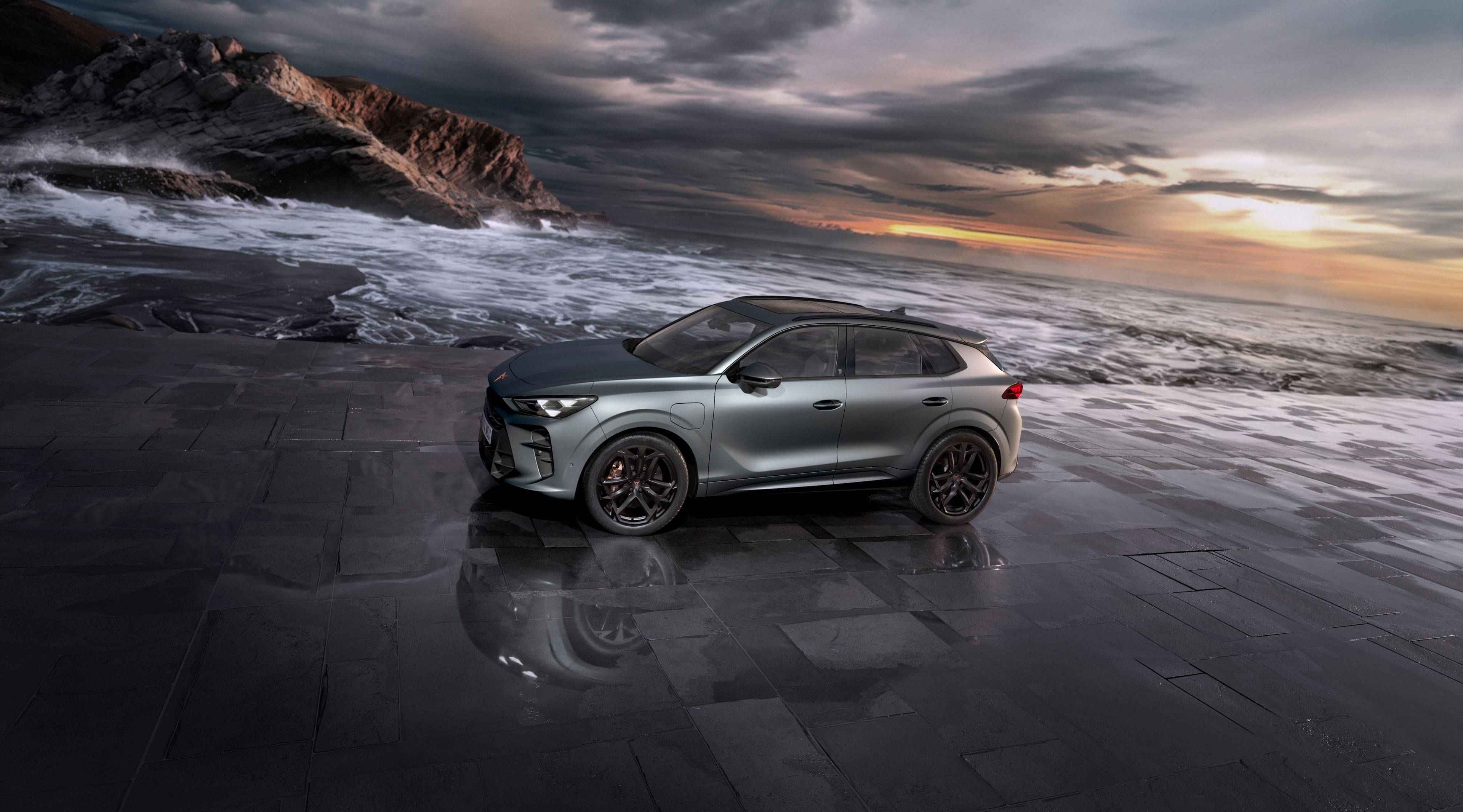

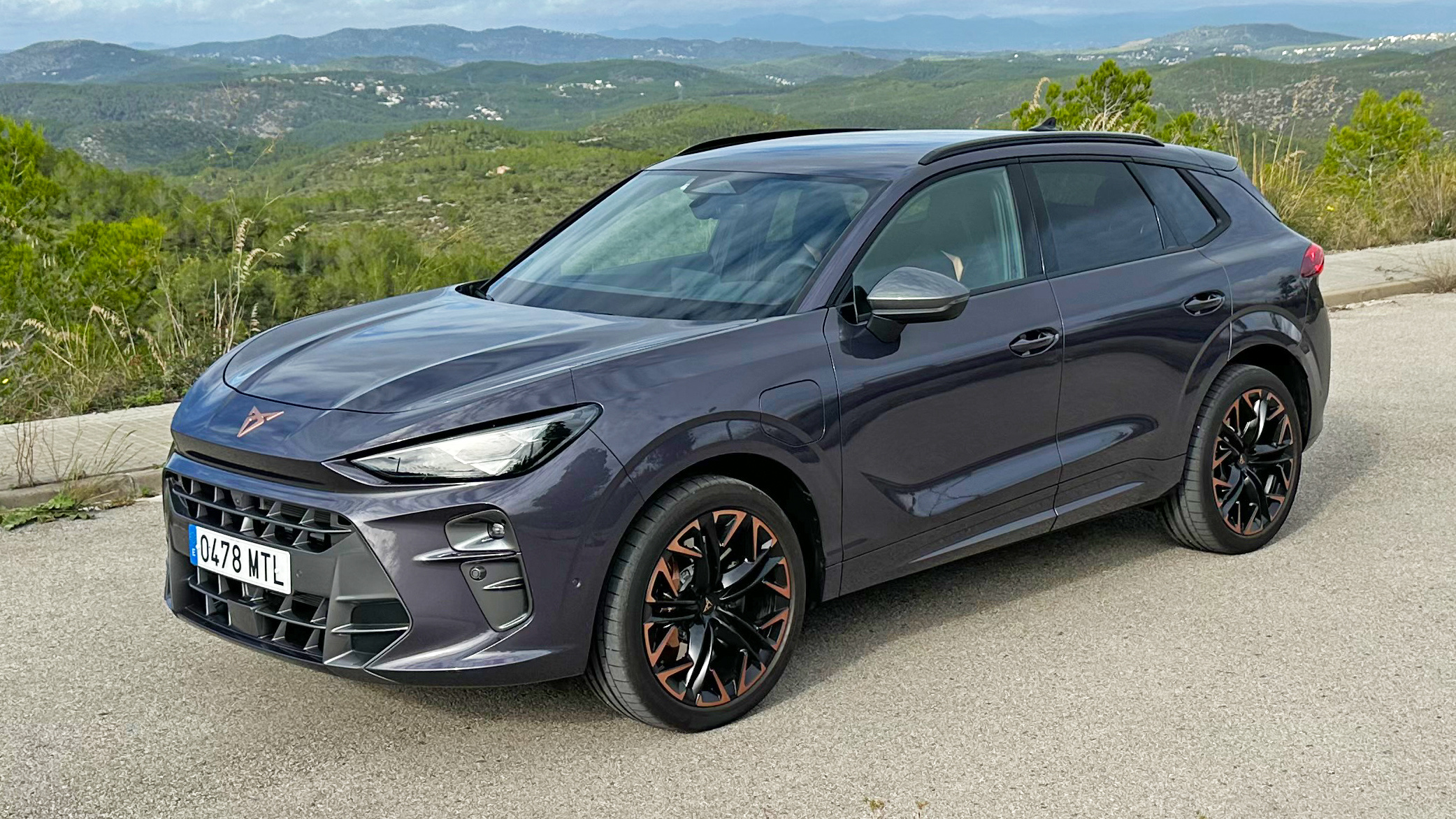

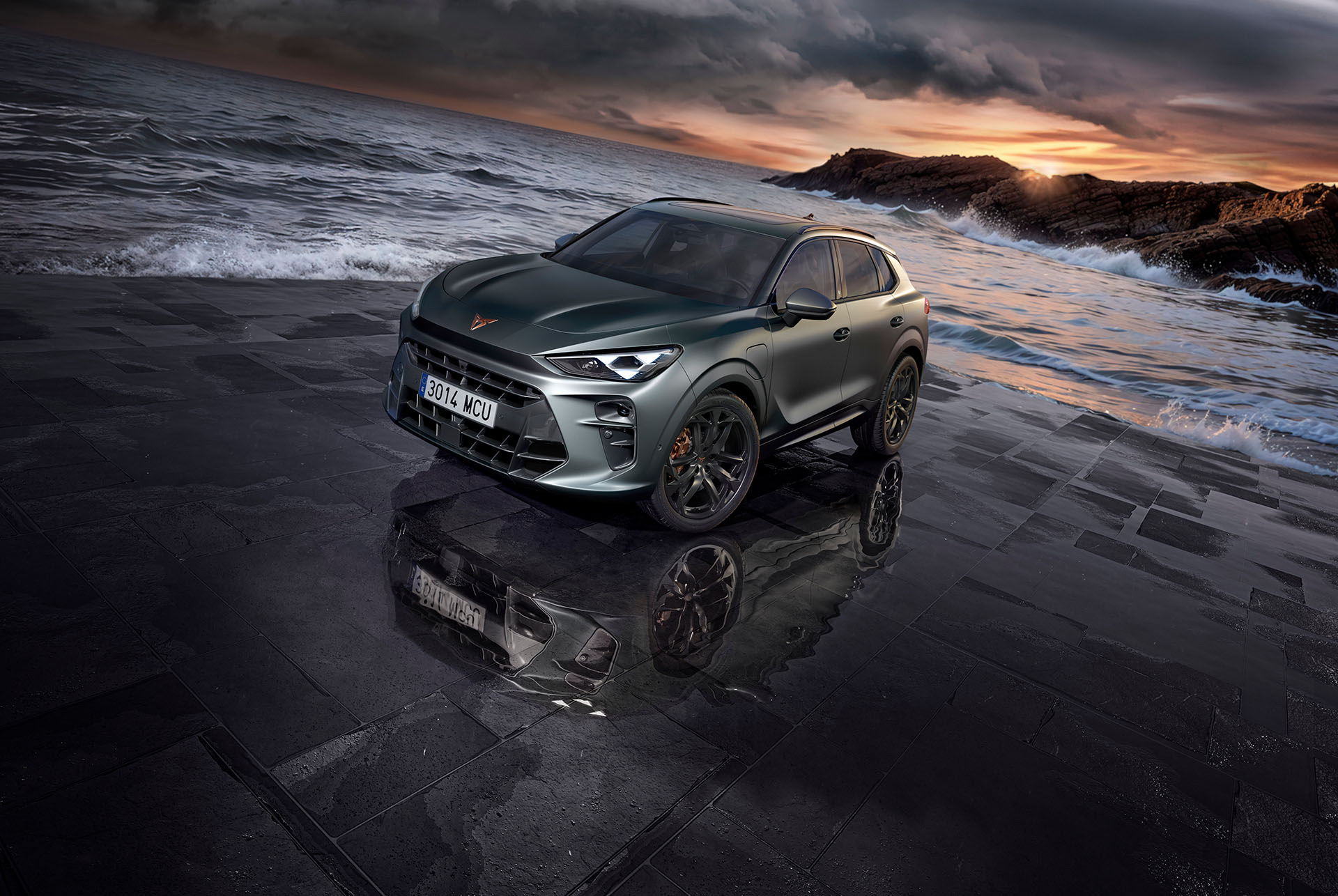

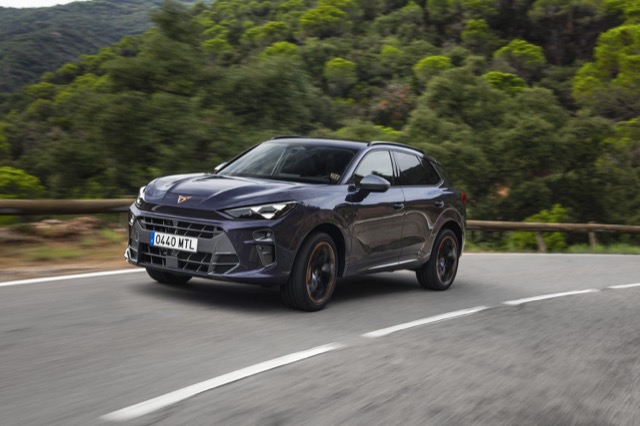

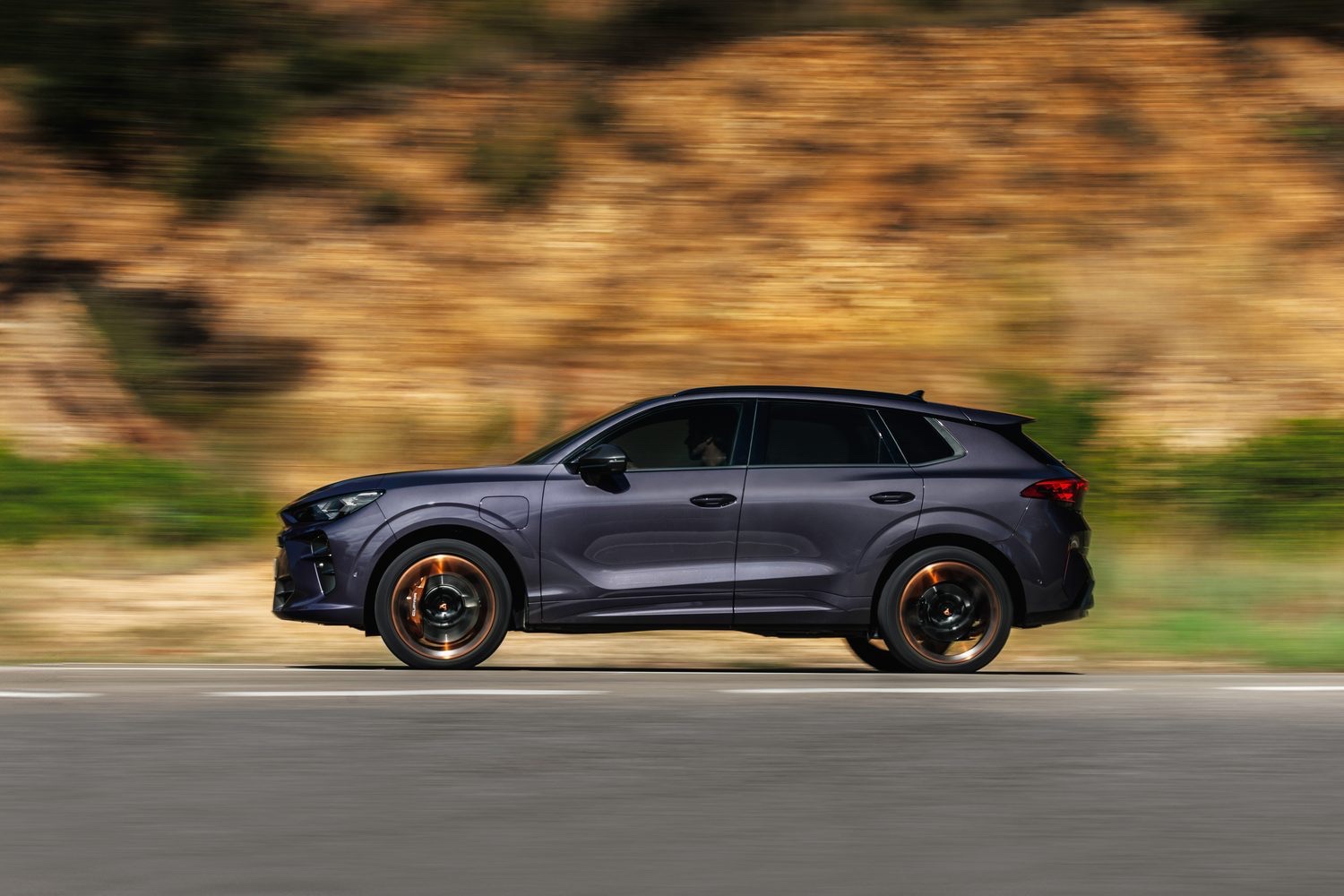

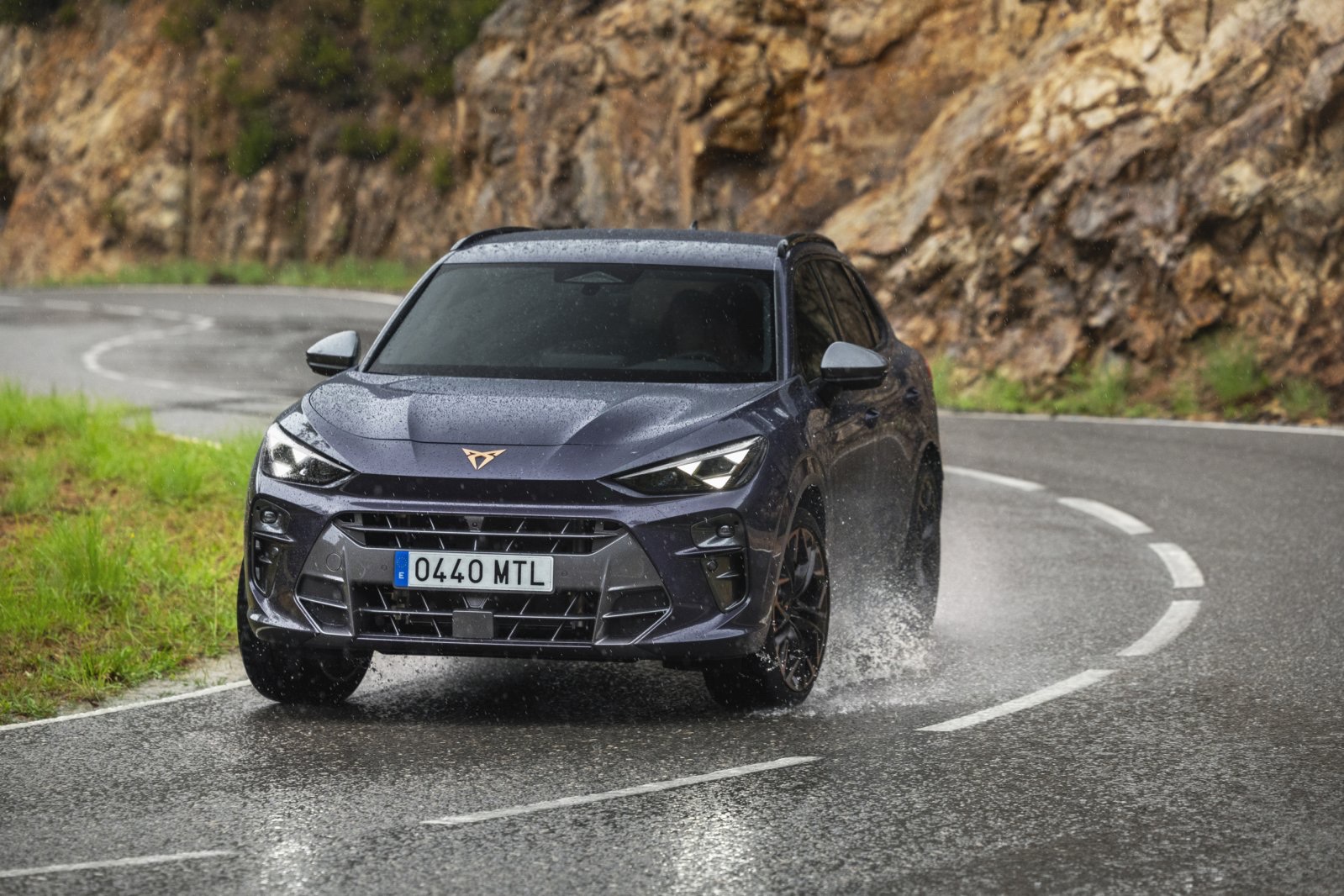

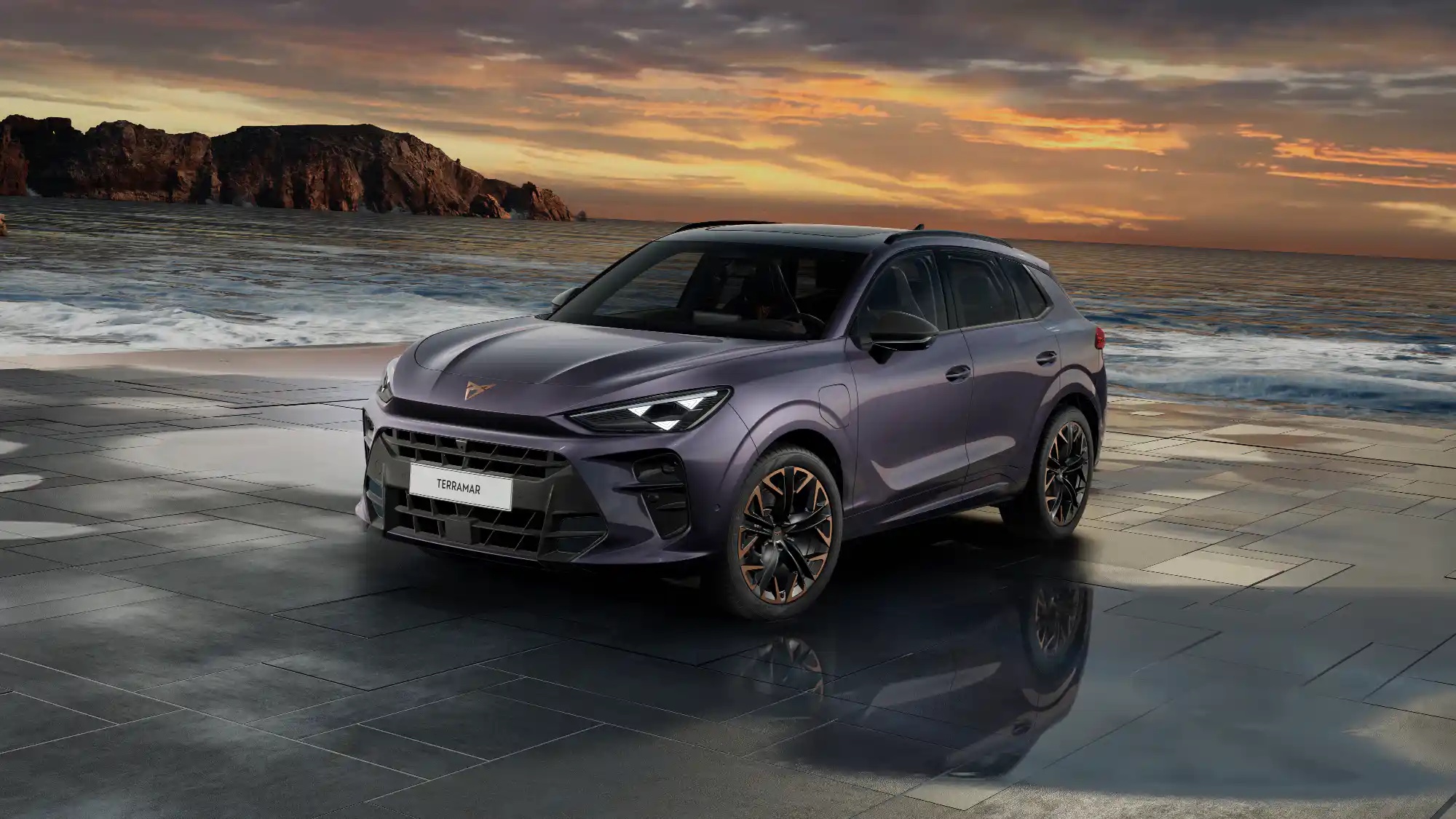

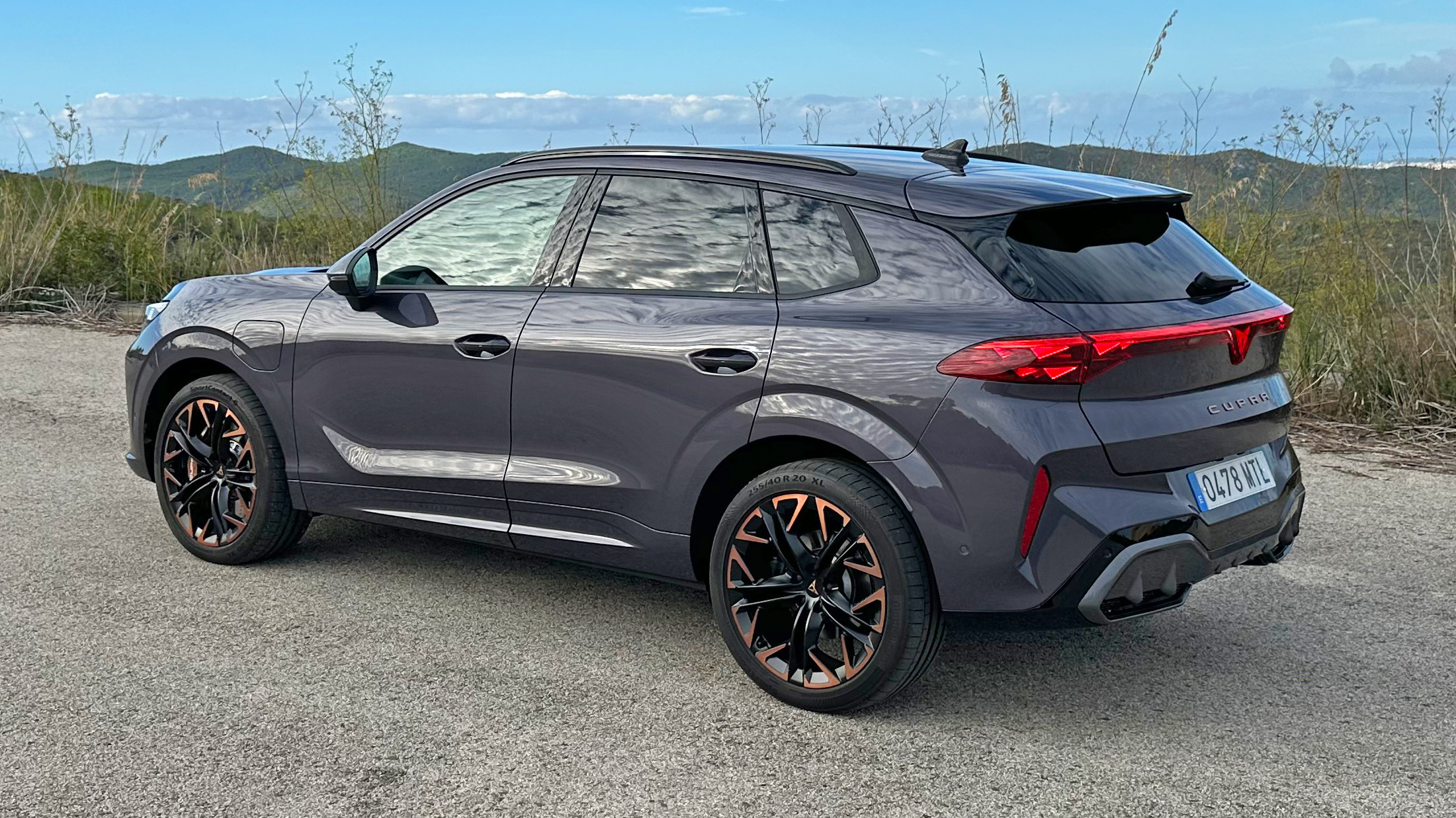

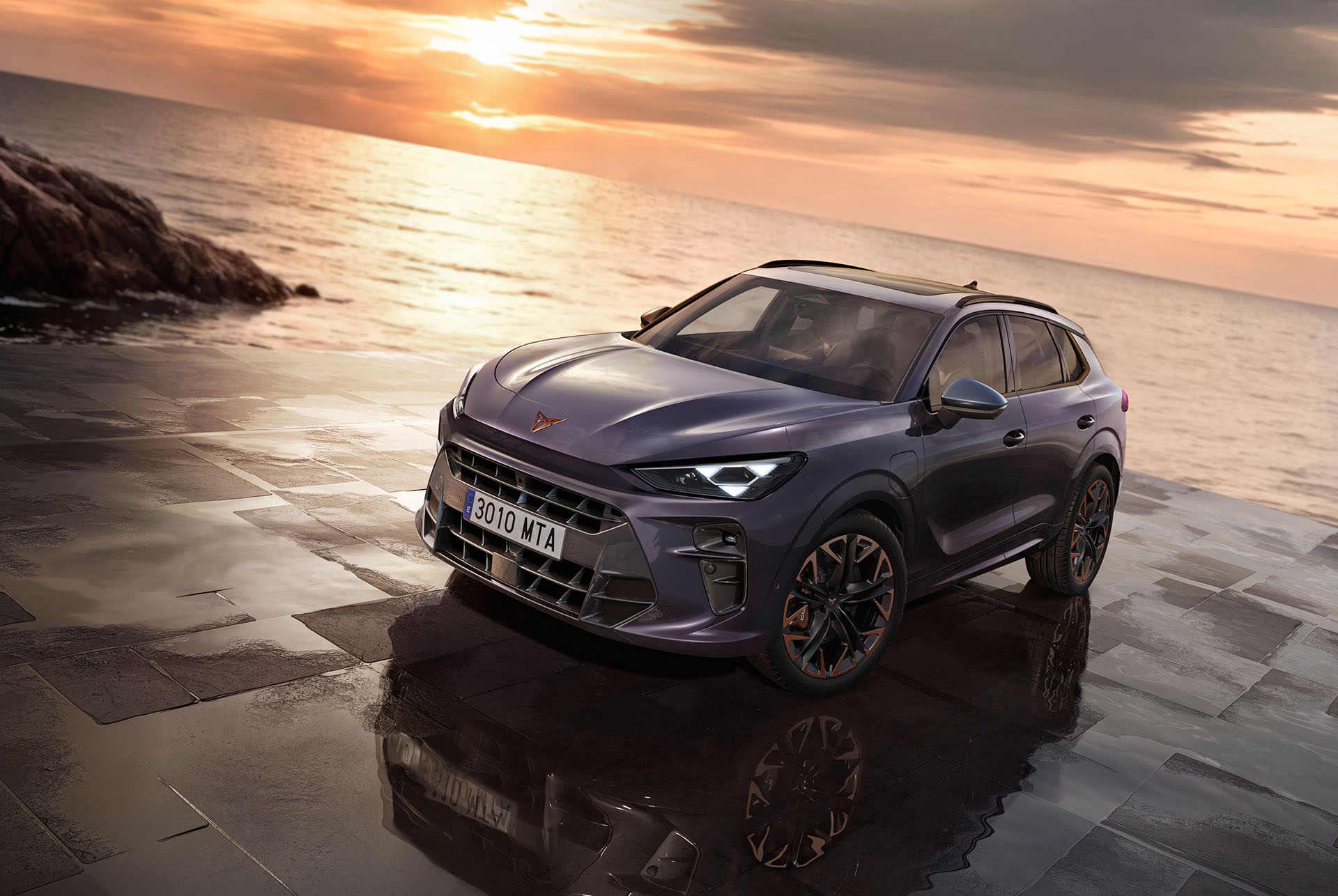

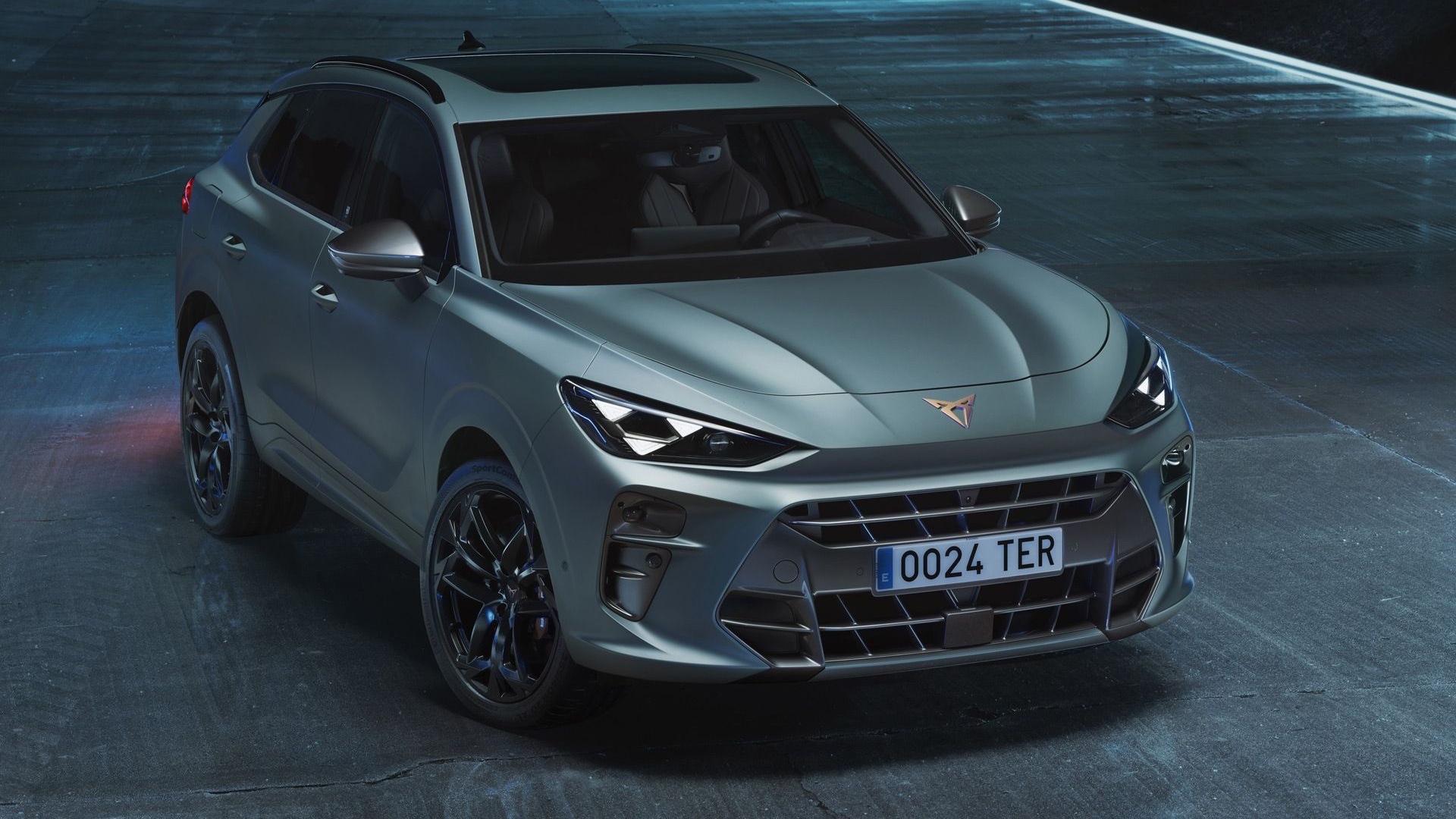

CUPRA Terramar photo gallery
19 images are collected here with the main specifications and trim data for this model.
Photo CUPRA Terramar
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
1.5 eTSI MHEV (150 hp) 7-speed DSG 35 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 6.1 |
|---|---|
| Top speed, km/h | 205 |
| Acceleration 0-100 km/h, s | 9.3 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.5 eTSI MHEV |
|---|---|
| Engine code | EA211 evo2/DPCA |
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 1498 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 150 |
| RPM at max power | 5000-6000 |
| Torque, Nm | 250 |
| RPM at max torque | 1500-3500 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4519 |
| Width, mm | 2087 |
| Height, mm | 1586 |
| Wheelbase, mm | 2681 |
| Front track, mm | 1590 |
| Rear track, mm | 1580 |
| Kerb weight, kg | 1563 |
| Gross weight, kg | 2180 |
| Fuel tank capacity, L | 55 |
| Turning circle, m | 11.5 |
| Width without mirrors, mm | 1869 |
| Trunk capacity, L | 540 |
Transmission and drive
| Transmission | 7-speed dual-clutch |
|---|---|
| Transmission type | 2-speed automated manual |
| Drive | Front-wheel drive |
| Number of gears | 7 |
| Automatic transmission | + |
1.5 TSI e-HYBRID (272 hp) 6-speed DSG 36 specifications
Specifications
Performance and consumption
| Top speed, km/h | 215 |
|---|---|
| Acceleration 0-100 km/h, s | 773 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.5 TSI e-HYBRID |
|---|---|
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 1498 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 272 |
| Torque, Nm | 400 |
| Electric motor power, hp | 116 |
| Combustion engine power, hp | 177 |
| Combustion engine RPM at max power | 5500 |
| Combustion engine torque, Nm | 250 |
| Combustion engine RPM at max torque | 1500 |
| Electric motor torque, Nm | 330 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4519 |
| Width, mm | 2087 |
| Height, mm | 1586 |
| Wheelbase, mm | 2681 |
| Front track, mm | 1590 |
| Rear track, mm | 1580 |
| Kerb weight, kg | 1563 |
| Gross weight, kg | 2180 |
| Fuel tank capacity, L | 55 |
| Turning circle, m | 11.5 |
| Width without mirrors, mm | 1869 |
| Trunk capacity, L | 540 |
Transmission and drive
| Transmission | 6-speed dual-clutch |
|---|---|
| Transmission type | 2-speed automated manual |
| Drive | Front-wheel drive |
| Number of gears | 6 |
| Automatic transmission | + |
2.0 TSI (265 hp) 7-speed DSG 4x4 34 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 8.4 |
|---|---|
| Top speed, km/h | 243 |
| Acceleration 0-100 km/h, s | 5.9 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 TSI |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1984 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 265 |
| RPM at max power | 5300-6500 |
| Torque, Nm | 400 |
| RPM at max torque | 1650-4350 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4519 |
| Width, mm | 2087 |
| Height, mm | 1586 |
| Wheelbase, mm | 2681 |
| Front track, mm | 1590 |
| Rear track, mm | 1580 |
| Kerb weight, kg | 1563 |
| Gross weight, kg | 2180 |
| Fuel tank capacity, L | 55 |
| Turning circle, m | 11.5 |
| Width without mirrors, mm | 1869 |
| Trunk capacity, L | 540 |
Transmission and drive
| Transmission | 7-speed dual-clutch |
|---|---|
| Transmission type | 2-speed automated manual |
| Drive | All-wheel drive |
| Number of gears | 7 |
| Automatic transmission | + |
2.0 TFSI (204 hp) 7-speed DSG 4x4 35 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 7.5 |
|---|---|
| Top speed, km/h | 225 |
| Acceleration 0-100 km/h, s | 7.1 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 TFSI |
|---|---|
| Engine code | EA888 evo4 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1984 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 204 |
| RPM at max power | 4500-6000 |
| Torque, Nm | 320 |
| RPM at max torque | 1500-4400 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4519 |
| Width, mm | 2087 |
| Height, mm | 1586 |
| Wheelbase, mm | 2681 |
| Front track, mm | 1590 |
| Rear track, mm | 1580 |
| Kerb weight, kg | 1563 |
| Gross weight, kg | 2180 |
| Fuel tank capacity, L | 55 |
| Turning circle, m | 11.5 |
| Width without mirrors, mm | 1869 |
| Trunk capacity, L | 540 |
Transmission and drive
| Transmission | 7-speed dual-clutch |
|---|---|
| Transmission type | 2-speed automated manual |
| Drive | All-wheel drive |
| Number of gears | 7 |
| Automatic transmission | + |
2.0 TFSI AT Mid 96 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 7.5 |
|---|---|
| Top speed, km/h | 225 |
| Acceleration 0-100 km/h, s | 7.1 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 TFSI |
|---|---|
| Engine code | EA888 evo4 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1984 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 204 |
| RPM at max power | 4500-6000 |
| Torque, Nm | 320 |
| RPM at max torque | 1500-4400 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4519 |
| Width, mm | 2087 |
| Height, mm | 1586 |
| Wheelbase, mm | 2681 |
| Front track, mm | 1590 |
| Rear track, mm | 1580 |
| Kerb weight, kg | 1563 |
| Gross weight, kg | 2180 |
| Fuel tank capacity, L | 55 |
| Turning circle, m | 11.5 |
| Width without mirrors, mm | 1869 |
| Trunk capacity, L | 540 |
Transmission and drive
| Transmission | 7-speed dual-clutch |
|---|---|
| Transmission type | 2-speed automated manual |
| Drive | All-wheel drive |
| Number of gears | 7 |
| Automatic transmission | + |
Brake system
| Front brakes | Disc |
|---|---|
| Rear brakes | Disc |
Steering
| Power steering | Electromechanical |
|---|
Equipment
Exterior
| Sport front bumper | + |
|---|---|
| Sport rear bumper | + |
Comfort
| Cruise control | + |
|---|---|
| Multifunction steering wheel | + |
| Keyless entry and start | + |
| Adjustable steering column | + |
| Electromechanical parking brake | + |
Interior
| Trip computer | + |
|---|---|
| 12V power outlet | + |
| Aluminum pedal covers | + |
| Cloth seat upholstery | + |
| Sport steering wheel | + |
Wheels
| Rim diameter | 18 |
|---|---|
| Rim type | Alloy |
| Spare wheel | Space-saver spare wheel |
| Tires | 235/55 R18 |
Technologies
| Adjustable speed limiter | + |
|---|---|
| Electronic differential lock | + |
Climate and sound insulation
| Climate control | + |
|---|
Seats
| Front armrest | + |
|---|---|
| Sport seats | + |
| Front passenger lumbar support | + |
| 1/3-2/3 split-folding rear seat | + |
| Driver lumbar support | + |
Headlights and lighting
| Front fog lights | + |
|---|---|
| Light sensor | + |
| LED headlights | + |
| Rear fog lights | + |
| LED daytime running lights | + |
| Glovebox lighting | + |
Multimedia and instruments
| Bluetooth hands-free | + |
|---|---|
| Radio | + |
| Antenna | + |
Glass, mirrors and sunroof
| Rain sensor | + |
|---|---|
| Heated side mirrors | + |
| Front power windows | + |
| Rear power windows | + |
| Power-adjustable side mirrors | + |
| Rear window wiper | + |
| Auto-dimming rear-view mirror | + |
Visibility and parking
| Rear-view camera | + |
|---|---|
| Front parking sensors | + |
| Rear parking sensors | + |
| Multifunction camera | + |
Fuel economy
| Start-stop system | + |
|---|---|
| Brake energy recuperation | + |
Body paint and exterior parts
| Black roof rails | + |
|---|
Security
Electronic systems
| Electronic stability control | + |
|---|---|
| Lane keeping assist | + |
| Auto Hold | + |
| Child seat anchor | + |
| Forward collision warning | + |
Anti-theft systems
| Remote central locking | + |
|---|
Airbags
| Driver airbag | + |
|---|---|
| Passenger airbag | + |
| Side airbags | + |
| Curtain airbags | + |
| Passenger airbag deactivation | + |
2.0 TSI VZ AWD 98 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 8.4 |
|---|---|
| Top speed, km/h | 243 |
| Acceleration 0-100 km/h, s | 5.9 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 TSI |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1984 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 265 |
| RPM at max power | 5300-6500 |
| Torque, Nm | 400 |
| RPM at max torque | 1650-4350 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4519 |
| Width, mm | 2087 |
| Height, mm | 1586 |
| Wheelbase, mm | 2681 |
| Front track, mm | 1590 |
| Rear track, mm | 1580 |
| Kerb weight, kg | 1563 |
| Gross weight, kg | 2180 |
| Fuel tank capacity, L | 55 |
| Turning circle, m | 11.5 |
| Width without mirrors, mm | 1869 |
| Trunk capacity, L | 540 |
Transmission and drive
| Transmission | 7-speed dual-clutch |
|---|---|
| Transmission type | 2-speed automated manual |
| Drive | All-wheel drive |
| Number of gears | 7 |
| Automatic transmission | + |
Brake system
| Front brakes | Disc |
|---|---|
| Rear brakes | Disc |
Equipment
Exterior
| Door sill plates | + |
|---|---|
| Sport front bumper | + |
| Sport rear bumper | + |
Comfort
| Tire pressure monitoring | + |
|---|---|
| Keyless entry and start | + |
| Adaptive cruise control | + |
| Electromechanical parking brake | + |
Interior
| Trip computer | + |
|---|---|
| 12V power outlet | + |
| Aluminum pedal covers | + |
| Information display | + |
Wheels
| Rim diameter | 19 |
|---|---|
| Rim type | Alloy |
| Spare wheel | Space-saver spare wheel |
| Tires | 255/45R19 |
Technologies
| Adjustable speed limiter | + |
|---|---|
| Electronic differential lock | + |
Climate and sound insulation
| Three-zone climate control | + |
|---|
Seats
| Child seat anchors (LATCH/Isofix) | + |
|---|---|
| Front armrest | + |
| Height-adjustable driver's seat | + |
| Height-adjustable passenger seat | + |
| Sport seats | + |
| Driver lumbar support | + |
Headlights and lighting
| Front fog lights | + |
|---|---|
| Automatic high/low beam switching | + |
| Light sensor | + |
| LED headlights | + |
| Rear fog lights | + |
| LED daytime running lights | + |
Multimedia and instruments
| Radio | + |
|---|---|
| USB | + |
| Number of speakers | 9 |
| Antenna | + |
Trunk
| Hands-free trunk opening | + |
|---|
Glass, mirrors and sunroof
| Rain sensor | + |
|---|---|
| Heated side mirrors | + |
| Front power windows | + |
| Rear power windows | + |
| Power-adjustable side mirrors | + |
| Power-folding side mirrors | + |
| Rear window wiper | + |
| Tinted glass | + |
| Auto-dimming rear-view mirror | + |
Visibility and parking
| Rear-view camera | + |
|---|---|
| Front parking sensors | + |
| Rear parking sensors | + |
| Front camera | + |
Fuel economy
| Start-stop system | + |
|---|---|
| Brake energy recuperation | + |
Body paint and exterior parts
| Black roof rails | + |
|---|
Security
Electronic systems
| Electronic stability control | + |
|---|---|
| Lane keeping assist | + |
| Auto Hold | + |
| Driver fatigue detection | + |
| Forward collision warning | + |
Anti-theft systems
| Alarm system | + |
|---|
Airbags
| Driver airbag | + |
|---|---|
| Passenger airbag | + |
| Side airbags | + |
| Curtain airbags | + |
| Passenger airbag deactivation | + |
CUPRA Terramar questions
Short answers based on the specifications and photos available in this catalog.
What body style is the CUPRA Terramar?
The CUPRA Terramar is a compact sport utility vehicle (SUV). It is designed to offer a sporty driving feel combined with crossover versatility.
What engine options are available for the 2024 CUPRA Terramar?
The Terramar is available with a 1.5-litre mild-hybrid engine producing 150 horsepower, a 2.0-litre turbocharged petrol engine with either 204 or 265 horsepower, and a plug-in hybrid e-HYBRID setup making 272 horsepower.
Does the CUPRA Terramar offer all-wheel drive?
Yes, all-wheel drive (4x4) is available. It comes standard on the higher-output 2.0-litre turbocharged petrol models, while the 1.5-litre mild-hybrid and plug-in hybrid models are front-wheel drive.
What is the electric range of the CUPRA Terramar plug-in hybrid?
The plug-in hybrid version, the e-HYBRID, is capable of driving over 100 kilometres on purely electric power. It also supports fast DC charging at up to 50 kW.
What is the cargo capacity of the CUPRA Terramar?
The CUPRA Terramar offers a cargo volume of 540 litres. This space can be expanded by folding down the split rear seats.
Continue exploring CUPRA
Return to CUPRA models, browse the gallery, or compare the trims listed above.
