Ford F-150 Raptor specifications and photos
Ford F-150 Raptor specifications are shown with trim options, key technical data, and a model photo gallery. Compare 1 configurations by engine size, power, seating, and transmission. The gallery includes 21 photos for visual reference.
Ford F-150 Raptor at a glance
Quick model context before comparing photos and trim-level specifications.
Use this Ford F-150 Raptor page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 450 hp and 3496 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.
- Power: 450 hp
- Engine displacement: 3496 cc
- Transmissions: 10-speed automatic
- Seating: 5 seats
Photos, trims and specifications for Ford F-150 Raptor
This model page brings gallery images, trim comparison, and detailed technical data together for the 2016 generation.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 3.5 EcoBoost (450 HP) 10-speed automatic 4x4 | 3496 cc | 450 hp | 5 | 10-speed automatic |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

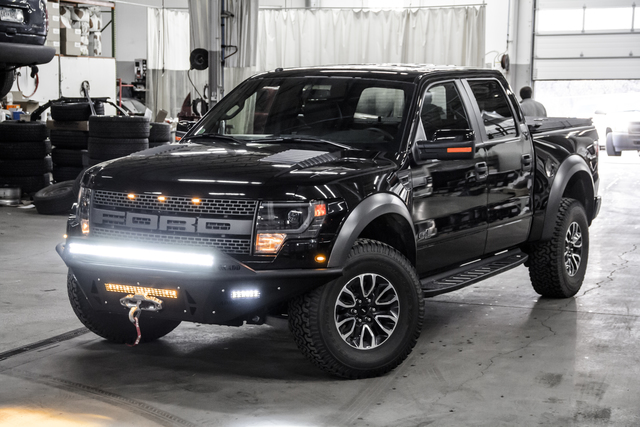

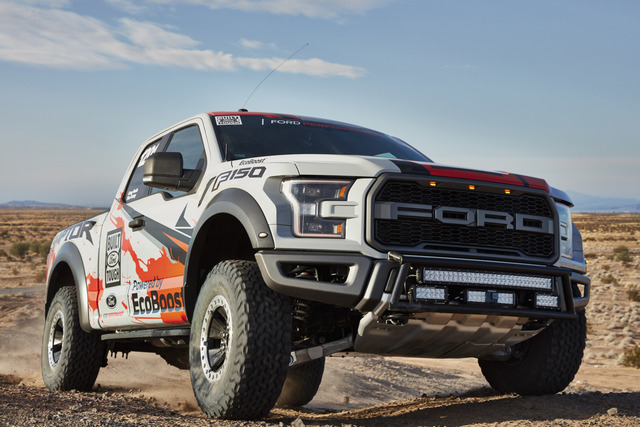

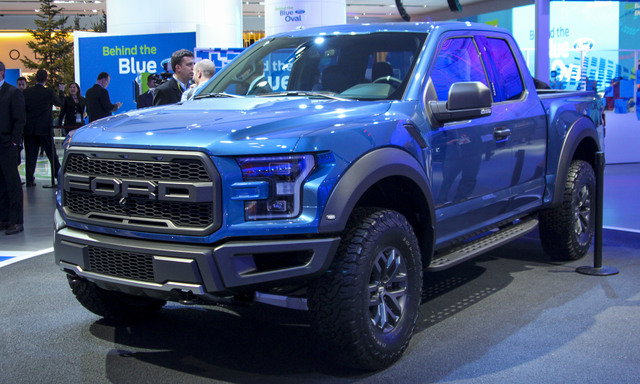

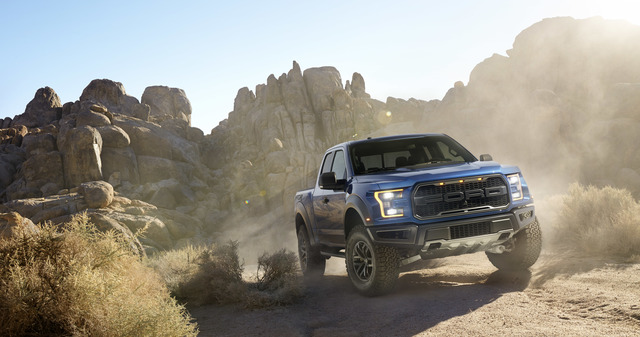

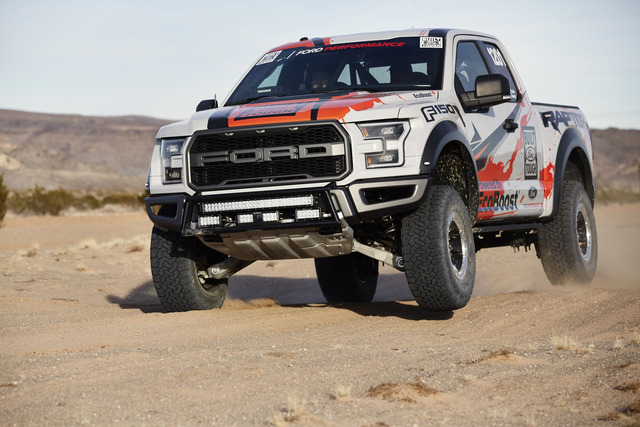

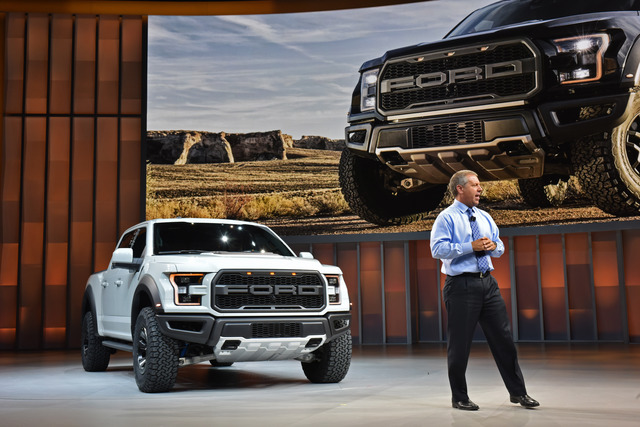

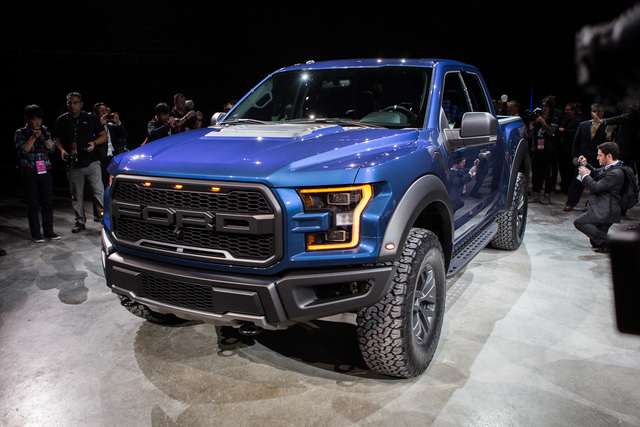

Ford F-150 Raptor photo gallery
21 images are collected here with the main specifications and trim data for this model.

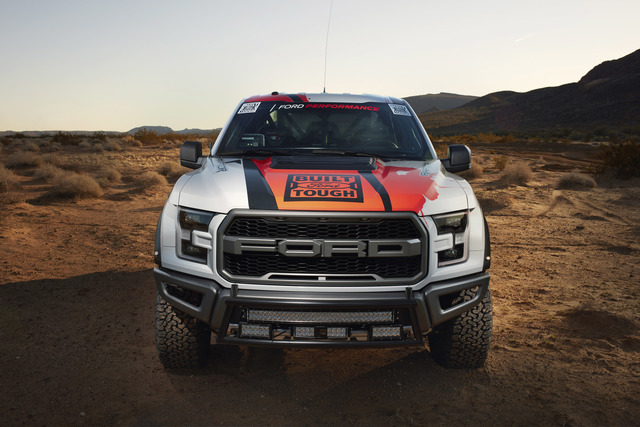

Photo Ford F-150 Raptor
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
3.5 EcoBoost (450 HP) 10-speed automatic 4x4 33 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Gasoline |
| Displacement, cc | 3496 |
| Cylinders location | V-shaped |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 450 |
| Torque, Nm | 691 |
| RPM at max torque | 3000 |
| Engine | 3.5 EcoBoost |
| RPM at max power | 5500 |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 5890 |
| Width | 2459 |
| Height mm | 1994 |
| Wheelbase mm | 3708 |
| Front track, mm | 1877 |
| Rear track, mm | 1869 |
| Kerb weight, kg | 2584 |
| Fuel tank, l | 136 |
| Ground clearance, mm | 292 |
| Width (without mirrors) mm | 2192 |
| The volume of the cargo compartment, m3 | 1.5 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 15 |
|---|---|
| Fuel consumption (urban), l. 100 km | 13 |
| Fuel consumption (combined), l. 100 km | 14.7 |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Number of gears | 10 |
| Drive | Full |
| Transmission | 10-speed automatic |
| Gearbox | Machine |
| Transmission manufacturer | Ford |
| Transmission country of origin | USA |
Ford F-150 Raptor questions
Short answers based on the specifications and photos available in this catalog.
How many trims are listed for the Ford F-150 Raptor?
This page lists 1 trim for the Ford F-150 Raptor, with key data shown in the comparison table and full specifications grouped below.
What is the power range for the Ford F-150 Raptor?
The listed configurations show a power range of 450 hp. Exact output can vary by engine, transmission, market, and model year.
What engine displacement is shown for the Ford F-150 Raptor?
The available specification data shows engine displacement from 3496 cc across the trims listed on this page.
Which transmissions are listed for the Ford F-150 Raptor?
The transmission options currently shown for this model are: 10-speed automatic. Open a trim section to see the full data for a specific configuration.
Are there photos for the Ford F-150 Raptor?
Yes. The gallery includes 21 photos for the Ford F-150 Raptor, including exterior and interior views where available.
Why can specifications differ for the same model?
Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
