Overview
Ford Edge at a glance
Quick model context before comparing photos and trim-level specifications.
Use this Ford Edge page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 180-210 hp and 1997 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.
Power: 180-210 hpEngine displacement: 1997 ccTransmissions: 6, 6-speed manualSeating: 5 seats
Understand the data
Helpful specification guides
Plain-language explanations for the figures and labels shown on this model page.
Horsepower vs torque → Why specifications vary →
Research hub
Photos, trims and specifications for Ford Edge
This model page brings gallery images, trim comparison, and detailed technical data together for the 2016 generation.
Configurations
Trims and key specifications
Use this table to compare the main differences between available configurations.
Power
180-210 hp
Engine displacement
1997 cc
Seating
5 seats
Transmissions
6, 6-speed manual
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.
Gallery

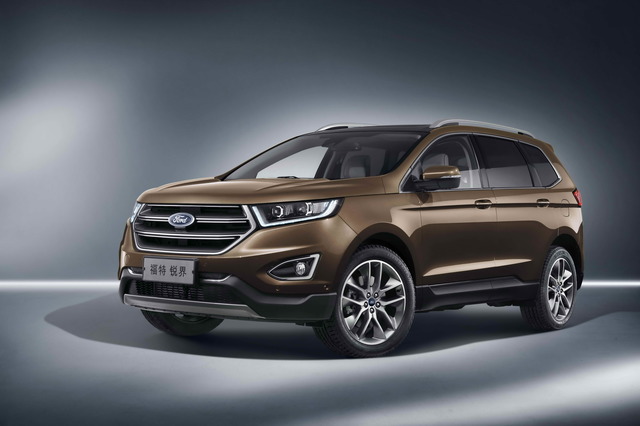

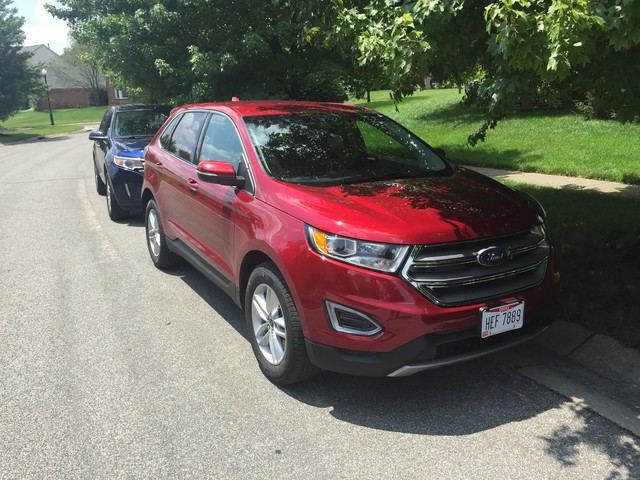

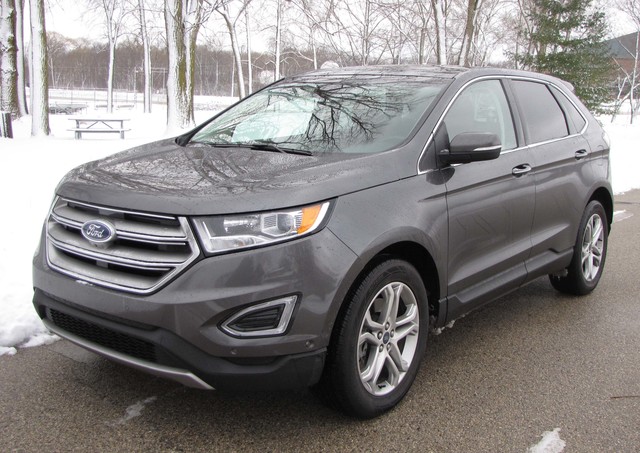

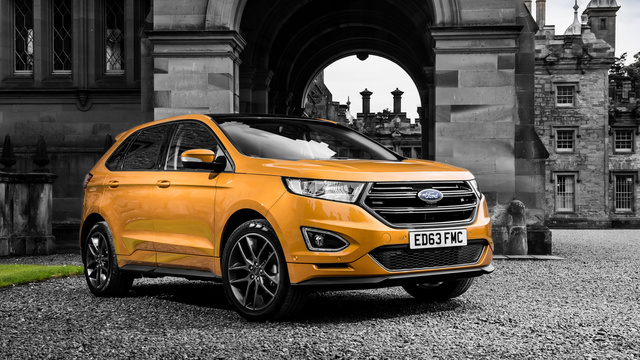

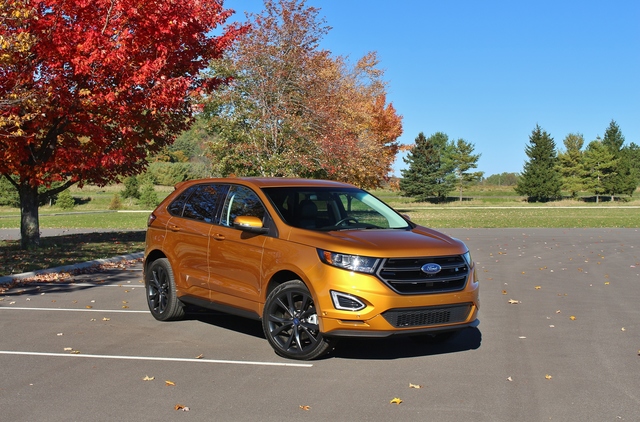

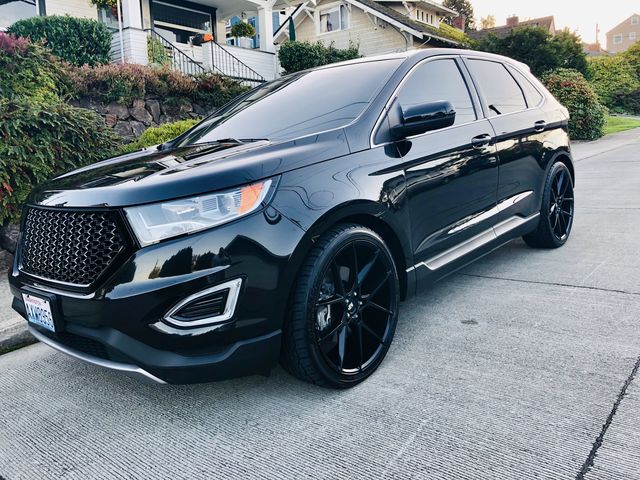

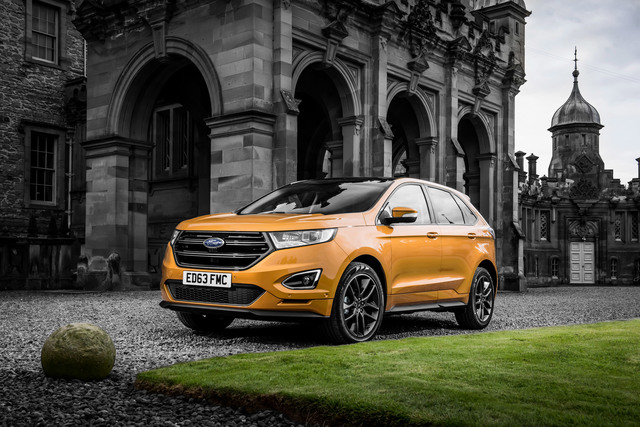

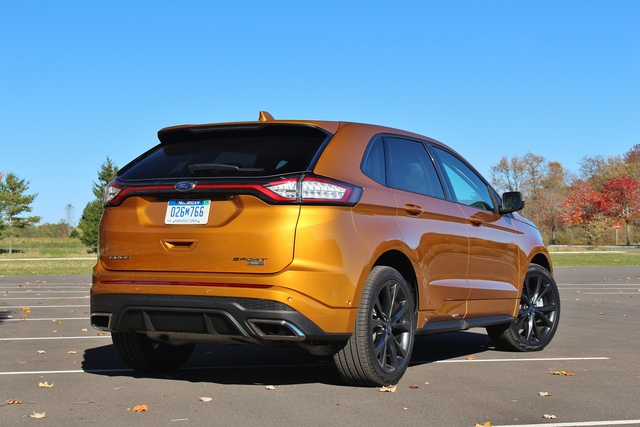

Ford Edge photo gallery
15 images are collected here with the main specifications and trim data for this model.

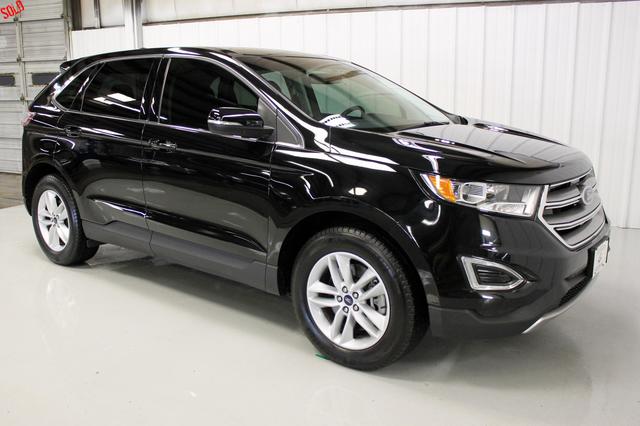

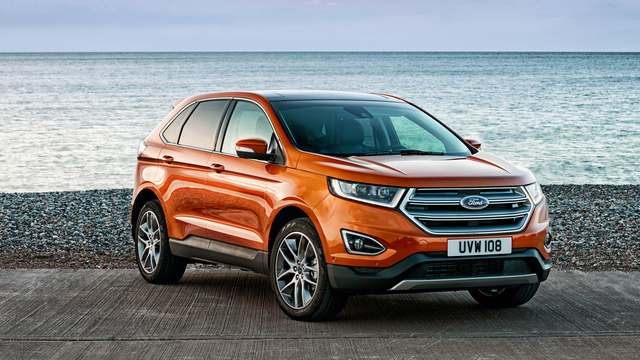

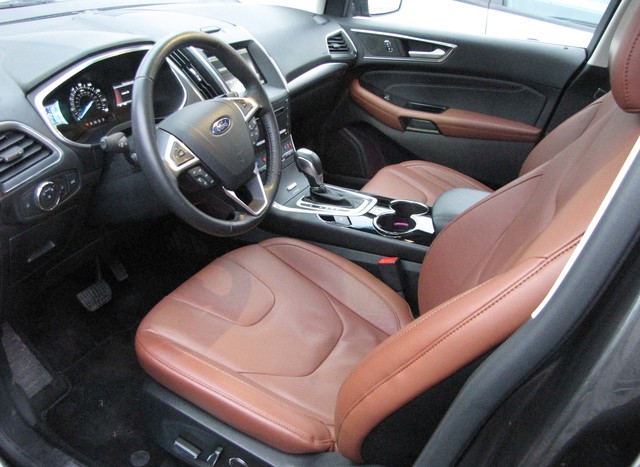

Photo Ford Edge
×
‹
›
Detailed specs
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
2.0 AT Lux
103 specifications
Specifications
Engine
Type of engine
ICE
Type of fuel
Diesel
Displacement, cc
1997
Cylinders location
In-line
Number of cylinders
4
Valves
16
Power, hp
210
Torque, Nm
450
RPM at max torque
2000-2250
Engine
2.0 Duratorq TDCi
RPM at max power
3750
Dimensions
Seats
5
Length mm
4911
Width
2184
Height mm
1707
Wheelbase mm
2849
Front track, mm
1646
Rear track, mm
1643
Kerb weight, kg
1949
Trunk capacity, L
602
Fuel tank, l
64
Turning circle, m
11.9
Width (without mirrors) mm
1981
Steering
Power steering
Electric power
Performance and fuel consumption
Fuel consumption (urban cycle), l. 100 km
6.5
Fuel consumption (urban), l. 100 km
5.5
Fuel consumption (combined), l. 100 km
5.9
Acceleration (0-100 km/h), s
9.4
The maximum speed, km / h.
211
The rate of toxicity
Euro VI
Transmission and drive
Automatic transmission
+
Number of gears
6
Drive
Full
Transmission
6-PowerShift
Gearbox
2 clutch robot
Transmission manufacturer
Getrag Ford Transmis
Equipment
Comfort
Cruise Control
+
Paddle shifters
+
Power steering
+
The electronic parking lever
+
Automatic parking brake
+
Interior
Leather interior
+
On-board computer
+
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.)
+
Wheels
Disc diameter
19
Rim type
Alloy
Tires
235/55R19
Spare wheel
Dokatka
Cabin climate and noise insulation
Heated front seats
+
ventilated front seats
+
Heated rear seats
+
Heated steering wheel
+
Climate control
+
Glass, mirrors and sunroof
Front power windows
+
The rain sensor
+
Heated side mirrors
+
Power mirrors
+
Rear electric windows
+
Electric folding mirrors
+
Rear windshield
+
Multimedia and instruments
Steering wheel controls
+
Radio
+
Navigation system
+
AUX
+
Bluetooth hands free
+
CD player
+
USB
+
Number of speakers
8
MP3
+
Headlights and lighting
corrector of headlights
+
LED headlights
+
Light sensor
+
Rear LED lights
+
LED lights daylight
+
Seats
Power front seats
+
Armrest front
+
Isofix child seat (LATCH, Isofix)
+
Memory seat adjustment
+
The back of the rear seat folds 60/40
+
Lumbar support for the driver's seat
+
Visibility and parking
Rear View Camera
+
Rear Parking Sensors
+
Parking aid front
+
Off-road
aid climbing the hill (HAC; HSA; Hill Holder; HLA)
+
Exterior
Rear spoiler
+
Roof rails
+
Body and exterior paint
Door handles in body color
+
Security
Electronic systems
Anti-lock braking system (ABS)
+
Electronic Brakeforce Distribution (EBD, EBV, REF, EBFD)
+
Control System traction (TCS)
+
Blind spot information system - warning system of a vehicle in the "dead" zone.
+
Children's locks
+
System roll control (RSC)
+
Electronic Brake Assist (EBA, FEB)
+
Anti-theft systems
alarm
+
Other
Keyless Start System - keyless start engine system;
Key Free System - a system of keyless access to the car and opening the luggage compartment;
Central locking with remote control
+
Airbags
Driver's airbag
+
Passenger Airbag
+
Side airbags
+
Cushion for driver's knee
+
2.0 AT Titanium
94 specifications
Specifications
Engine
Type of engine
ICE
Type of fuel
Diesel
Displacement, cc
1997
Cylinders location
In-line
Number of cylinders
4
Valves
16
Power, hp
210
Torque, Nm
450
RPM at max torque
2000-2250
Engine
2.0 Duratorq TDCi
RPM at max power
3750
Dimensions
Seats
5
Length mm
4911
Width
2184
Height mm
1707
Wheelbase mm
2849
Front track, mm
1646
Rear track, mm
1643
Kerb weight, kg
1949
Trunk capacity, L
602
Fuel tank, l
64
Turning circle, m
11.9
Width (without mirrors) mm
1981
Steering
Power steering
Electric power
Performance and fuel consumption
Fuel consumption (urban cycle), l. 100 km
6.5
Fuel consumption (urban), l. 100 km
5.5
Fuel consumption (combined), l. 100 km
5.9
Acceleration (0-100 km/h), s
9.4
The maximum speed, km / h.
211
The rate of toxicity
Euro VI
Transmission and drive
Automatic transmission
+
Number of gears
6
Drive
Full
Transmission
6-PowerShift
Gearbox
2 clutch robot
Transmission manufacturer
Getrag Ford Transmis
Equipment
Comfort
Cruise Control
+
Paddle shifters
+
The electronic parking lever
+
Interior
On-board computer
+
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.)
+
Wheels
Disc diameter
19
Rim type
Alloy
Tires
235/55R19
Spare wheel
Dokatka
Cabin climate and noise insulation
Heated front seats
+
Heated steering wheel
+
Climate control
+
Glass, mirrors and sunroof
Front power windows
+
The rain sensor
+
Heated side mirrors
+
Power mirrors
+
Rear electric windows
+
Electric folding mirrors
+
Rear windshield
+
Multimedia and instruments
Steering wheel controls
+
Navigation system
+
AUX
+
Bluetooth hands free
+
CD player
+
USB
+
Number of speakers
8
MP3
+
Headlights and lighting
corrector of headlights
+
LED headlights
+
Light sensor
+
Rear LED lights
+
LED lights daylight
+
Seats
Armrest front
+
Isofix child seat (LATCH, Isofix)
+
The back of the rear seat folds 60/40
+
Lumbar support for the driver's seat
+
Visibility and parking
Rear View Camera
+
Rear Parking Sensors
+
Parking aid front
+
Off-road
aid climbing the hill (HAC; HSA; Hill Holder; HLA)
+
Exterior
Rear spoiler
+
Roof rails
+
Body and exterior paint
Door handles in body color
+
Security
Electronic systems
Anti-lock braking system (ABS)
+
Electronic Brakeforce Distribution (EBD, EBV, REF, EBFD)
+
Control System traction (TCS)
+
Children's locks
+
System roll control (RSC)
+
Electronic Brake Assist (EBA, FEB)
+
Anti-theft systems
alarm
+
Other
Keyless Start System - keyless start engine system;
Key Free System - a system of keyless access to the car and opening the luggage compartment;
Central locking with remote control
+
Airbags
Driver's airbag
+
Passenger Airbag
+
Side airbags
+
Cushion for driver's knee
+
2.0 Duratorq TDCi (180 HP) 6-speed manual 4x4
33 specifications
Specifications
Engine
Type of engine
ICE
Type of fuel
Diesel
Displacement, cc
1997
Cylinders location
In-line
Number of cylinders
4
Valves
16
Power, hp
180
Torque, Nm
400
RPM at max torque
2000-3250
Engine
2.0 Duratorq TDCi
Compression
16.7
RPM at max power
3500
Turbo
+
Engine code
T8MA
Dimensions
Seats
5
Length mm
4808
Width
2184
Height mm
1707
Trunk capacity, L
602
Fuel tank, l
64
Turning circle, m
11.9
Width (without mirrors) mm
1981
Performance and fuel consumption
Fuel consumption (urban cycle), l. 100 km
6.5
Fuel consumption (urban), l. 100 km
5.5
Fuel consumption (combined), l. 100 km
5.9
Acceleration (0-100 km/h), s
9.9
The maximum speed, km / h.
200
The rate of toxicity
Euro VI
Transmission and drive
Number of gears
6
Drive
Full
Transmission
6-speed manual
Gearbox
Mechanics
Transmission manufacturer
Ford
2.0 Duratorq TDCi (210 HP) 6-PowerShift 4x4
31 specifications
Specifications
Engine
Type of engine
ICE
Type of fuel
Diesel
Displacement, cc
1997
Cylinders location
In-line
Number of cylinders
4
Valves
16
Power, hp
210
Torque, Nm
450
RPM at max torque
2000-2250
Engine
2.0 Duratorq TDCi
RPM at max power
3750
Dimensions
Seats
5
Length mm
4808
Width
2184
Height mm
1707
Trunk capacity, L
602
Fuel tank, l
64
Turning circle, m
11.9
Width (without mirrors) mm
1981
Performance and fuel consumption
Fuel consumption (urban cycle), l. 100 km
6.5
Fuel consumption (urban), l. 100 km
5.5
Fuel consumption (combined), l. 100 km
5.9
Acceleration (0-100 km/h), s
9.4
The maximum speed, km / h.
211
The rate of toxicity
Euro VI
Transmission and drive
Automatic transmission
+
Number of gears
6
Drive
Full
Transmission
6-PowerShift
Gearbox
2 clutch robot
Transmission manufacturer
Getrag Ford Transmis
FAQ
Ford Edge questions
Short answers based on the specifications and photos available in this catalog.
How many trims are listed for the Ford Edge?
This page lists 4 trims for the Ford Edge, with key data shown in the comparison table and full specifications grouped below.
What is the power range for the Ford Edge?
The listed configurations show a power range of 180-210 hp. Exact output can vary by engine, transmission, market, and model year.
What engine displacement is shown for the Ford Edge?
The available specification data shows engine displacement from 1997 cc across the trims listed on this page.
Which transmissions are listed for the Ford Edge?
The transmission options currently shown for this model are: 6, 6-speed manual. Open a trim section to see the full data for a specific configuration.
Are there photos for the Ford Edge?
Yes. The gallery includes 15 photos for the Ford Edge, including exterior and interior views where available.
Why can specifications differ for the same model?
Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
