Ford Ka+ specifications and photos

Ford Ka+ specifications are shown with trim options, key technical data, and a model photo gallery. Compare 5 configurations by engine size, power, seating, and transmission. The gallery includes 13 photos for visual reference.

Years 2016 - 2018

Body type hatchback

Trims 5

Photos 13

Overview

Ford Ka+ at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Ford Ka+ page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 70-85 hp and 1242 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

Power: 70-85 hp
Engine displacement: 1242 cc
Transmissions: 5
Seating: 5 seats

Research hub

Photos, trims and specifications for Ford Ka+

This model page brings gallery images, trim comparison, and detailed technical data together for the 2016 generation.

Open photo gallery 13 images Compare trims 5 configurations View detailed specs 1242 cc Explore related pages Ford and similar models

Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 70-85 hp

Engine displacement 1242 cc

Seating 5 seats

Transmissions 5

Trim / modification	Engine	Power	Seats	Transmission
1.2 MT COMFORT (85)	1242 cc	85 hp	5	5
1.2 MT COMFORT PLUS (85)	1242 cc	85 hp	5	5
1.2 MT TREND (85)	1242 cc	85 hp	5	5
1.2 Ti-VCT (70 hp) 5-mech	1242 cc	70 hp	5	5
1.2 Ti-VCT (85 hp) 5-mech	1242 cc	85 hp	5	5

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Gallery

Ford Ka+ photo gallery

13 images are collected here with the main specifications and trim data for this model.

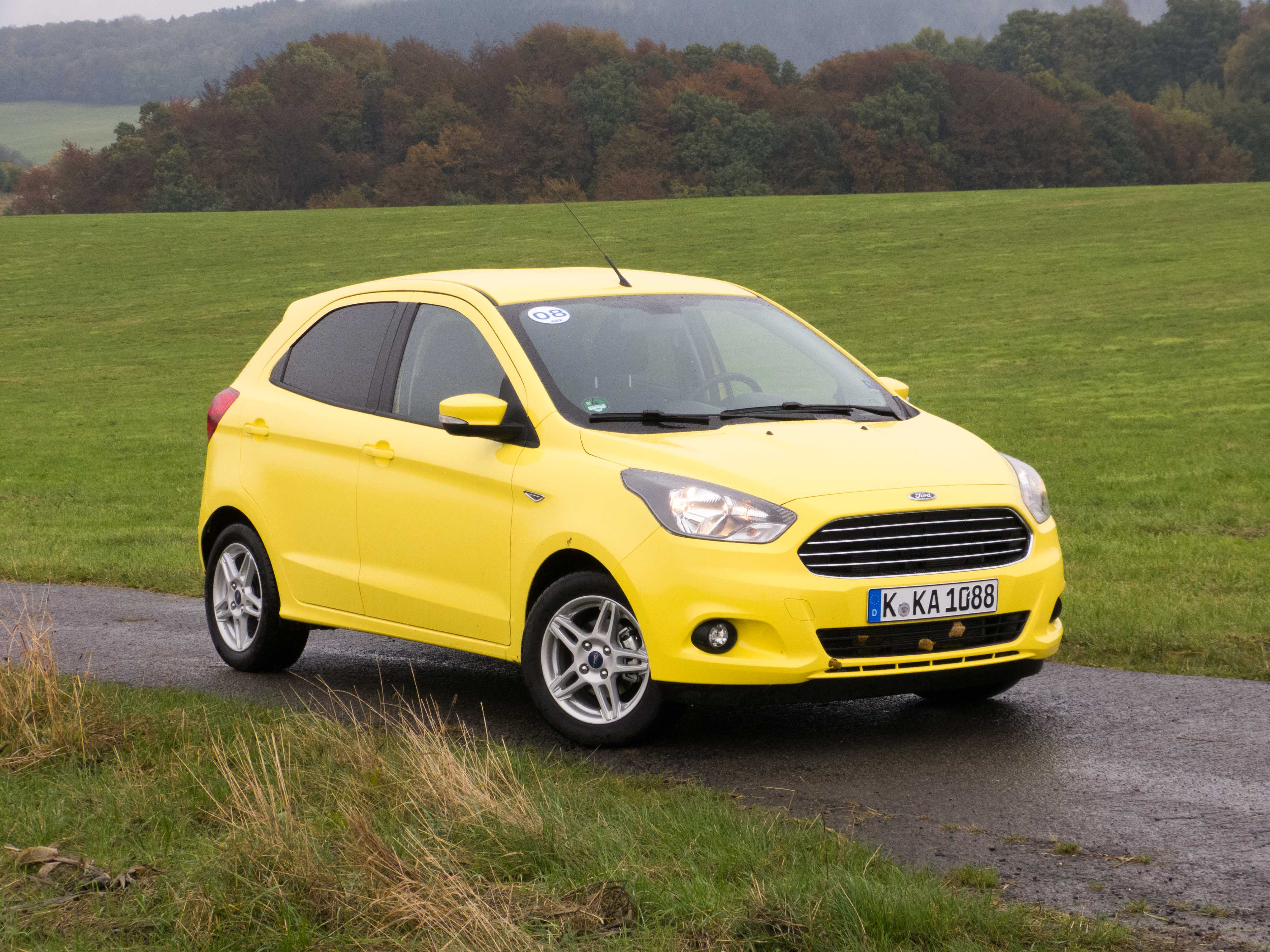

Photo Ford Ka+

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

1.2 MT COMFORT (85) 1.2 MT COMFORT PLUS (85) 1.2 MT TREND (85) 1.2 Ti-VCT (70 hp) 5-mech 1.2 Ti-VCT (85 hp) 5-mech

1.2 MT COMFORT (85) 67 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1242
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	85
Torque, Nm	112
RPM at max torque	4000
Engine	1.2 Ti-VCT
Compression	11.0
RPM at max power	6300

Dimensions

Seats	5
Length mm	3929
Width	1911
Height mm	1524
Wheelbase mm	2489
Kerb weight, kg	1009
Trunk capacity, L	270
Fuel tank, l	42
Turning circle, m	10.7
Width (without mirrors) mm	1769

Steering

Power steering	Electric power

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	6.6
Fuel consumption (urban), l. 100 km	4
Fuel consumption (combined), l. 100 km	5
Acceleration (0-100 km/h), s	13.3
The maximum speed, km / h.	169
The rate of toxicity	Euro VI

Transmission and drive

Number of gears	5
Drive	Front
Transmission	5-speed manual
Gearbox	Mechanics
Transmission manufacturer	Ford

Equipment

Comfort

Cruise Control	+
Adjustable steering column	+
Adjustable head restraints	+

Interior

On-board computer	+
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.)	+

Wheels

Disc diameter	15
Rim type	Steel
Tires	195/55R15
Spare wheel	Dokatka

Cabin climate and noise insulation

Climate control	+

Glass, mirrors and sunroof

Front power windows	+
Power mirrors	+

Multimedia and instruments

Steering wheel controls	+
Radio	+
CD player	+
USB	+
Number of speakers	4
MP3	+

Headlights and lighting

corrector of headlights	+
Front fog lights	+

Seats

Isofix child seat (LATCH, Isofix)	+
The back of the rear seat folds 60/40	+

Exterior

Bumpers in body color	+

Body and exterior paint

Door handles in body color	+
Exterior mirrors in body color	+

Security

Electronic systems

Anti-lock braking system (ABS)	+
Vehicle Stability Control (ESP, DSC, ESC, VSC)	+
Children's locks	+

Anti-theft systems

alarm	+
Central locking with remote control	+

Airbags

Driver's airbag	+
Passenger Airbag	+
Side airbags	+

1.2 MT COMFORT PLUS (85) 71 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1242
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	85
Torque, Nm	112
RPM at max torque	4000
Engine	1.2 Ti-VCT
Compression	11.0
RPM at max power	6300

Dimensions

Seats	5
Length mm	3929
Width	1911
Height mm	1524
Wheelbase mm	2489
Kerb weight, kg	1009
Trunk capacity, L	270
Fuel tank, l	42
Turning circle, m	10.7
Width (without mirrors) mm	1769

Steering

Power steering	Electric power

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	6.6
Fuel consumption (urban), l. 100 km	4
Fuel consumption (combined), l. 100 km	5
Acceleration (0-100 km/h), s	13.3
The maximum speed, km / h.	169
The rate of toxicity	Euro VI

Transmission and drive

Number of gears	5
Drive	Front
Transmission	5-speed manual
Gearbox	Mechanics
Transmission manufacturer	Ford

Equipment

Comfort

Cruise Control	+
Adjustable steering column	+
Adjustable head restraints	+

Interior

On-board computer	+
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.)	+

Wheels

Disc diameter	15
Rim type	Alloy
Tires	195/55R15
Spare wheel	Dokatka

Cabin climate and noise insulation

Heated front seats	+
Climate control	+

Glass, mirrors and sunroof

Front power windows	+
Power mirrors	+
Rear electric windows	+

Multimedia and instruments

Steering wheel controls	+
Radio	+
CD player	+
USB	+
Number of speakers	4
MP3	+

Headlights and lighting

corrector of headlights	+
Front fog lights	+

Seats

Armrest front	+
Isofix child seat (LATCH, Isofix)	+
The back of the rear seat folds 60/40	+

Visibility and parking

Rear Parking Sensors	+

Exterior

Bumpers in body color	+

Body and exterior paint

Door handles in body color	+
Exterior mirrors in body color	+

Security

Electronic systems

Anti-lock braking system (ABS)	+
Vehicle Stability Control (ESP, DSC, ESC, VSC)	+
Children's locks	+

Anti-theft systems

alarm	+
Central locking with remote control	+

Airbags

Driver's airbag	+
Passenger Airbag	+
Side airbags	+

1.2 MT TREND (85) 65 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1242
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	85
Torque, Nm	112
RPM at max torque	4000
Engine	1.2 Ti-VCT
Compression	11.0
RPM at max power	6300

Dimensions

Seats	5
Length mm	3929
Width	1911
Height mm	1524
Wheelbase mm	2489
Kerb weight, kg	1009
Trunk capacity, L	270
Fuel tank, l	42
Turning circle, m	10.7
Width (without mirrors) mm	1769

Steering

Power steering	Electric power

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	6.6
Fuel consumption (urban), l. 100 km	4
Fuel consumption (combined), l. 100 km	5
Acceleration (0-100 km/h), s	13.3
The maximum speed, km / h.	169
The rate of toxicity	Euro VI

Transmission and drive

Number of gears	5
Drive	Front
Transmission	5-speed manual
Gearbox	Mechanics
Transmission manufacturer	Ford

Equipment

Comfort

Adjustable steering column	+
Adjustable head restraints	+

Interior

On-board computer	+

Wheels

Disc diameter	15
Rim type	Steel
Tires	195/55R15
Spare wheel	Dokatka

Cabin climate and noise insulation

Air Conditioning	+

Glass, mirrors and sunroof

Front power windows	+
Power mirrors	+

Multimedia and instruments

Steering wheel controls	+
Radio	+
CD player	+
USB	+
Number of speakers	4
MP3	+

Headlights and lighting

corrector of headlights	+
Front fog lights	+

Seats

Isofix child seat (LATCH, Isofix)	+
The back of the rear seat folds 60/40	+

Exterior

Bumpers in body color	+

Body and exterior paint

Door handles in body color	+
Exterior mirrors in body color	+

Security

Electronic systems

Anti-lock braking system (ABS)	+
Vehicle Stability Control (ESP, DSC, ESC, VSC)	+
Children's locks	+

Anti-theft systems

alarm	+
Central locking with remote control	+

Airbags

Driver's airbag	+
Passenger Airbag	+
Side airbags	+

1.2 Ti-VCT (70 hp) 5-mech 32 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1242
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	70
Torque, Nm	105
RPM at max torque	4000
Engine	1.2 Ti-VCT
RPM at max power	6000

Dimensions

Seats	5
Length mm	3929
Width	1911
Height mm	1524
Wheelbase mm	2489
Kerb weight, kg	1009
Trunk capacity, L	270
Fuel tank, l	42
Turning circle, m	10.7
Width (without mirrors) mm	1769

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	6.6
Fuel consumption (urban), l. 100 km	4
Fuel consumption (combined), l. 100 km	5
Acceleration (0-100 km/h), s	15.3
The maximum speed, km / h.	159
The rate of toxicity	Euro VI

Transmission and drive

Number of gears	5
Drive	Front
Transmission	5-speed manual
Gearbox	Mechanics
Transmission manufacturer	Ford

1.2 Ti-VCT (85 hp) 5-mech 33 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1242
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	85
Torque, Nm	112
RPM at max torque	4000
Engine	1.2 Ti-VCT
Compression	11.0
RPM at max power	6300

Dimensions

Seats	5
Length mm	3929
Width	1911
Height mm	1524
Wheelbase mm	2489
Kerb weight, kg	1009
Trunk capacity, L	270
Fuel tank, l	42
Turning circle, m	10.7
Width (without mirrors) mm	1769

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	6.6
Fuel consumption (urban), l. 100 km	4
Fuel consumption (combined), l. 100 km	5
Acceleration (0-100 km/h), s	13.3
The maximum speed, km / h.	169
The rate of toxicity	Euro VI

Transmission and drive

Number of gears	5
Drive	Front
Transmission	5-speed manual
Gearbox	Mechanics
Transmission manufacturer	Ford

FAQ

Ford Ka+ questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Ford Ka+?

This page lists 5 trims for the Ford Ka+, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Ford Ka+?

The listed configurations show a power range of 70-85 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Ford Ka+?

The available specification data shows engine displacement from 1242 cc across the trims listed on this page.

Which transmissions are listed for the Ford Ka+?

The transmission options currently shown for this model are: 5. Open a trim section to see the full data for a specific configuration.

Are there photos for the Ford Ka+?

Yes. The gallery includes 13 photos for the Ford Ka+, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
