Ford Mondeo Wagon specifications and photos
Ford Mondeo Wagon specifications are shown with trim options, key technical data, and a model photo gallery. Compare 7 configurations by engine size, power, seating, and transmission. The gallery includes 26 photos for visual reference.
Years
2019
Body type
wagon
Trims
7
Photos
26
Overview
Ford Mondeo Wagon at a glance
Quick model context before comparing photos and trim-level specifications.
Use this Ford Mondeo Wagon page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 120-190 hp and 1498-1998 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.
- Power: 120-190 hp
- Engine displacement: 1498-1998 cc
- Transmissions: 6-speed manual, 6, 8-speed automatic
- Seating: 5 seats
Research hub
Photos, trims and specifications for Ford Mondeo Wagon
This model page brings gallery images, trim comparison, and detailed technical data together for the 2019 generation.
Configurations
Trims and key specifications
Use this table to compare the main differences between available configurations.
Power
120-190 hp
Engine displacement
1498-1998 cc
Seating
5 seats
Transmissions
6-speed manual, 6, 8-speed automatic
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 1.5 EcoBoost (165 HP) 6-speed manual | 1498 cc | 165 hp | 5 | 6-speed manual |
| 1.5 EcoBoost (165 HP) 6-car SelectShift | 1498 cc | 165 hp | 5 | 6 |
| 2.0 EcoBlue (120 hp) 6-speed manual | 1998 cc | 120 hp | 5 | 6-speed manual |
| 2.0 EcoBlue (150 h.p.) 6-speed manual | 1997 cc | 150 hp | 5 | 6-speed manual |
| 2.0 EcoBlue (150 h.p.) 8-speed automatic | 1997 cc | 150 hp | 5 | 8-speed automatic |
| 2.0 EcoBlue (190 HP) 8-speed automatic | 1997 cc | 190 hp | 5 | 8-speed automatic |
| 2.0 EcoBlue (190 HP) 8-speed automatic 4x4 | 1997 cc | 190 hp | 5 | 8-speed automatic |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.
Gallery

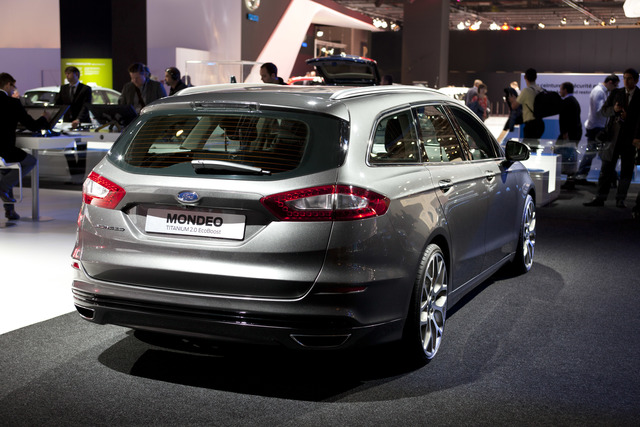

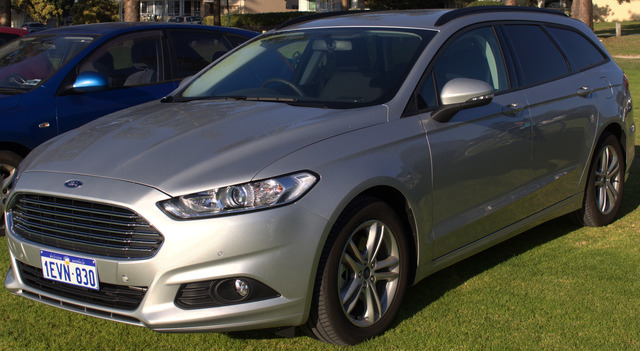

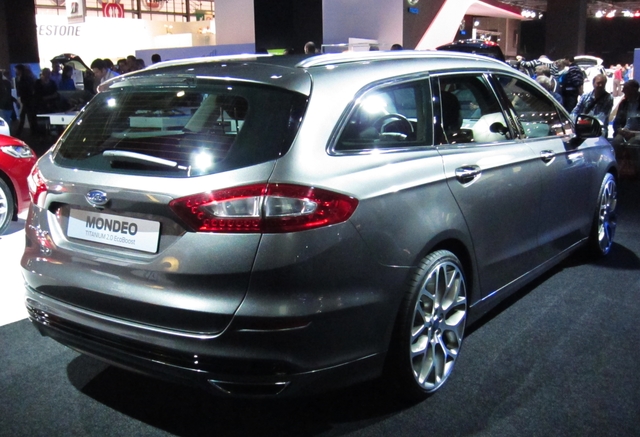

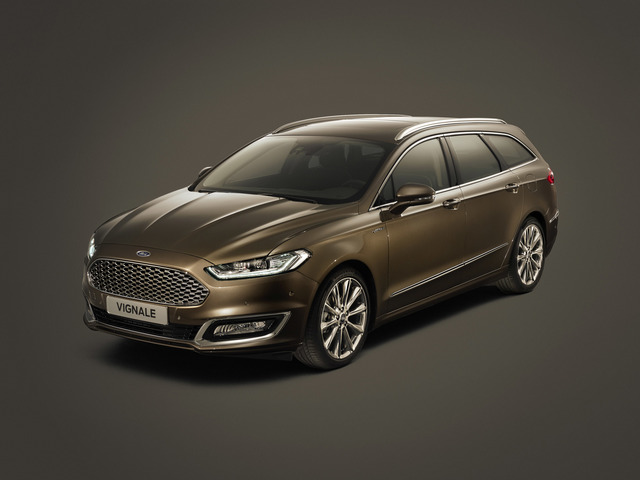

Ford Mondeo Wagon photo gallery
26 images are collected here with the main specifications and trim data for this model.
Photo Ford Mondeo Wagon
Detailed specs
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
1.5 EcoBoost (165 HP) 6-speed manual
1.5 EcoBoost (165 HP) 6-car SelectShift
2.0 EcoBlue (120 hp) 6-speed manual
2.0 EcoBlue (150 h.p.) 6-speed manual
2.0 EcoBlue (150 h.p.) 8-speed automatic
2.0 EcoBlue (190 HP) 8-speed automatic
2.0 EcoBlue (190 HP) 8-speed automatic 4x4
1.5 EcoBoost (165 HP) 6-speed manual 34 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Gasoline |
| Displacement, cc | 1498 |
| Cylinders location | In-line |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 165 |
| Torque, Nm | 242 |
| RPM at max torque | 1600-4000 |
| Engine | 1.5 EcoBoost |
| RPM at max power | 5500 |
| Turbo | + |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 4867 |
| Width | 2121 |
| Height mm | 1501 |
| Wheelbase mm | 2850 |
| Front track, mm | 1600 |
| Rear track, mm | 1595 |

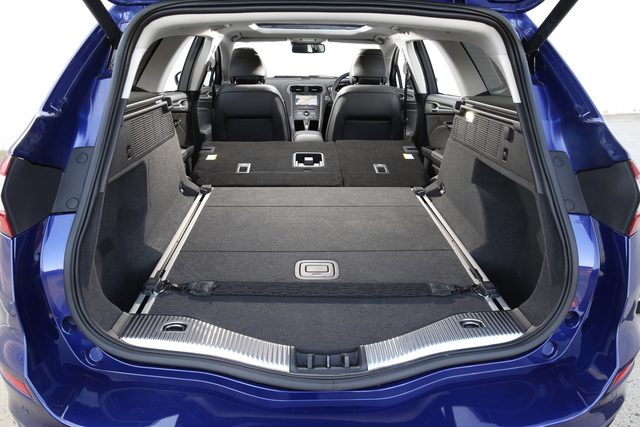

| Trunk capacity, L | 730 |
| Fuel tank, l | 62 |
| Turning circle, m | 11.5 |
| Width (without mirrors) mm | 1852 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 8.3 |
|---|---|
| Fuel consumption (urban), l. 100 km | 5.6 |
| Fuel consumption (combined), l. 100 km | 6.6 |
| Acceleration (0-100 km/h), s | 10.3 |
| The maximum speed, km / h. | 214 |
| The rate of toxicity | Euro VI |
Transmission and drive
| Number of gears | 6 |
|---|---|
| Drive | Front |
| Transmission | 6-speed manual |
| Gearbox | Mechanics |
| Transmission manufacturer | Ford |
1.5 EcoBoost (165 HP) 6-car SelectShift 35 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Gasoline |
| Displacement, cc | 1498 |
| Cylinders location | In-line |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 165 |
| Torque, Nm | 242 |
| RPM at max torque | 1600-4000 |
| Engine | 1.5 EcoBoost |
| RPM at max power | 5500 |
| Turbo | + |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 4867 |
| Width | 2121 |
| Height mm | 1501 |
| Wheelbase mm | 2850 |
| Front track, mm | 1600 |
| Rear track, mm | 1595 |
| Trunk capacity, L | 730 |
| Fuel tank, l | 62 |
| Turning circle, m | 11.5 |
| Width (without mirrors) mm | 1852 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 10 |
|---|---|
| Fuel consumption (urban), l. 100 km | 5.9 |
| Fuel consumption (combined), l. 100 km | 7.4 |
| Acceleration (0-100 km/h), s | 11.1 |
| The maximum speed, km / h. | 209 |
| The rate of toxicity | Euro VI |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Number of gears | 6 |
| Drive | Front |
| Transmission | 6-speed automatic |
| Gearbox | Machine |
| Transmission manufacturer | Ford |
2.0 EcoBlue (120 hp) 6-speed manual 34 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Diesel |
| Displacement, cc | 1998 |
| Cylinders location | In-line |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 120 |
| Torque, Nm | 340 |
| RPM at max torque | 1750-2250 |
| Engine | 2.0 EcoBlue |
| RPM at max power | 3500 |
| Turbo | + |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 4867 |
| Width | 2121 |
| Height mm | 1501 |
| Wheelbase mm | 2850 |
| Front track, mm | 1600 |
| Rear track, mm | 1595 |
| Trunk capacity, L | 730 |
| Fuel tank, l | 62 |
| Turning circle, m | 11.5 |
| Width (without mirrors) mm | 1852 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 5.8 |
|---|---|
| Fuel consumption (urban), l. 100 km | 4.1 |
| Fuel consumption (combined), l. 100 km | 4.8 |
| Acceleration (0-100 km/h), s | 12.5 |
| The maximum speed, km / h. | 197 |
| The rate of toxicity | Euro VI |
Transmission and drive
| Number of gears | 6 |
|---|---|
| Drive | Front |
| Transmission | 6-speed manual |
| Gearbox | Mechanics |
| Transmission manufacturer | Ford |
2.0 EcoBlue (150 h.p.) 6-speed manual 33 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Diesel |
| Displacement, cc | 1997 |
| Cylinders location | In-line |
| Number of cylinders | 4 |
| Valves | 8 |
| Power, hp | 150 |
| Torque, Nm | 370 |
| RPM at max torque | 2000 |
| Engine | 2.0 EcoBlue |
| RPM at max power | 3500 |
| Turbo | + |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 4867 |
| Width | 2121 |
| Height mm | 1501 |
| Wheelbase mm | 2850 |
| Front track, mm | 1600 |
| Rear track, mm | 1595 |
| Trunk capacity, L | 730 |
| Fuel tank, l | 62 |
| Turning circle, m | 11.5 |
| Width (without mirrors) mm | 1852 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 7 |
|---|---|
| Fuel consumption (urban), l. 100 km | 4.6 |
| Acceleration (0-100 km/h), s | 9.7 |
| The maximum speed, km / h. | 211 |
| The rate of toxicity | Euro VI |
Transmission and drive
| Number of gears | 6 |
|---|---|
| Drive | Front |
| Transmission | 6-speed manual |
| Gearbox | Mechanics |
| Transmission manufacturer | Ford |
2.0 EcoBlue (150 h.p.) 8-speed automatic 33 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Diesel |
| Displacement, cc | 1997 |
| Cylinders location | In-line |
| Number of cylinders | 4 |
| Valves | 8 |
| Power, hp | 150 |
| Torque, Nm | 370 |
| RPM at max torque | 2000 |
| Engine | 2.0 EcoBlue |
| RPM at max power | 3500 |
| Turbo | + |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 4867 |
| Width | 2121 |
| Height mm | 1501 |
| Wheelbase mm | 2850 |
| Front track, mm | 1600 |
| Rear track, mm | 1595 |
| Trunk capacity, L | 730 |
| Fuel tank, l | 62 |
| Turning circle, m | 11.5 |
| Width (without mirrors) mm | 1852 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 7.7 |
|---|---|
| Fuel consumption (urban), l. 100 km | 4.9 |
| Acceleration (0-100 km/h), s | 10.3 |
| The maximum speed, km / h. | 211 |
| The rate of toxicity | Euro VI |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Number of gears | 8 |
| Drive | Front |
| Transmission | 8-speed automatic |
| Gearbox | Machine |
2.0 EcoBlue (190 HP) 8-speed automatic 33 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Diesel |
| Displacement, cc | 1997 |
| Cylinders location | In-line |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 190 |
| Torque, Nm | 400 |
| RPM at max torque | 2000 |
| Engine | 2.0 EcoBlue |
| RPM at max power | 3500 |
| Turbo | + |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 4867 |
| Width | 2121 |
| Height mm | 1501 |
| Wheelbase mm | 2850 |
| Front track, mm | 1600 |
| Rear track, mm | 1595 |
| Trunk capacity, L | 730 |
| Fuel tank, l | 62 |
| Turning circle, m | 11.5 |
| Width (without mirrors) mm | 1852 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 7.7 |
|---|---|
| Fuel consumption (urban), l. 100 km | 5 |
| Acceleration (0-100 km/h), s | 9 |
| The maximum speed, km / h. | 223 |
| The rate of toxicity | Euro VI |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Number of gears | 8 |
| Drive | Front |
| Transmission | 8-speed automatic |
| Gearbox | Machine |
2.0 EcoBlue (190 HP) 8-speed automatic 4x4 33 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Diesel |
| Displacement, cc | 1997 |
| Cylinders location | In-line |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 190 |
| Torque, Nm | 400 |
| RPM at max torque | 2000 |
| Engine | 2.0 EcoBlue |
| RPM at max power | 3500 |
| Turbo | + |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 4867 |
| Width | 2121 |
| Height mm | 1501 |
| Wheelbase mm | 2850 |
| Front track, mm | 1600 |
| Rear track, mm | 1595 |
| Trunk capacity, L | 730 |
| Fuel tank, l | 62 |
| Turning circle, m | 11.5 |
| Width (without mirrors) mm | 1852 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 8.1 |
|---|---|
| Fuel consumption (urban), l. 100 km | 5.4 |
| Acceleration (0-100 km/h), s | 9.2 |
| The maximum speed, km / h. | 221 |
| The rate of toxicity | Euro VI |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Number of gears | 8 |
| Drive | Full |
| Transmission | 8-speed automatic |
| Gearbox | Machine |
FAQ
Ford Mondeo Wagon questions
Short answers based on the specifications and photos available in this catalog.
How many trims are listed for the Ford Mondeo Wagon?
This page lists 7 trims for the Ford Mondeo Wagon, with key data shown in the comparison table and full specifications grouped below.
What is the power range for the Ford Mondeo Wagon?
The listed configurations show a power range of 120-190 hp. Exact output can vary by engine, transmission, market, and model year.
What engine displacement is shown for the Ford Mondeo Wagon?
The available specification data shows engine displacement from 1498-1998 cc across the trims listed on this page.
Which transmissions are listed for the Ford Mondeo Wagon?
The transmission options currently shown for this model are: 6-speed manual, 6, 8-speed automatic. Open a trim section to see the full data for a specific configuration.
Are there photos for the Ford Mondeo Wagon?
Yes. The gallery includes 26 photos for the Ford Mondeo Wagon, including exterior and interior views where available.
Why can specifications differ for the same model?
Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
