Ford Mondeo Wagon Hybrid specifications and photos
Ford Mondeo Wagon Hybrid specifications are shown with trim options, key technical data, and a model photo gallery. Compare 1 configurations by engine size, power, seating, and transmission. The gallery includes 17 photos for visual reference.
Ford Mondeo Wagon Hybrid at a glance
Quick model context before comparing photos and trim-level specifications.
Use this Ford Mondeo Wagon Hybrid page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 190 hp and 1999 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.
- Power: 190 hp
- Engine displacement: 1999 cc
- Seating: 5 seats
Photos, trims and specifications for Ford Mondeo Wagon Hybrid
This model page brings gallery images, trim comparison, and detailed technical data together for the 2019 generation.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 2.0 HEV (190 l.c.) eCVT | 1999 cc | 190 hp | 5 | - |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.
Ford Mondeo Wagon Hybrid photo gallery
17 images are collected here with the main specifications and trim data for this model.

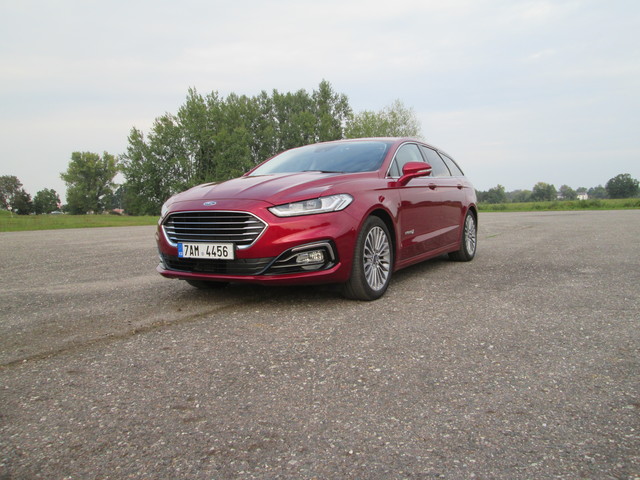

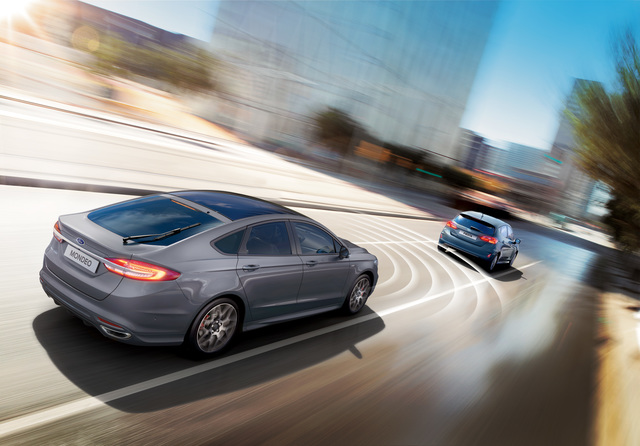

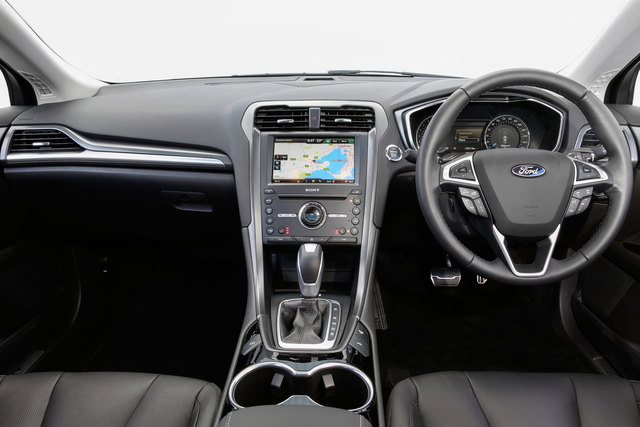

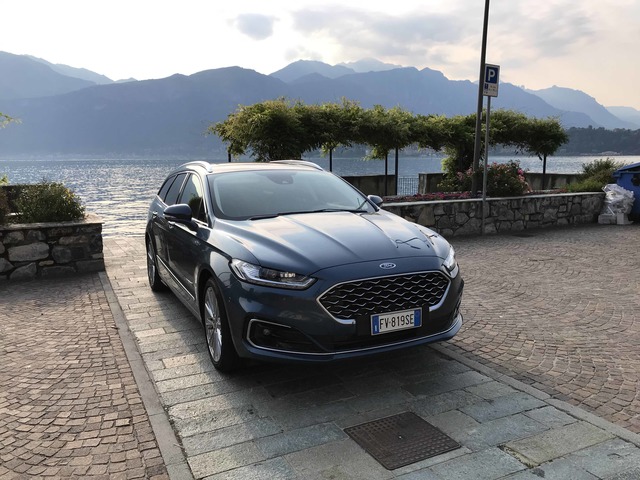

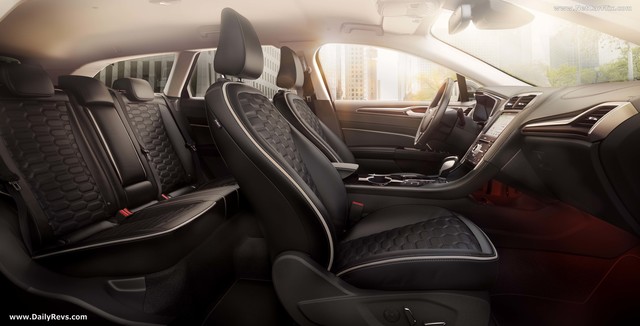

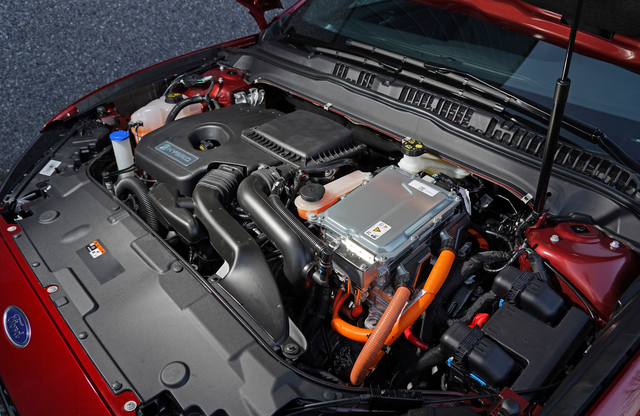

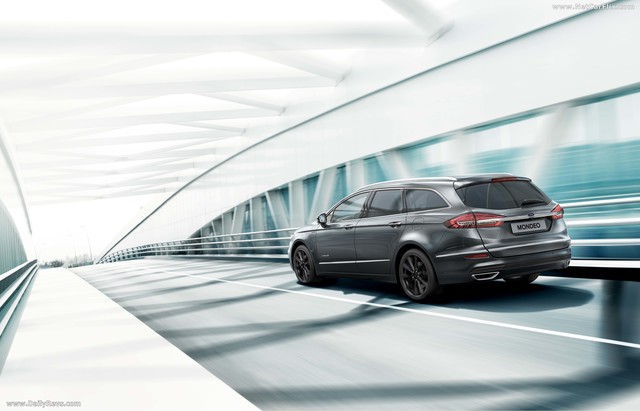

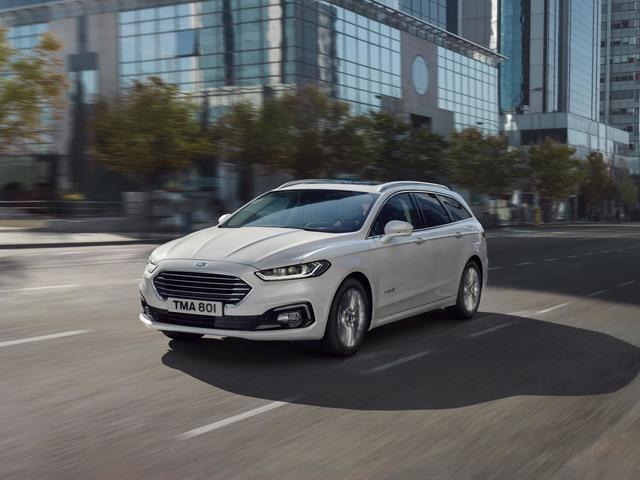

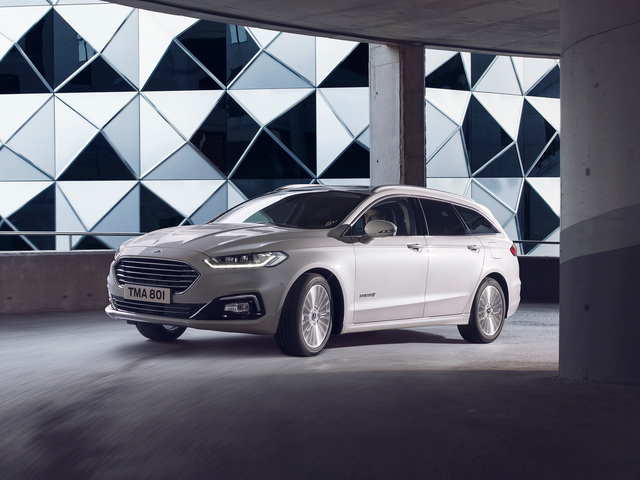

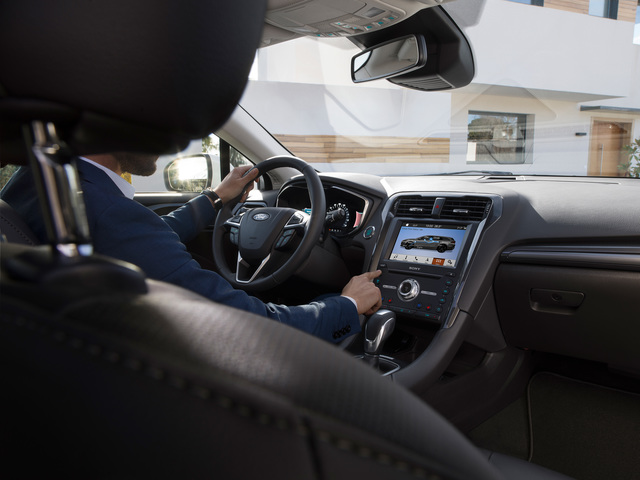

Photo Ford Mondeo Wagon Hybrid
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
2.0 HEV (190 l.c.) eCVT 39 specifications
Specifications
Engine
| Type of engine | Hybrid |
|---|---|
| Type of fuel | Gasoline |
| Displacement, cc | 1999 |
| Cylinders location | In-line |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 190 |
| Torque, Nm | 173 |
| RPM at max torque | 4000 |
| Engine | 2.0 HEV |
| RPM at max power | 6000 |
| Number of motors | 1 |
| Power electric motor HP | 120 |
| Engine power, hp | 137 |
| Revolutions max. Engine power, vol. / min. | 6000 |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 4869 |
| Width | 2121 |
| Height mm | 1501 |
| Wheelbase mm | 2850 |
| Front track, mm | 1600 |
| Rear track, mm | 1595 |
| Kerb weight, kg | 1716 |
| Trunk capacity, L | 403 |
| Fuel tank, l | 49 |
| Turning circle, m | 11.5 |
| Gross weight, kg | 2260 |
| Width (without mirrors) mm | 1911 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 5.5 |
|---|---|
| Fuel consumption (urban), l. 100 km | 4.7 |
| Fuel consumption (combined), l. 100 km | 5 |
| Acceleration (0-100 km/h), s | 9.4 |
| The maximum speed, km / h. | 187 |
| The rate of toxicity | Euro VI |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Drive | Front |
| Transmission | eCVT |
| Gearbox | Variable speed drive |
| Transmission manufacturer | Ford |
Ford Mondeo Wagon Hybrid questions
Short answers based on the specifications and photos available in this catalog.
How many trims are listed for the Ford Mondeo Wagon Hybrid?
This page lists 1 trim for the Ford Mondeo Wagon Hybrid, with key data shown in the comparison table and full specifications grouped below.
What is the power range for the Ford Mondeo Wagon Hybrid?
The listed configurations show a power range of 190 hp. Exact output can vary by engine, transmission, market, and model year.
What engine displacement is shown for the Ford Mondeo Wagon Hybrid?
The available specification data shows engine displacement from 1999 cc across the trims listed on this page.
Are there photos for the Ford Mondeo Wagon Hybrid?
Yes. The gallery includes 17 photos for the Ford Mondeo Wagon Hybrid, including exterior and interior views where available.
Why can specifications differ for the same model?
Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
