Geely Atlas specifications and photos

Geely Atlas specifications are shown with trim options, key technical data, and a model photo gallery. Compare 10 configurations by engine size, power, seating, and transmission. The gallery includes 9 photos for visual reference.

Years 2017
Body type suv
Trims 10
Photos 9

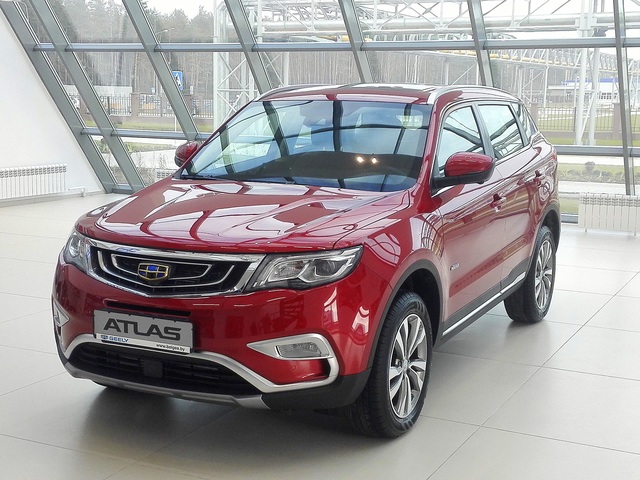

Geely Atlas 2017 SUV
Overview

Geely Atlas at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Geely Atlas page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 139-184 hp and 1799-2378 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

  • Power: 139-184 hp
  • Engine displacement: 1799-2378 cc
  • Transmissions: 6, 6-speed manual
  • Seating: 5 seats
Research hub

Photos, trims and specifications for Geely Atlas

This model page brings gallery images, trim comparison, and detailed technical data together for the 2017 generation.

Open photo gallery 9 images Compare trims 10 configurations View detailed specs 1799-2378 cc Explore related pages Geely and similar models
Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 139-184 hp
Engine displacement 1799-2378 cc
Seating 5 seats
Transmissions 6, 6-speed manual
Trim / modification Engine Power Seats Transmission
2.0i 6MT 1997 cc 139 hp 5 6
1.8i 6MT 1800 cc 163 hp 5 6
1.8T 6AT 1799 cc 184 hp 5 6
1.8T 6AT 4x4 1799 cc 184 hp 5 6
2.0i (139 HP) 6-speed manual 1997 cc 139 hp 5 6-speed manual
2.4i (149 HP) 6-car 2378 cc 149 hp 5 6
2.4i (149 HP) 6-car 4x4 2378 cc 149 hp 5 6
1.8i (163 h.p.) 6-speed manual 1800 cc 163 hp 5 6-speed manual
1.8T (184 hp) 6-aut 1799 cc 184 hp 5 6
1.8T (184 hp) 6-speed 4x4 1799 cc 184 hp 5 6

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

2.0i 6MT 1.8i 6MT 1.8T 6AT 1.8T 6AT 4x4 2.0i (139 HP) 6-speed manual 2.4i (149 HP) 6-car 2.4i (149 HP) 6-car 4x4 1.8i (163 h.p.) 6-speed manual 1.8T (184 hp) 6-aut 1.8T (184 hp) 6-speed 4x4
2.0i 6MT 34 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1997
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 139
Torque, Nm 191
RPM at max torque 3900-4400
Engine 2.0i
RPM at max power 5600
Engine code JLD-4G20

Dimensions

Seats 5
Length mm 4519
Width 1831
Height mm 1694
Wheelbase mm 2670
Kerb weight, kg 1565
Fuel tank, l 60
Ground clearance, mm 190

Suspension

Type of front suspension Independent, MacPherson with anti-roll bar
Rear suspension Independent, multi-link, with anti-roll bar

Brake system

The front brakes Ventilated disc
Rear brakes Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 11.2
Fuel consumption (urban), l. 100 km 6.2
Fuel consumption (combined), l. 100 km 8.1
The maximum speed, km / h. 185
The rate of toxicity Euro V

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer Geely
1.8i 6MT 32 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1800
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 163
Torque, Nm 250
RPM at max torque 1500-4500
Engine 1.8i
Turbo +
Engine code JLE-4G18TD

Dimensions

Seats 5
Length mm 4519
Width 1831
Height mm 1694
Wheelbase mm 2670
Kerb weight, kg 1630
Fuel tank, l 60
Ground clearance, mm 190

Suspension

Type of front suspension Independent, MacPherson with anti-roll bar
Rear suspension Independent, multi-link, with anti-roll bar

Brake system

The front brakes Ventilated disc
Rear brakes Disk

Performance and fuel consumption

Fuel consumption (combined), l. 100 km 7
The maximum speed, km / h. 195
The rate of toxicity Euro V

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer Geely
1.8T 6AT 35 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1799
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 184
Torque, Nm 285
RPM at max torque 1500-4000
Engine 1.8T
RPM at max power 5500
Turbo +
Engine code JLE-4G18TDB

Dimensions

Seats 5
Length mm 4519
Width 1831
Height mm 1694
Wheelbase mm 2670
Kerb weight, kg 1670
Fuel tank, l 60
Ground clearance, mm 190

Suspension

Type of front suspension Independent, MacPherson with anti-roll bar
Rear suspension Independent, multi-link, with anti-roll bar

Brake system

The front brakes Ventilated disc
Rear brakes Disk

Performance and fuel consumption

Fuel consumption (combined), l. 100 km 7.8
The maximum speed, km / h. 195
The rate of toxicity Euro V

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-car
Gearbox Machine
Transmission manufacturer DSI
Transmission country of origin Australia
1.8T 6AT 4x4 34 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1799
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 184
Torque, Nm 285
RPM at max torque 1500-4000
Engine 1.8T
RPM at max power 5500
Turbo +
Engine code JLE-4G18TDB

Dimensions

Seats 5
Length mm 4519
Width 1831
Height mm 1694
Wheelbase mm 2670
Kerb weight, kg 1745
Fuel tank, l 60
Ground clearance, mm 190

Suspension

Type of front suspension Independent, MacPherson with anti-roll bar
Rear suspension Independent, multi-link, with anti-roll bar

Performance and fuel consumption

Fuel consumption (combined), l. 100 km 8.2
Acceleration (0-100 km/h), s 10.7
The maximum speed, km / h. 195
The rate of toxicity Euro V

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Full
Transmission 6-car
Gearbox Machine
Transmission manufacturer DSI
Transmission country of origin Australia
2.0i (139 HP) 6-speed manual 34 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1997
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 139
Torque, Nm 191
RPM at max torque 3900-4400
Engine 2.0i
RPM at max power 5600
Engine code JLD-4G20

Dimensions

Seats 5
Length mm 4519
Height mm 1694
Wheelbase mm 2670
Front track, mm 1560
Rear track, mm 1550
Kerb weight, kg 1570
Trunk capacity, L 320
Fuel tank, l 60
Ground clearance, mm 163
Gross weight, kg 2095
Width (without mirrors) mm 1831

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 11.2
Fuel consumption (urban), l. 100 km 6.2
Fuel consumption (combined), l. 100 km 8.1
The maximum speed, km / h. 185
The rate of toxicity Euro V

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer Geely
2.4i (149 HP) 6-car 36 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 2378
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 149
Torque, Nm 225
RPM at max torque 3900-4400
Engine 2.4i
RPM at max power 5300
Engine code JLD-4G24

Dimensions

Seats 5
Length mm 4519
Height mm 1694
Wheelbase mm 2670
Front track, mm 1560
Rear track, mm 1550
Kerb weight, kg 1570
Trunk capacity, L 320
Fuel tank, l 60
Ground clearance, mm 163
Gross weight, kg 2095
Width (without mirrors) mm 1831

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 13
Fuel consumption (urban), l. 100 km 6.6
Fuel consumption (combined), l. 100 km 8.9
The maximum speed, km / h. 185
The rate of toxicity Euro V

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-car
Gearbox Machine
Transmission manufacturer DSI
Transmission country of origin Australia
2.4i (149 HP) 6-car 4x4 36 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 2378
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 149
Torque, Nm 225
RPM at max torque 3900-4400
Engine 2.4i
RPM at max power 5300
Engine code JLD-4G24

Dimensions

Seats 5
Length mm 4519
Height mm 1694
Wheelbase mm 2670
Front track, mm 1560
Rear track, mm 1550
Kerb weight, kg 1570
Trunk capacity, L 320
Fuel tank, l 60
Ground clearance, mm 163
Gross weight, kg 2095
Width (without mirrors) mm 1831

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 13.8
Fuel consumption (urban), l. 100 km 6.9
Fuel consumption (combined), l. 100 km 9.4
The maximum speed, km / h. 185
The rate of toxicity Euro V

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Full
Transmission 6-car
Gearbox Machine
Transmission manufacturer DSI
Transmission country of origin Australia
1.8i (163 h.p.) 6-speed manual 32 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1800
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 163
Torque, Nm 250
RPM at max torque 1500-4500
Engine 1.8i
Turbo +
Engine code JLE-4G18TD

Dimensions

Seats 5
Length mm 4519
Height mm 1694
Wheelbase mm 2670
Front track, mm 1560
Rear track, mm 1550
Kerb weight, kg 1570
Trunk capacity, L 320
Fuel tank, l 60
Ground clearance, mm 163
Gross weight, kg 2095
Width (without mirrors) mm 1831

Performance and fuel consumption

Fuel consumption (combined), l. 100 km 7
The maximum speed, km / h. 195
The rate of toxicity Euro V

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer Geely
1.8T (184 hp) 6-aut 35 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1799
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 184
Torque, Nm 285
RPM at max torque 1500-4000
Engine 1.8T
RPM at max power 5500
Turbo +
Engine code JLE-4G18TDB

Dimensions

Seats 5
Length mm 4519
Height mm 1694
Wheelbase mm 2670
Front track, mm 1560
Rear track, mm 1550
Kerb weight, kg 1570
Trunk capacity, L 320
Fuel tank, l 60
Ground clearance, mm 163
Gross weight, kg 2095
Width (without mirrors) mm 1831

Performance and fuel consumption

Fuel consumption (combined), l. 100 km 7.8
The maximum speed, km / h. 195
The rate of toxicity Euro V

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-car
Gearbox Machine
Transmission manufacturer DSI
Transmission country of origin Australia
1.8T (184 hp) 6-speed 4x4 36 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1799
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 184
Torque, Nm 285
RPM at max torque 1500-4000
Engine 1.8T
RPM at max power 5500
Turbo +
Engine code JLE-4G18TDB

Dimensions

Seats 5
Length mm 4519
Height mm 1694
Wheelbase mm 2670
Front track, mm 1560
Rear track, mm 1550
Kerb weight, kg 1570
Trunk capacity, L 320
Fuel tank, l 60
Ground clearance, mm 163
Gross weight, kg 2095
Width (without mirrors) mm 1831

Performance and fuel consumption

Fuel consumption (combined), l. 100 km 8.2
Acceleration (0-100 km/h), s 10.7
The maximum speed, km / h. 195
The rate of toxicity Euro V

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Full
Transmission 6-car
Gearbox Machine
Transmission manufacturer DSI
Transmission country of origin Australia
FAQ

Geely Atlas questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Geely Atlas?

This page lists 10 trims for the Geely Atlas, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Geely Atlas?

The listed configurations show a power range of 139-184 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Geely Atlas?

The available specification data shows engine displacement from 1799-2378 cc across the trims listed on this page.

Which transmissions are listed for the Geely Atlas?

The transmission options currently shown for this model are: 6, 6-speed manual. Open a trim section to see the full data for a specific configuration.

Are there photos for the Geely Atlas?

Yes. The gallery includes 9 photos for the Geely Atlas, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
