Geely Atlas specifications and photos
Geely Atlas specifications are shown with trim options, key technical data, and a model photo gallery. Compare 3 configurations by engine size, power, seating, and transmission. The gallery includes 18 photos for visual reference.
Geely Atlas at a glance
Quick model context before comparing photos and trim-level specifications.
Use this Geely Atlas page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 139-184 hp and 1799-1997 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.
- Power: 139-184 hp
- Engine displacement: 1799-1997 cc
- Transmissions: 6-speed manual, 6
- Seating: 5 seats
Photos, trims and specifications for Geely Atlas
This model page brings gallery images, trim comparison, and detailed technical data together for the 2018 generation.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 2.0i (139 HP) 6-speed manual | 1997 cc | 139 hp | 5 | 6-speed manual |
| 1.8i (163 h.p.) 6-speed manual | 1800 cc | 163 hp | 5 | 6-speed manual |
| 1.8T (184 hp) 6-speed 4x4 | 1799 cc | 184 hp | 5 | 6 |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.
Geely Atlas photo gallery
18 images are collected here with the main specifications and trim data for this model.

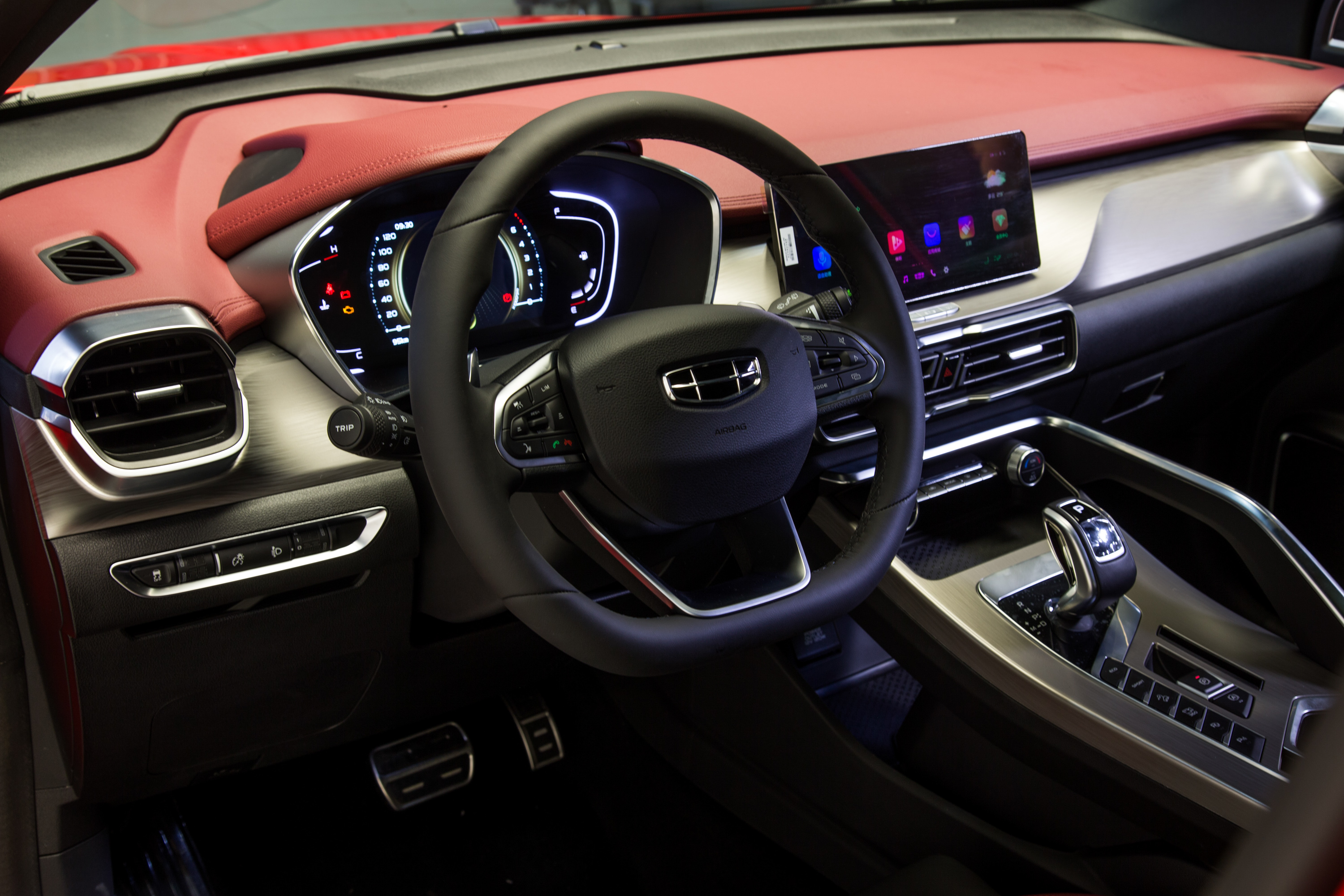

Photo Geely Atlas
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
2.0i (139 HP) 6-speed manual 28 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Gasoline |
| Displacement, cc | 1997 |
| Cylinders location | In-line |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 139 |
| Torque, Nm | 191 |
| RPM at max torque | 3900-4400 |
| Engine | 2.0i |
| RPM at max power | 5600 |
| Engine code | JLD-4G20 |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 4519 |
| Height mm | 1694 |
| Wheelbase mm | 2670 |
| Kerb weight, kg | 1565 |
| Fuel tank, l | 60 |
| Ground clearance, mm | 190 |
| Width (without mirrors) mm | 1831 |
Performance and fuel consumption
| Fuel consumption (combined), l. 100 km | 7.5 |
|---|---|
| The maximum speed, km / h. | 185 |
| The rate of toxicity | Euro V |
Transmission and drive
| Number of gears | 6 |
|---|---|
| Drive | Front |
| Transmission | 6-speed manual |
| Gearbox | Mechanics |
| Transmission manufacturer | Geely |
1.8i (163 h.p.) 6-speed manual 27 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Gasoline |
| Displacement, cc | 1800 |
| Cylinders location | In-line |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 163 |
| Torque, Nm | 250 |
| RPM at max torque | 1500-4500 |
| Engine | 1.8i |
| Turbo | + |
| Engine code | JLE-4G18TD |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 4519 |
| Height mm | 1694 |
| Wheelbase mm | 2670 |
| Kerb weight, kg | 1565 |
| Fuel tank, l | 60 |
| Ground clearance, mm | 190 |
| Width (without mirrors) mm | 1831 |
Performance and fuel consumption
| Fuel consumption (combined), l. 100 km | 7 |
|---|---|
| The maximum speed, km / h. | 195 |
Transmission and drive
| Number of gears | 6 |
|---|---|
| Drive | Front |
| Transmission | 6-speed manual |
| Gearbox | Mechanics |
| Transmission manufacturer | Geely |
1.8T (184 hp) 6-speed 4x4 30 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Gasoline |
| Displacement, cc | 1799 |
| Cylinders location | In-line |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 184 |
| Torque, Nm | 285 |
| RPM at max torque | 1500-4000 |
| Engine | 1.8T |
| RPM at max power | 5500 |
| Turbo | + |
| Engine code | JLE-4G18TDB |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 4519 |
| Height mm | 1694 |
| Wheelbase mm | 2670 |
| Kerb weight, kg | 1565 |
| Fuel tank, l | 60 |
| Ground clearance, mm | 190 |
| Width (without mirrors) mm | 1831 |
Performance and fuel consumption
| Fuel consumption (combined), l. 100 km | 7.8 |
|---|---|
| The maximum speed, km / h. | 195 |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Number of gears | 6 |
| Drive | Full |
| Transmission | 6-car |
| Gearbox | Machine |
| Transmission manufacturer | DSI |
| Transmission country of origin | Australia |
Geely Atlas questions
Short answers based on the specifications and photos available in this catalog.
How many trims are listed for the Geely Atlas?
This page lists 3 trims for the Geely Atlas, with key data shown in the comparison table and full specifications grouped below.
What is the power range for the Geely Atlas?
The listed configurations show a power range of 139-184 hp. Exact output can vary by engine, transmission, market, and model year.
What engine displacement is shown for the Geely Atlas?
The available specification data shows engine displacement from 1799-1997 cc across the trims listed on this page.
Which transmissions are listed for the Geely Atlas?
The transmission options currently shown for this model are: 6-speed manual, 6. Open a trim section to see the full data for a specific configuration.
Are there photos for the Geely Atlas?
Yes. The gallery includes 18 photos for the Geely Atlas, including exterior and interior views where available.
Why can specifications differ for the same model?
Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
