Jeep Compass specifications and photos

Jeep Compass specifications are shown with trim options, key technical data, and a model photo gallery. Compare 15 configurations by engine size, power, seating, and transmission. The gallery includes 24 photos for visual reference.

Years 2017
Body type suv
Trims 15
Photos 24

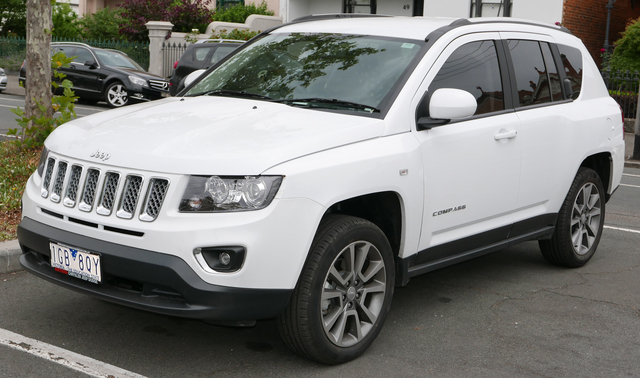

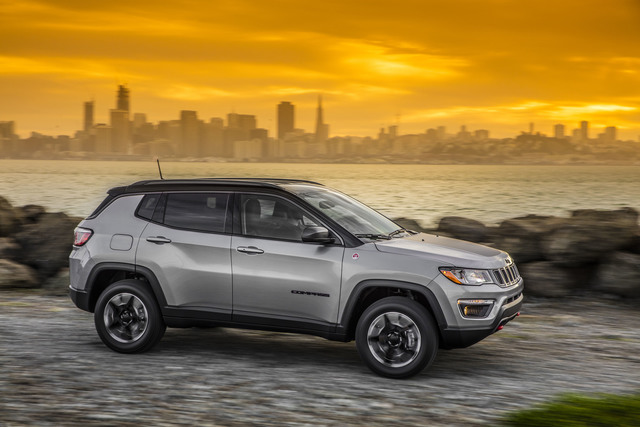

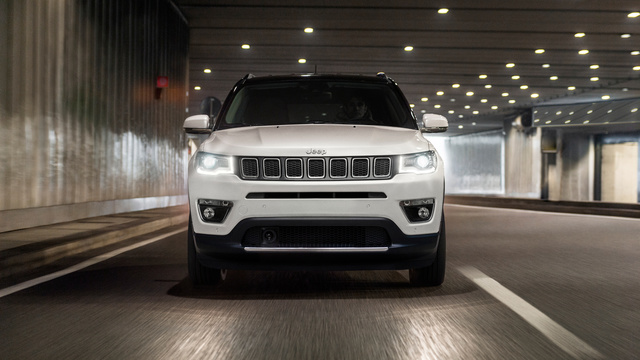

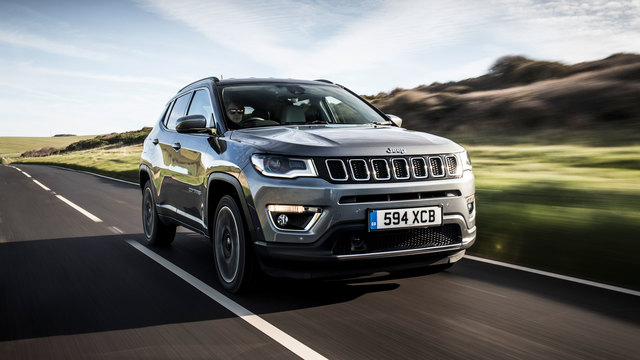

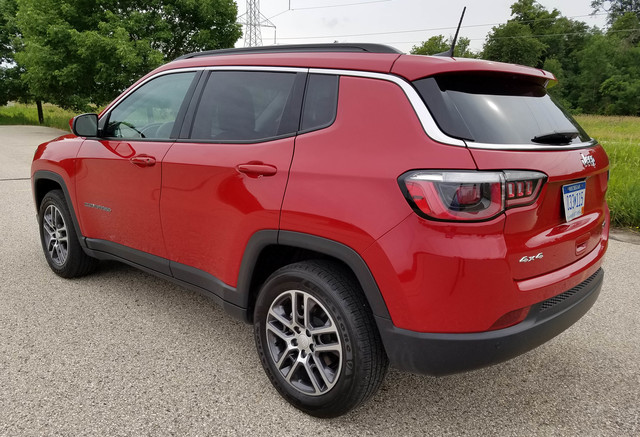

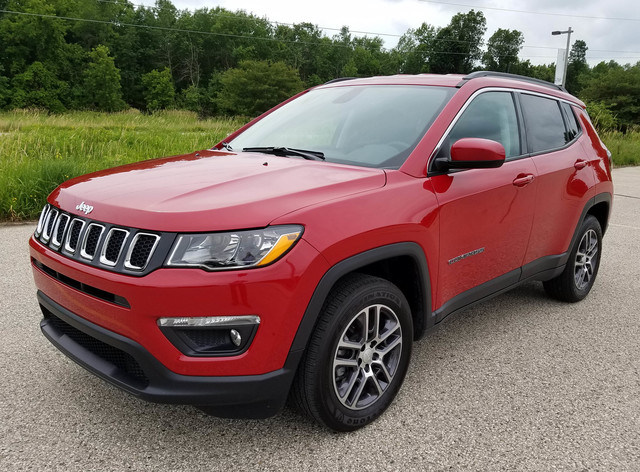

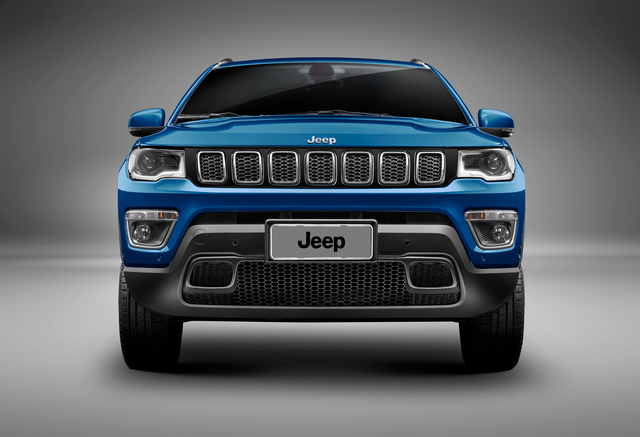

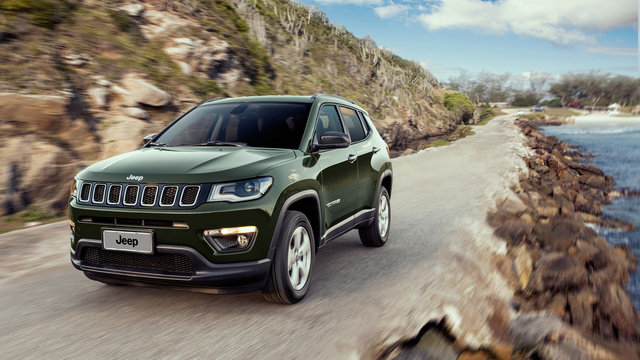

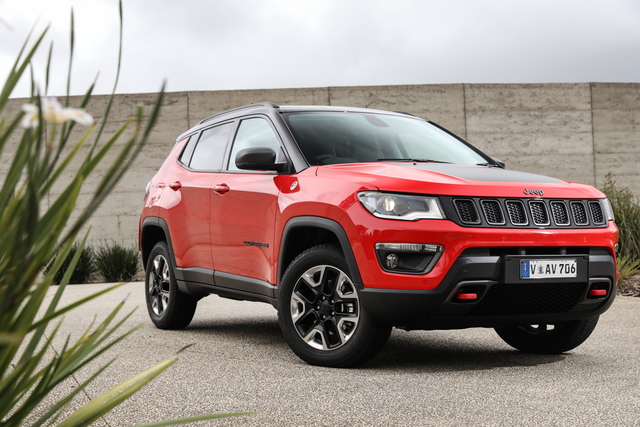

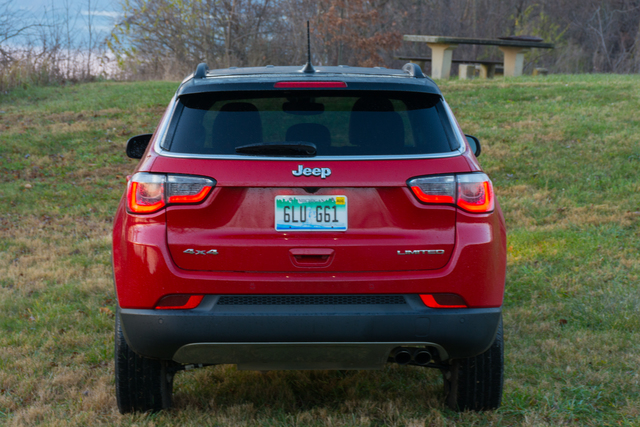

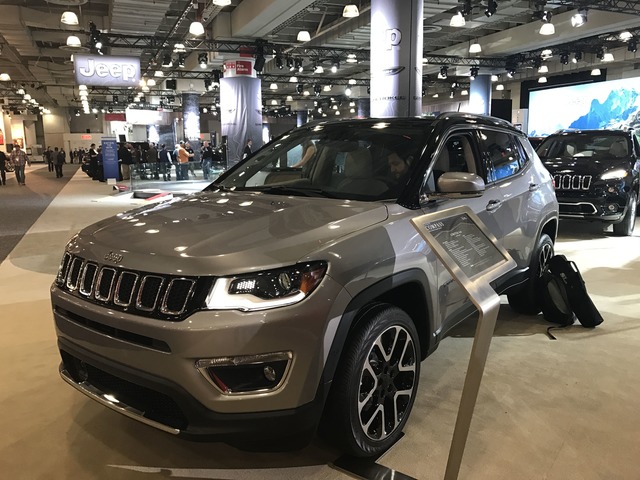

Jeep Compass 2017 photo
Overview

Jeep Compass at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Jeep Compass page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 120-182 hp and 1368-2360 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

  • Power: 120-182 hp
  • Engine displacement: 1368-2360 cc
  • Transmissions: 9, 6-speed manual, 9-speed automatic
  • Seating: 5 seats
Research hub

Photos, trims and specifications for Jeep Compass

This model page brings gallery images, trim comparison, and detailed technical data together for the 2017 generation.

Open photo gallery 24 images Compare trims 15 configurations View detailed specs 1368-2360 cc Explore related pages Jeep and similar models
Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 120-182 hp
Engine displacement 1368-2360 cc
Seating 5 seats
Transmissions 9, 6-speed manual, 9-speed automatic
Trim / modification Engine Power Seats Transmission
2.4 AT Limited AWD 2360 cc 175 hp 5 9
2.4 AT Longitude AWD 2360 cc 175 hp 5 9
2.4 AT Trailhawk AWD 2360 cc 175 hp 5 9
1.4i MultiAir (140 HP) 6-speed manual 1368 cc 140 hp 5 6-speed manual
2.4i Tigershark (150 HP) 9-speed automatic 4x4 2360 cc 150 hp 5 9-speed automatic
1.4i MultiAir (170 HP) 9-speed 4x4 1368 cc 170 hp 5 9
2.4i Tigershark (175 HP) 9-speed automatic 4x4 2360 cc 175 hp 5 9-speed automatic
2.4i MultiAir (182 HP) 6-speed manual 2360 cc 182 hp 5 6-speed manual
2.4i MultiAir (182 HP) 6-speed 4x4 2360 cc 182 hp 5 6
2.4i MultiAir (182 HP) 6-speed automatic 2360 cc 182 hp 5 6-speed automatic
2.4i MultiAir (182 HP) 9-speed automatic 4x4 2360 cc 182 hp 5 9-speed automatic
1.6d Multijet (120 hp) 6-speed manual 1598 cc 120 hp 5 6-speed manual
2.0d MultiJet (140 hp) 6-speed 4x4 1956 cc 140 hp 5 6
2.0d MultiJet (140 hp) 9-speed automatic 4x4 1956 cc 140 hp 5 9-speed automatic
2.0d MultiJet (170 hp) 9-speed automatic 4x4 1956 cc 170 hp 5 9-speed automatic

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

2.4 AT Limited AWD 2.4 AT Longitude AWD 2.4 AT Trailhawk AWD 1.4i MultiAir (140 HP) 6-speed manual 2.4i Tigershark (150 HP) 9-speed automatic 4x4 1.4i MultiAir (170 HP) 9-speed 4x4 2.4i Tigershark (175 HP) 9-speed automatic 4x4 2.4i MultiAir (182 HP) 6-speed manual 2.4i MultiAir (182 HP) 6-speed 4x4 2.4i MultiAir (182 HP) 6-speed automatic 2.4i MultiAir (182 HP) 9-speed automatic 4x4 1.6d Multijet (120 hp) 6-speed manual 2.0d MultiJet (140 hp) 6-speed 4x4 2.0d MultiJet (140 hp) 9-speed automatic 4x4 2.0d MultiJet (170 hp) 9-speed automatic 4x4
2.4 AT Limited AWD 93 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 2360
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 175
Torque, Nm 237
RPM at max torque 3900
Engine 2.4i Tigershark
RPM at max power 6400

Dimensions

Seats 5
Length mm 4394
Width 2032
Height mm 1625
Wheelbase mm 2630
Trunk capacity, L 770
Fuel tank, l 51
Ground clearance, mm 203
Gross weight, kg 2086
Width (without mirrors) mm 1819

Steering

Power steering Electric power

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 13.7
Fuel consumption (urban), l. 100 km 7.6
Fuel consumption (combined), l. 100 km 9.9
Acceleration (0-100 km/h), s 10.7

Transmission and drive

Automatic transmission +
Number of gears 9
Drive Full
Transmission 9-speed automatic
Gearbox Machine
Transmission manufacturer ZF
Transmission country of origin USA

Equipment

Comfort

Tyre pressure monitoring +
Active Cruise Control (ACC) +
Adjustable steering column +
System access and keyless start (Smart Entry) +
The electronic parking lever +
Remote engine start +

Interior

Leather interior +
Multi-information display in the instrument panel +
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.) +
color central LCD display +
12V socket +

Cabin climate and noise insulation

2-zone automatic climate control +
Heated front seats +
ventilated front seats +
Heated steering wheel +

Glass, mirrors and sunroof

Front power windows +
The rain sensor +
Heated side mirrors +
Heated rear window +
Rear electric windows +
heating zone brushes windshield +

Multimedia and instruments

Steering wheel controls +
Radio +
Audio Beats;
Touch Screen +
AUX +
Bluetooth hands free +
USB +
Number of speakers 8
MP3 +
Apple CarPlay / Android Auto +

Headlights and lighting

Front fog lights +
Bi-xenon headlights +
Rear fog lights +
Rear LED lights +
System of automatic inclusion / switching off of a high beam (HBC, HBA) +

Seats

Power lumbar support for the driver's seat +
Isofix child seat (LATCH, Isofix) +
Memory seat adjustment +
Folding the seatbacks 2nd row 40/20/40 +
Lumbar support for the front passenger seat +
Lumbar support for the driver's seat +

Visibility and parking

Rear View Camera +
Rear Parking Sensors +

Off-road

aid climbing the hill (HAC; HSA; Hill Holder; HLA) +
aid down-gradient from the cruise (HDC) +

Trunk

Power trunk +

Exterior

Roof rails +

Body and exterior paint

Door handles in body color +

Security

Electronic systems

Anti-lock braking system (ABS) +
Traction Control System (Traction control, ASR) +
Vehicle Stability Control (ESP, DSC, ESC, VSC) +
Lane Assist +

Anti-theft systems

Alarm +
Central locking with remote control +

Airbags

Driver's airbag +
Passenger Airbag +
Side airbags +
Curtain airbags +
Deactivating the front passenger airbags +
2.4 AT Longitude AWD 85 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 2360
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 175
Torque, Nm 237
RPM at max torque 3900
Engine 2.4i Tigershark
RPM at max power 6400

Dimensions

Seats 5
Length mm 4394
Width 2032
Height mm 1625
Wheelbase mm 2630
Trunk capacity, L 770
Fuel tank, l 51
Ground clearance, mm 203
Gross weight, kg 2086
Width (without mirrors) mm 1819

Steering

Power steering Electric power

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 13.7
Fuel consumption (urban), l. 100 km 7.6
Fuel consumption (combined), l. 100 km 9.9
Acceleration (0-100 km/h), s 10.7

Transmission and drive

Automatic transmission +
Number of gears 9
Drive Full
Transmission 9-speed automatic
Gearbox Machine
Transmission manufacturer ZF
Transmission country of origin USA

Equipment

Comfort

Cruise Control +
Tyre pressure monitoring +
Adjustable steering column +
System access and keyless start (Smart Entry) +
The electronic parking lever +
Remote engine start +

Interior

Multi-information display in the instrument panel +
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.) +
12V socket +

Cabin climate and noise insulation

2-zone automatic climate control +
Heated front seats +
Heated steering wheel +

Glass, mirrors and sunroof

Front power windows +
Heated side mirrors +
Heated rear window +
Rear electric windows +
heating zone brushes windshield +

Multimedia and instruments

Steering wheel controls +
Radio +
Touch Screen +
AUX +
Bluetooth hands free +
USB +
Number of speakers 6
MP3 +
Apple CarPlay / Android Auto +

Headlights and lighting

Front fog lights +
Rear fog lights +
Rear LED lights +
Halogen headlights +

Seats

Power lumbar support for the driver's seat +
Isofix child seat (LATCH, Isofix) +
The back of the rear seat folds 60/40 +
Lumbar support for the front passenger seat +
Lumbar support for the driver's seat +

Visibility and parking

Rear View Camera +
Rear Parking Sensors +

Off-road

aid climbing the hill (HAC; HSA; Hill Holder; HLA) +
aid down-gradient from the cruise (HDC) +

Trunk

Power trunk +

Exterior

Roof rails +

Body and exterior paint

Door handles in body color +

Security

Electronic systems

Anti-lock braking system (ABS) +
Traction Control System (Traction control, ASR) +
Vehicle Stability Control (ESP, DSC, ESC, VSC) +

Anti-theft systems

Alarm +
Central locking with remote control +

Airbags

Driver's airbag +
Passenger Airbag +
Side airbags +
Curtain airbags +
Deactivating the front passenger airbags +
2.4 AT Trailhawk AWD 93 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 2360
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 175
Torque, Nm 237
RPM at max torque 3900
Engine 2.4i Tigershark
RPM at max power 6400

Dimensions

Seats 5
Length mm 4394
Width 2032
Height mm 1625
Wheelbase mm 2630
Trunk capacity, L 770
Fuel tank, l 51
Ground clearance, mm 203
Gross weight, kg 2086
Width (without mirrors) mm 1819

Steering

Power steering Electric power

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 13.7
Fuel consumption (urban), l. 100 km 7.6
Fuel consumption (combined), l. 100 km 9.9
Acceleration (0-100 km/h), s 10.7

Transmission and drive

Automatic transmission +
Number of gears 9
Drive Full
Transmission 9-speed automatic
Gearbox Machine
Transmission manufacturer ZF
Transmission country of origin USA

Equipment

Comfort

Tyre pressure monitoring +
Active Cruise Control (ACC) +
Adjustable steering column +
System access and keyless start (Smart Entry) +
The electronic parking lever +
Remote engine start +

Interior

Leather interior +
Multi-information display in the instrument panel +
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.) +
color central LCD display +
12V socket +

Cabin climate and noise insulation

2-zone automatic climate control +
Heated front seats +
ventilated front seats +
Heated steering wheel +

Glass, mirrors and sunroof

Front power windows +
The rain sensor +
Heated side mirrors +
Heated rear window +
Rear electric windows +
heating zone brushes windshield +

Multimedia and instruments

Steering wheel controls +
Radio +
Audio Beats;
Touch Screen +
AUX +
Bluetooth hands free +
USB +
Number of speakers 8
MP3 +
Apple CarPlay / Android Auto +

Headlights and lighting

Front fog lights +
Bi-xenon headlights +
Rear fog lights +
Rear LED lights +
System of automatic inclusion / switching off of a high beam (HBC, HBA) +

Seats

Power lumbar support for the driver's seat +
Isofix child seat (LATCH, Isofix) +
Memory seat adjustment +
Folding the seatbacks 2nd row 40/20/40 +
Lumbar support for the front passenger seat +
Lumbar support for the driver's seat +

Visibility and parking

Rear View Camera +
Rear Parking Sensors +

Off-road

aid climbing the hill (HAC; HSA; Hill Holder; HLA) +
aid down-gradient from the cruise (HDC) +

Trunk

Power trunk +

Exterior

Roof rails +

Body and exterior paint

Door handles in body color +

Security

Electronic systems

Anti-lock braking system (ABS) +
Traction Control System (Traction control, ASR) +
Vehicle Stability Control (ESP, DSC, ESC, VSC) +
Lane Assist +

Anti-theft systems

Alarm +
Central locking with remote control +

Airbags

Driver's airbag +
Passenger Airbag +
Side airbags +
Curtain airbags +
Deactivating the front passenger airbags +
1.4i MultiAir (140 HP) 6-speed manual 34 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1368
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 140
Torque, Nm 230
RPM at max torque 1750
Engine 1.4i MultiAir
RPM at max power 5500
Turbo +

Dimensions

Seats 5
Length mm 4394
Width 2032
Height mm 1625
Wheelbase mm 2630
Trunk capacity, L 770
Fuel tank, l 51
Ground clearance, mm 203
Gross weight, kg 2086
Width (without mirrors) mm 1819

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7.8
Fuel consumption (urban), l. 100 km 5.2
Fuel consumption (combined), l. 100 km 6.2
Acceleration (0-100 km/h), s 9.9
The maximum speed, km / h. 192
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer Fiat (FPT)
Transmission country of origin Italy
2.4i Tigershark (150 HP) 9-speed automatic 4x4 31 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 2360
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 150
Torque, Nm 229
RPM at max torque 3900
Engine 2.4i Tigershark
RPM at max power 5500-6400

Dimensions

Seats 5
Length mm 4394
Width 2032
Height mm 1625
Wheelbase mm 2630
Trunk capacity, L 770
Fuel tank, l 51
Ground clearance, mm 203
Gross weight, kg 2086
Width (without mirrors) mm 1819

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 13.8
Fuel consumption (urban), l. 100 km 7.2
Fuel consumption (combined), l. 100 km 9.6

Transmission and drive

Automatic transmission +
Number of gears 9
Drive Full
Transmission 9-speed automatic
Gearbox Machine
Transmission manufacturer ZF
Transmission country of origin USA
1.4i MultiAir (170 HP) 9-speed 4x4 36 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1368
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 170
Torque, Nm 250
RPM at max torque 1750-2500
Engine 1.4i MultiAir
Compression 9.8
RPM at max power 5500
Turbo +

Dimensions

Seats 5
Length mm 4394
Width 2032
Height mm 1625
Wheelbase mm 2630
Trunk capacity, L 770
Fuel tank, l 51
Ground clearance, mm 203
Gross weight, kg 2086
Width (without mirrors) mm 1819

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 8.7
Fuel consumption (urban), l. 100 km 5.9
Fuel consumption (combined), l. 100 km 6.9
Acceleration (0-100 km/h), s 9.5
The maximum speed, km / h. 200
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 9
Drive Full
Transmission 9-speed automatic
Gearbox Machine
Transmission manufacturer ZF
Transmission country of origin USA
2.4i Tigershark (175 HP) 9-speed automatic 4x4 32 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 2360
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 175
Torque, Nm 237
RPM at max torque 3900
Engine 2.4i Tigershark
RPM at max power 6400

Dimensions

Seats 5
Length mm 4394
Width 2032
Height mm 1625
Wheelbase mm 2630
Trunk capacity, L 770
Fuel tank, l 51
Ground clearance, mm 203
Gross weight, kg 2086
Width (without mirrors) mm 1819

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 13.7
Fuel consumption (urban), l. 100 km 7.6
Fuel consumption (combined), l. 100 km 9.9
Acceleration (0-100 km/h), s 10.7

Transmission and drive

Automatic transmission +
Number of gears 9
Drive Full
Transmission 9-speed automatic
Gearbox Machine
Transmission manufacturer ZF
Transmission country of origin USA
2.4i MultiAir (182 HP) 6-speed manual 31 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 2360
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 182
Torque, Nm 240
RPM at max torque 3900
Engine 2.4i MultiAir
Compression 10.0
RPM at max power 6400

Dimensions

Seats 5
Length mm 4394
Width 2032
Height mm 1625
Wheelbase mm 2630
Trunk capacity, L 770
Fuel tank, l 51
Ground clearance, mm 203
Gross weight, kg 2086
Width (without mirrors) mm 1819

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 10.4
Fuel consumption (urban), l. 100 km 7.3
Fuel consumption (combined), l. 100 km 9

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer Fiat (FPT)
Transmission country of origin Italy
2.4i MultiAir (182 HP) 6-speed 4x4 31 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 2360
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 182
Torque, Nm 240
RPM at max torque 3900
Engine 2.4i MultiAir
Compression 10.0
RPM at max power 6400

Dimensions

Seats 5
Length mm 4394
Width 2032
Height mm 1625
Wheelbase mm 2630
Trunk capacity, L 770
Fuel tank, l 51
Ground clearance, mm 203
Gross weight, kg 2086
Width (without mirrors) mm 1819

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 10.8
Fuel consumption (urban), l. 100 km 7.6
Fuel consumption (combined), l. 100 km 9.4

Transmission and drive

Number of gears 6
Drive Full
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer Fiat (FPT)
Transmission country of origin Italy
2.4i MultiAir (182 HP) 6-speed automatic 32 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 2360
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 182
Torque, Nm 240
RPM at max torque 3900
Engine 2.4i MultiAir
Compression 10.0
RPM at max power 6400

Dimensions

Seats 5
Length mm 4394
Width 2032
Height mm 1625
Wheelbase mm 2630
Trunk capacity, L 770
Fuel tank, l 51
Ground clearance, mm 203
Gross weight, kg 2086
Width (without mirrors) mm 1819

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 10.6
Fuel consumption (urban), l. 100 km 7.6
Fuel consumption (combined), l. 100 km 9.3

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-speed automatic
Gearbox Machine
Transmission manufacturer Aisin
Transmission country of origin Japan
2.4i MultiAir (182 HP) 9-speed automatic 4x4 32 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 2360
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 182
Torque, Nm 240
RPM at max torque 3900
Engine 2.4i MultiAir
Compression 10.0
RPM at max power 6400

Dimensions

Seats 5
Length mm 4394
Width 2032
Height mm 1625
Wheelbase mm 2630
Trunk capacity, L 770
Fuel tank, l 51
Ground clearance, mm 203
Gross weight, kg 2086
Width (without mirrors) mm 1819

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 10.8
Fuel consumption (urban), l. 100 km 7.8
Fuel consumption (combined), l. 100 km 9.5

Transmission and drive

Automatic transmission +
Number of gears 9
Drive Full
Transmission 9-speed automatic
Gearbox Machine
Transmission manufacturer ZF
Transmission country of origin USA
1.6d Multijet (120 hp) 6-speed manual 34 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1598
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 120
Torque, Nm 320
RPM at max torque 1750
Engine 1.6d Multijet
Compression 16.5
RPM at max power 3750
Turbo +

Dimensions

Seats 5
Length mm 4394
Width 2032
Height mm 1625
Wheelbase mm 2630
Trunk capacity, L 770
Fuel tank, l 51
Ground clearance, mm 203
Gross weight, kg 2086
Width (without mirrors) mm 1819

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.2
Fuel consumption (urban), l. 100 km 4
Fuel consumption (combined), l. 100 km 4.4
Acceleration (0-100 km/h), s 11
The maximum speed, km / h. 185

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer Fiat (FPT)
Transmission country of origin Italy
2.0d MultiJet (140 hp) 6-speed 4x4 34 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1956
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 140
Torque, Nm 350
RPM at max torque 1750
Engine 2.0d MultiJet
RPM at max power 3750
Turbo +

Dimensions

Seats 5
Length mm 4394
Width 2032
Height mm 1625
Wheelbase mm 2630
Trunk capacity, L 770
Fuel tank, l 51
Ground clearance, mm 203
Gross weight, kg 2086
Width (without mirrors) mm 1819

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6.1
Fuel consumption (urban), l. 100 km 4.7
Fuel consumption (combined), l. 100 km 5.2
Acceleration (0-100 km/h), s 10.1
The maximum speed, km / h. 190
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Full
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer Fiat (FPT)
Transmission country of origin Italy
2.0d MultiJet (140 hp) 9-speed automatic 4x4 35 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1956
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 140
Torque, Nm 350
RPM at max torque 1750
Engine 2.0d MultiJet
RPM at max power 3750
Turbo +

Dimensions

Seats 5
Length mm 4394
Width 2032
Height mm 1625
Wheelbase mm 2630
Trunk capacity, L 770
Fuel tank, l 51
Ground clearance, mm 203
Gross weight, kg 2086
Width (without mirrors) mm 1819

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6.6
Fuel consumption (urban), l. 100 km 5.1
Fuel consumption (combined), l. 100 km 5.7
Acceleration (0-100 km/h), s 9.9
The maximum speed, km / h. 190
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 9
Drive Full
Transmission 9-speed automatic
Gearbox Machine
Transmission manufacturer ZF
Transmission country of origin USA
2.0d MultiJet (170 hp) 9-speed automatic 4x4 34 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1956
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 170
Torque, Nm 380
RPM at max torque 1750
Engine 2.0d MultiJet
RPM at max power 3750
Turbo +

Dimensions

Seats 5
Length mm 4394
Width 2032
Height mm 1625
Wheelbase mm 2630
Trunk capacity, L 770
Fuel tank, l 51
Ground clearance, mm 203
Gross weight, kg 2086
Width (without mirrors) mm 1819

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6.6
Fuel consumption (urban), l. 100 km 5.1
Fuel consumption (combined), l. 100 km 5.7
Acceleration (0-100 km/h), s 9.5
The maximum speed, km / h. 196

Transmission and drive

Automatic transmission +
Number of gears 9
Drive Full
Transmission 9-speed automatic
Gearbox Machine
Transmission manufacturer ZF
Transmission country of origin USA
FAQ

Jeep Compass questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Jeep Compass?

This page lists 15 trims for the Jeep Compass, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Jeep Compass?

The listed configurations show a power range of 120-182 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Jeep Compass?

The available specification data shows engine displacement from 1368-2360 cc across the trims listed on this page.

Which transmissions are listed for the Jeep Compass?

The transmission options currently shown for this model are: 9, 6-speed manual, 9-speed automatic. Open a trim section to see the full data for a specific configuration.

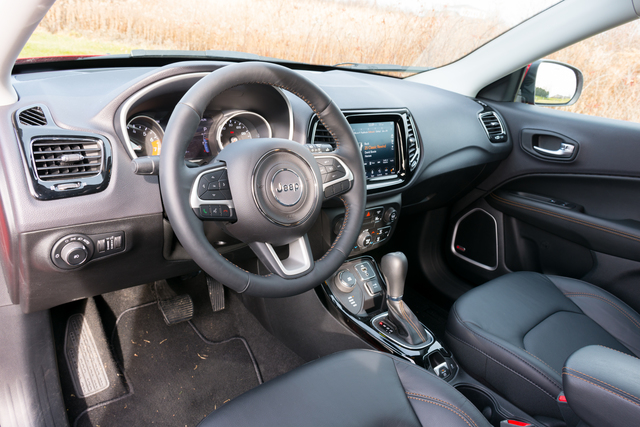

Are there photos for the Jeep Compass?

Yes. The gallery includes 24 photos for the Jeep Compass, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
