Jeep Wrangler specifications and photos

Jeep Wrangler specifications are shown with trim options, key technical data, and a model photo gallery. Compare 7 configurations by engine size, power, seating, and transmission. The gallery includes 17 photos for visual reference.

Years 2017
Body type suv
Trims 7
Photos 17

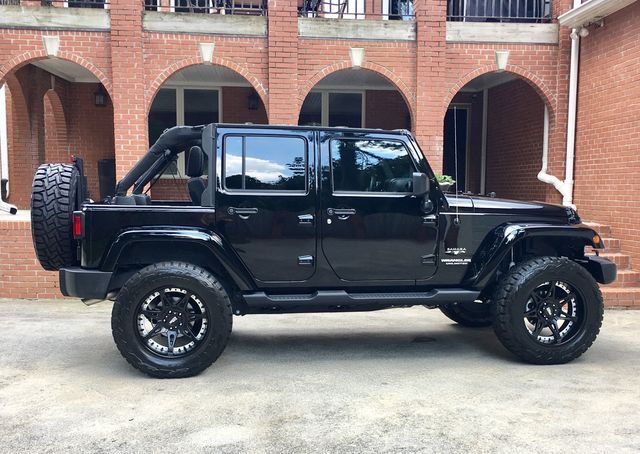

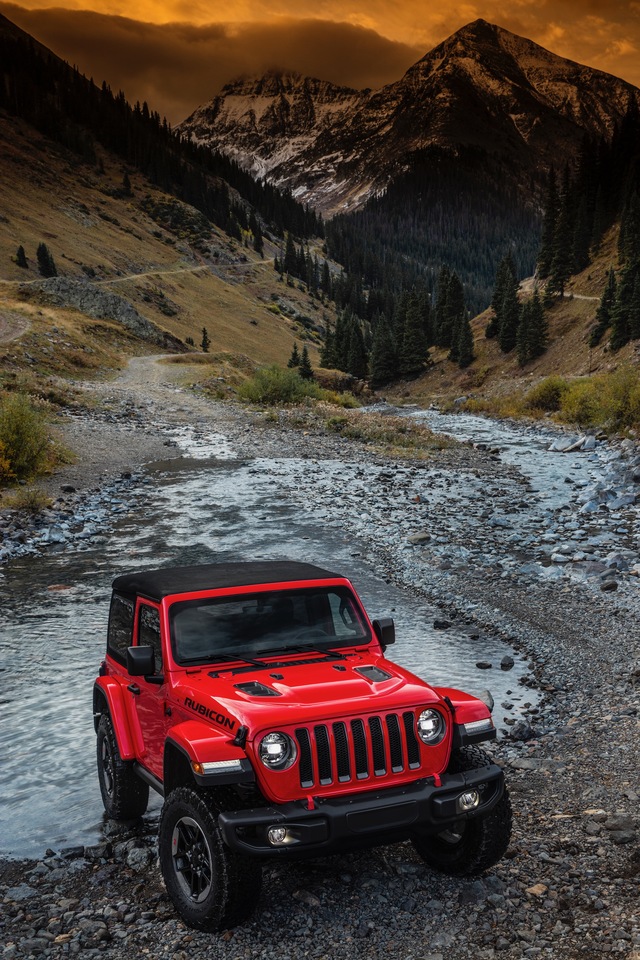

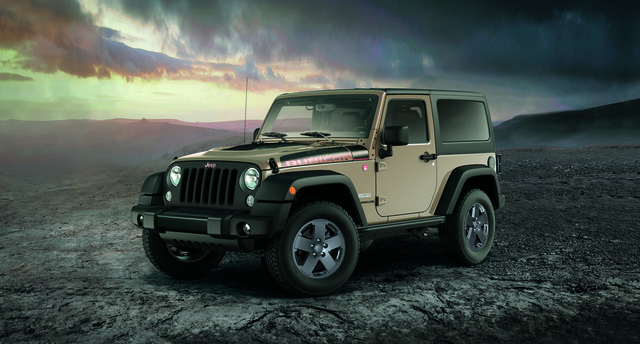

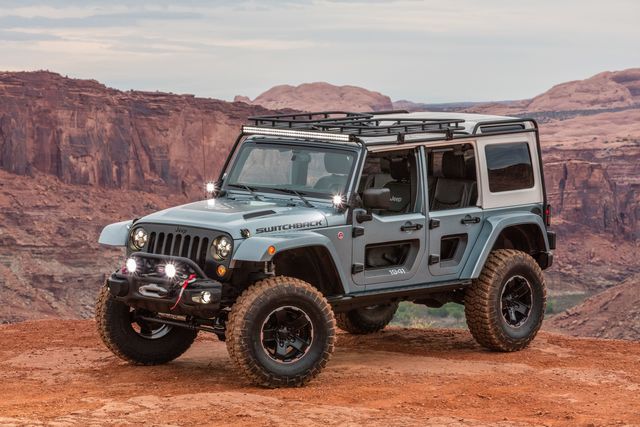

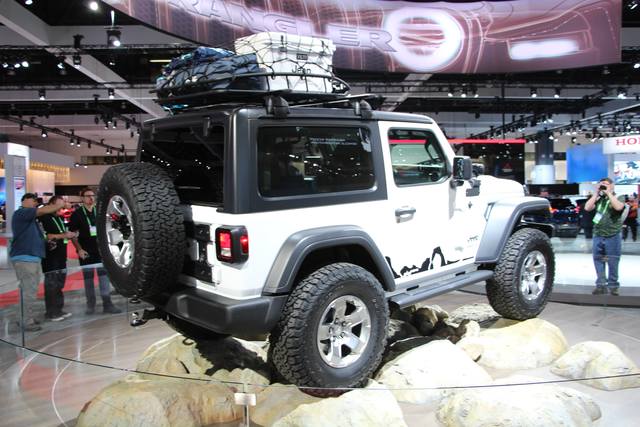

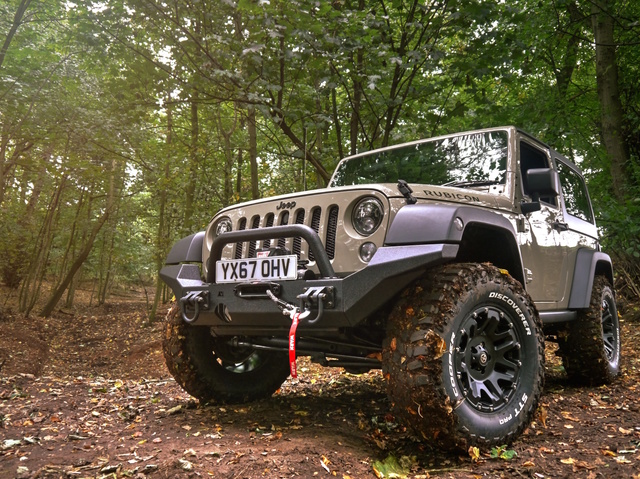

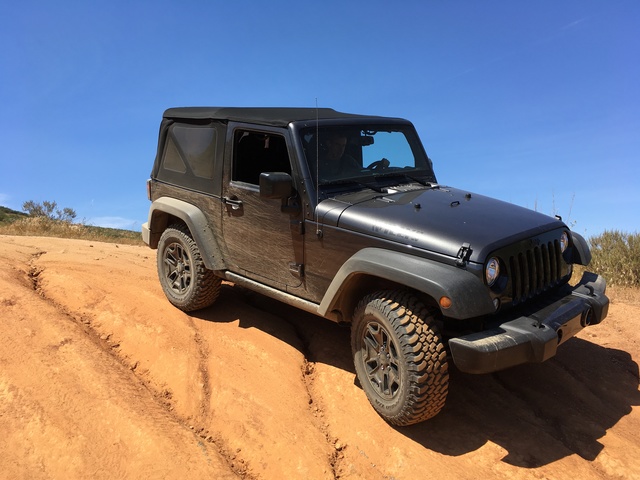

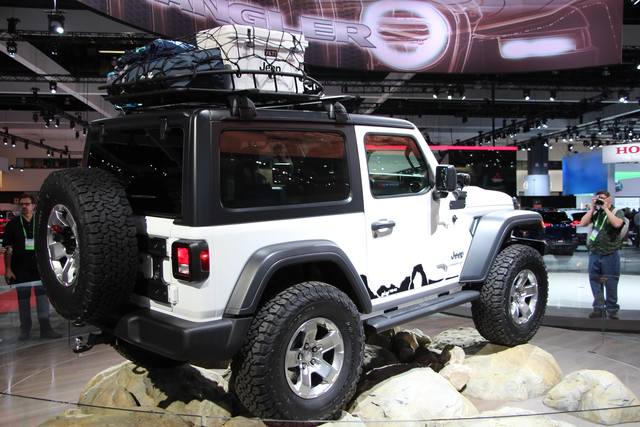

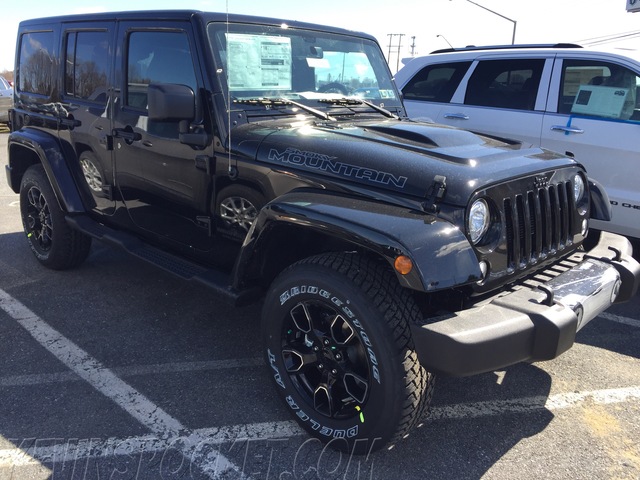

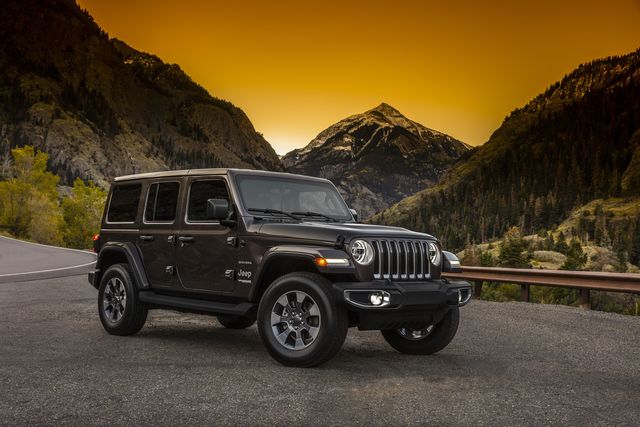

Jeep Wrangler 2017 photo
Overview

Jeep Wrangler at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Jeep Wrangler page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 200-290 hp and 1998-3604 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

  • Power: 200-290 hp
  • Engine displacement: 1998-3604 cc
  • Transmissions: 8, 6, 8-speed automatic
  • Seating: 4 seats
Research hub

Photos, trims and specifications for Jeep Wrangler

This model page brings gallery images, trim comparison, and detailed technical data together for the 2017 generation.

Open photo gallery 17 images Compare trims 7 configurations View detailed specs 1998-3604 cc Explore related pages Jeep and similar models
Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 200-290 hp
Engine displacement 1998-3604 cc
Seating 4 seats
Transmissions 8, 6, 8-speed automatic
Trim / modification Engine Power Seats Transmission
2.0 AT Sport 1998 cc 270 hp 4 8
2.0 AT Sahara 1998 cc 270 hp 4 8
2.0i Turbo (270 h.p.) 6-speed 4x4 1998 cc 270 hp 4 6
2.0i Turbo (270 HP) 8-speed automatic 4x4 1998 cc 270 hp 4 8-speed automatic
3.6i Pentastar (290 hp) 6-speed 4x4 3604 cc 290 hp 4 6
3.6i Pentastar (290 hp) 8-speed 4x4 3604 cc 290 hp 4 8
2.2 Multijet (200 hp) 8-speed automatic 4x4 2143 cc 200 hp 4 8-speed automatic

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

2.0 AT Sport 2.0 AT Sahara 2.0i Turbo (270 h.p.) 6-speed 4x4 2.0i Turbo (270 HP) 8-speed automatic 4x4 3.6i Pentastar (290 hp) 6-speed 4x4 3.6i Pentastar (290 hp) 8-speed 4x4 2.2 Multijet (200 hp) 8-speed automatic 4x4
2.0 AT Sport 73 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1998
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 270
Torque, Nm 400
RPM at max torque 3000
Engine 2.0i Turbo
RPM at max power 5250
Turbo +

Dimensions

Seats 4
Length mm 4237
Width 1894
Height mm 1879
Wheelbase mm 2459
Front track, mm 1572
Rear track, mm 1572
Kerb weight, kg 1800
Fuel tank, l 70
Turning circle, m 10.5

Brake system

The front brakes Ventilated disc
Rear brakes Disk

Steering

Power steering Power steering

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 10.5
Fuel consumption (urban), l. 100 km 8.5
Fuel consumption (combined), l. 100 km 9.5
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Full
Transmission 8-speed automatic
Gearbox Machine
Transmission manufacturer ZF
Transmission country of origin Germany

Equipment

Comfort

Cruise Control +
Tyre pressure monitoring +
Multi-function steering wheel +
The opening of the doors and start without a key +

Interior

Multi-information display in the instrument panel +
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.) +

Wheels

Disc diameter 17
Rim type Steel
Tires 245/75R17
Spare wheel Full size

Cabin climate and noise insulation

Heated front seats +
Heated steering wheel +
Air Conditioning +

Glass, mirrors and sunroof

Front power windows +
Heated side mirrors +
Power mirrors +
Auto-dimming rearview mirror +

Multimedia and instruments

Radio +
Touch Screen +
Number of speakers 8
MP3 +

Headlights and lighting

Front fog lights +
Light sensor +
Rear fog lights +
Halogen headlights +
Daytime Running Lights +

Seats

The back of the rear seat folds 60/40 +
Lumbar support for the front passenger seat +
Lumbar support for the driver's seat +

Visibility and parking

Rear Parking Sensors +

Security

Electronic systems

Anti-lock braking system (ABS) +
Traction Control System (Traction control, ASR) +
Vehicle Stability Control (ESP, DSC, ESC, VSC) +

Anti-theft systems

Alarm +

Airbags

Driver's airbag +
Passenger Airbag +
Side airbags +
2.0 AT Sahara 80 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1998
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 270
Torque, Nm 400
RPM at max torque 3000
Engine 2.0i Turbo
RPM at max power 5250
Turbo +

Dimensions

Seats 4
Length mm 4237
Width 1894
Height mm 1879
Wheelbase mm 2459
Front track, mm 1572
Rear track, mm 1572
Kerb weight, kg 1800
Fuel tank, l 70
Turning circle, m 10.5

Brake system

The front brakes Ventilated disc
Rear brakes Disk

Steering

Power steering Power steering

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 10.5
Fuel consumption (urban), l. 100 km 8.5
Fuel consumption (combined), l. 100 km 9.5
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Full
Transmission 8-speed automatic
Gearbox Machine
Transmission manufacturer ZF
Transmission country of origin Germany

Equipment

Comfort

Cruise Control +
Tyre pressure monitoring +
Multi-function steering wheel +
The opening of the doors and start without a key +
Remote engine start +

Interior

Multi-information display in the instrument panel +
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.) +

Wheels

Disc diameter 17
Rim type Steel
Tires 245/75R17
Spare wheel Full size

Cabin climate and noise insulation

2-zone automatic climate control +
Air Conditioning +

Glass, mirrors and sunroof

Front power windows +
Heated side mirrors +
Power mirrors +
Tinted glass +
Auto-dimming rearview mirror +

Multimedia and instruments

Radio +
Audio Alpine;
Touch Screen +
AUX +
USB +
Number of speakers 9
MP3 +
7-inch high-resolution color display +

Headlights and lighting

Front fog lights +
Light sensor +
Rear fog lights +
Halogen headlights +
Daytime Running Lights +

Seats

The back of the rear seat folds 60/40 +
Lumbar support for the front passenger seat +
Lumbar support for the driver's seat +

Visibility and parking

Rear View Camera +
Rear Parking Sensors +

Exterior

Side steps +

Security

Electronic systems

Anti-lock braking system (ABS) +
Traction Control System (Traction control, ASR) +
Vehicle Stability Control (ESP, DSC, ESC, VSC) +

Anti-theft systems

Alarm +

Airbags

Driver's airbag +
Passenger Airbag +
Side airbags +
2.0i Turbo (270 h.p.) 6-speed 4x4 30 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1998
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 270
Torque, Nm 400
RPM at max torque 3000
Engine 2.0i Turbo
RPM at max power 5250
Turbo +

Dimensions

Seats 4
Length mm 4334
Height mm 1879
Wheelbase mm 2459
Front track, mm 1598
Rear track, mm 1598
Kerb weight, kg 1883
Trunk capacity, L 365
Fuel tank, l 66
Turning circle, m 10.5
Ground clearance, mm 252
Width (without mirrors) mm 1894

Transmission and drive

Number of gears 6
Drive Full
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer Chrysler
Transmission country of origin USA
2.0i Turbo (270 HP) 8-speed automatic 4x4 35 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1998
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 270
Torque, Nm 400
RPM at max torque 3000
Engine 2.0i Turbo
RPM at max power 5250
Turbo +

Dimensions

Seats 4
Length mm 4334
Height mm 1879
Wheelbase mm 2459
Front track, mm 1598
Rear track, mm 1598
Kerb weight, kg 1883
Trunk capacity, L 365
Fuel tank, l 66
Turning circle, m 10.5
Ground clearance, mm 252
Width (without mirrors) mm 1894

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 10.5
Fuel consumption (urban), l. 100 km 8.5
Fuel consumption (combined), l. 100 km 9.5
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Full
Transmission 8-speed automatic
Gearbox Machine
Transmission manufacturer ZF
Transmission country of origin Germany
3.6i Pentastar (290 hp) 6-speed 4x4 33 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 3604
Cylinders location V-shaped
Number of cylinders 6
Valves 24
Power, hp 290
Torque, Nm 353
RPM at max torque 4800
Engine 3.6i Pentastar
Compression 10.2
RPM at max power 6400

Dimensions

Seats 4
Length mm 4334
Height mm 1879
Wheelbase mm 2459
Front track, mm 1598
Rear track, mm 1598
Kerb weight, kg 1883
Trunk capacity, L 365
Fuel tank, l 66
Turning circle, m 10.5
Ground clearance, mm 252
Width (without mirrors) mm 1894

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 13.8
Fuel consumption (urban), l. 100 km 10.2
Fuel consumption (combined), l. 100 km 12.4

Transmission and drive

Number of gears 6
Drive Full
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer Chrysler
Transmission country of origin USA
3.6i Pentastar (290 hp) 8-speed 4x4 34 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 3604
Cylinders location V-shaped
Number of cylinders 6
Valves 24
Power, hp 290
Torque, Nm 353
RPM at max torque 4800
Engine 3.6i Pentastar
Compression 10.2
RPM at max power 6400

Dimensions

Seats 4
Length mm 4334
Height mm 1879
Wheelbase mm 2459
Front track, mm 1598
Rear track, mm 1598
Kerb weight, kg 1883
Trunk capacity, L 365
Fuel tank, l 66
Turning circle, m 10.5
Ground clearance, mm 252
Width (without mirrors) mm 1894

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 13.1
Fuel consumption (urban), l. 100 km 10.2
Fuel consumption (combined), l. 100 km 11.8

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Full
Transmission 8-speed automatic
Gearbox Machine
Transmission manufacturer ZF
Transmission country of origin Germany
2.2 Multijet (200 hp) 8-speed automatic 4x4 37 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 2143
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 200
Torque, Nm 450
RPM at max torque 2000
Engine 2.2 Multijet
RPM at max power 3500
Turbo +

Dimensions

Seats 4
Length mm 4334
Height mm 1879
Wheelbase mm 2459
Front track, mm 1598
Rear track, mm 1598
Kerb weight, kg 1883
Trunk capacity, L 365
Fuel tank, l 66
Turning circle, m 10.5
Ground clearance, mm 252
Width (without mirrors) mm 1894

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 9
Fuel consumption (urban), l. 100 km 6.5
Fuel consumption (combined), l. 100 km 7.4
Acceleration (0-100 km/h), s 9.6
The maximum speed, km / h. 180
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Full
Transmission 8-speed automatic
Gearbox Machine
Transmission manufacturer ZF
Transmission country of origin Germany
FAQ

Jeep Wrangler questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Jeep Wrangler?

This page lists 7 trims for the Jeep Wrangler, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Jeep Wrangler?

The listed configurations show a power range of 200-290 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Jeep Wrangler?

The available specification data shows engine displacement from 1998-3604 cc across the trims listed on this page.

Which transmissions are listed for the Jeep Wrangler?

The transmission options currently shown for this model are: 8, 6, 8-speed automatic. Open a trim section to see the full data for a specific configuration.

Are there photos for the Jeep Wrangler?

Yes. The gallery includes 17 photos for the Jeep Wrangler, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
