Mercedes Maybach S-Class (Z223) specifications and photos
The 2020 Mercedes-Maybach S-Class (Z223) represents the second generation of the brand's ultra-luxury flagship sedan. Built upon the standard S-Class architecture, it features an extended wheelbase and exclusive appointments tailored specifically for rear-passenger comfort.
Mercedes Maybach S-Class (Z223) at a glance
Quick model context before comparing photos and trim-level specifications.
Introduced in November 2020, the Z223 generation of the Mercedes-Maybach S-Class takes the foundation of the standard S-Class and expands it for chauffeur-driven use. Its wheelbase is stretched by 180 millimeters compared to the long-wheelbase version of the regular S-Class (V223), with the entirety of this extra length dedicated to the rear passenger compartment. The Maybach variant is positioned at the pinnacle of the Mercedes-Benz lineup, offering exclusive drivetrains, including a signature V12 engine, and a suite of advanced suspension technologies designed to maximize ride quality. It caters to a segment where ultimate cabin space, acoustic isolation, and material refinement are the primary considerations.
- Power: 503-612 hp
- Engine displacement: 2999-5980 cc
- Transmissions: 9G-Tronic
- Seating: 4 seats
Mercedes Maybach S-Class (Z223) overview
Editorial context for design, cabin, performance, practicality, and buyer notes.
Design
The exterior design of the Maybach S-Class differentiates itself from the standard model through several distinct visual cues. The front fascia features a unique grille with prominent vertical slats, complemented by Maybach badges on the bodywork. A defining option for this generation is the availability of an exclusive two-tone paint finish, which is not offered on the standard S-Class. The sedan rides on specialized wheels, available in sizes ranging from 19 to 21 inches, featuring patterns unique to the Maybach lineup. The overall dimensions measure 5,469 millimeters in length, making it a substantial presence on the road.
Interior
The cabin's design is heavily focused on the second row, which is configured exclusively with two individual seats divided by a central tunnel. This rear console houses an armrest, an infotainment tablet, and built-in storage niches. The rear seats offer extensive adjustability, including a backrest recline of up to 43.5 degrees, an ottoman, heating, ventilation, and massage functions. Further enhancing rear comfort are neck and shoulder heating elements, alongside a calf massager integrated into the footrest. The rear doors are also power-operated, allowing passengers to close them electronically.
Performance
The Maybach S-Class is available with several potent powertrains, all paired with a 9G-Tronic automatic transmission and 4Matic all-wheel drive. The S 580 utilizes a 4.0-liter twin-turbo V8 mild-hybrid producing 503 horsepower and 700 Nm of torque, assisted by a 20-hp EQ Boost system. The flagship S 680 is powered by a 6.0-liter V12 engine generating 612 horsepower and 900 Nm of torque, capable of a 4.5-second 0-100 km/h acceleration. Additionally, a plug-in hybrid S 580e pairs a 3.0-liter inline-six with an electric motor for a combined system output of 510 horsepower.
Practicality
Despite its massive size, the Maybach S-Class offers reasonable maneuverability thanks to an available active rear-axle steering system. This system can turn the rear wheels by either 4.5 or 10 degrees, reducing the turning circle by up to two meters. The sedan features a 505-liter trunk, providing sufficient cargo capacity for luggage, though the primary focus of the vehicle remains entirely on passenger space. With its dedicated four-seat configuration, it is highly practical as an executive transport vehicle, though less versatile than a traditional five-seat sedan.
Safety and tech
The Z223 generation incorporates advanced technology across its systems. The suspension utilizes E-Active Body Control, an active air suspension setup that individually manages damping forces at each wheel to neutralize body roll and road imperfections. The lighting system features Digital Light technology, utilizing 1.3 million micro-mirrors per headlight to project symbols and guidelines directly onto the road surface. For safety, frontal airbags designed specifically for the rear passengers are equipped as standard. It also supports the Drive Pilot system for level 3 automated driving assistance.
Buyer notes
When cross-shopping the Maybach S-Class trims, buyers should closely consider their engine preferences, as the driving character varies between the V8, V12, and the plug-in hybrid configurations. The V12 remains the traditional luxury choice, while the PHEV offers quieter low-speed operation and efficiency. Be aware that the availability of specific options, such as the hand-painted two-tone exterior or the maximum 10-degree rear-wheel steering, may depend on regional markets and individual build allocations.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| S 580 4Matic | 3982 cc | 503 hp | 4 | 9G-Tronic |
| S 680 4Matic | 5980 cc | 612 hp | 4 | 9G-Tronic |
| S 580e 4MATIC | 2999 cc | 510 hp | 4 | 9G-Tronic |
| S 580 4Matic | 3982 cc | 503 hp | 4 | 9G-Tronic |
| S 580e 4Matic | 2999 cc | 510 hp | 4 | 9G-Tronic |
| S 680 4Matic | 5980 cc | 612 hp | 4 | 9G-Tronic |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

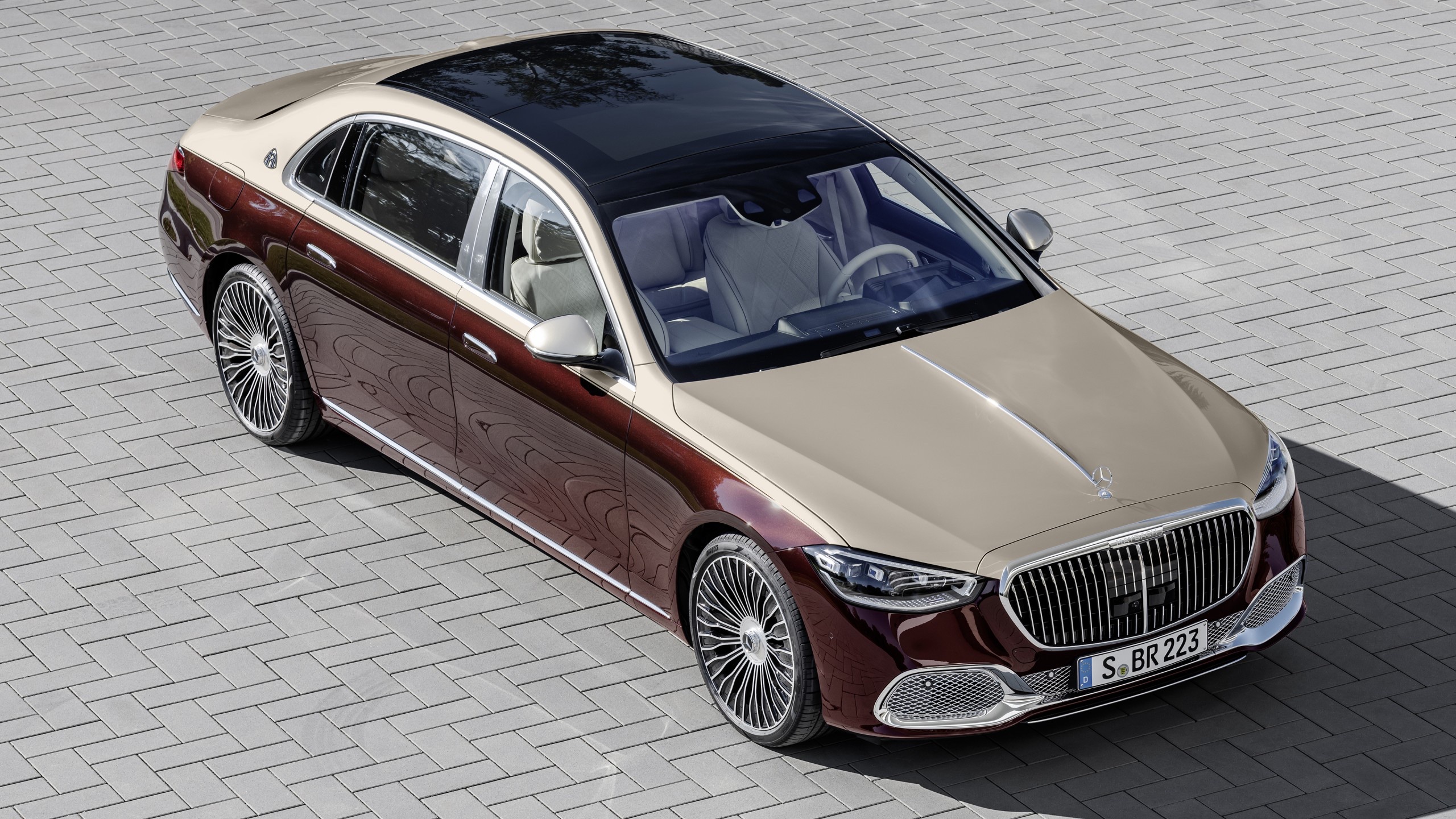

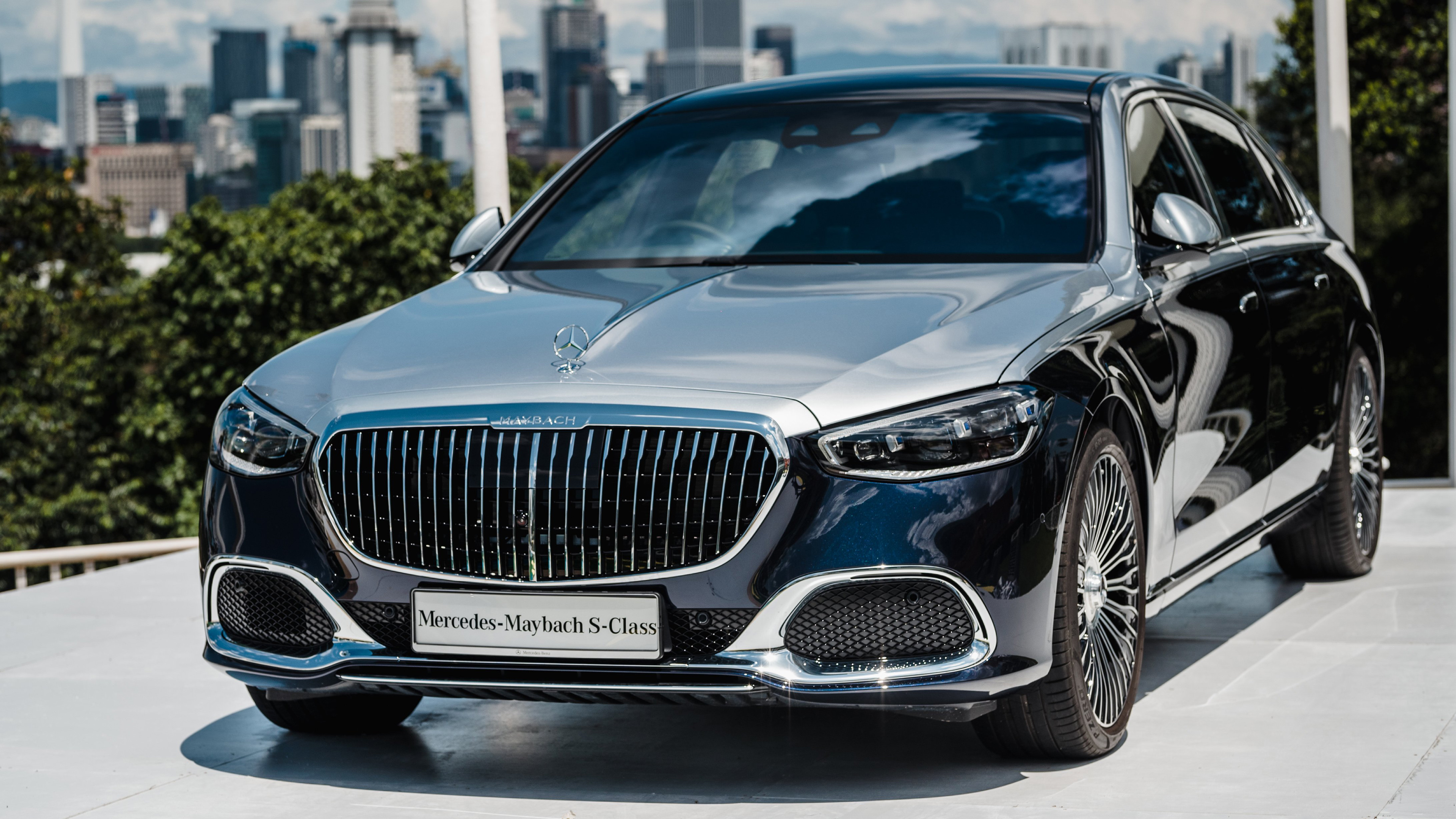

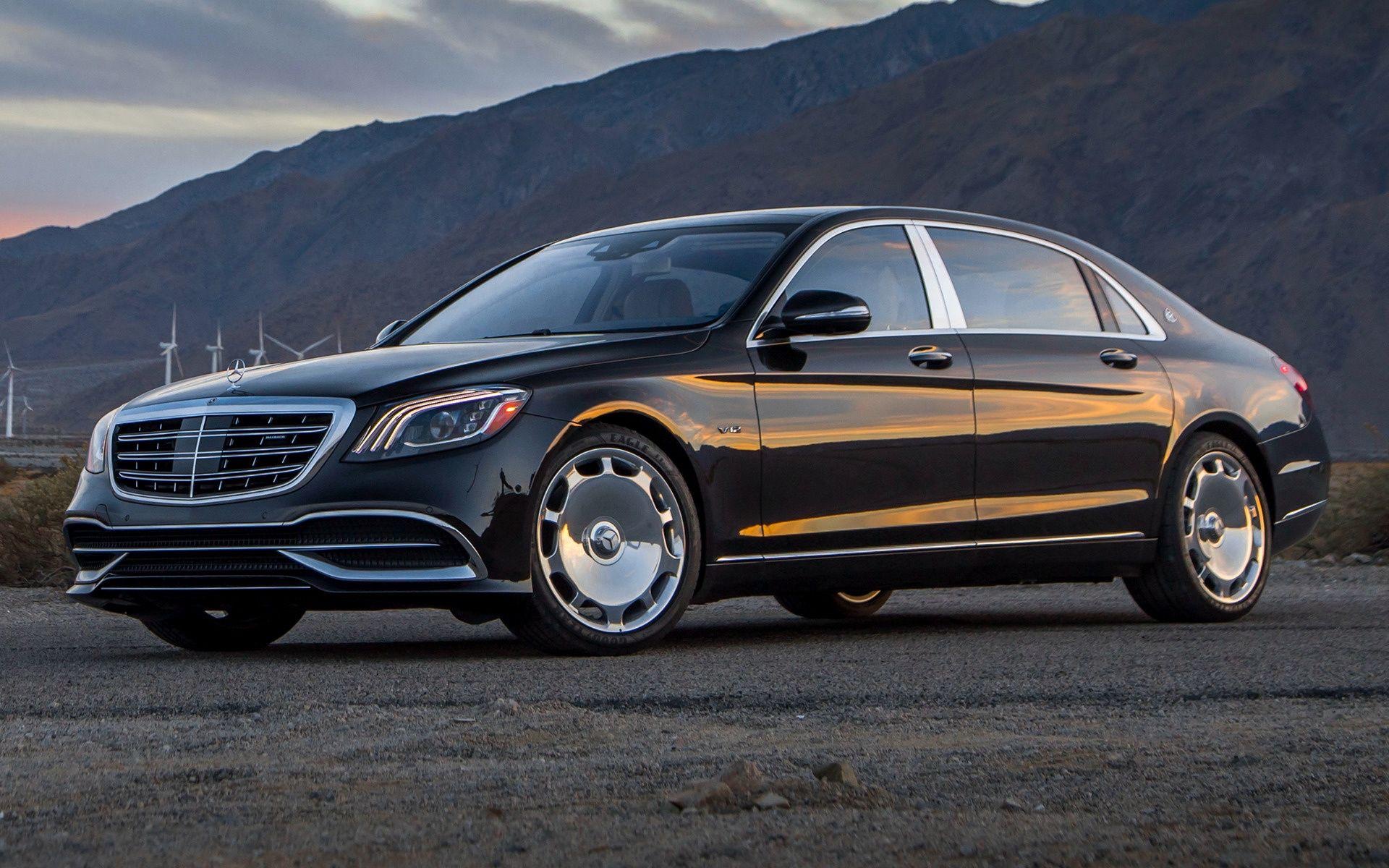

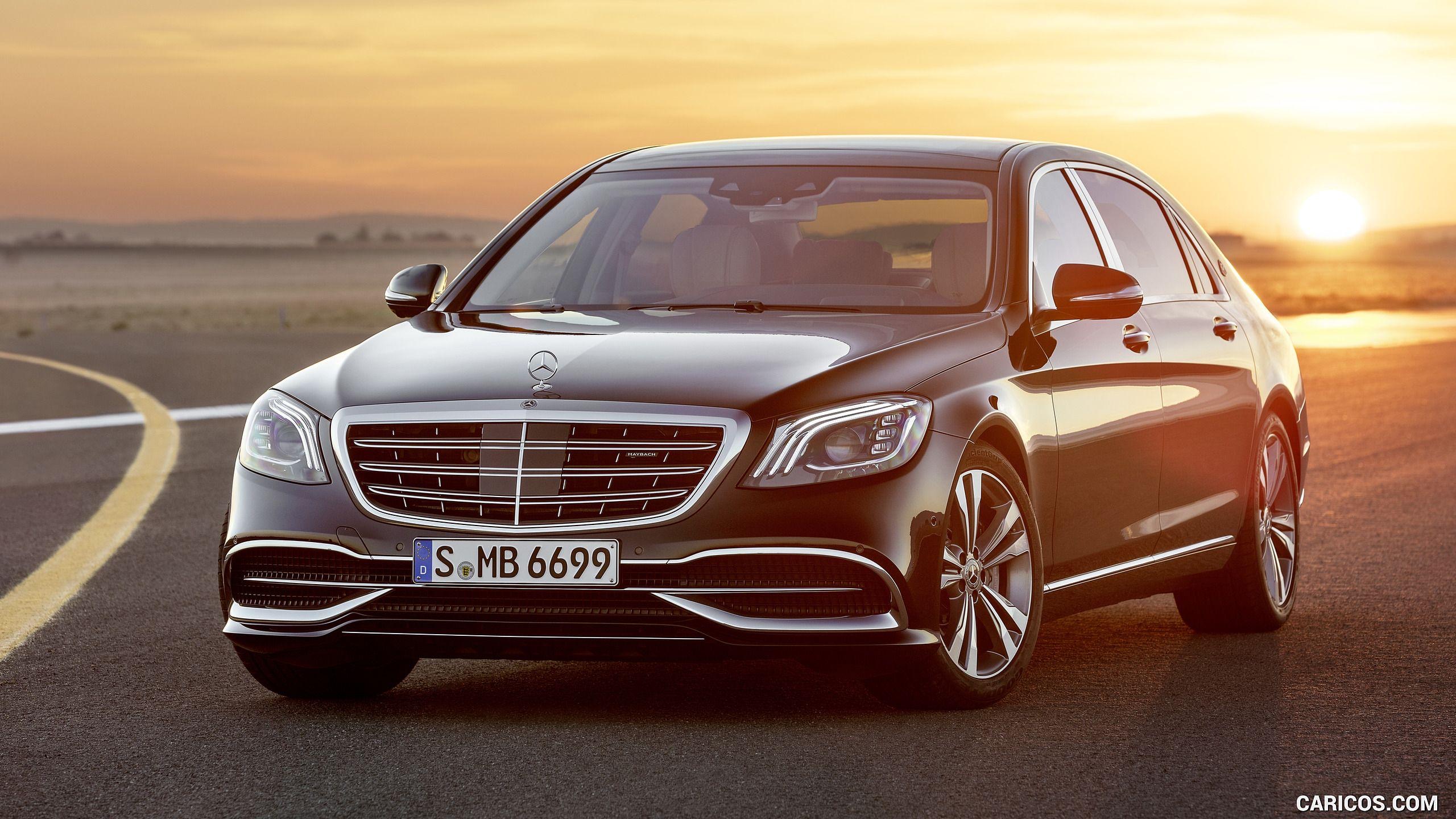

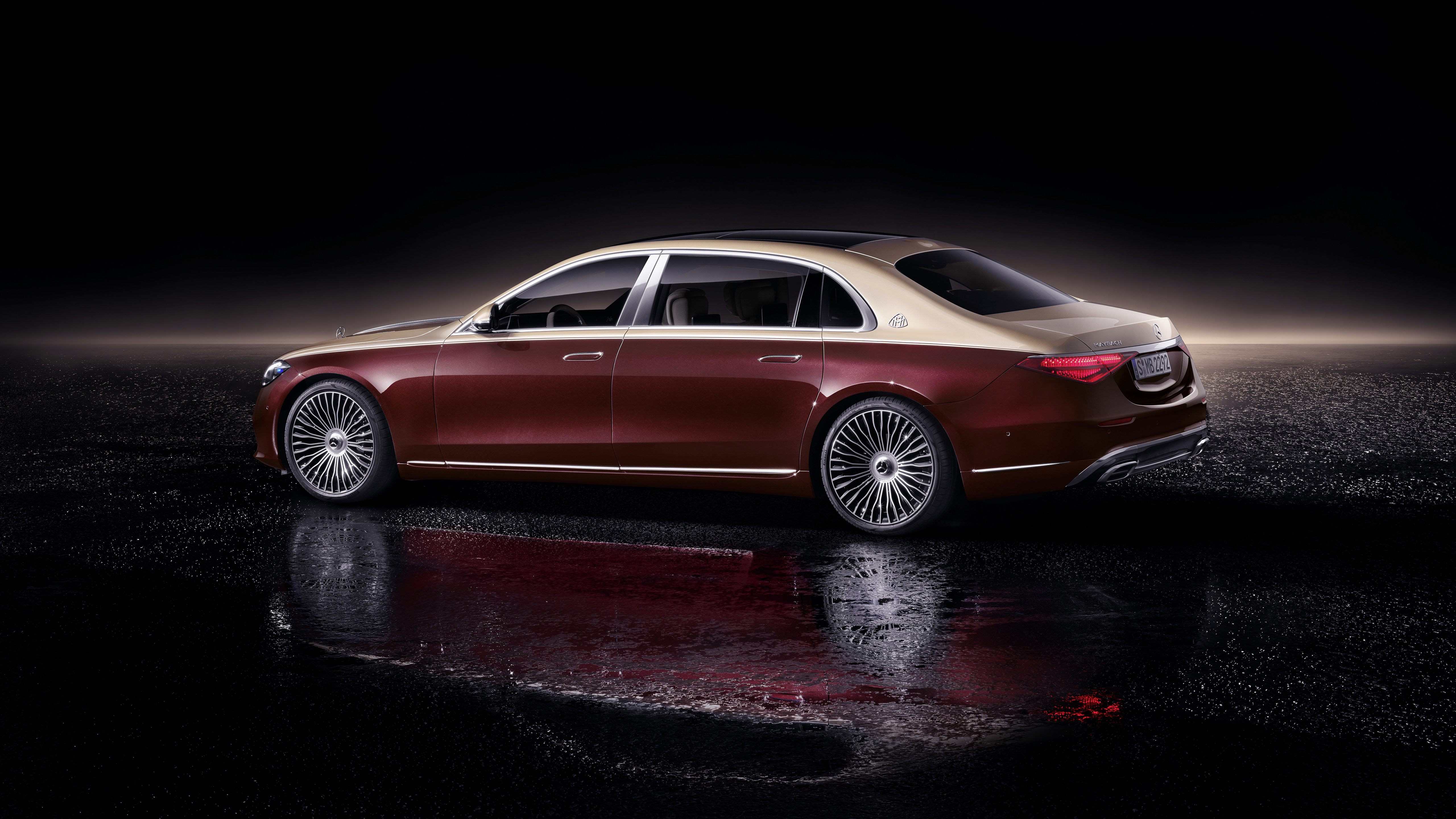

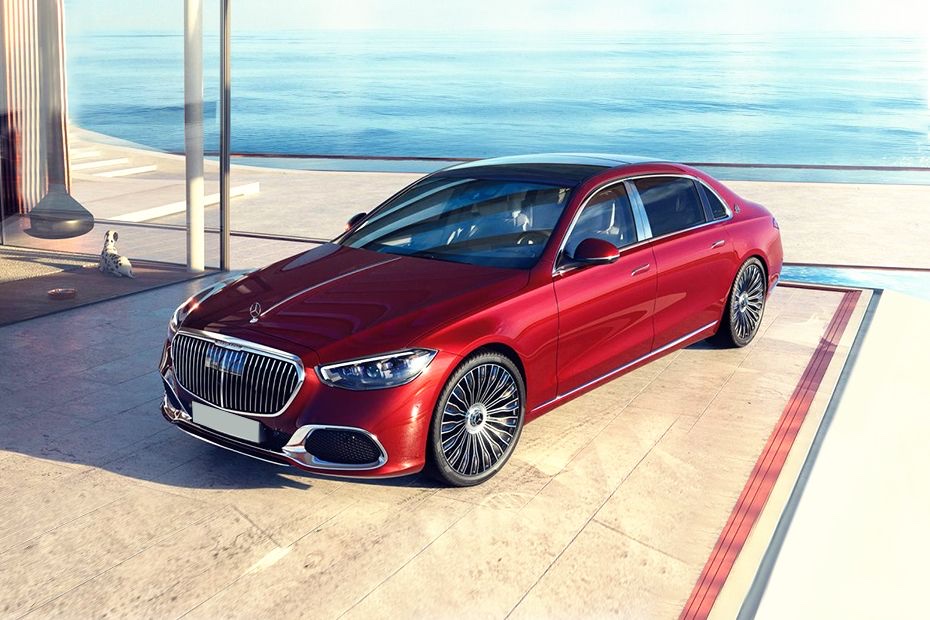

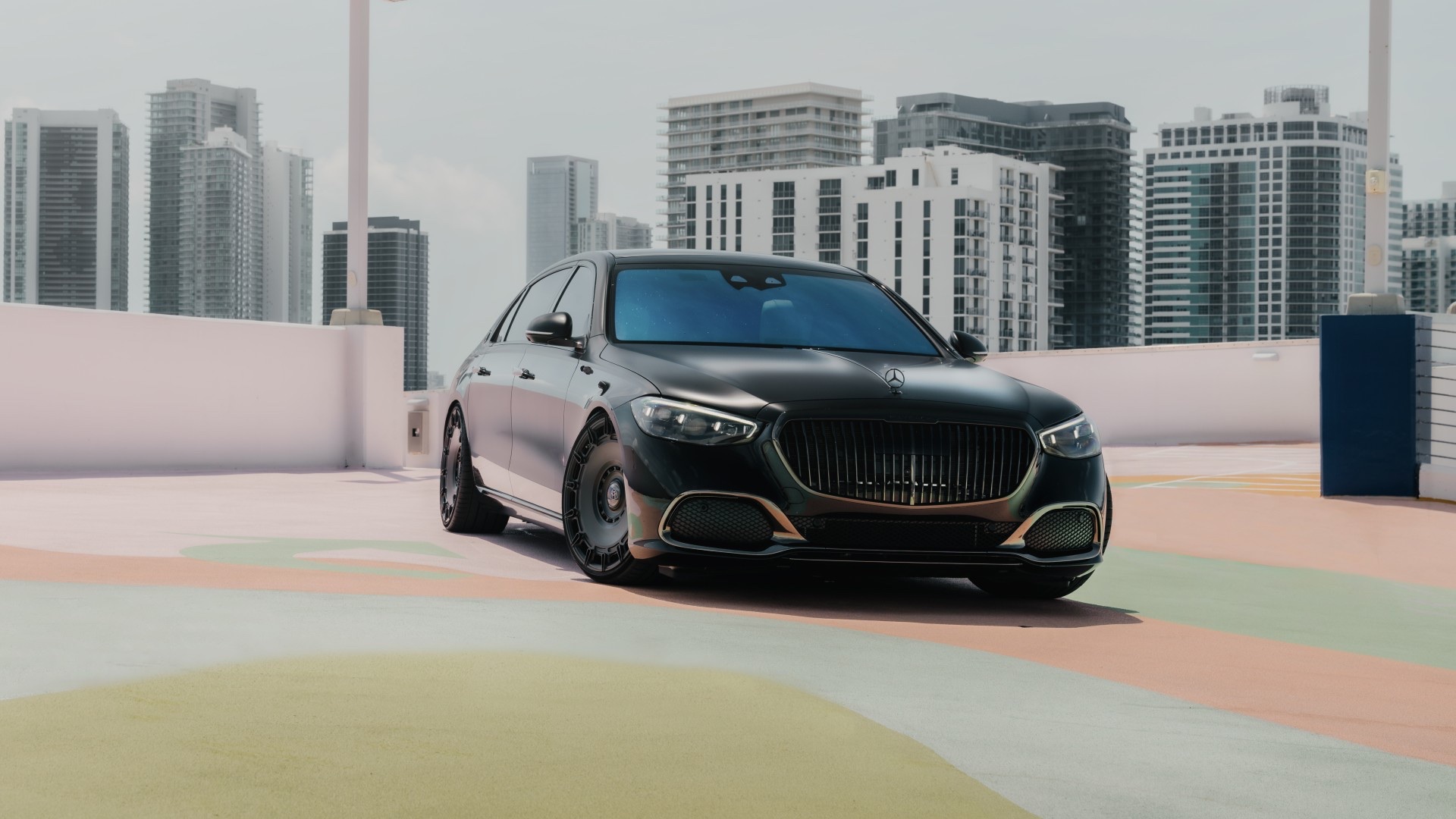

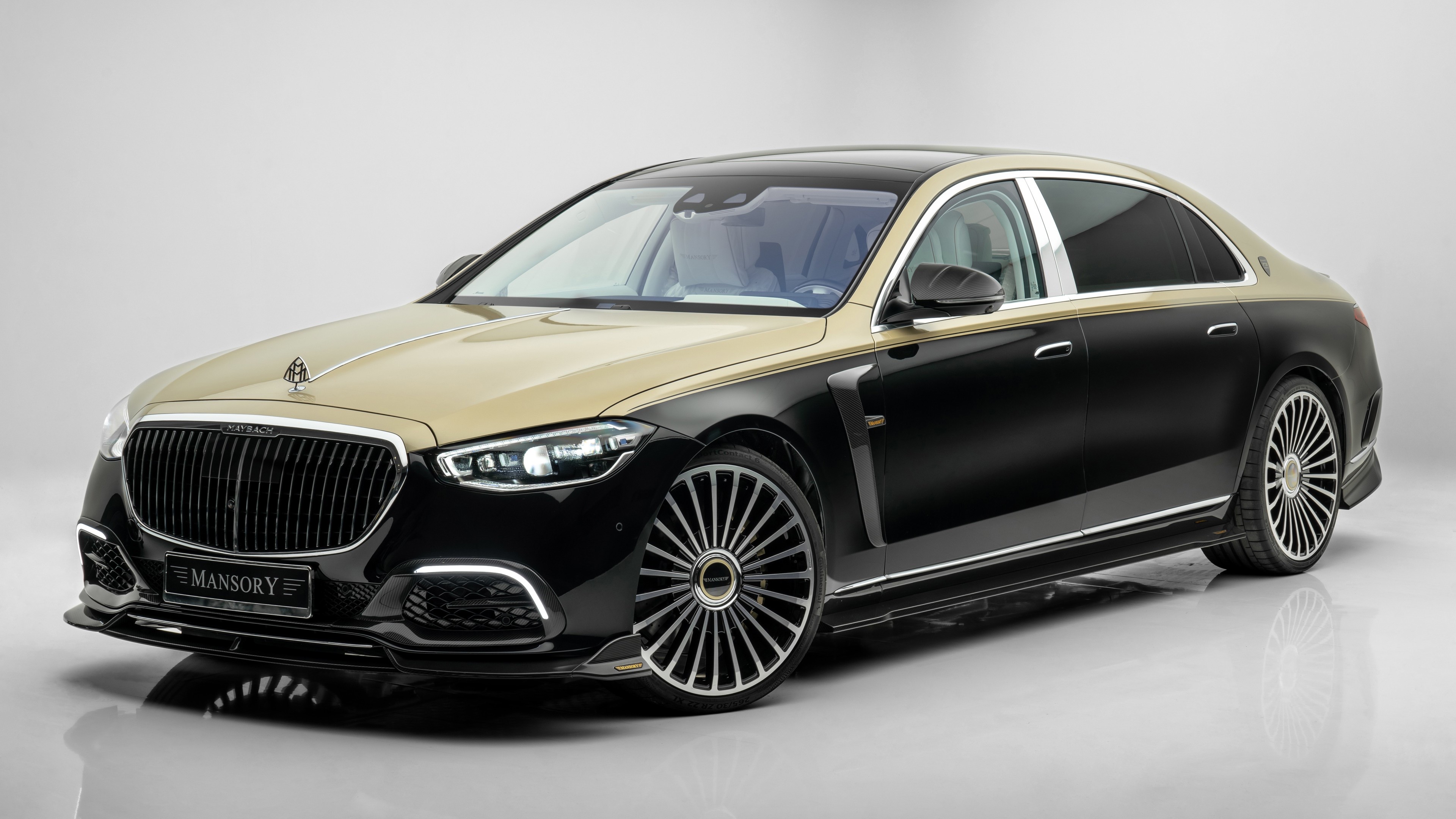

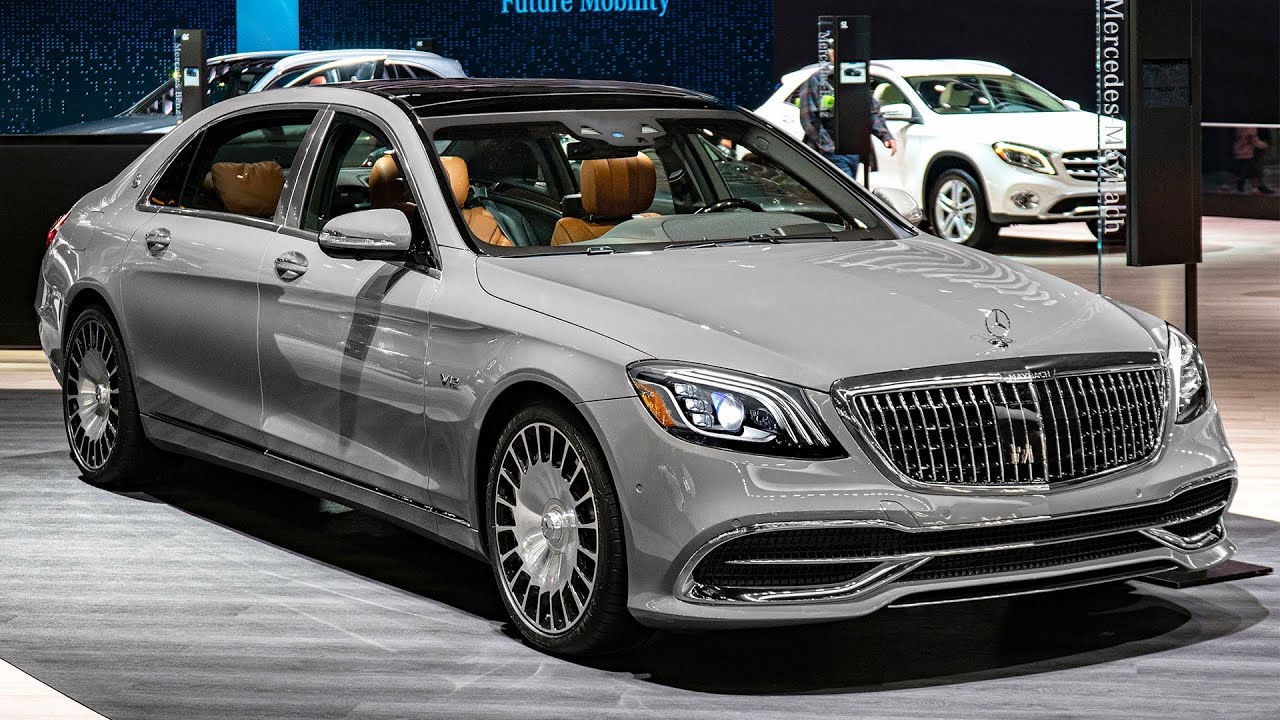

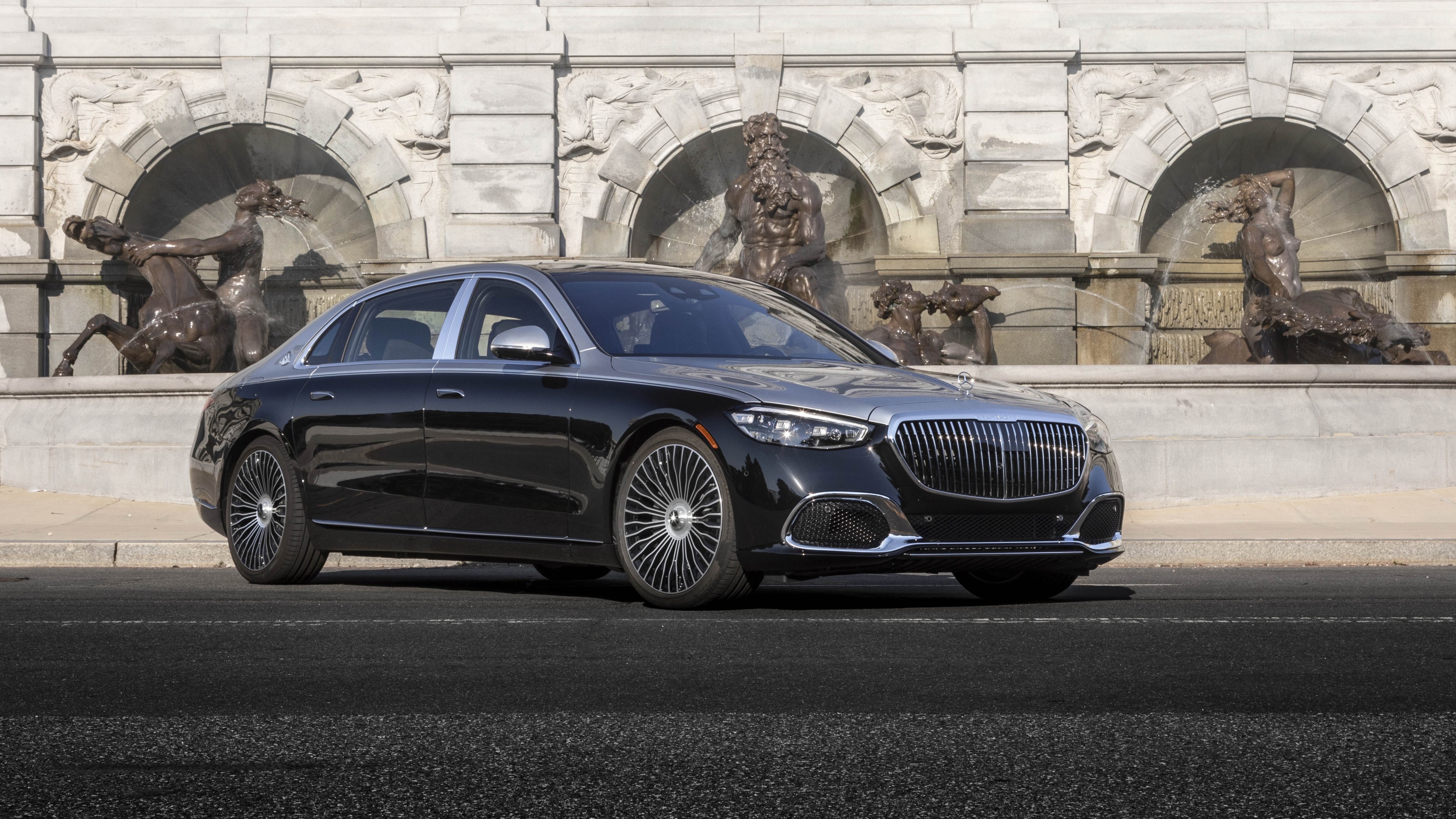

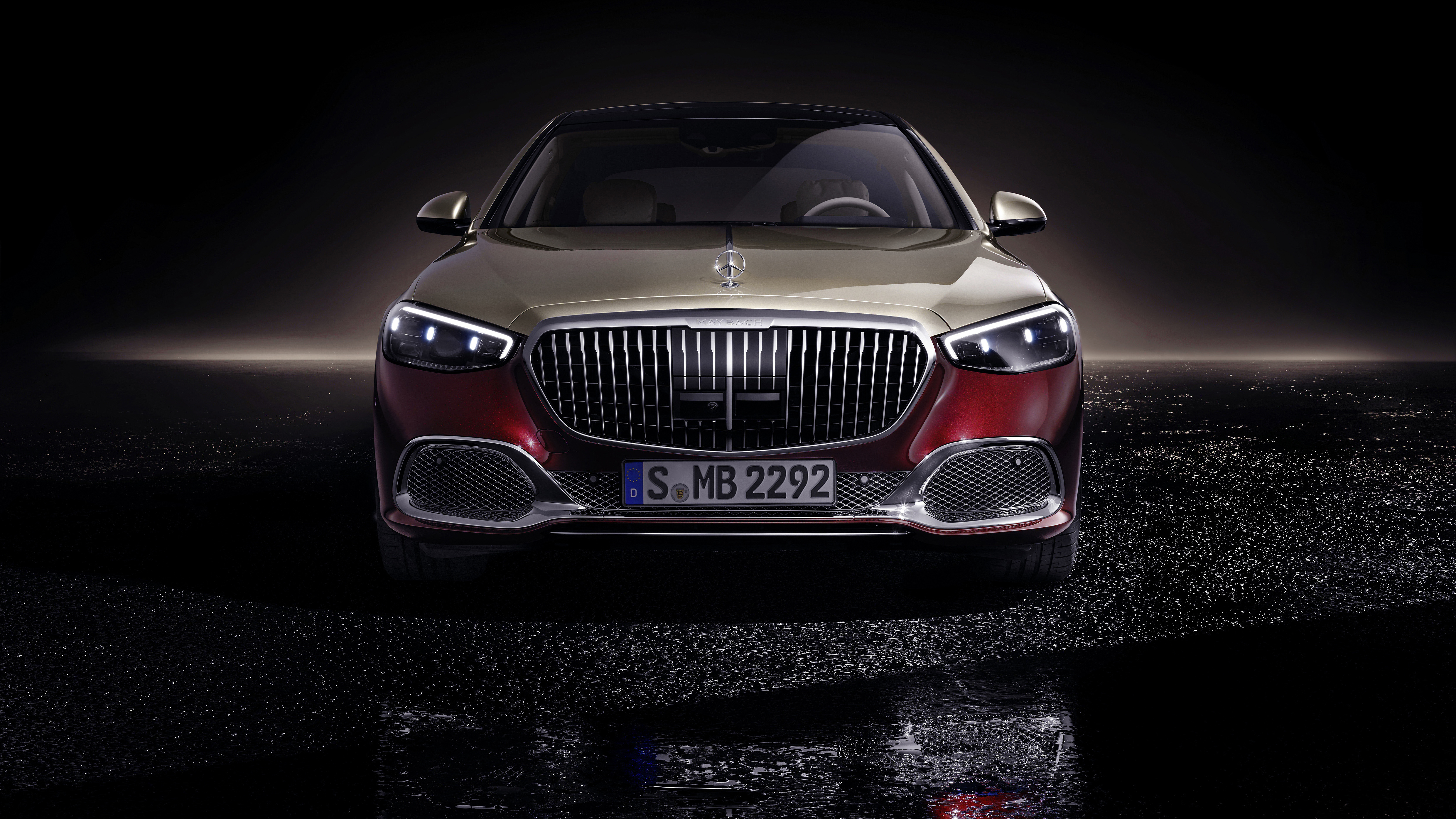

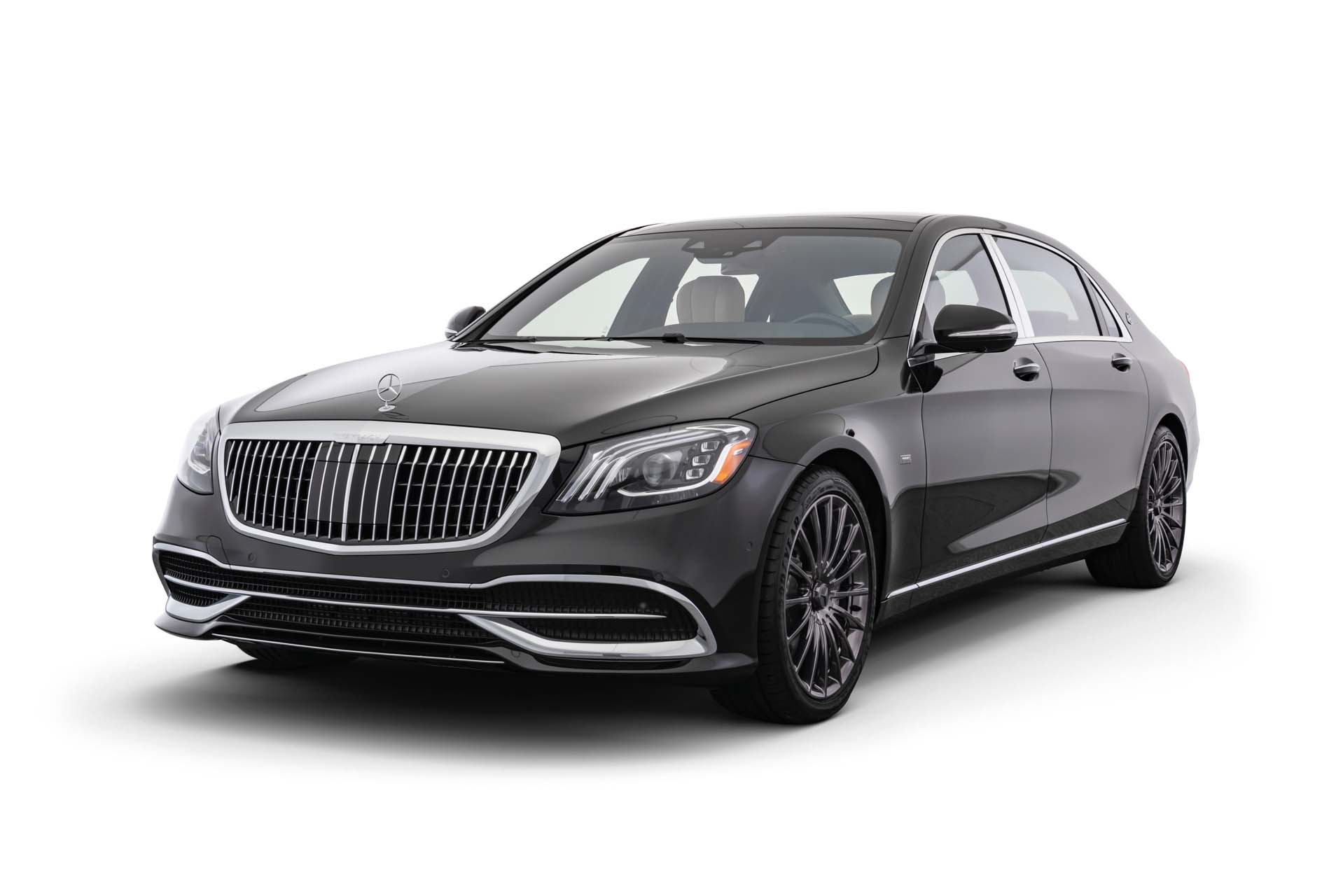

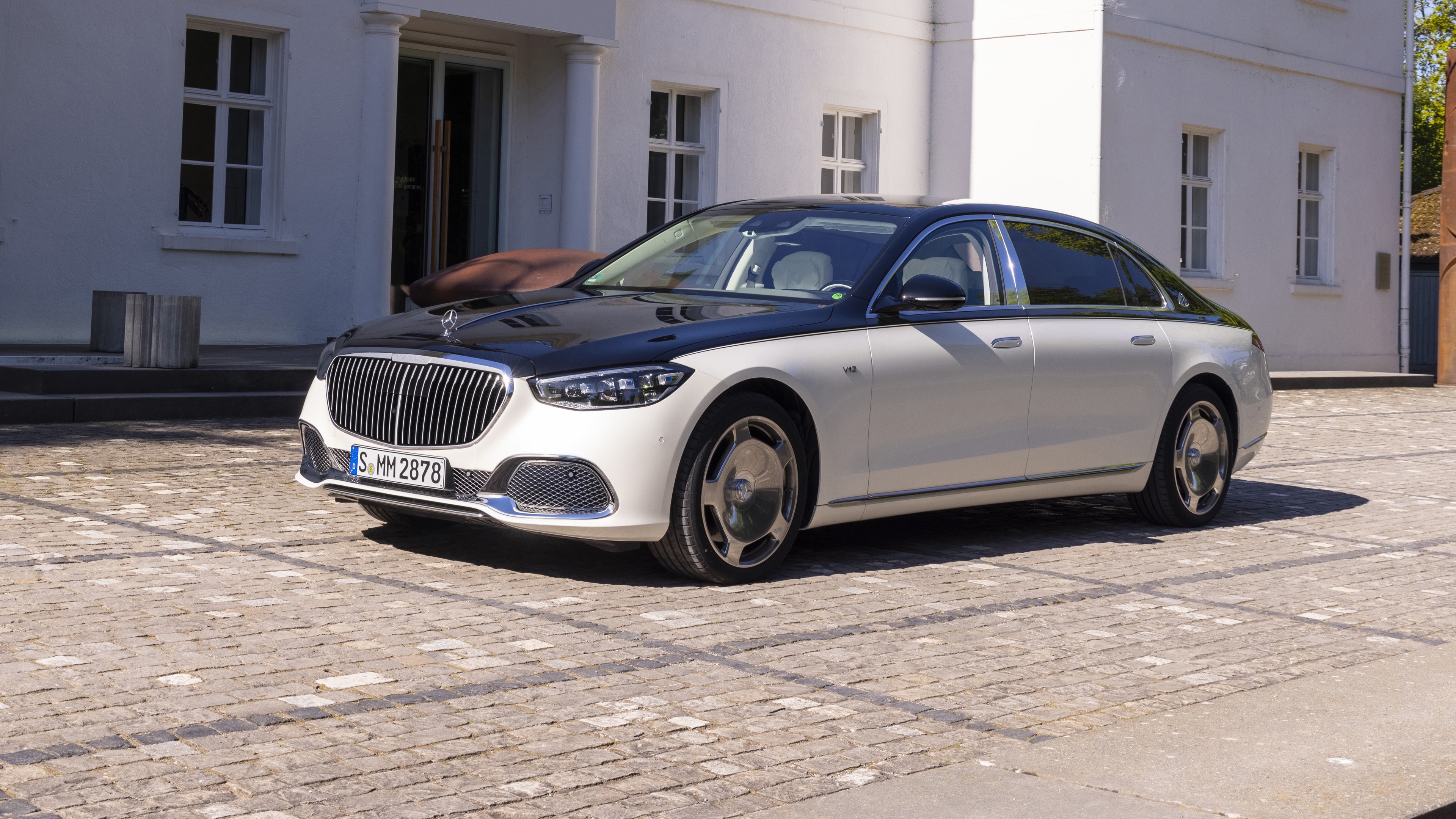

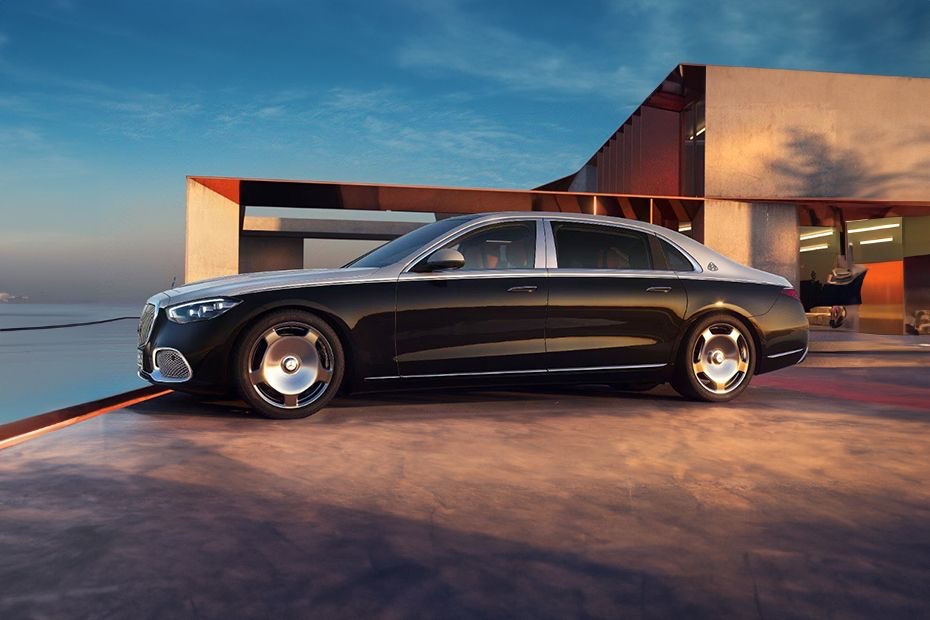

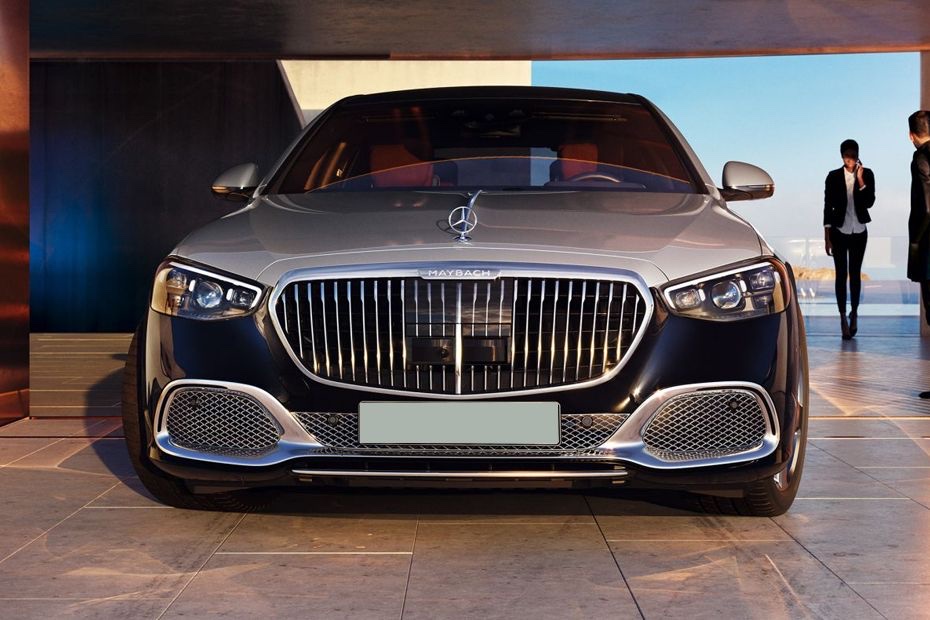

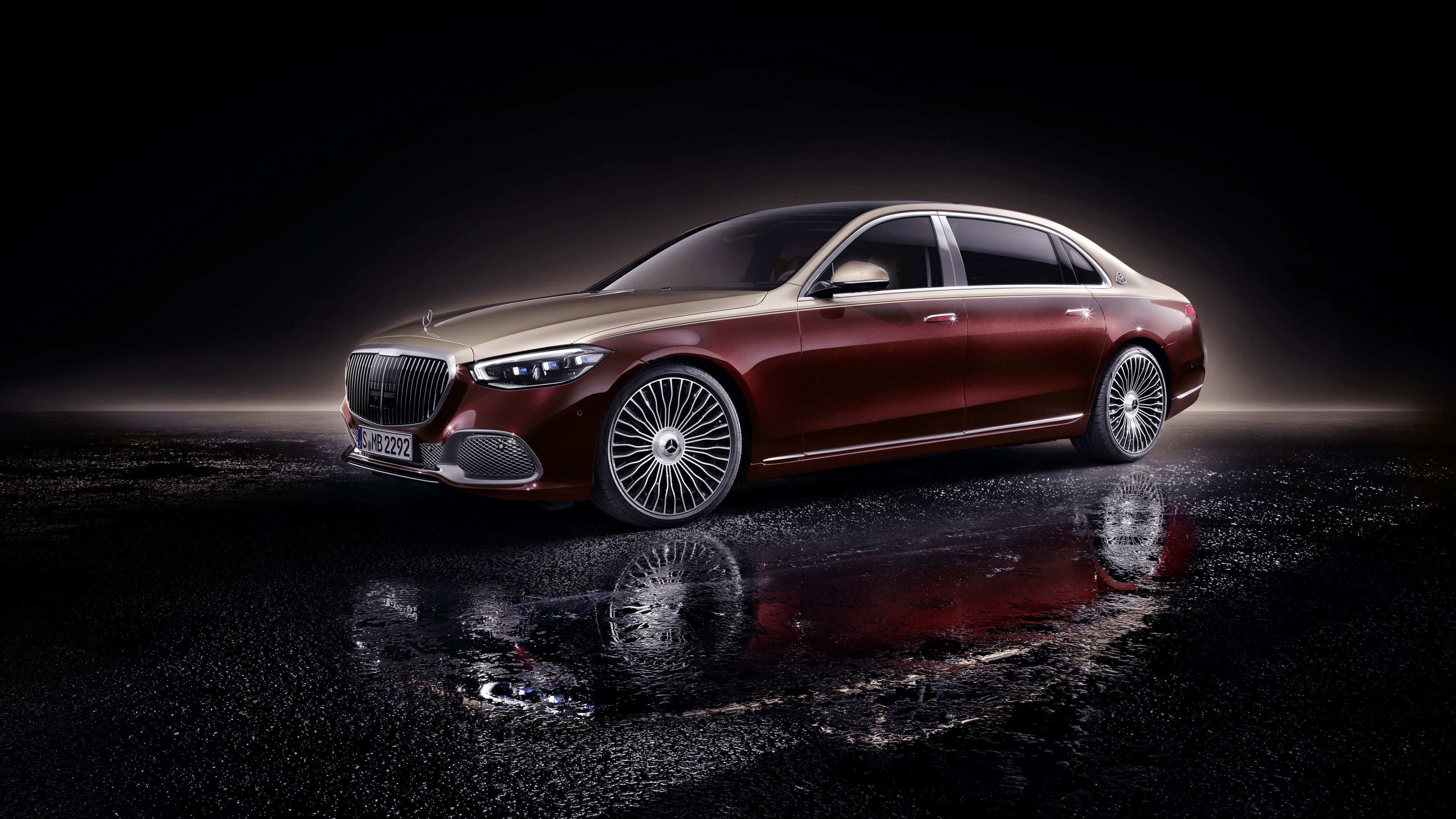

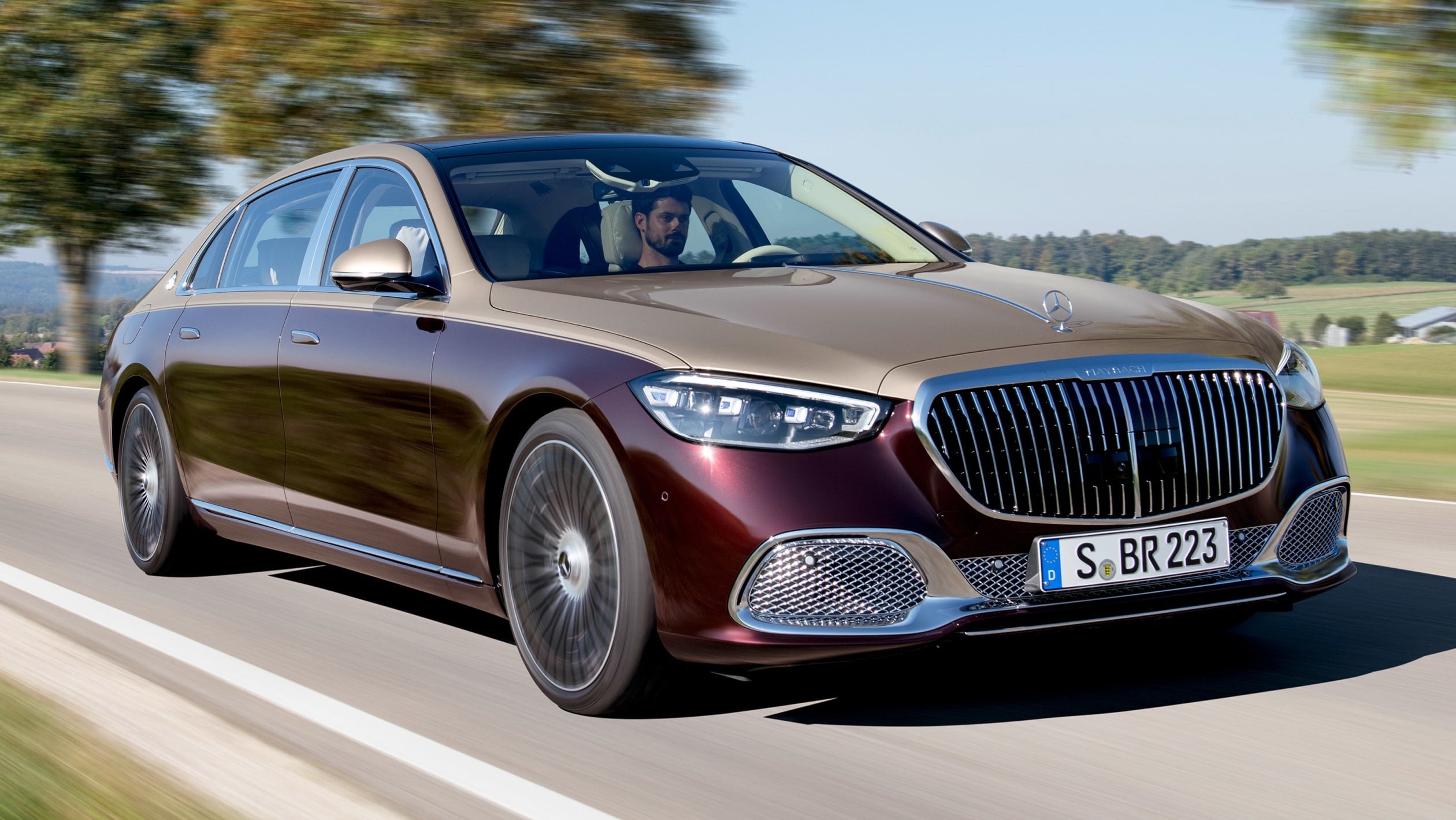

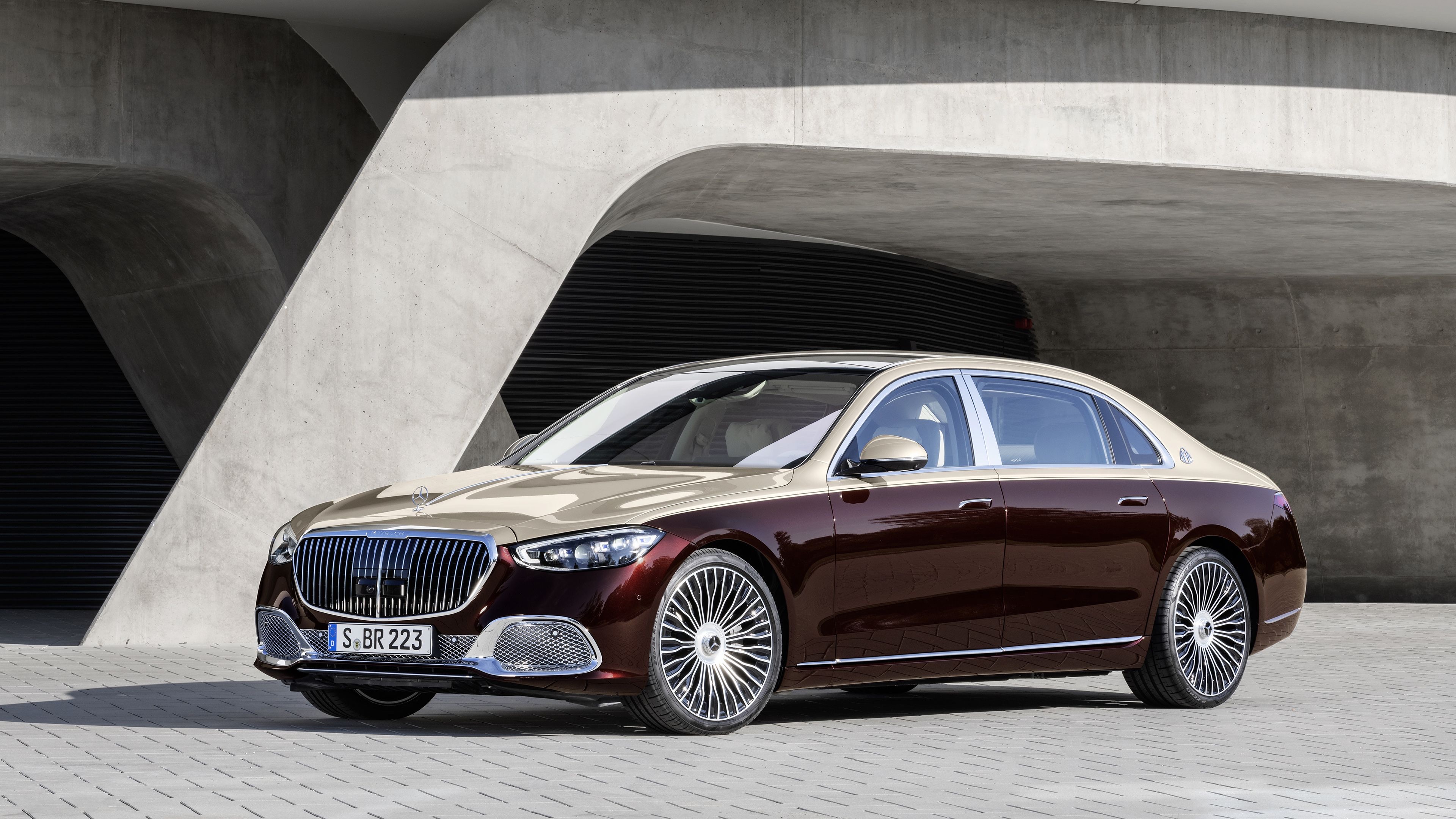

Mercedes Maybach S-Class (Z223) photo gallery
18 images are collected here with the main specifications and trim data for this model.
Photo Mercedes Maybach S-Class (Z223)
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
S 580 4Matic 40 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 11.7 |
|---|---|
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 4.8 |
| Emissions standard | Euro VI |
Engine
| Engine | 4.0i Mild Hybrid |
|---|---|
| Engine code | M 176 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 3982 |
| Cylinder layout | V-type |
| Number of cylinders | 8 |
| Valves | 32 |
| Compression ratio | 10.5:1 |
| Power, hp | 503 |
| RPM at max power | 5000 |
| Torque, Nm | 700 |
| RPM at max torque | 2000-4500 |
| Electric motor power, hp | 20 |
| Electric motor torque, Nm | 200 |
Dimensions
| Seats | 4 |
|---|---|
| Length, mm | 5469 |
| Width, mm | 2109 |
| Height, mm | 1510 |
| Wheelbase, mm | 3396 |
| Front track, mm | 1655 |
| Rear track, mm | 1683 |
| Kerb weight, kg | 2290 |
| Gross weight, kg | 2910 |
| Fuel tank capacity, L | 76 |
| Turning circle, m | 13.4 |
| Ground clearance, mm | 130 |
| Width without mirrors, mm | 1921 |
| Trunk capacity, L | 505 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
S 680 4Matic 36 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 14.3 |
|---|---|
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 4.5 |
| Emissions standard | Euro VI |
Engine
| Engine | 6.0i |
|---|---|
| Engine code | M279 E60 LA |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 5980 |
| Cylinder layout | V-type |
| Number of cylinders | 12 |
| Valves | 36 |
| Compression ratio | 9.0:1 |
| Power, hp | 612 |
| Torque, Nm | 900 |
Dimensions
| Seats | 4 |
|---|---|
| Length, mm | 5469 |
| Width, mm | 2109 |
| Height, mm | 1510 |
| Wheelbase, mm | 3396 |
| Front track, mm | 1655 |
| Rear track, mm | 1683 |
| Kerb weight, kg | 2290 |
| Gross weight, kg | 2910 |
| Fuel tank capacity, L | 76 |
| Turning circle, m | 13.4 |
| Ground clearance, mm | 130 |
| Width without mirrors, mm | 1921 |
| Trunk capacity, L | 505 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
S 580e 4MATIC 44 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 0.8 |
|---|---|
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 5.1 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.0i Plug-in Hybrid |
|---|---|
| Engine code | M 256.930 |
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 2999 |
| Cylinder layout | Inline |
| Number of cylinders | 6 |
| Valves | 24 |
| Turbocharger | + |
| Compression ratio | 10.5:1 |
| Power, hp | 510 |
| Torque, Nm | 750 |
| Number of electric motors | 1 |
| Electric motor power, hp | 150 |
| Combustion engine power, hp | 367 |
| Combustion engine RPM at max power | 5500-6100 |
| Combustion engine torque, Nm | 500 |
| Combustion engine RPM at max torque | 1600-4500 |
| Electric motor torque, Nm | 480 |
Dimensions
| Seats | 4 |
|---|---|
| Length, mm | 5469 |
| Width, mm | 2109 |
| Height, mm | 1510 |
| Wheelbase, mm | 3396 |
| Front track, mm | 1655 |
| Rear track, mm | 1683 |
| Kerb weight, kg | 2290 |
| Gross weight, kg | 2910 |
| Fuel tank capacity, L | 76 |
| Turning circle, m | 13.4 |
| Ground clearance, mm | 130 |
| Width without mirrors, mm | 1921 |
| Trunk capacity, L | 505 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
S 580 4Matic 42 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 11.7 |
|---|---|
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 4.8 |
| Emissions standard | Euro VI |
Engine
| Engine | 4.0i Mild Hybrid |
|---|---|
| Engine code | M 176 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 3982 |
| Cylinder layout | V-type |
| Number of cylinders | 8 |
| Valves | 32 |
| Compression ratio | 10.5:1 |
| Power, hp | 503 |
| RPM at max power | 5000 |
| Torque, Nm | 700 |
| RPM at max torque | 2000-4500 |
| Electric motor power, hp | 20 |
| Electric motor torque, Nm | 200 |
Dimensions
| Seats | 4 |
|---|---|
| Length, mm | 5469 |
| Width, mm | 2109 |
| Height, mm | 1510 |
| Wheelbase, mm | 3396 |
| Front track, mm | 1655 |
| Rear track, mm | 1683 |
| Kerb weight, kg | 2290 |
| Gross weight, kg | 2910 |
| Fuel tank capacity, L | 76 |
| Turning circle, m | 13.4 |
| Ground clearance, mm | 130 |
| Width without mirrors, mm | 1921 |
| Trunk capacity, L | 505 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
Brake system
| Front brakes | Disc |
|---|---|
| Rear brakes | Disc |
S 580e 4Matic 46 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 0.8 |
|---|---|
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 5.1 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.0i Plug-in Hybrid |
|---|---|
| Engine code | M 256.930 |
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 2999 |
| Cylinder layout | Inline |
| Number of cylinders | 6 |
| Valves | 24 |
| Turbocharger | + |
| Compression ratio | 10.5:1 |
| Power, hp | 510 |
| Torque, Nm | 750 |
| Number of electric motors | 1 |
| Electric motor power, hp | 150 |
| Combustion engine power, hp | 367 |
| Combustion engine RPM at max power | 5500-6100 |
| Combustion engine torque, Nm | 500 |
| Combustion engine RPM at max torque | 1600-4500 |
| Electric motor torque, Nm | 480 |
Dimensions
| Seats | 4 |
|---|---|
| Length, mm | 5469 |
| Width, mm | 2109 |
| Height, mm | 1510 |
| Wheelbase, mm | 3396 |
| Front track, mm | 1655 |
| Rear track, mm | 1683 |
| Kerb weight, kg | 2290 |
| Gross weight, kg | 2910 |
| Fuel tank capacity, L | 76 |
| Turning circle, m | 13.4 |
| Ground clearance, mm | 130 |
| Width without mirrors, mm | 1921 |
| Trunk capacity, L | 505 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
Brake system
| Front brakes | Disc |
|---|---|
| Rear brakes | Disc |
S 680 4Matic 38 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 14.3 |
|---|---|
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 4.5 |
| Emissions standard | Euro VI |
Engine
| Engine | 6.0i |
|---|---|
| Engine code | M279 E60 LA |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 5980 |
| Cylinder layout | V-type |
| Number of cylinders | 12 |
| Valves | 36 |
| Compression ratio | 9.0:1 |
| Power, hp | 612 |
| Torque, Nm | 900 |
Dimensions
| Seats | 4 |
|---|---|
| Length, mm | 5469 |
| Width, mm | 2109 |
| Height, mm | 1510 |
| Wheelbase, mm | 3396 |
| Front track, mm | 1655 |
| Rear track, mm | 1683 |
| Kerb weight, kg | 2290 |
| Gross weight, kg | 2910 |
| Fuel tank capacity, L | 76 |
| Turning circle, m | 13.4 |
| Ground clearance, mm | 130 |
| Width without mirrors, mm | 1921 |
| Trunk capacity, L | 505 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
Brake system
| Front brakes | Disc |
|---|---|
| Rear brakes | Disc |
Mercedes Maybach S-Class (Z223) questions
Short answers based on the specifications and photos available in this catalog.
What engines are available in the Maybach S-Class (Z223)?
The lineup includes a 4.0L V8 mild-hybrid (S 580), a 3.0L inline-six plug-in hybrid (S 580e), and a flagship 6.0L V12 (S 680). All are paired with 4Matic all-wheel drive and a 9-speed automatic transmission.
How much longer is the Maybach compared to the standard S-Class?
The Maybach's wheelbase is 180 millimeters longer than the long-wheelbase version of the standard S-Class, reaching 3,396 mm. This extra length goes entirely to the rear cabin.
Does the Maybach S-Class have rear-wheel steering?
Yes, it is available with an active rear axle that can steer the rear wheels by 4.5 or 10 degrees, significantly reducing the large sedan's turning circle.
How many seats does the Maybach S-Class have?
The cabin is configured strictly as a four-seater, featuring two individual rear seats separated by a fixed center console.
What is the trunk capacity of the Maybach S-Class?
The vehicle offers a trunk capacity of 505 liters, providing adequate space for executive luggage.
