Mercedes S-Class (W223) specifications and photos
The seventh-generation Mercedes-Benz S-Class, known internally as the W223, was officially introduced in September 2020. As the flagship sedan of the brand, it introduces significant updates to driver assistance, interior digital architecture, and overall aerodynamics.
Years
2020
Body type
sedan
Trims
22
Photos
19
Overview
Mercedes S-Class (W223) at a glance
Quick model context before comparing photos and trim-level specifications.
The S-Class W223 builds on the foundation of its predecessor by emphasizing digital integration and passenger comfort. Available in both standard and extended wheelbase configurations, the W223 is larger than the outgoing model but achieves a highly efficient aerodynamic drag coefficient of 0.22. The chassis utilizes a hybrid structure comprising over 50 percent aluminum to manage weight while maintaining rigidity. The suspension system relies on standard Airmatic air springs, with an optional E-Active Body Control that can scan the road surface and dynamically adjust damping. This generation marks a clear shift toward touch-based and voice-activated controls, moving away from the physical buttons and rotary dials of previous iterations.
- Power: 286-510 hp
- Engine displacement: 2925-3982 cc
- Transmissions: 9G-Tronic
- Seating: 5 seats
Model guide
Mercedes S-Class (W223) overview
Editorial context for design, cabin, performance, practicality, and buyer notes.
Design
Exterior styling adopts cues from the contemporary E-Class and CLS, specifically in the front optics and triangular taillights, while maintaining the traditional proportions of a full-size executive sedan. The body features available flush-fitting door handles, contributing to the streamlined profile. The standard length measures 5,179 mm, while the extended variant stretches to 5,289 mm. Lighting technology is a major focus; standard Multibeam LED headlights are equipped with 84 diodes per unit, while the upgraded Digital Light system uses 1.3 million micro-mirrors per headlight to project warnings and symbols directly onto the pavement.
Interior
Inside, the cabin architecture centers around a vertical OLED touchscreen measuring either 11.9 or 12.8 inches, which controls climate and vehicle settings. A 12.3-inch digital instrument cluster uses eye-tracking cameras to create a three-dimensional display effect. Front seating incorporates up to 19 electric motors for adjustment, ventilation, and massage functions. Rear passenger accommodations are highly configurable, offering layouts for two or three occupants. The executive two-seat arrangement allows the rear right seat to recline up to 43.5 degrees. Security and personalization features include facial recognition, fingerprint scanning, voice control, and an augmented reality head-up display.
Performance
The powertrain lineup leans heavily on 3.0-liter inline-six engines paired with a nine-speed 9G-Tronic automatic transmission. The petrol range includes the S 450 (367 hp) and S 500 (435 hp), supported by a 48-volt mild-hybrid system that provides an additional 22 hp boost. Diesel options consist of the S 350 d (286 hp) and S 400 d (330 hp). Higher trims, such as the S 580, utilize a 4.0-liter V8 generating 503 hp. Plug-in hybrid configurations, including the S 450 e and S 580 e, combine petrol engines with powerful electric motors. Both rear-wheel drive and 4MATIC all-wheel drive configurations are offered across the trim hierarchy.
Practicality
While primarily focused on high-end luxury, the W223 remains a functional executive sedan. The extended wheelbase adds substantial rear legroom, making it well-suited for chauffeur-driven usage. The standard cargo capacity stands at 540 liters, providing adequate space for luggage. Maneuverability in tight urban settings is greatly aided by an optional rear-axle steering system that can turn the rear wheels up to 10 degrees, reducing the turning circle to just 10.5 meters on standard-wheelbase models.
Safety and tech
Safety and driver assistance are central to the W223 platform. The vehicle features the Drive Pilot suite, capable of Level 3 autonomous driving under specific highway conditions. A major structural safety innovation includes an optional rear frontal airbag deployed from the front seatback to protect second-row passengers during a collision. Furthermore, the optional E-Active Body Control system can instantly raise the car's ride height by 80 mm if an imminent side impact is detected, directing collision forces to the stronger lower sills.
Buyer notes
Buyers comparing S-Class specifications should pay close attention to wheelbase lengths and the availability of 4MATIC all-wheel drive. The choice between standard and executive rear seating drastically changes the interior layout and utility. Features like rear-axle steering, E-Active Body Control, and the 3D instrument cluster are optional on many trims and should be verified on individual vehicles. Engine availability, particularly diesel and plug-in hybrid variants, varies heavily depending on the specific market.
Configurations
Trims and key specifications
Use this table to compare the main differences between available configurations.
Power
286-510 hp
Engine displacement
2925-3982 cc
Seating
5 seats
Transmissions
9G-Tronic
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 350d | 2925 cc | 286 hp | 5 | 9G-Tronic |
| 350d 4Matic | 2925 cc | 286 hp | 5 | 9G-Tronic |
| 400d 4Matic | 2925 cc | 330 hp | 5 | 9G-Tronic |
| 450 4Matic | 2999 cc | 367 hp | 5 | 9G-Tronic |
| 500 4Matic | 2999 cc | 435 hp | 5 | 9G-Tronic |
| 450 | 2999 cc | 367 hp | 5 | 9G-Tronic |
| 450d 4MATIC | 2989 cc | 367 hp | 5 | 9G-Tronic |
| 500 4MATIC | 2999 cc | 449 hp | 5 | 9G-Tronic |
| 580 4MATIC | 3982 cc | 503 hp | 5 | 9G-Tronic |
| 580e | 2999 cc | 510 hp | 5 | 9G-Tronic |
| 580e 4MATIC | 2999 cc | 510 hp | 5 | 9G-Tronic |
| 450e | 2999 cc | 408 hp | 5 | 9G-Tronic |
| S 350 d 4MATIC | 2925 cc | 286 hp | 5 | 9G-Tronic |
| S 350 d | 2925 cc | 286 hp | 5 | 9G-Tronic |
| S 400 d 4MATIC | 2925 cc | 330 hp | 5 | 9G-Tronic |
| S 450 4MATIC | 2999 cc | 367 hp | 5 | 9G-Tronic |
| S 450 d 4MATIC | 2989 cc | 367 hp | 5 | 9G-Tronic |
| S 450 | 2999 cc | 367 hp | 5 | 9G-Tronic |
| S 450e | 2999 cc | 408 hp | 5 | 9G-Tronic |
| S 500 4MATIC | 2999 cc | 435 hp | 5 | 9G-Tronic |
| S 580 4MATIC | 3982 cc | 503 hp | 5 | 9G-Tronic |
| S 580e 4MATIC | 2999 cc | 510 hp | 5 | 9G-Tronic |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.
Gallery
Mercedes S-Class (W223) photo gallery

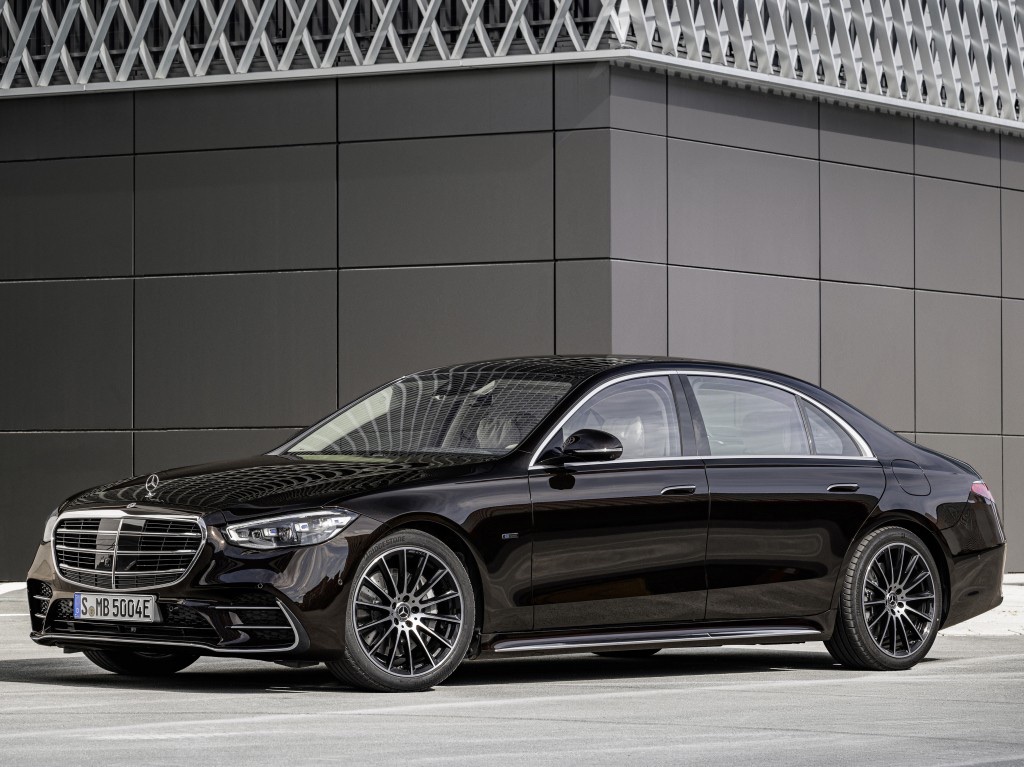

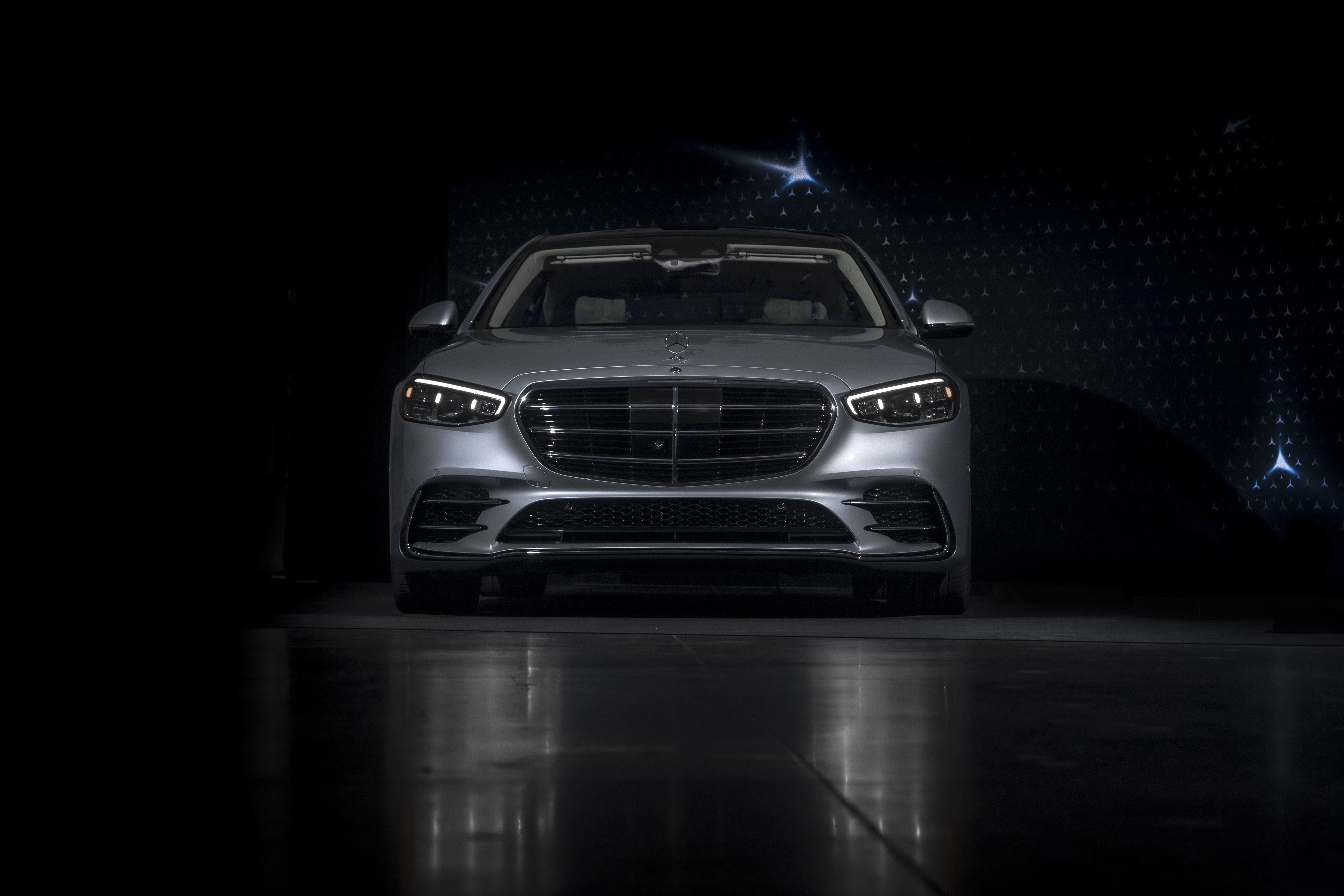

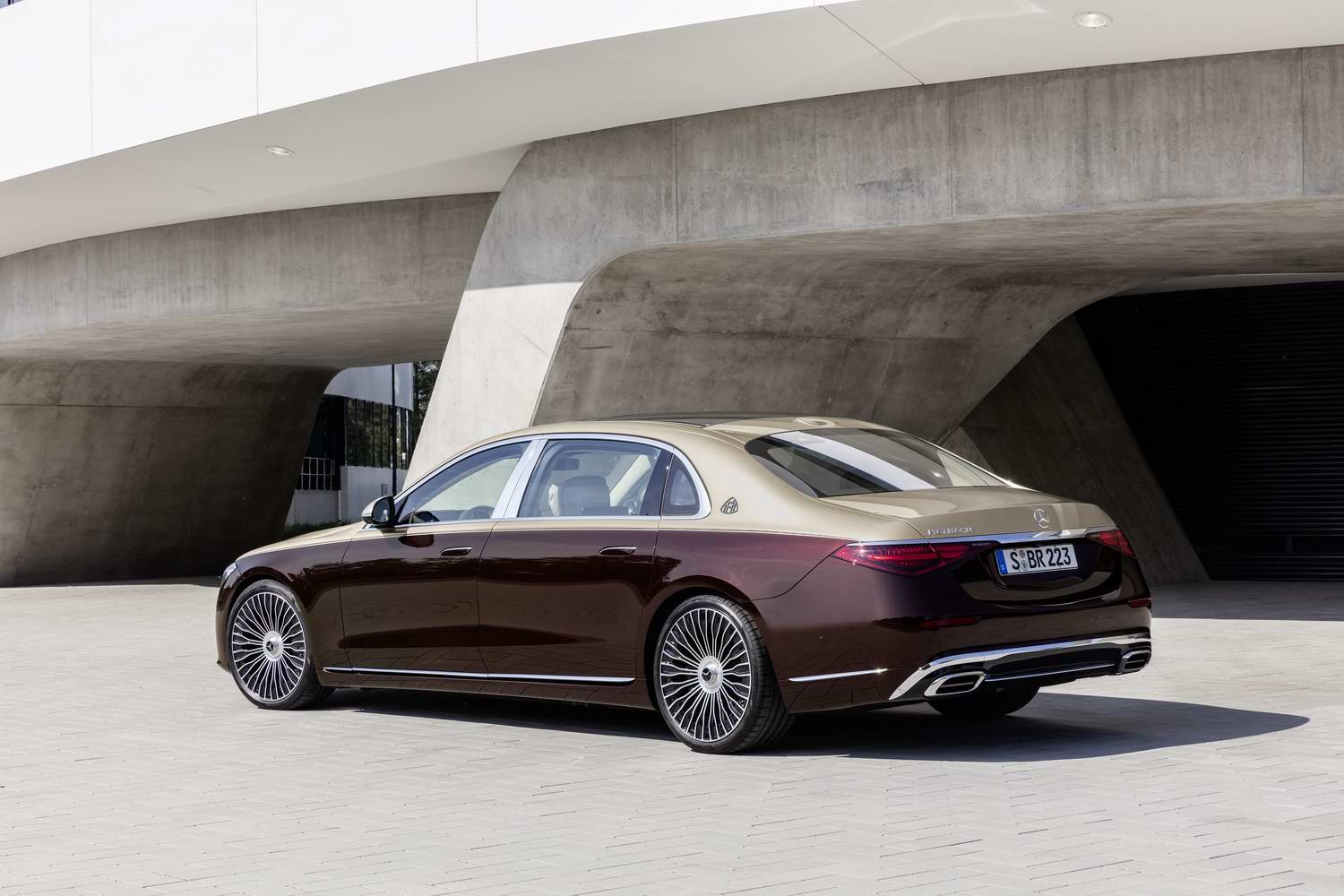

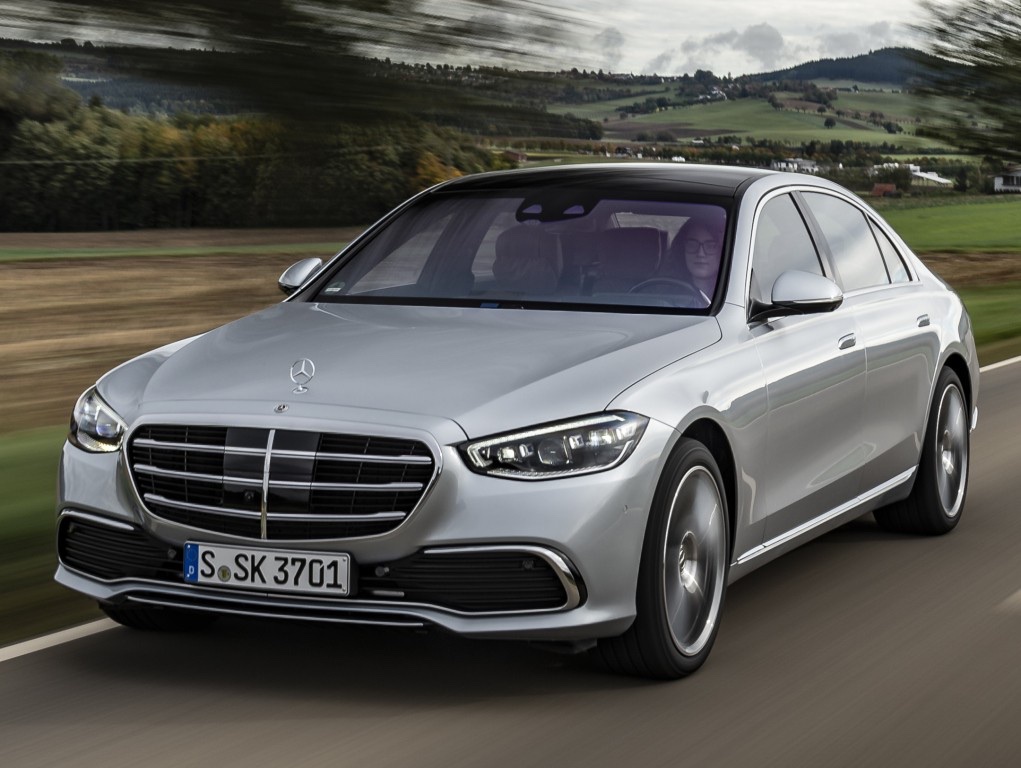

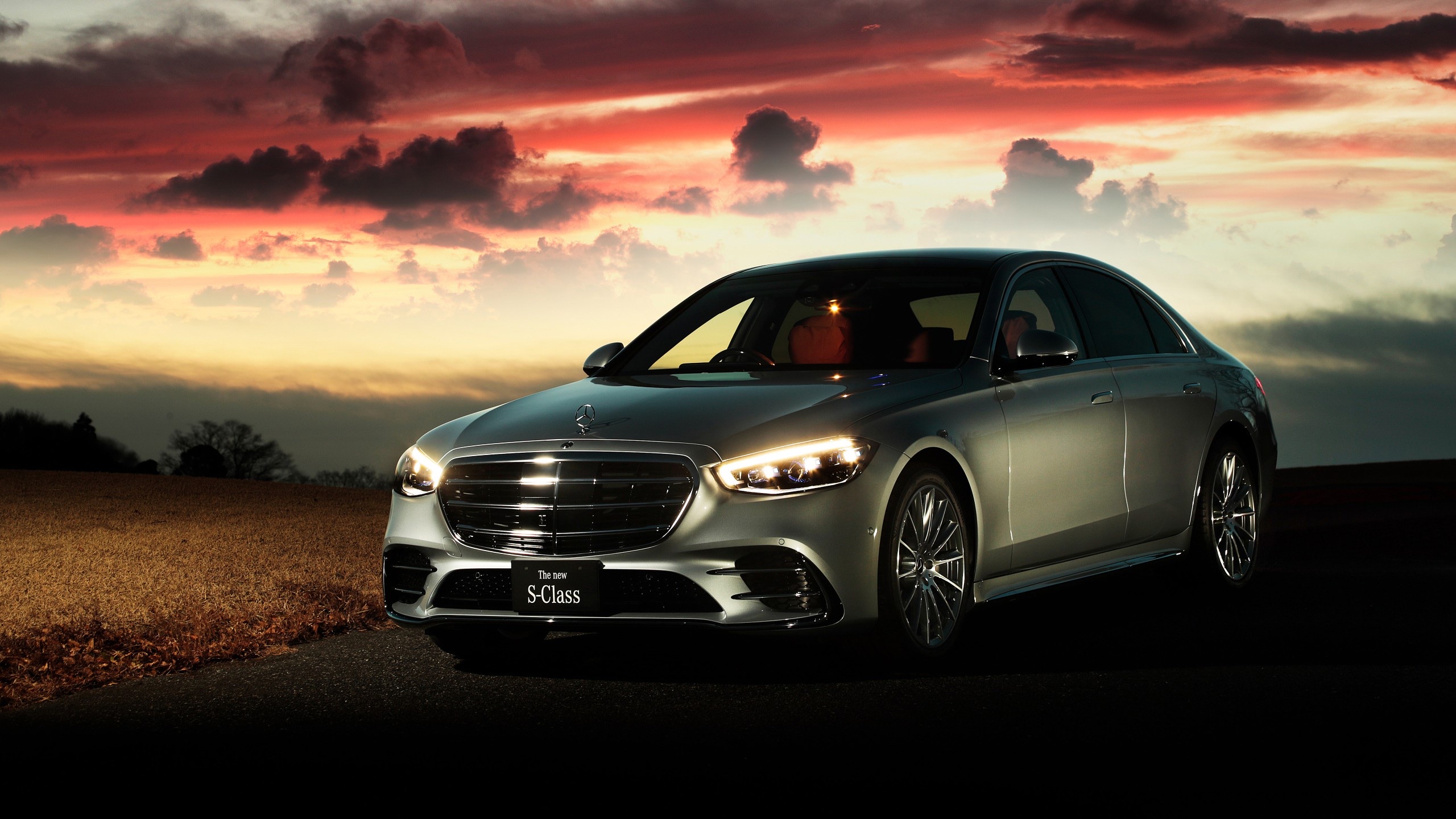

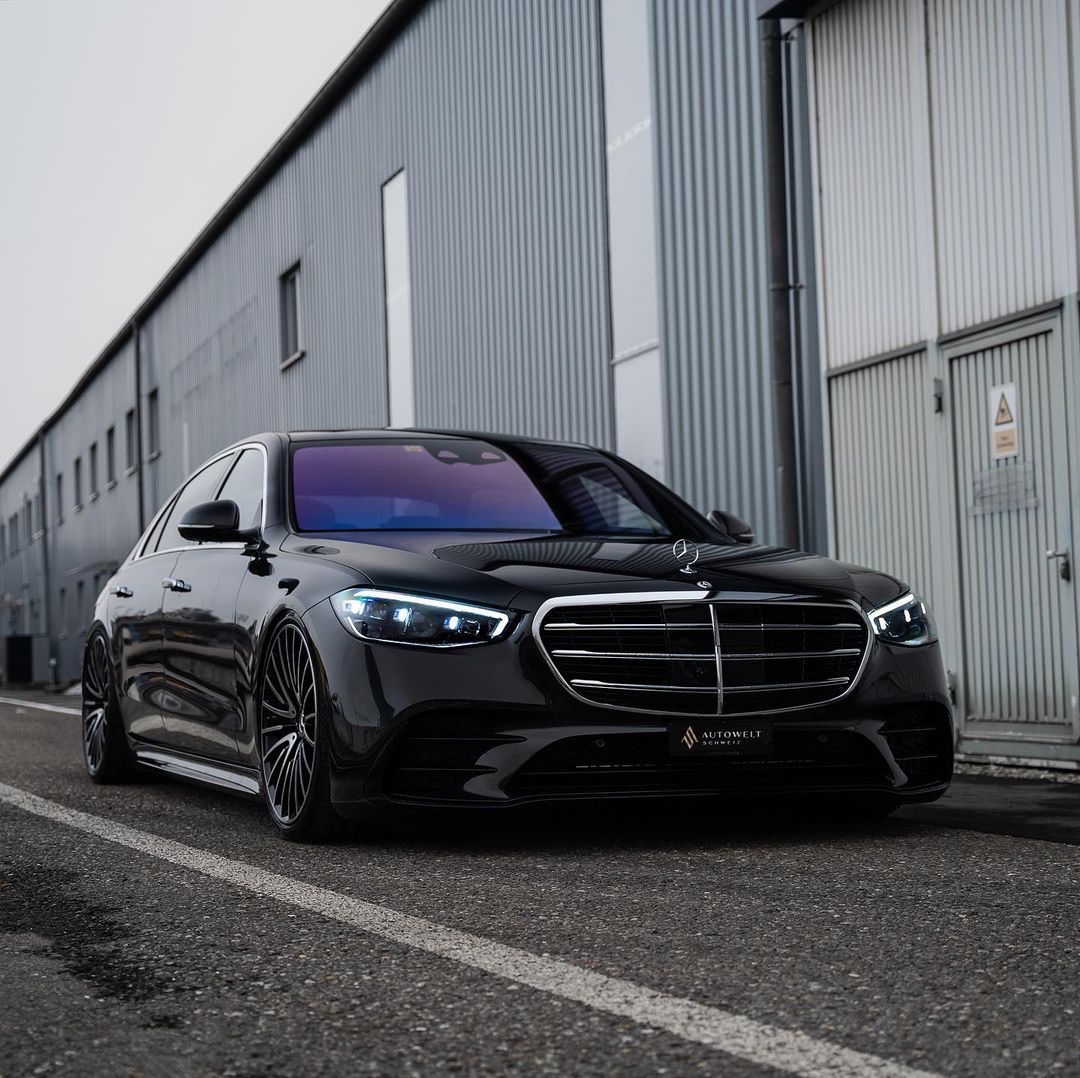

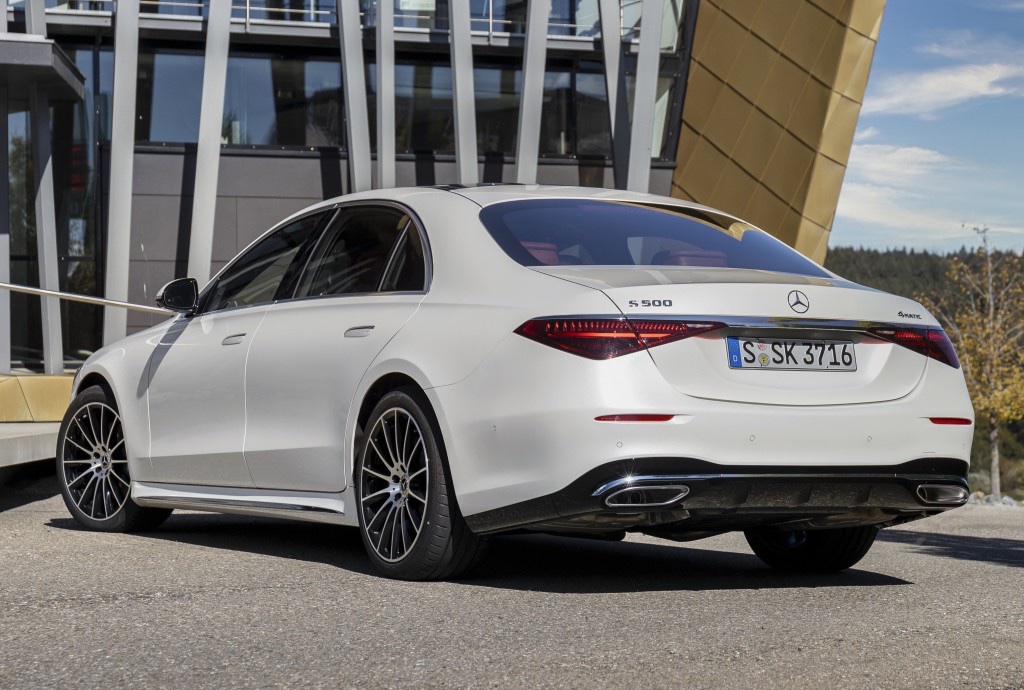

19 images are collected here with the main specifications and trim data for this model.

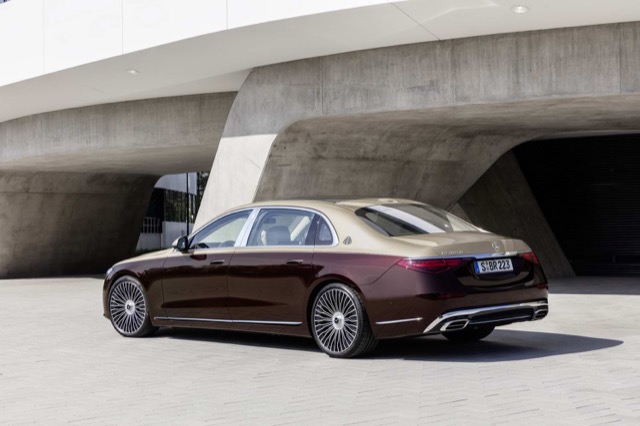

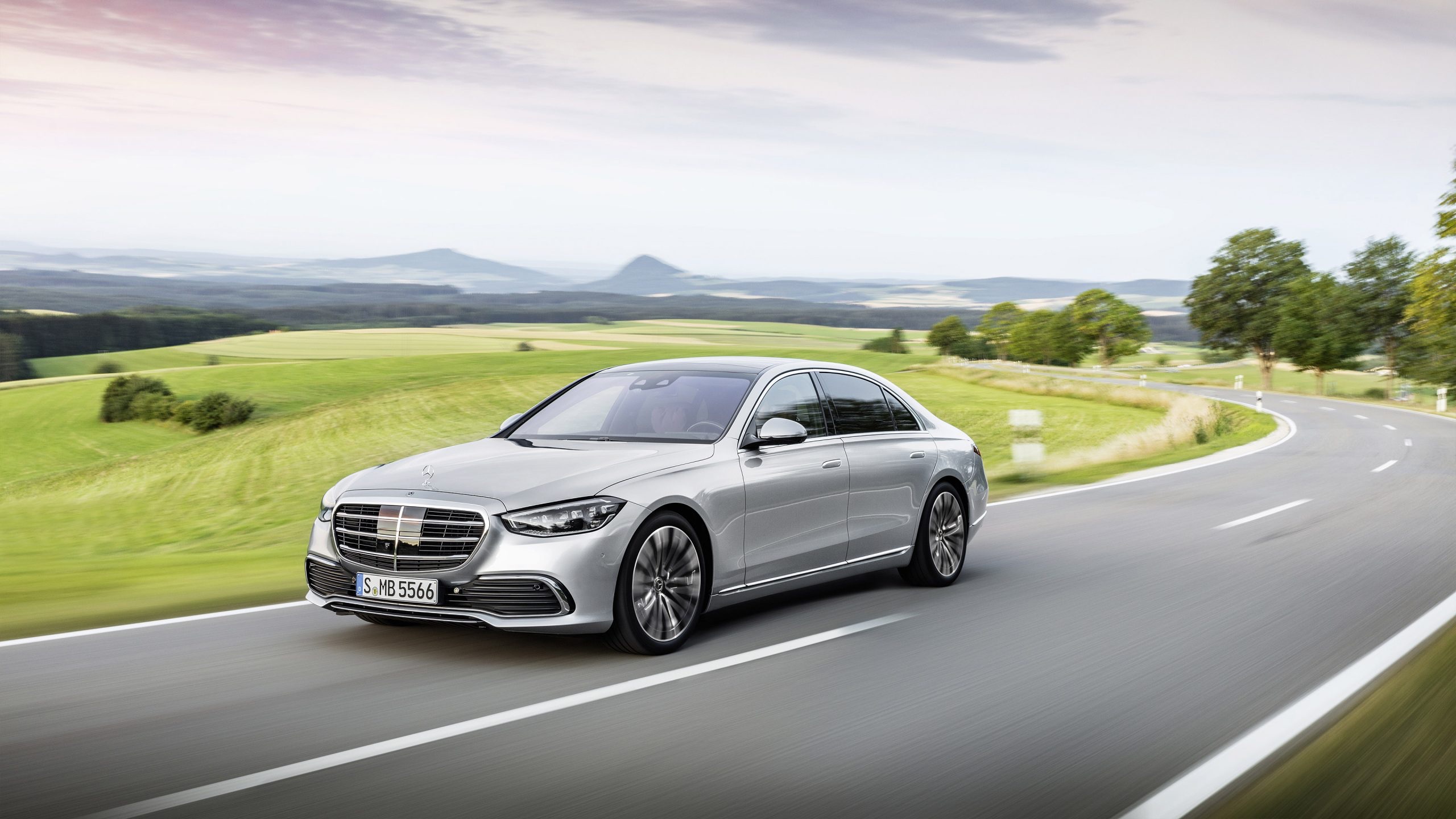

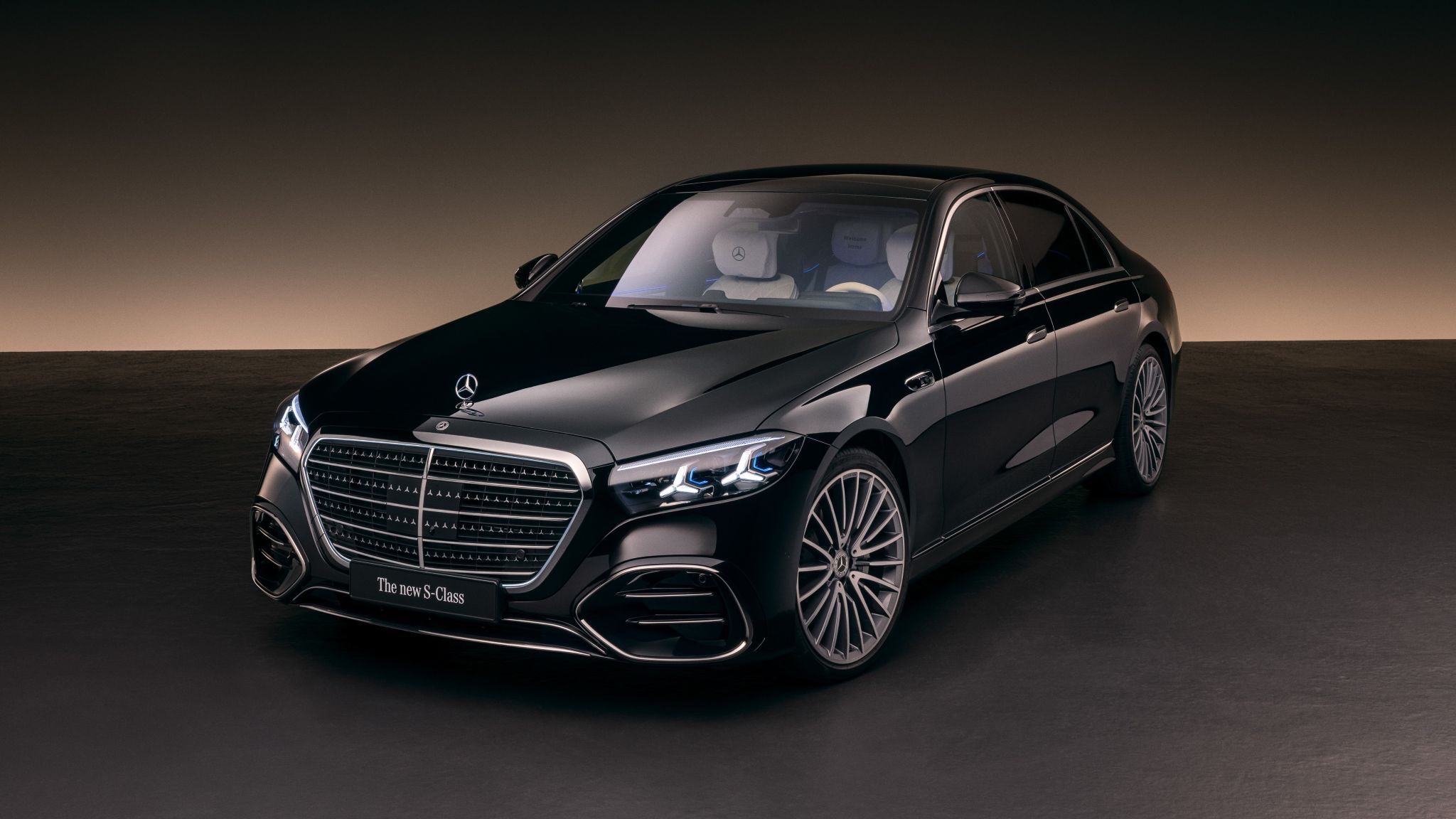

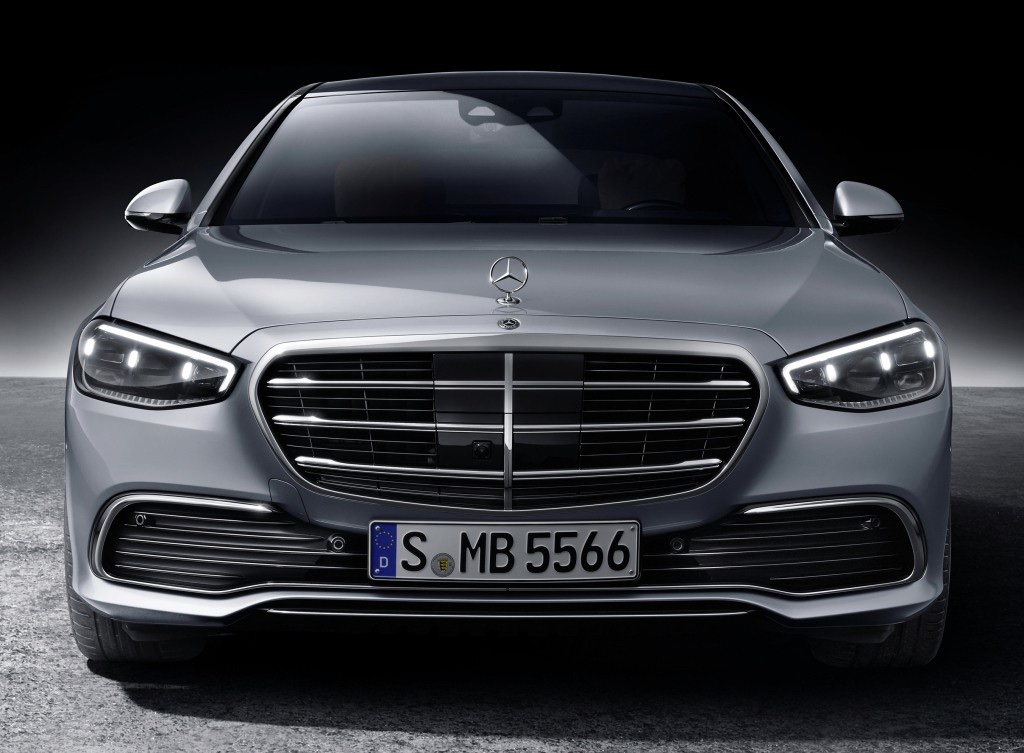

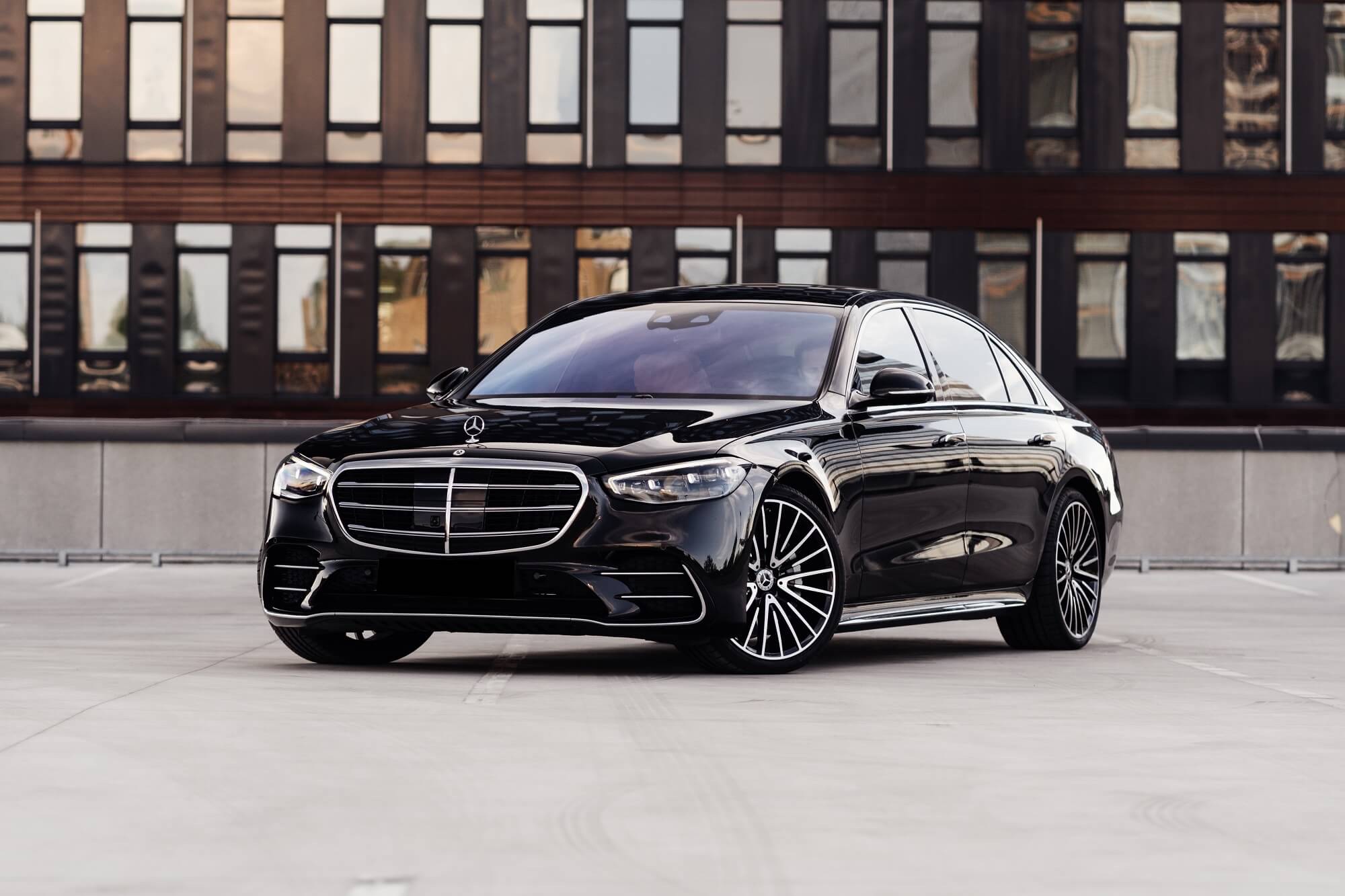

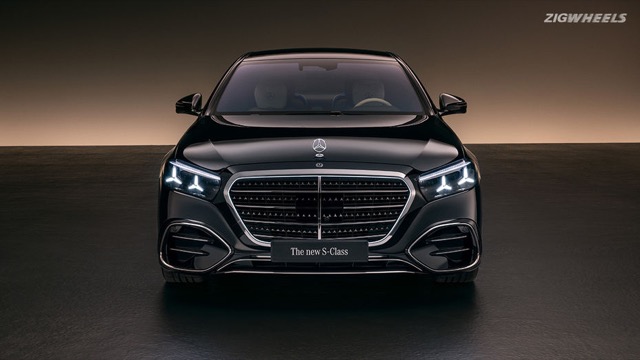

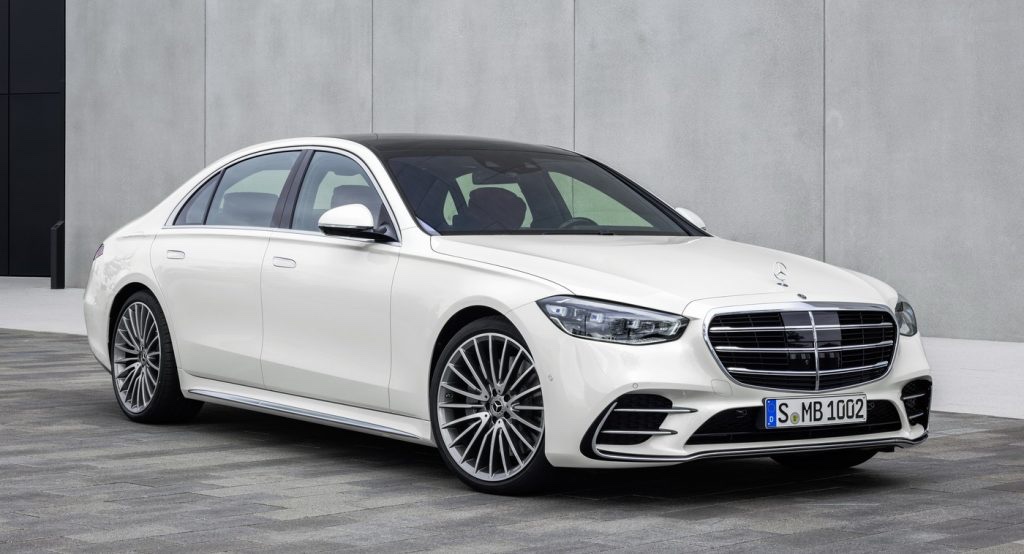

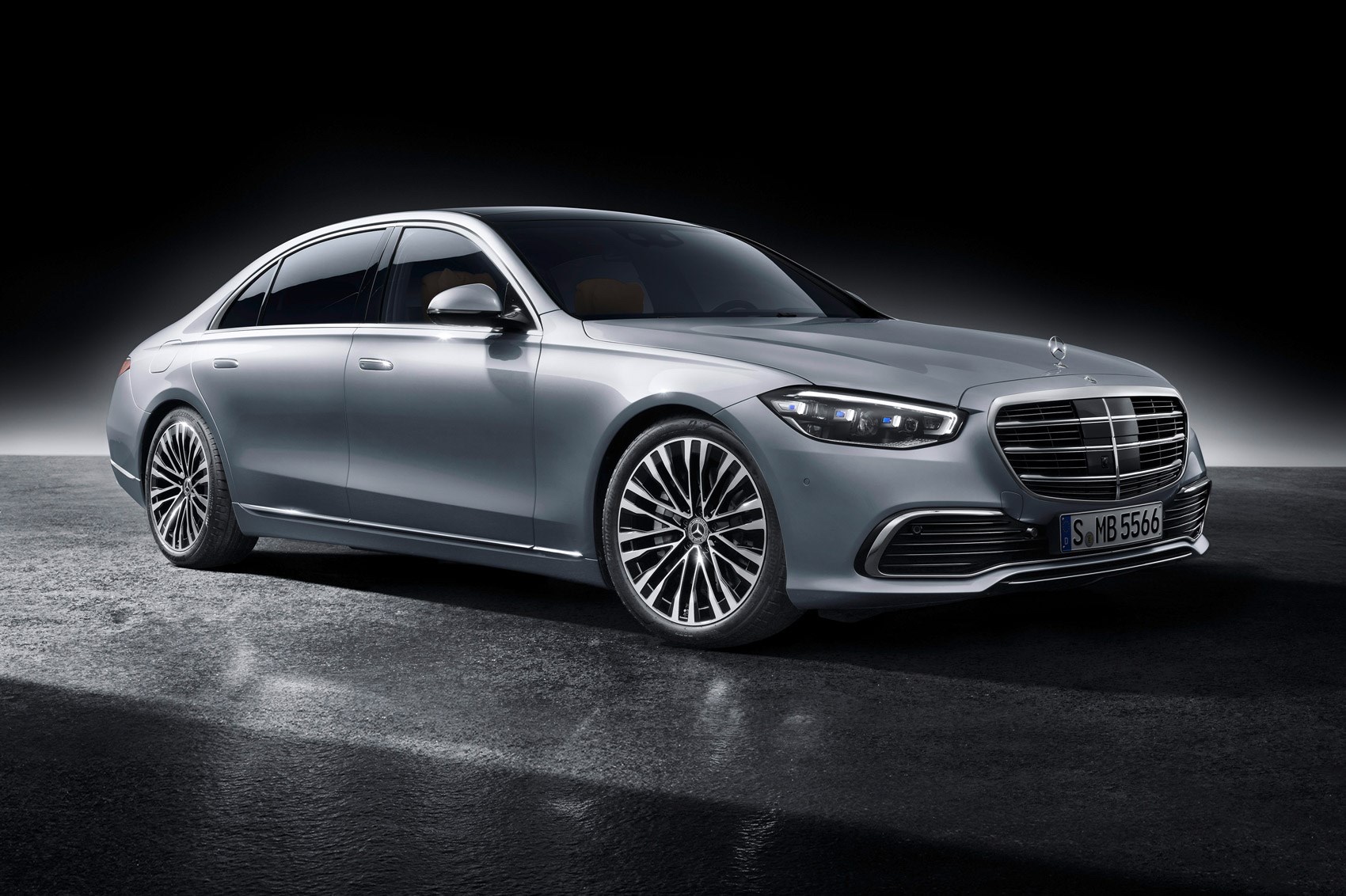

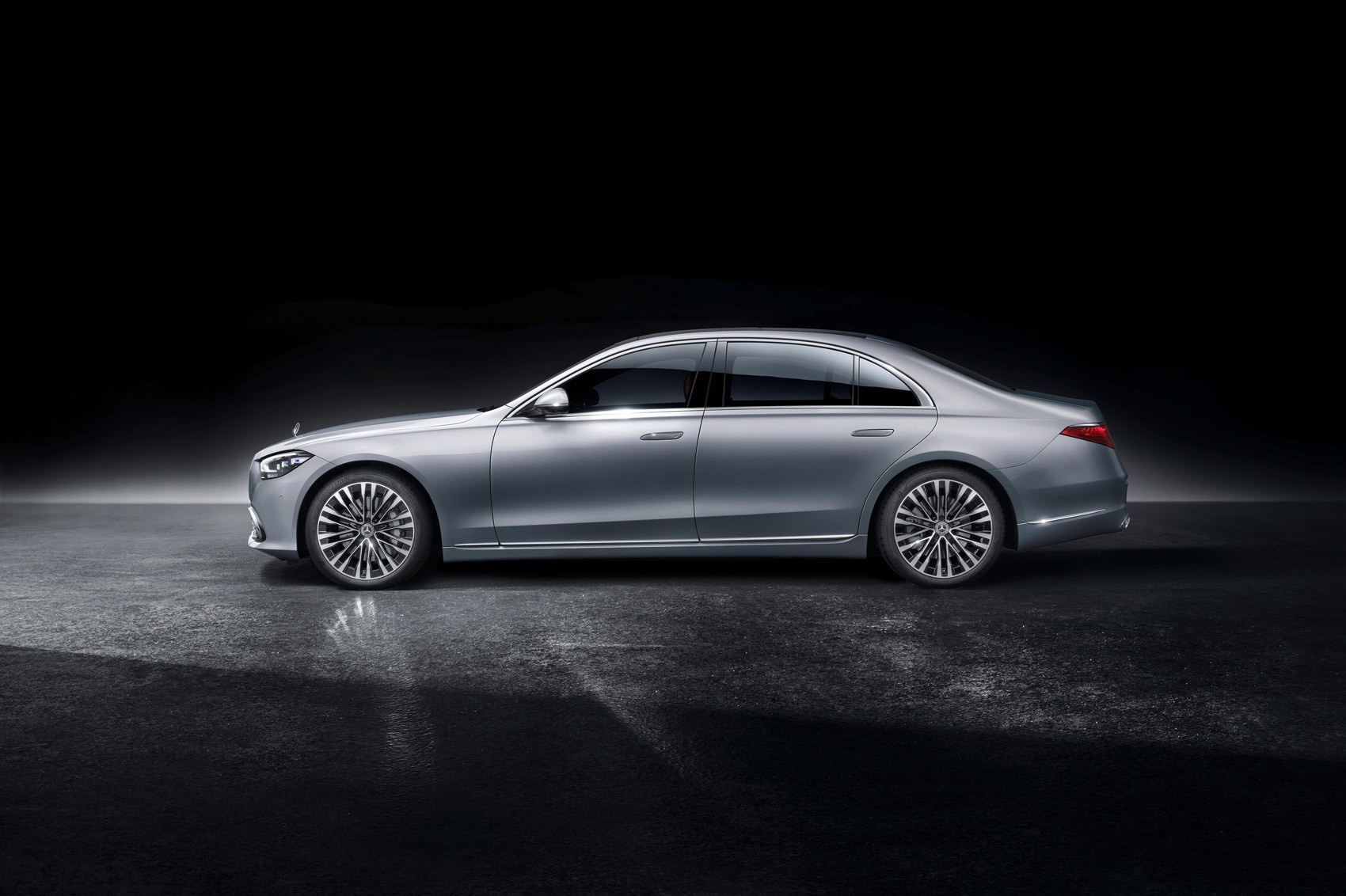

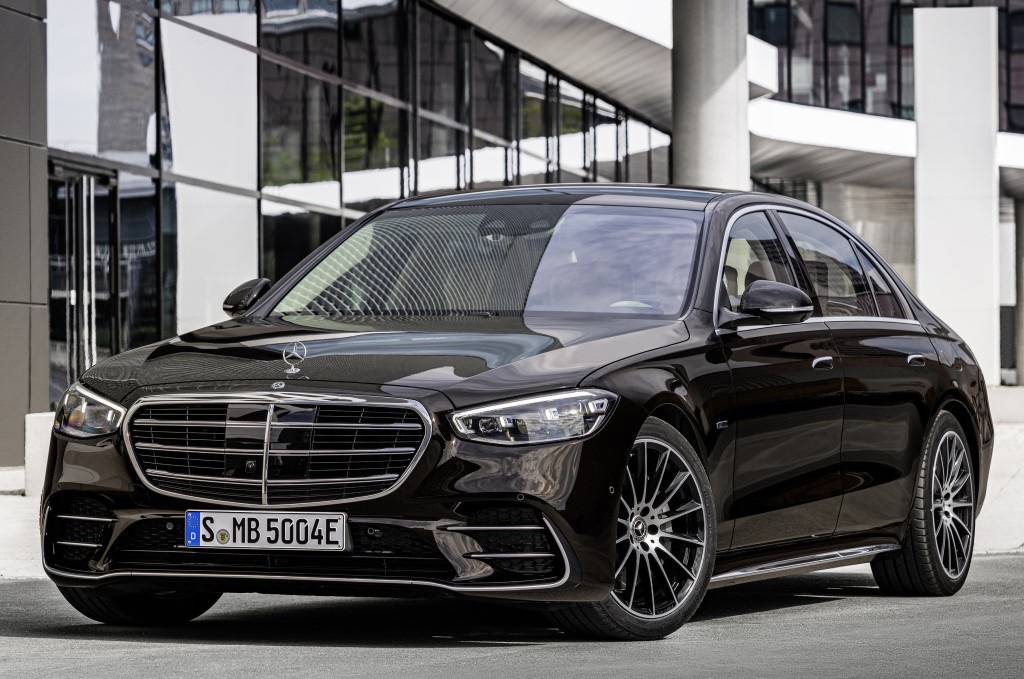

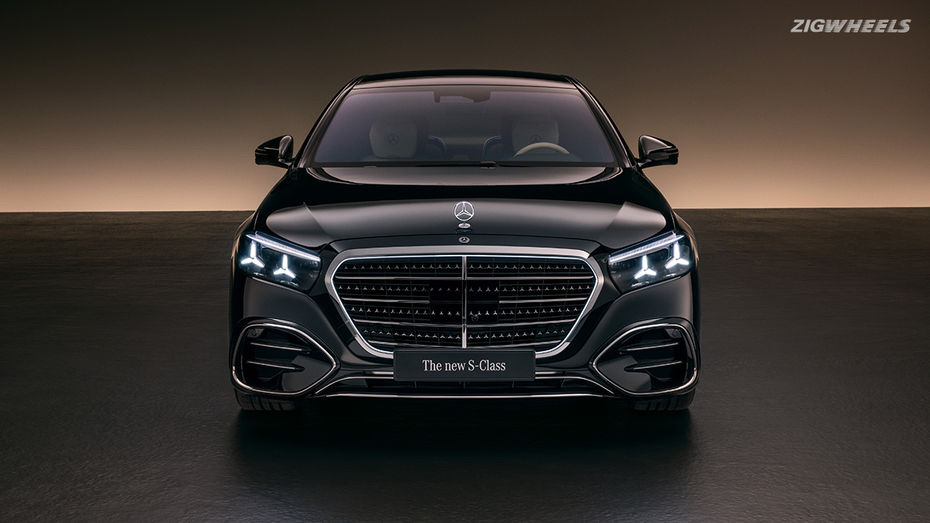

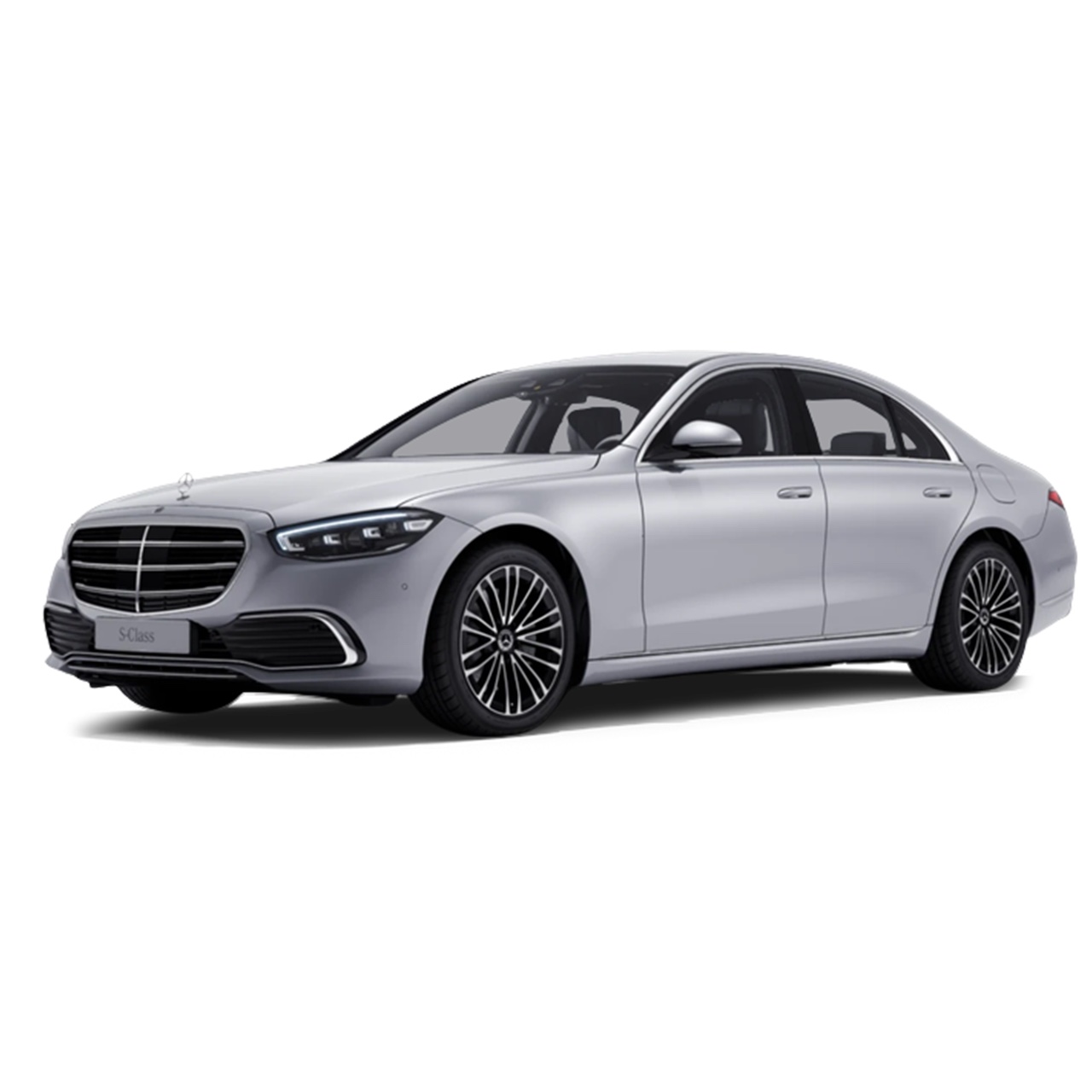

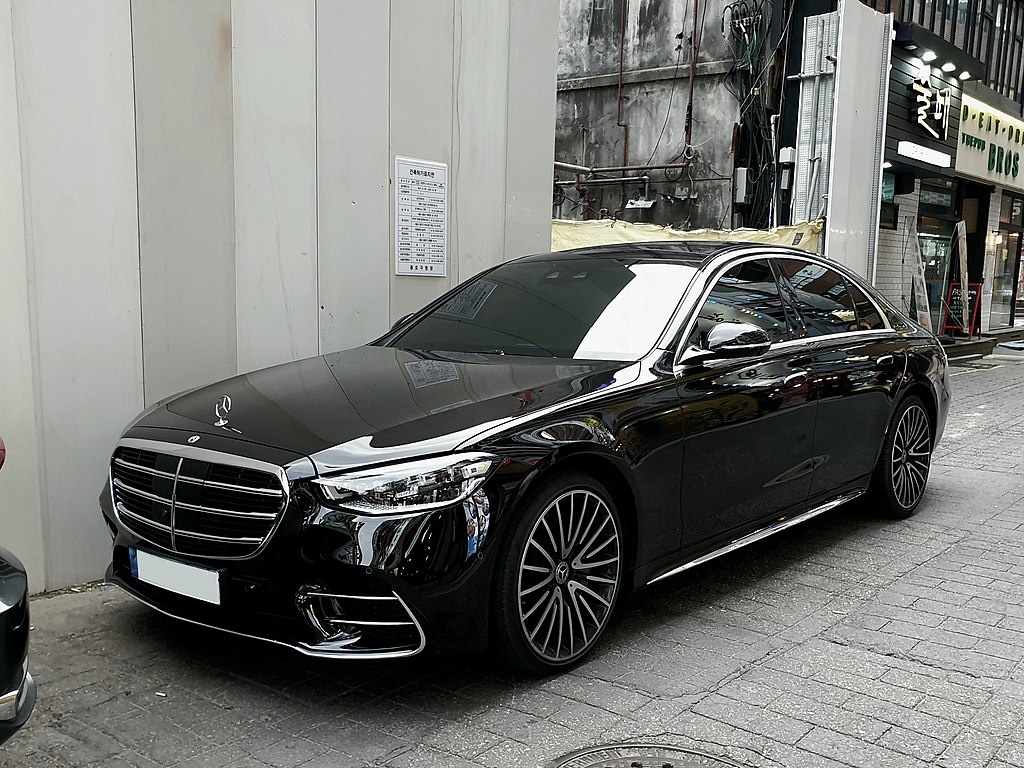

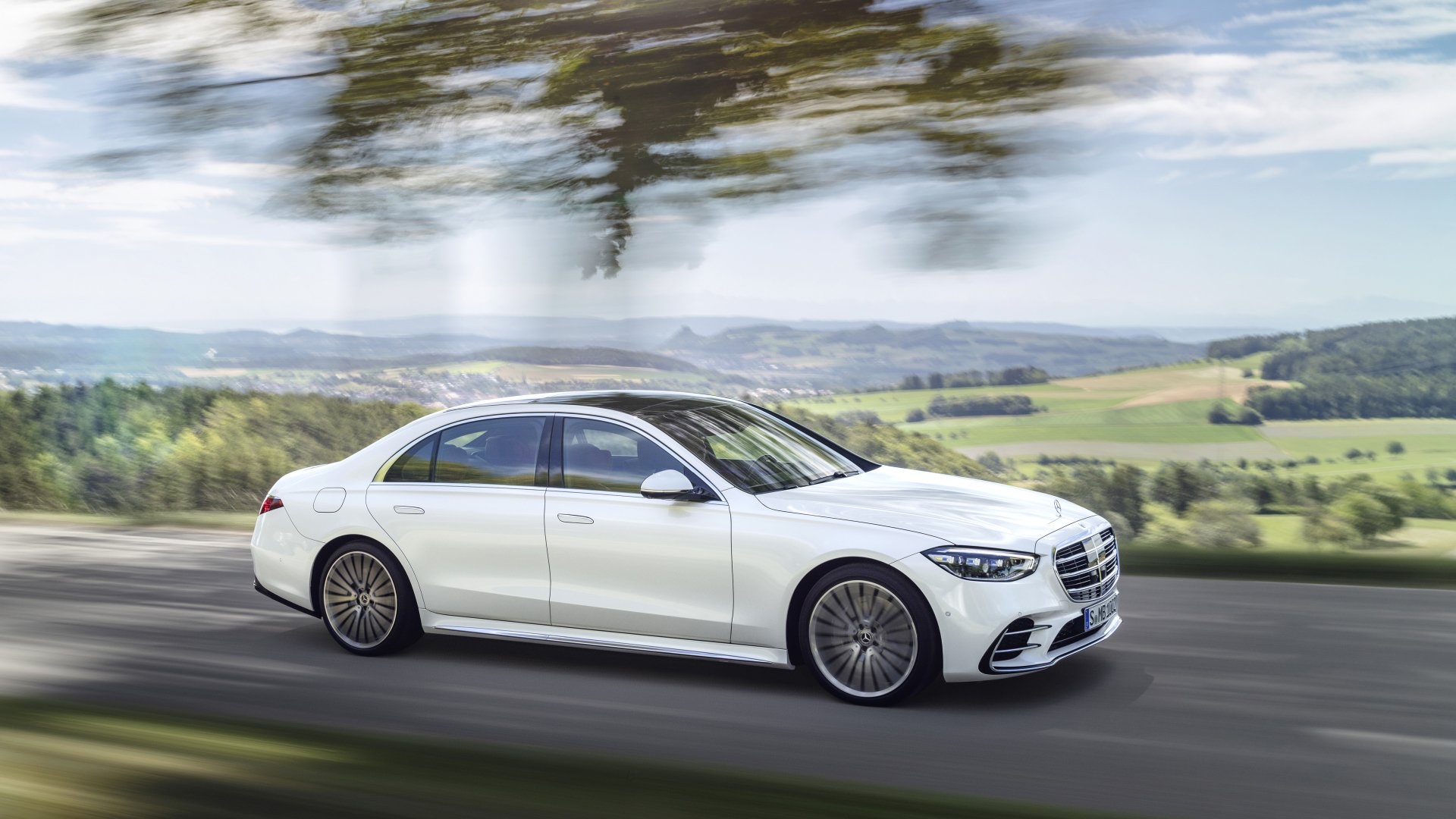

Photo Mercedes S-Class (W223)
Detailed specs
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
350d
350d 4Matic
400d 4Matic
450 4Matic
500 4Matic
450
450d 4MATIC
500 4MATIC
580 4MATIC
580e
580e 4MATIC
450e
S 350 d 4MATIC
S 350 d
S 400 d 4MATIC
S 450 4MATIC
S 450 d 4MATIC
S 450
S 450e
S 500 4MATIC
S 580 4MATIC
S 580e 4MATIC
350d 39 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 8.2 |
|---|---|
| Fuel consumption highway, L/100 km | 5 |
| Fuel consumption combined, L/100 km | 6.2 |
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 6.4 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.0d |
|---|---|
| Engine code | OM656 D29RSCR |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 2925 |
| Cylinder layout | Inline |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 286 |
| RPM at max power | 3600-4600 |
| Torque, Nm | 600 |
| RPM at max torque | 1200-3200 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5179 |
| Width, mm | 2109 |
| Height, mm | 1503 |
| Wheelbase, mm | 3106 |
| Front track, mm | 1655 |
| Rear track, mm | 1683 |
| Kerb weight, kg | 2020 |
| Gross weight, kg | 2720 |
| Fuel tank capacity, L | 65 |
| Turning circle, m | 12.2 |
| Ground clearance, mm | 130 |
| Width without mirrors, mm | 1954 |
| Trunk capacity, L | 540 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | Rear-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
350d 4Matic 39 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 8.5 |
|---|---|
| Fuel consumption highway, L/100 km | 5 |
| Fuel consumption combined, L/100 km | 6.3 |
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 6.2 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.0d |
|---|---|
| Engine code | OM656 D29RSCR |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 2925 |
| Cylinder layout | Inline |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 286 |
| RPM at max power | 3600-4600 |
| Torque, Nm | 600 |
| RPM at max torque | 1200-3200 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5179 |
| Width, mm | 2109 |
| Height, mm | 1503 |
| Wheelbase, mm | 3106 |
| Front track, mm | 1655 |
| Rear track, mm | 1683 |
| Kerb weight, kg | 2020 |
| Gross weight, kg | 2720 |
| Fuel tank capacity, L | 65 |
| Turning circle, m | 12.2 |
| Ground clearance, mm | 130 |
| Width without mirrors, mm | 1954 |
| Trunk capacity, L | 540 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
400d 4Matic 40 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 8.6 |
|---|---|
| Fuel consumption highway, L/100 km | 5.1 |
| Fuel consumption combined, L/100 km | 6.4 |
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 5.4 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.0d |
|---|---|
| Engine code | OM 656 D 29 SCR |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 2925 |
| Cylinder layout | Inline |
| Number of cylinders | 6 |
| Valves | 24 |
| Compression ratio | 15.5:1 |
| Power, hp | 330 |
| RPM at max power | 3600–4200 |
| Torque, Nm | 700 |
| RPM at max torque | 1200–3200 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5179 |
| Width, mm | 2109 |
| Height, mm | 1503 |
| Wheelbase, mm | 3106 |
| Front track, mm | 1655 |
| Rear track, mm | 1683 |
| Kerb weight, kg | 2020 |
| Gross weight, kg | 2720 |
| Fuel tank capacity, L | 65 |
| Turning circle, m | 12.2 |
| Ground clearance, mm | 130 |
| Width without mirrors, mm | 1954 |
| Trunk capacity, L | 540 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
450 4Matic 38 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 8.4 |
|---|---|
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 5.1 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.0i |
|---|---|
| Engine code | M256 E30 DEH LA G R |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 2999 |
| Cylinder layout | Inline |
| Number of cylinders | 6 |
| Valves | 24 |
| Compression ratio | 10.5:1 |
| Power, hp | 367 |
| RPM at max power | 5500-6000 |
| Torque, Nm | 500 |
| RPM at max torque | 2000-4200 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5179 |
| Width, mm | 2109 |
| Height, mm | 1503 |
| Wheelbase, mm | 3106 |
| Front track, mm | 1655 |
| Rear track, mm | 1683 |
| Kerb weight, kg | 2020 |
| Gross weight, kg | 2720 |
| Fuel tank capacity, L | 65 |
| Turning circle, m | 12.2 |
| Ground clearance, mm | 130 |
| Width without mirrors, mm | 1954 |
| Trunk capacity, L | 540 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
500 4Matic 41 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 11 |
|---|---|
| Fuel consumption highway, L/100 km | 6 |
| Fuel consumption combined, L/100 km | 7.8 |
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 4.9 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.0i |
|---|---|
| Engine code | M256 E30 DEH LA G |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 2999 |
| Cylinder layout | Inline |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 435 |
| RPM at max power | 5900-6100 |
| Torque, Nm | 520 |
| RPM at max torque | 1800-5500 |
| Electric motor power, hp | 22 |
| Electric motor torque, Nm | 250 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5179 |
| Width, mm | 2109 |
| Height, mm | 1503 |
| Wheelbase, mm | 3106 |
| Front track, mm | 1655 |
| Rear track, mm | 1683 |
| Kerb weight, kg | 2020 |
| Gross weight, kg | 2720 |
| Fuel tank capacity, L | 65 |
| Turning circle, m | 12.2 |
| Ground clearance, mm | 130 |
| Width without mirrors, mm | 1954 |
| Trunk capacity, L | 540 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
450 34 specifications
Specifications
Engine
| Engine | 3.0i |
|---|---|
| Engine code | M256 E30 DEH LA G R |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 2999 |
| Cylinder layout | Inline |
| Number of cylinders | 6 |
| Valves | 24 |
| Compression ratio | 10.5:1 |
| Power, hp | 367 |
| RPM at max power | 5500-6000 |
| Torque, Nm | 500 |
| RPM at max torque | 2000-4200 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5179 |
| Width, mm | 2109 |
| Height, mm | 1503 |
| Wheelbase, mm | 3106 |
| Front track, mm | 1655 |
| Rear track, mm | 1683 |
| Kerb weight, kg | 2020 |
| Gross weight, kg | 2720 |
| Fuel tank capacity, L | 65 |
| Turning circle, m | 12.2 |
| Ground clearance, mm | 130 |
| Width without mirrors, mm | 1954 |
| Trunk capacity, L | 540 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | Rear-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
450d 4MATIC 40 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 7.1 |
|---|---|
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 5 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.0d Mild Hybrid |
|---|---|
| Engine code | OM656 |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 2989 |
| Cylinder layout | V-type |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 367 |
| RPM at max power | 4000 |
| Torque, Nm | 750 |
| RPM at max torque | 1350-2800 |
| Number of electric motors | 1 |
| Electric motor power, hp | 20 |
| Electric motor torque, Nm | 200 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5179 |
| Width, mm | 2109 |
| Height, mm | 1503 |
| Wheelbase, mm | 3106 |
| Front track, mm | 1655 |
| Rear track, mm | 1683 |
| Kerb weight, kg | 2020 |
| Gross weight, kg | 2720 |
| Fuel tank capacity, L | 65 |
| Turning circle, m | 12.2 |
| Ground clearance, mm | 130 |
| Width without mirrors, mm | 1954 |
| Trunk capacity, L | 540 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
500 4MATIC 40 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 9.2 |
|---|---|
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 4.7 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.0i Mild Hybrid |
|---|---|
| Engine code | M 256 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 2999 |
| Cylinder layout | Inline |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 449 |
| RPM at max power | 5800-6100 |
| Torque, Nm | 600 |
| RPM at max torque | 2200-5000 |
| Number of electric motors | 1 |
| Electric motor power, hp | 23 |
| Electric motor torque, Nm | 205 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5179 |
| Width, mm | 2109 |
| Height, mm | 1503 |
| Wheelbase, mm | 3106 |
| Front track, mm | 1655 |
| Rear track, mm | 1683 |
| Kerb weight, kg | 2020 |
| Gross weight, kg | 2720 |
| Fuel tank capacity, L | 65 |
| Turning circle, m | 12.2 |
| Ground clearance, mm | 130 |
| Width without mirrors, mm | 1954 |
| Trunk capacity, L | 540 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
580 4MATIC 41 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 10.6 |
|---|---|
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 4.4 |
| Emissions standard | Euro VI |
Engine
| Engine | 4.0i Mild Hybrid |
|---|---|
| Engine code | M 176 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 3982 |
| Cylinder layout | V-type |
| Number of cylinders | 8 |
| Valves | 32 |
| Compression ratio | 10.5:1 |
| Power, hp | 503 |
| RPM at max power | 5000 |
| Torque, Nm | 700 |
| RPM at max torque | 2000-4500 |
| Number of electric motors | 1 |
| Electric motor power, hp | 20 |
| Electric motor torque, Nm | 200 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5179 |
| Width, mm | 2109 |
| Height, mm | 1503 |
| Wheelbase, mm | 3106 |
| Front track, mm | 1655 |
| Rear track, mm | 1683 |
| Kerb weight, kg | 2020 |
| Gross weight, kg | 2720 |
| Fuel tank capacity, L | 65 |
| Turning circle, m | 12.2 |
| Ground clearance, mm | 130 |
| Width without mirrors, mm | 1954 |
| Trunk capacity, L | 540 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
580e 44 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 1 |
|---|---|
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 5.2 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.0i Plug-in Hybrid |
|---|---|
| Engine code | M 256.930 |
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 2999 |
| Cylinder layout | Inline |
| Number of cylinders | 6 |
| Valves | 24 |
| Turbocharger | + |
| Compression ratio | 10.5:1 |
| Power, hp | 510 |
| Torque, Nm | 750 |
| Number of electric motors | 1 |
| Electric motor power, hp | 150 |
| Combustion engine power, hp | 367 |
| Combustion engine RPM at max power | 5500-6100 |
| Combustion engine torque, Nm | 500 |
| Combustion engine RPM at max torque | 1600-4500 |
| Electric motor torque, Nm | 480 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5179 |
| Width, mm | 2109 |
| Height, mm | 1503 |
| Wheelbase, mm | 3106 |
| Front track, mm | 1655 |
| Rear track, mm | 1683 |
| Kerb weight, kg | 2020 |
| Gross weight, kg | 2720 |
| Fuel tank capacity, L | 65 |
| Turning circle, m | 12.2 |
| Ground clearance, mm | 130 |
| Width without mirrors, mm | 1954 |
| Trunk capacity, L | 540 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | Rear-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
580e 4MATIC 44 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 1 |
|---|---|
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 4.9 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.0i Plug-in Hybrid |
|---|---|
| Engine code | M 256.930 |
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 2999 |
| Cylinder layout | Inline |
| Number of cylinders | 6 |
| Valves | 24 |
| Turbocharger | + |
| Compression ratio | 10.5:1 |
| Power, hp | 510 |
| Torque, Nm | 750 |
| Number of electric motors | 1 |
| Electric motor power, hp | 150 |
| Combustion engine power, hp | 367 |
| Combustion engine RPM at max power | 5500-6100 |
| Combustion engine torque, Nm | 500 |
| Combustion engine RPM at max torque | 1600-4500 |
| Electric motor torque, Nm | 480 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5179 |
| Width, mm | 2109 |
| Height, mm | 1503 |
| Wheelbase, mm | 3106 |
| Front track, mm | 1655 |
| Rear track, mm | 1683 |
| Kerb weight, kg | 2020 |
| Gross weight, kg | 2720 |
| Fuel tank capacity, L | 65 |
| Turning circle, m | 12.2 |
| Ground clearance, mm | 130 |
| Width without mirrors, mm | 1954 |
| Trunk capacity, L | 540 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
450e 44 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 0.9 |
|---|---|
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 5.9 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.0i Plug-in Hybrid |
|---|---|
| Engine code | M 256.930 |
| Engine type | Hybrid |
| Fuel type | Diesel |
| Engine displacement, cc | 2999 |
| Cylinder layout | Inline |
| Number of cylinders | 6 |
| Valves | 24 |
| Turbocharger | + |
| Compression ratio | 10.5:1 |
| Power, hp | 408 |
| Torque, Nm | 650 |
| Number of electric motors | 1 |
| Electric motor power, hp | 150 |
| Combustion engine power, hp | 299 |
| Combustion engine RPM at max power | 5500 |
| Combustion engine torque, Nm | 450 |
| Combustion engine RPM at max torque | 1600 |
| Electric motor torque, Nm | 440 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5179 |
| Width, mm | 2109 |
| Height, mm | 1503 |
| Wheelbase, mm | 3106 |
| Front track, mm | 1655 |
| Rear track, mm | 1683 |
| Kerb weight, kg | 2020 |
| Gross weight, kg | 2720 |
| Fuel tank capacity, L | 65 |
| Turning circle, m | 12.2 |
| Ground clearance, mm | 130 |
| Width without mirrors, mm | 1954 |
| Trunk capacity, L | 540 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | Rear-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
S 350 d 4MATIC 41 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 8.5 |
|---|---|
| Fuel consumption highway, L/100 km | 5 |
| Fuel consumption combined, L/100 km | 6.3 |
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 6.2 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.0d |
|---|---|
| Engine code | OM656 D29RSCR |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 2925 |
| Cylinder layout | Inline |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 286 |
| RPM at max power | 3600-4600 |
| Torque, Nm | 600 |
| RPM at max torque | 1200-3200 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5179 |
| Width, mm | 2109 |
| Height, mm | 1503 |
| Wheelbase, mm | 3106 |
| Front track, mm | 1655 |
| Rear track, mm | 1683 |
| Kerb weight, kg | 2020 |
| Gross weight, kg | 2720 |
| Fuel tank capacity, L | 65 |
| Turning circle, m | 12.2 |
| Ground clearance, mm | 130 |
| Width without mirrors, mm | 1954 |
| Trunk capacity, L | 540 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
Brake system
| Front brakes | Disc |
|---|---|
| Rear brakes | Disc |
S 350 d 41 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 8.2 |
|---|---|
| Fuel consumption highway, L/100 km | 5 |
| Fuel consumption combined, L/100 km | 6.2 |
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 6.4 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.0d |
|---|---|
| Engine code | OM656 D29RSCR |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 2925 |
| Cylinder layout | Inline |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 286 |
| RPM at max power | 3600-4600 |
| Torque, Nm | 600 |
| RPM at max torque | 1200-3200 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5179 |
| Width, mm | 2109 |
| Height, mm | 1503 |
| Wheelbase, mm | 3106 |
| Front track, mm | 1655 |
| Rear track, mm | 1683 |
| Kerb weight, kg | 2020 |
| Gross weight, kg | 2720 |
| Fuel tank capacity, L | 65 |
| Turning circle, m | 12.2 |
| Ground clearance, mm | 130 |
| Width without mirrors, mm | 1954 |
| Trunk capacity, L | 540 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | Rear-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
Brake system
| Front brakes | Disc |
|---|---|
| Rear brakes | Disc |
S 400 d 4MATIC 42 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 8.6 |
|---|---|
| Fuel consumption highway, L/100 km | 5.1 |
| Fuel consumption combined, L/100 km | 6.4 |
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 5.4 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.0d |
|---|---|
| Engine code | OM 656 D 29 SCR |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 2925 |
| Cylinder layout | Inline |
| Number of cylinders | 6 |
| Valves | 24 |
| Compression ratio | 15.5:1 |
| Power, hp | 330 |
| RPM at max power | 3600–4200 |
| Torque, Nm | 700 |
| RPM at max torque | 1200–3200 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5179 |
| Width, mm | 2109 |
| Height, mm | 1503 |
| Wheelbase, mm | 3106 |
| Front track, mm | 1655 |
| Rear track, mm | 1683 |
| Kerb weight, kg | 2020 |
| Gross weight, kg | 2720 |
| Fuel tank capacity, L | 65 |
| Turning circle, m | 12.2 |
| Ground clearance, mm | 130 |
| Width without mirrors, mm | 1954 |
| Trunk capacity, L | 540 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
Brake system
| Front brakes | Disc |
|---|---|
| Rear brakes | Disc |
S 450 4MATIC 40 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 8.4 |
|---|---|
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 5.1 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.0i |
|---|---|
| Engine code | M256 E30 DEH LA G R |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 2999 |
| Cylinder layout | Inline |
| Number of cylinders | 6 |
| Valves | 24 |
| Compression ratio | 10.5:1 |
| Power, hp | 367 |
| RPM at max power | 5500-6000 |
| Torque, Nm | 500 |
| RPM at max torque | 2000-4200 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5179 |
| Width, mm | 2109 |
| Height, mm | 1503 |
| Wheelbase, mm | 3106 |
| Front track, mm | 1655 |
| Rear track, mm | 1683 |
| Kerb weight, kg | 2020 |
| Gross weight, kg | 2720 |
| Fuel tank capacity, L | 65 |
| Turning circle, m | 12.2 |
| Ground clearance, mm | 130 |
| Width without mirrors, mm | 1954 |
| Trunk capacity, L | 540 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
Brake system
| Front brakes | Disc |
|---|---|
| Rear brakes | Disc |
S 450 d 4MATIC 42 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 7.1 |
|---|---|
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 5 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.0d Mild Hybrid |
|---|---|
| Engine code | OM656 |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 2989 |
| Cylinder layout | V-type |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 367 |
| RPM at max power | 4000 |
| Torque, Nm | 750 |
| RPM at max torque | 1350-2800 |
| Number of electric motors | 1 |
| Electric motor power, hp | 20 |
| Electric motor torque, Nm | 200 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5179 |
| Width, mm | 2109 |
| Height, mm | 1503 |
| Wheelbase, mm | 3106 |
| Front track, mm | 1655 |
| Rear track, mm | 1683 |
| Kerb weight, kg | 2020 |
| Gross weight, kg | 2720 |
| Fuel tank capacity, L | 65 |
| Turning circle, m | 12.2 |
| Ground clearance, mm | 130 |
| Width without mirrors, mm | 1954 |
| Trunk capacity, L | 540 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
Brake system
| Front brakes | Disc |
|---|---|
| Rear brakes | Disc |
S 450 36 specifications
Specifications
Engine
| Engine | 3.0i |
|---|---|
| Engine code | M256 E30 DEH LA G R |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 2999 |
| Cylinder layout | Inline |
| Number of cylinders | 6 |
| Valves | 24 |
| Compression ratio | 10.5:1 |
| Power, hp | 367 |
| RPM at max power | 5500-6000 |
| Torque, Nm | 500 |
| RPM at max torque | 2000-4200 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5179 |
| Width, mm | 2109 |
| Height, mm | 1503 |
| Wheelbase, mm | 3106 |
| Front track, mm | 1655 |
| Rear track, mm | 1683 |
| Kerb weight, kg | 2020 |
| Gross weight, kg | 2720 |
| Fuel tank capacity, L | 65 |
| Turning circle, m | 12.2 |
| Ground clearance, mm | 130 |
| Width without mirrors, mm | 1954 |
| Trunk capacity, L | 540 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | Rear-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
Brake system
| Front brakes | Disc |
|---|---|
| Rear brakes | Disc |
S 450e 46 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 0.9 |
|---|---|
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 5.9 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.0i Plug-in Hybrid |
|---|---|
| Engine code | M 256.930 |
| Engine type | Hybrid |
| Fuel type | Diesel |
| Engine displacement, cc | 2999 |
| Cylinder layout | Inline |
| Number of cylinders | 6 |
| Valves | 24 |
| Turbocharger | + |
| Compression ratio | 10.5:1 |
| Power, hp | 408 |
| Torque, Nm | 650 |
| Number of electric motors | 1 |
| Electric motor power, hp | 150 |
| Combustion engine power, hp | 299 |
| Combustion engine RPM at max power | 5500 |
| Combustion engine torque, Nm | 450 |
| Combustion engine RPM at max torque | 1600 |
| Electric motor torque, Nm | 440 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5179 |
| Width, mm | 2109 |
| Height, mm | 1503 |
| Wheelbase, mm | 3106 |
| Front track, mm | 1655 |
| Rear track, mm | 1683 |
| Kerb weight, kg | 2020 |
| Gross weight, kg | 2720 |
| Fuel tank capacity, L | 65 |
| Turning circle, m | 12.2 |
| Ground clearance, mm | 130 |
| Width without mirrors, mm | 1954 |
| Trunk capacity, L | 540 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | Rear-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
Brake system
| Front brakes | Disc |
|---|---|
| Rear brakes | Disc |
S 500 4MATIC 43 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 11 |
|---|---|
| Fuel consumption highway, L/100 km | 6 |
| Fuel consumption combined, L/100 km | 7.8 |
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 4.9 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.0i |
|---|---|
| Engine code | M256 E30 DEH LA G |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 2999 |
| Cylinder layout | Inline |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 435 |
| RPM at max power | 5900-6100 |
| Torque, Nm | 520 |
| RPM at max torque | 1800-5500 |
| Electric motor power, hp | 22 |
| Electric motor torque, Nm | 250 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5179 |
| Width, mm | 2109 |
| Height, mm | 1503 |
| Wheelbase, mm | 3106 |
| Front track, mm | 1655 |
| Rear track, mm | 1683 |
| Kerb weight, kg | 2020 |
| Gross weight, kg | 2720 |
| Fuel tank capacity, L | 65 |
| Turning circle, m | 12.2 |
| Ground clearance, mm | 130 |
| Width without mirrors, mm | 1954 |
| Trunk capacity, L | 540 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
Brake system
| Front brakes | Disc |
|---|---|
| Rear brakes | Disc |
S 580 4MATIC 43 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 10.6 |
|---|---|
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 4.4 |
| Emissions standard | Euro VI |
Engine
| Engine | 4.0i Mild Hybrid |
|---|---|
| Engine code | M 176 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 3982 |
| Cylinder layout | V-type |
| Number of cylinders | 8 |
| Valves | 32 |
| Compression ratio | 10.5:1 |
| Power, hp | 503 |
| RPM at max power | 5000 |
| Torque, Nm | 700 |
| RPM at max torque | 2000-4500 |
| Number of electric motors | 1 |
| Electric motor power, hp | 20 |
| Electric motor torque, Nm | 200 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5179 |
| Width, mm | 2109 |
| Height, mm | 1503 |
| Wheelbase, mm | 3106 |
| Front track, mm | 1655 |
| Rear track, mm | 1683 |
| Kerb weight, kg | 2020 |
| Gross weight, kg | 2720 |
| Fuel tank capacity, L | 65 |
| Turning circle, m | 12.2 |
| Ground clearance, mm | 130 |
| Width without mirrors, mm | 1954 |
| Trunk capacity, L | 540 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
Brake system
| Front brakes | Disc |
|---|---|
| Rear brakes | Disc |
S 580e 4MATIC 46 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 1 |
|---|---|
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 4.9 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.0i Plug-in Hybrid |
|---|---|
| Engine code | M 256.930 |
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 2999 |
| Cylinder layout | Inline |
| Number of cylinders | 6 |
| Valves | 24 |
| Turbocharger | + |
| Compression ratio | 10.5:1 |
| Power, hp | 510 |
| Torque, Nm | 750 |
| Number of electric motors | 1 |
| Electric motor power, hp | 150 |
| Combustion engine power, hp | 367 |
| Combustion engine RPM at max power | 5500-6100 |
| Combustion engine torque, Nm | 500 |
| Combustion engine RPM at max torque | 1600-4500 |
| Electric motor torque, Nm | 480 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5179 |
| Width, mm | 2109 |
| Height, mm | 1503 |
| Wheelbase, mm | 3106 |
| Front track, mm | 1655 |
| Rear track, mm | 1683 |
| Kerb weight, kg | 2020 |
| Gross weight, kg | 2720 |
| Fuel tank capacity, L | 65 |
| Turning circle, m | 12.2 |
| Ground clearance, mm | 130 |
| Width without mirrors, mm | 1954 |
| Trunk capacity, L | 540 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
Brake system
| Front brakes | Disc |
|---|---|
| Rear brakes | Disc |
FAQ
Mercedes S-Class (W223) questions
Short answers based on the specifications and photos available in this catalog.
What body style is the Mercedes S-Class W223?
The S-Class W223 is a full-size, four-door luxury sedan. It is available in both standard and long-wheelbase configurations.
What engines are available in the W223 generation?
The lineup includes 3.0-liter inline-six petrol and diesel engines, a 4.0-liter V8, and advanced plug-in hybrid powertrains. All engines are paired with a nine-speed automatic transmission.
Does the S-Class have rear-wheel steering?
Yes, an optional rear-axle steering system is available. It can turn the rear wheels up to 10 degrees to improve low-speed maneuverability and high-speed stability.
What is the Drive Pilot system?
Drive Pilot is the advanced driver assistance suite in the S-Class. It is designed to support Level 3 autonomous driving capabilities on specific highway sections where permitted.
How has the interior changed from the previous generation?
The W223 interior replaces many physical buttons with a large central OLED touchscreen. It also introduces advanced biometric features, including fingerprint and facial recognition, alongside an available 3D instrument cluster.
Explore more
Continue exploring Mercedes
Return to Mercedes models, browse the gallery, or compare the trims listed above.
