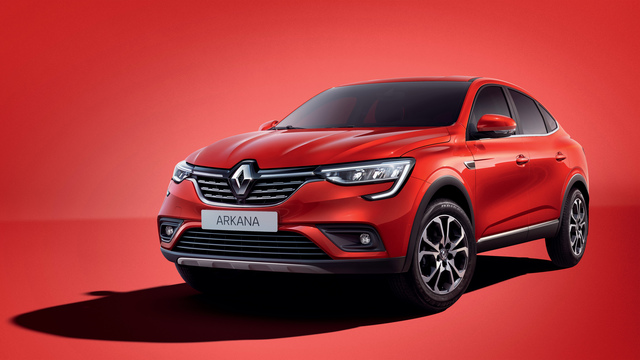

Renault Arkana specifications and photos

Renault Arkana specifications are shown with trim options, key technical data, and a model photo gallery. Compare 5 configurations by engine size, power, seating, and transmission. The gallery includes 64 photos for visual reference.

Years 2019
Body type suv
Trims 5
Photos 64

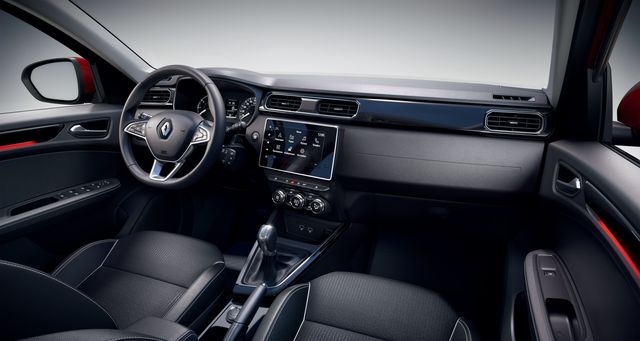

Interior of Renault Arkana 2019
Overview

Renault Arkana at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Renault Arkana page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 114-150 hp and 1332-1598 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

  • Power: 114-150 hp
  • Engine displacement: 1332-1598 cc
  • Transmissions: 5-speed manual, 6
  • Seating: 5 seats
Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 114-150 hp
Engine displacement 1332-1598 cc
Seating 5 seats
Transmissions 5-speed manual, 6
Trim / modification Engine Power Seats Transmission
1.6i (114 HP) 5-speed manual 1598 cc 114 hp 5 5-speed manual
1.6i (114 HP) 6-Mech 4x4 1598 cc 114 hp 5 6
1.6i (114 HP) CVT Xtronic 1598 cc 114 hp 5 -
1.3i (150 HP) CVT Xtronic 1332 cc 150 hp 5 -
1.3i (150 HP) CVT Xtronic 4x4 1332 cc 150 hp 5 -

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

1.6i (114 HP) 5-speed manual 1.6i (114 HP) 6-Mech 4x4 1.6i (114 HP) CVT Xtronic 1.3i (150 HP) CVT Xtronic 1.3i (150 HP) CVT Xtronic 4x4
1.6i (114 HP) 5-speed manual 34 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1598
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 114
Torque, Nm 156
RPM at max torque 4400
Engine 1.6i
Compression 10.7
RPM at max power 6000
Engine code H4M

Dimensions

Seats 5
Length mm 4545
Width 2063
Height mm 1565
Wheelbase mm 2721
Front track, mm 1591
Rear track, mm 1586
Kerb weight, kg 1471
Trunk capacity, L 508
Fuel tank, l 50
Turning circle, m 11
Ground clearance, mm 208
Gross weight, kg 1926
Width (without mirrors) mm 1843

Performance and fuel consumption

The rate of toxicity Euro VI

Transmission and drive

Number of gears 5
Drive Front
Transmission 5-speed manual
Gearbox Mechanics
Transmission manufacturer RMR
Transmission country of origin Romania
1.6i (114 HP) 6-Mech 4x4 33 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1598
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 114
Torque, Nm 156
RPM at max torque 4400
Engine 1.6i
Compression 10.7
RPM at max power 6000
Engine code H4M

Dimensions

Seats 5
Length mm 4545
Width 2063
Height mm 1565
Wheelbase mm 2721
Front track, mm 1591
Rear track, mm 1586
Kerb weight, kg 1471
Trunk capacity, L 508
Fuel tank, l 50
Turning circle, m 11
Ground clearance, mm 208
Gross weight, kg 1926
Width (without mirrors) mm 1843

Performance and fuel consumption

The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Full
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer RMR
1.6i (114 HP) CVT Xtronic 34 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1598
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 114
Torque, Nm 156
RPM at max torque 4400
Engine 1.6i
Compression 10.7
RPM at max power 6000
Engine code H4M

Dimensions

Seats 5
Length mm 4545
Width 2063
Height mm 1565
Wheelbase mm 2721
Front track, mm 1591
Rear track, mm 1586
Kerb weight, kg 1471
Trunk capacity, L 508
Fuel tank, l 50
Turning circle, m 11
Ground clearance, mm 208
Gross weight, kg 1926
Width (without mirrors) mm 1843

Performance and fuel consumption

The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Drive Front
Transmission CVT
Gearbox Variable speed drive
Transmission manufacturer Jatco
Transmission country of origin Japan
1.3i (150 HP) CVT Xtronic 40 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1332
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 150
Torque, Nm 250
RPM at max torque 1700
Engine 1.3i
Compression 10.5
RPM at max power 5250
Turbo +
Engine code H5Ht

Dimensions

Seats 5
Length mm 4545
Width 2063
Height mm 1565
Wheelbase mm 2721
Front track, mm 1591
Rear track, mm 1586
Kerb weight, kg 1471
Trunk capacity, L 508
Fuel tank, l 50
Turning circle, m 11
Ground clearance, mm 208
Gross weight, kg 1926
Width (without mirrors) mm 1843

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 9.1
Fuel consumption (urban), l. 100 km 6
Fuel consumption (combined), l. 100 km 7.1
Acceleration (0-100 km/h), s 10.2
The maximum speed, km / h. 191
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Drive Front
Transmission CVT
Gearbox Variable speed drive
Transmission manufacturer Jatco
Transmission country of origin Japan
1.3i (150 HP) CVT Xtronic 4x4 40 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1332
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 150
Torque, Nm 250
RPM at max torque 1700
Engine 1.3i
Compression 10.5
RPM at max power 5250
Turbo +
Engine code H5Ht

Dimensions

Seats 5
Length mm 4545
Width 2063
Height mm 1565
Wheelbase mm 2721
Front track, mm 1591
Rear track, mm 1586
Kerb weight, kg 1471
Trunk capacity, L 508
Fuel tank, l 50
Turning circle, m 11
Ground clearance, mm 208
Gross weight, kg 1926
Width (without mirrors) mm 1843

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 9.1
Fuel consumption (urban), l. 100 km 6.1
Fuel consumption (combined), l. 100 km 7.2
Acceleration (0-100 km/h), s 10.5
The maximum speed, km / h. 191
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Drive Full
Transmission CVT
Gearbox Variable speed drive
Transmission manufacturer Jatco
Transmission country of origin Japan
FAQ

Renault Arkana questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Renault Arkana?

This page lists 5 trims for the Renault Arkana, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Renault Arkana?

The listed configurations show a power range of 114-150 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Renault Arkana?

The available specification data shows engine displacement from 1332-1598 cc across the trims listed on this page.

Which transmissions are listed for the Renault Arkana?

The transmission options currently shown for this model are: 5-speed manual, 6. Open a trim section to see the full data for a specific configuration.

Are there photos for the Renault Arkana?

Yes. The gallery includes 64 photos for the Renault Arkana, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
