Renault Arkana specifications and photos
The 2023 Renault Arkana is a front-wheel-drive coupe-SUV that represents a mid-cycle facelift for the model's first generation. Originally introduced to the public in July 2023, this updated crossover features refreshed styling cues and a choice of mild-hybrid or full-hybrid powertrains.
Renault Arkana at a glance
Quick model context before comparing photos and trim-level specifications.
The 2023 Renault Arkana continues to compete in the compact coupe-SUV segment, targeting buyers who want a blend of elevated crossover practicality and sleek fastback styling. As a facelifted version of the first generation, the 2023 model introduces updated visual details, including the brand's Nouvel'R logo integrated into a restyled grille pattern. The vehicle is offered in three primary trim levels: Evolution, Techno, and the sport-oriented Esprit Alpine. These trims determine the exterior accent finishes, which range from gloss black to satin chrome or dark chrome. By offering both 12-volt mild-hybrid turbocharged engines and a 230-volt full-hybrid system, the Arkana caters to urban drivers looking for improved fuel efficiency and lower emissions in a modern front-wheel-drive package.
- Power: 140-160 hp
- Engine displacement: 1332-1598 cc
- Transmissions: 7-EDC, Multimode Clutchless Gearbox
- Seating: 5 seats
Photos, trims and specifications for Renault Arkana
This model page brings gallery images, trim comparison, and detailed technical data together for the 2023 generation.
Renault Arkana overview
Editorial context for design, cabin, performance, practicality, and buyer notes.
Design

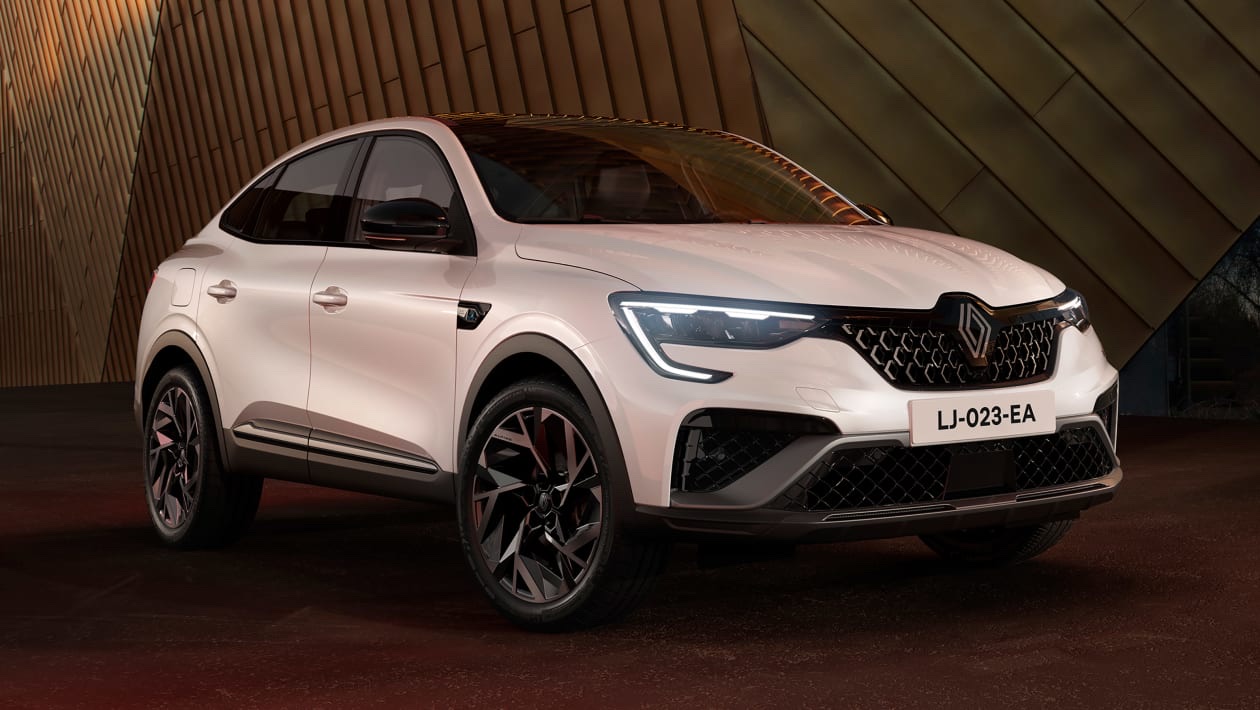

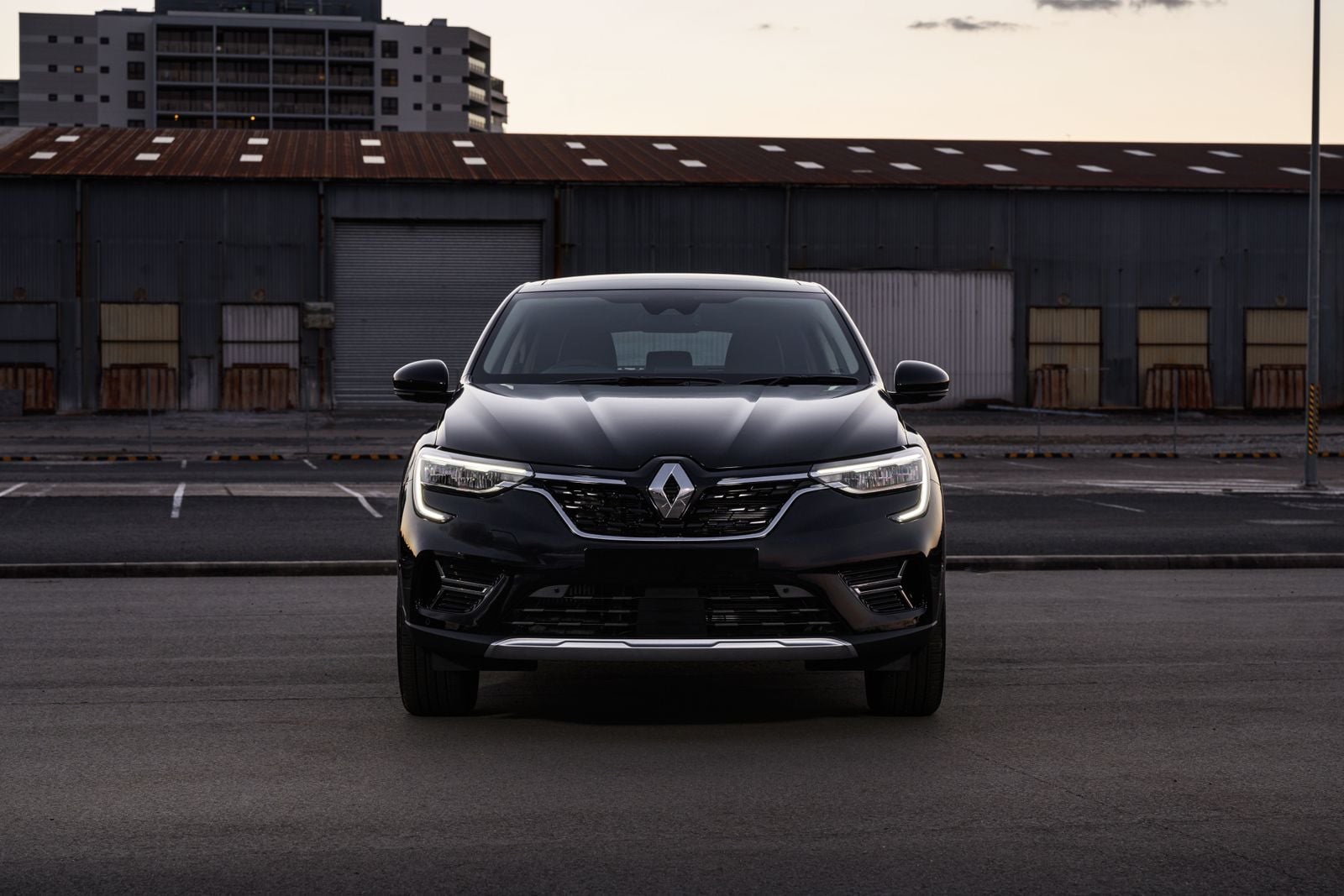

The updated Arkana features Renault's Nouvel'R logo prominently placed within the front grille, complemented by a glossy black horizontal strip that links the headlights. Depending on the selected trim level, the diamond-patterned grille elements are finished in black, satin chrome, or dark chrome. The range-topping Esprit Alpine variant gains sporty design enhancements, such as Satin Grey blades on the front bumper, Shale Grey badges on the fenders, and larger 19-inch alloy wheels. Aerodynamics are also optimized on this sportier model with an integrated roof spoiler cutout above the tailgate.
Interior
Inside, the base Arkana comes equipped with the Renault EASY LINK infotainment system, featuring built-in navigation and wireless support for Android Auto and Apple CarPlay. A large digital driver's display provides clear access to essential instrumentation. For the Esprit Alpine trim, the cabin is upgraded with sport seats upholstered in Eco Tep—a blend of bio-materials and faux suede—accented by blue stitching and Alpine logos. The steering wheel and door panels also feature French-flag-inspired red, white, and blue stitching, adding a premium feel to the cabin layout.
Performance
The 2023 Arkana engine lineup offers two mild-hybrid variants and one full-hybrid option, all driving the front wheels. The 1.3-liter turbocharged TCe engine is paired with a 12-volt starter-generator and a seven-speed dual-clutch EDC automatic transmission, available in outputs of either 140 horsepower or 160 horsepower. Alternatively, the E-Tech Hybrid uses a 1.6-liter naturally aspirated engine paired with an electric motor and generator to produce a combined 143 horsepower. This full hybrid uses a multimode clutchless gearbox and a 1.2 kWh battery, enabling short periods of purely electric driving at speeds up to 75 km/h.
Practicality
With its five-door coupe-crossover body style, the Arkana offers 200 mm of ground clearance, making it suitable for light rough-road use and urban curbs. The vehicle measures 4568 mm in length with a 2720 mm wheelbase, providing a stable footprint and reasonable passenger space. Luggage capacity stands at 480 liters in the boot, offering practical storage for daily shopping and travel bags. Fuel capacity is 50 liters, which supports a decent driving range, particularly when paired with the hybrid powertrain configurations.
Safety and tech
Technology in the 2023 Arkana is centered around the EASY LINK infotainment setup, which handles navigation, system settings, and wireless smartphone integration. Driver safety and convenience are enhanced by a digital instrument panel that places key driving data directly in the driver's line of sight. The mild-hybrid models include a 12-volt system that operates the Start/Stop function, assists the internal combustion engine during heavy acceleration, and allows the engine to shut off during coasting to save fuel.
Buyer notes
When comparing trims, buyers can choose between the entry-level Evolution, the mid-tier Techno, and the sporty Esprit Alpine. Those looking for maximum fuel efficiency and urban electric driving should opt for the 1.6-liter E-Tech hybrid, though it has a slightly slower 0-100 km/h time of 10.8 seconds compared to the 1.3 TCe turbo versions. The 160-hp 1.3 TCe offers the quickest acceleration, reaching 100 km/h in 9.1 seconds. Buyers should note that equipment levels, optional packages, and specific hybrid availability can vary depending on the local market.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 1.3i TCe (140 hp) 7-EDC | 1333 cc | 140 hp | 5 | 7-EDC |
| 1.6h (143 hp) Multimode Clutchless Gearbox | 1598 cc | 143 hp | 5 | Multimode Clutchless Gearbox |
| 1.3 TCe (160 hp) 7-EDC | 1332 cc | 160 hp | 5 | 7-EDC |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

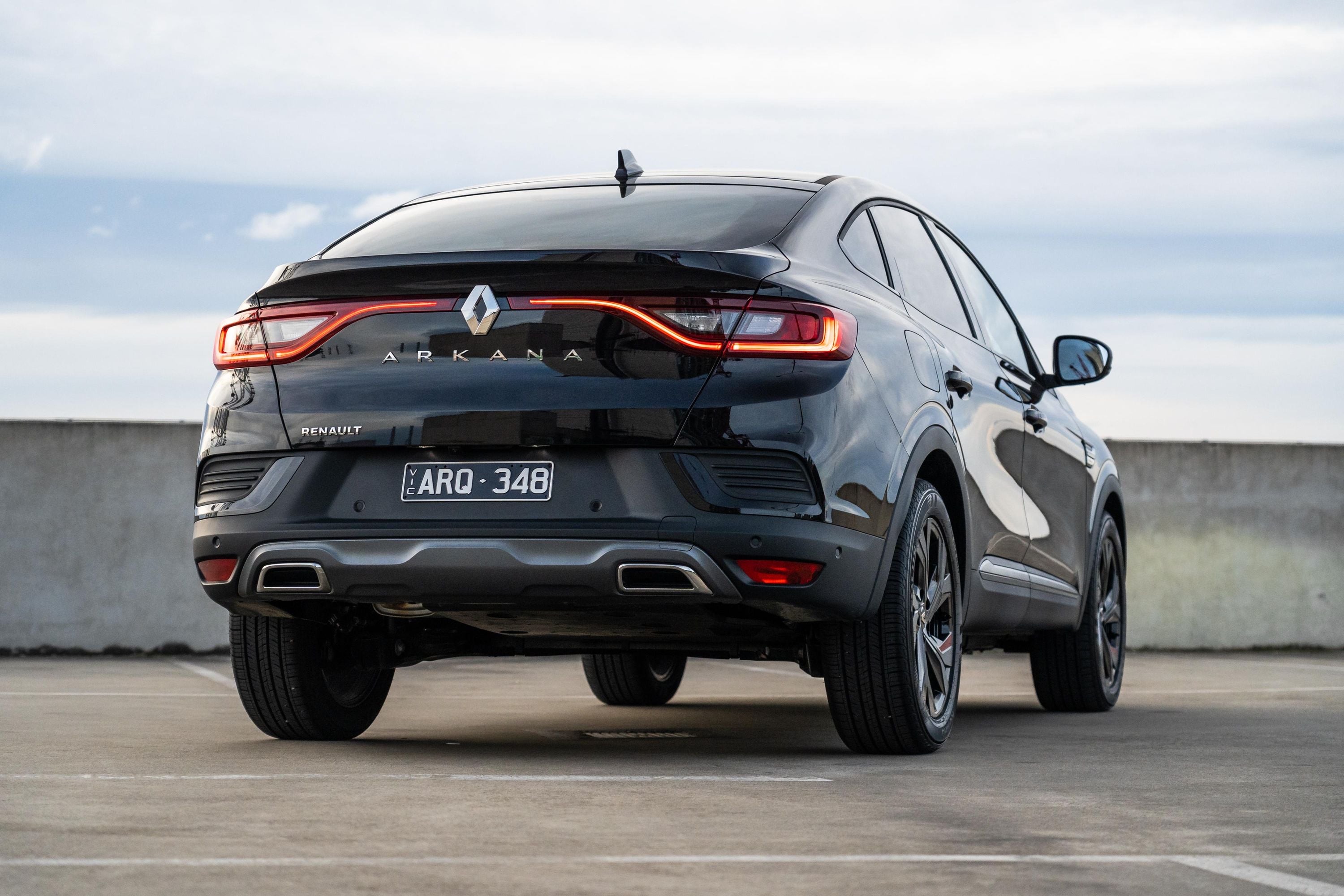

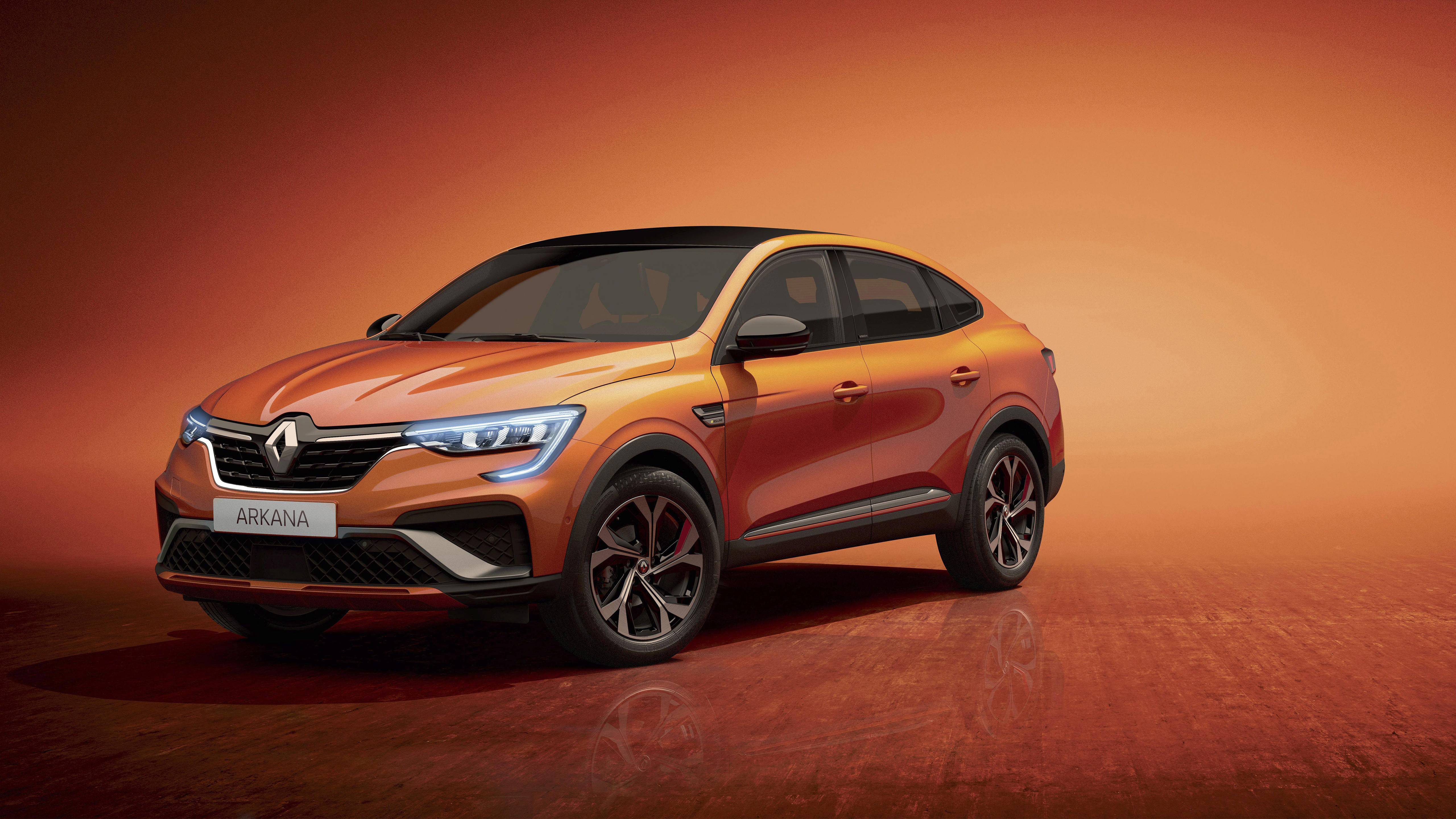

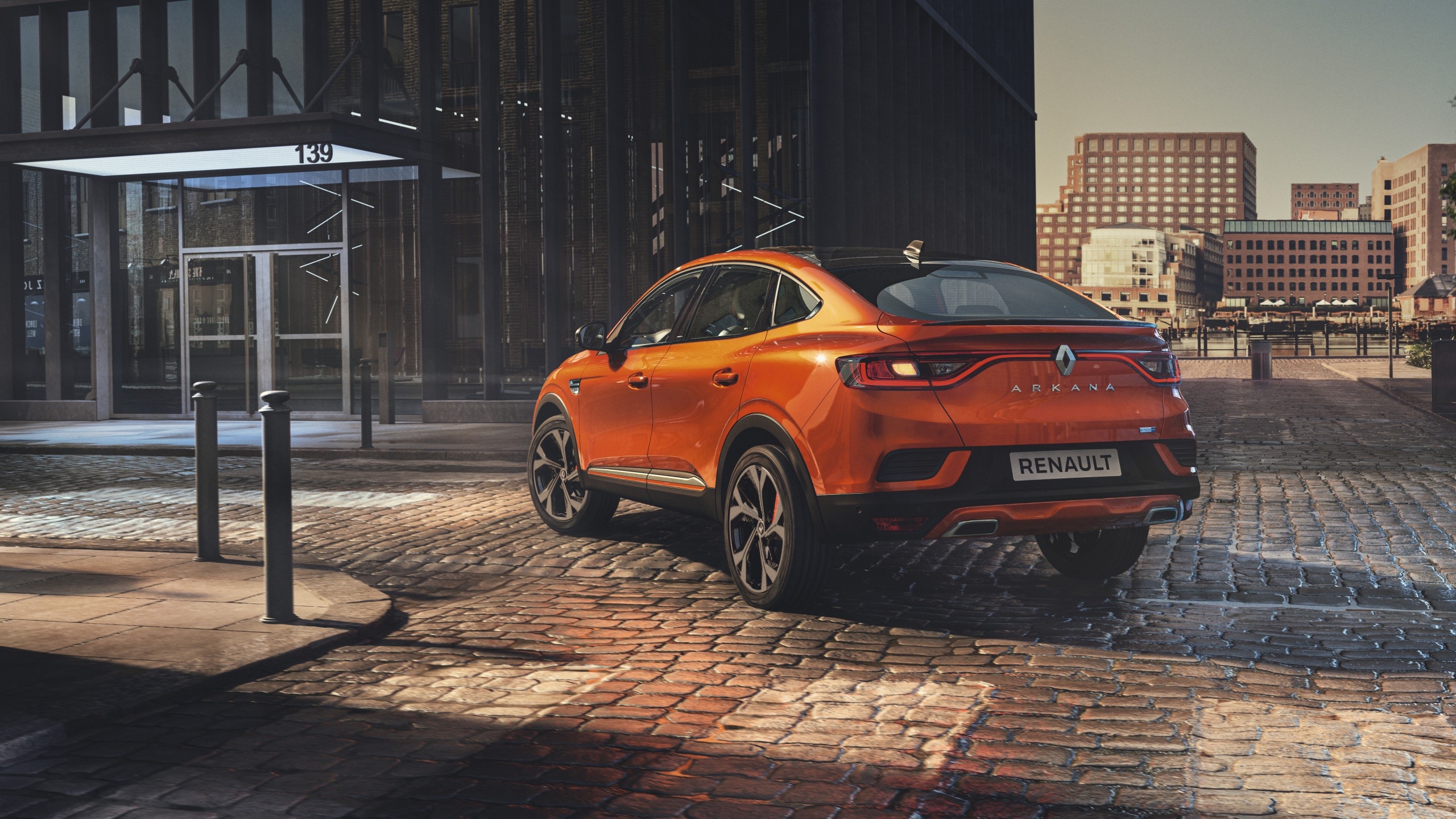

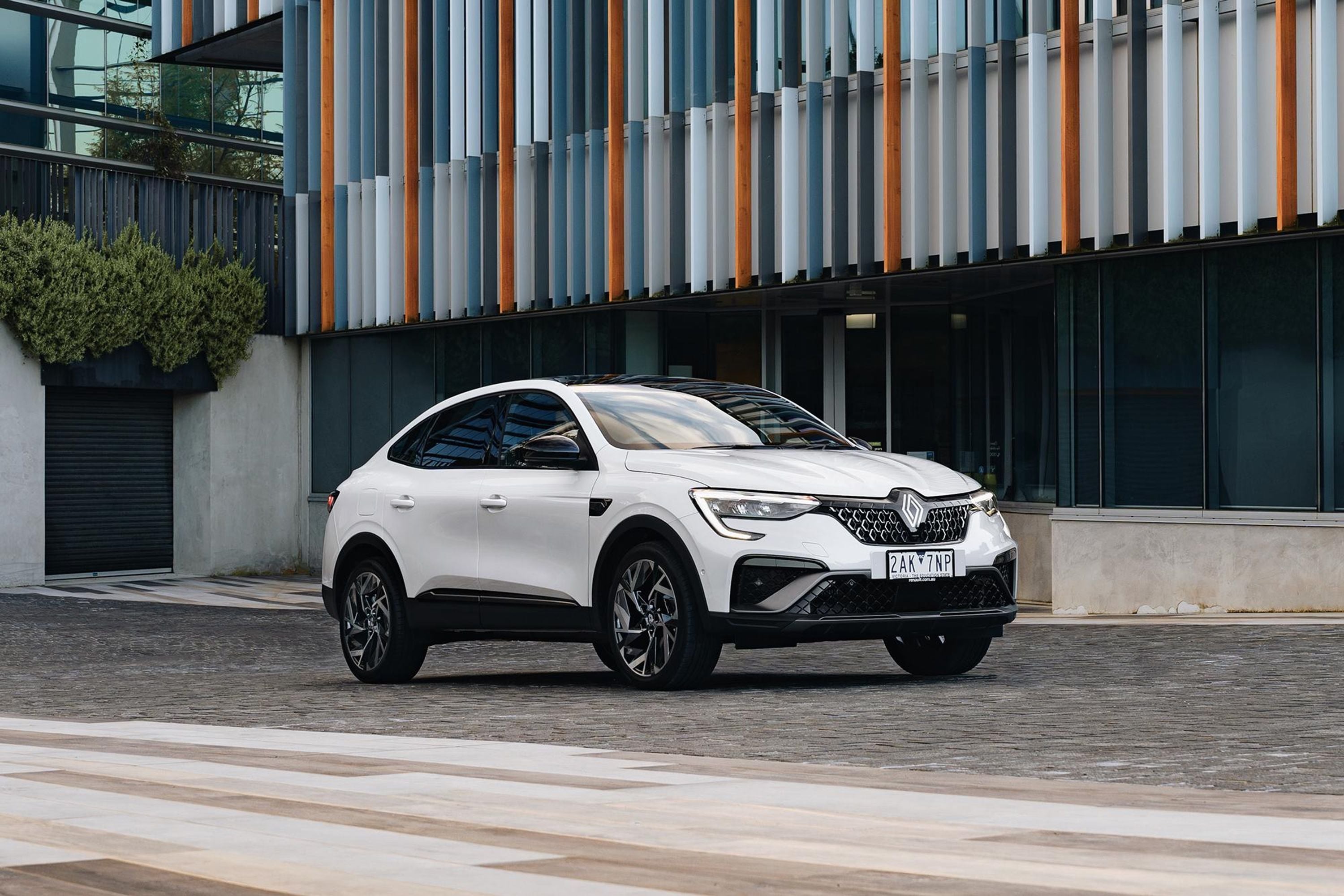

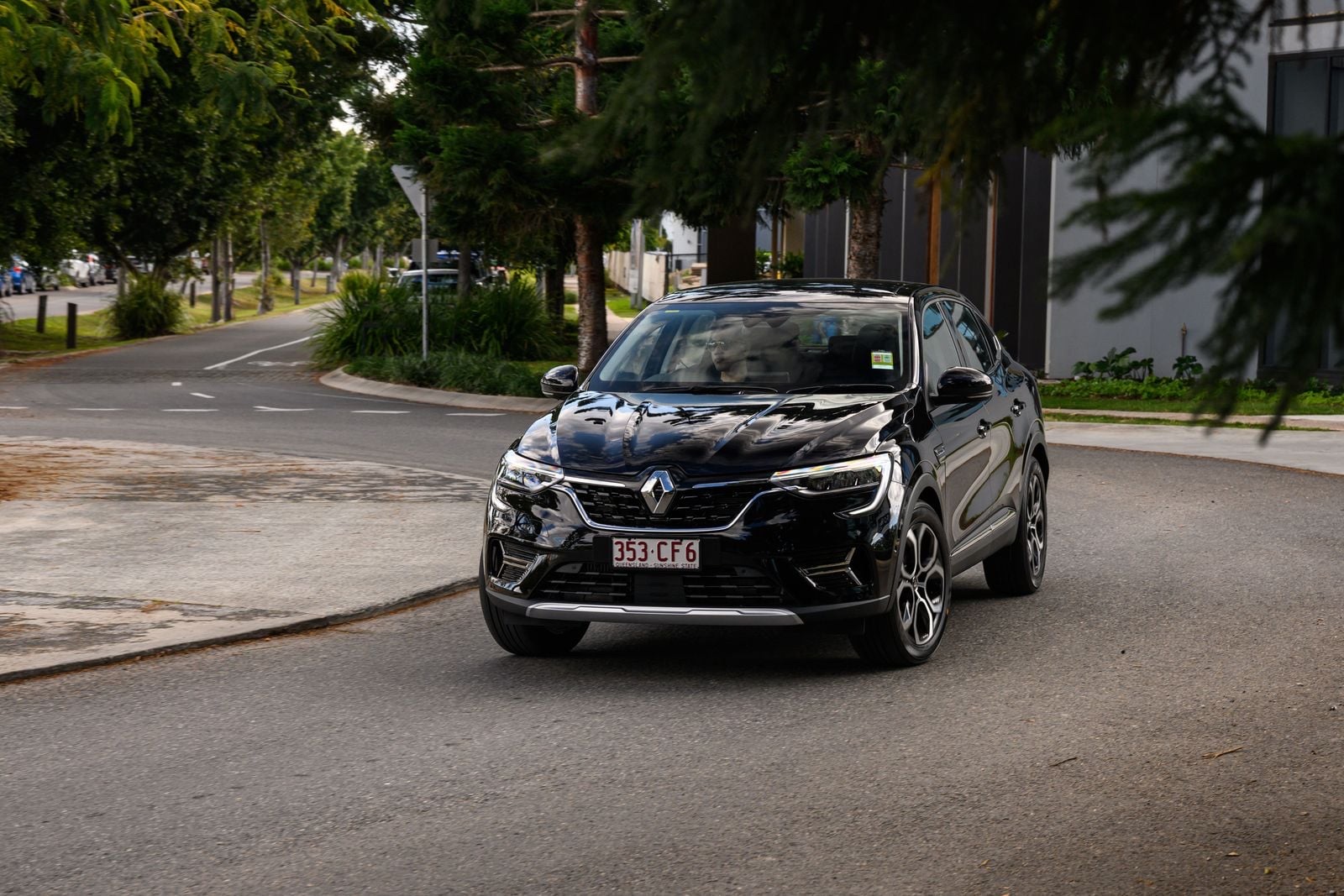

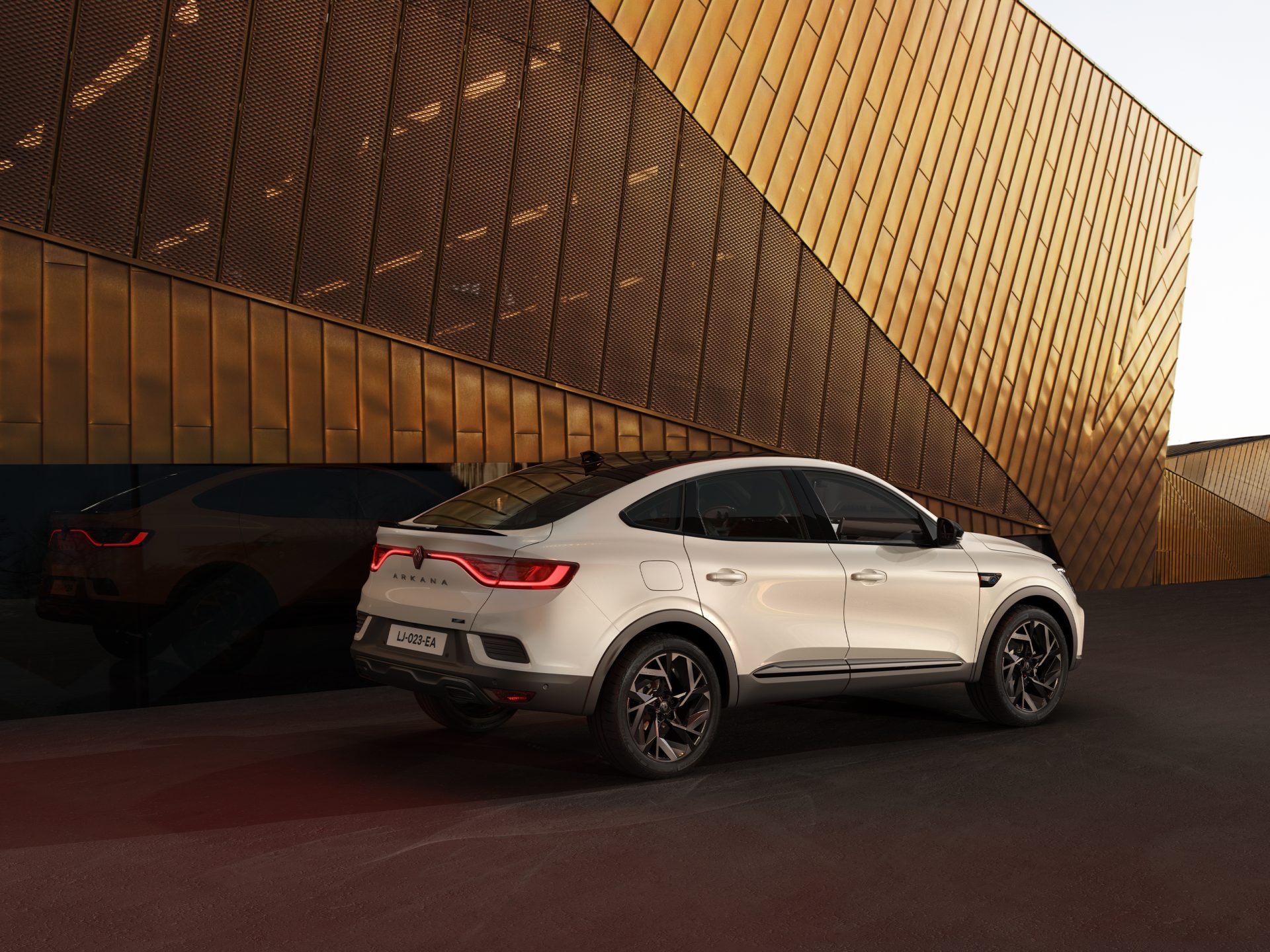

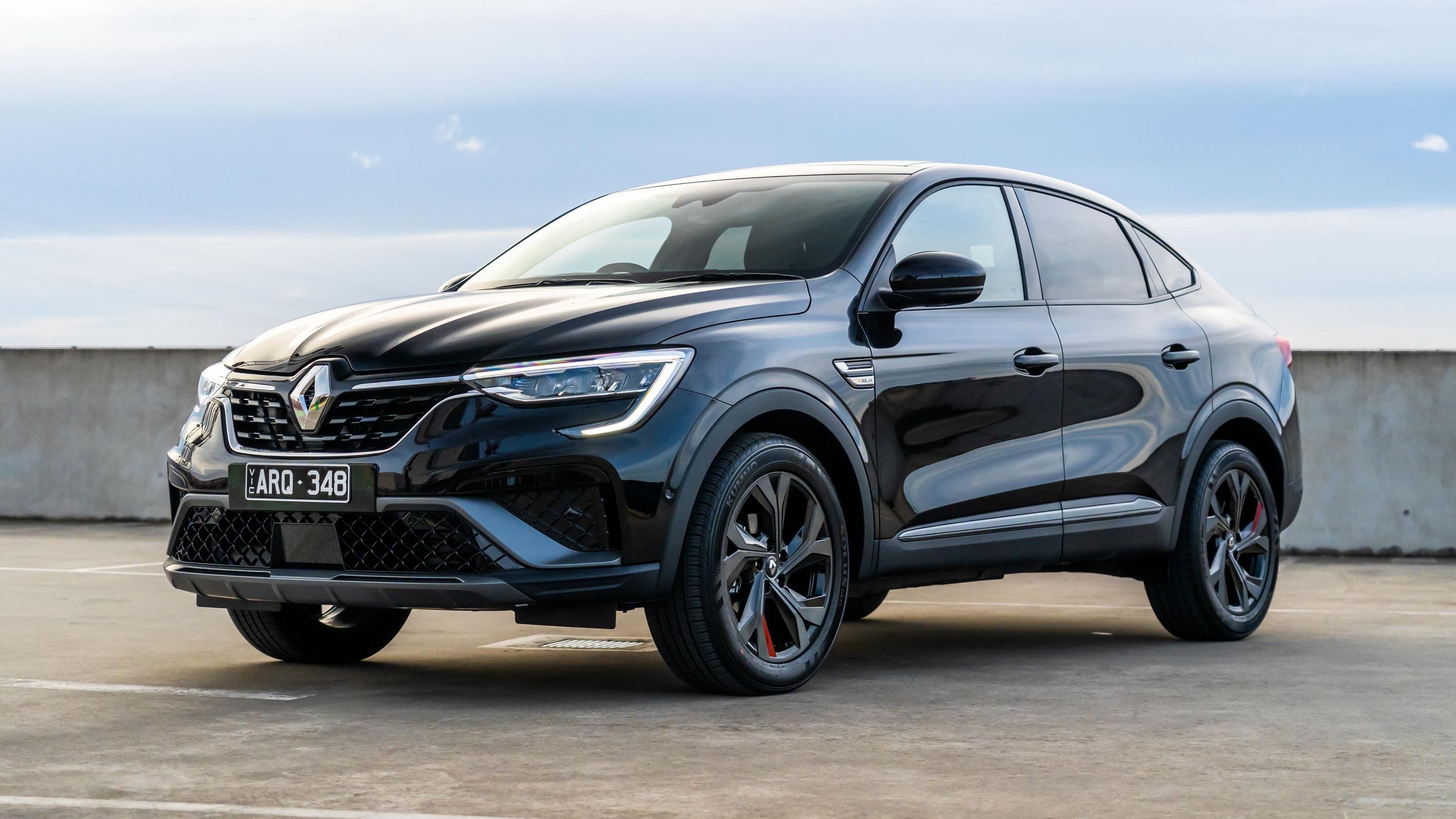

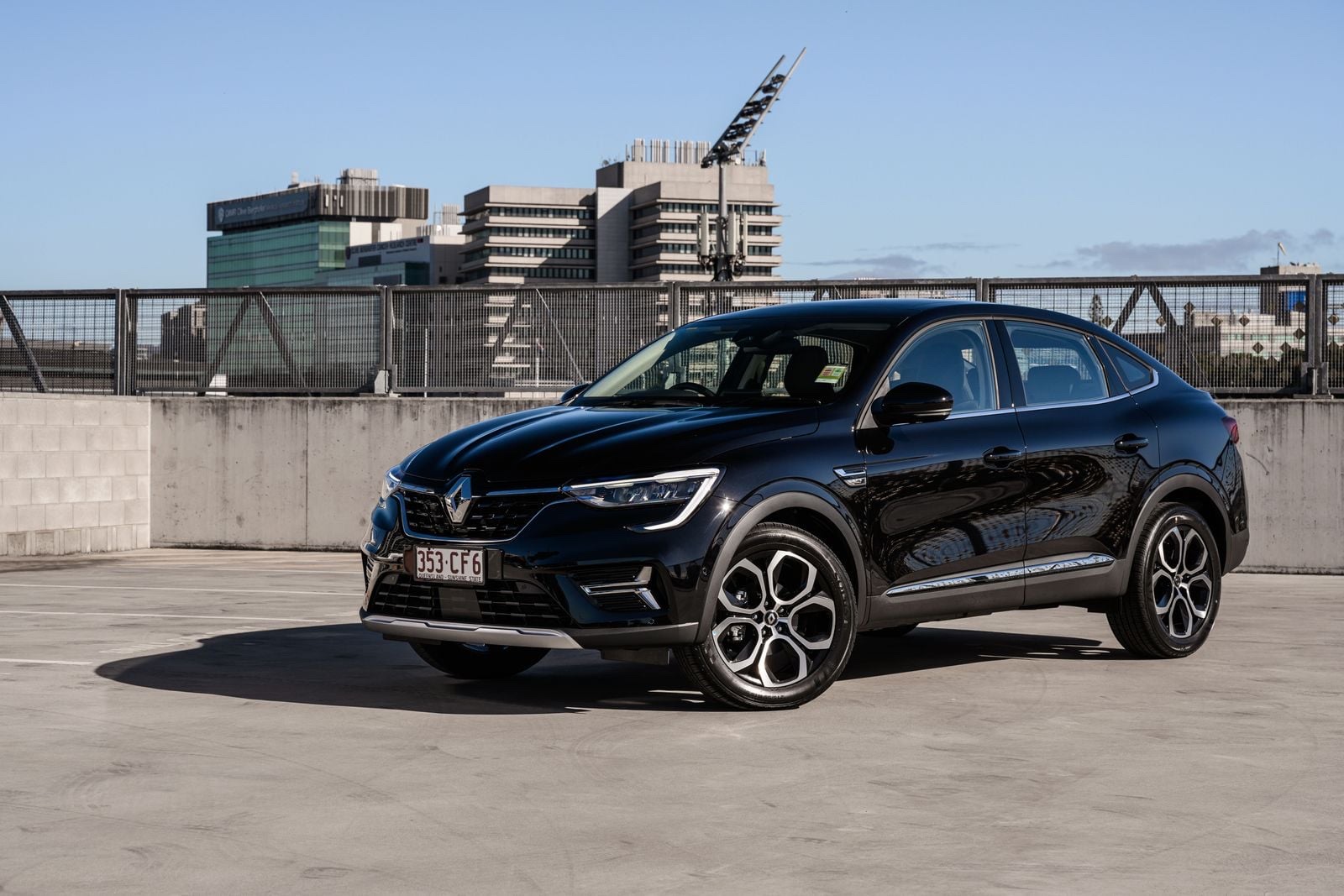

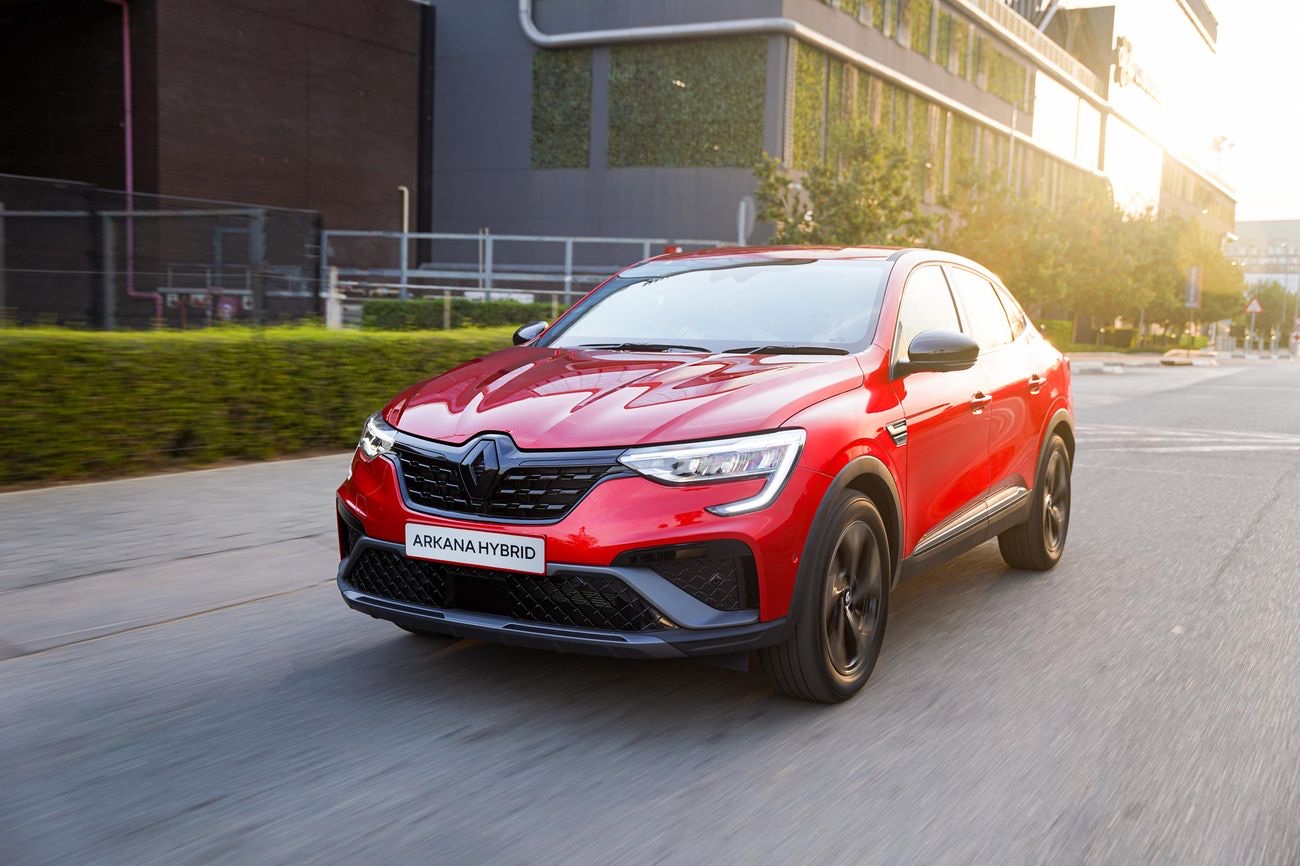

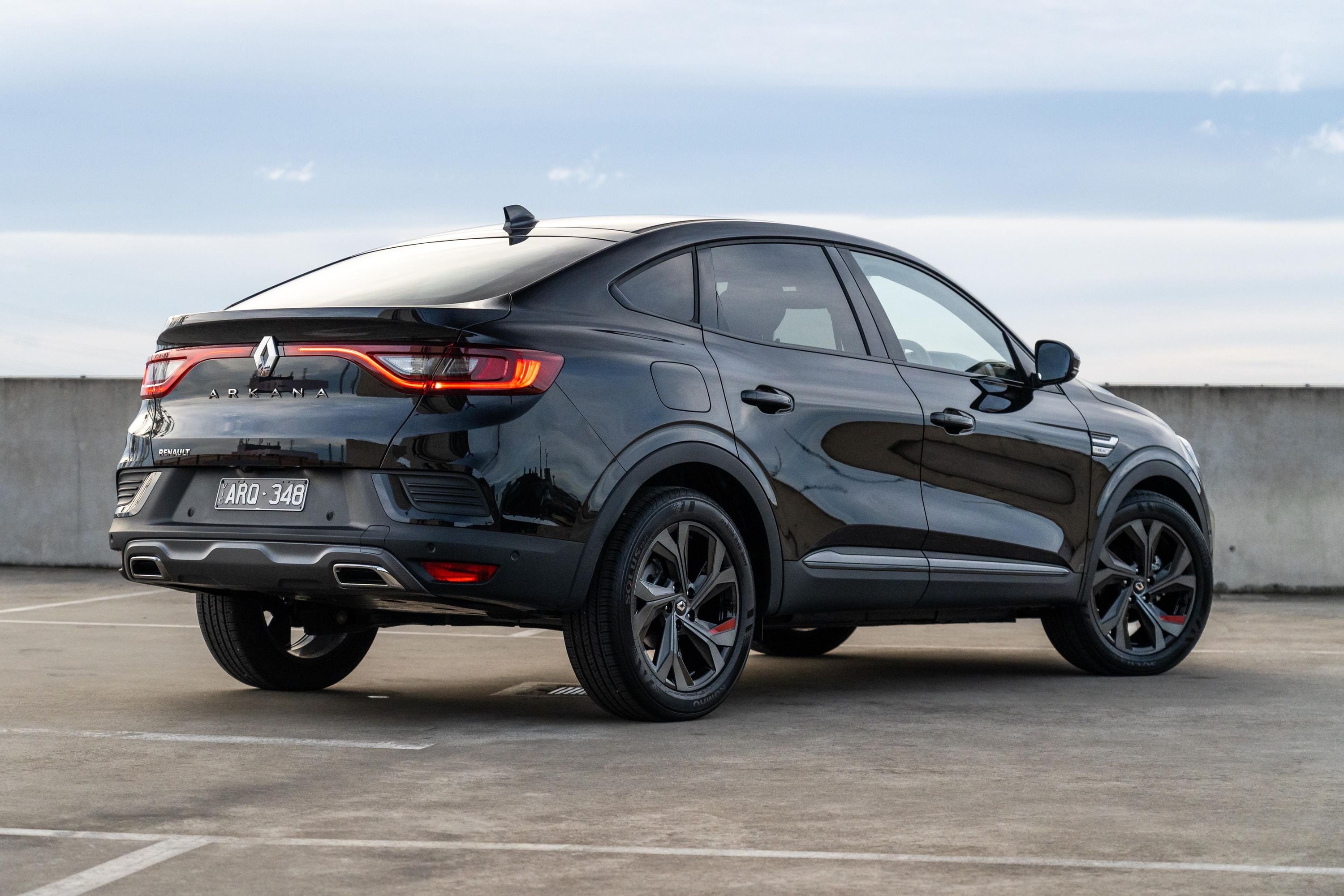

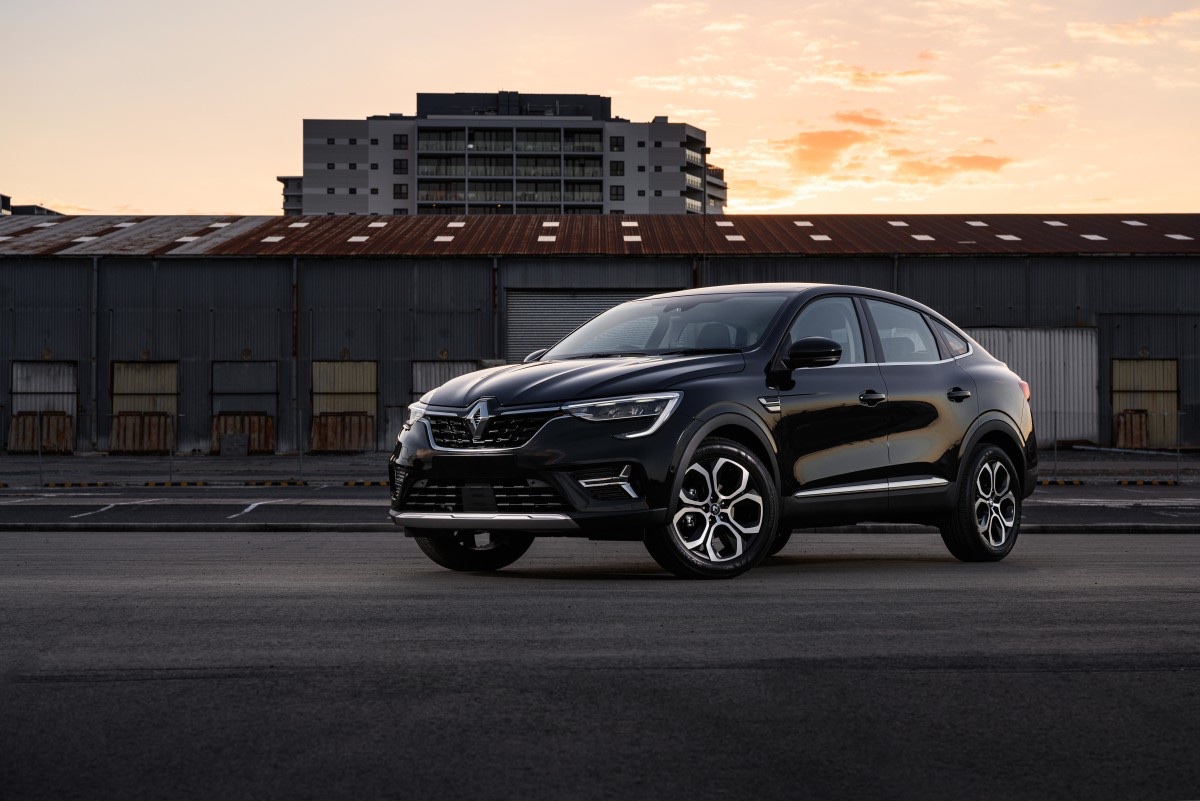

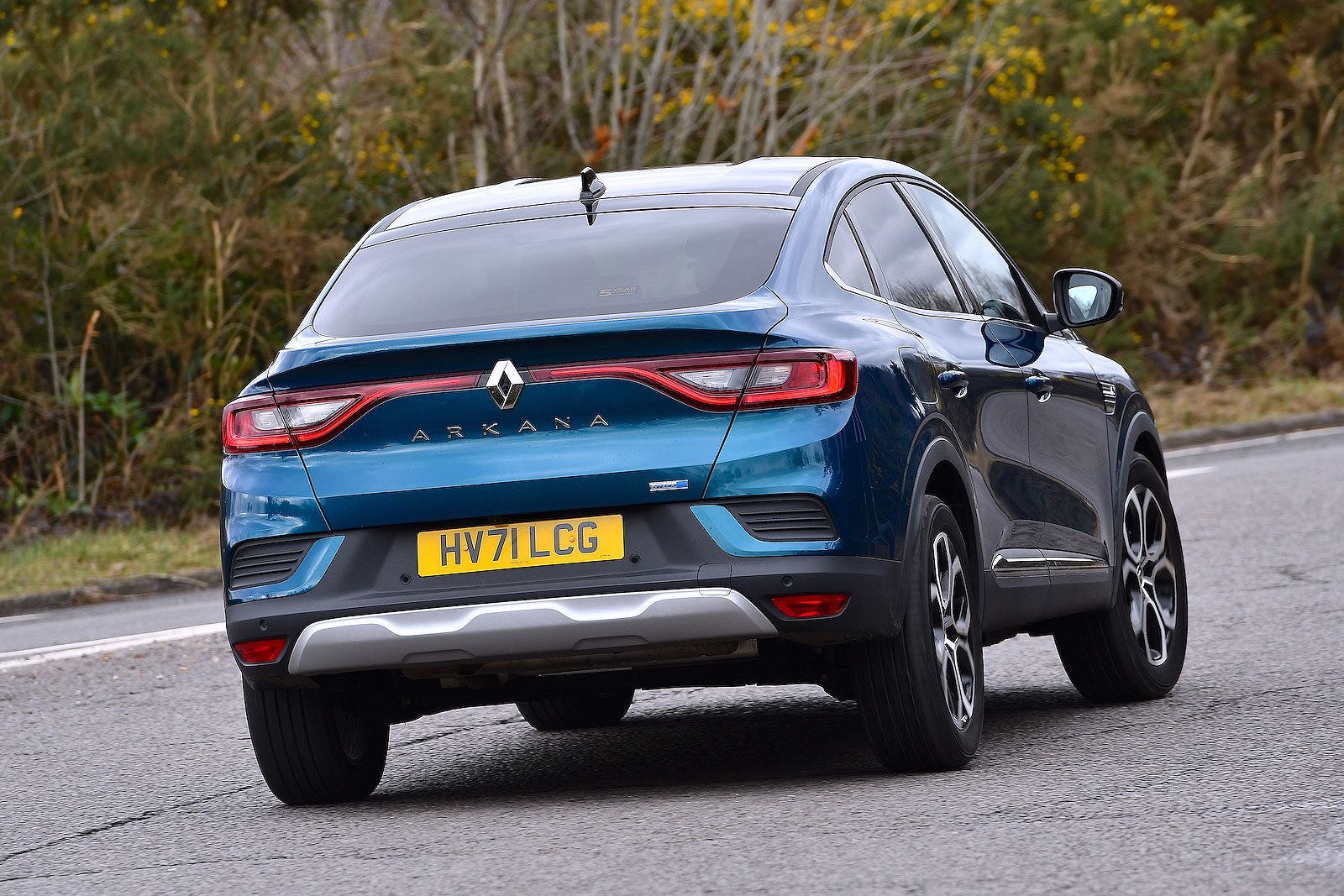

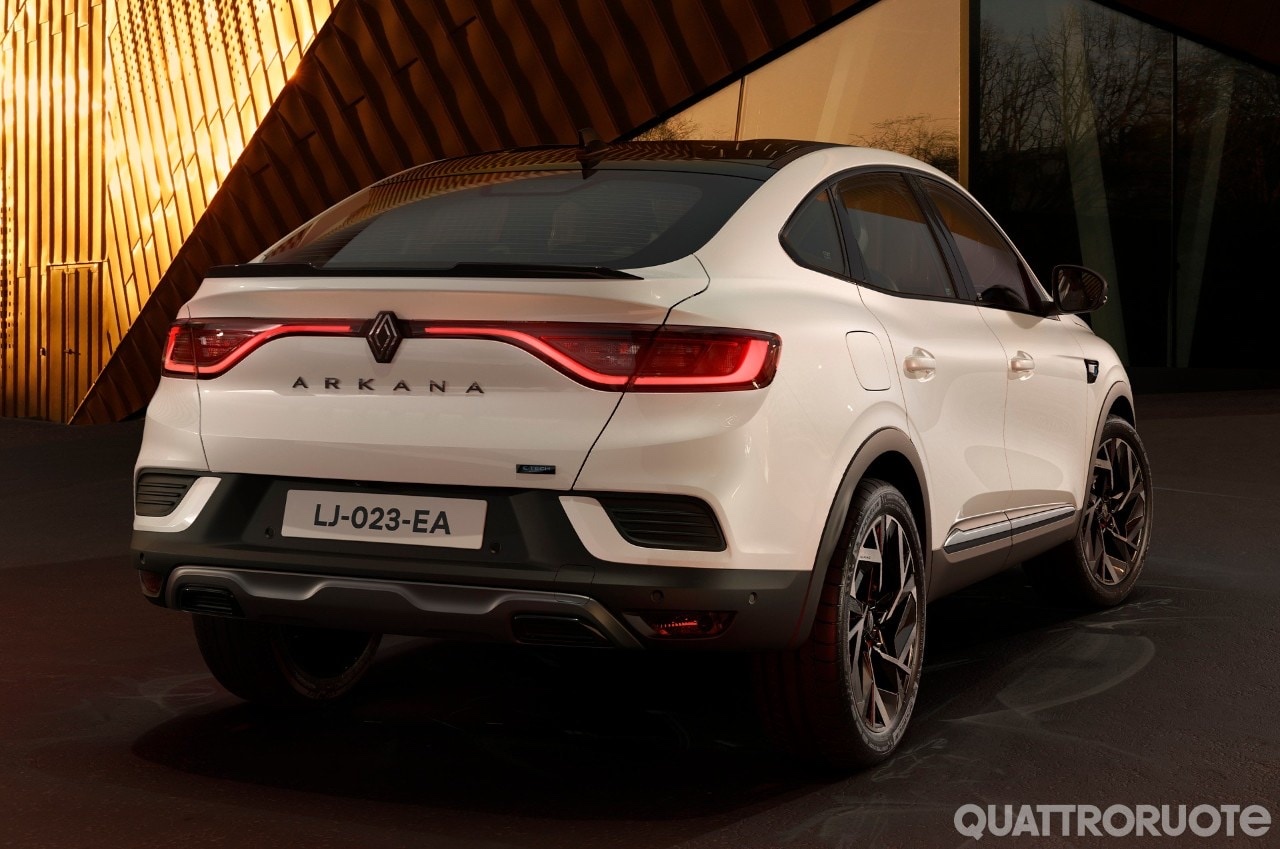

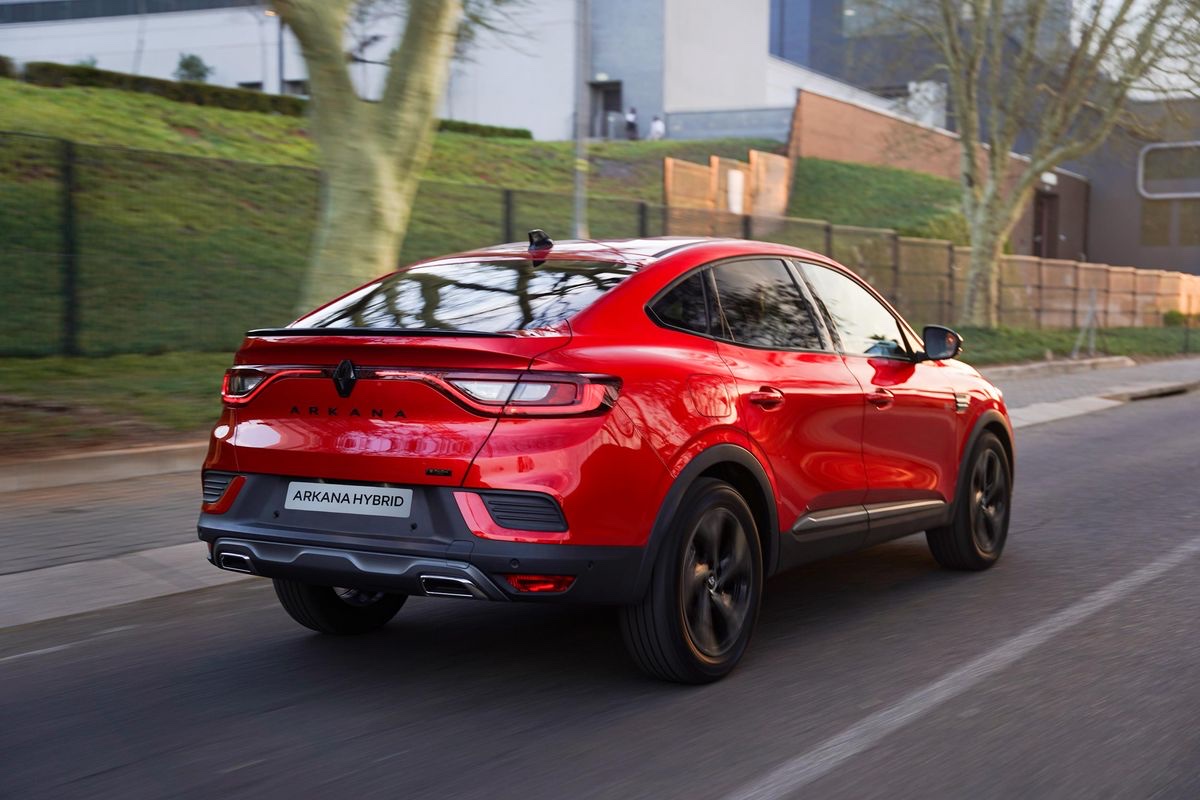

Renault Arkana photo gallery
20 images are collected here with the main specifications and trim data for this model.

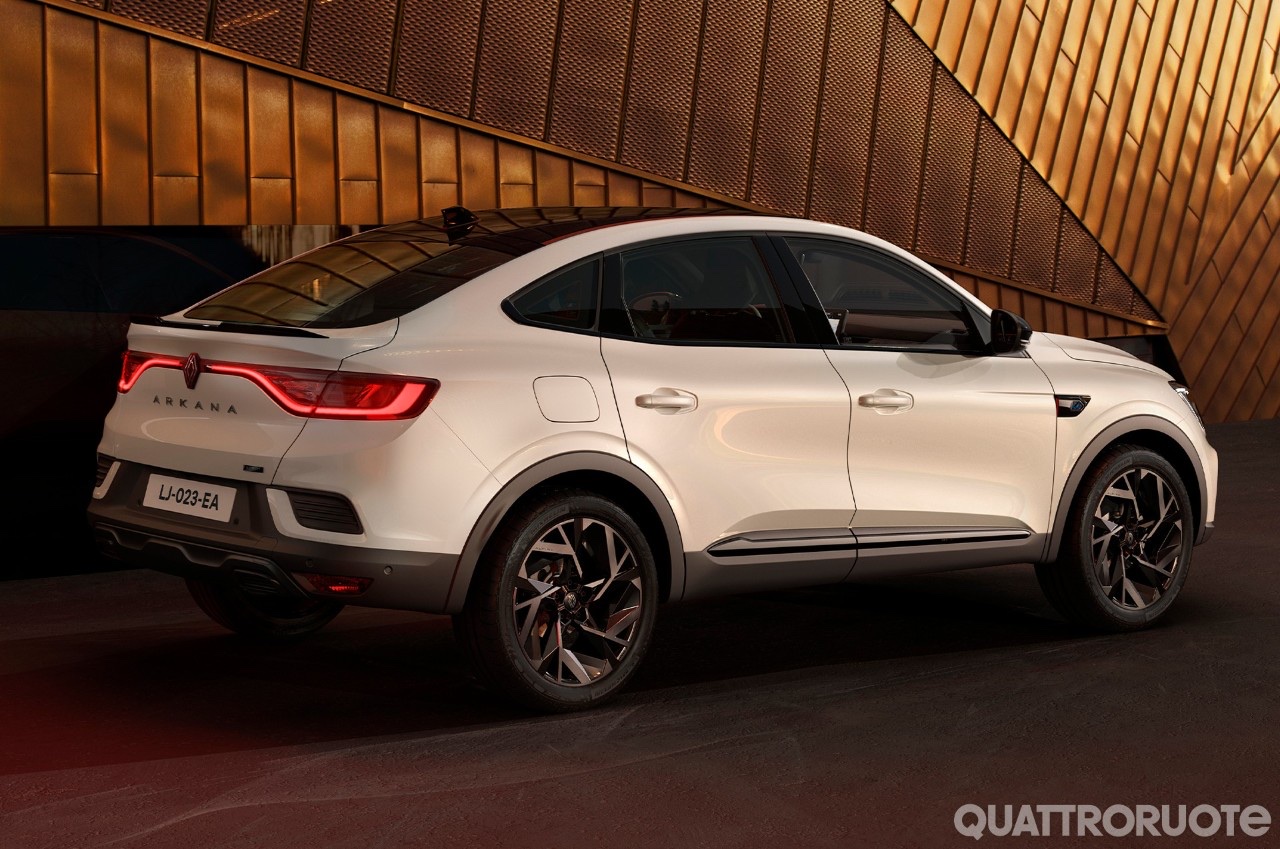

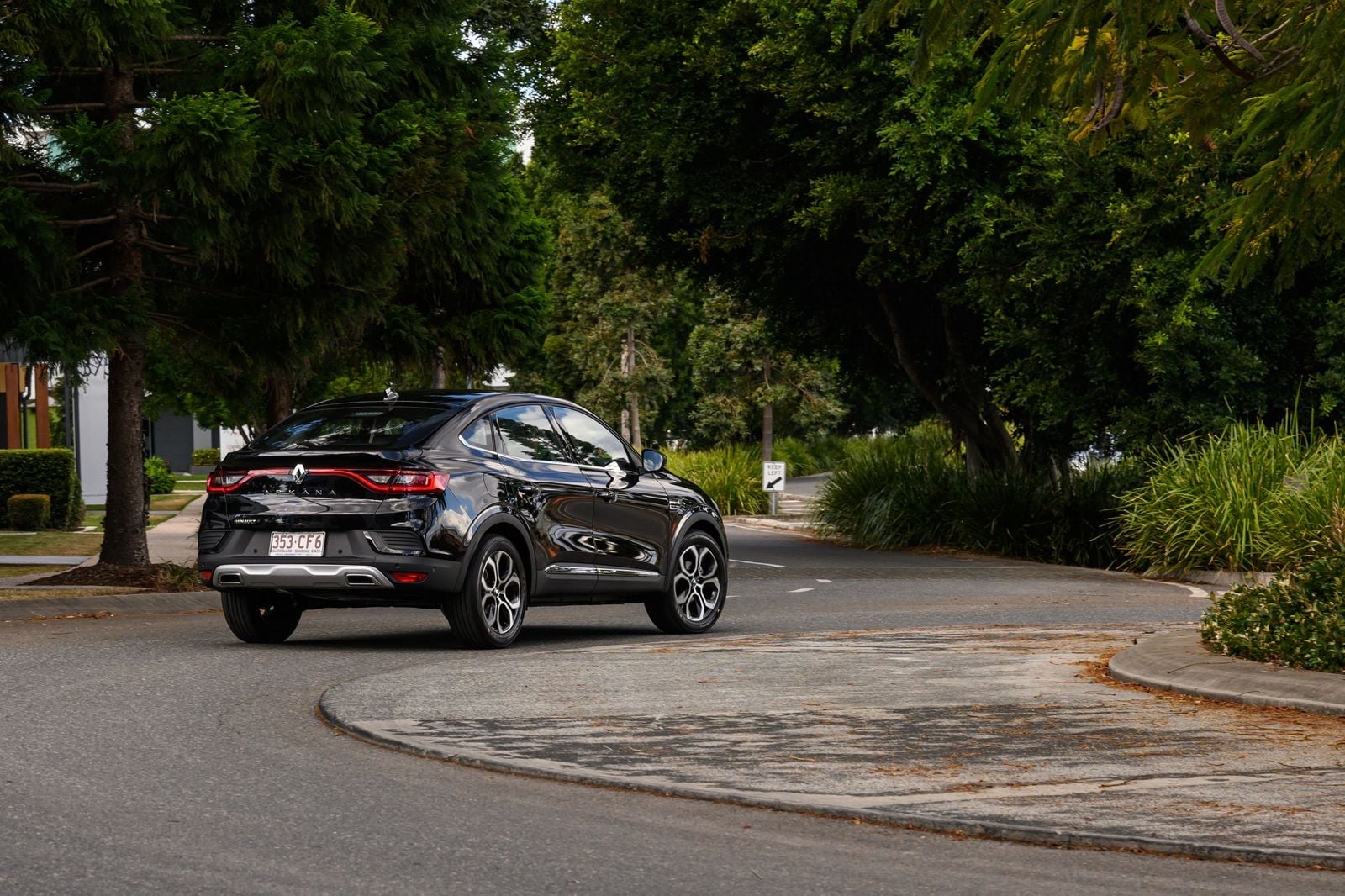

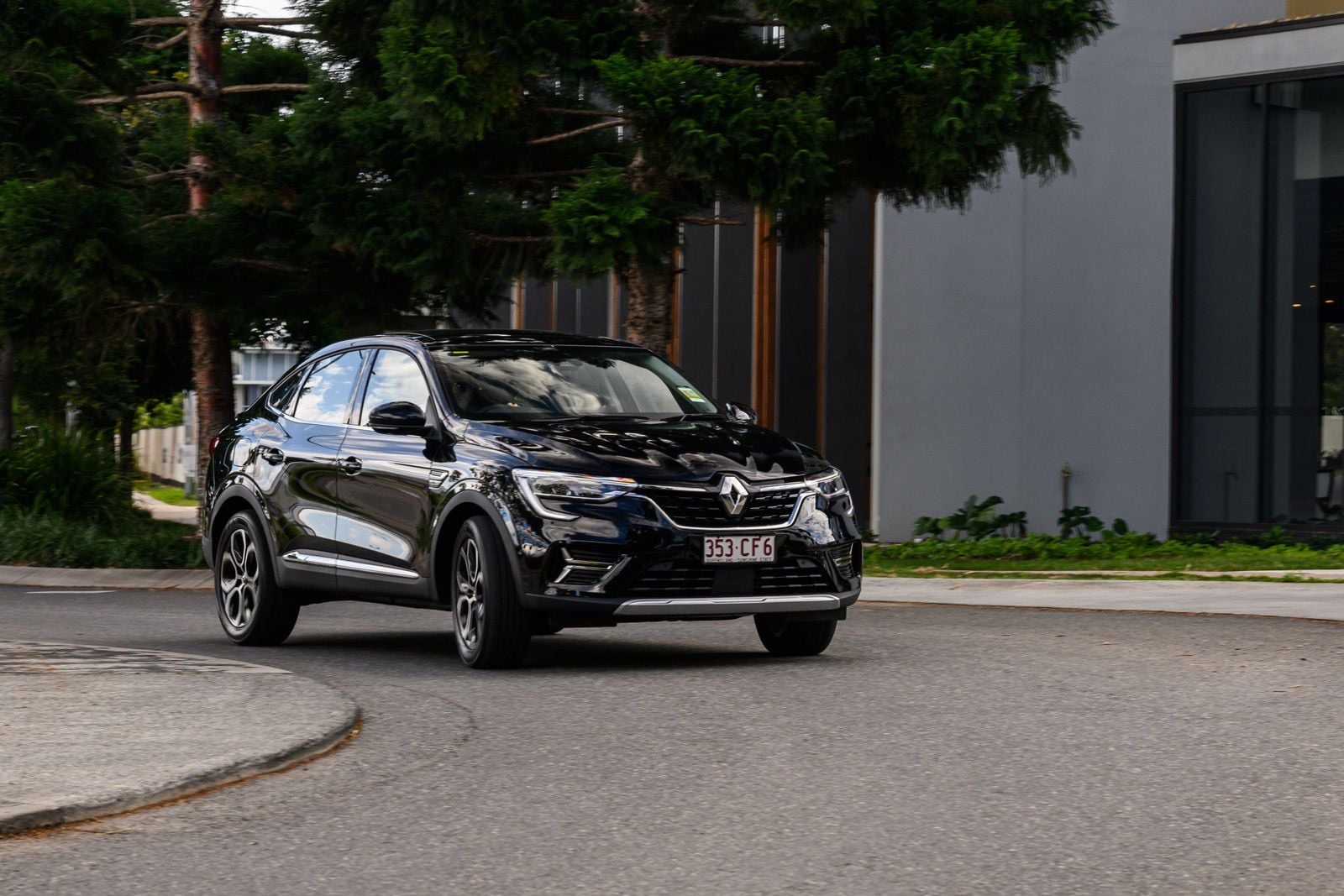

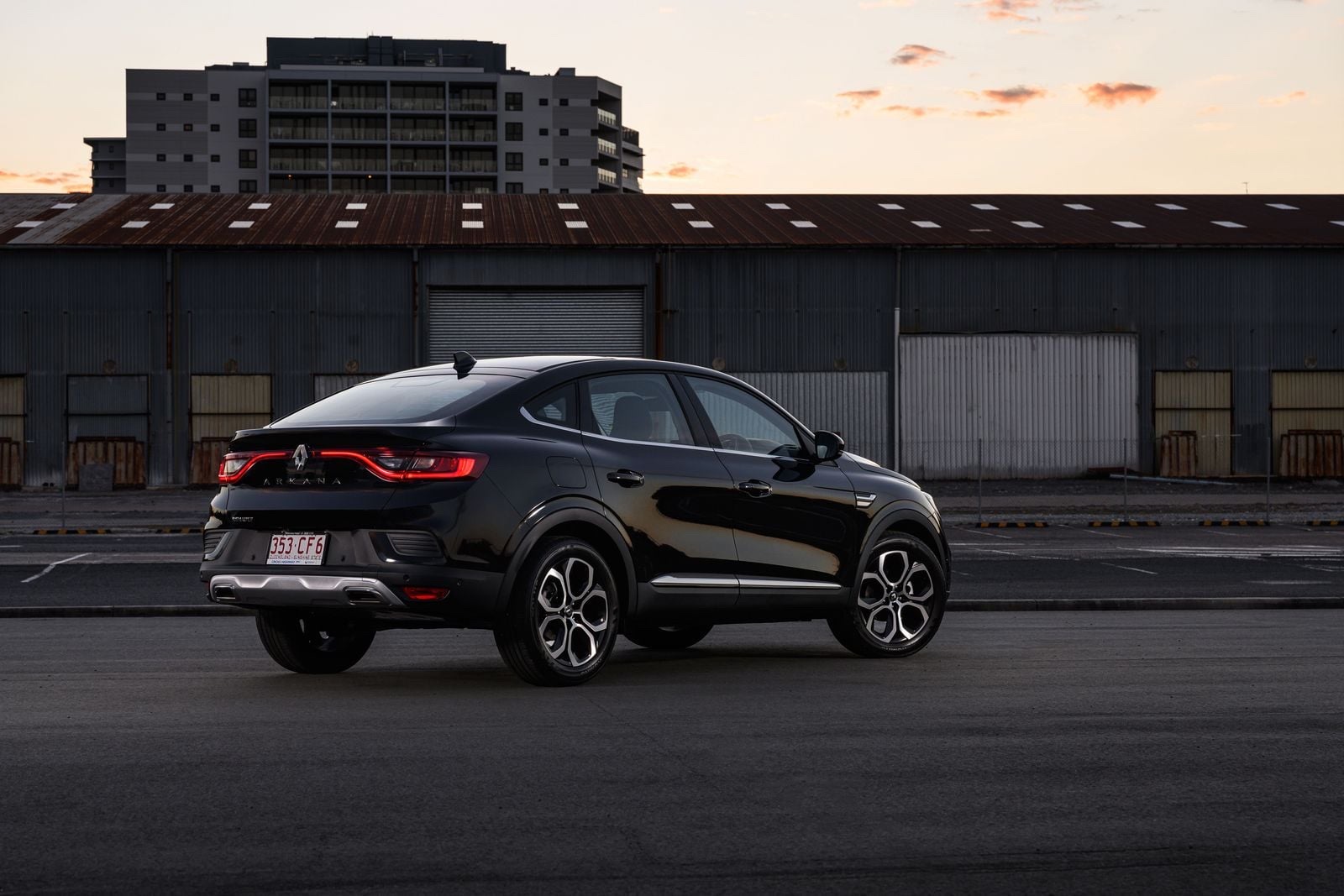

Photo Renault Arkana
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
1.3i TCe (140 hp) 7-EDC 36 specifications
Specifications
Performance and consumption
| Top speed, km/h | 174 |
|---|---|
| Acceleration 0-100 km/h, s | 9.8 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.3i TCe |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1333 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 140 |
| RPM at max power | 4500–6000 |
| Torque, Nm | 260 |
| RPM at max torque | 1750–3500 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4568 |
| Width, mm | 2034 |
| Height, mm | 1576 |
| Wheelbase, mm | 2720 |
| Front track, mm | 1562 |
| Rear track, mm | 1584 |
| Kerb weight, kg | 1336 |
| Gross weight, kg | 1876 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 11.2 |
| Ground clearance, mm | 200 |
| Width without mirrors, mm | 1820 |
| Trunk capacity, L | 480 |
Transmission and drive
| Transmission | 7-EDC |
|---|---|
| Transmission type | 2-speed automated manual |
| Drive | Front-wheel drive |
| Number of gears | 7 |
| Transmission manufacturer | Getrag |
| Automatic transmission | + |
| Transmission country | Germany |
1.6h (143 hp) Multimode Clutchless Gearbox 37 specifications
Specifications
Performance and consumption
| Top speed, km/h | 172 |
|---|---|
| Acceleration 0-100 km/h, s | 10.8 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.6h |
|---|---|
| Engine code | E-Tech Hybrid |
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 1598 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 143 |
| Torque, Nm | 250 |
| Electric motor power, hp | 49 |
| Combustion engine power, hp | 94 |
| Combustion engine RPM at max power | 5600 |
| Combustion engine torque, Nm | 148 |
| Combustion engine RPM at max torque | 3200 |
| Electric motor torque, Nm | 205 |
| Electric motor RPM at max torque | 1677-2000 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4568 |
| Width, mm | 2034 |
| Height, mm | 1576 |
| Wheelbase, mm | 2720 |
| Front track, mm | 1562 |
| Rear track, mm | 1584 |
| Kerb weight, kg | 1336 |
| Gross weight, kg | 1876 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 11.2 |
| Ground clearance, mm | 200 |
| Width without mirrors, mm | 1820 |
| Trunk capacity, L | 480 |
Transmission and drive
| Transmission | Multimode Clutchless Gearbox |
|---|---|
| Drive | Front-wheel drive |
| Automatic transmission | + |
1.3 TCe (160 hp) 7-EDC 36 specifications
Specifications
Performance and consumption
| Top speed, km/h | 174 |
|---|---|
| Acceleration 0-100 km/h, s | 9.1 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.3 TCe |
|---|---|
| Engine code | H5Ht/HR13 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1332 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 160 |
| RPM at max power | 5500 |
| Torque, Nm | 270 |
| RPM at max torque | 1800-3750 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4568 |
| Width, mm | 2034 |
| Height, mm | 1576 |
| Wheelbase, mm | 2720 |
| Front track, mm | 1562 |
| Rear track, mm | 1584 |
| Kerb weight, kg | 1336 |
| Gross weight, kg | 1876 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 11.2 |
| Ground clearance, mm | 200 |
| Width without mirrors, mm | 1820 |
| Trunk capacity, L | 480 |
Transmission and drive
| Transmission | 7-EDC |
|---|---|
| Transmission type | 2-speed automated manual |
| Drive | Front-wheel drive |
| Number of gears | 7 |
| Transmission manufacturer | Getrag |
| Automatic transmission | + |
| Transmission country | Germany |
Renault Arkana questions
Short answers based on the specifications and photos available in this catalog.
What body style is the 2023 Renault Arkana?
The 2023 Renault Arkana is a compact coupe-SUV. It combines the elevated seating position and ground clearance of an SUV with the sloping roofline of a fastback coupe.
What generation is the 2023 Renault Arkana?
This model represents a mid-cycle facelift for the first generation of the Renault Arkana. It was officially revealed in July 2023 with styling updates and revised trim packages.
What engines and transmissions are available for the 2023 Arkana?
The Arkana offers a 1.3-liter turbocharged mild-hybrid engine with either 140 hp or 160 hp paired with a 7-speed EDC dual-clutch transmission. There is also a 143-hp 1.6-liter E-Tech full-hybrid option paired with a multimode clutchless gearbox.
Is the 2023 Renault Arkana practical for everyday family use?
Yes, it provides a functional 480-liter boot space and five-passenger seating. It also offers a ground clearance of 200 mm to help navigate daily urban driving obstacles and rough road surfaces.
What are the main differences between the Arkana trim levels?
The base Evolution and mid-tier Techno focus on value and standard tech, while the Esprit Alpine features a sportier look. The Esprit Alpine stands out with 19-inch wheels, unique grey exterior accents, and interior sports seats trimmed in faux suede with Alpine branding.
