SsangYong Rexton G4 specifications and photos

SsangYong Rexton G4 specifications are shown with trim options, key technical data, and a model photo gallery. Compare 4 configurations by engine size, power, seating, and transmission. The gallery includes 17 photos for visual reference.

Years 2017
Body type suv
Trims 4
Photos 17

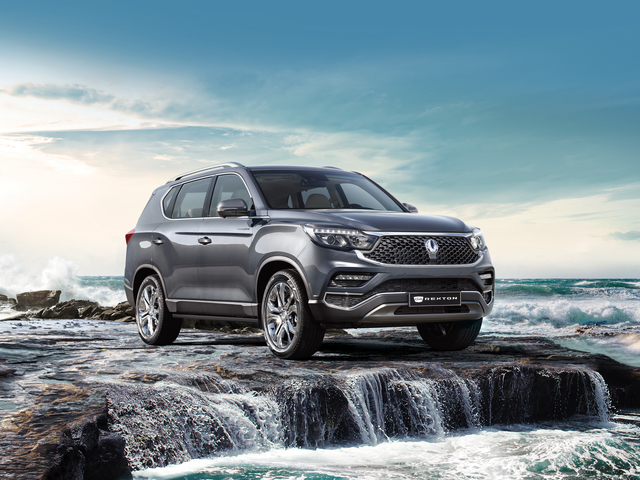

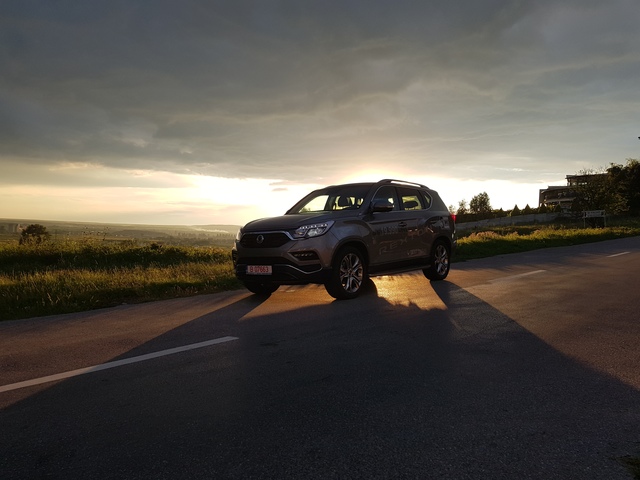

SsangYong Rexton G4 2017 SUV
Overview

SsangYong Rexton G4 at a glance

Quick model context before comparing photos and trim-level specifications.

Use this SsangYong Rexton G4 page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 181 hp and 2157 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

  • Power: 181 hp
  • Engine displacement: 2157 cc
  • Transmissions: 6-speed manual, 6, 7
  • Seating: 5 seats
Research hub

Photos, trims and specifications for SsangYong Rexton G4

This model page brings gallery images, trim comparison, and detailed technical data together for the 2017 generation.

Open photo gallery 17 images Compare trims 4 configurations View detailed specs 2157 cc Explore related pages SsangYong and similar models
Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 181 hp
Engine displacement 2157 cc
Seating 5 seats
Transmissions 6-speed manual, 6, 7
Trim / modification Engine Power Seats Transmission
2.2 D (181 hp) 6-speed manual 2157 cc 181 hp 5 6-speed manual
2.2 D (181 hp) 6-speed 4x4 2157 cc 181 hp 5 6
2.2 D (181 HP) 7G-Tronic 2157 cc 181 hp 5 7
2.2 D (181 HP) 7G-Tronic 4x4 2157 cc 181 hp 5 7

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

2.2 D (181 hp) 6-speed manual 2.2 D (181 hp) 6-speed 4x4 2.2 D (181 HP) 7G-Tronic 2.2 D (181 HP) 7G-Tronic 4x4
2.2 D (181 hp) 6-speed manual 33 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 2157
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 181
Torque, Nm 400
RPM at max torque 1400-2800
Engine 2.2 D
Compression 15.5
RPM at max power 4000

Dimensions

Seats 5
Length mm 4850
Width 1960
Height mm 1825
Wheelbase mm 2565
Front track, mm 1640
Rear track, mm 1640
Kerb weight, kg 1995
Fuel tank, l 70
Turning circle, m 11
Ground clearance, mm 224
Gross weight, kg 2700

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 9.6
Fuel consumption (urban), l. 100 km 6.4
Fuel consumption (combined), l. 100 km 7.6
The maximum speed, km / h. 185
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
2.2 D (181 hp) 6-speed 4x4 33 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 2157
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 181
Torque, Nm 400
RPM at max torque 1400-2800
Engine 2.2 D
Compression 15.5
RPM at max power 4000

Dimensions

Seats 5
Length mm 4850
Width 1960
Height mm 1825
Wheelbase mm 2565
Front track, mm 1640
Rear track, mm 1640
Kerb weight, kg 1995
Fuel tank, l 70
Turning circle, m 11
Ground clearance, mm 224
Gross weight, kg 2700

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 9.8
Fuel consumption (urban), l. 100 km 6.6
Fuel consumption (combined), l. 100 km 7.8
The maximum speed, km / h. 185
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Full
Transmission 6-speed manual
Gearbox Mechanics
2.2 D (181 HP) 7G-Tronic 36 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 2157
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 181
Torque, Nm 400
RPM at max torque 1400-2800
Engine 2.2 D
Compression 15.5
RPM at max power 4000

Dimensions

Seats 5
Length mm 4850
Width 1960
Height mm 1825
Wheelbase mm 2565
Front track, mm 1640
Rear track, mm 1640
Kerb weight, kg 1995
Fuel tank, l 70
Turning circle, m 11
Ground clearance, mm 224
Gross weight, kg 2700

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 10.1
Fuel consumption (urban), l. 100 km 6.8
Fuel consumption (combined), l. 100 km 8
The maximum speed, km / h. 185
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 7
Drive Front
Transmission 7G-Tronic
Gearbox Machine
Transmission manufacturer Mercedes
Transmission country of origin Germany
2.2 D (181 HP) 7G-Tronic 4x4 36 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 2157
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 181
Torque, Nm 400
RPM at max torque 1400-2800
Engine 2.2 D
Compression 15.5
RPM at max power 4000

Dimensions

Seats 5
Length mm 4850
Width 1960
Height mm 1825
Wheelbase mm 2565
Front track, mm 1640
Rear track, mm 1640
Kerb weight, kg 1995
Fuel tank, l 70
Turning circle, m 11
Ground clearance, mm 224
Gross weight, kg 2700

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 10.2
Fuel consumption (urban), l. 100 km 6.9
Fuel consumption (combined), l. 100 km 8.1
The maximum speed, km / h. 185
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 7
Drive Full
Transmission 7G-Tronic
Gearbox Machine
Transmission manufacturer Mercedes
Transmission country of origin Germany
FAQ

SsangYong Rexton G4 questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the SsangYong Rexton G4?

This page lists 4 trims for the SsangYong Rexton G4, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the SsangYong Rexton G4?

The listed configurations show a power range of 181 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the SsangYong Rexton G4?

The available specification data shows engine displacement from 2157 cc across the trims listed on this page.

Which transmissions are listed for the SsangYong Rexton G4?

The transmission options currently shown for this model are: 6-speed manual, 6, 7. Open a trim section to see the full data for a specific configuration.

Are there photos for the SsangYong Rexton G4?

Yes. The gallery includes 17 photos for the SsangYong Rexton G4, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
