BMW iX3 (NA5) specifications and photos
The 2025 BMW iX3 (NA5) represents the second generation of the brand's electric compact crossover. Built on the Neue Klasse platform, it brings a completely new EV-specific architecture focused on energy efficiency, digital integration, and long-distance capability.
BMW iX3 (NA5) at a glance
Quick model context before comparing photos and trim-level specifications.
Debuting in September 2025, the NA5-generation BMW iX3 transitions to the dedicated Neue Klasse architecture. This shift allows for better packaging, improved aerodynamics, and a substantial increase in driving range compared to its predecessor. Aimed at premium EV buyers, the crossover measures 4,782 mm in length, providing ample cabin space and a 520-liter cargo capacity. With the 50 xDrive variant utilizing a massive 108.7 kWh battery and dual electric motors, it offers both high performance and a WLTP-rated range that extends up to 805 kilometers. The vehicle is designed to function not just as transportation, but as a mobile energy hub, thanks to its standard bidirectional charging capabilities.
- Power: 469 hp
- Transmissions: single-speed reduction gear
- Seating: 5 seats
Photos, trims and specifications for BMW iX3 (NA5)
This model page brings gallery images, trim comparison, and detailed technical data together for the 2025 generation.
BMW iX3 (NA5) overview
Editorial context for design, cabin, performance, practicality, and buyer notes.
Design

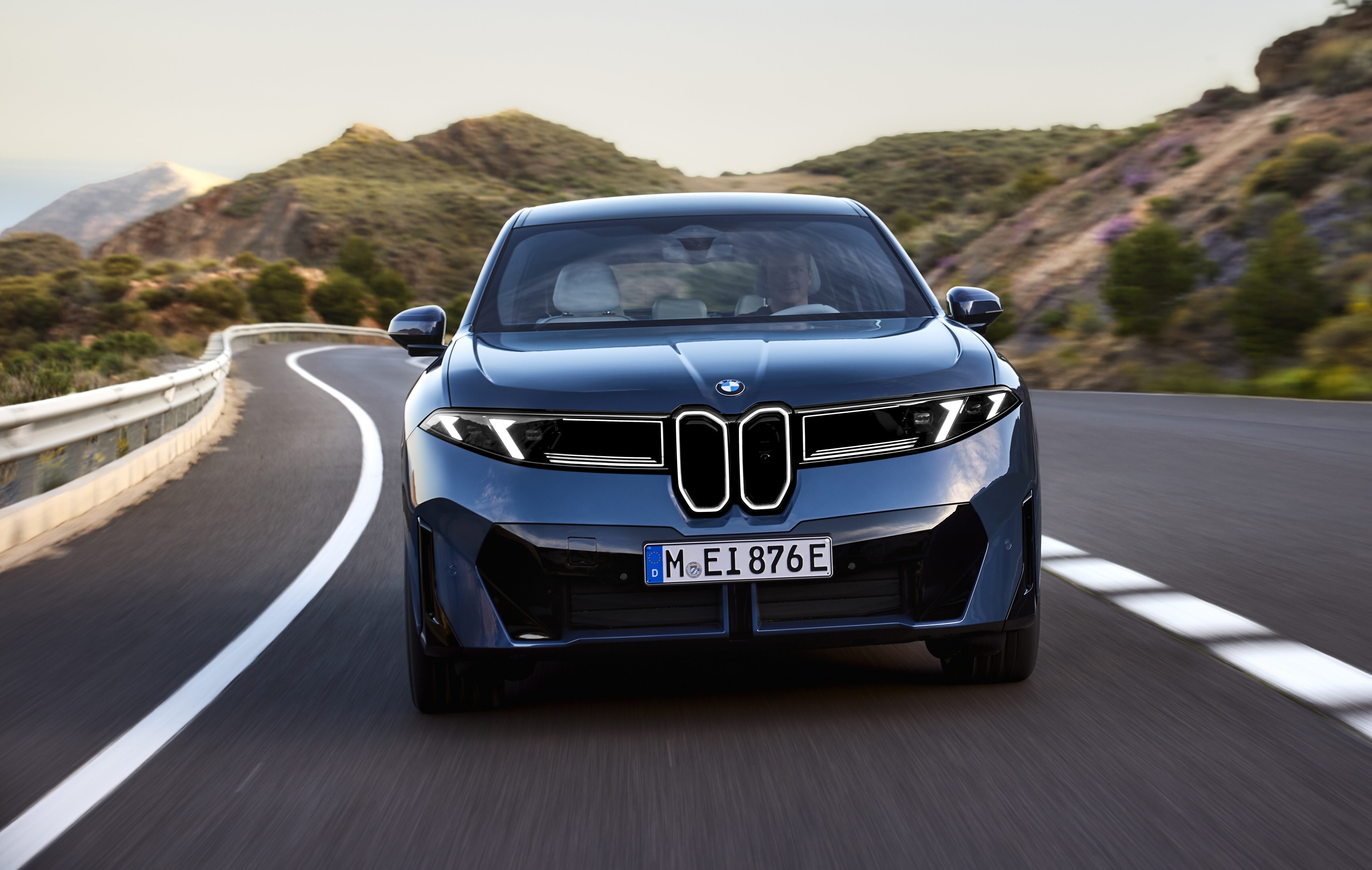

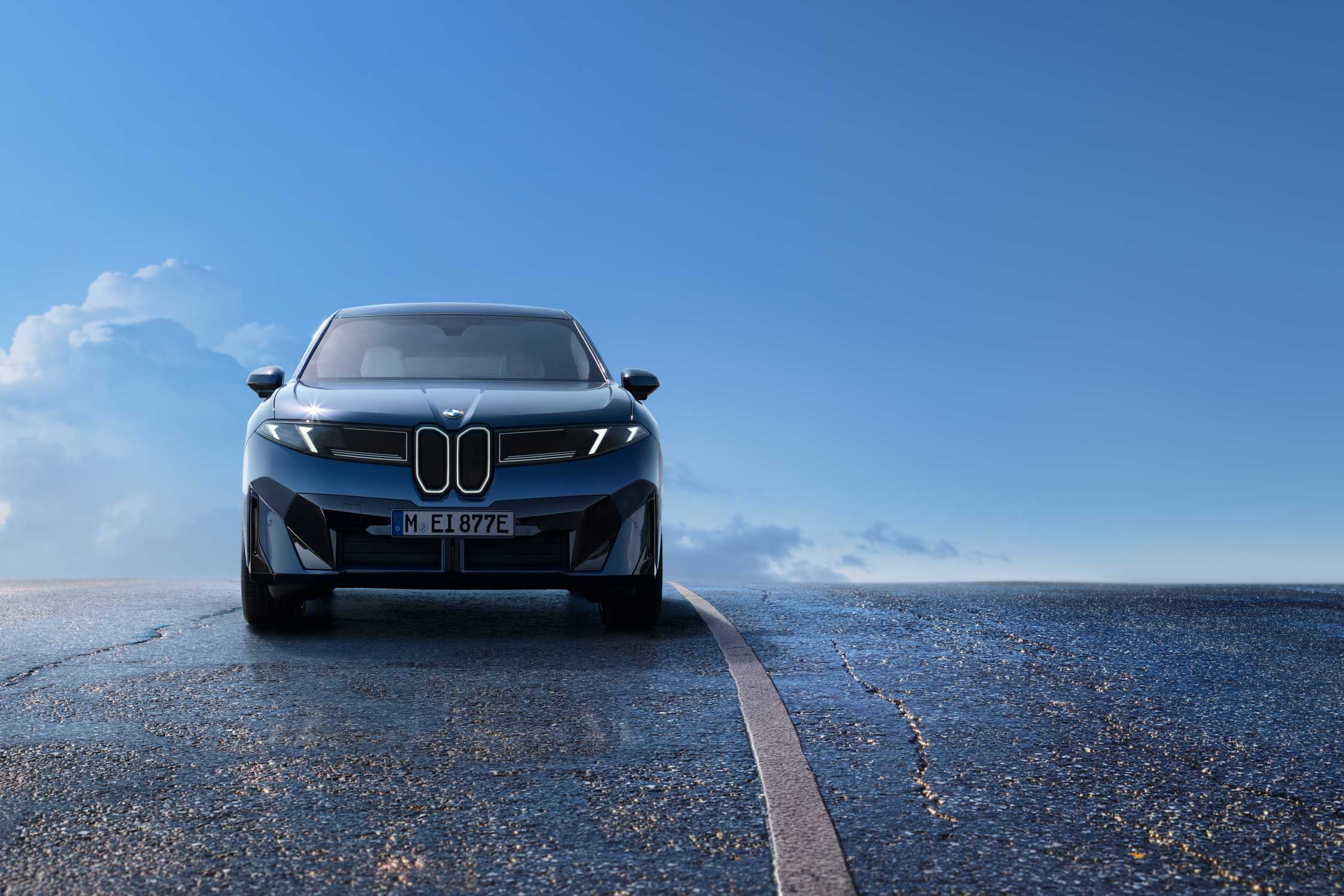

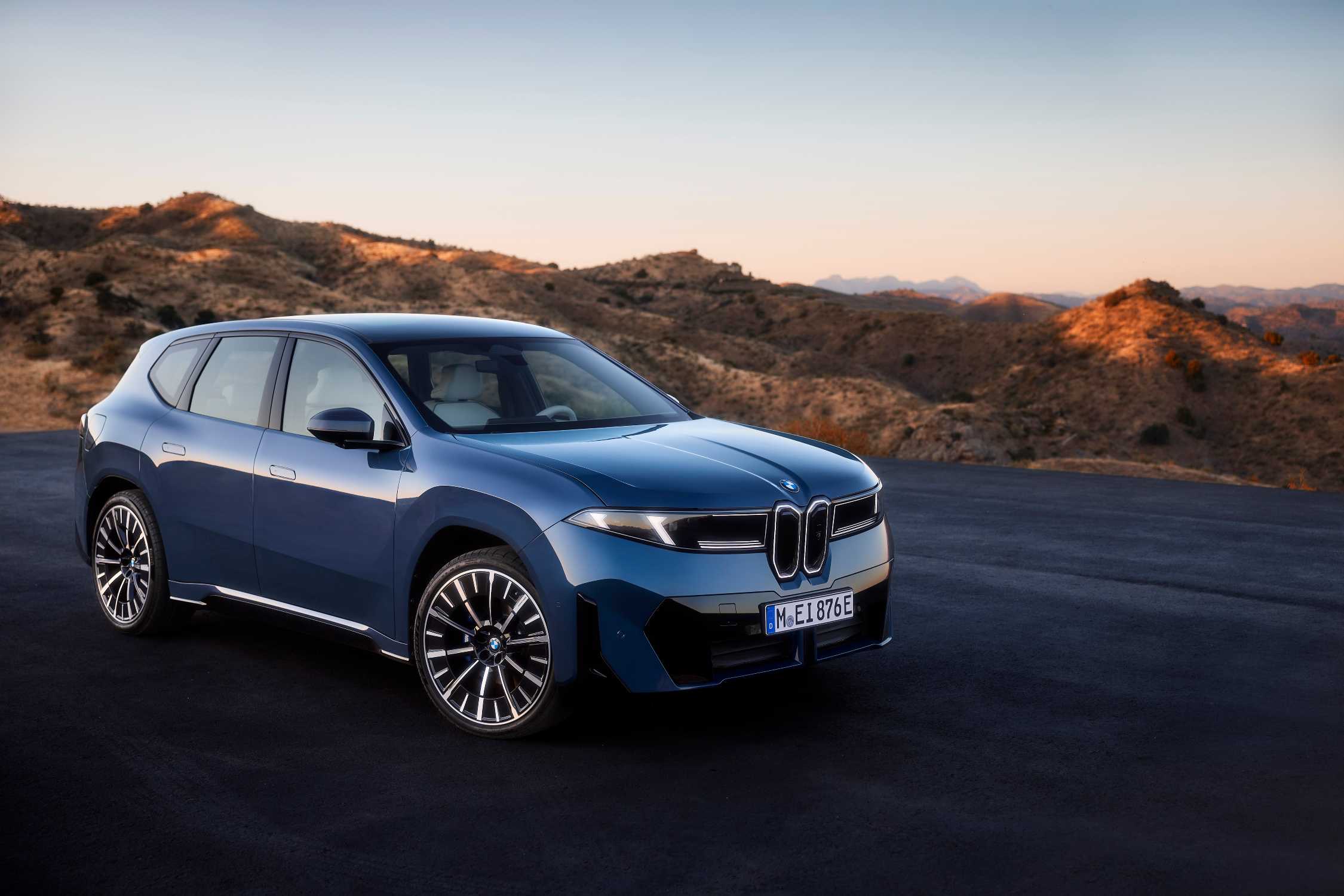

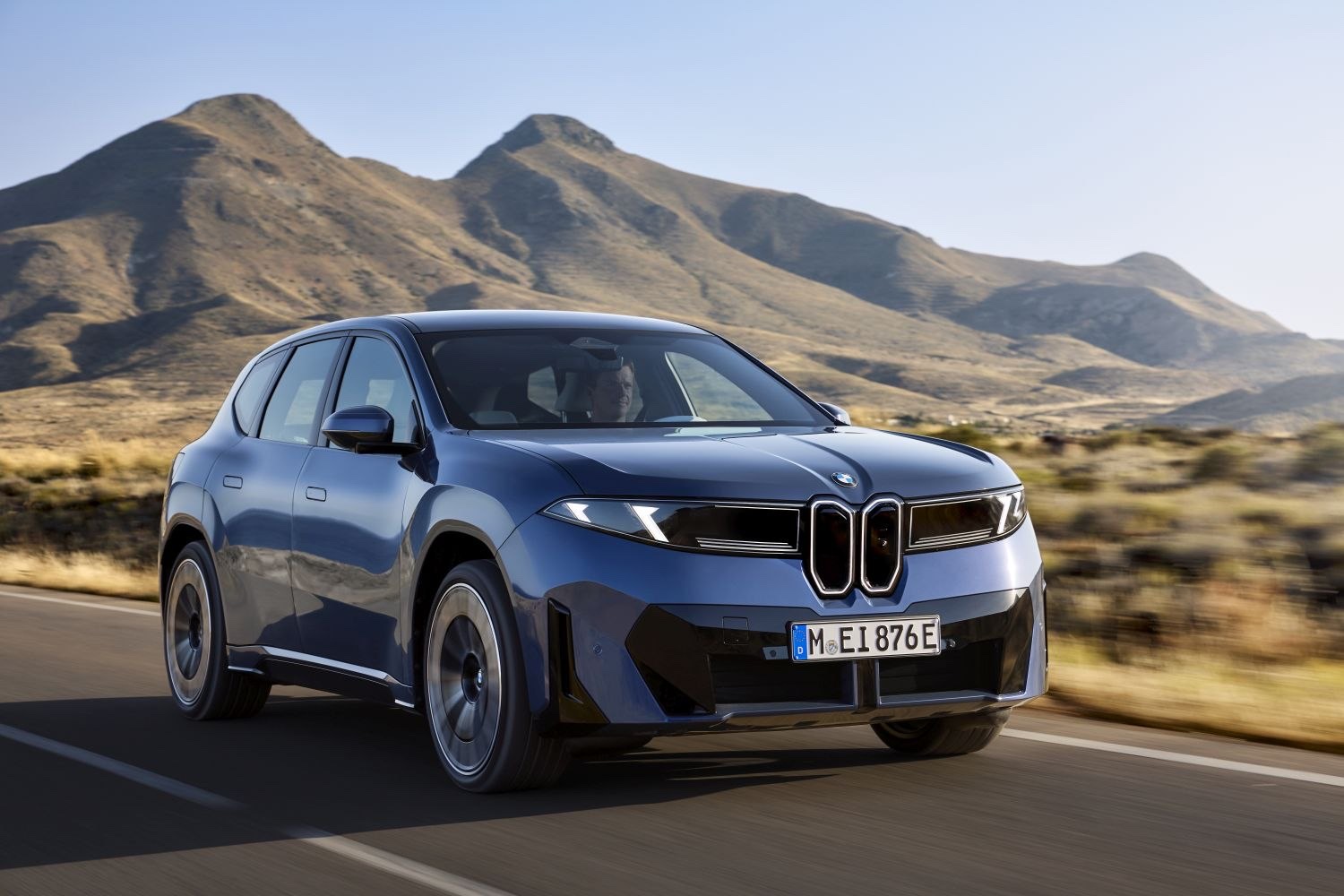

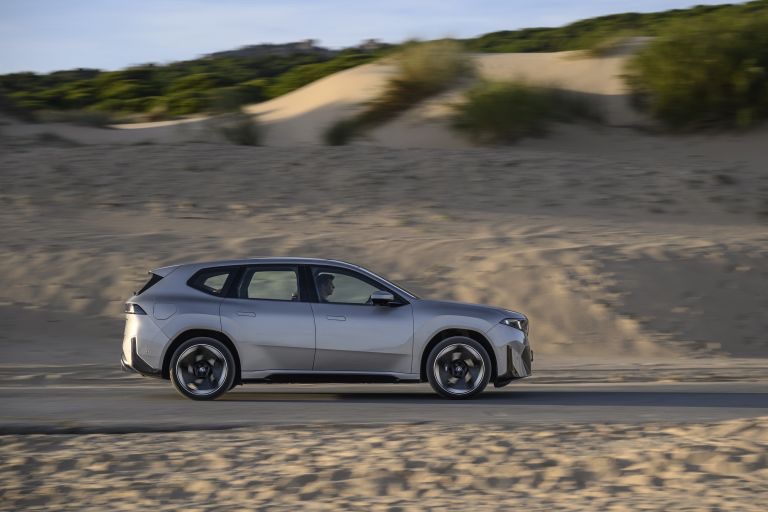

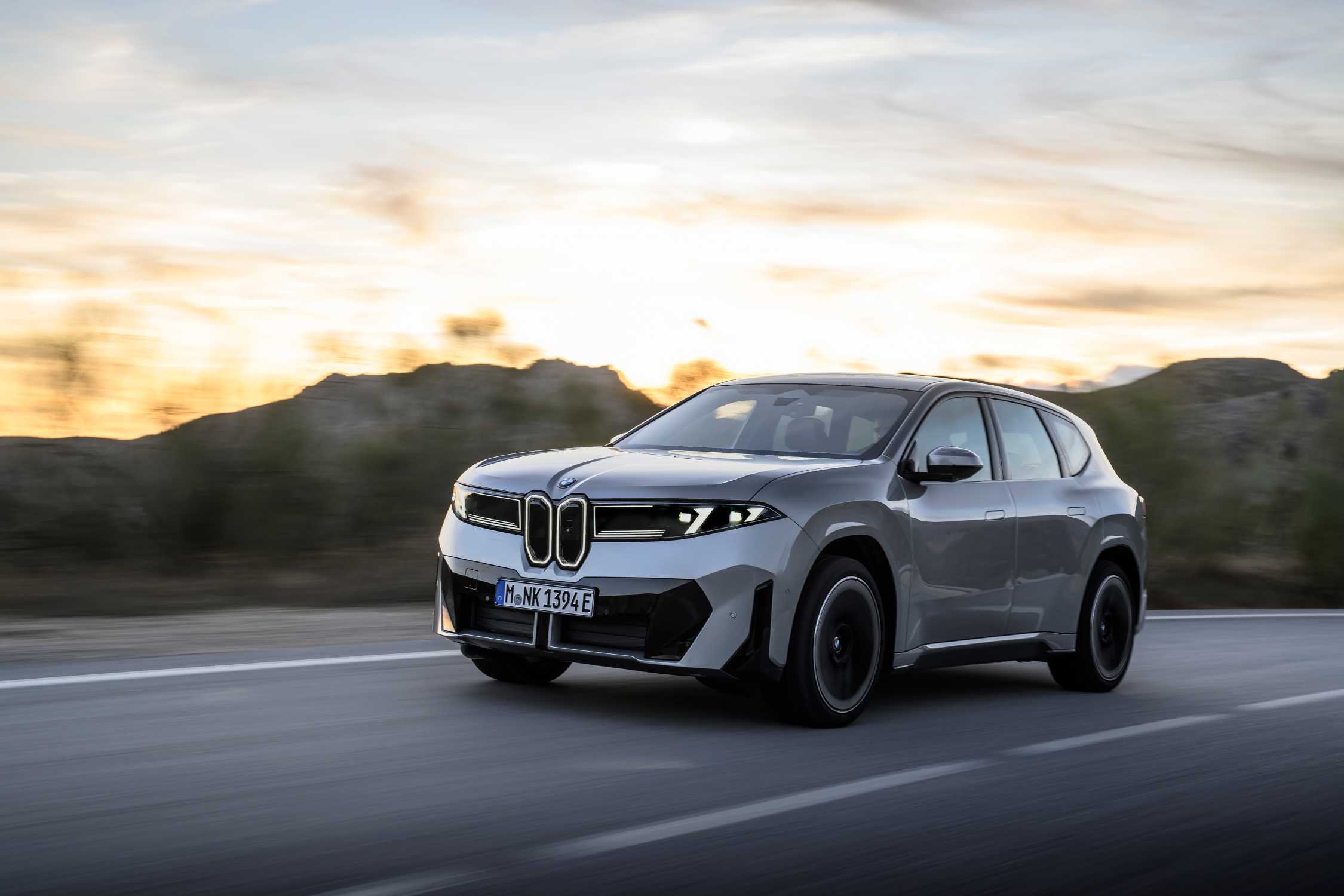

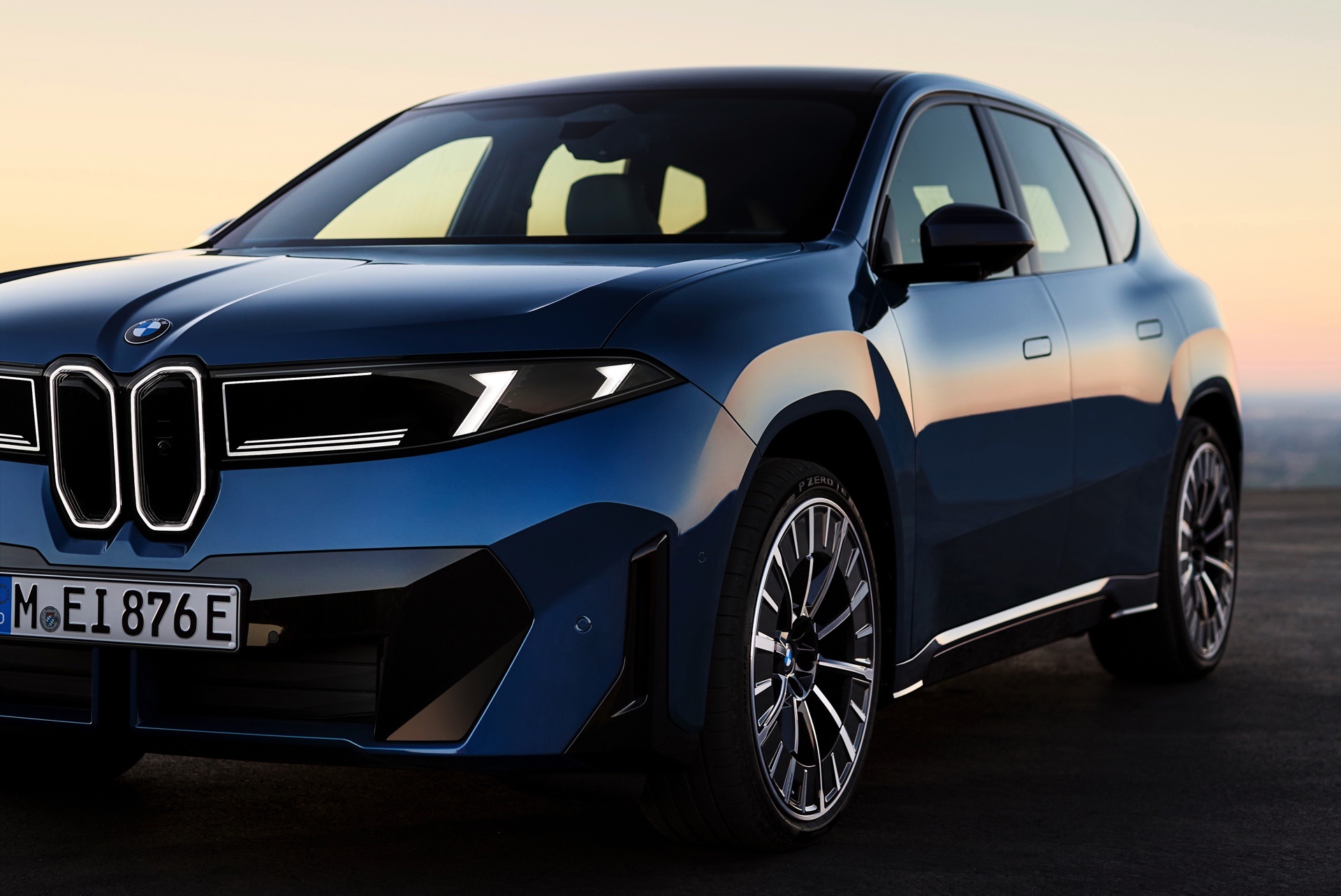

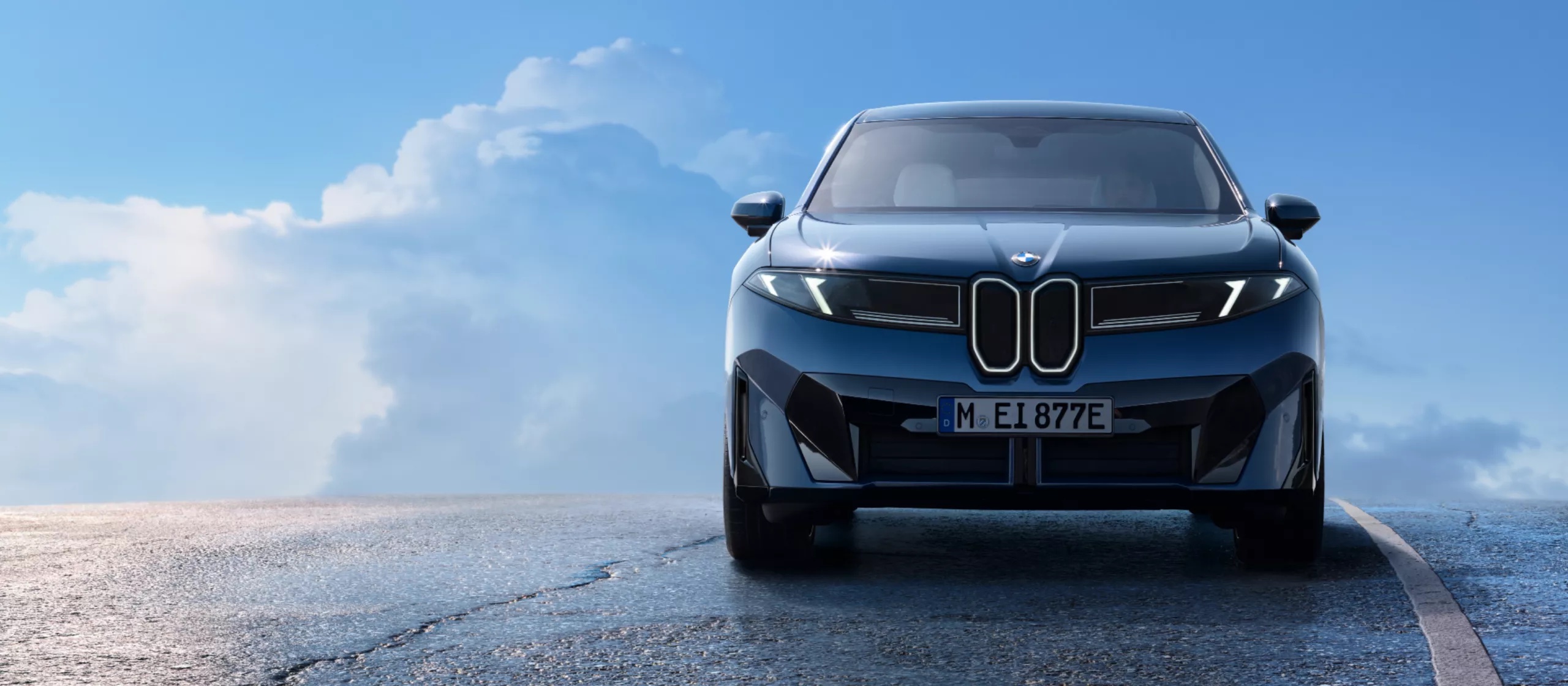

The exterior of the iX3 marks a departure from earlier models with a distinct visual language. The front end features a vertical, illuminated 'Iconic Glow' kidney grille flanked by horizontal LED headlights. Its profile stretches across a 2,897 mm wheelbase, accentuated by prominent wheel arches that give the SUV a planted stance. At the rear, L-shaped taillights and an integrated spoiler help manage airflow while providing a recognized light signature.
Interior
Moving inside, the EV-native platform translates into a highly spacious cabin, particularly for rear-seat passengers. The dashboard features a floating design that integrates with the door panels, enhanced by ambient lighting and an expansive panoramic roof. Materials range from Econeer recycled textiles and vegan alternatives to premium BMW Individual Merino leather. The revised center console includes an inductive charging pad and a minimalist transmission selector, prioritizing an uncluttered layout over traditional physical switchgear.
Performance
In the 50 xDrive specification, the iX3 employs a dual-motor, all-wheel-drive powertrain delivering 469 horsepower (345 kW) and 645 Nm of torque. This setup propels the 2,360-kilogram SUV from zero to 100 km/h in 4.9 seconds, with a top speed limited to 210 km/h. Power is drawn from a 108.7 kWh battery pack. Fast-charging architecture allows the battery to replenish from 10 to 80 percent in 21 minutes, adding up to 372 kilometers of range in roughly 10 minutes at high-output stations.
Practicality
As a daily driver, the midsize SUV format offers a versatile cabin and 520 liters of rear cargo space. The 2,897 mm wheelbase yields excellent legroom, making it comfortable for adults on longer trips. Bidirectional charging adds real-world utility, enabling owners to power external devices, support their home energy grid, or even export electricity back to the network. A 176 mm ground clearance provides adequate height for urban driving and uneven surfaces.
Safety and tech
The NA5 generation introduces the BMW OS X operating system and the Panoramic iDrive interface. Traditional instrument clusters are replaced by a central screen measuring over 17 inches and a 3D Head-Up Display called BMW Panoramic Vision, which spans the lower edge of the windshield. The infotainment supports Disney+, YouTube, Zoom video calls, and AirConsole gaming. Advanced driver assistance systems handle automated driving tasks for highway cruising and city navigation, guided by an software-based voice assistant.
Buyer notes
When researching the iX3, buyers should pay close attention to the specific battery sizes and drivetrain setups available in their market, as range estimates will vary based on the configuration. The 50 xDrive trim provides a high-performance benchmark, but other variants may be offered. Check the exact charging hardware on specific models to ensure compatibility with your home setup or local fast-charging infrastructure.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 50 xDrive | - | 469 hp | 5 | single-speed reduction gear |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

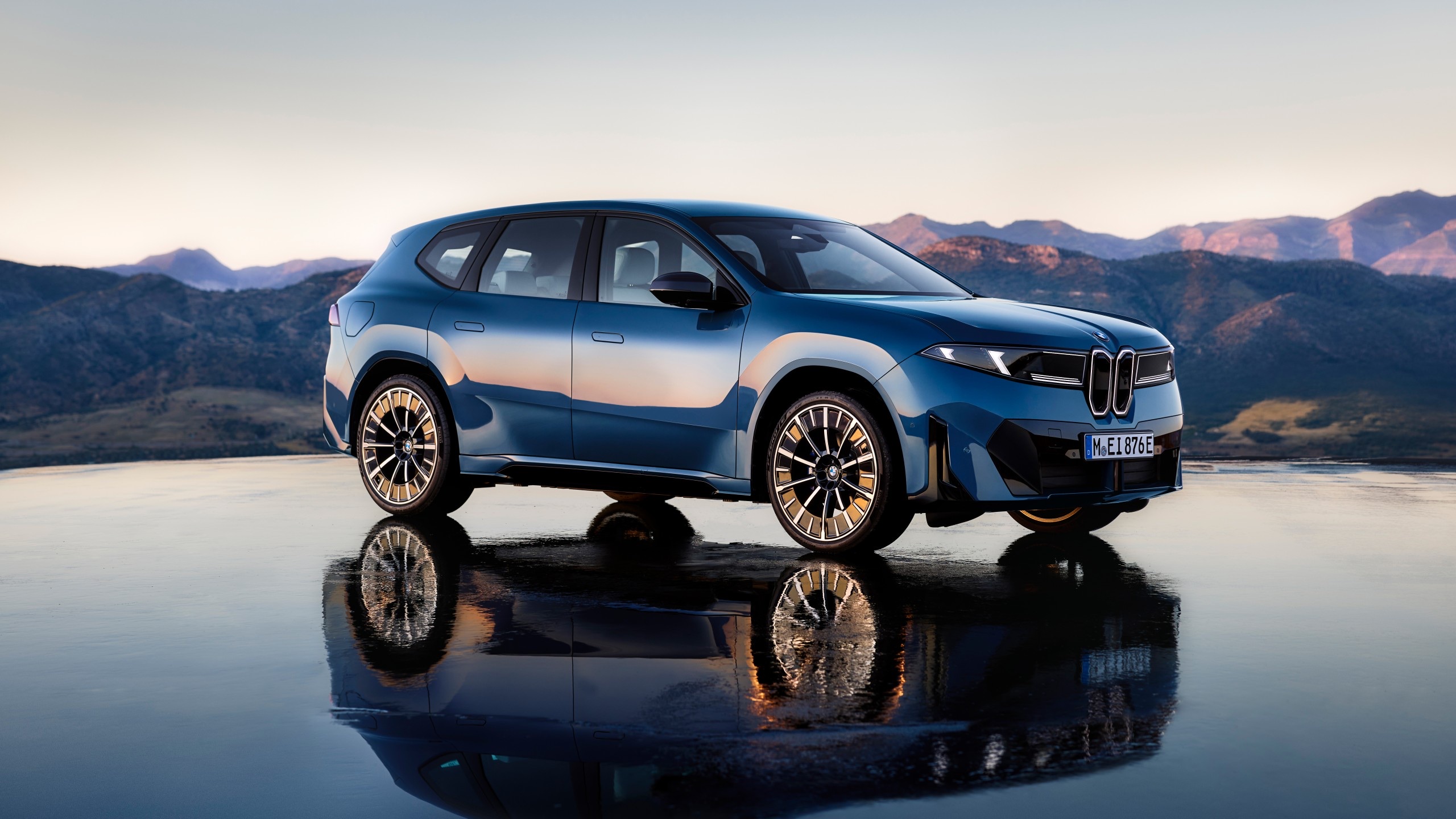

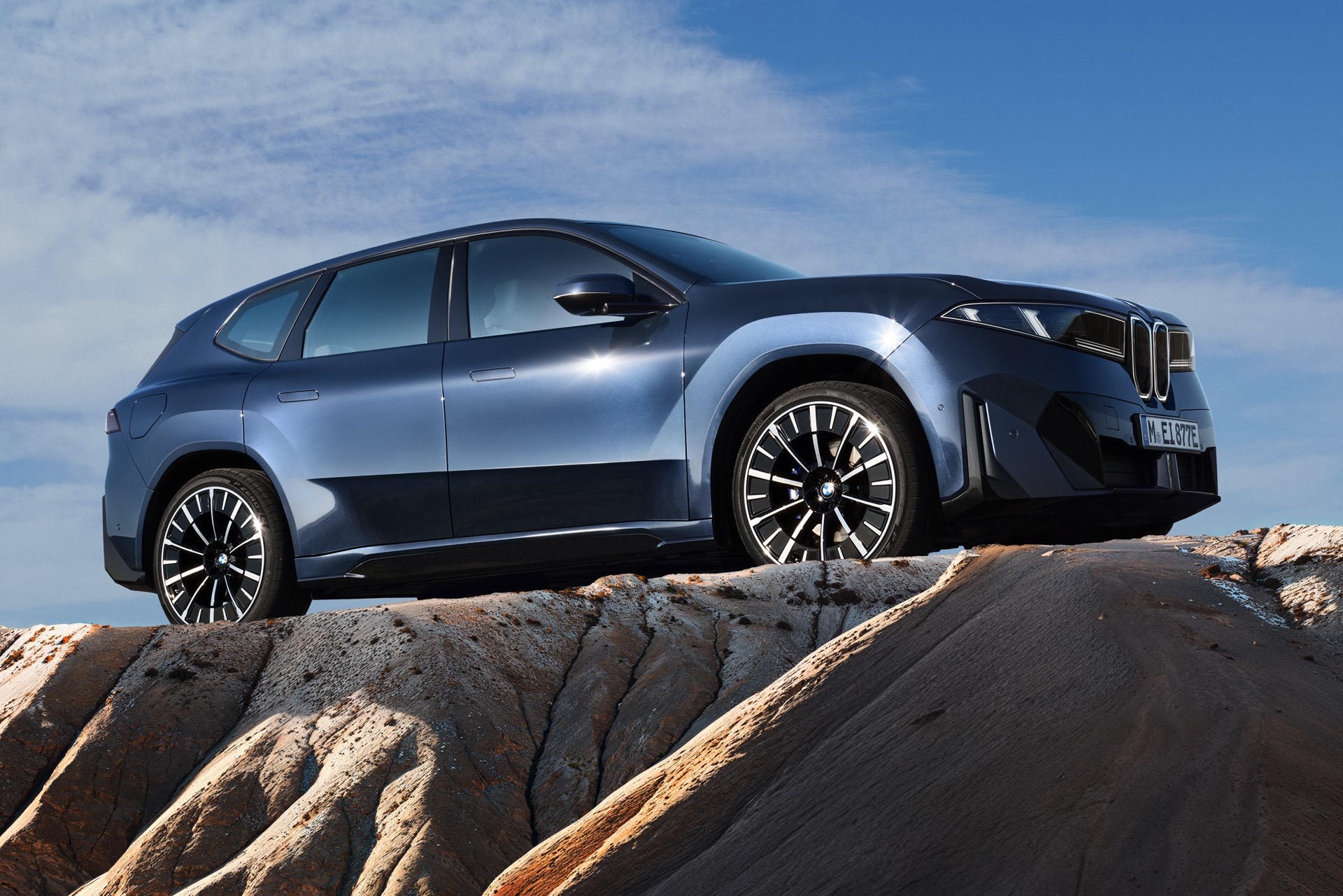

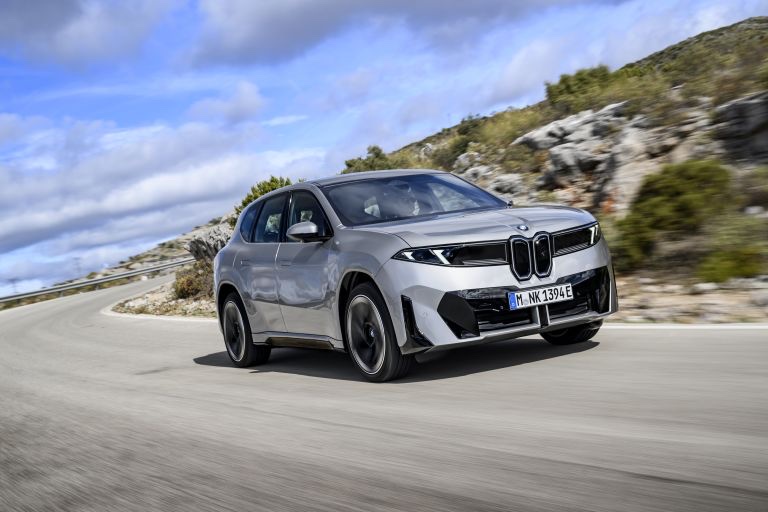

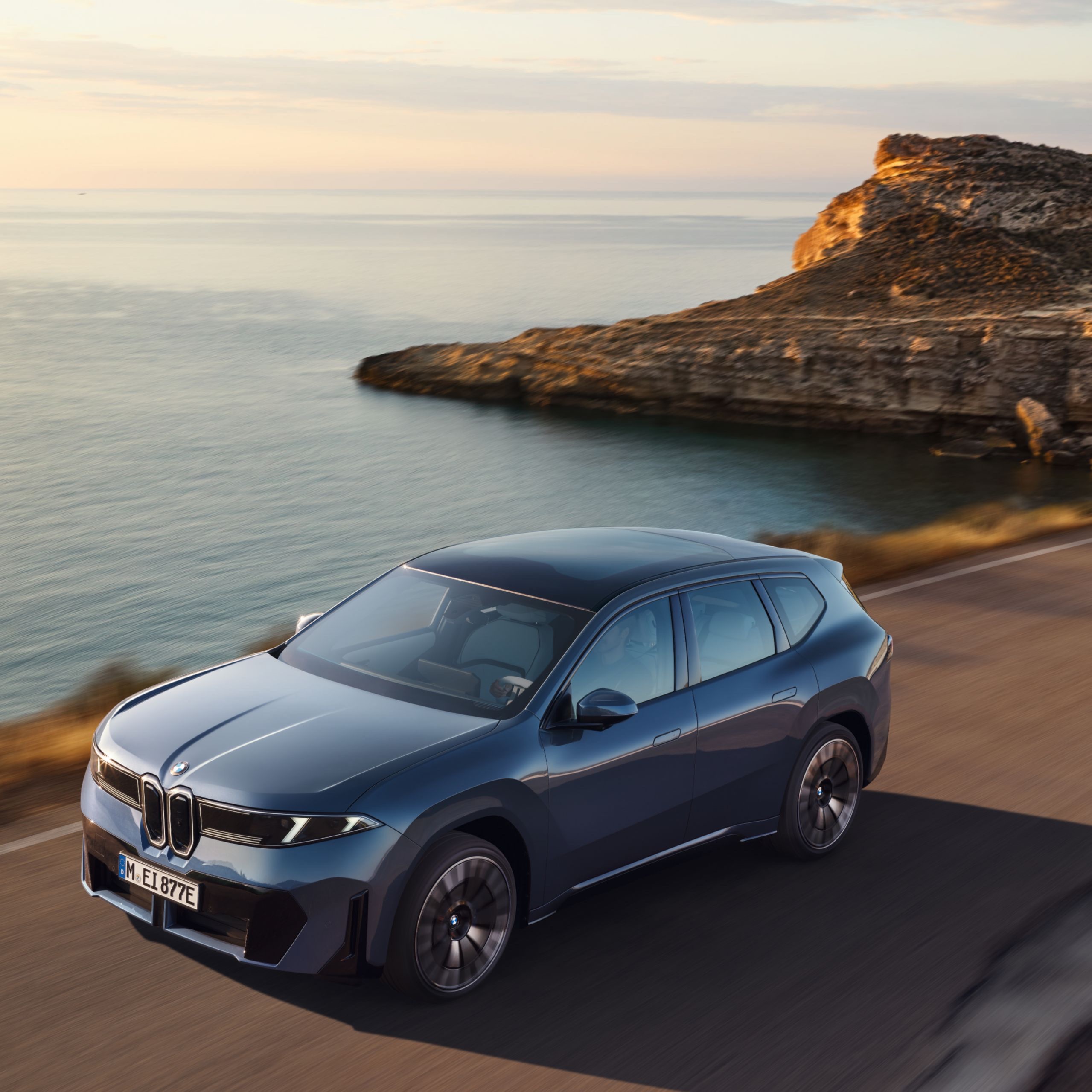

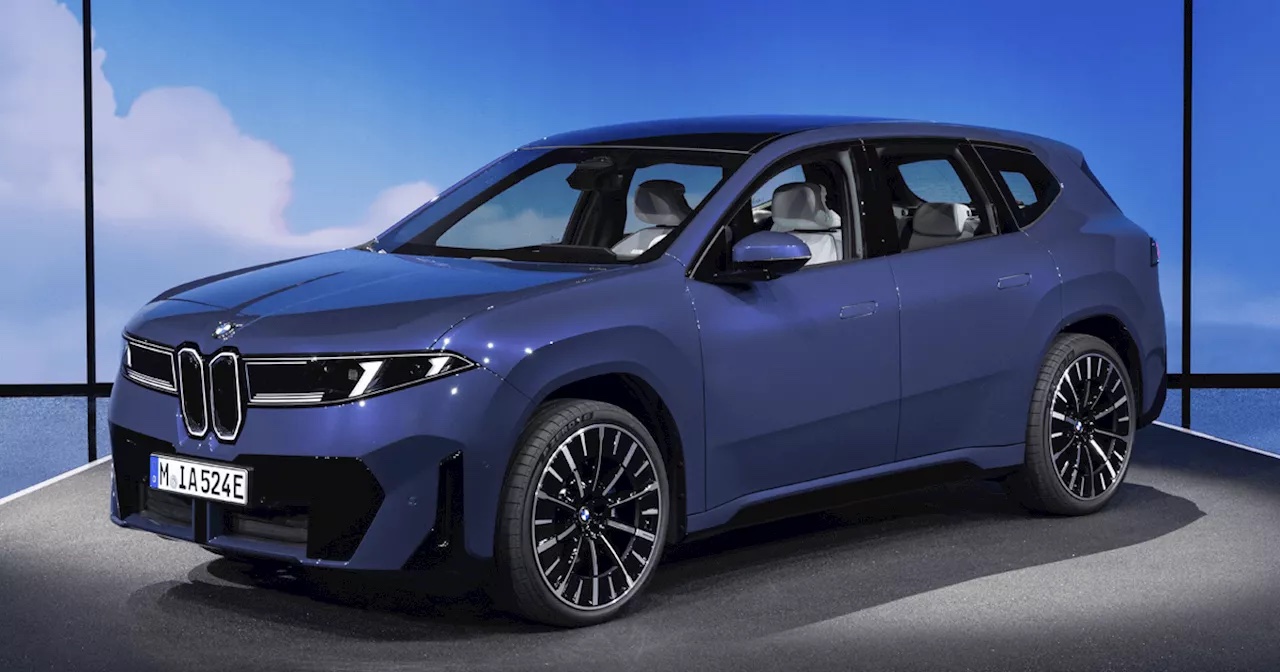

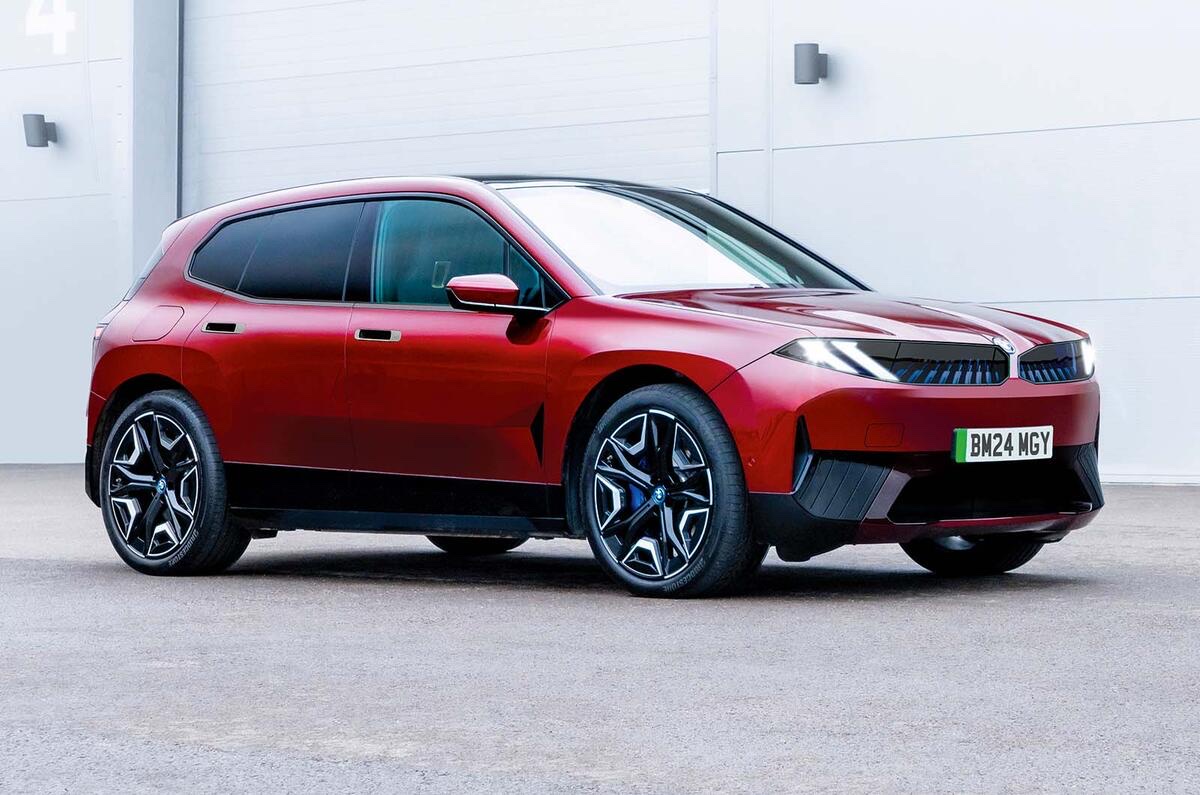

BMW iX3 (NA5) photo gallery
14 images are collected here with the main specifications and trim data for this model.
Photo BMW iX3 (NA5)
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
50 xDrive 23 specifications
Specifications
Performance and consumption
| Top speed, km/h | 210 |
|---|---|
| Acceleration 0-100 km/h, s | 4.9 |
Engine
| Engine | 345 kW |
|---|---|
| Engine type | Electric |
| Power, hp | 469 |
| Torque, Nm | 645 |
| Number of electric motors | 2 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4782 |
| Width, mm | 2093 |
| Height, mm | 1635 |
| Wheelbase, mm | 2897 |
| Front track, mm | 1628 |
| Rear track, mm | 1633 |
| Kerb weight, kg | 2360 |
| Turning circle, m | 12.1 |
| Ground clearance, mm | 176 |
| Width without mirrors, mm | 1895 |
| Trunk capacity, L | 520 |
Transmission and drive
| Transmission | single-speed reduction gear |
|---|---|
| Transmission type | automated manual |
| Drive | All-wheel drive |
| Automatic transmission | + |
BMW iX3 (NA5) questions
Short answers based on the specifications and photos available in this catalog.
What is the driving range of the BMW iX3 (NA5)?
The 50 xDrive model features a 108.7 kWh battery, yielding an estimated WLTP range between 679 and 805 kilometers depending on driving conditions and equipment.
Does the new iX3 have all-wheel drive?
Yes, the 50 xDrive variant comes with a dual-motor all-wheel-drive system. It produces 469 horsepower and 645 Nm of torque.
How fast does the 2025 iX3 charge?
On a high-power DC fast charger, the battery can go from 10 to 80 percent in 21 minutes, or add roughly 372 kilometers of range in just 10 minutes.
What is the cargo capacity?
The SUV provides 520 liters of trunk space behind the second row of seats.
Does the iX3 have traditional gauges?
No, it replaces the traditional instrument cluster with a massive central display and the BMW Panoramic Vision head-up display system that spans the windshield.
