SsangYong Tivoli specifications and photos

SsangYong Tivoli specifications are shown with trim options, key technical data, and a model photo gallery. Compare 9 configurations by engine size, power, seating, and transmission. The gallery includes 41 photos for visual reference.

Years 2020
Body type suv
Trims 9
Photos 41
SsangYong Tivoli 2020 SUV
Overview

SsangYong Tivoli at a glance

Quick model context before comparing photos and trim-level specifications.

Use this SsangYong Tivoli page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 128-163 hp and 1197-1597 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

  • Power: 128-163 hp
  • Engine displacement: 1197-1597 cc
  • Transmissions: 6-speed manual, 6-speed automatic, 6
  • Seating: 5 seats
Research hub

Photos, trims and specifications for SsangYong Tivoli

This model page brings gallery images, trim comparison, and detailed technical data together for the 2020 generation.

Open photo gallery 41 images Compare trims 9 configurations View detailed specs 1197-1597 cc Explore related pages SsangYong and similar models
Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 128-163 hp
Engine displacement 1197-1597 cc
Seating 5 seats
Transmissions 6-speed manual, 6-speed automatic, 6
Trim / modification Engine Power Seats Transmission
1.2 GDI-T (128 h.p.) 6-speed manual 1197 cc 128 hp 5 6-speed manual
1.5 GDI-T (163 HP) 6-speed automatic 1497 cc 163 hp 5 6-speed automatic
1.5 GDI-T (163 h.p.) 6-speed automatic transmission 4x4 1497 cc 163 hp 5 6-speed automatic
1.5 GDI-T (163 h.p.) 6-speed manual 1497 cc 163 hp 5 6-speed manual
1.5 GDI-T (163 hp) 6-speed 4x4 1497 cc 163 hp 5 6
1.6 e-Xdi (136 h.p.) 6-speed manual 1597 cc 136 hp 5 6-speed manual
1.6 e-Xdi (136 h.p.) 6-speed 4x4 1597 cc 136 hp 5 6
1.6 e-Xdi (136 h.p.) 6-speed automatic 1597 cc 136 hp 5 6-speed automatic
1.6 e-Xdi (136 h.p.) 6-speed automatic transmission 4x4 1597 cc 136 hp 5 6-speed automatic

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

1.2 GDI-T (128 h.p.) 6-speed manual 1.5 GDI-T (163 HP) 6-speed automatic 1.5 GDI-T (163 h.p.) 6-speed automatic transmission 4x4 1.5 GDI-T (163 h.p.) 6-speed manual 1.5 GDI-T (163 hp) 6-speed 4x4 1.6 e-Xdi (136 h.p.) 6-speed manual 1.6 e-Xdi (136 h.p.) 6-speed 4x4 1.6 e-Xdi (136 h.p.) 6-speed automatic 1.6 e-Xdi (136 h.p.) 6-speed automatic transmission 4x4
1.2 GDI-T (128 h.p.) 6-speed manual 35 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1197
Cylinders location In-line
Number of cylinders 3
Valves 12
Power, hp 128
Torque, Nm 230
RPM at max torque 1750-3500
Engine 1.2 GDI-T
Compression 9.5
RPM at max power 5000
Turbo +

Dimensions

Seats 5
Length mm 4225
Width 1810
Height mm 1613
Wheelbase mm 2600
Front track, mm 1555
Rear track, mm 1555
Kerb weight, kg 1387
Trunk capacity, L 395
Fuel tank, l 50
Turning circle, m 10.6
Ground clearance, mm 178
Gross weight, kg 1850

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6.9
Fuel consumption (urban), l. 100 km 5.3
Fuel consumption (combined), l. 100 km 5.9
The maximum speed, km / h. 181
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
1.5 GDI-T (163 HP) 6-speed automatic 37 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1497
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 163
Torque, Nm 260
RPM at max torque 1500-4000
Engine 1.5 GDI-T
Compression 9.5
RPM at max power 5500
Turbo +

Dimensions

Seats 5
Length mm 4225
Width 1810
Height mm 1613
Wheelbase mm 2600
Front track, mm 1555
Rear track, mm 1555
Kerb weight, kg 1387
Trunk capacity, L 395
Fuel tank, l 50
Turning circle, m 10.6
Ground clearance, mm 178
Gross weight, kg 1850

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 8.5
Fuel consumption (urban), l. 100 km 6.1
Fuel consumption (combined), l. 100 km 7
The maximum speed, km / h. 175
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-speed automatic
Gearbox Machine
Transmission manufacturer Aisin
1.5 GDI-T (163 h.p.) 6-speed automatic transmission 4x4 37 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1497
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 163
Torque, Nm 260
RPM at max torque 1500-4000
Engine 1.5 GDI-T
Compression 9.5
RPM at max power 5500
Turbo +

Dimensions

Seats 5
Length mm 4225
Width 1810
Height mm 1613
Wheelbase mm 2600
Front track, mm 1555
Rear track, mm 1555
Kerb weight, kg 1387
Trunk capacity, L 395
Fuel tank, l 50
Turning circle, m 10.6
Ground clearance, mm 178
Gross weight, kg 1850

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 10.7
Fuel consumption (urban), l. 100 km 6.8
Fuel consumption (combined), l. 100 km 8.2
The maximum speed, km / h. 175
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Full
Transmission 6-speed automatic
Gearbox Machine
Transmission manufacturer Aisin
1.5 GDI-T (163 h.p.) 6-speed manual 35 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1497
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 163
Torque, Nm 280
RPM at max torque 1500-4000
Engine 1.5 GDI-T
Compression 9.5
RPM at max power 5000-5500
Turbo +

Dimensions

Seats 5
Length mm 4225
Width 1810
Height mm 1613
Wheelbase mm 2600
Front track, mm 1555
Rear track, mm 1555
Kerb weight, kg 1387
Trunk capacity, L 395
Fuel tank, l 50
Turning circle, m 10.6
Ground clearance, mm 178
Gross weight, kg 1850

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 8
Fuel consumption (urban), l. 100 km 5.8
Fuel consumption (combined), l. 100 km 6.6
The maximum speed, km / h. 181
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
1.5 GDI-T (163 hp) 6-speed 4x4 35 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1497
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 163
Torque, Nm 280
RPM at max torque 1500-4000
Engine 1.5 GDI-T
Compression 9.5
RPM at max power 5000-5500
Turbo +

Dimensions

Seats 5
Length mm 4225
Width 1810
Height mm 1613
Wheelbase mm 2600
Front track, mm 1555
Rear track, mm 1555
Kerb weight, kg 1387
Trunk capacity, L 395
Fuel tank, l 50
Turning circle, m 10.6
Ground clearance, mm 178
Gross weight, kg 1850

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 9.4
Fuel consumption (urban), l. 100 km 6.4
Fuel consumption (combined), l. 100 km 7.5
The maximum speed, km / h. 181
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Full
Transmission 6-speed manual
Gearbox Mechanics
1.6 e-Xdi (136 h.p.) 6-speed manual 35 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1597
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 136
Torque, Nm 300
RPM at max torque 1500-3000
Engine 1.6 e-Xdi
Compression 15.5
RPM at max power 4000
Turbo +

Dimensions

Seats 5
Length mm 4225
Width 1810
Height mm 1613
Wheelbase mm 2600
Front track, mm 1555
Rear track, mm 1555
Kerb weight, kg 1387
Trunk capacity, L 395
Fuel tank, l 50
Turning circle, m 10.6
Ground clearance, mm 178
Gross weight, kg 1850

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.5
Fuel consumption (urban), l. 100 km 4.7
Fuel consumption (combined), l. 100 km 5
The maximum speed, km / h. 175
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
1.6 e-Xdi (136 h.p.) 6-speed 4x4 35 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1597
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 136
Torque, Nm 300
RPM at max torque 1500-3000
Engine 1.6 e-Xdi
Compression 15.5
RPM at max power 4000
Turbo +

Dimensions

Seats 5
Length mm 4225
Width 1810
Height mm 1613
Wheelbase mm 2600
Front track, mm 1555
Rear track, mm 1555
Kerb weight, kg 1387
Trunk capacity, L 395
Fuel tank, l 50
Turning circle, m 10.6
Ground clearance, mm 178
Gross weight, kg 1850

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6.8
Fuel consumption (urban), l. 100 km 5.2
Fuel consumption (combined), l. 100 km 5.8
The maximum speed, km / h. 175
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Full
Transmission 6-speed manual
Gearbox Mechanics
1.6 e-Xdi (136 h.p.) 6-speed automatic 37 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1597
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 136
Torque, Nm 324
RPM at max torque 1500-2500
Engine 1.6 e-Xdi
Compression 15.5
RPM at max power 4000
Turbo +

Dimensions

Seats 5
Length mm 4225
Width 1810
Height mm 1613
Wheelbase mm 2600
Front track, mm 1555
Rear track, mm 1555
Kerb weight, kg 1387
Trunk capacity, L 395
Fuel tank, l 50
Turning circle, m 10.6
Ground clearance, mm 178
Gross weight, kg 1850

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.9
Fuel consumption (urban), l. 100 km 5.2
Fuel consumption (combined), l. 100 km 5.4
The maximum speed, km / h. 172
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-speed automatic
Gearbox Machine
Transmission manufacturer Aisin
1.6 e-Xdi (136 h.p.) 6-speed automatic transmission 4x4 37 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1597
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 136
Torque, Nm 324
RPM at max torque 1500-2500
Engine 1.6 e-Xdi
Compression 15.5
RPM at max power 4000
Turbo +

Dimensions

Seats 5
Length mm 4225
Width 1810
Height mm 1613
Wheelbase mm 2600
Front track, mm 1555
Rear track, mm 1555
Kerb weight, kg 1387
Trunk capacity, L 395
Fuel tank, l 50
Turning circle, m 10.6
Ground clearance, mm 178
Gross weight, kg 1850

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7.6
Fuel consumption (urban), l. 100 km 5.7
Fuel consumption (combined), l. 100 km 6.4
The maximum speed, km / h. 172
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Full
Transmission 6-speed automatic
Gearbox Machine
Transmission manufacturer Aisin
FAQ

SsangYong Tivoli questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the SsangYong Tivoli?

This page lists 9 trims for the SsangYong Tivoli, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the SsangYong Tivoli?

The listed configurations show a power range of 128-163 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the SsangYong Tivoli?

The available specification data shows engine displacement from 1197-1597 cc across the trims listed on this page.

Which transmissions are listed for the SsangYong Tivoli?

The transmission options currently shown for this model are: 6-speed manual, 6-speed automatic, 6. Open a trim section to see the full data for a specific configuration.

Are there photos for the SsangYong Tivoli?

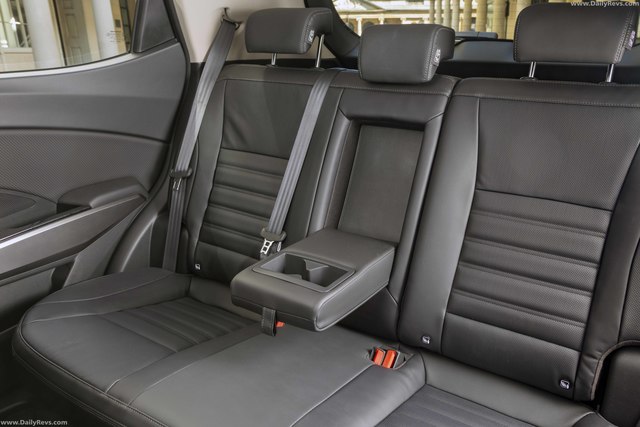

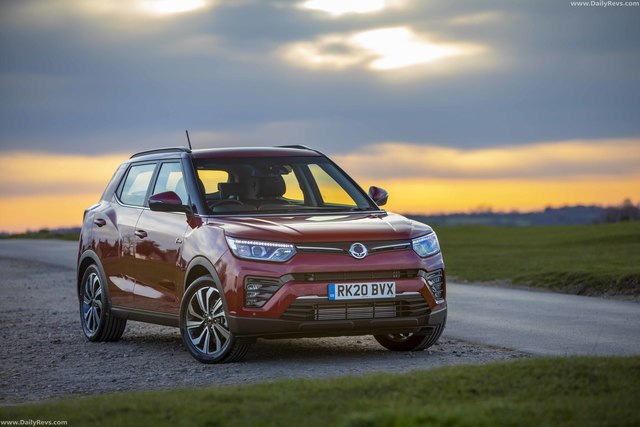

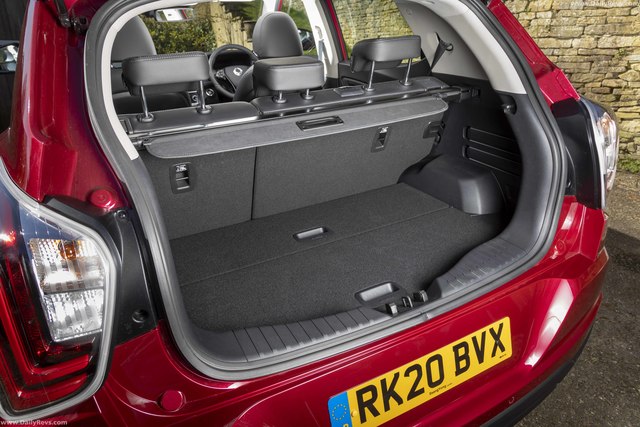

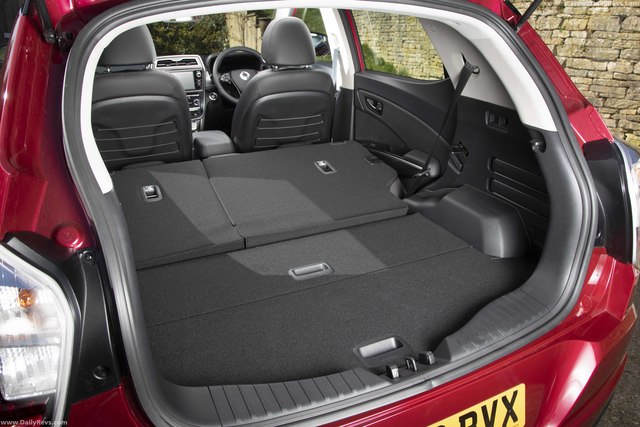

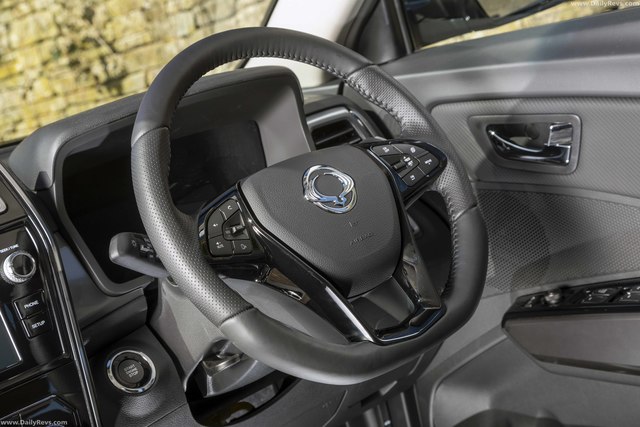

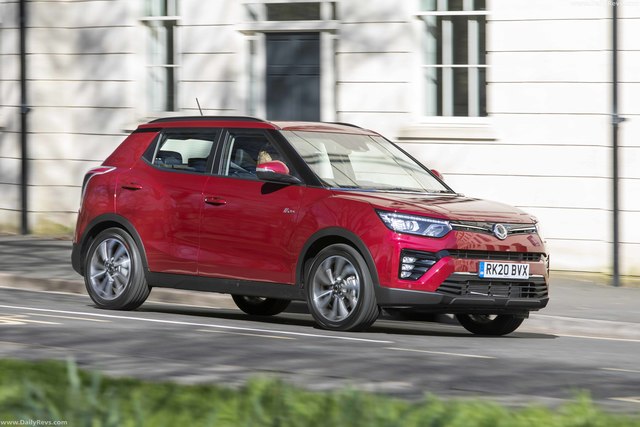

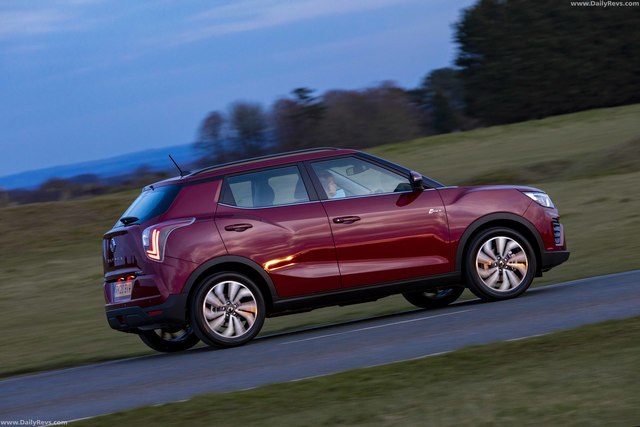

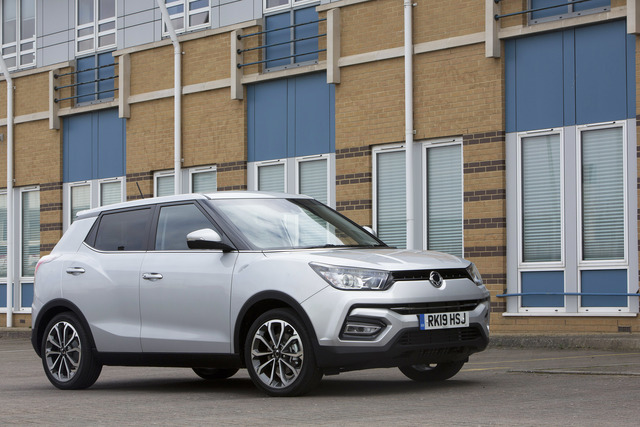

Yes. The gallery includes 41 photos for the SsangYong Tivoli, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
