Suzuki SX4 specifications and photos

Suzuki SX4 specifications are shown with trim options, key technical data, and a model photo gallery. Compare 17 configurations by engine size, power, seating, and transmission. The gallery includes 22 photos for visual reference.

Years 2016

Body type suv

Trims 17

Photos 22

Overview

Suzuki SX4 at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Suzuki SX4 page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 112-140 hp and 998-1598 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

Power: 112-140 hp
Engine displacement: 998-1598 cc
Transmissions: 5, 6, 5-speed manual
Seating: 5 seats

Research hub

Photos, trims and specifications for Suzuki SX4

This model page brings gallery images, trim comparison, and detailed technical data together for the 2016 generation.

Open photo gallery 22 images Compare trims 17 configurations View detailed specs 998-1598 cc Explore related pages Suzuki and similar models

Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 112-140 hp

Engine displacement 998-1598 cc

Seating 5 seats

Transmissions 5, 6, 5-speed manual

Trim / modification	Engine	Power	Seats	Transmission
1.6 5MT GL	1586 cc	117 hp	5	5
1.6 5MT GL (AWD)	1586 cc	117 hp	5	5
1.6 6AT GL	1586 cc	117 hp	5	6
1.6 6AT GLX	1586 cc	117 hp	5	6
1.6 6AT GL (AWD)	1586 cc	117 hp	5	6
1.4 6AT GLX (AWD)	1373 cc	140 hp	5	6
1.0 Boosterjet (112 HP) 6-car	998 cc	112 hp	5	6
1.0i BoosterJet (112 HP) 5-Mech	998 cc	112 hp	5	5
1.6i (117 h.p.) 5-mech	1586 cc	117 hp	5	5
1.6i (117 h.p.) 5-speed manual 4x4	1586 cc	117 hp	5	5-speed manual
1.6i (117 h.p.) 6-car	1586 cc	117 hp	5	6
1.6i (117 hp) 6-auto 4x4	1586 cc	117 hp	5	6
1.4 Boosterjet (140 h.p.) 6-speed manual	1373 cc	140 hp	5	6-speed manual
1.4 Boosterjet (140 HP) 6-speed manual 4x4	1373 cc	140 hp	5	6-speed manual
1.4 Boosterjet (140 HP) 6-car 4x4	1373 cc	140 hp	5	6
1.6 DDiS (120 hp) 6-speed manual 4x4	1598 cc	120 hp	5	6-speed manual
1.6 DDiS (120 hp) 6-TCSS 4x4	1598 cc	120 hp	5	6

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Gallery

Suzuki SX4 photo gallery

22 images are collected here with the main specifications and trim data for this model.

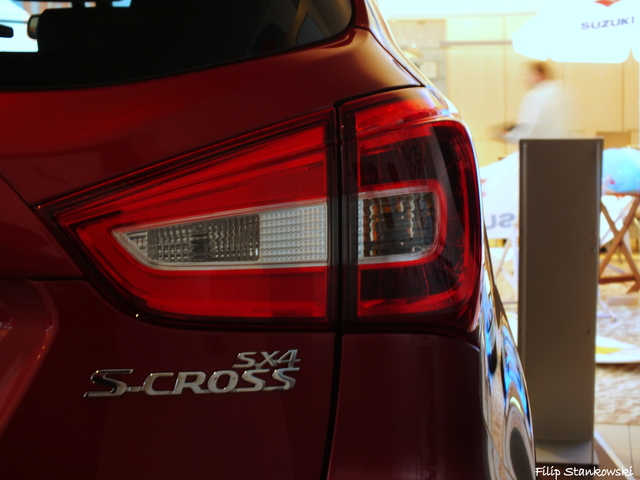

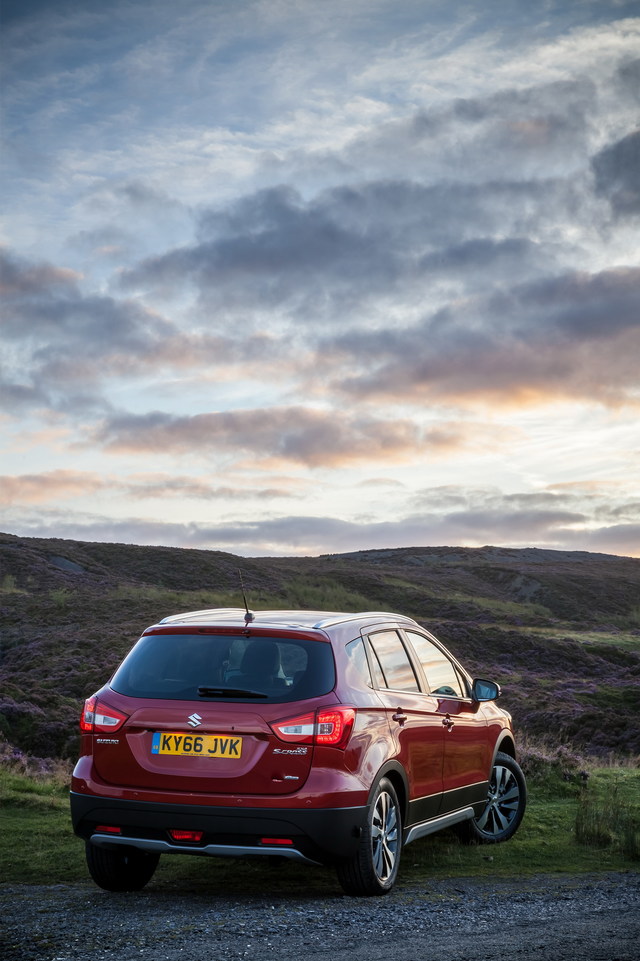

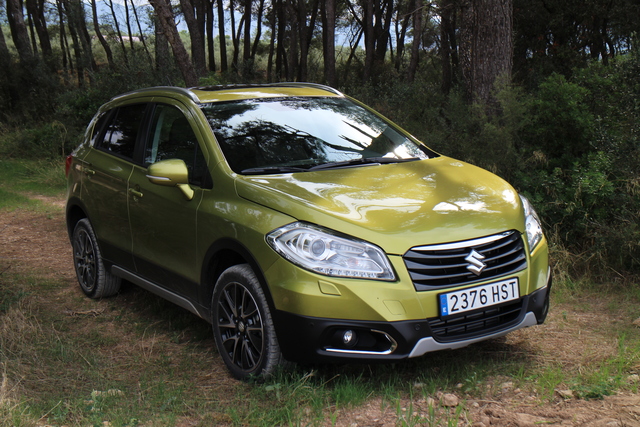

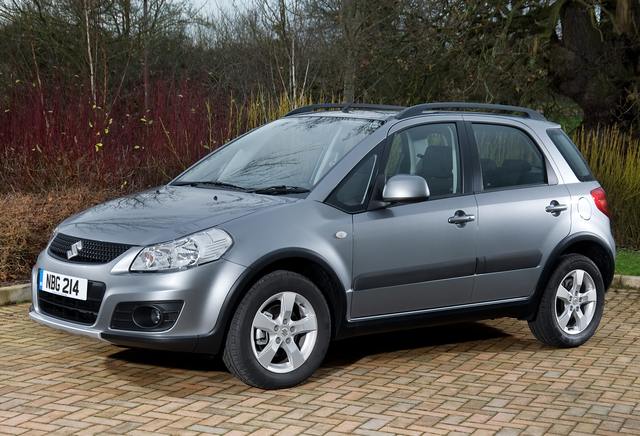

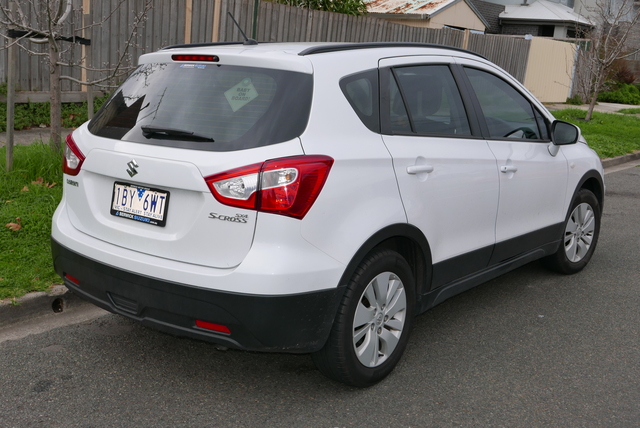

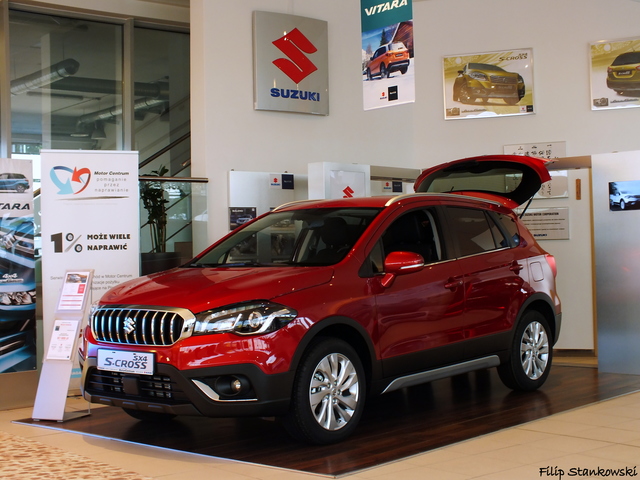

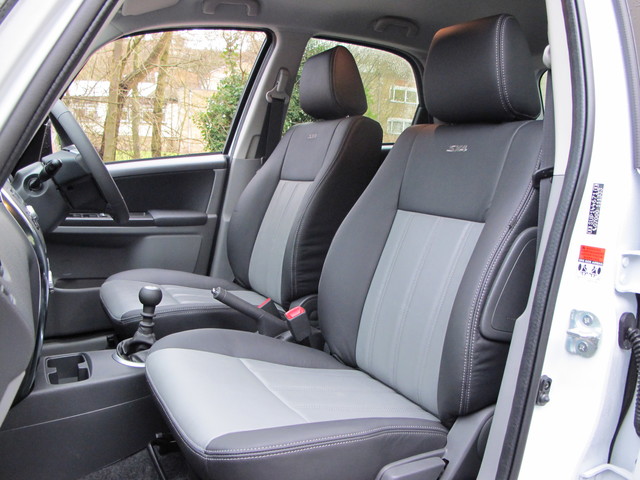

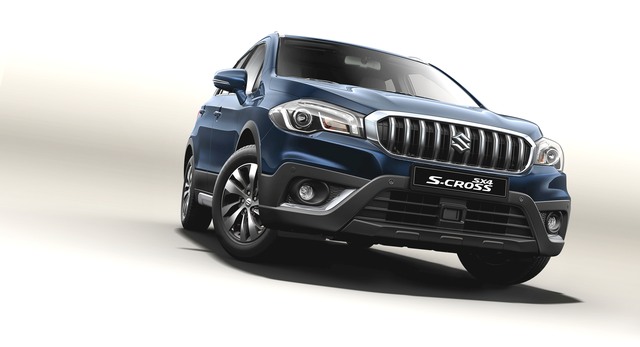

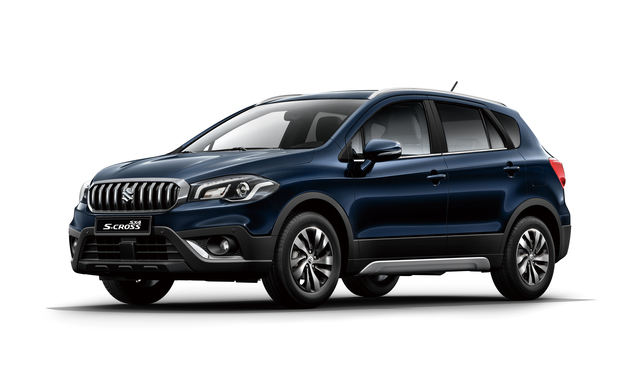

Photo Suzuki SX4

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

1.6 5MT GL 1.6 5MT GL (AWD) 1.6 6AT GL 1.6 6AT GLX 1.6 6AT GL (AWD) 1.4 6AT GLX (AWD) 1.0 Boosterjet (112 HP) 6-car 1.0i BoosterJet (112 HP) 5-Mech 1.6i (117 h.p.) 5-mech 1.6i (117 h.p.) 5-speed manual 4x4 1.6i (117 h.p.) 6-car 1.6i (117 hp) 6-auto 4x4 1.4 Boosterjet (140 h.p.) 6-speed manual 1.4 Boosterjet (140 HP) 6-speed manual 4x4 1.4 Boosterjet (140 HP) 6-car 4x4 1.6 DDiS (120 hp) 6-speed manual 4x4 1.6 DDiS (120 hp) 6-TCSS 4x4

1.6 5MT GL 80 specifications

Specifications

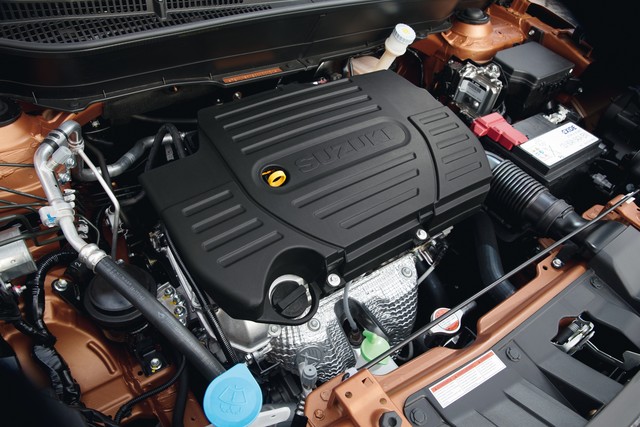

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1586
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	117
Torque, Nm	156
RPM at max torque	4400
Engine	1.6i
Compression	11.0
RPM at max power	6000
Engine code	M16A

Dimensions

Seats	5
Length mm	4300
Width	1785
Height mm	1585
Wheelbase mm	2600
Front track, mm	1535
Rear track, mm	1505
Kerb weight, kg	1165
Trunk capacity, L	430
Fuel tank, l	47
Turning circle, m	10
Ground clearance, mm	180
Gross weight, kg	1720

Suspension

Type of front suspension	MacPherson
Rear suspension	Semi-independent, torsion beam

Brake system

The front brakes	Ventilated disc
Rear brakes	Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	7.2
Fuel consumption (urban), l. 100 km	5.3
Fuel consumption (combined), l. 100 km	6
Acceleration (0-100 km/h), s	11
The maximum speed, km / h.	180
The rate of toxicity	Euro V

Transmission and drive

Number of gears	5
Drive	Front
Transmission	5-speed manual
Gearbox	Mechanics
Transmission manufacturer	Suzuki

Equipment

Comfort

Cruise Control	+
Adjustable steering column	+

Interior

On-board computer	+

Wheels

Disc diameter	16
Rim type	Steel
Tires	215/60R16
Spare wheel	Dokatka

Cabin climate and noise insulation

Heated front seats	+
Air Conditioning	+

Glass, mirrors and sunroof

Front power windows	+
Heated side mirrors	+
Heated rear window	+
Power mirrors	+
Rear electric windows	+

Multimedia and instruments

Steering wheel controls	+
Radio	+
Antenna	+
CD player	+
USB	+
Number of speakers	4
MP3	+

Headlights and lighting

corrector of headlights	+
Front fog lights	+

Seats

Armrest front	+
height-adjustable driver's seat	+
Passenger seat height adjustable	+

Trunk

Highlighting the trunk	+

Exterior

Roof rails	+

Security

Electronic systems

Anti-lock braking system (ABS)	+
Electronic Brakeforce Distribution (EBD, EBV, REF, EBFD)	+
Vehicle Stability Control (ESP, DSC, ESC, VSC)	+
Brake Assist (BOS, BAS)	+

Anti-theft systems

alarm	+
Central locking with remote control	+

Airbags

Driver's airbag	+
Passenger Airbag	+
Side airbags	+
Cushion for driver's knee	+
Deactivating the front passenger airbags	+

1.6 5MT GL (AWD) 80 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1586
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	117
Torque, Nm	156
RPM at max torque	4400
Engine	1.6i
Compression	11.0
RPM at max power	6000
Engine code	M16A

Dimensions

Seats	5
Length mm	4300
Width	1785
Height mm	1585
Wheelbase mm	2600
Front track, mm	1535
Rear track, mm	1505
Kerb weight, kg	1165
Trunk capacity, L	430
Fuel tank, l	47
Turning circle, m	10
Ground clearance, mm	180
Gross weight, kg	1720

Suspension

Type of front suspension	MacPherson
Rear suspension	Semi-independent, torsion beam

Brake system

The front brakes	Ventilated disc
Rear brakes	Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	7.4
Fuel consumption (urban), l. 100 km	5.5
Fuel consumption (combined), l. 100 km	6.2
Acceleration (0-100 km/h), s	12
The maximum speed, km / h.	175
The rate of toxicity	Euro V

Transmission and drive

Number of gears	5
Drive	Full
Transmission	5-speed manual
Gearbox	Mechanics
Transmission manufacturer	Suzuki

Equipment

Comfort

Cruise Control	+
Adjustable steering column	+

Interior

On-board computer	+

Wheels

Disc diameter	16
Rim type	Steel
Tires	215/60R16
Spare wheel	Dokatka

Cabin climate and noise insulation

Heated front seats	+
Air Conditioning	+

Glass, mirrors and sunroof

Front power windows	+
Heated side mirrors	+
Heated rear window	+
Power mirrors	+
Rear electric windows	+

Multimedia and instruments

Steering wheel controls	+
Radio	+
Antenna	+
CD player	+
USB	+
Number of speakers	4
MP3	+

Headlights and lighting

corrector of headlights	+
Front fog lights	+

Seats

Armrest front	+
height-adjustable driver's seat	+
Passenger seat height adjustable	+

Trunk

Highlighting the trunk	+

Exterior

Roof rails	+

Security

Electronic systems

Anti-lock braking system (ABS)	+
Electronic Brakeforce Distribution (EBD, EBV, REF, EBFD)	+
Vehicle Stability Control (ESP, DSC, ESC, VSC)	+
Brake Assist (BOS, BAS)	+

Anti-theft systems

alarm	+
Central locking with remote control	+

Airbags

Driver's airbag	+
Passenger Airbag	+
Side airbags	+
Cushion for driver's knee	+
Deactivating the front passenger airbags	+

1.6 6AT GL 83 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1586
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	117
Torque, Nm	156
RPM at max torque	4400
Engine	1.6i
Compression	11.0
RPM at max power	6000
Engine code	M16A

Dimensions

Seats	5
Length mm	4300
Width	1785
Height mm	1585
Wheelbase mm	2600
Front track, mm	1535
Rear track, mm	1505
Kerb weight, kg	1165
Trunk capacity, L	430
Fuel tank, l	47
Turning circle, m	10
Ground clearance, mm	180
Gross weight, kg	1720

Suspension

Type of front suspension	MacPherson
Rear suspension	Semi-independent, torsion beam

Brake system

The front brakes	Ventilated disc
Rear brakes	Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	7.6
Fuel consumption (urban), l. 100 km	5.1
Fuel consumption (combined), l. 100 km	6
Acceleration (0-100 km/h), s	12.4
The maximum speed, km / h.	170
The rate of toxicity	Euro V

Transmission and drive

Automatic transmission	+
Number of gears	6
Drive	Front
Transmission	6-car
Gearbox	Machine
Transmission manufacturer	Aisin
Transmission country of origin	Japan

Equipment

Comfort

Cruise Control	+
Paddle shifters	+
Adjustable steering column	+

Interior

On-board computer	+

Wheels

Disc diameter	16
Rim type	Steel
Tires	215/60R16
Spare wheel	Dokatka

Cabin climate and noise insulation

Heated front seats	+
Air Conditioning	+

Glass, mirrors and sunroof

Front power windows	+
Heated side mirrors	+
Heated rear window	+
Power mirrors	+
Rear electric windows	+

Multimedia and instruments

Steering wheel controls	+
Radio	+
Antenna	+
CD player	+
USB	+
Number of speakers	4
MP3	+

Headlights and lighting

corrector of headlights	+
Front fog lights	+

Seats

Armrest front	+
height-adjustable driver's seat	+
Passenger seat height adjustable	+

Trunk

Highlighting the trunk	+

Exterior

Roof rails	+

Security

Electronic systems

Anti-lock braking system (ABS)	+
Electronic Brakeforce Distribution (EBD, EBV, REF, EBFD)	+
Vehicle Stability Control (ESP, DSC, ESC, VSC)	+
Brake Assist (BOS, BAS)	+

Anti-theft systems

alarm	+
Central locking with remote control	+

Airbags

Driver's airbag	+
Passenger Airbag	+
Side airbags	+
Cushion for driver's knee	+
Deactivating the front passenger airbags	+

1.6 6AT GLX 95 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1586
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	117
Torque, Nm	156
RPM at max torque	4400
Engine	1.6i
Compression	11.0
RPM at max power	6000
Engine code	M16A

Dimensions

Seats	5
Length mm	4300
Width	1785
Height mm	1585
Wheelbase mm	2600
Front track, mm	1535
Rear track, mm	1505
Kerb weight, kg	1165
Trunk capacity, L	430
Fuel tank, l	47
Turning circle, m	10
Ground clearance, mm	180
Gross weight, kg	1720

Suspension

Type of front suspension	MacPherson
Rear suspension	Semi-independent, torsion beam

Brake system

The front brakes	Ventilated disc
Rear brakes	Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	7.6
Fuel consumption (urban), l. 100 km	5.1
Fuel consumption (combined), l. 100 km	6
Acceleration (0-100 km/h), s	12.4
The maximum speed, km / h.	170
The rate of toxicity	Euro V

Transmission and drive

Automatic transmission	+
Number of gears	6
Drive	Front
Transmission	6-car
Gearbox	Machine
Transmission manufacturer	Aisin
Transmission country of origin	Japan

Equipment

Comfort

Cruise Control	+
Start / Stop button for starting and stopping the engine	+
Paddle shifters	+
Adjustable steering column	+

Interior

On-board computer	+
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.)	+

Wheels

Disc diameter	16
Rim type	Alloy
Tires	215/60R16
Spare wheel	Dokatka

Cabin climate and noise insulation

2-zone automatic climate control	+
Heated front seats	+

Glass, mirrors and sunroof

Front power windows	+
The rain sensor	+
Heated side mirrors	+
Heated rear window	+
Power mirrors	+
Rear electric windows	+
Electric folding mirrors	+

Multimedia and instruments

Steering wheel controls	+
Radio	+
Antenna	+
Bluetooth hands free	+
CD player	+
USB	+
Number of speakers	6
MP3	+

Headlights and lighting

corrector of headlights	+
Front fog lights	+
LED headlights	+
Light sensor	+
LED lights daylight	+

Seats

Rear Armrest	+
Armrest front	+
height-adjustable driver's seat	+
Passenger seat height adjustable	+

Visibility and parking

Rear Parking Sensors	+
Parking aid front	+

Off-road

System Hill Hold Control	+

Trunk

Highlighting the trunk	+

Exterior

Roof rails	+

Security

Electronic systems

Anti-lock braking system (ABS)	+
Electronic Brakeforce Distribution (EBD, EBV, REF, EBFD)	+
Vehicle Stability Control (ESP, DSC, ESC, VSC)	+
Brake Assist (BOS, BAS)	+

Anti-theft systems

alarm	+
Central locking with remote control	+

Airbags

Driver's airbag	+
Passenger Airbag	+
Side airbags	+
Cushion for driver's knee	+
Deactivating the front passenger airbags	+

1.6 6AT GL (AWD) 83 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1586
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	117
Torque, Nm	156
RPM at max torque	4400
Engine	1.6i
Compression	11.0
RPM at max power	6000
Engine code	M16A

Dimensions

Seats	5
Length mm	4300
Width	1785
Height mm	1585
Wheelbase mm	2600
Front track, mm	1535
Rear track, mm	1505
Kerb weight, kg	1165
Trunk capacity, L	430
Fuel tank, l	47
Turning circle, m	10
Ground clearance, mm	180
Gross weight, kg	1720

Suspension

Type of front suspension	MacPherson
Rear suspension	Semi-independent, torsion beam

Brake system

The front brakes	Ventilated disc
Rear brakes	Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	7.8
Fuel consumption (urban), l. 100 km	5.4
Fuel consumption (combined), l. 100 km	6.3
Acceleration (0-100 km/h), s	13.5
The maximum speed, km / h.	165
The rate of toxicity	Euro V

Transmission and drive

Automatic transmission	+
Number of gears	6
Drive	Full
Transmission	6-car
Gearbox	Machine
Transmission manufacturer	Aisin
Transmission country of origin	Japan

Equipment

Comfort

Cruise Control	+
Paddle shifters	+
Adjustable steering column	+

Interior

On-board computer	+

Wheels

Disc diameter	16
Rim type	Steel
Tires	215/60R16
Spare wheel	Dokatka

Cabin climate and noise insulation

Heated front seats	+
Air Conditioning	+

Glass, mirrors and sunroof

Front power windows	+
Heated side mirrors	+
Heated rear window	+
Power mirrors	+
Rear electric windows	+

Multimedia and instruments

Steering wheel controls	+
Radio	+
Antenna	+
CD player	+
USB	+
Number of speakers	4
MP3	+

Headlights and lighting

corrector of headlights	+
Front fog lights	+

Seats

Armrest front	+
height-adjustable driver's seat	+
Passenger seat height adjustable	+

Trunk

Highlighting the trunk	+

Exterior

Roof rails	+

Security

Electronic systems

Anti-lock braking system (ABS)	+
Electronic Brakeforce Distribution (EBD, EBV, REF, EBFD)	+
Vehicle Stability Control (ESP, DSC, ESC, VSC)	+
Brake Assist (BOS, BAS)	+

Anti-theft systems

alarm	+
Central locking with remote control	+

Airbags

Driver's airbag	+
Passenger Airbag	+
Side airbags	+
Cushion for driver's knee	+
Deactivating the front passenger airbags	+

1.4 6AT GLX (AWD) 96 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1373
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	140
Torque, Nm	220
RPM at max torque	1500-4000
Engine	1.4 Boosterjet
Compression	9.9
RPM at max power	5500
Turbo	+
Engine code	K14C

Dimensions

Seats	5
Length mm	4300
Width	1785
Height mm	1585
Wheelbase mm	2600
Front track, mm	1535
Rear track, mm	1505
Kerb weight, kg	1165
Trunk capacity, L	430
Fuel tank, l	47
Turning circle, m	10
Ground clearance, mm	180
Gross weight, kg	1720

Suspension

Type of front suspension	MacPherson
Rear suspension	Semi-independent, torsion beam

Brake system

The front brakes	Ventilated disc
Rear brakes	Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	7.9
Fuel consumption (urban), l. 100 km	5.3
Fuel consumption (combined), l. 100 km	6.3
Acceleration (0-100 km/h), s	10.2
The maximum speed, km / h.	200
The rate of toxicity	Euro V

Transmission and drive

Automatic transmission	+
Number of gears	6
Drive	Full
Transmission	6-car
Gearbox	Machine
Transmission manufacturer	Aisin
Transmission country of origin	Japan

Equipment

Comfort

Cruise Control	+
Start / Stop button for starting and stopping the engine	+
Paddle shifters	+
Adjustable steering column	+

Interior

On-board computer	+
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.)	+

Wheels

Disc diameter	16
Rim type	Alloy
Tires	215/60R16
Spare wheel	Dokatka

Cabin climate and noise insulation

2-zone automatic climate control	+
Heated front seats	+

Glass, mirrors and sunroof

Front power windows	+
The rain sensor	+
Heated side mirrors	+
Heated rear window	+
Power mirrors	+
Rear electric windows	+
Electric folding mirrors	+

Multimedia and instruments

Steering wheel controls	+
Radio	+
Antenna	+
Bluetooth hands free	+
CD player	+
USB	+
Number of speakers	6
MP3	+

Headlights and lighting

corrector of headlights	+
Front fog lights	+
LED headlights	+
Light sensor	+
LED lights daylight	+

Seats

Rear Armrest	+
Armrest front	+
height-adjustable driver's seat	+
Passenger seat height adjustable	+

Visibility and parking

Rear Parking Sensors	+
Parking aid front	+

Off-road

System Hill Hold Control	+

Trunk

Highlighting the trunk	+

Exterior

Roof rails	+

Security

Electronic systems

Anti-lock braking system (ABS)	+
Electronic Brakeforce Distribution (EBD, EBV, REF, EBFD)	+
Vehicle Stability Control (ESP, DSC, ESC, VSC)	+
Brake Assist (BOS, BAS)	+

Anti-theft systems

alarm	+
Central locking with remote control	+

Airbags

Driver's airbag	+
Passenger Airbag	+
Side airbags	+
Cushion for driver's knee	+
Deactivating the front passenger airbags	+

1.0 Boosterjet (112 HP) 6-car 37 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	998
Cylinders location	In-line
Number of cylinders	3
Valves	12
Power, hp	112
Torque, Nm	160
RPM at max torque	1700-4000
Engine	1.0 Boosterjet
RPM at max power	5500
Turbo	+
Engine code	K10C

Dimensions

Seats	5
Length mm	4300
Height mm	1585
Wheelbase mm	2600
Front track, mm	1535
Rear track, mm	1505
Trunk capacity, L	430
Fuel tank, l	47
Turning circle, m	10
Ground clearance, mm	180
Width (without mirrors) mm	1785

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	6.2
Fuel consumption (urban), l. 100 km	4.7
Fuel consumption (combined), l. 100 km	5.2
Acceleration (0-100 km/h), s	12.4
The maximum speed, km / h.	170
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	6
Drive	Front
Transmission	6-car
Gearbox	Machine
Transmission manufacturer	Aisin
Transmission country of origin	Japan

1.0i BoosterJet (112 HP) 5-Mech 36 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	998
Cylinders location	In-line
Number of cylinders	3
Valves	12
Power, hp	112
Torque, Nm	170
RPM at max torque	2000-3500
Engine	1.0i BoosterJet
Compression	10.0
RPM at max power	5500
Turbo	+
Engine code	K10C

Dimensions

Seats	5
Length mm	4300
Height mm	1585
Wheelbase mm	2600
Front track, mm	1535
Rear track, mm	1505
Trunk capacity, L	430
Fuel tank, l	47
Turning circle, m	10
Ground clearance, mm	180
Width (without mirrors) mm	1785

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	5.7
Fuel consumption (urban), l. 100 km	4.6
Fuel consumption (combined), l. 100 km	5
Acceleration (0-100 km/h), s	11
The maximum speed, km / h.	180
The rate of toxicity	Euro VI

Transmission and drive

Number of gears	5
Drive	Front
Transmission	5-speed manual
Gearbox	Mechanics
Transmission manufacturer	Suzuki

1.6i (117 h.p.) 5-mech 35 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1586
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	117
Torque, Nm	156
RPM at max torque	4400
Engine	1.6i
Compression	11.0
RPM at max power	6000
Engine code	M16A

Dimensions

Seats	5
Length mm	4300
Height mm	1585
Wheelbase mm	2600
Front track, mm	1535
Rear track, mm	1505
Trunk capacity, L	430
Fuel tank, l	47
Turning circle, m	10
Ground clearance, mm	180
Width (without mirrors) mm	1785

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	7.2
Fuel consumption (urban), l. 100 km	5.3
Fuel consumption (combined), l. 100 km	6
Acceleration (0-100 km/h), s	11
The maximum speed, km / h.	180
The rate of toxicity	Euro V

Transmission and drive

Number of gears	5
Drive	Front
Transmission	5-speed manual
Gearbox	Mechanics
Transmission manufacturer	Suzuki

1.6i (117 h.p.) 5-speed manual 4x4 35 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1586
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	117
Torque, Nm	156
RPM at max torque	4400
Engine	1.6i
Compression	11.0
RPM at max power	6000
Engine code	M16A

Dimensions

Seats	5
Length mm	4300
Height mm	1585
Wheelbase mm	2600
Front track, mm	1535
Rear track, mm	1505
Trunk capacity, L	430
Fuel tank, l	47
Turning circle, m	10
Ground clearance, mm	180
Width (without mirrors) mm	1785

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	7.4
Fuel consumption (urban), l. 100 km	5.5
Fuel consumption (combined), l. 100 km	6.2
Acceleration (0-100 km/h), s	12
The maximum speed, km / h.	175
The rate of toxicity	Euro V

Transmission and drive

Number of gears	5
Drive	Full
Transmission	5-speed manual
Gearbox	Mechanics
Transmission manufacturer	Suzuki

1.6i (117 h.p.) 6-car 37 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1586
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	117
Torque, Nm	156
RPM at max torque	4400
Engine	1.6i
Compression	11.0
RPM at max power	6000
Engine code	M16A

Dimensions

Seats	5
Length mm	4300
Height mm	1585
Wheelbase mm	2600
Front track, mm	1535
Rear track, mm	1505
Trunk capacity, L	430
Fuel tank, l	47
Turning circle, m	10
Ground clearance, mm	180
Width (without mirrors) mm	1785

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	7.6
Fuel consumption (urban), l. 100 km	5.1
Fuel consumption (combined), l. 100 km	6
Acceleration (0-100 km/h), s	12.4
The maximum speed, km / h.	170
The rate of toxicity	Euro V

Transmission and drive

Automatic transmission	+
Number of gears	6
Drive	Front
Transmission	6-car
Gearbox	Machine
Transmission manufacturer	Aisin
Transmission country of origin	Japan

1.6i (117 hp) 6-auto 4x4 37 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1586
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	117
Torque, Nm	156
RPM at max torque	4400
Engine	1.6i
Compression	11.0
RPM at max power	6000
Engine code	M16A

Dimensions

Seats	5
Length mm	4300
Height mm	1585
Wheelbase mm	2600
Front track, mm	1535
Rear track, mm	1505
Trunk capacity, L	430
Fuel tank, l	47
Turning circle, m	10
Ground clearance, mm	180
Width (without mirrors) mm	1785

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	7.8
Fuel consumption (urban), l. 100 km	5.4
Fuel consumption (combined), l. 100 km	6.3
Acceleration (0-100 km/h), s	13.5
The maximum speed, km / h.	165
The rate of toxicity	Euro V

Transmission and drive

Automatic transmission	+
Number of gears	6
Drive	Full
Transmission	6-car
Gearbox	Machine
Transmission manufacturer	Aisin
Transmission country of origin	Japan

1.4 Boosterjet (140 h.p.) 6-speed manual 35 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1373
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	140
Torque, Nm	220
RPM at max torque	1500-4000
Engine	1.4 Boosterjet
Compression	9.9
RPM at max power	5500
Turbo	+
Engine code	K14C

Dimensions

Seats	5
Length mm	4300
Height mm	1585
Wheelbase mm	2600
Front track, mm	1535
Rear track, mm	1505
Trunk capacity, L	430
Fuel tank, l	47
Turning circle, m	10
Ground clearance, mm	180
Width (without mirrors) mm	1785

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	6.3
Fuel consumption (urban), l. 100 km	4.9
Fuel consumption (combined), l. 100 km	5.4
Acceleration (0-100 km/h), s	9.5
The maximum speed, km / h.	200
The rate of toxicity	Euro VI

Transmission and drive

Number of gears	6
Drive	Front
Transmission	6-speed manual
Gearbox	Mechanics

1.4 Boosterjet (140 HP) 6-speed manual 4x4 35 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1373
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	140
Torque, Nm	220
RPM at max torque	1500-4000
Engine	1.4 Boosterjet
Compression	9.9
RPM at max power	5500
Turbo	+
Engine code	K14C

Dimensions

Seats	5
Length mm	4300
Height mm	1585
Wheelbase mm	2600
Front track, mm	1535
Rear track, mm	1505
Trunk capacity, L	430
Fuel tank, l	47
Turning circle, m	10
Ground clearance, mm	180
Width (without mirrors) mm	1785

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	6.6
Fuel consumption (urban), l. 100 km	5.2
Fuel consumption (combined), l. 100 km	5.7
Acceleration (0-100 km/h), s	10.2
The maximum speed, km / h.	200
The rate of toxicity	Euro VI

Transmission and drive

Number of gears	6
Drive	Full
Transmission	6-speed manual
Gearbox	Mechanics

1.4 Boosterjet (140 HP) 6-car 4x4 38 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1373
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	140
Torque, Nm	220
RPM at max torque	1500-4000
Engine	1.4 Boosterjet
Compression	9.9
RPM at max power	5500
Turbo	+
Engine code	K14C

Dimensions

Seats	5
Length mm	4300
Height mm	1585
Wheelbase mm	2600
Front track, mm	1535
Rear track, mm	1505
Trunk capacity, L	430
Fuel tank, l	47
Turning circle, m	10
Ground clearance, mm	180
Width (without mirrors) mm	1785

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	7.9
Fuel consumption (urban), l. 100 km	5.3
Fuel consumption (combined), l. 100 km	6.3
Acceleration (0-100 km/h), s	10.2
The maximum speed, km / h.	200
The rate of toxicity	Euro V

Transmission and drive

Automatic transmission	+
Number of gears	6
Drive	Full
Transmission	6-car
Gearbox	Machine
Transmission manufacturer	Aisin
Transmission country of origin	Japan

1.6 DDiS (120 hp) 6-speed manual 4x4 35 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1598
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	120
Torque, Nm	320
RPM at max torque	1750
Engine	1.6 DDiS
Compression	16.5
RPM at max power	4000
Turbo	+
Engine code	D16AA

Dimensions

Seats	5
Length mm	4300
Height mm	1585
Wheelbase mm	2600
Front track, mm	1535
Rear track, mm	1505
Trunk capacity, L	430
Fuel tank, l	47
Turning circle, m	10
Ground clearance, mm	180
Width (without mirrors) mm	1785

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	4.8
Fuel consumption (urban), l. 100 km	4.1
Fuel consumption (combined), l. 100 km	4.4
Acceleration (0-100 km/h), s	13
The maximum speed, km / h.	175
The rate of toxicity	Euro VI

Transmission and drive

Number of gears	6
Drive	Full
Transmission	6-speed manual
Gearbox	Mechanics

1.6 DDiS (120 hp) 6-TCSS 4x4 36 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1598
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	120
Torque, Nm	320
RPM at max torque	1750
Engine	1.6 DDiS
Compression	16.5
RPM at max power	4000
Turbo	+
Engine code	D16AA

Dimensions

Seats	5
Length mm	4300
Height mm	1585
Wheelbase mm	2600
Front track, mm	1535
Rear track, mm	1505
Trunk capacity, L	430
Fuel tank, l	47
Turning circle, m	10
Ground clearance, mm	180
Width (without mirrors) mm	1785

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	5.4
Fuel consumption (urban), l. 100 km	4.2
Fuel consumption (combined), l. 100 km	4.6
Acceleration (0-100 km/h), s	13
The maximum speed, km / h.	175
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	6
Drive	Full
Transmission	6-TCSS
Gearbox	2 clutch robot

FAQ

Suzuki SX4 questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Suzuki SX4?

This page lists 17 trims for the Suzuki SX4, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Suzuki SX4?

The listed configurations show a power range of 112-140 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Suzuki SX4?

The available specification data shows engine displacement from 998-1598 cc across the trims listed on this page.

Which transmissions are listed for the Suzuki SX4?

The transmission options currently shown for this model are: 5, 6, 5-speed manual. Open a trim section to see the full data for a specific configuration.

Are there photos for the Suzuki SX4?

Yes. The gallery includes 22 photos for the Suzuki SX4, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
