Volkswagen Atlas Cross Sport specifications and photos
Volkswagen Atlas Cross Sport specifications are shown with trim options, key technical data, and a model photo gallery. Compare 3 configurations by engine size, power, seating, and transmission. The gallery includes 15 photos for visual reference.
Volkswagen Atlas Cross Sport at a glance
Quick model context before comparing photos and trim-level specifications.
Use this Volkswagen Atlas Cross Sport page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 238-280 hp and 1984-3597 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.
- Power: 238-280 hp
- Engine displacement: 1984-3597 cc
- Transmissions: 8-speed automatic, 8
- Seating: 5 seats
Photos, trims and specifications for Volkswagen Atlas Cross Sport
This model page brings gallery images, trim comparison, and detailed technical data together for the 2020 generation.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 2.0 TSI (238 hp) 8-speed automatic | 1984 cc | 238 hp | 5 | 8-speed automatic |
| 2.0 TSI (238 hp) 8-speed automatic 4x4 | 1984 cc | 238 hp | 5 | 8-speed automatic |
| 3.6 VR6 FSI (280 hp) 8-speed 4x4 | 3597 cc | 280 hp | 5 | 8 |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

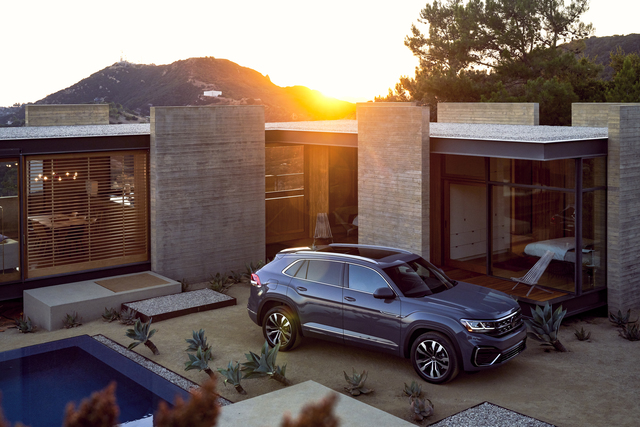

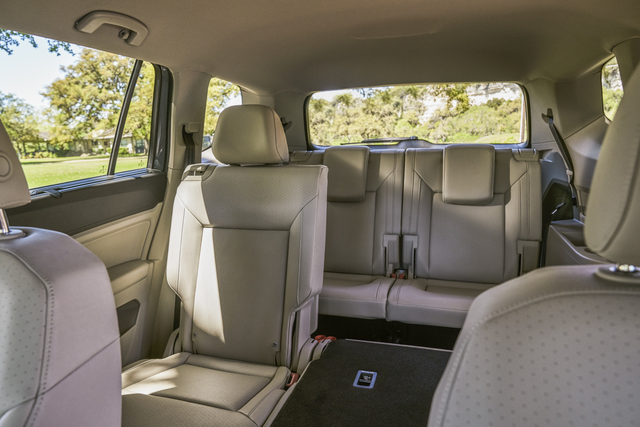

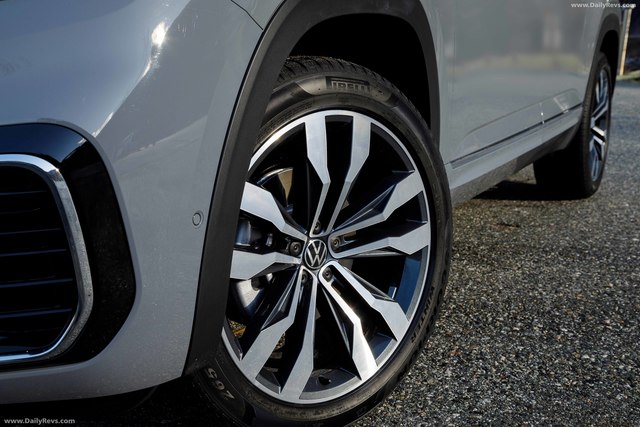

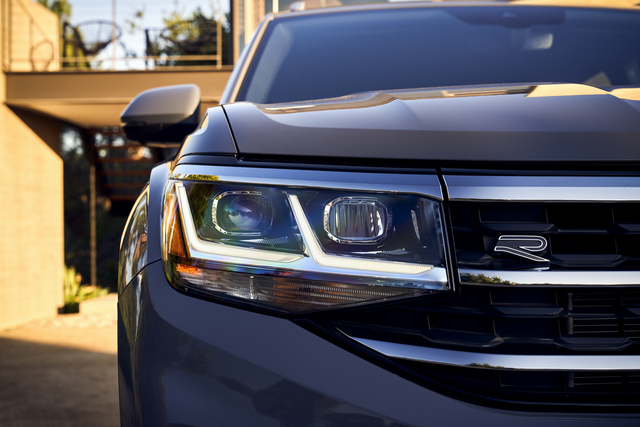

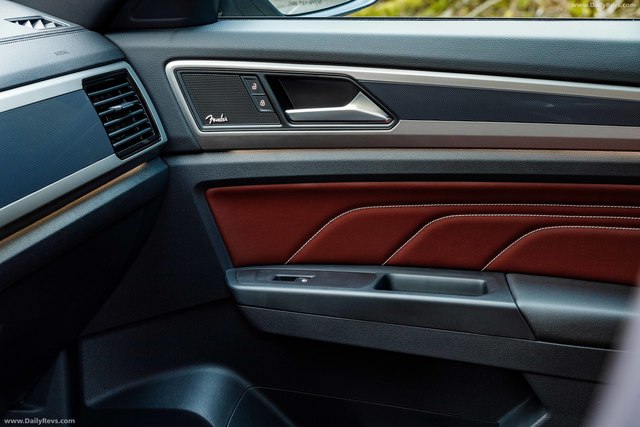

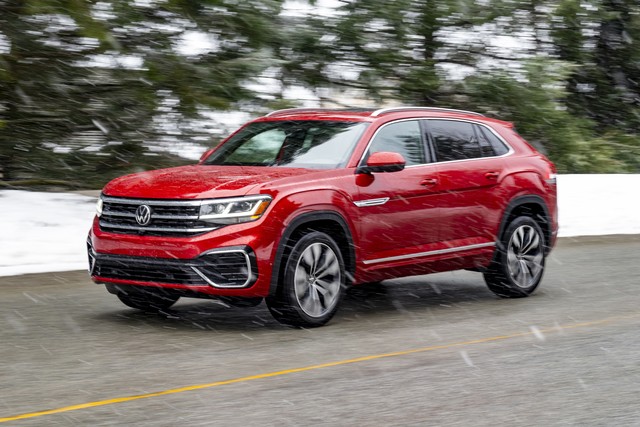

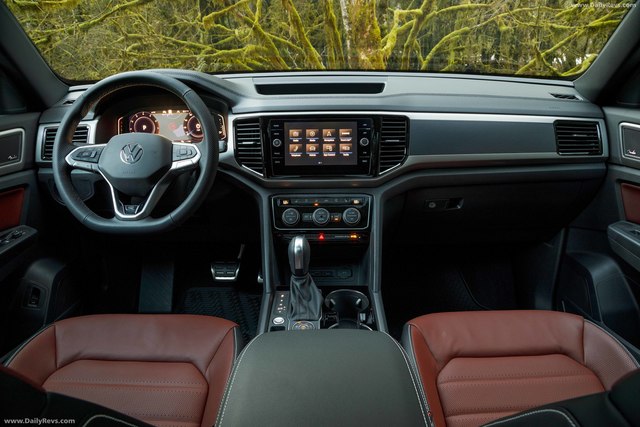

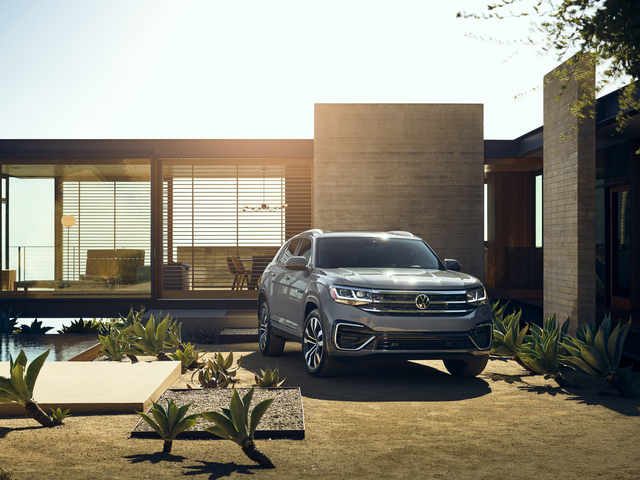

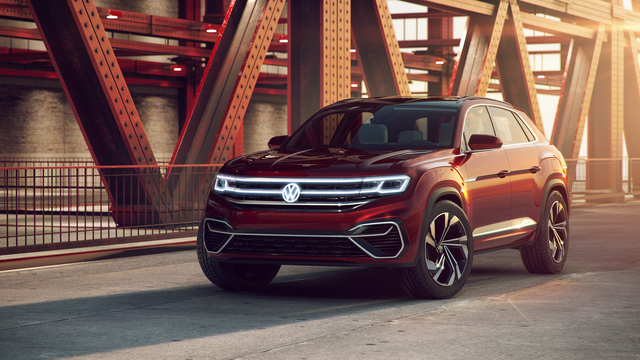

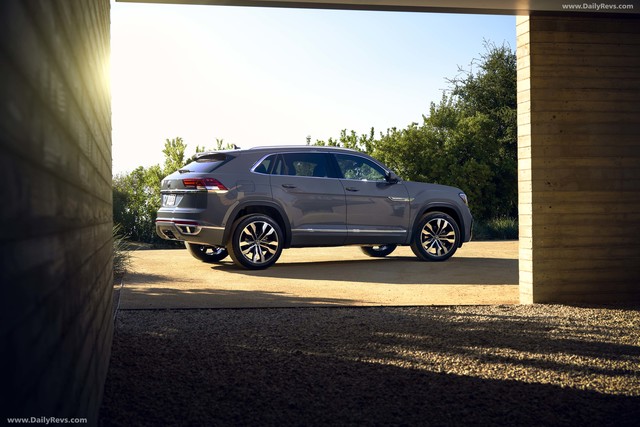

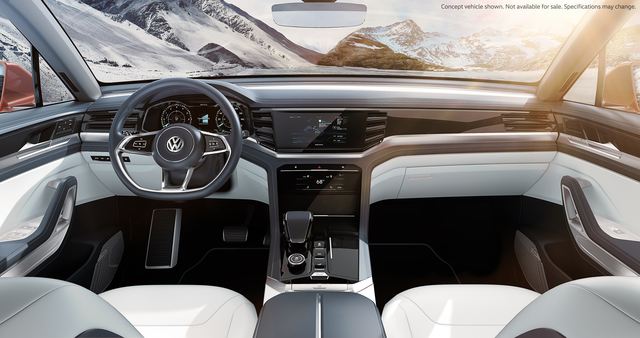

Volkswagen Atlas Cross Sport photo gallery
15 images are collected here with the main specifications and trim data for this model.
Photo Volkswagen Atlas Cross Sport
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
2.0 TSI (238 hp) 8-speed automatic 36 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Gasoline |
| Displacement, cc | 1984 |
| Cylinders location | In-line |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 238 |
| Torque, Nm | 350 |
| RPM at max torque | 1600 |
| Engine | 2.0 TSI |
| Compression | 9.6 |
| RPM at max power | 4500 |
| Turbo | + |
| Engine code | EA888 |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 4966 |
| Width | 1990 |
| Height mm | 1723 |
| Wheelbase mm | 2980 |
| Front track, mm | 1702 |
| Rear track, mm | 1718 |
| Kerb weight, kg | 2000 |
| Trunk capacity, L | 1141 |
| Fuel tank, l | 70 |
| Ground clearance, mm | 203 |
| Gross weight, kg | 2640 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 11.2 |
|---|---|
| Fuel consumption (urban), l. 100 km | 9.8 |
| Fuel consumption (combined), l. 100 km | 10.7 |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Number of gears | 8 |
| Drive | Front |
| Transmission | 8-speed automatic |
| Gearbox | Machine |
| Transmission manufacturer | Aisin |
| Transmission country of origin | Japan |
2.0 TSI (238 hp) 8-speed automatic 4x4 36 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Gasoline |
| Displacement, cc | 1984 |
| Cylinders location | In-line |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 238 |
| Torque, Nm | 350 |
| RPM at max torque | 1600 |
| Engine | 2.0 TSI |
| Compression | 9.6 |
| RPM at max power | 4500 |
| Turbo | + |
| Engine code | EA888 |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 4966 |
| Width | 1990 |
| Height mm | 1723 |
| Wheelbase mm | 2980 |
| Front track, mm | 1702 |
| Rear track, mm | 1718 |
| Kerb weight, kg | 2000 |
| Trunk capacity, L | 1141 |
| Fuel tank, l | 70 |
| Ground clearance, mm | 203 |
| Gross weight, kg | 2640 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 13 |
|---|---|
| Fuel consumption (urban), l. 100 km | 10.2 |
| Fuel consumption (combined), l. 100 km | 11.7 |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Number of gears | 8 |
| Drive | Full |
| Transmission | 8-speed automatic |
| Gearbox | Machine |
| Transmission manufacturer | Aisin |
| Transmission country of origin | Japan |
3.6 VR6 FSI (280 hp) 8-speed 4x4 34 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Gasoline |
| Displacement, cc | 3597 |
| Cylinders location | V-shaped |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 280 |
| Torque, Nm | 360 |
| RPM at max torque | 2500-5000 |
| Engine | 3.6 VR6 FSI |
| Compression | 12.0 |
| Engine code | BHK/CDVC (EA390) |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 4966 |
| Width | 1990 |
| Height mm | 1723 |
| Wheelbase mm | 2980 |
| Front track, mm | 1702 |
| Rear track, mm | 1718 |
| Kerb weight, kg | 2000 |
| Trunk capacity, L | 1141 |
| Fuel tank, l | 70 |
| Ground clearance, mm | 203 |
| Gross weight, kg | 2640 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 14.7 |
|---|---|
| Fuel consumption (urban), l. 100 km | 10.7 |
| Fuel consumption (combined), l. 100 km | 12.4 |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Number of gears | 8 |
| Drive | Full |
| Transmission | 8-speed automatic |
| Gearbox | Machine |
| Transmission manufacturer | Aisin |
| Transmission country of origin | Japan |
Volkswagen Atlas Cross Sport questions
Short answers based on the specifications and photos available in this catalog.
How many trims are listed for the Volkswagen Atlas Cross Sport?
This page lists 3 trims for the Volkswagen Atlas Cross Sport, with key data shown in the comparison table and full specifications grouped below.
What is the power range for the Volkswagen Atlas Cross Sport?
The listed configurations show a power range of 238-280 hp. Exact output can vary by engine, transmission, market, and model year.
What engine displacement is shown for the Volkswagen Atlas Cross Sport?
The available specification data shows engine displacement from 1984-3597 cc across the trims listed on this page.
Which transmissions are listed for the Volkswagen Atlas Cross Sport?
The transmission options currently shown for this model are: 8-speed automatic, 8. Open a trim section to see the full data for a specific configuration.
Are there photos for the Volkswagen Atlas Cross Sport?
Yes. The gallery includes 15 photos for the Volkswagen Atlas Cross Sport, including exterior and interior views where available.
Why can specifications differ for the same model?
Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
