Hyundai i10 specifications and photos

Hyundai i10 specifications are shown with trim options, key technical data, and a model photo gallery. Compare 5 configurations by engine size, power, seating, and transmission. The gallery includes 21 photos for visual reference.

Years 2017
Body type hatchback
Trims 5
Photos 21

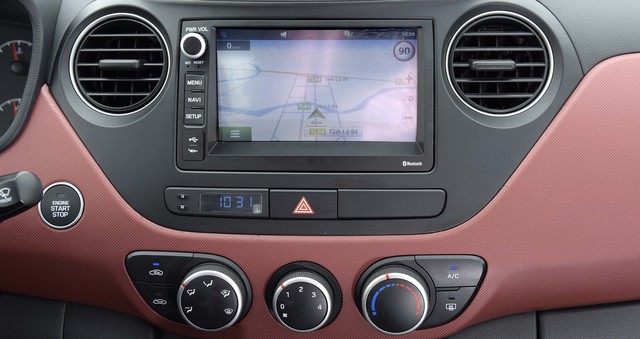

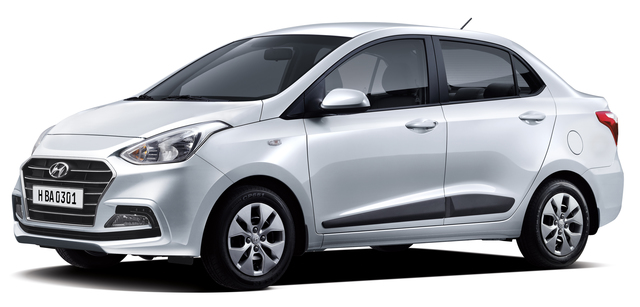

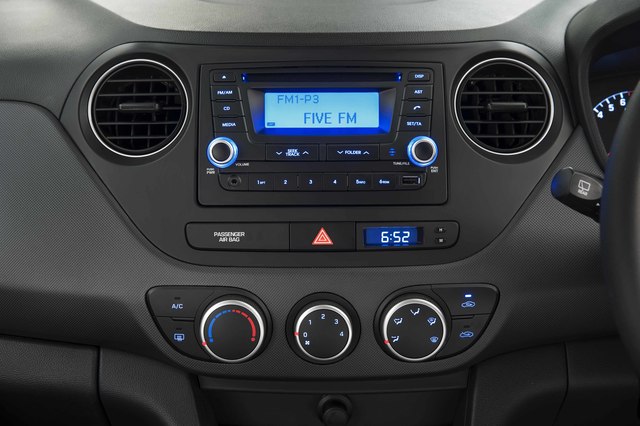

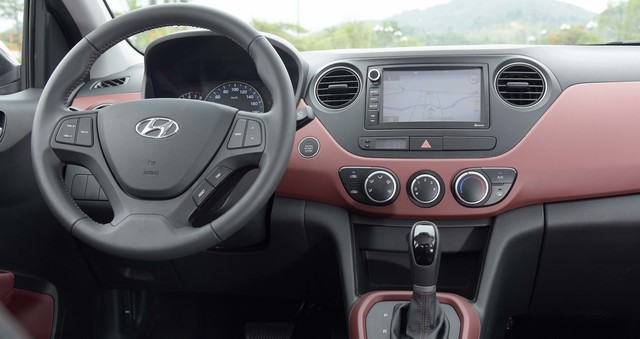

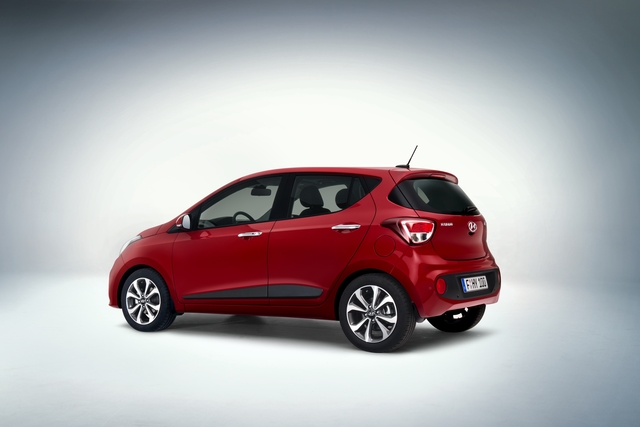

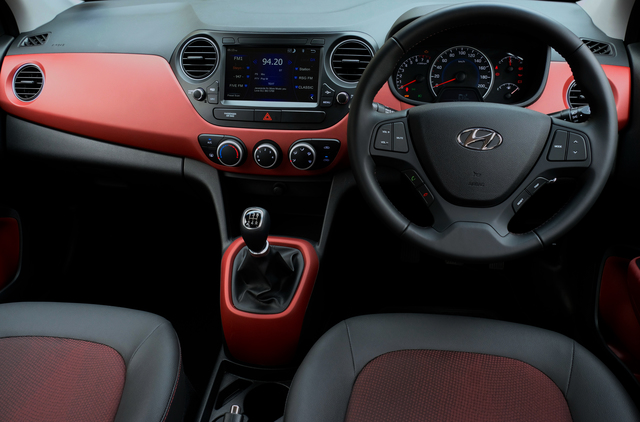

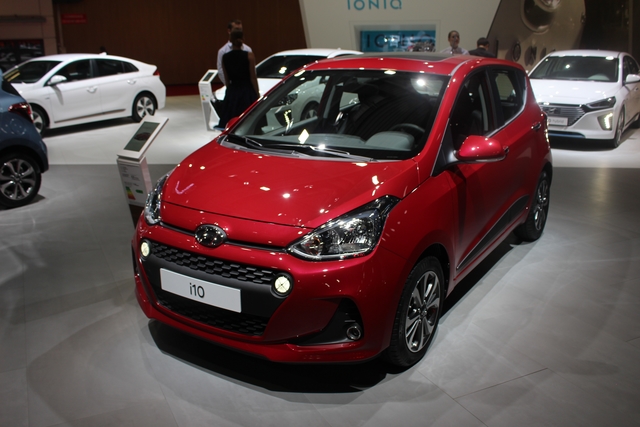

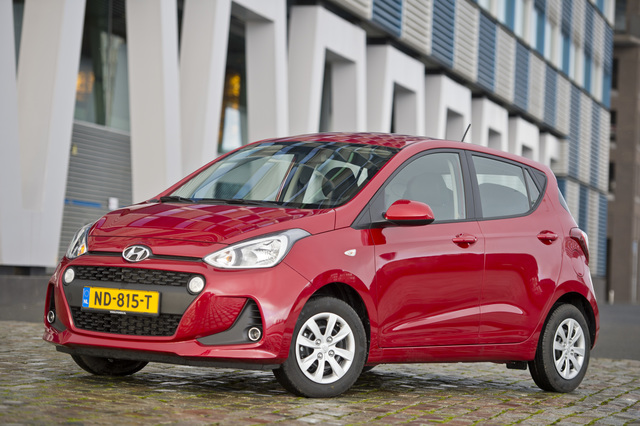

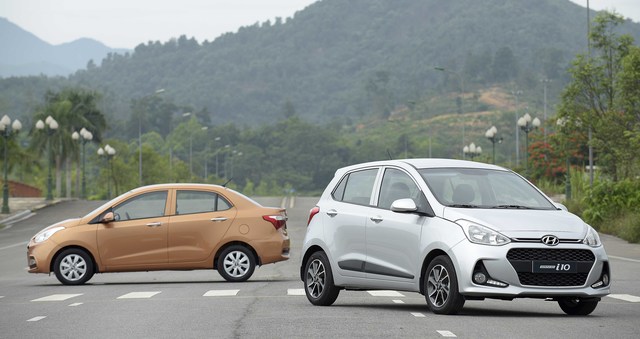

Hyundai i10 2017 photo
Overview

Hyundai i10 at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Hyundai i10 page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 67-87 hp and 998-1248 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

  • Power: 67-87 hp
  • Engine displacement: 998-1248 cc
  • Transmissions: 5, 4, 5-speed manual
  • Seating: 5 seats
Research hub

Photos, trims and specifications for Hyundai i10

This model page brings gallery images, trim comparison, and detailed technical data together for the 2017 generation.

Open photo gallery 21 images Compare trims 5 configurations View detailed specs 998-1248 cc Explore related pages Hyundai and similar models
Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 67-87 hp
Engine displacement 998-1248 cc
Seating 5 seats
Transmissions 5, 4, 5-speed manual
Trim / modification Engine Power Seats Transmission
1.0 5MT Comfort 998 cc 67 hp 5 5
1.0 MPi (67 HP) 5-Mech 998 cc 67 hp 5 5
1.0 MPi (67 hp) 4-auto HiVec H-matic 998 cc 67 hp 5 4
1.2 MPi (87 h.p.) 5-speed manual 1248 cc 87 hp 5 5-speed manual
1.2 MPi (87 hp) 4-auto HiVec H-matic 1248 cc 87 hp 5 4

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

1.0 5MT Comfort 1.0 MPi (67 HP) 5-Mech 1.0 MPi (67 hp) 4-auto HiVec H-matic 1.2 MPi (87 h.p.) 5-speed manual 1.2 MPi (87 hp) 4-auto HiVec H-matic
1.0 5MT Comfort 85 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 998
Cylinders location In-line
Number of cylinders 3
Valves 12
Power, hp 67
Torque, Nm 95
RPM at max torque 3500
Engine 1.0 MPi
Compression 10.5
RPM at max power 5500
Engine code G3LA

Dimensions

Seats 5
Length mm 3665
Width 1660
Height mm 1500
Wheelbase mm 2385
Front track, mm 1455
Rear track, mm 1468
Fuel tank, l 40
Ground clearance, mm 149
Gross weight, kg 1008

Suspension

Type of front suspension MacPherson
Rear suspension Independent, torsional

Brake system

The front brakes Disk
Rear brakes Disk

Steering

Power steering Electromechanical

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6
Fuel consumption (urban), l. 100 km 4
Fuel consumption (combined), l. 100 km 4.7
Acceleration (0-100 km/h), s 14.9
The maximum speed, km / h. 156

Transmission and drive

Number of gears 5
Drive Front
Transmission 5-speed manual
Gearbox Mechanics
Transmission manufacturer Hyundai
Transmission country of origin Korea

Equipment

Comfort

Tyre pressure monitoring +
Adjustable steering column +
Outside temperature sensor +
Adjustable head restraints +

Wheels

Disc diameter 14
Rim type Steel
Tires 165/65R14
Spare wheel Full size

Cabin climate and noise insulation

Air Conditioning +

Glass, mirrors and sunroof

Front power windows +
Heated side mirrors +
Heated rear window +
Power mirrors +
Rear electric windows +
Rear window cleaner +
Tinted glass +
AERO-windshield wipers +

Multimedia and instruments

Steering wheel controls +
Radio +
AUX +
CD player +
USB +
Number of speakers 4
MP3 +

Headlights and lighting

Rear fog lights +
Lights glove box +

Seats

Isofix child seat (LATCH, Isofix) +
The back of the rear seat folds 60/40 +

Off-road

aid climbing the hill (HAC; HSA; Hill Holder; HLA) +

Trunk

Highlighting the trunk +

Exterior

Rear spoiler +
Fenders +

Body and exterior paint

Door handles in body color +
Bumper in body color +
Exterior mirrors in body color +

Security

Electronic systems

Anti-lock braking system (ABS) +
Warning system for emergency braking (ESS) +
Vehicle Stability Control (ESP, DSC, ESC, VSC) +
Children's locks +
Brake Assist (BOS, BAS) +
The system stabilizes the vehicle in motion (VSM) +

Anti-theft systems

Locking +
alarm +

Airbags

Driver's airbag +
Passenger Airbag +
Deactivating the front passenger airbags +
1.0 MPi (67 HP) 5-Mech 34 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 998
Cylinders location In-line
Number of cylinders 3
Valves 12
Power, hp 67
Torque, Nm 95
RPM at max torque 3500
Engine 1.0 MPi
Compression 10.5
RPM at max power 5500
Engine code G3LA

Dimensions

Seats 5
Length mm 3665
Width 1660
Height mm 1500
Wheelbase mm 2385
Front track, mm 1455
Rear track, mm 1468
Kerb weight, kg 973
Fuel tank, l 40
Gross weight, kg 1310

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6
Fuel consumption (urban), l. 100 km 4
Fuel consumption (combined), l. 100 km 4.7
Acceleration (0-100 km/h), s 14.9
The maximum speed, km / h. 156

Transmission and drive

Number of gears 5
Drive Front
Transmission 5-speed manual
Gearbox Mechanics
Transmission manufacturer Hyundai
Transmission country of origin Korea
1.0 MPi (67 hp) 4-auto HiVec H-matic 35 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 998
Cylinders location In-line
Number of cylinders 3
Valves 12
Power, hp 67
Torque, Nm 95
RPM at max torque 3500
Engine 1.0 MPi
Compression 10.5
RPM at max power 5500
Engine code G3LA

Dimensions

Seats 5
Length mm 3665
Width 1660
Height mm 1500
Wheelbase mm 2385
Front track, mm 1455
Rear track, mm 1468
Kerb weight, kg 973
Fuel tank, l 40
Gross weight, kg 1310

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7.3
Fuel consumption (urban), l. 100 km 5.8
Fuel consumption (combined), l. 100 km 4.8
Acceleration (0-100 km/h), s 16.8
The maximum speed, km / h. 150

Transmission and drive

Automatic transmission +
Number of gears 4
Drive Front
Transmission 4-car HiVec H-matic
Gearbox Machine
Transmission manufacturer Hyundai
Transmission country of origin Czech Republic
1.2 MPi (87 h.p.) 5-speed manual 34 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1248
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 87
Torque, Nm 121
RPM at max torque 4000
Engine 1.2 MPi
Compression 10.5
RPM at max power 6000
Engine code G4LA

Dimensions

Seats 5
Length mm 3665
Width 1660
Height mm 1500
Wheelbase mm 2385
Front track, mm 1455
Rear track, mm 1468
Kerb weight, kg 973
Fuel tank, l 40
Gross weight, kg 1310

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6.5
Fuel consumption (urban), l. 100 km 4.1
Fuel consumption (combined), l. 100 km 4.9
Acceleration (0-100 km/h), s 12.3
The maximum speed, km / h. 175

Transmission and drive

Number of gears 5
Drive Front
Transmission 5-speed manual
Gearbox Mechanics
Transmission manufacturer Hyundai
Transmission country of origin Korea
1.2 MPi (87 hp) 4-auto HiVec H-matic 35 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1248
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 87
Torque, Nm 121
RPM at max torque 4000
Engine 1.2 MPi
Compression 10.5
RPM at max power 6000
Engine code G4LA

Dimensions

Seats 5
Length mm 3665
Width 1660
Height mm 1500
Wheelbase mm 2385
Front track, mm 1455
Rear track, mm 1468
Kerb weight, kg 973
Fuel tank, l 40
Gross weight, kg 1310

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7.4
Fuel consumption (urban), l. 100 km 5
Fuel consumption (combined), l. 100 km 5.9
Acceleration (0-100 km/h), s 13.8
The maximum speed, km / h. 175

Transmission and drive

Automatic transmission +
Number of gears 4
Drive Front
Transmission 4-car HiVec H-matic
Gearbox Machine
Transmission manufacturer Hyundai
Transmission country of origin Czech Republic
FAQ

Hyundai i10 questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Hyundai i10?

This page lists 5 trims for the Hyundai i10, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Hyundai i10?

The listed configurations show a power range of 67-87 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Hyundai i10?

The available specification data shows engine displacement from 998-1248 cc across the trims listed on this page.

Which transmissions are listed for the Hyundai i10?

The transmission options currently shown for this model are: 5, 4, 5-speed manual. Open a trim section to see the full data for a specific configuration.

Are there photos for the Hyundai i10?

Yes. The gallery includes 21 photos for the Hyundai i10, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
